Yale

Lockmaster 21

Celebrating 21 years of Lockmaster, Yale is proud to introduce Lockmaster 21, the latest innovative addition to Britain's best-selling range of multipoint door locking systems.

The Lockmaster 21 is compatible with the Yale SensCheck ™ Door and Window Sensor range

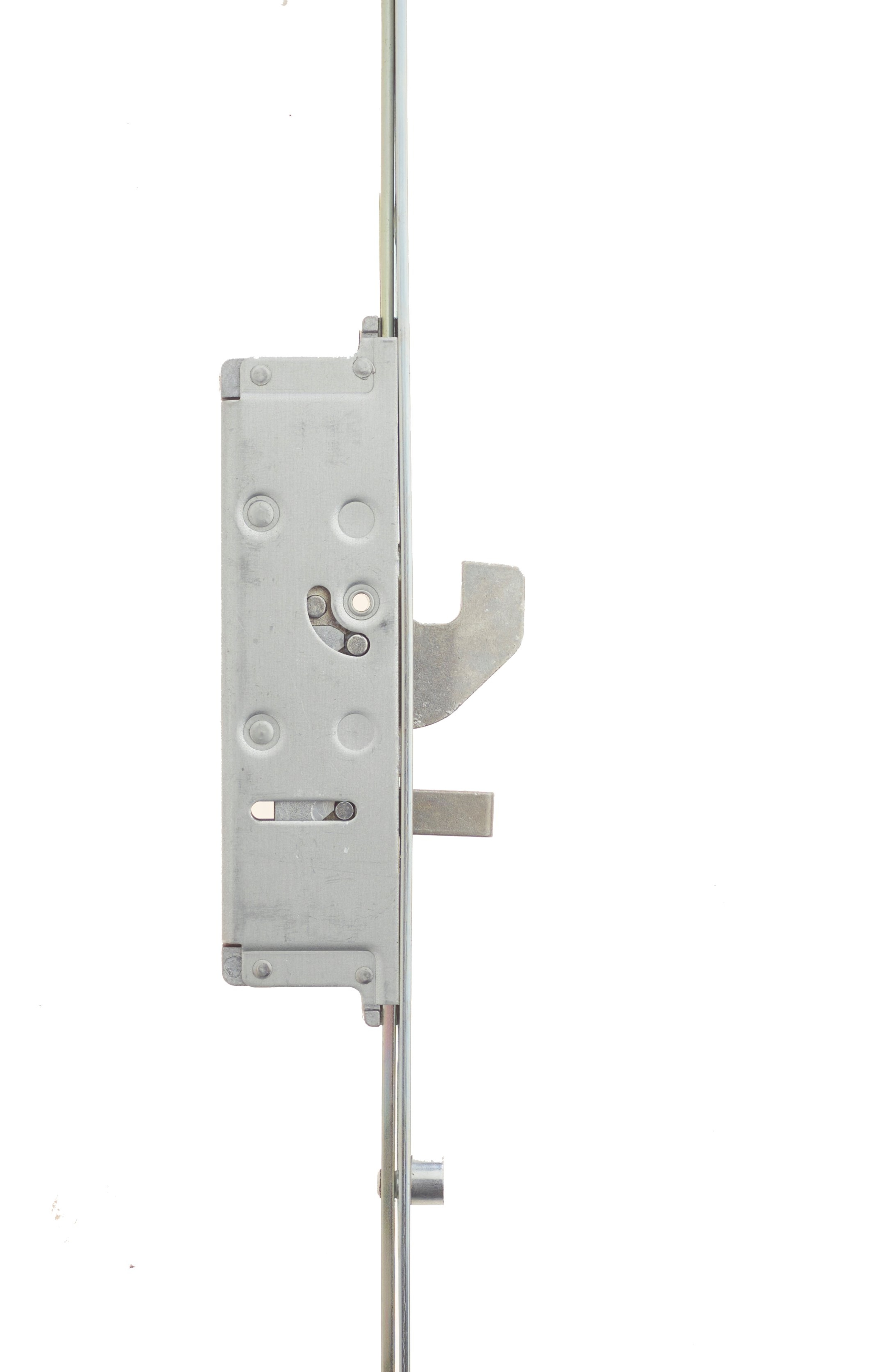

Locking Points

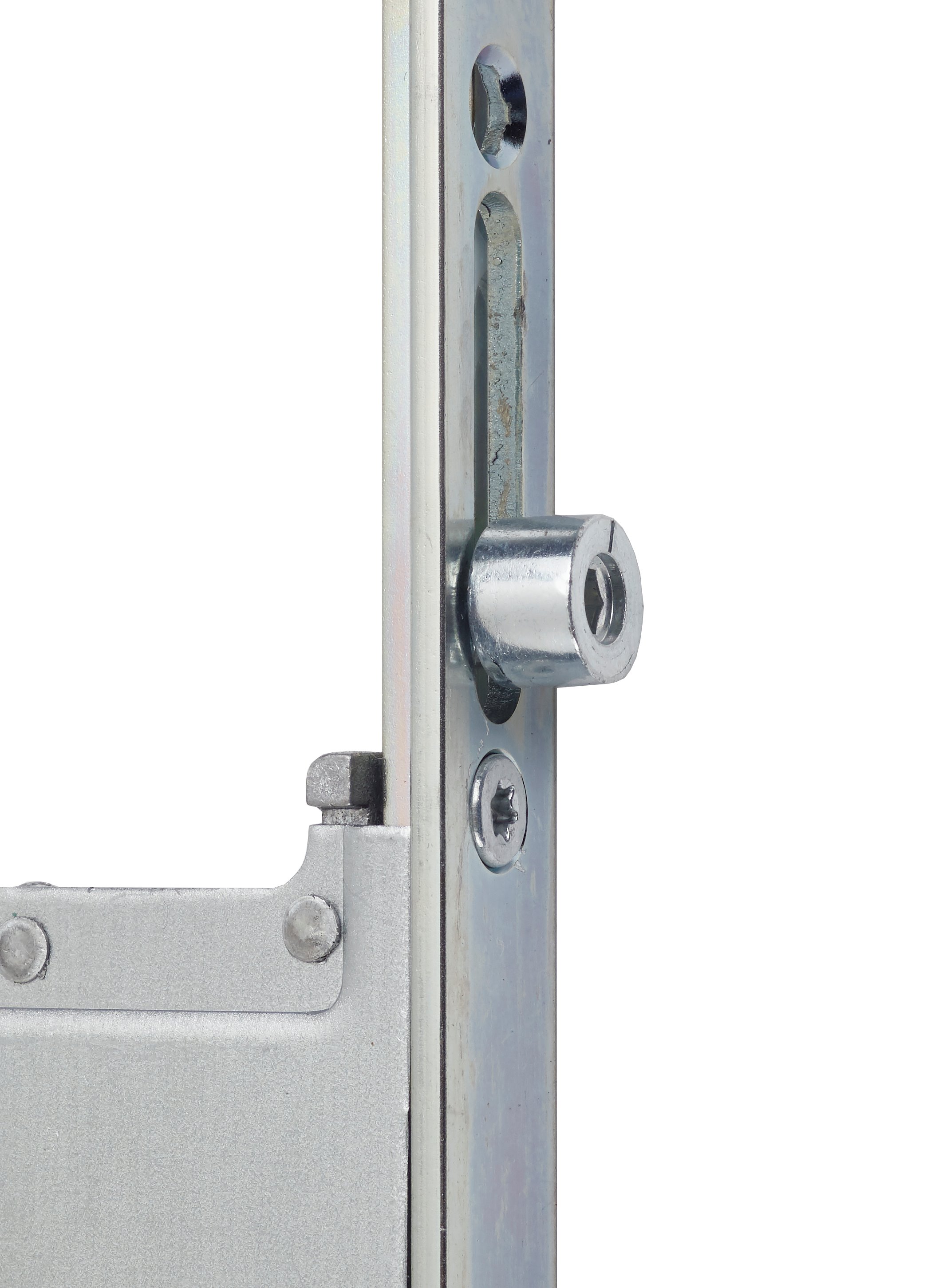

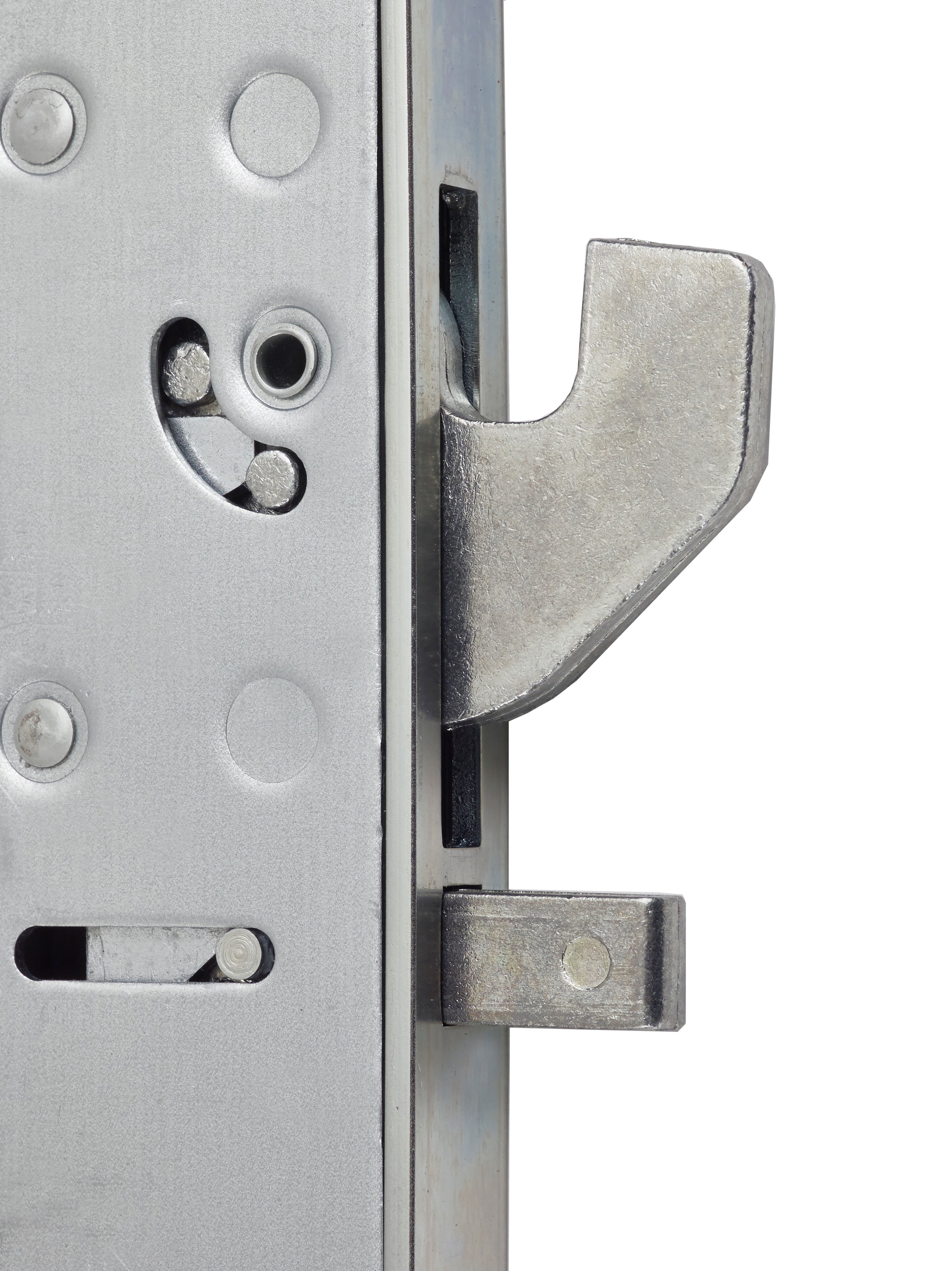

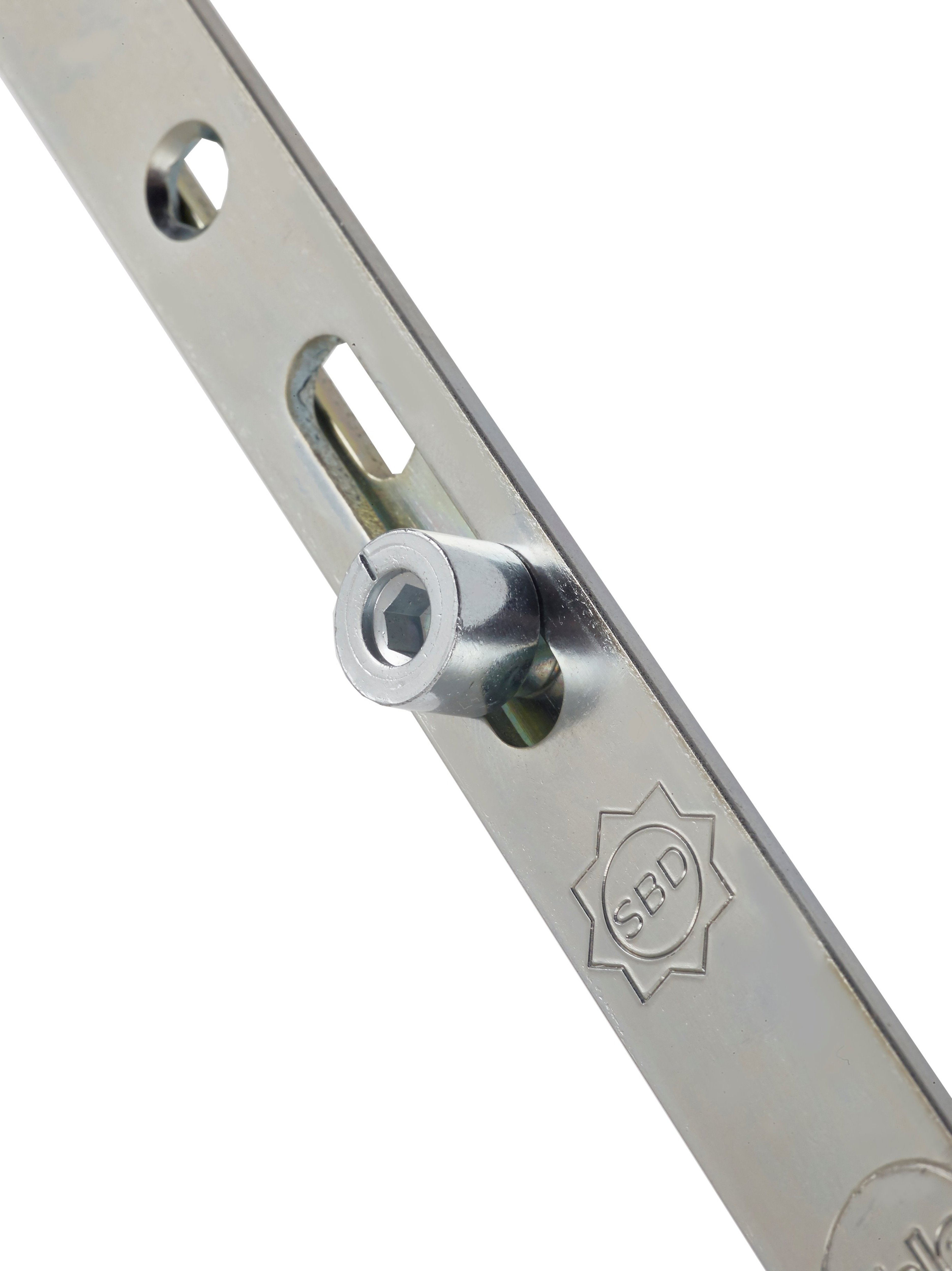

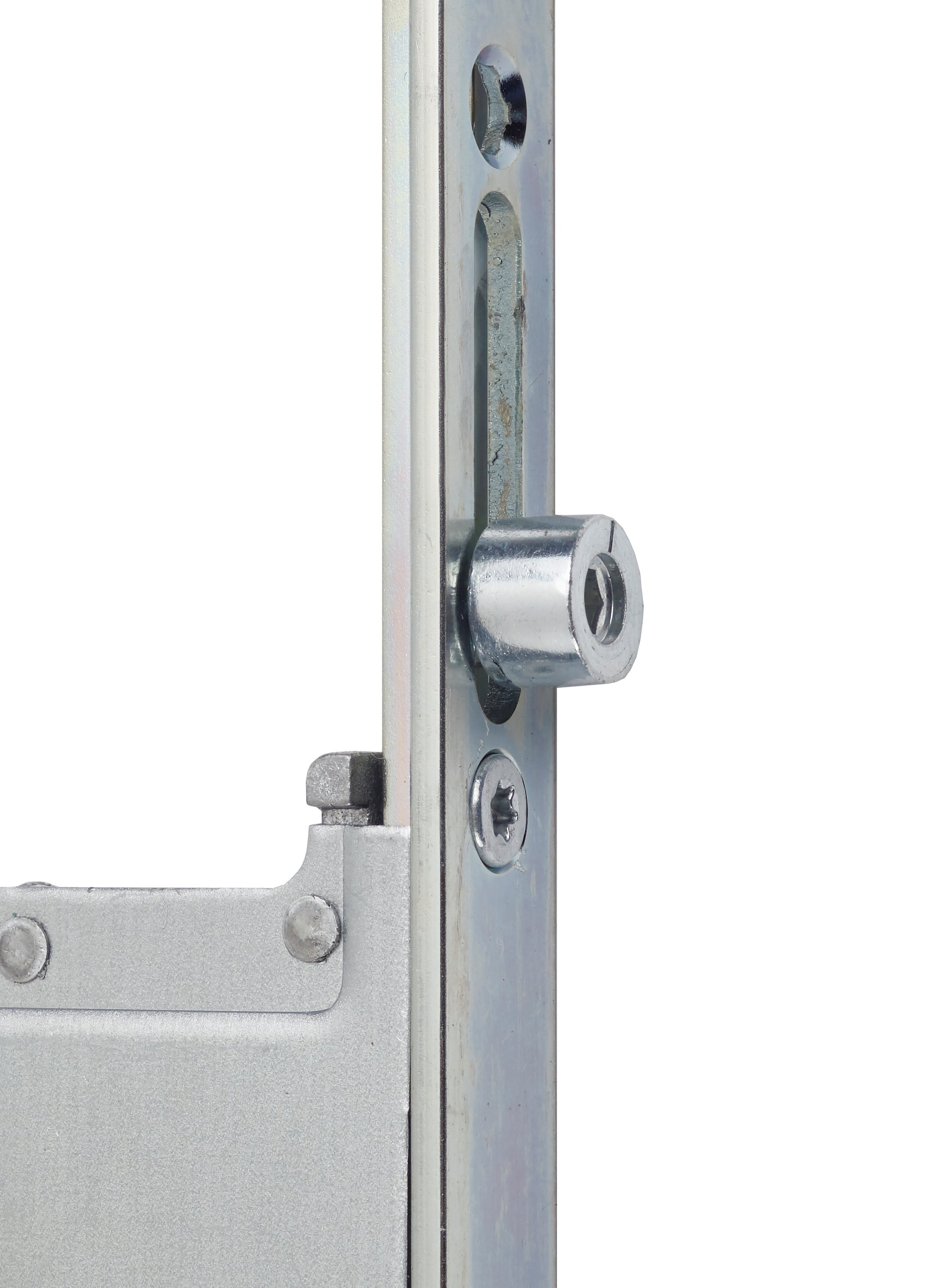

  • Lockmaster's signature hook and pin unit has been carefully positioned within 100mm of the pre-compression rollers
  • Strengthened centre case offering enhanced security for added peace of mind
  • Pre-compression rollers
  • Sprung and unsprung centre cases to suit front and back door applications; now with centre anti-separation hook as standard
  • Easy to use push-in latch snib feature to prevent accidental lock-outs
  • Available in 35mm and 45mm backset options
  • Suitable for PVCu, aluminium, composite and timber doors

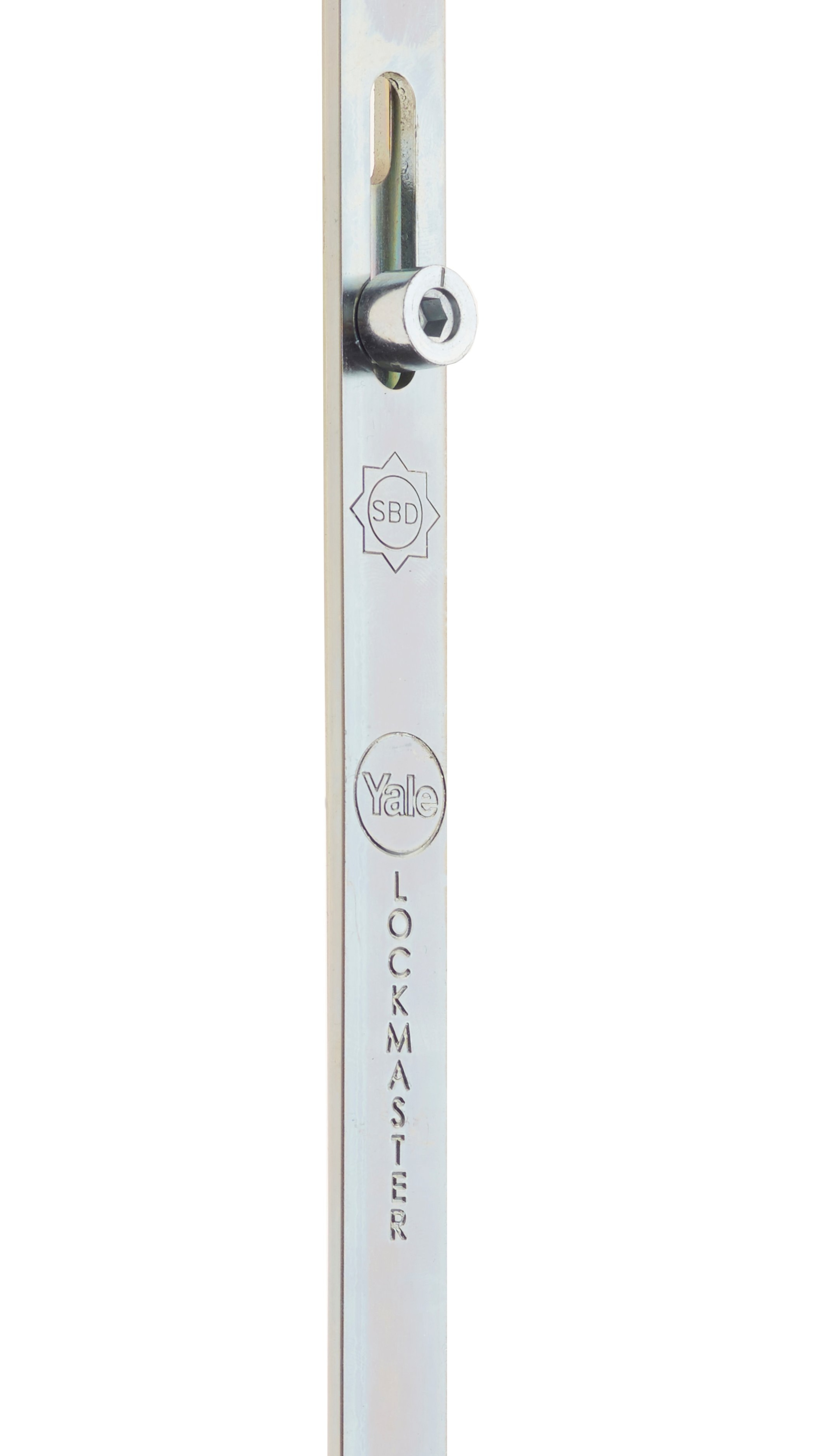

Faceplate

  • Yale branded
  • Manufactured from 430 stainless steel
  • 16mm or 20mm faceplate options
  • Range includes square and radius ends options
  • Aluminium and plastic 44mm trim sets available for use on composite doors



Specification

  • Secured by Design approved
  • PAS 24:2016 security tested
  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Endurance tested to 50,000 cycles
  • 10-Year Mechanical Guarantee
  • Made in Britain

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

  • Lockcase: Galvanised mild steel
  • Faceplate: 430 stainless steel
  • Keeps: Mild steel, BZP and clear trivalent

Packaging

  • Locks: 5 per box
  • Keeps: 5 per box

Maintenance

Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

*Terms and conditions apply

  • 13mm axis one piece keep

    In line with the improvements made to the Lockmaster 21 gearbox, the 13mm Axis keep offers maximum security, pleasing aesthetics and enhanced longevity.



    Features

    • 13mm axis one piece keep enabling it to pass the load test for PAS 24:2016 when incorporated as part of a doorset
    • Variety of screw-in and push fit profile packers available
    • Screw-in strengthed plastic tidy-boxes offering improved longevity and a more aesthetically-pleasing look



    Faceplate

    • Yale branded
    • Manufactured from plated mild steel
    • Range of keeps to suit Lockmaster 21 available; 3 hook/2 roller and 4 roller options
