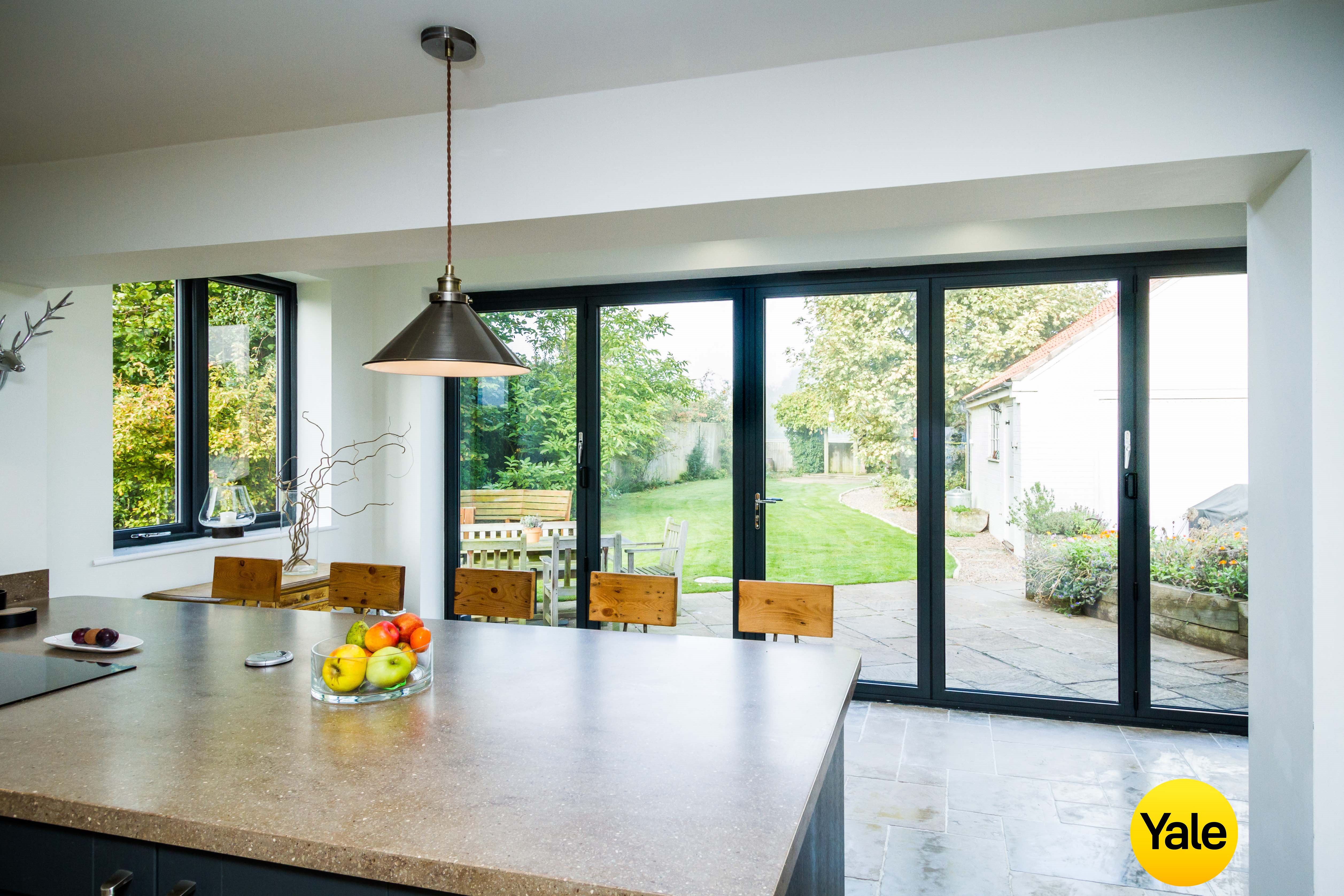

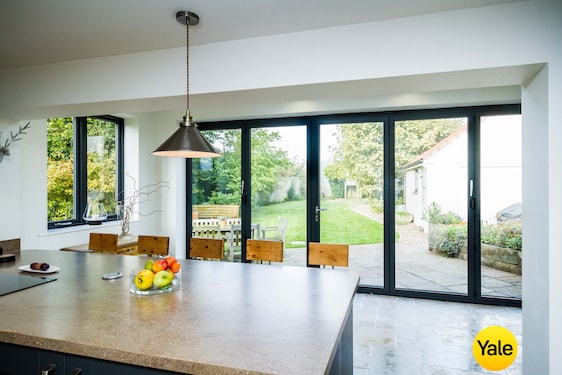

Bi-Fold Door Hardware

Britain's best-selling lock range has been extended to include a 24mm u-channel variant designed for modern aluminium bi-fold doors and features Lockmaster's signature hook and anti-lift pins.

Locking Points

• Lockmaster^® signature hook and anti-lift pins
• Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
• Lockmaster^® two hook and anti-lift pin variant
• Passive mechanism for French door application is available
• 28mm backset with PZ92mm centre case
• Combined 3 piece keep
• 2 lock lengths to suit a variety of door heights

Faceplate

• 24mm U-Channel
• Yale Branded

Specification

• PAS 24:2016 security tested
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to  100,000 cycles
• 10-year Mechanical Guarantee
• Made in Britain

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

• Lock Case: Galvanised Mild Steel
• Faceplate: Mild Steel CS4 - ST2473
• Deadbolt and Latchbolt: Zinc Alloy Casting
• Keeps: Mild Steel, BZP and Clear Trivalent

Packaging

Locks: 5 locks per box

Maintenance

Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

The UK's most popular multi-point lock platform is available in a 28mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.

Designed and tested to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.

Locking points

• Lockmaster^® signature hook and anti-lift pins
• Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
• Lockmaster^® two hook and anti-lift pin variant for PVCu application
• Passive mechanism for French door application is available
• 28mm backset with PZ92mm centre case
• Pre-compression roller engagement cams

Faceplate

• 16mm faceplate
• Yale branded

Specification

• PAS 24:2016 security tested
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles
• 10-year Mechanical Guarantee
• Made in Britain

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

Lock Case: Galvanised Mild Steel

Faceplate: Mild Steel, BZP and Clear Trivalent

Deadbolt and Latchbolt: Zinc Alloy Casting

Keeps: Mild Steel, BZP and Clear Trivalent

Packaging

Locks: 5 locks per box

Maintenance

Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

The UK's most popular multi-point lock platform is available in a 25mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.

Designed to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.

Locking points

• Lockmaster^® signature hook and anti-lift pins
• Deadbolt centre with an easily reversible latch bolt to minimise stock requirements.
• Lockmaster^® two hook and anti-lift pin variant for PVCu application
• Active and passive options available
• 25mm backset with PZ92mm centre case
• Pre-compression roller engagement cams

16mm faceplate

Yale branded

Specification

• PAS 24:2016 designed to achieve
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles
• 10-year Mechanical Guarantee
• Made in Britain
• Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Packaging

Locks: 5 locks per box

Maintenance

Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

The Yale Platinum Euro Profile cylinder is a TS007 3 star Kitemarked Anti-Snap security product to provide maximum security against known attack methods.

The Platinum 3 Star cylinder is independently tested by BSI to be awarded the British Kitemarked TS007:2014 3 Star accreditation.

Specification

• TS007:2014 3 Star approved
• KM559658
• BS EN 1303:2005 approved
• Anti-snap sacrificial front section
• Anti-Pick, Anti-Bump, Anti-Pull, Anti-Drill, Anti-Screw
• BSI approved re-pinning available with kitemark accreditation
• Euro retrofit cylinder

Features

• Superior strength with a cylinder stability system
• Stylish black finish to suit modern designs
• Horizontal keyway
• Flat reversible dimple key with stylish new Yale branded key bow
• Key card for easy code identification and duplicate key ordering
• Key cutting made easy at yalestore.co.uk

TS007:2014

TS007 is a standard developed in response to concerns over cylinder attacks. The standard is characterised by a 3 star rating system and can be achieved by combining a 1 star cylinder with a 2 star security door furniture or using a standalone 3 star cylinder. The Platinum series cylinder is approved to TS007 3 stars and does not require any additional security furniture.

Maintenance and care of your Yale cylinder

Yale recommends regular lubrication of your Yale cylinder locks to ensure continuous trouble-free performance and operation.

For this, we recommend using a PTFE based lubricant. A small amount of lubricant should be applied to the key and then inserted into the cylinder.  Rotate the key a couple of times in line with the normal locking function.  Remove the key from the cylinder and wipe away any remaining lubricant to ensure it isn’t transferred onto other objects.

Rollers

Supporting vents up to 100kg, our rollers are made with chrome brass wheels with high quality bearings to facilitate a continued smooth sliding operation. Rollers from Caldwell are also supplied with an aluminium hinge bespoke to the door’s profile making for a fit perfectly matched to your door.

Additionally, Caldwell are also able to supply single rollers which allows vents to rest adjacent to the door vents or frame.

Roller Specification

• Supports vents up to 100kg
• Aluminium link between body and hinge
• Chrome plated brass wheels
• Ball bearings mounted on 303 austenitic stainless steel axles
• Hinge bespoke to door profile
• Fixed position with height adjustment via tapping plates
• The roller’s main body is manufactured from ZP5 Zinc alloy die-castin

Top Guides

In addition to our rollers, we also manufacture and supply both standard and single top guides to aid the door’s sliding mechanism. Top guides are used in conjunction with rollers, and feature much of the high specification features as our rollers, including:

• Available in standard or single configurations
• Aluminium extruded link between body and hinge
• Mounted on austenitic stainless steel spindles
• The main body is manufactured from ZP5 Zinc alloy die-casting

High quality hinges between door leafs provide a quality folding operation, whilst also folding to create a flush, secure seal against external conditions .

Shootbolt Handles

Our shootbolt handles are robustly designed, whilst also offering great aesthetics. For security assurances, they drive a shootbolt from the traffic door which is designed to withstand forced entry.

Open in D Handle

Ergonomically designed and easy to use the D handles for internal use on bi-folding door systems. They provide a solid hold for operating the bi-fold sliding mechanism.

Specification

• Security tested to PAS 24

• All clamp plates and fittings supplied

• Suitable for door panels up to 100kg and 1200mm wide

• Ergonomic D-handle made from die cast zinc

• Hinge made from extruded aluminium for toughness with stainless steel pins for strength and durability
