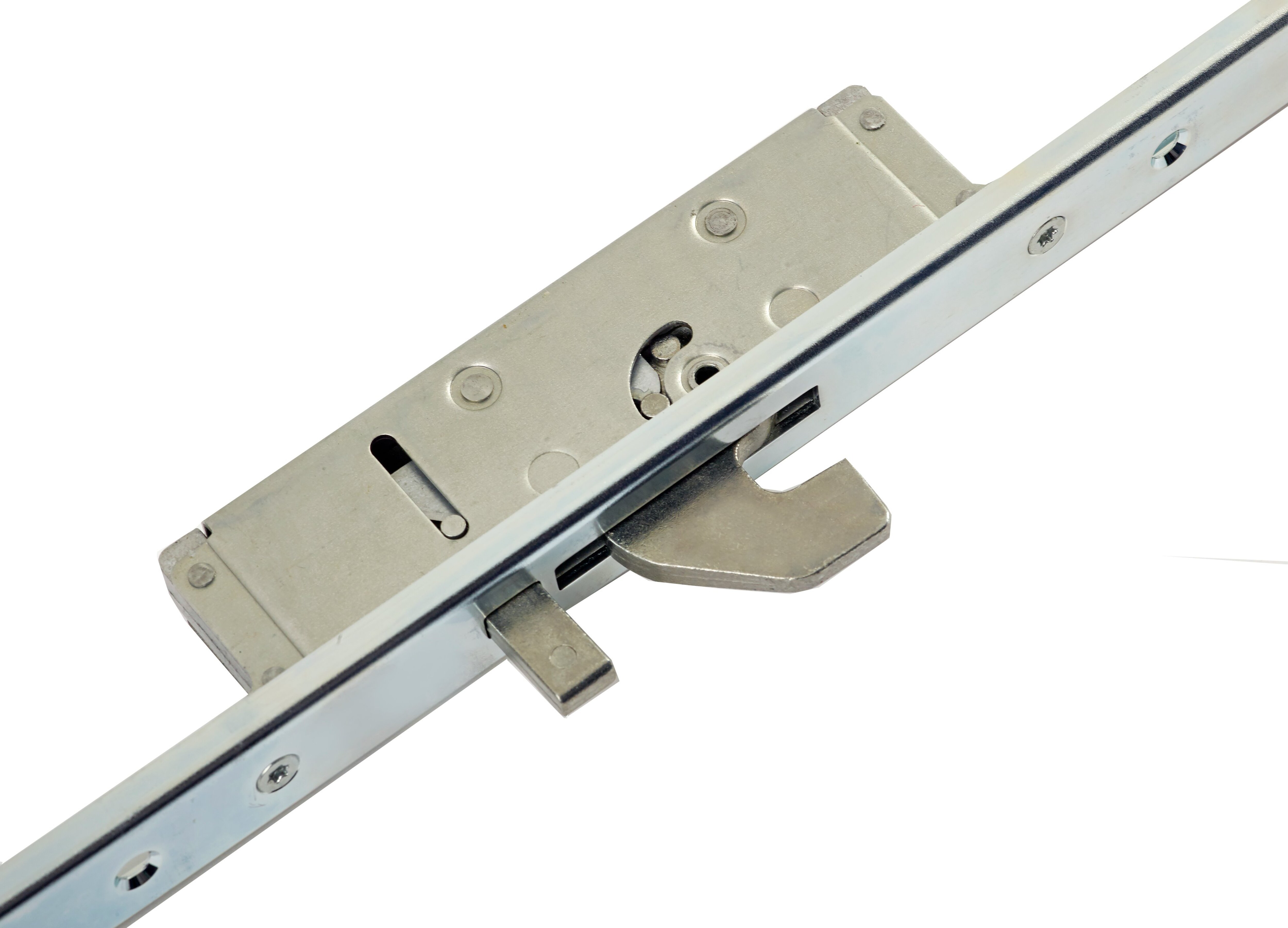

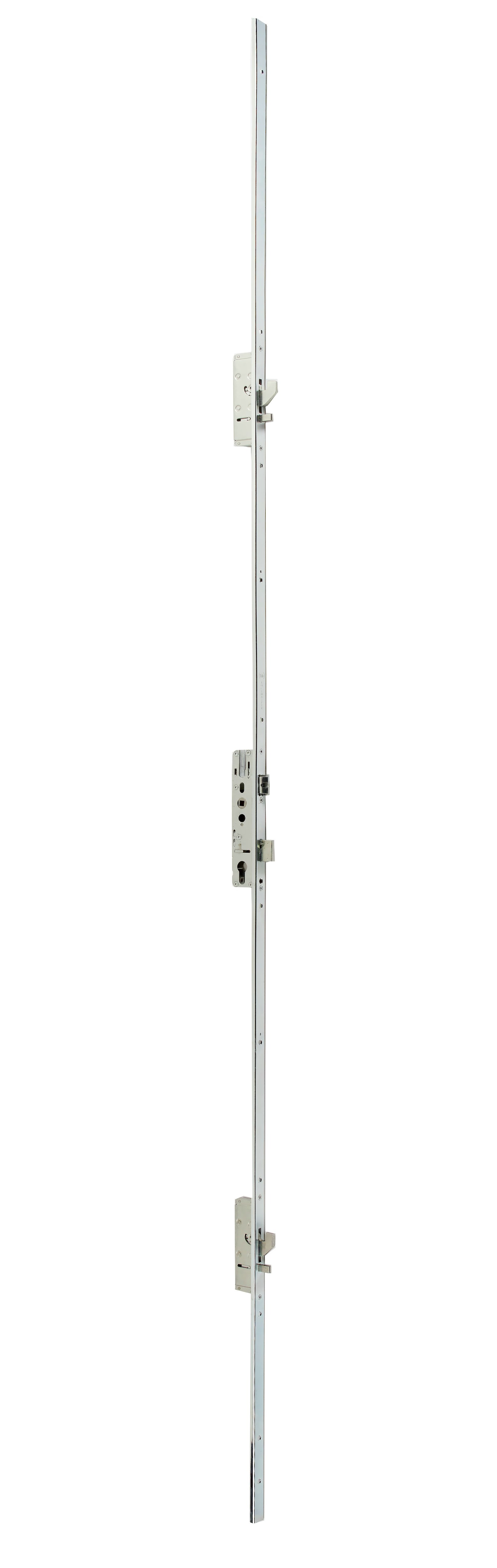

Lockmaster 28mm, 16mm Faceplate
The UK's most popular multi-point lock platform is available in a 28mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.
Designed and tested to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.
Locking points
- Lockmaster® signature hook and anti-lift pins
- Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
- Lockmaster® two hook and anti-lift pin variant for PVCu application
- Passive mechanism for French door application is available
- 28mm backset with PZ92mm centre case
- Pre-compression roller engagement cams
Faceplate
- 16mm faceplate
- Yale branded
Specification
- PAS 24:2016 security tested
- Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
- Endurance tested to 100,000 cycles
- 10-year Mechanical Guarantee
- Made in Britain
Included within the Yale Lifetime Security Guarantee*
*Terms and conditions apply
Material Specification
Lock Case: Galvanised Mild Steel
Faceplate: Mild Steel, BZP and Clear Trivalent
Deadbolt and Latchbolt: Zinc Alloy Casting
Keeps: Mild Steel, BZP and Clear Trivalent
Packaging
Locks: 5 locks per box
Maintenance
Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
