Door and Window Furniture

The Yale Quartus Espag Handle offers homeowners the ultimate solution with its aesthetically pleasing design and user-friendly functionality, making it the ideal choice for aluminium and uPVC windows.

Available in inline and offset variants as well as a wide range of finishes, this handle has been designed, developed and tested in the UK to Yale's precise standards and high-performance security.

Features

• Push to unlatch Yale branded mechanism
• Key operated locking mechanism
• Key deadlocking for added security and safety
• Non-locking push to unlatch version in Black, White and Green for egress applications available
• Aesthetically pleasing as part of the suited range of window hardware
• Available in inline and offset variants
• Available in Satin Black, Chrome, Champagne Gold, Silver, and White finishes
• Available with a variety of spindle lengths ranging from 10mm - 75mm to accommodate a wide range of window profiles*
• Fixed spindle supplied as standard
• Supplied with screws, colour matched screw caps and cylinder plug to achieve a non-locking solution
• Supplied with a Yale branded key
• Spare keys and screw cover caps available upon request

Guarantee and Standards

• 10-year Mechanical Guarantee
• 10-year Surface Finish Guarantee
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
• Lifetime Security Guarantee when used with other Yale security hardware**

* Other sizes available upon request

** Terms and conditions apply. Please see yaledws.co.uk for further details

The Sparta Tilt and Turn Window Handle offers an attractive product design. The grip feature gives increased hand clearance and incorporates an ergonomic soft grip insert giving improved comfort and feel during use.

Features:

• Ergonomic soft grip feature and improved aesthetics
• Push to open, key lockable in closed position
• Non-locking egress option
• Complements all products in the Sparta handle range
• Available in a full choice of finishes including Gold (PVD), Polished Chrome, Satin Silver, Black, and White finishes

Specification:

• Base grip - Zinc Alloy
• Button and mechanism - Nylon 66 and acetal
• Corrosion tested to BS EN 1670: Painted finishes Grade 5, plated finishes Grade 4
• Endurance tested to 25,000 cycles
• 10-year Mechanical Guarantee

• 12-month Surface Finish Guarantee

*Guarantee subject to correct installation and maintenance

The stylish ergonomic design of the Sparta Cockspur Handle makes it easy to use and a pleasure to look at. Multiple nib and height options make it suitable for a wide range of installations while, as part of the Sparta handle range, it is part of a perfectly coordinated handle suite.

Features:

• Ergonomic stylish design and improved aesthetics as part of the suited range of hardware
• Push to open, key lockable
• Non-locking egress options available
• 3 locking nib height options 9mm, 15.5mm and 21mm
• 3 locking wedge options - 2.55mm, 4mm and 5.5mm
• Available in a full choice of finishes including Polished Chrome, White, and Black finishes
• Spare keys and screw cover caps available

Specification:

• 12-month Surface Finish Guarantee
• 10-year Mechanical Guarantee
• Base grip - Zinc alloy
• Plastic parts - Nylon 66, UV stabilised ABS and Acetal
• Corrosion resistance to BS EN 1670: Painted finishes Grade 5, plated finishes Grade 4
• Endurance tested to 25,000 cycles

*Guarantee subject to correct installation and maintenance

Virage Window Handle available in offset, inline espagnolette and cockspur.

Features

• Ergonomic design for comfort
• Positive stop on offset espagnolette and cockspur to ensure accurate in-line closure
• Key dead locking available for added security
• Non locking green push button version for emergency escape
• Locking and non-locking versions available with black button
• Non latching variant available for DDA requirements
• Available in Black, White, Egress, Black, and Chrome finishes
• In-line espagnolette version for slim line profiles and non-handed applications
• Push to unlatch mechanism
• Suited look for espagnolette and cockspur mixed applications
• Special colours available to order, minimum quantity 5,000
• Included in the Lifetime Guarantee (Terms and conditions apply)

Specifications

• 10-year guarantee for Virage espagnolette and in-line variants (details available upon request)
• BBA certification
• Corrosion tested to (240hrs. NSST)

The stylish Sparta Stainless Steel Door Handle is manufactured in 304 Stainless Steel giving ultimate corrosion resistance and comes with an impressive 25 year guarantee* on all finishes. As part of the Sparta handle range, the Stainless Steel Door Handle can be combined perfectly with other products for a totally coordinated door suite.

Features:

• Manufactured in 304 Stainless Steel giving ultimate corrosion resistance
• Superior quality and design for product longevity
• Incorporates patented spring cassette which eliminates the 'drooping handle' effect
• Combines with other Stainless Steel furniture for a totally coordinated approach
• Suits all locks and is available as a lever/lever
• Available in a full choice of finishes including Champagne Gold, Chrome, Satin Black and White powder coated over Stainless
• Fixings available to support both PVC-U and Composite Doors
• Guarantee* 25 year anti-corrosion available on all finishes
• Guarantee* 10 year mechanical

Specification

• 304 Stainless Steel
• Plastic parts - Nylon 66
• Door thickness 44mm-75mm (suitable spindle lengths are available upon request)
• Cylinder aperture - standard euro cylinder
• Cycle tested to 50,000 cycles
• Corrosion tested in excess of 1000 hours based on BS EN 1670
• Conforms to BS 1906
• 25 year anti-corrosion guarantee*
• 10 year mechanical*
• Abusive load tested to BS 6462

These products are available in the Combi range which offers the following options:

• Elite Range - Stainless Steel external and inner face
• Premium Range - Stainless Steel external face and Zinc Chrome or Gold (PVD) inner face
• Standard Range - Stainless Steel external face and White/Black inner face

*Guarantee subject to correct installation and maintenance

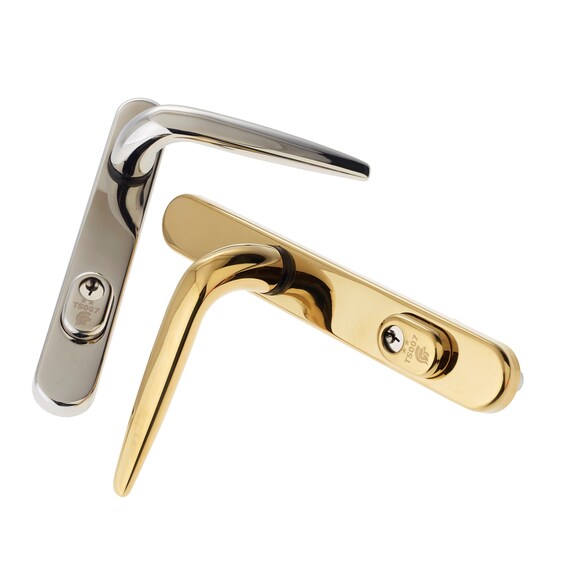

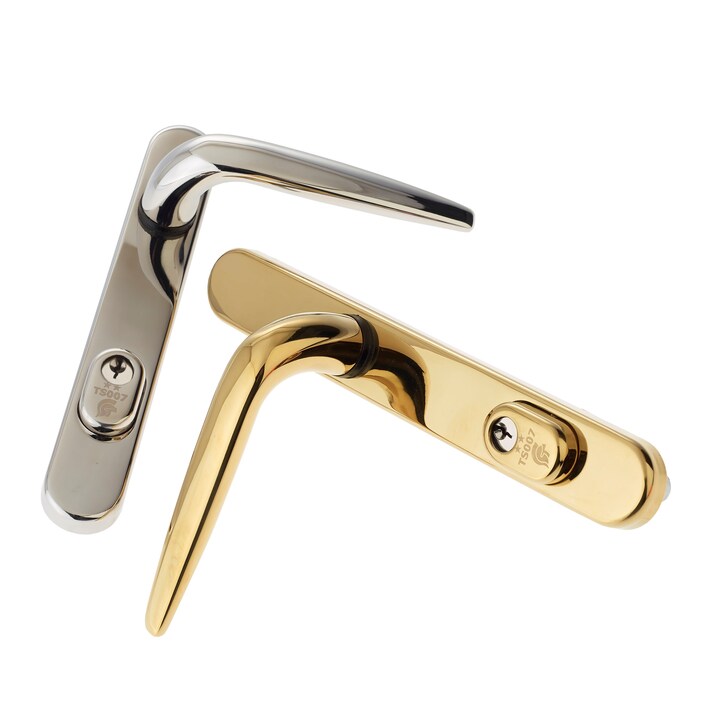

The Platinum series Maximum Security TS007 2 star handle provides the best level of security available for protective door furniture. This handle carries the British Kitemark and meets PAS 24 standards, protecting against known attack methods for ultimate peace of mind.

In addition the marine grade 316 stainless steel on the external handle and backplate provide ultimate corrosion resistance, resulting in a handle which offers the very best performance in both security and longevity.

Features:

• TS007 (KM532920) 2 star security hardware can be used in conjunction with a TS007 1 star rated cylinder to offer the maximum 3 star level of security
• 30 degree inclusive chamfered edges makes the backplate difficult to grip, protecting against mole grip attacks
• Built in cylinder guard protects against cylinder attacks
• Stainless Steel hybrid design for marine grade corrosion resistance
• Supplied with fixings for PVCu and Composite doors
• Snib facility on offset versions
• M6 Stainless Steel screws for improved strength and security
• Suites with the Yale Platinum Letterplates

Specifications:

• TS007 2 star security rated hardware ( KM 532920)
• EN 1906:2012 – Classification Code: 2/7/–/ 0/0/0/5/0/B
• 20-year Mechanical Guarantee
• 20-year Surface Finish Guarantee
• Corrosion tested to EN 1670:2007 Grade 5 (480hrs NSST)
• Endurance tested to 200,000 cycles
• Available in both PZ92 and PZ92/62mm versions
• Maximum Security

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

Colour Options:

• PVD Polished Chrome
• PVD Polished Gold

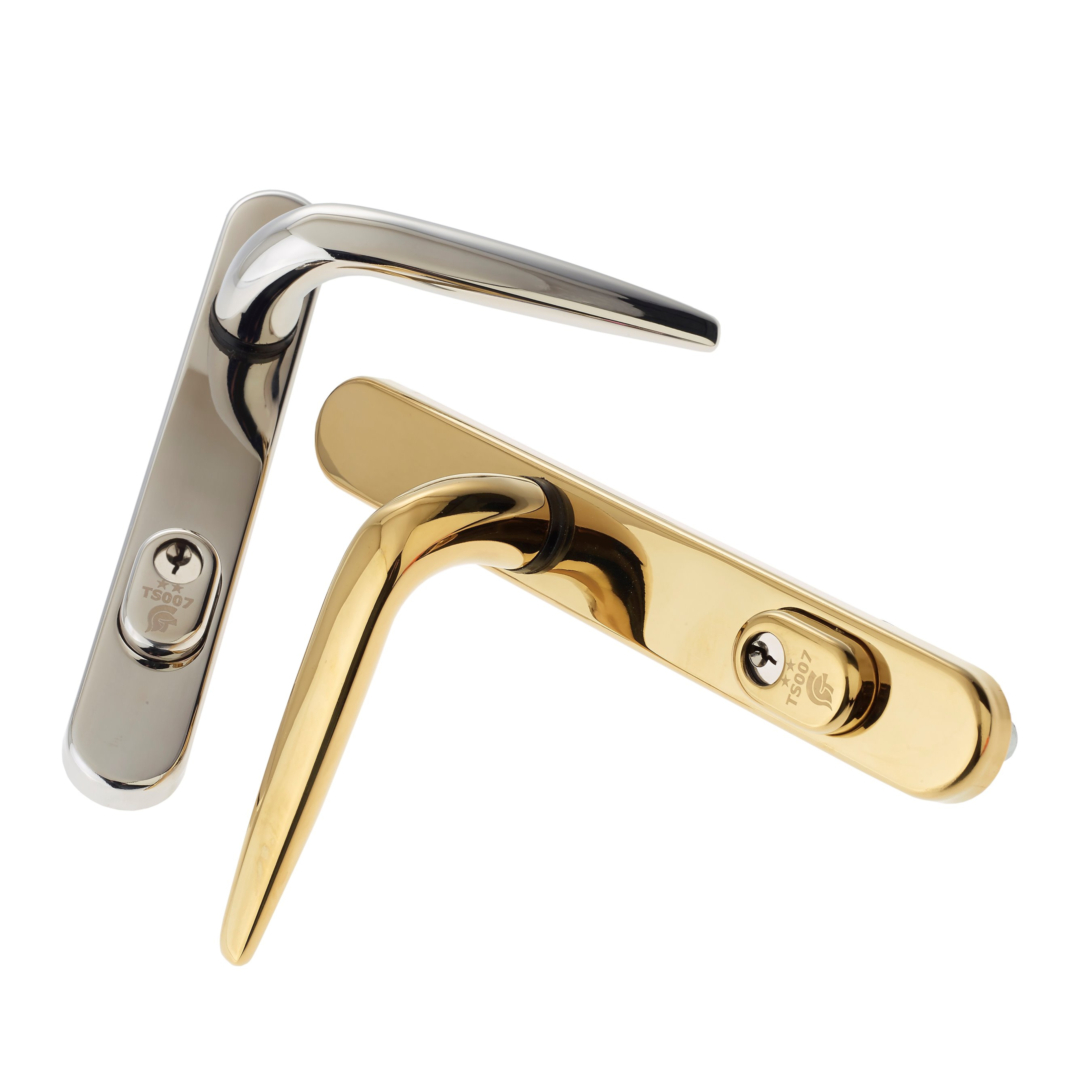

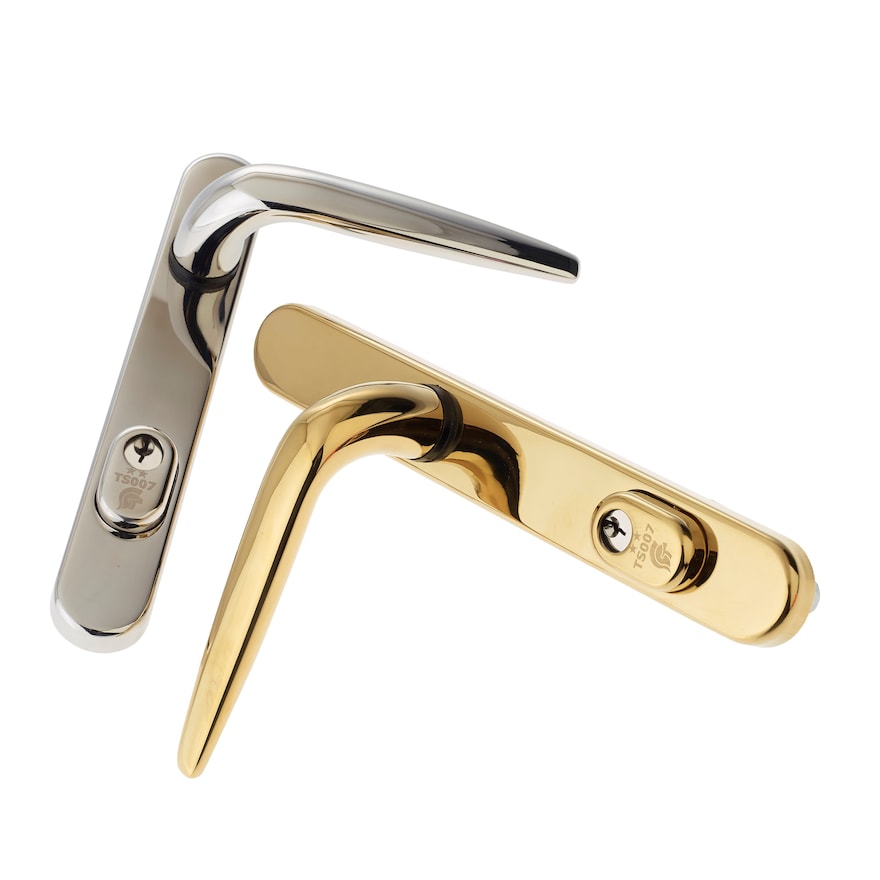

The Yale Platinum handle sets deliver optimal levels of corrosion resistance, together with stunning contemporary design and eye catching aesthetics. Suitable for use on standard, split spindle and dual spindle applications.

Features:

• Stainless Steel hybrid design for marine grade corrosion resistance
• Snib facility for offset versions
• M6 Stainless Steel screws for improved strength and security
• Supplied with fixings for PVCu and Composite doors
• Suites with Yale Platinum Letterplates

Specifications:

• 20-year Mechanical Guarantee
• 20-year Surface Finish Guarantee
• Corrosion tested to BS EN 1906:2010 Grade 4 (480hrs NSST)
• Endurance tested to 200,000 cycles
• Available in both PZ92 and PZ92/62mm variants
• Standard Security

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

Colour options:

• PVD Polished Chrome
• PVD Polished Gold

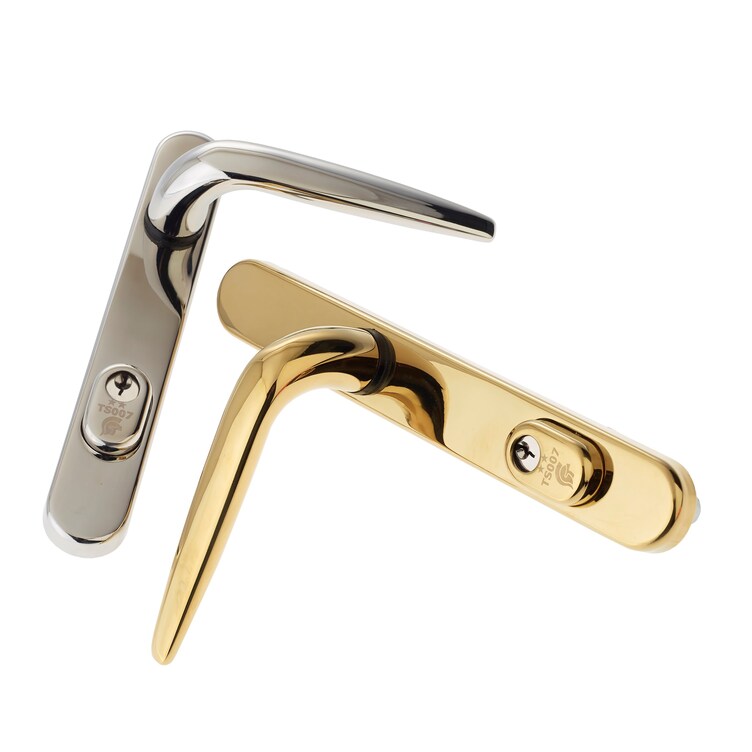

The TS007 2 Star Door Handle allows fabricators to fit a lower cost 1 Star cylinder and still meet the requirements of Document Q, but at a much more competitive price. The stylish, high performance door handle is manufactured in 304 Stainless Steel, giving ultimate corrosion resistance and comes with a 25 year guarantee* on all finishes.

Features:

• Manufactured in 304 Stainless Steel giving ultimate corrosion resistance
• Superior quality and design for product longevity
• TS007 accredited allowing a lower cost 1 Star cylinder to be fitted and still achieve the requirement of Document Q
• Incorporates patented spring cassette which eliminates 'drooping handle' effect
• Suites with other stainless steel furniture for a coordinated approach
• Available to support both PVC-U and composite doors

Colour options:

• Polished Gold (PVD)
• Brushed Gold (PVD)
• Polished Stainless
• Brushed Stainless
• White and Black powder coated over Stainless

Specification:

• 304 Stainless Steel
• Plastic parts - Nylon 66
• Door thickness 44mm - 75mm (suitable spindle lengths are available upon request)
• Cylinder aperture - standard euro cylinder
• Endurance tested to 50,000 cycles
• Corrosion tested to BS EN 1670 (1000hrs. NSST)
• Conforms to BS 1906
• 25-year Surface Finish Guarantee
• 10-year Mechanical Guarantee
• TS007 accredited

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

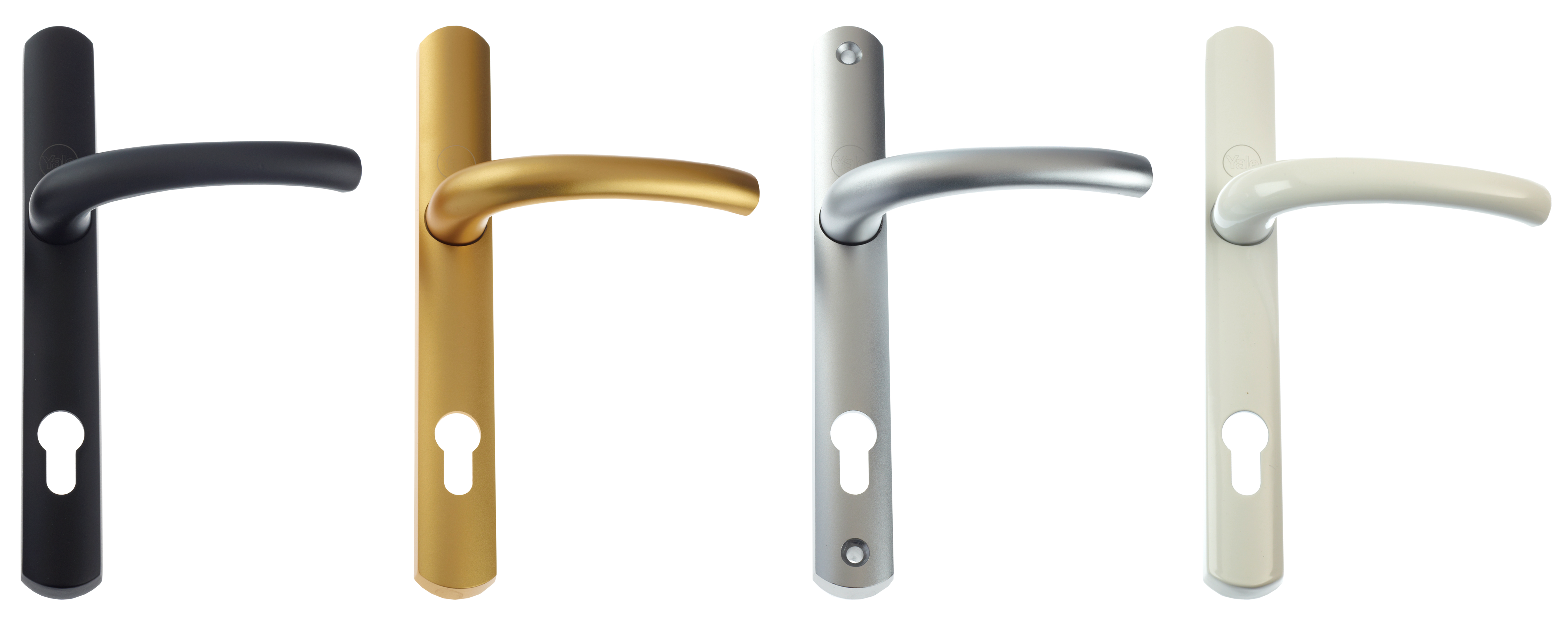

The stylish Sparta Door Handle offers an attractive looking product. The handle offers an ergonomic design with no compromise on grip length. The Sparta Door Handle has been manufactured to an extremely high standard which offers outstanding product performance.

Features:

• Ergonomic design with sleek Sparta aesthetics
• Suited to the Sparta Espag Handle and Tilt and Turn handles
• Incorporates patented spring cassette which eliminates the 'drooping handle' effect
• Available in a full choice of finishes which includes Gold (PVD), Polished Chrome, White and Black (other finishes are available upon request)
• Different back plate variants available to suit most locks
• Supplied complete with spring cassette, fixing screws and spindles
• Lever Lever and Lever Pad options available
• Longer lever option available to achieve DDA compliance - Approved Document M of the Building Regulations (access to buildings and services)

Specification:

• Zinc/aluminium die cast components
• Plastic parts - Nylon 66
• Door thickness 44mm-75mm (suitable spindle lengths are available upon request)
• Cylinder aperture - Standard Euro cylinder
• Corrosion tested to BS EN 1670
• Painted finishes Grade 5 (480hrs NSST), plated finishes Grade 4 (240hrs. NSST)
• Abusive load test to BS 6462
• Endurance tested to 50,000 cycles
• Conforms to BS 1906
• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

*Guarantee subject to correct installation and maintenance

The stunning Elite Stainless Steel T Bar Handle combines perfectly with other products in the Stainless Steel range. Offering an upmarket, contemporary handle, the Elite T Bar Handle is manufactured in 316 Stainless Steel and delivers outstanding product performance. Supplied as in-line or cranked versions, both with back to back fixing or bolt through fixing, the T Bar comes with the 25 year anti-corrosion guarantee.

Features:

• Manufactured in 316 Stainless Steel
• Combines perfectly with other Stainless Steel furniture for a totally coordinated, modern door suite
• Produced from 1.2mm thickness material
• In-line peg version or cranked peg version available
• Fixing variations - back to back fixing version (one pull handle each side of the door) and bolt fix version (one pull handle one side only with cover caps on the opposite side of the door)
• Fixing pegs supplied with a machined brass insert as standard
• M8 bolt has the option of a clear washer to protect the door face
• Bolt fix and back to back fixing methods can be found in the specification sheet below

Specification:

• 316 Stainless Steel
• 10-year Mechanical Guarantee
• 25-year Surface Finish Guarantee
• Corrosion tested to (480hrs. NSST)

Features:

• Suites perfectly with Elite Stainless Steel furniture for a totally coordinated, modern door style
• Choice of fixing methods available:
  • Back to back - one pull handle both sides of the door
  • Bolt fixing - one pull handle with cover caps on the opposite side of the door
• Produced from 1.2mm material thickness
• Fixing pegs supplied with a machined brass insert as standard
• M8 bolt has the option of a clear washer to protect the door face

Specification:

• 316 Brushed Stainless Steel
• BS EN 1670:2007 Grade 5 (480hrs. NSST)
• 25 year anti-corrosion guarantee
• 10 year mechanical guarantee

The stylish Elite Stainless Steel fixed Central Knob combines perfectly with other products in the Stainless Steel range. The Central Knob is manufactured in 316 Stainless Steel, giving excellent corrosion resistance and comes with a 25 year guarantee.

Features:

• Manufactured in 316 Stainless Steel
• 76mm Central Knob
• Fixing method - screw the M8 bolt (high grade Stainless Steel) directly into the tapped hole on the base of the central knob
• Combines with other Stainless Steel furniture for a totally coordinated, modern door suite
• Fixing available to support PVC-U and composite doors
• M8 bolt has the option of a clear washer to protect the door face

Specification:

• Corrosion tested in excess of 1000 hours based on BS EN 1670
• 316 Stainless Steel

*Guarantee subject to correct installation and maintenance
