Window Hinges

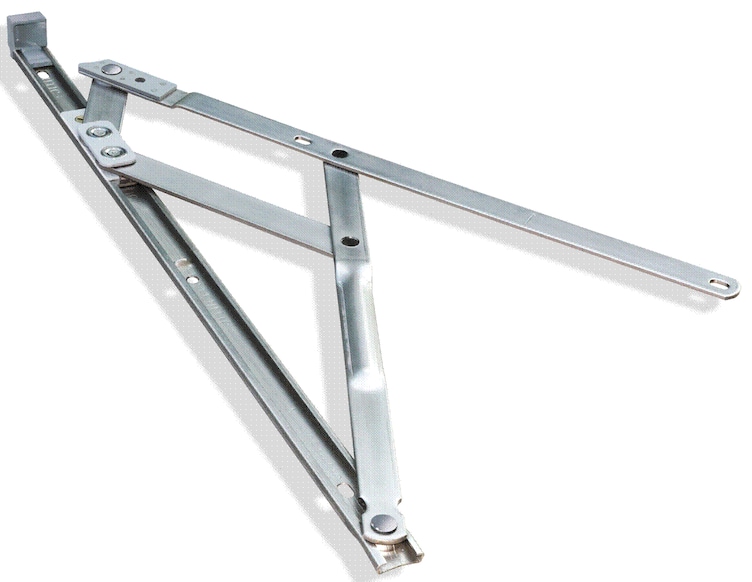

Defender Egress designed for emergency exit with the benefit of easy clean facility.

Features

• 16" hinge opens to a full 90° for emergency exit
• Self-lubricating PTFE based coating on the end cap to provide a smooth closing
• Composite slider with stainless steel release lever mechanism allows cleaning access from the inside of the building
• Automatically resets to the fire escape mode when the window is closed
• Die cast support plate in the bottom slider ensures consistent performance
• Available in 12" or 16" for side hung windows
• Drilling jigs for all sizes are available to order
• Screw fixing in the centre of the track to reduce vent drop
• Compliant with Building regulations approved document B1
• Casement to provide an unobstructed area that is at least 0.33m² with minimum size of 450mm in any one direction
• Minimum clear opening of 450mm x 734mm at maximum sill height of 1.1m

Specification

• 10 or 12 year Mechanical Guarantee*
• BS 5588-1 Fire precautions in the design, construction and use of buildings
• BS 8213-1 Design for safety in use and during the cleaning of windows
• Endurance tested to 30,000 cycles
• Corrosion tested to a minimum of 96 hours
• BBA certification
• Secured by Design approved

* 10-year Mechanical Guarantee for Standard Ferritic and 12-year Mechanical Guarantee for Austenitic Stainless Steel

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

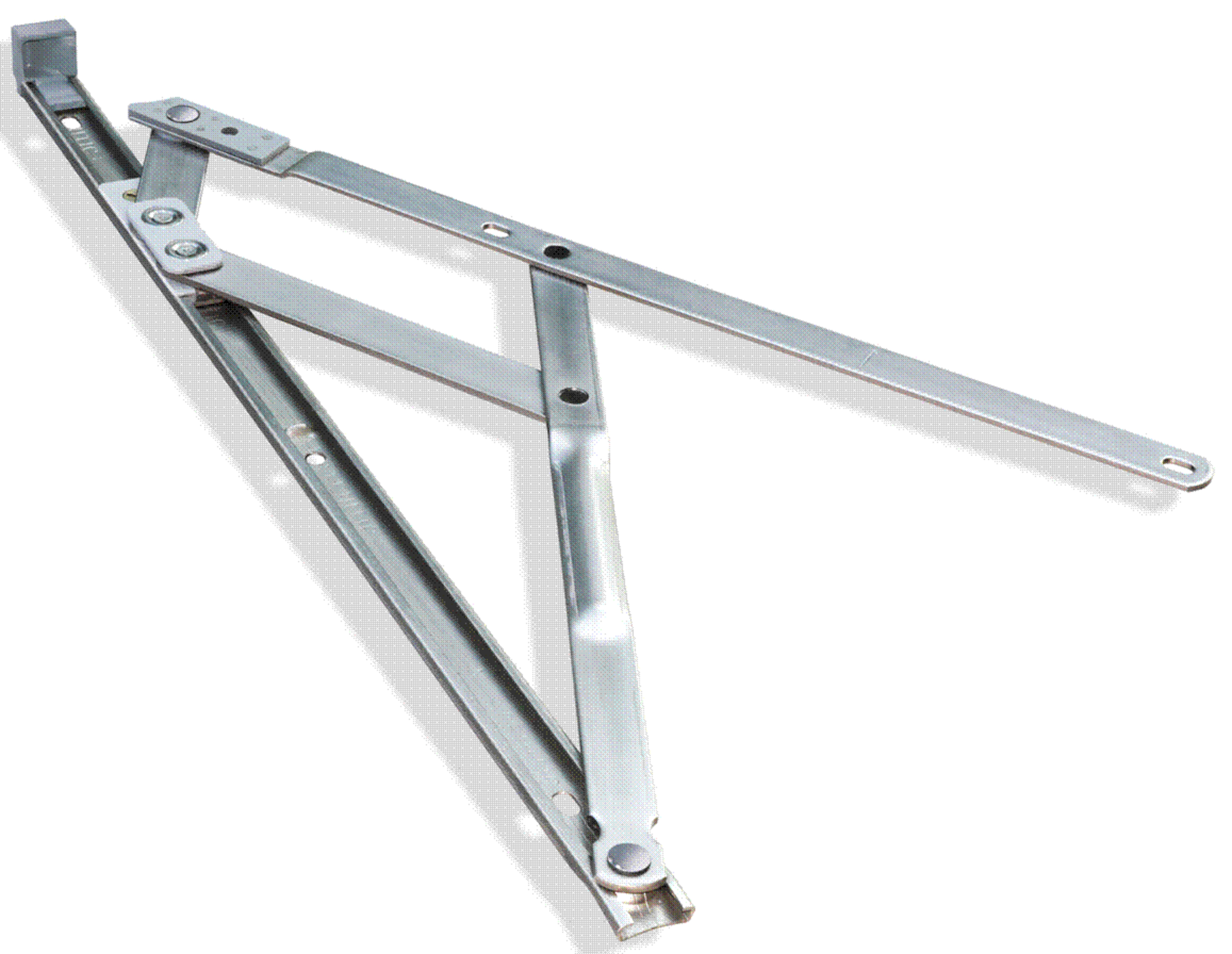

A heavy duty friction hinge

Features

• Ability to carry a load of up to 50kg top-hung and 40kg side-hung
• Asymmetric location system for reliable and accurate closure
• Slot-hole-slot vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVC window frames
• Improved weather sealing and draught proofing performance from asymmetrical vent arm form
• Enclosed end cap to prevent ingress of debris and provide increased cavity tolerance
• Adjustable fricton cam in slider
• Available in a highline variant for deeper profiles with cavities between 16mm and 18mm
• Top hung variant avaliable in ferritic and austenitic stainless steel*
• Side hung variant available in austenitic stainless steel as standard*

Specification

• 10 or 12 year Mechanical Guarantee**
• Endurance tested to 30,000 cycles
• Corrosion tested to minimum of 96 hours
• BBA certification
• Secured by Design approved

*Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance

** 10-year Mechanical Guarantee for standard ferritic and 12-year Mechanical Guarantee for austenitic stainless steel

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

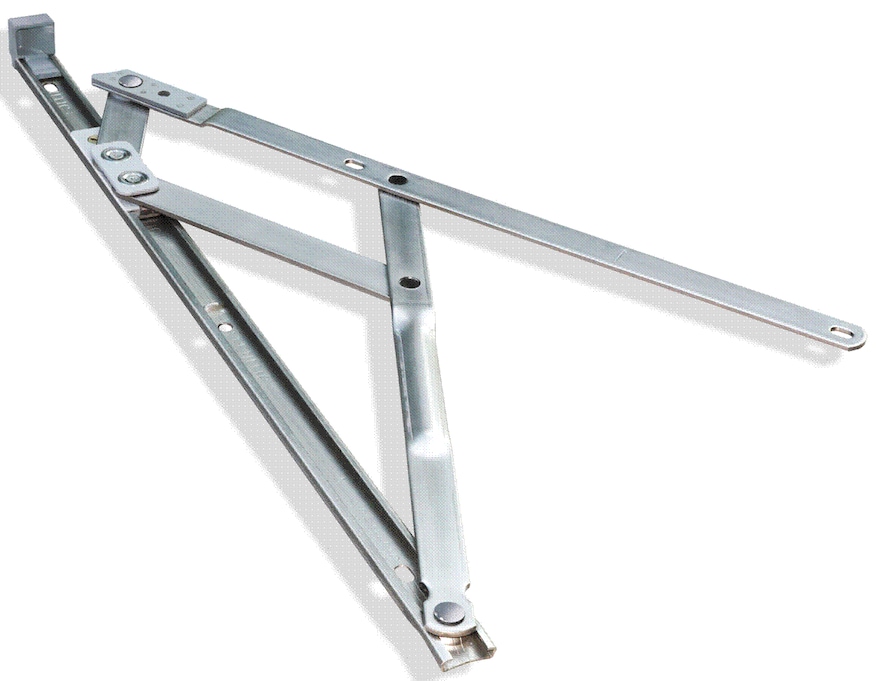

A friction hinge designed specifically for resident safety.

Features

• Improved weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm form when tested to BS 6375-1
• Unique robust cam friction device eliminates any risk of friction screw misuse
• Built-in quick release lever allows the window to be fully opened for easy cleaning and total ventilation
• Asymmetric location system for reliable and accurate closure
• Restrictor automatically relocates and resets when the window is closed
• Slot-hole-slot vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVC-u window frames
• Available as highline variants from profiles with cavities between 16mm and 18mm
• Available in ferritic 430* as standard and austenitic 304* stainless steel for enhanced corrosion resistance

Specification

• 10 or 12 year Mechanical Guarantee**
• Endurance tested to 30,000 cycles
• Corrosion tested to a minimum of 96 hours
• Secured by Design approved
• BBA certification
• Compliant with BS 6375-2 and EN 12126-5

*Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance

** 10-year Mechanical Guarantee for Standard Ferritic and 12-year Mechanical Guarantee for Austenitic Stainless Steel

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

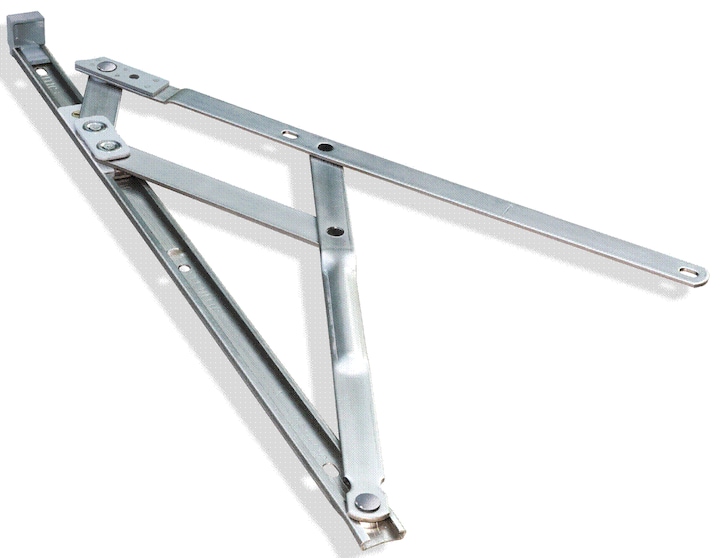

Features:

• Improved weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm form to BS 6375-1
• Lipped slider for enhanced smooth operation
• Easy friction adjustment without metal to metal contact
• Unique robust cam friction device eliminates the risk of screw misuse
• Ability to carry a load of up to 50kg top-hung and 40kg side-hung
• Asymmetric location system for reliable and accurate closure
• Enclosed end cap to prevent ingress of debris and provide increased cavity tolerance
• Slot-hole-slot format allowing for easier vent adjustment
• Highline variants available for deeper profiles with cavities between 16mm and 18mm
• Available in ferritic 430* as standard or austenitic 304* stainless steel for enhanced corrosion resistance
• Restricted variant available

Specification:

• 10 or 12 year Mechanical Guarantee**
• Endurance tested to 30,000 cycles
• Corrosion tested to a minimum of 96 hours
• Secured by Design approved
• BBA Certification

* Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance

** 10-year Mechanical Guarantee for Standard Ferritic and 12-year Mechanical Guarantee for Austenitic Stainless Steel

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

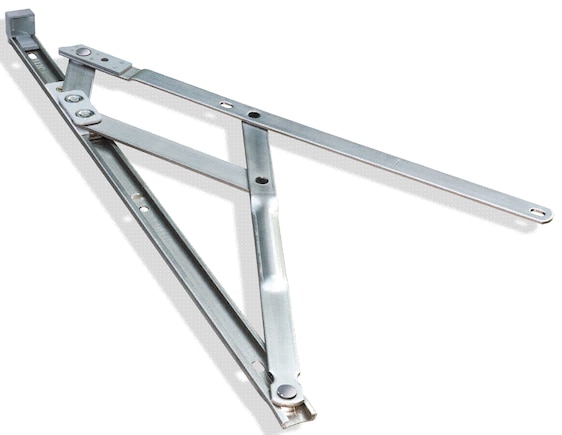

A versatile hinge to suit a variety of applications

Features

• Excellent weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm.
• Compatible with PVCu, timber and aluminim windows
• Standard and highline stack heights
• Slider with friction
• Made from ferritic stainless steel
• 10-Year Mechanical Guarantee
• Included in the Lifetime Guarantee (Terms and conditions apply)

*Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016.

Size Options:

• Top Hung: 8", 10", 16", 20", 24"
• Side Hung: 8", 12", 16"
• Egress: 12" and 16"

Specifications

• BBA certification
• Endurance tested to 20,000 cycles
• Corrosion tested to BS EN 1670 Grade 3 (96hrs. NSST)
• Tested to BS 6375 parts 1 and 2 for window performance
• Secured by Design compliant when fitted with Yale Ancillary Security Devices

Note:  As with all types of friction hinges, friction cannot be provided until the slider moves, therefore when limiting the opening of the top hung vents to angles of 10 degrees or less a separate device may be required to prevent the window from closing

The Yale Revolution Window Hinge is the ideal choice for reversible residential and commercial upper floor windows.

Its user-friendly design allows the window to rotate fully, enabling the homeowner or occupier to easily clean both sides of the glass from within the comfort and safety of the building. This removes the risk of over-stretching or failing from a ladder when cleaning from the outside.

One product that uniquely allows for on-site configuration to meet end-user requirements.

Features

• Patented configurable dual closing function: Anti-blow back or Easy close
• Unique key-lockable safety restrictor
• Includes a range of sizes that can provide an excellent means of escape in case of a fire or other emergency
• Dual closing functions both of which provide restriction and ventilation
• Product function can be changed by re-configuration of the sash release
• Quick and easy to install. Full technical guides are available for individual profile designs

• Included within the Yale Lifetime Security Guarantee. *Terms and conditions apply

Specification

• 80kg maximum weight capacity
• 27 module sizes to accommodate sash heights ranging from 240mm to 1850mm
• Corrosion tested to BS EN 1670 Grade 4 (240hrs. NSST)
• Tested to BS 6375 Part 1: Weathertightness
• Tested to BS 6375 Part 2: Operation and strength (Classification EN12400) Class 3 - 20,000 cycles
• Tested to BS EN 14351 Part 1: Performance Characteristics
• Tested to BS 8213 Part 1: Safety in use and cleaning of windows
• 10-year Mechanical Guarantee
• Can be used as part of a PAS 24 window when used with accessories
• Secured by design approved
• BBA Approved
• Environmental Product Declaration (EPD)

The Yale Mega Egress Hinge is developed for use on side-opening casement window systems. Due to the superior integral strength, the hinge can be used for all sash widths up to 900mm with a maximum load of 35kg.

The Easy Clean feature allows the sash to slide away from the corner and then auto-lock back into egress mode for ultimate safety.

Features

•  220mm and 345mm suit all side-hung applications up to 600mm and 900mm sash widths respectively
• In the open position, the sash is moved outside the frame to maximise the escape aperture
• True 90º opening for egress compliance
• Achieves minimum fire escape requirement of 450mm opening for egress applications on smaller windows compared with traditional egress hinges
• Can be moved into an easy clean position, with automatic reset to egress operation on closing (345mm version)
• Excellent compression is achieved by unique patented hinge geometry
• Superior carrying weight

Specification

• Tested to BS EN 1670 Grade 5 classification for ultimate corrosion resistance
• Tested to EN1191 over 30.000 cycles under 40kg operational load:
  • 800mm wide x 40kg
  • 900mm wide x 35kg
• Designed to achieve PAS 24 security test when used in conjunction with a Yale ASD
• 10-year mechanical guarantee
