Multi-Point Door Locks

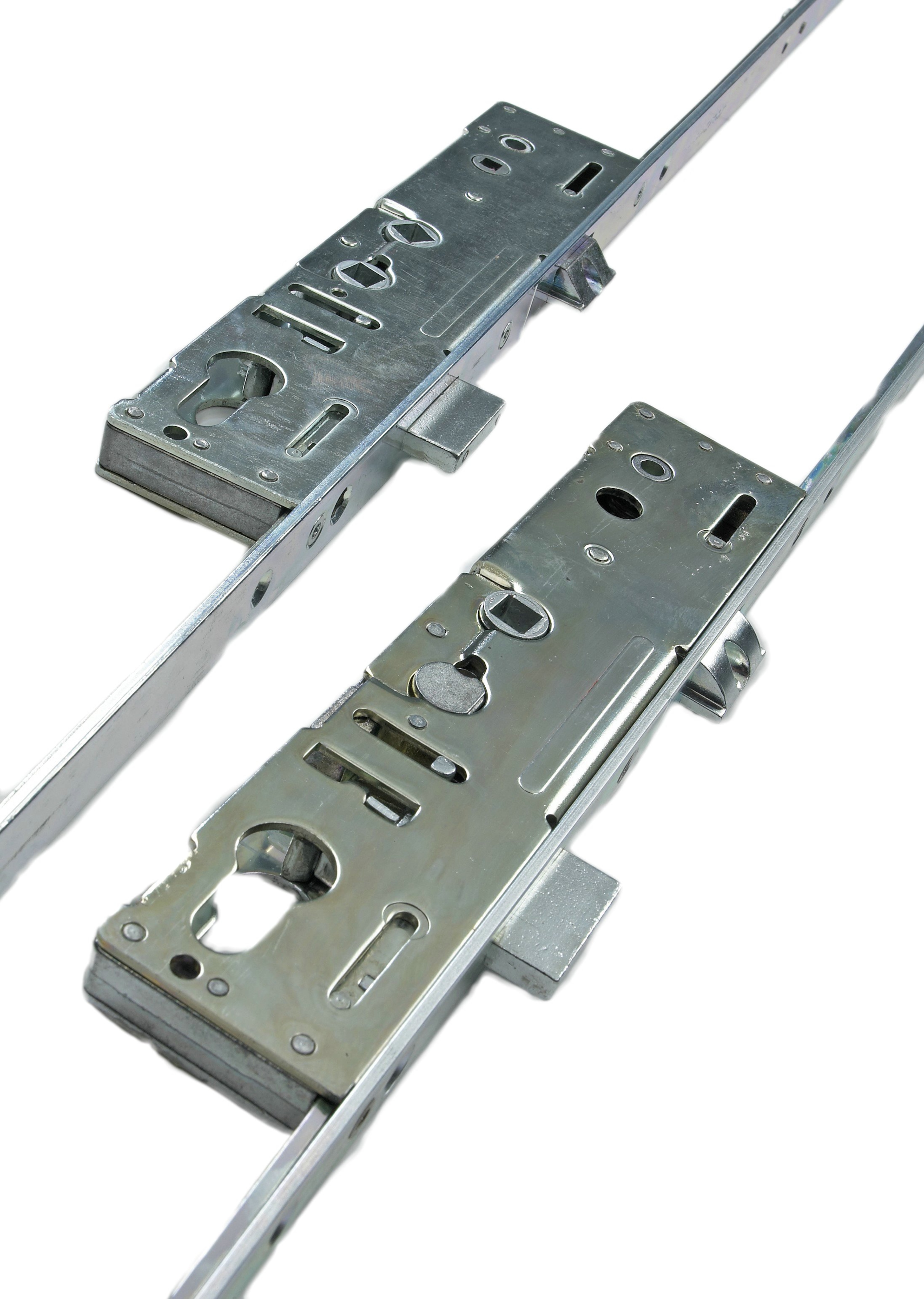

Designed primarily for timber door applications the Lockmaster suite of 3 deadbolt MPLs is available in a range of backsets and faceplate options. The range also includes a shootbolt ready version as well as a model with roller cams, to make this range truly versatile and suitable for a wide range of door materials.

Features:

• 3 Deadbolt and reversible latch
• 35mm & 45mm backsets PZ92mm centre case
• Faceplate available in 16mm or 20mm
• Dual and single Follower variants
• Sprung and un-sprung centre cases with twin spindle on un-sprung only
• Lever operational Striker solutions for PVC and Timber

Specifications:

• 10-year Mechanical Guarantee
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

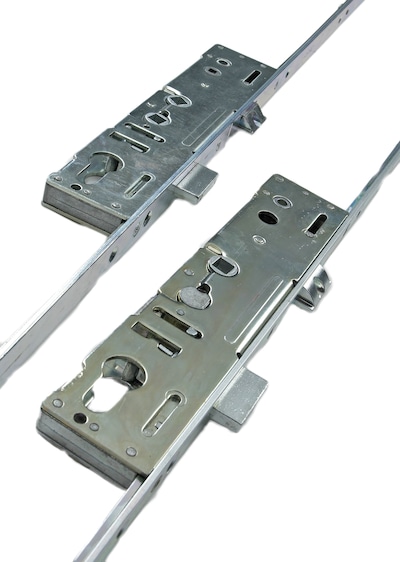

Ideal for balcony door applications, the Lockmaster 4 roller lock delivers evenly distributed compression performance; the availability of a shootbolt ready version ensures suitability for French door applications.

Features:

• 4 Adjustable roller
• Cams and reversible latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Sprung and un-sprung centre cases
• Lever operational
• Dual Follower availability
• Striker solutions for PVC, Timber and Aluminium

Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles

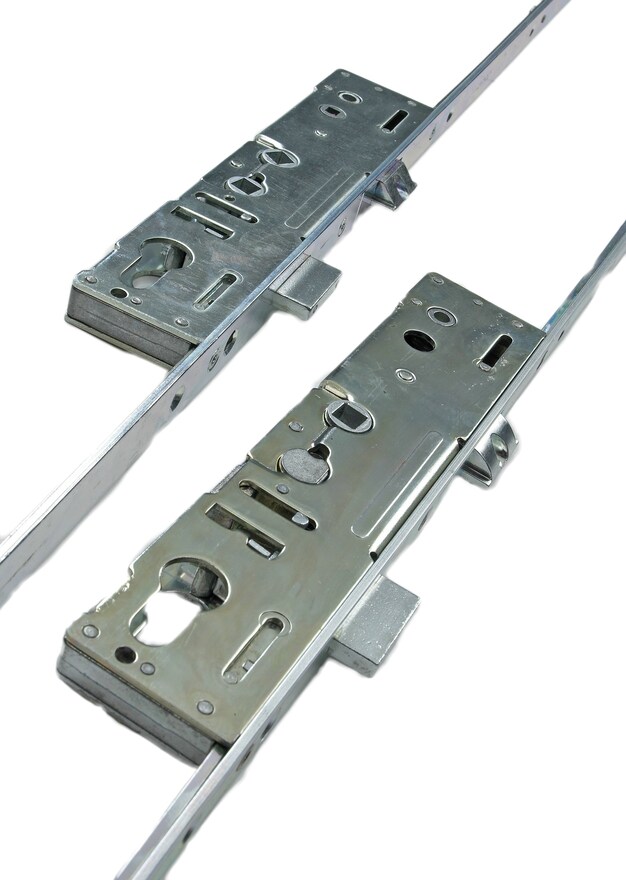

The UK’s most popular MPL platform combines patented pre-compression technology, engaging the roller cams ahead of the hook locking points, to deliver optimal weatherproofing and security performance. Several variants including shootbolt ready models make this one of the most versatile locking systems in the UK.

Features:

• 2 Hook, 2 roller
• Deadbolt and reversible latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Patented pre-compression roller engagement

Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles

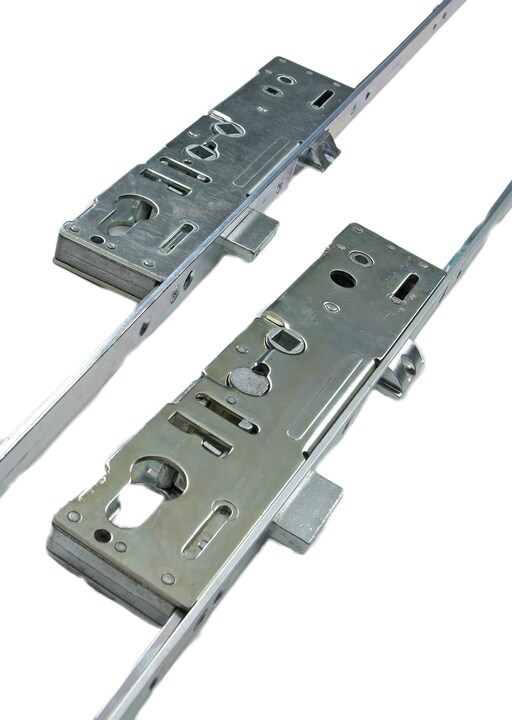

Suitable for Aluminium, Timber and composite door applications Lockmaster 2 hook locks are available in a range of back sets, with a comprehensive range of faceplate options to suit and extensive list applications and manufacturing methods.

Features:

• 2 Hook, Deadbolt and Reversible Latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Faceplate 16mm and 20mm
• Lever operational
• Dual Follower availability
• Striker solutions available for PVC and Timber

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

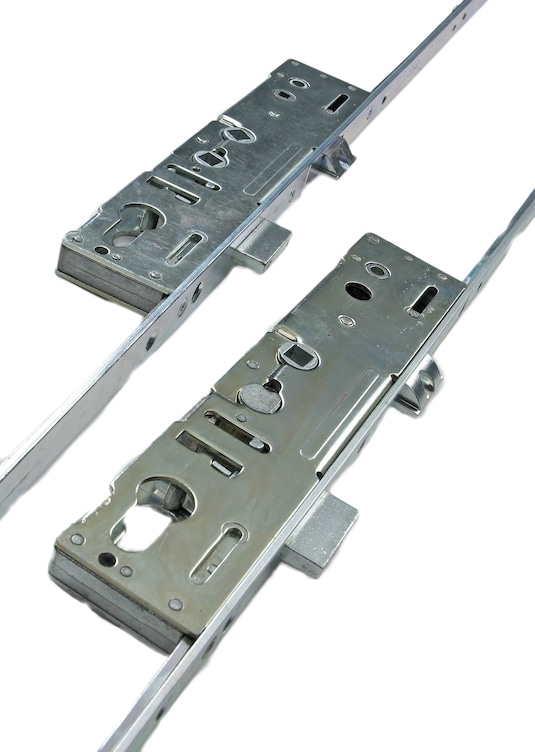

Incorporating a centre hook dead-bolt delivering elevated levels of anti-separation security performance, the variant is available as night latch as well as standard operation with optional rollers and shootbolt ready configuration as well as options compatible with Lockmaster panic door products.

Features:

• 3 Hook, 2 or 4 rollers and reversible Latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Patented pre-compression rollers
• Dual Follower availability Lever operational
• Striker solutions for extensive PVC range

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

An impressive array 4 high-security hooks, 2 rollers, latch and deadbolt, delivers huge levels of security, whilst not compromising operation or compression. The 4 hook lock is available in night latch and standard lever operation.

Features:

• 4 Hook, 2 Roller and reversible Latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Patented pre-compression rollers
• Dual Follower availability
• Lever operational
• Striker solutions for extensive PVC range

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

Specifically for French door systems incorporating a floating mullion, the Lockmaster passive door lock provides handle driven shootbolt locking into the top and the bottom of the door frame for the inactive leaf.

Features:

• Extendable French Door Locks
• 35mm & 45mm backsets
• PZ92mm centre case Sprung and un-sprung centre cases
• Lever operational

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

Features:

• North American lever set compatible
• 45mm backsets PZ92mm centre case Austenitic faceplate Sprung centre cases Lever operational

Specifications:

• Compliant with Dade County standard DP100
• Tested to a minimum of 100,000 cycles operational lifespan

Celebrating 21 years of Lockmaster, Yale is proud to introduce Lockmaster 21, the latest innovative addition to Britain's best-selling range of multipoint door locking systems.

The Lockmaster 21 is compatible with the Yale SensCheck ^™ Door and Window Sensor range

Locking Points

• Lockmaster's signature hook and pin unit has been carefully positioned within 100mm of the pre-compression rollers
• Strengthened centre case offering enhanced security for added peace of mind
• Pre-compression rollers
• Sprung and unsprung centre cases to suit front and back door applications; now with centre anti-separation hook as standard
• Easy to use push-in latch snib feature to prevent accidental lock-outs
• Available in 35mm and 45mm backset options
• Suitable for PVCu, aluminium, composite and timber doors

Faceplate

• Yale branded
• Manufactured from 430 stainless steel
• 16mm or 20mm faceplate options
• Range includes square and radius ends options
• Aluminium and plastic 44mm trim sets available for use on composite doors

Specification

• Secured by Design approved
• PAS 24:2016 security tested
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles
• 10-Year Mechanical Guarantee
• Made in Britain

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

• Lockcase: Galvanised mild steel
• Faceplate: 430 stainless steel
• Keeps: Mild steel, BZP and clear trivalent

Packaging

• Locks: 5 per box
• Keeps: 5 per box

Maintenance

Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

*Terms and conditions apply

In line with the improvements made to the Lockmaster 21 gearbox, the 13mm Axis keep offers maximum security, pleasing aesthetics and enhanced longevity.

Features

• 13mm axis one piece keep enabling it to pass the load test for PAS 24:2016 when incorporated as part of a doorset
• Variety of screw-in and push fit profile packers available
• Screw-in strengthed plastic tidy-boxes offering improved longevity and a more aesthetically-pleasing look

Faceplate

• Yale branded
• Manufactured from plated mild steel
• Range of keeps to suit Lockmaster 21 available; 3 hook/2 roller and 4 roller options

A versatile auto engage locking mechanism suitable for key operation and lever exit doors.

Locking Points

• Auto engaging key retract locking mechanism
• Security latches automatically fire upon closure offering 20mm deadbolt engagement
• Fully reversible security latches
• Central deadbolt provides independent security with a 20mm throw
• Available in 35mm and 45mm backset options
• Suitable for composite and timber doors
• Designed to be compatible with a wide range of decorative furniture sets

Faceplate

• Yale branded
• Square or radius end options
• 16mm or 20mm faceplate options
• Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available

Specification

• PAS 24:2016 security tested
• Designed to achieve FD60
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles
• 10-year Mechanical Guarantee
• Made in Britain
• Meets the requirements of FD30 & FD60 when tested as part of a door set

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

• Lockcase: Galvanised Mild Steel
• Faceplate: 430 Stainless steel/ Austenitic 304 Stainless Steel
• Deadbolt and Latchbolt: Zinc Alloy Castings/Austenitic 304 Stainless Steel
• Keeps: Mild Steel/Austenitic 304 Stainless Steel

Packaging

Locks: 5 per box

Maintenance

Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

An auto engage key retract lock mechanism designed to complement contemporary and heritage door styles.

Locking points

• Auto engage key retract locking mechanism
• Security latches automatically fire upon closure offering 20mm deadbolt engagement
• Fully reversible security latches
• Central deadbolt provides independent security with a 20mm throw
• Available in 35mm and 45mm backset options
• Suitable for composite and timber doors
• Designed to be compatible with a wide range of decorative furniture sets

Faceplate

• Yale branded
• 16mm or 20mm faceplate options
• Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available
• Range includes square and radius end options

Specification

• PAS 24:2016 security tested
• Designed to achieve FD60
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles
• 10-year Mechanical Guarantee
• Made in Britain
• Meets the requirements of FD30 & FD60 when tested as part of a door set

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

• Lockcase: Galvanised Mild Steel
• Faceplate: 430 stainless steel/ Austenitic 304 Stainless Steel
• Deadbolt and security latches: Zinc Alloy Castings/Austenitic 304 Stainless Steel
• Keeps: Mild Steel/Austenitic 304 Stainless Steel

Packaging

Locks: 5 locks per box

Maintenance

Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
