Yale

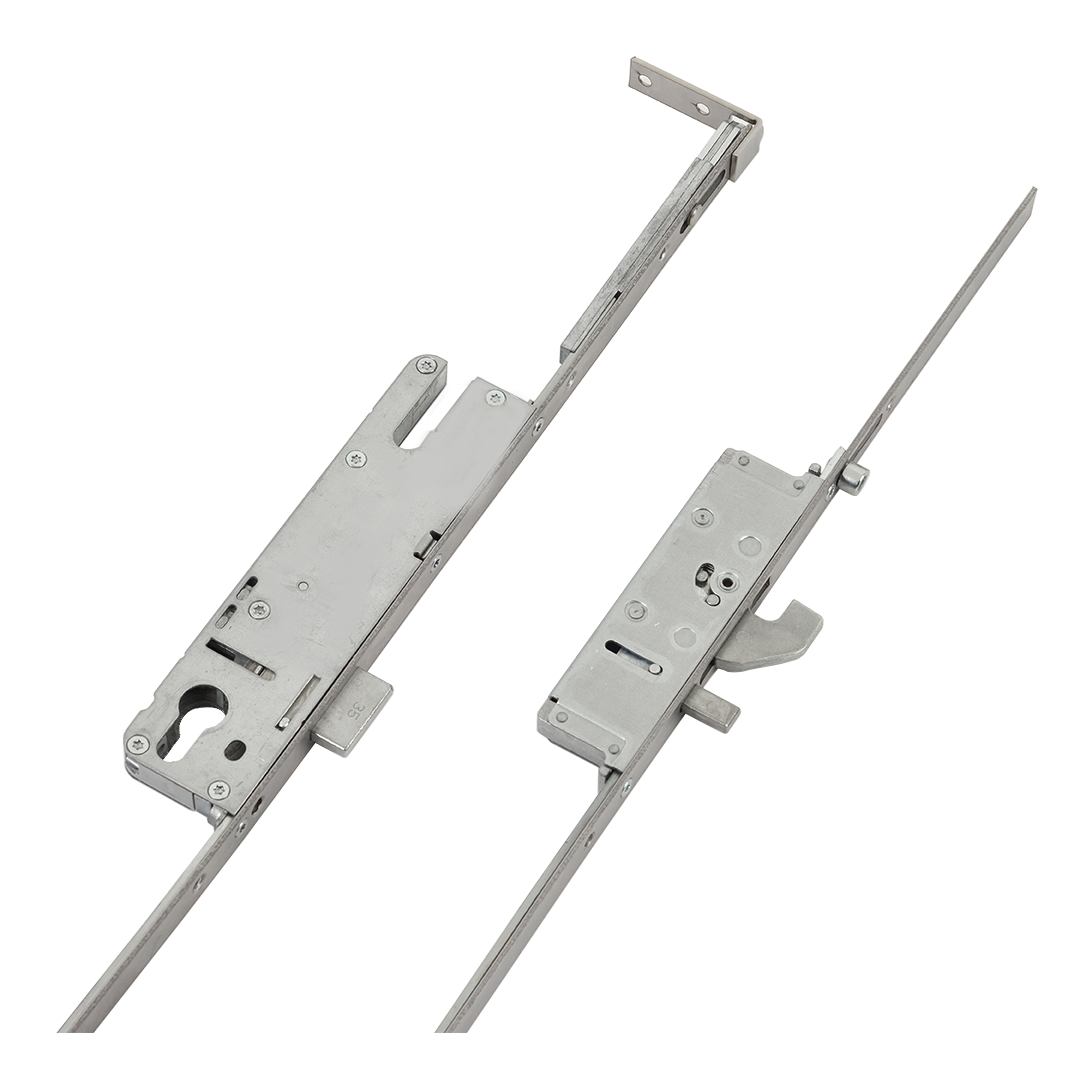

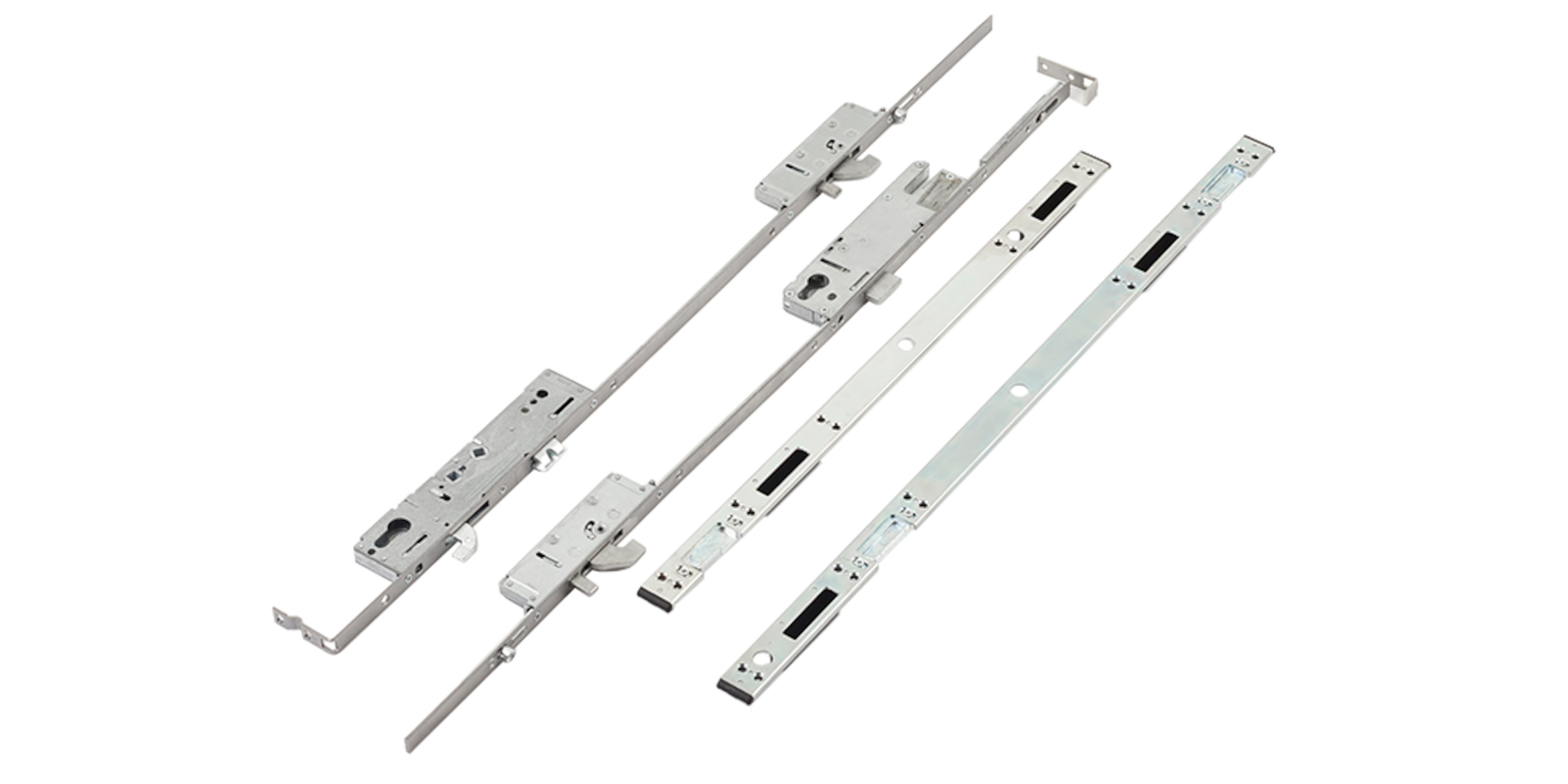

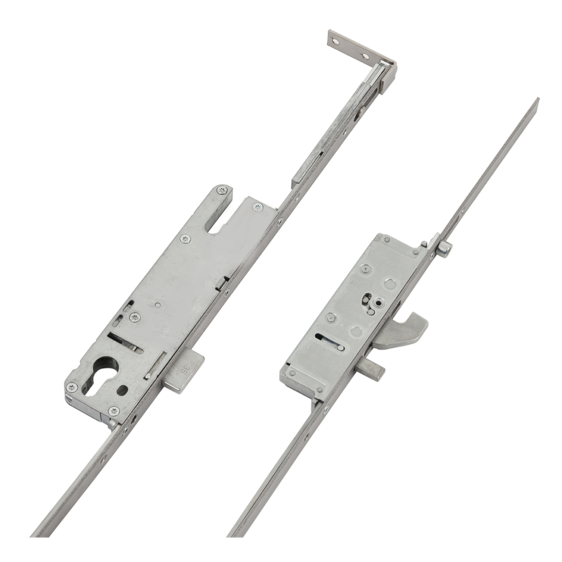

Lockmaster 21 Stable Door lock PVCu

Reflecting the increasing trend for stable door functionality in more
contemporary settings as well as cottages and farmhouses, this is a
welcome addition to our range enabling us to offer a solution for
PVCu door sets.


Auxiliary units:

  • Lockmaster signature hook and anti-lift pins used on top andbottom lock sections
  •  Adjustable roller to assist with door compression
  • Bottom lock section: 29mm and 61mm shootbolt extension options


Centre units:

  • A combination of Lockmaster 21 hook centre unit and Lockmaster KeyTurn deadbolt centre unit
  • Top leaf: Lockmaster 21 hook centre configured for a lever door handle
  • Bottom leaf: Lockmaster KeyTurn deadbolt centre
  • 35mm backset
  • Top leaf: Reversible latch
  • Top leaf: Includes push in snib feature to prevent accidental lock-outs
  • PZ92 centre case

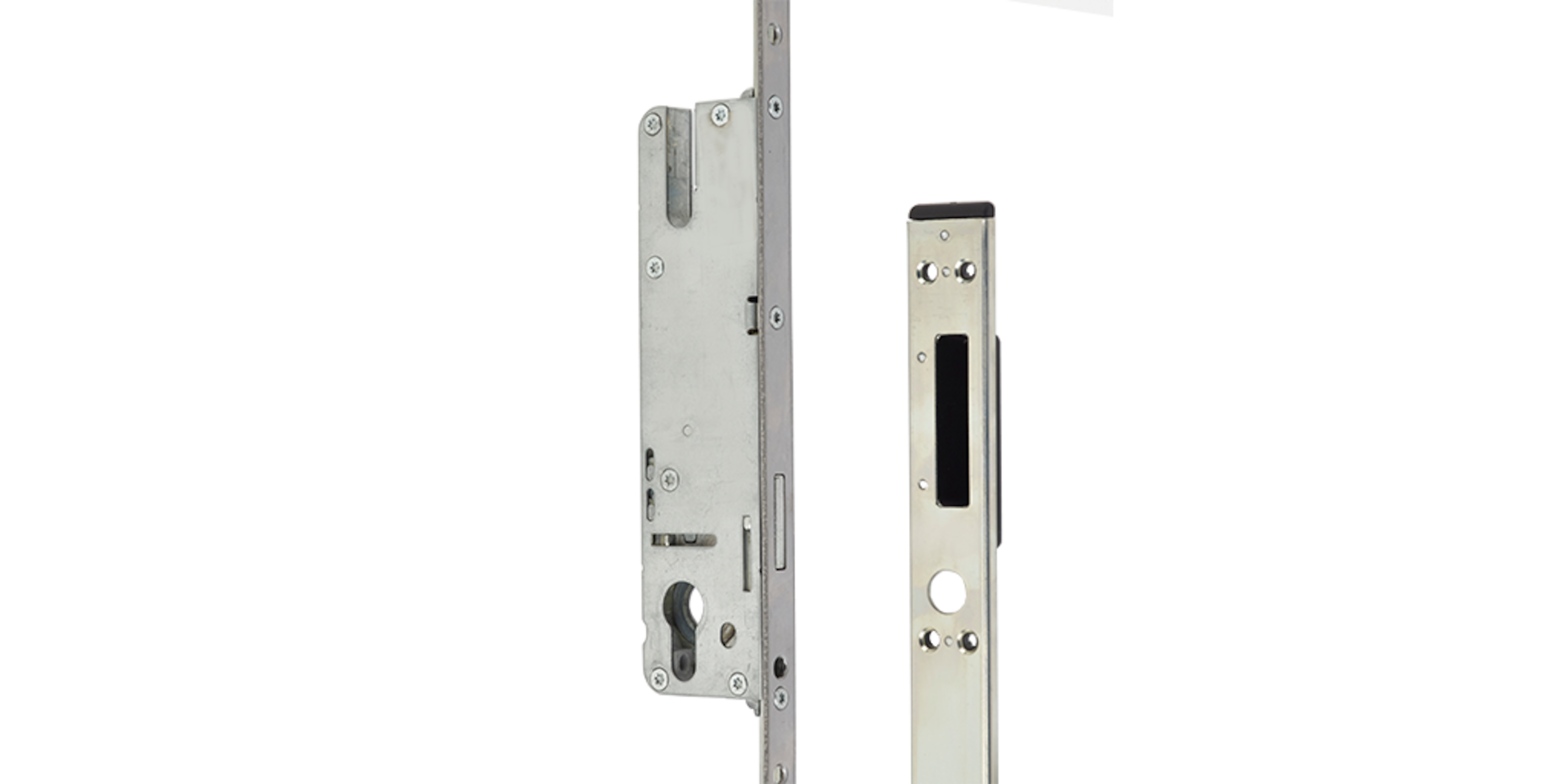

Faceplate:

  • Yale branded
  •  430 stainless steel

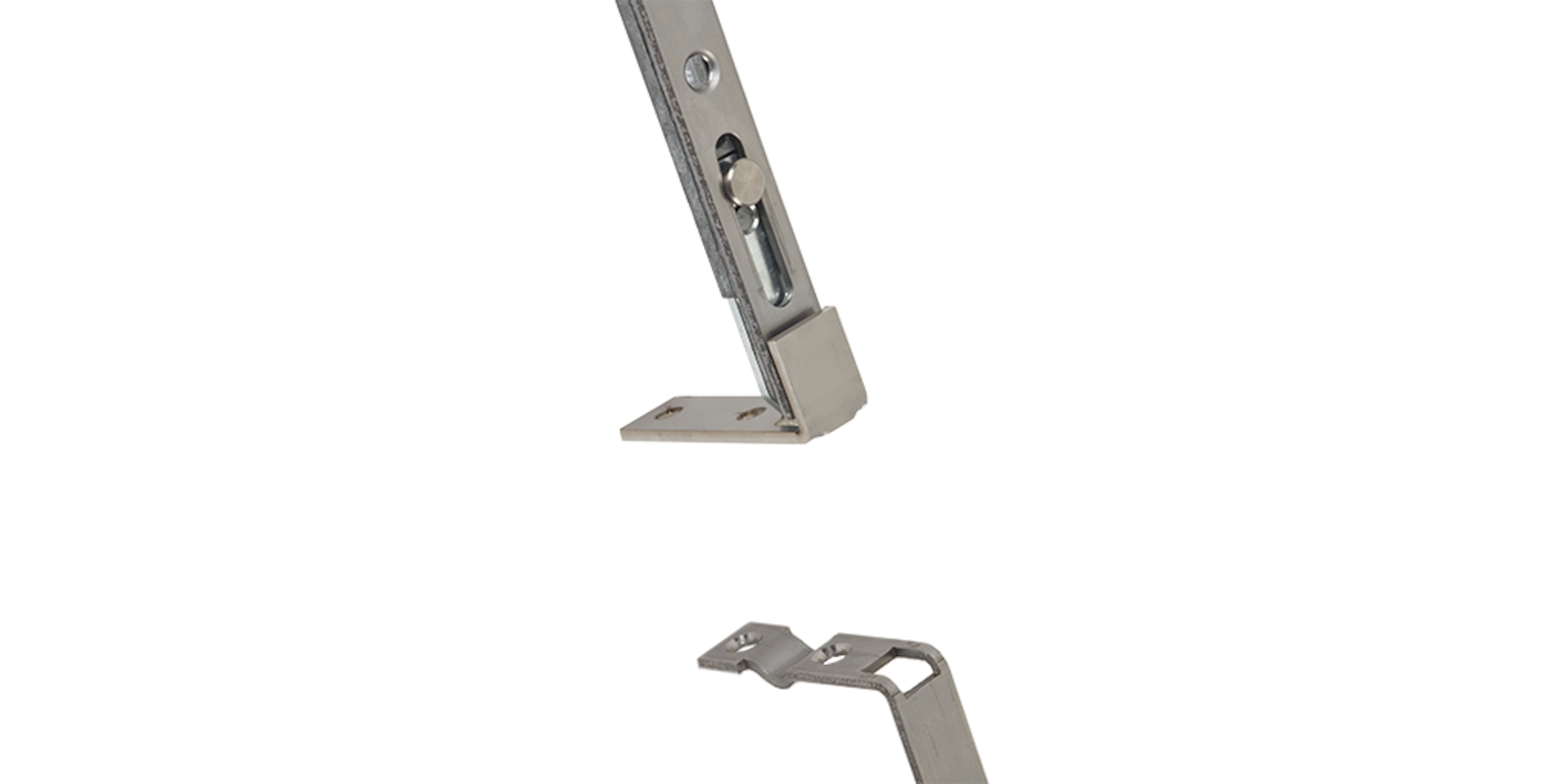

  • 16mm square end top and bottom faceplate, with 90 degree return to accept bottom lock shootbolt


One Piece keep:

  • 13mm handed One Piece keep - options for both top and bottom locks
  • Lockmaster 21 profile related packers


Shootbolt guide:

  • 16mm 304 stainless steel Shootbolt guide

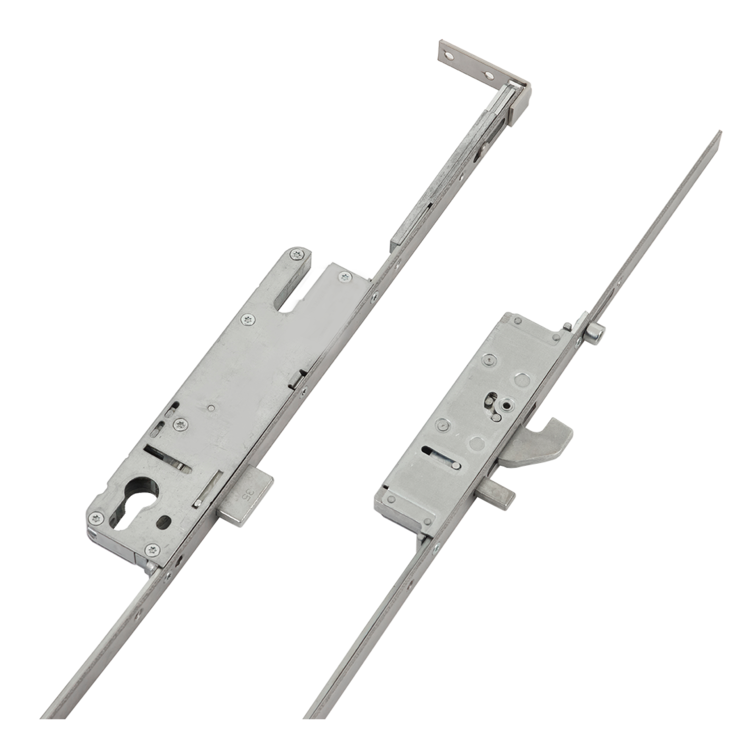

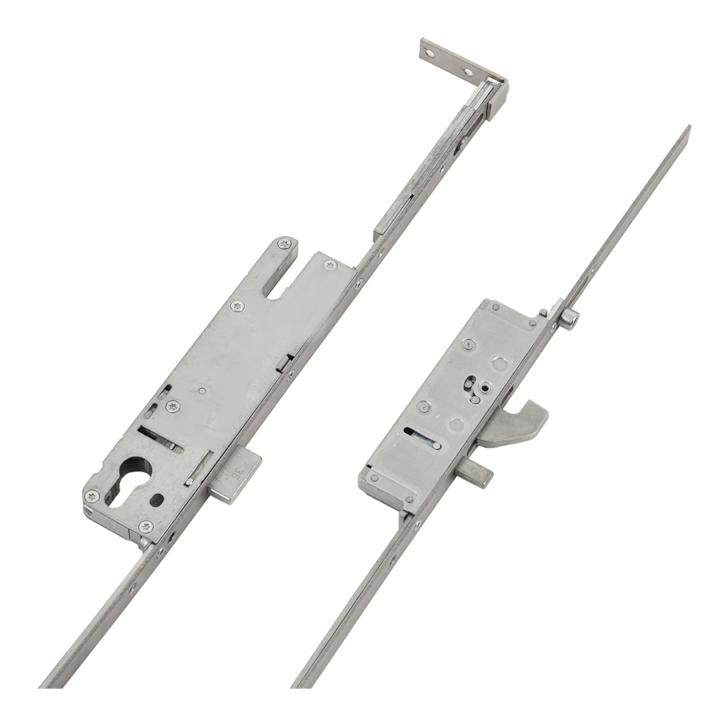

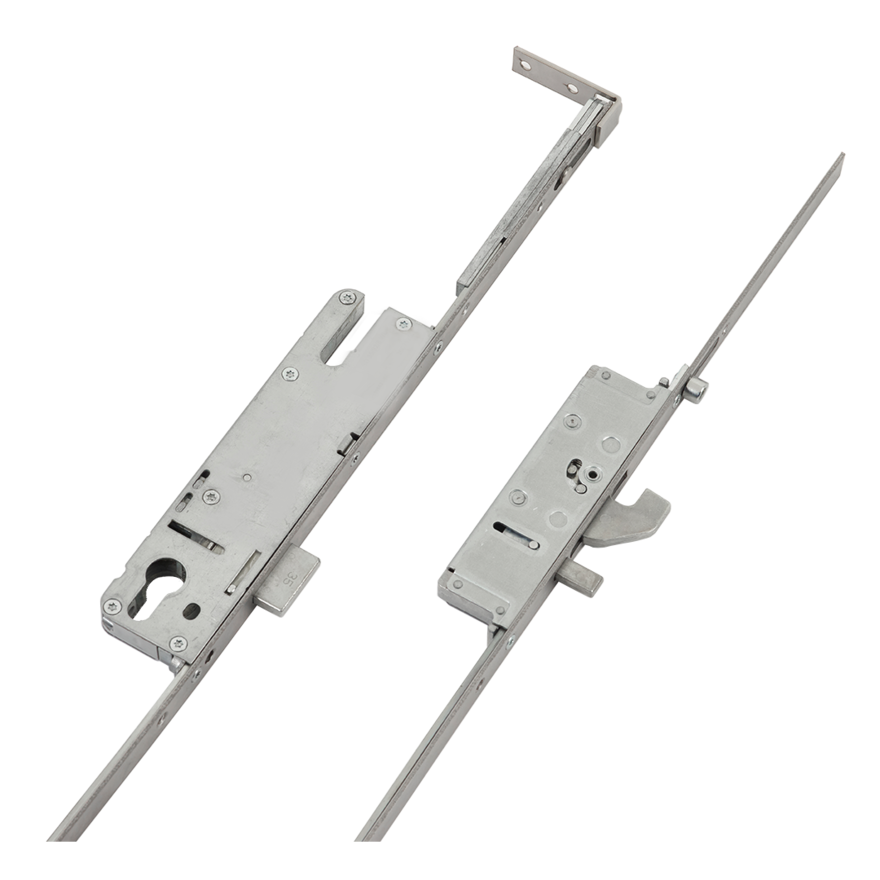

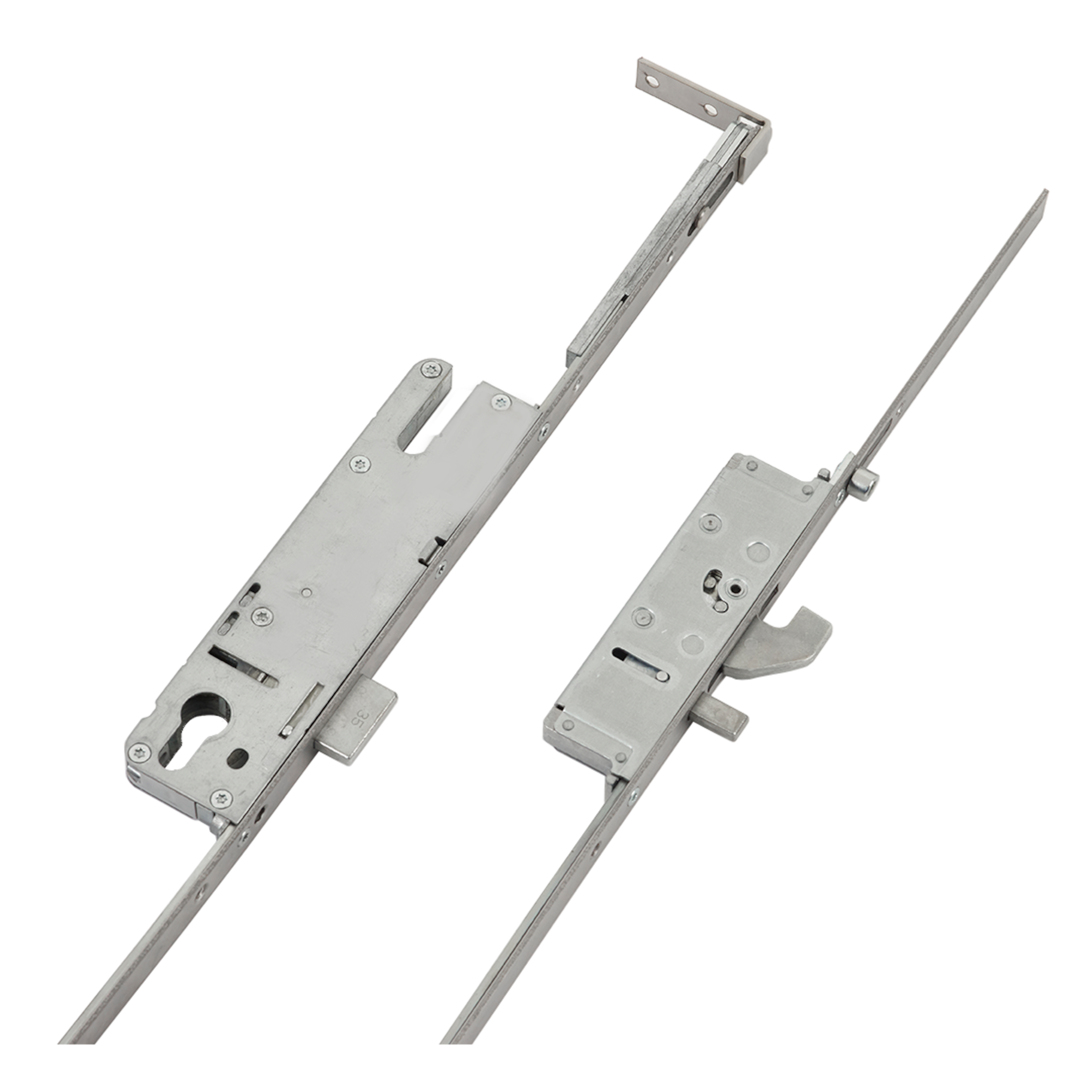

  • Lockmaster 21 Stable Door lock – Composite

    A composite and timber stable door locking solution incorporating two independent 45mm backset security locks, securing both top and bottom leafs.

    Auxiliary units

    • Lockmaster signature hook and anti-lift pins used on top and bottom lock sections

    Centre units

    • A combination of Lockmaster 21 hook centre unit and Lockmaster KeyTurn deadbolt centre unit

    • Top leaf: Lockmaster 21 hook centre configured for a lever door handle Bottom leaf: Lockmaster KeyTurn deadbolt centre

    • 45mm backset

    • Top leaf: Reversible latch

    • Top leaf: Includes push-in snib feature to prevent accidental lock-outs

    • PZ92 centre case

    Faceplate

    • Yale branded

    • 430 stainless steel

    • 20mm rounded ended faceplates

    Individual keeps

    • Fully adjustable keeps to suit both top and bottom lock option
