Yale

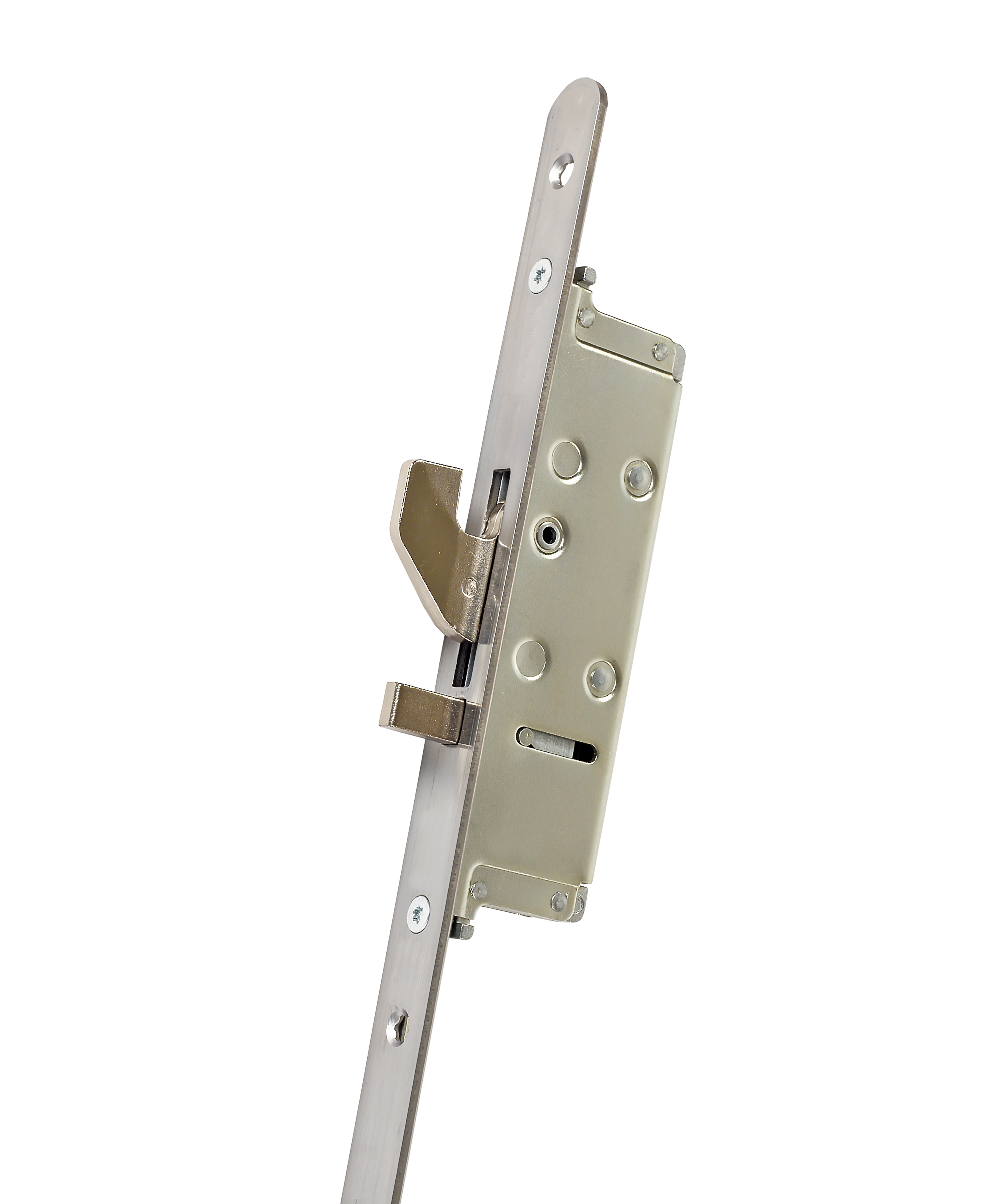

Lockmaster 21 Stable Door lock – Composite

A composite and timber stable door locking solution incorporating two independent 45mm backset security locks, securing both top and bottom leafs.

Auxiliary units

• Lockmaster signature hook and anti-lift pins used on top and bottom lock sections

Centre units

• A combination of Lockmaster 21 hook centre unit and Lockmaster KeyTurn deadbolt centre unit

• Top leaf: Lockmaster 21 hook centre configured for a lever door handle Bottom leaf: Lockmaster KeyTurn deadbolt centre

• 45mm backset

• Top leaf: Reversible latch

• Top leaf: Includes push-in snib feature to prevent accidental lock-outs

• PZ92 centre case

Faceplate

• Yale branded

• 430 stainless steel

• 20mm rounded ended faceplates

Individual keeps

• Fully adjustable keeps to suit both top and bottom lock option
  • Stable Door -Tech ManNov23- v1.3
    17706 - Stable Door Lock Amended May23 Final AW rev2 Crops
  • ProductProduct ID
    45mm Composite Stable door Lock- Top Lock (When using flush bolts)YSDL001-T-45H-27
    45mm Composite Stable door Lock- Bottom Lock (When using flush bolts)YSDL001-B-45D-27
    35mm Composite Stable Door Lock- Top LockYSDL005-T-35H-27
    35mm Composite Stable Door Lock with Adjustable Rollerbolt- Bottom LockYSDL006-B-35D-27
    45mm Composite Stable door Lock- Top LockYSDL005-T-45H-27
    45mm Composite Stable door Lock with Adjustable Rollerbolt- Bottom LockYSDL006-B-45D-27

  • Lockmaster 21 Stable Door lock PVCu

    Reflecting the increasing trend for stable door functionality in more
    contemporary settings as well as cottages and farmhouses, this is a
    welcome addition to our range enabling us to offer a solution for
    PVCu door sets.


    Auxiliary units:

    • Lockmaster signature hook and anti-lift pins used on top andbottom lock sections
    •  Adjustable roller to assist with door compression
    • Bottom lock section: 29mm and 61mm shootbolt extension options


    Centre units:

    • A combination of Lockmaster 21 hook centre unit and Lockmaster KeyTurn deadbolt centre unit
    • Top leaf: Lockmaster 21 hook centre configured for a lever door handle
    • Bottom leaf: Lockmaster KeyTurn deadbolt centre
    • 35mm backset
    • Top leaf: Reversible latch
    • Top leaf: Includes push in snib feature to prevent accidental lock-outs
    • PZ92 centre case


    Faceplate:

    • Yale branded
    •  430 stainless steel
    • 16mm square end top and bottom faceplate, with 90 degree return to accept bottom lock shootbolt


    One Piece keep:

    • 13mm handed One Piece keep - options for both top and bottom locks
    • Lockmaster 21 profile related packers


    Shootbolt guide:

    • 16mm 304 stainless steel Shootbolt guide
