4 Roller Cam Yale

Best suited for balcony door applications, the Yale 4 roller lock delivers evenly distributed compression performance; the availability of a shootbolt ready version ensures suitability for French door applications.



Features:

  • 35mm backsets
  • PZ92mm centre case
  • Stainless Steel faceplate
  • DDL Ready
  • Lever operational



Specifications:

  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Endurance tested to  50,000 cycles
  • 10-year Mechanical Guarantee



Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply





  • PVC Locks Yale

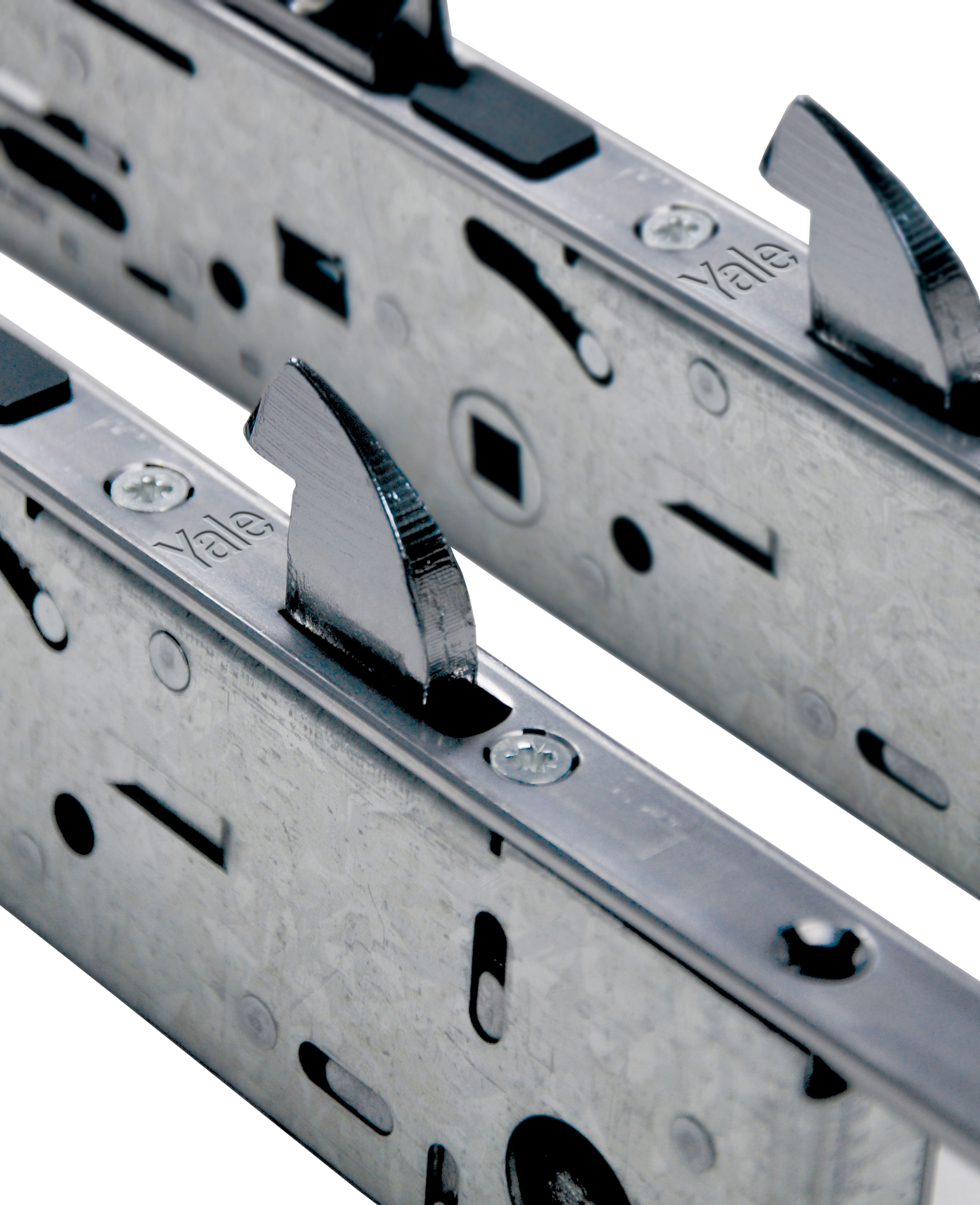

    A combination of hooks and rollers locking into either one-piece or individual keep sets, delivers profile specific operation performance for the world’s favourite lock



    Features:

    • 3 hook and Latch
    • 35mm & 45mm backsets
    • PZ92mm centre case
    • Stainless Steel faceplate
    • DDL Ready Lever operational
    • Split Follower



    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to  50,000 cycles
    • 10-year Mechanical Guarantee



    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply



  • Composite Locks Yale

    An impressive 3 arrangement mounted on a flexible platform of various back sets, faceplate options and manufacturing friendly finishing, ensures a Yale solution for all composite door applications.



    Features:

    • 3 hook and Latch
    • 35mm & 45mm backsets
    • PZ92mm centre case
    • Stainless Steel faceplate
    • DDL Ready Lever operational
    • Split Follower





    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to  50,000 cycles
    • 10-year Mechanical Guarantee



    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply







  • French Door Yale

    Specifically for French door systems incorporating a floating mullion, the Yale French door lock provides handle driven shootbolt locking into the top and the bottom of the door frame for the inactive leaf



    Features:

    • French Door Locks
    • 35mm & 45mm backsets
    • PZ92mm centre case
    • Stainless Steel faceplate
    • DDL Ready
    • Lever operational



    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to  50,000 cycles
    • 10-year Mechanical Guarantee



    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply
