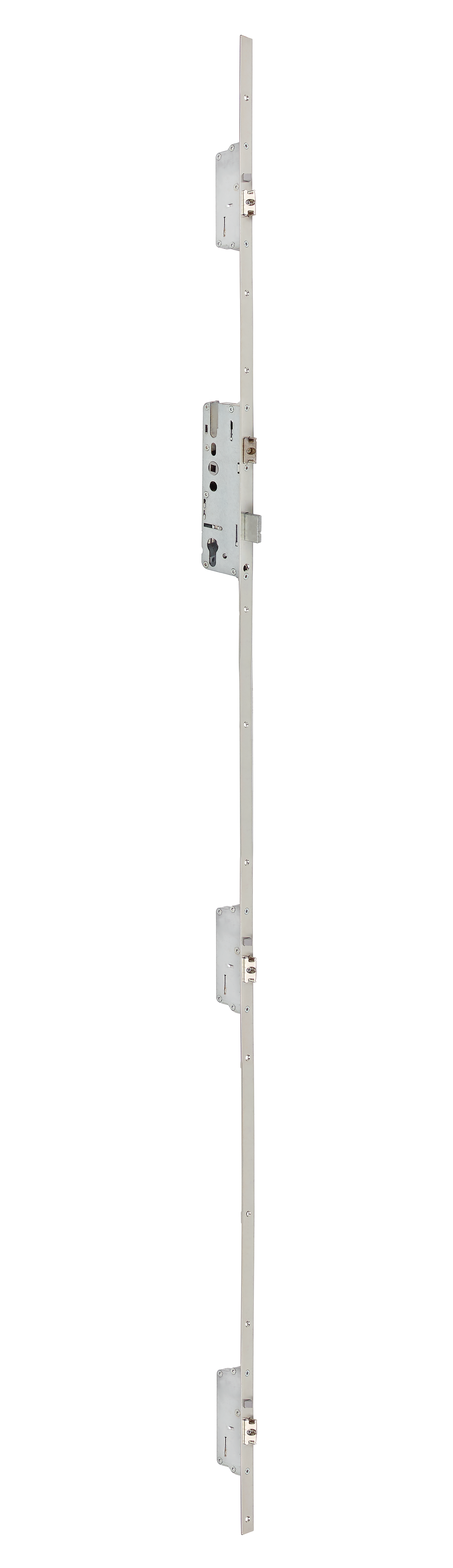

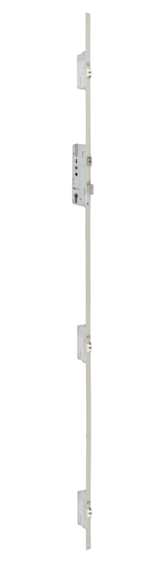

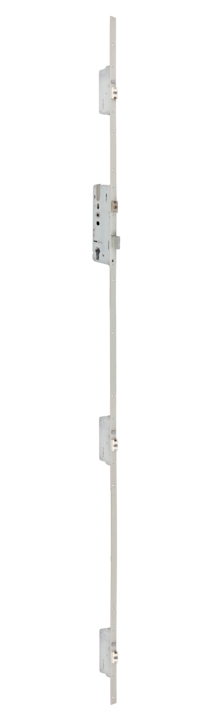

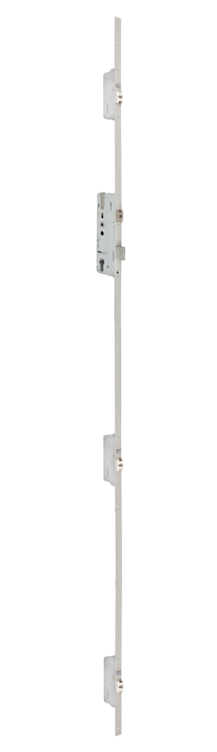

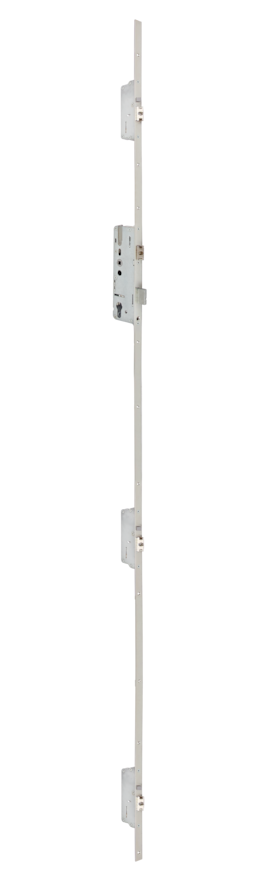

AutoEngage - Classic multi-point lock
A versatile auto engage locking mechanism suitable for key operation and lever exit doors.
Locking Points
- Auto engaging key retract locking mechanism
- Security latches automatically fire upon closure offering 20mm deadbolt engagement
- Fully reversible security latches
- Central deadbolt provides independent security with a 20mm throw
- Available in 35mm and 45mm backset options
- Suitable for composite and timber doors
- Designed to be compatible with a wide range of decorative furniture sets
Faceplate
- Yale branded
- Square or radius end options
- 16mm or 20mm faceplate options
- Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available
Specification
- PAS 24:2016 security tested
- Designed to achieve FD60
- Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
- Endurance tested to 100,000 cycles
- 10-year Mechanical Guarantee
- Made in Britain
- Meets the requirements of FD30 & FD60 when tested as part of a door set
Included within the Yale Lifetime Security Guarantee*
*Terms and conditions apply
Material Specification
- Lockcase: Galvanised Mild Steel
- Faceplate: 430 Stainless steel/ Austenitic 304 Stainless Steel
- Deadbolt and Latchbolt: Zinc Alloy Castings/Austenitic 304 Stainless Steel
- Keeps: Mild Steel/Austenitic 304 Stainless Steel
Packaging
Locks: 5 per box
Maintenance
Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
