• AutoEngage - Heritage multi-point lock

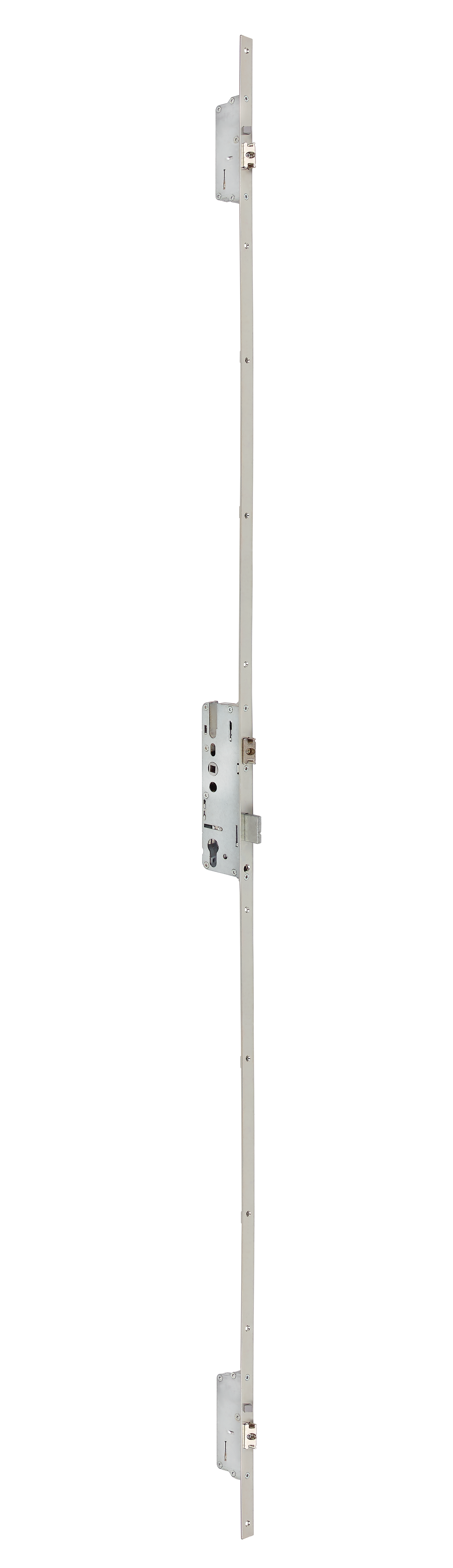

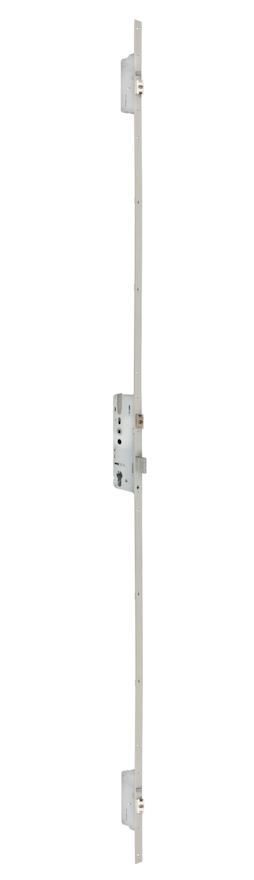

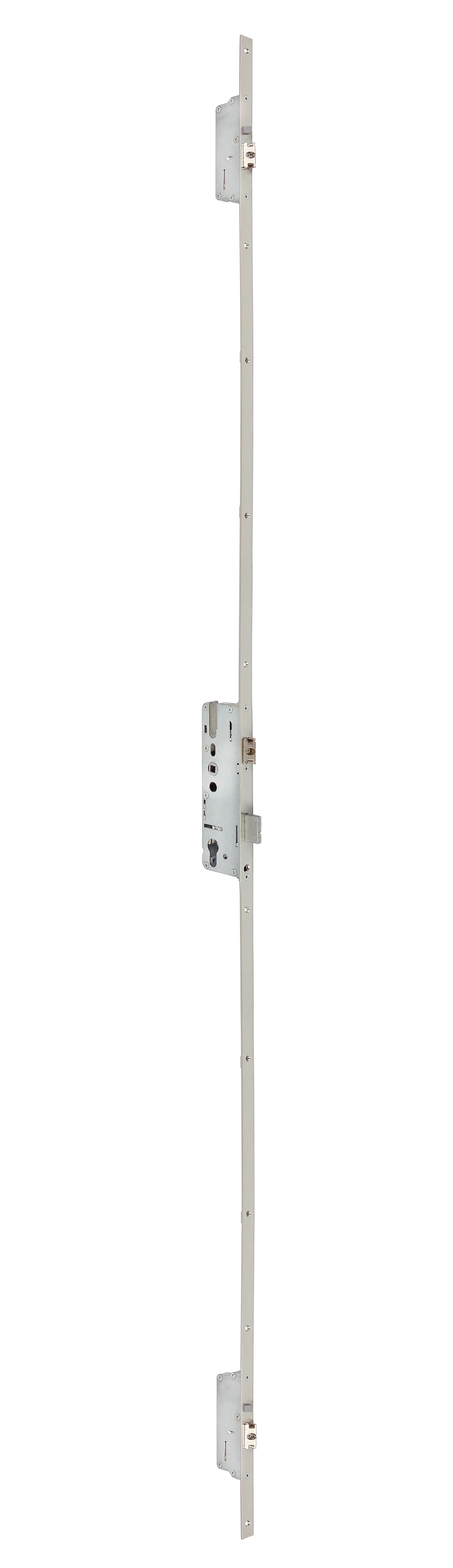

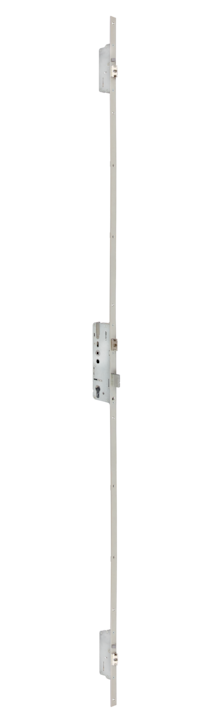

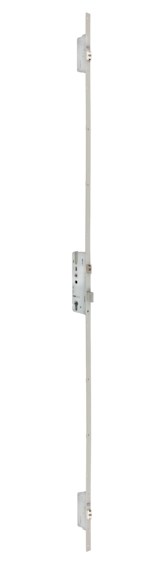

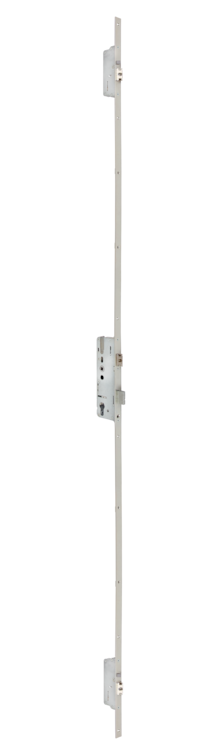

    An auto engage key retract lock mechanism designed to complement contemporary and heritage door styles.

    Locking points

    • Auto engage key retract locking mechanism
    • Security latches automatically fire upon closure offering 20mm deadbolt engagement
    • Fully reversible security latches

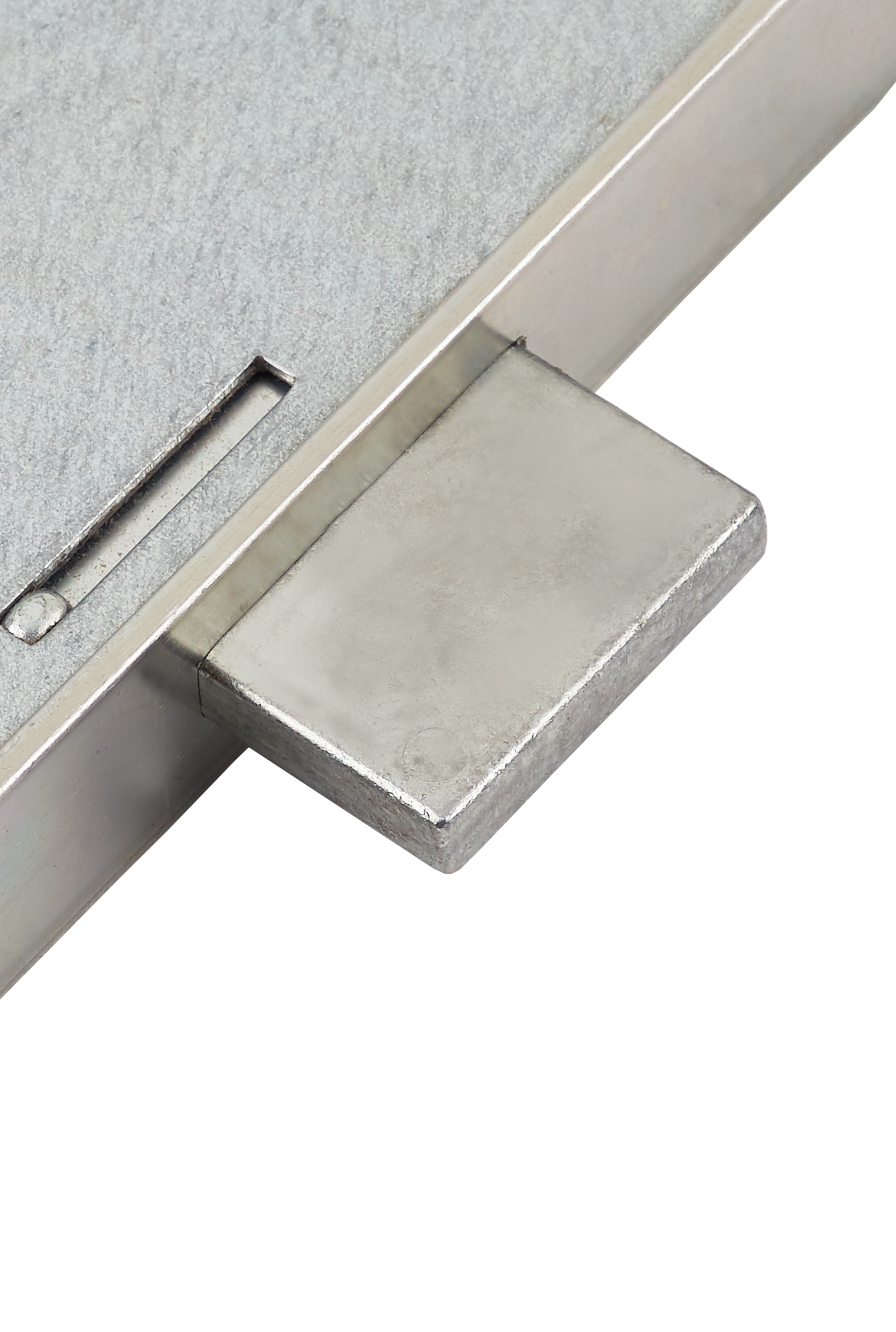

    • Central deadbolt provides independent security with a 20mm throw
    • Available in 35mm and 45mm backset options
    • Suitable for composite and timber doors
    • Designed to be compatible with a wide range of decorative furniture sets

    Faceplate

    • Yale branded
    • 16mm or 20mm faceplate options
    • Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available
    • Range includes square and radius end options

    Specification

    • PAS 24:2016 security tested
    • Designed to achieve FD60
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 100,000 cycles
    • 10-year Mechanical Guarantee
    • Made in Britain
    • Meets the requirements of FD30 & FD60 when tested as part of a door set

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

    Material Specification

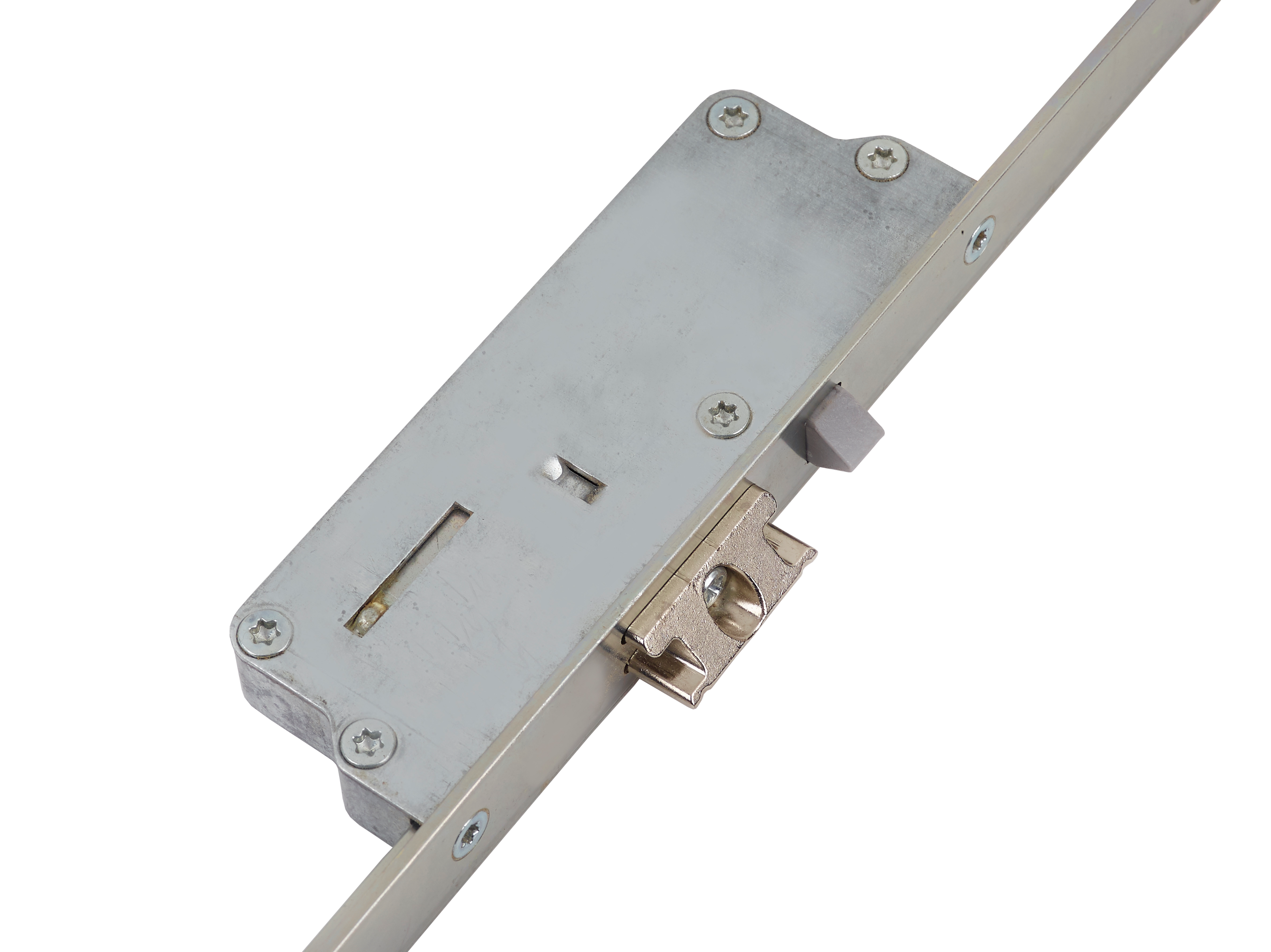

    • Lockcase: Galvanised Mild Steel
    • Faceplate: 430 stainless steel/ Austenitic 304 Stainless Steel
    • Deadbolt and security latches: Zinc Alloy Castings/Austenitic 304 Stainless Steel
    • Keeps: Mild Steel/Austenitic 304 Stainless Steel

    Packaging

    Locks: 5 locks per box

    Maintenance

    Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
