2 Hook with roller Lockmaster

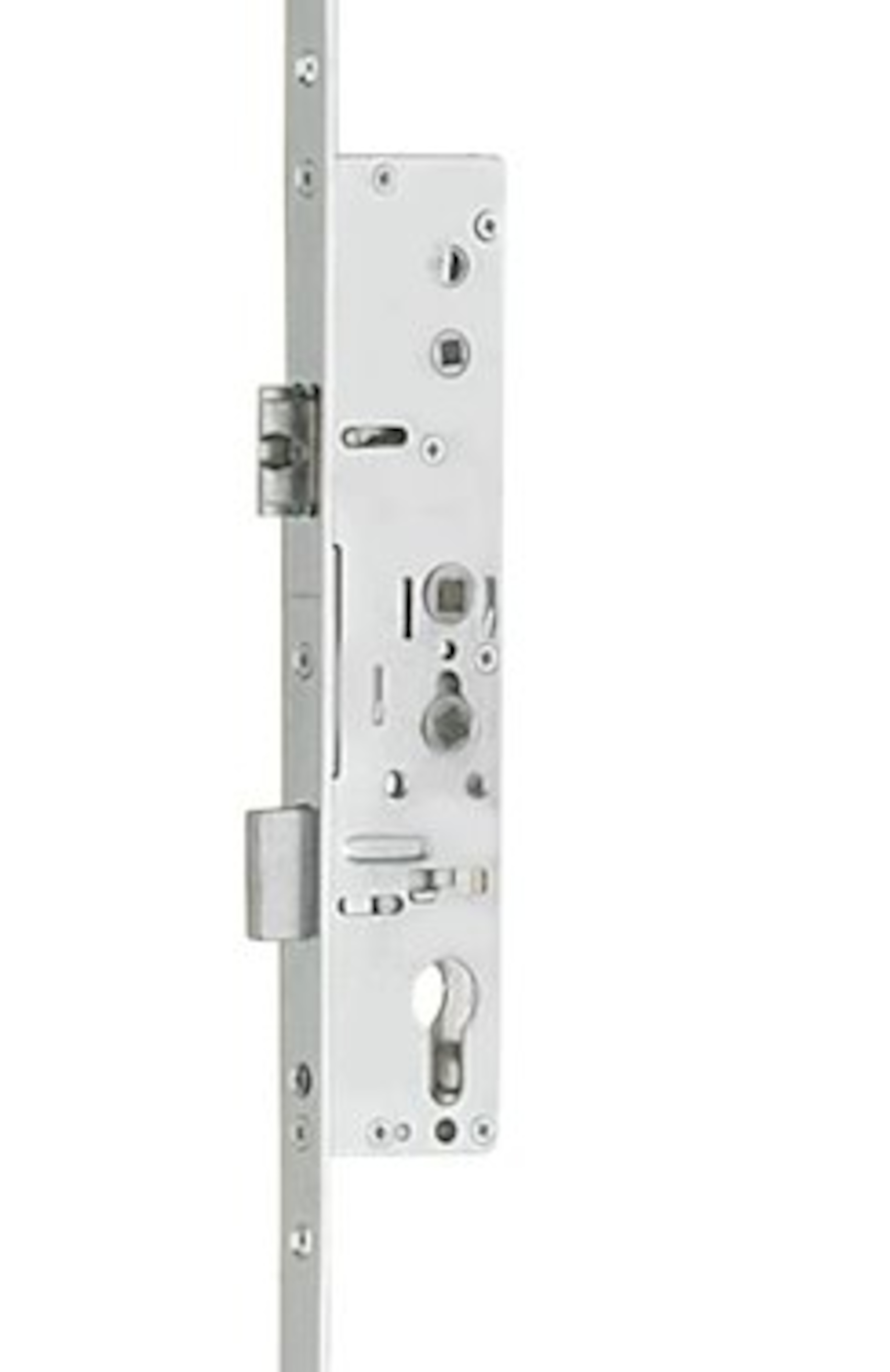

Designed primarily for timber door applications the Lockmaster suite of 3 deadbolt MPLs is available in a range of backsets and faceplate options. The range also includes a shootbolt ready version as well as a model with roller cams, to make this range truly versatile and suitable for a wide range of door materials.

Features:

• 3 Deadbolt and reversible latch
• 35mm & 45mm backsets PZ92mm centre case
• Faceplate available in 16mm or 20mm
• Dual and single Follower variants
• Sprung and un-sprung centre cases with twin spindle on un-sprung only
• Lever operational Striker solutions for PVC and Timber

Specifications:

• 10-year Mechanical Guarantee
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Ideal for balcony door applications, the Lockmaster 4 roller lock delivers evenly distributed compression performance; the availability of a shootbolt ready version ensures suitability for French door applications.

Features:

• 4 Adjustable roller
• Cams and reversible latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Sprung and un-sprung centre cases
• Lever operational
• Dual Follower availability
• Striker solutions for PVC, Timber and Aluminium

Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 100,000 cycles

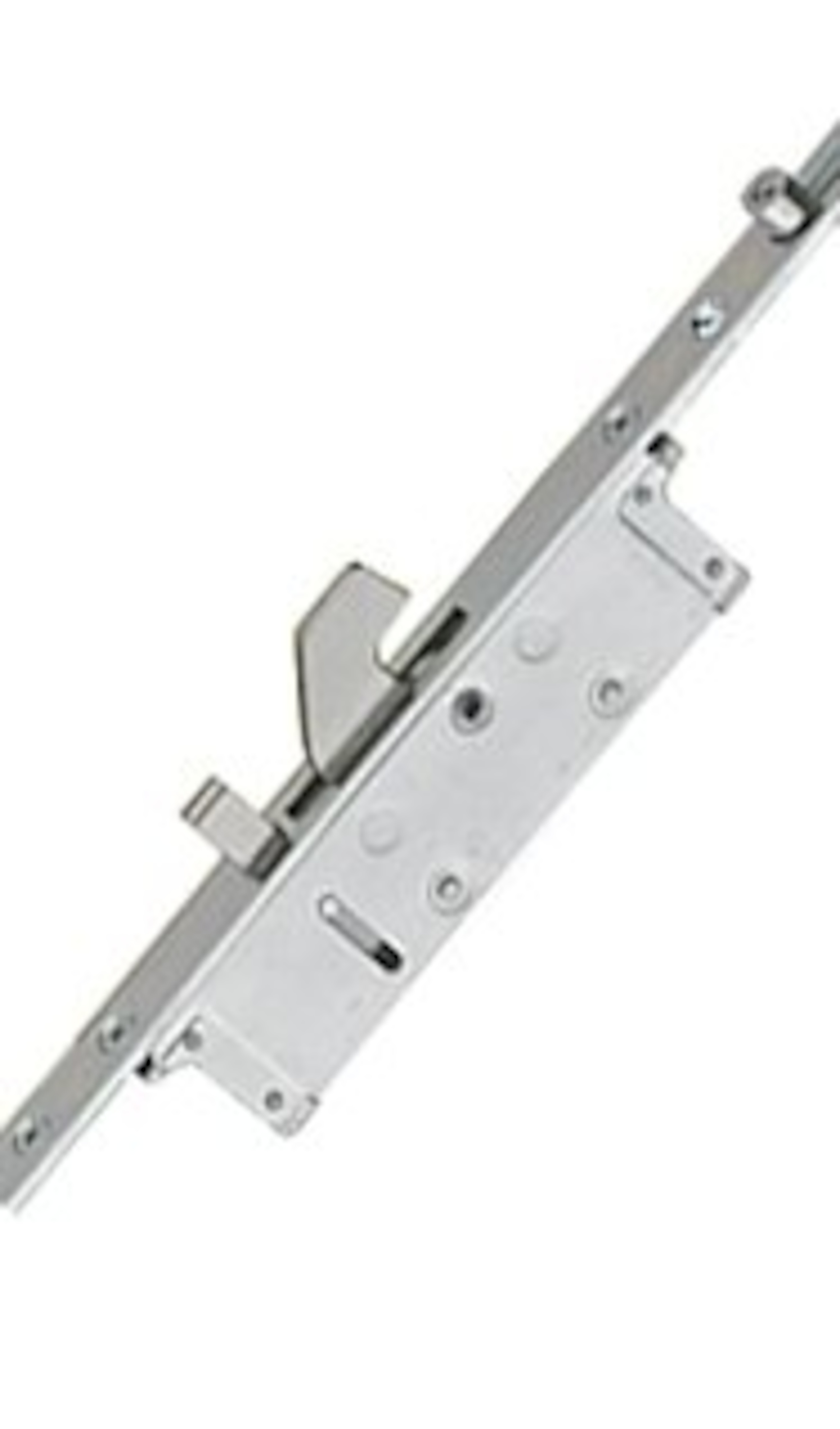

Suitable for Aluminium, Timber and composite door applications Lockmaster 2 hook locks are available in a range of back sets, with a comprehensive range of faceplate options to suit and extensive list applications and manufacturing methods.

Features:

• 2 Hook, Deadbolt and Reversible Latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Faceplate 16mm and 20mm
• Lever operational
• Dual Follower availability
• Striker solutions available for PVC and Timber

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

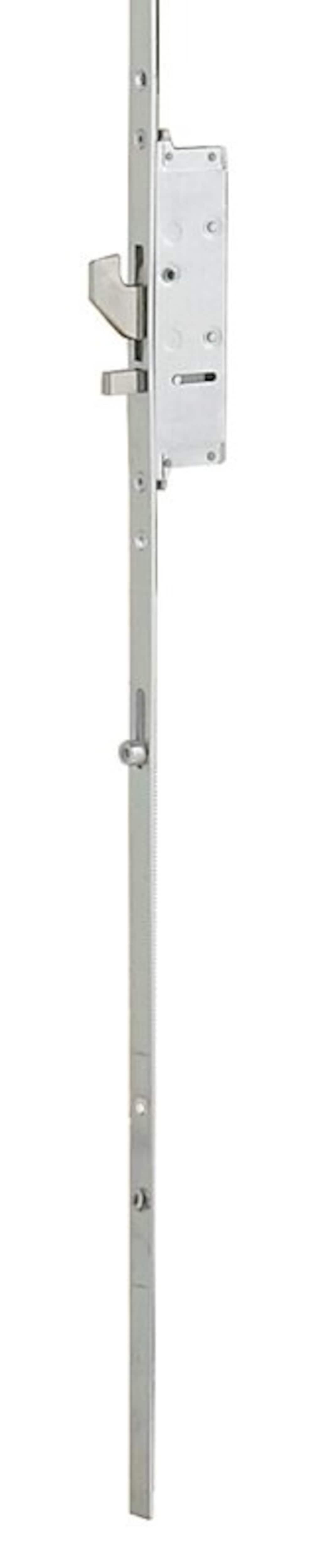

Incorporating a centre hook dead-bolt delivering elevated levels of anti-separation security performance, the variant is available as night latch as well as standard operation with optional rollers and shootbolt ready configuration as well as options compatible with Lockmaster panic door products.

Features:

• 3 Hook, 2 or 4 rollers and reversible Latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Patented pre-compression rollers
• Dual Follower availability Lever operational
• Striker solutions for extensive PVC range

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

An impressive array 4 high-security hooks, 2 rollers, latch and deadbolt, delivers huge levels of security, whilst not compromising operation or compression. The 4 hook lock is available in night latch and standard lever operation.

Features:

• 4 Hook, 2 Roller and reversible Latch
• 35mm & 45mm backsets
• PZ92mm centre case
• Patented pre-compression rollers
• Dual Follower availability
• Lever operational
• Striker solutions for extensive PVC range

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

Specifically for French door systems incorporating a floating mullion, the Lockmaster passive door lock provides handle driven shootbolt locking into the top and the bottom of the door frame for the inactive leaf.

Features:

• Extendable French Door Locks
• 35mm & 45mm backsets
• PZ92mm centre case Sprung and un-sprung centre cases
• Lever operational

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum of 100,000 cycles operational lifespan

Features:

• North American lever set compatible
• 45mm backsets PZ92mm centre case Austenitic faceplate Sprung centre cases Lever operational

Specifications:

• Compliant with Dade County standard DP100
• Tested to a minimum of 100,000 cycles operational lifespan
