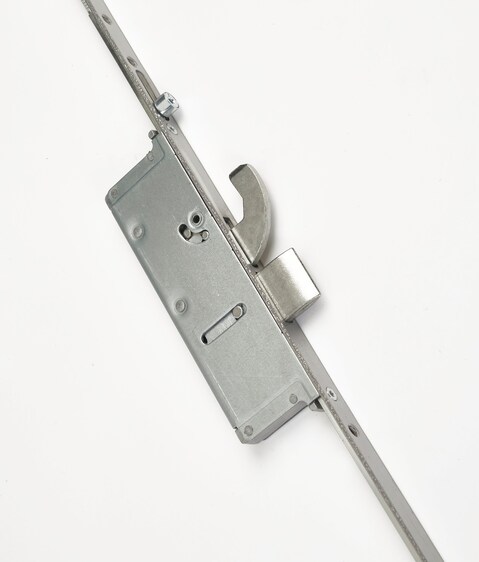

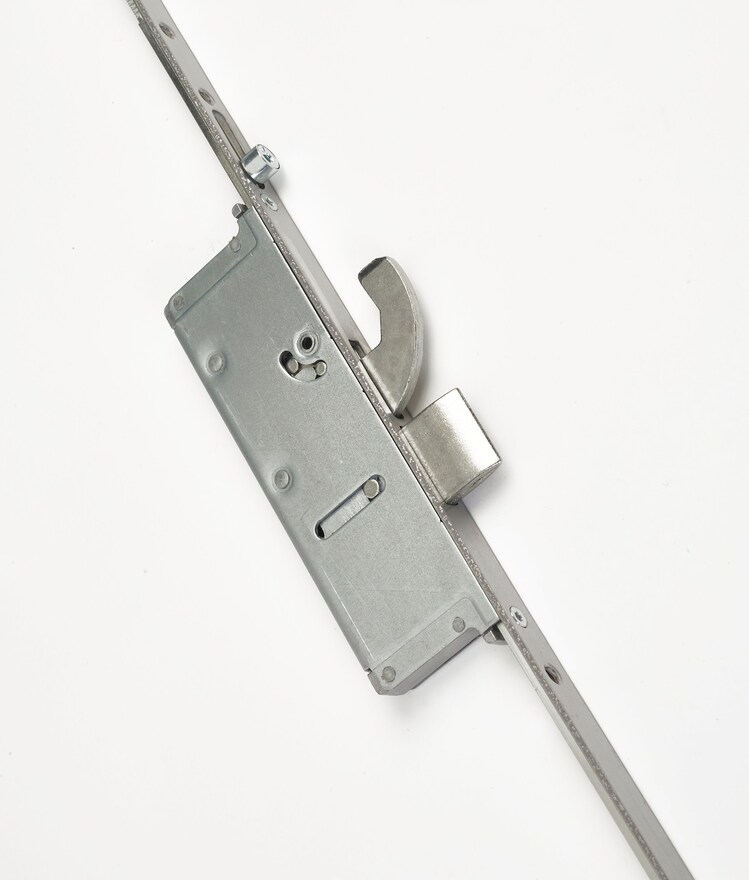

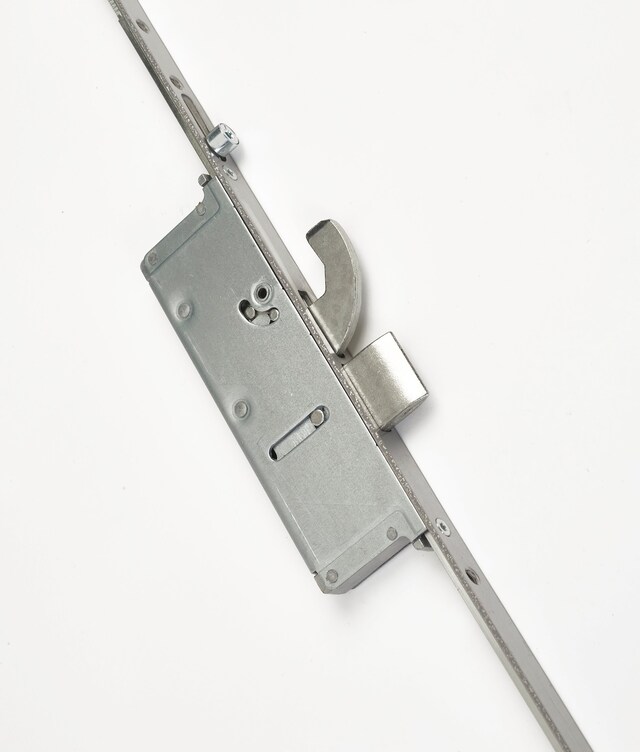

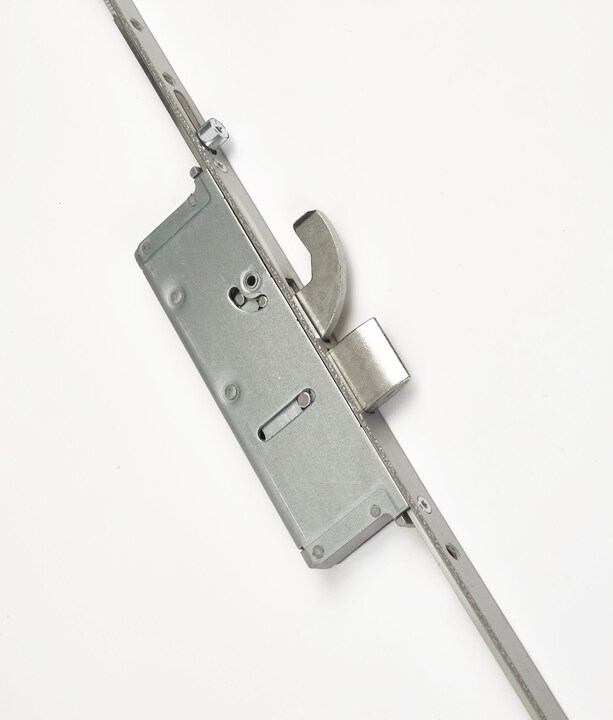

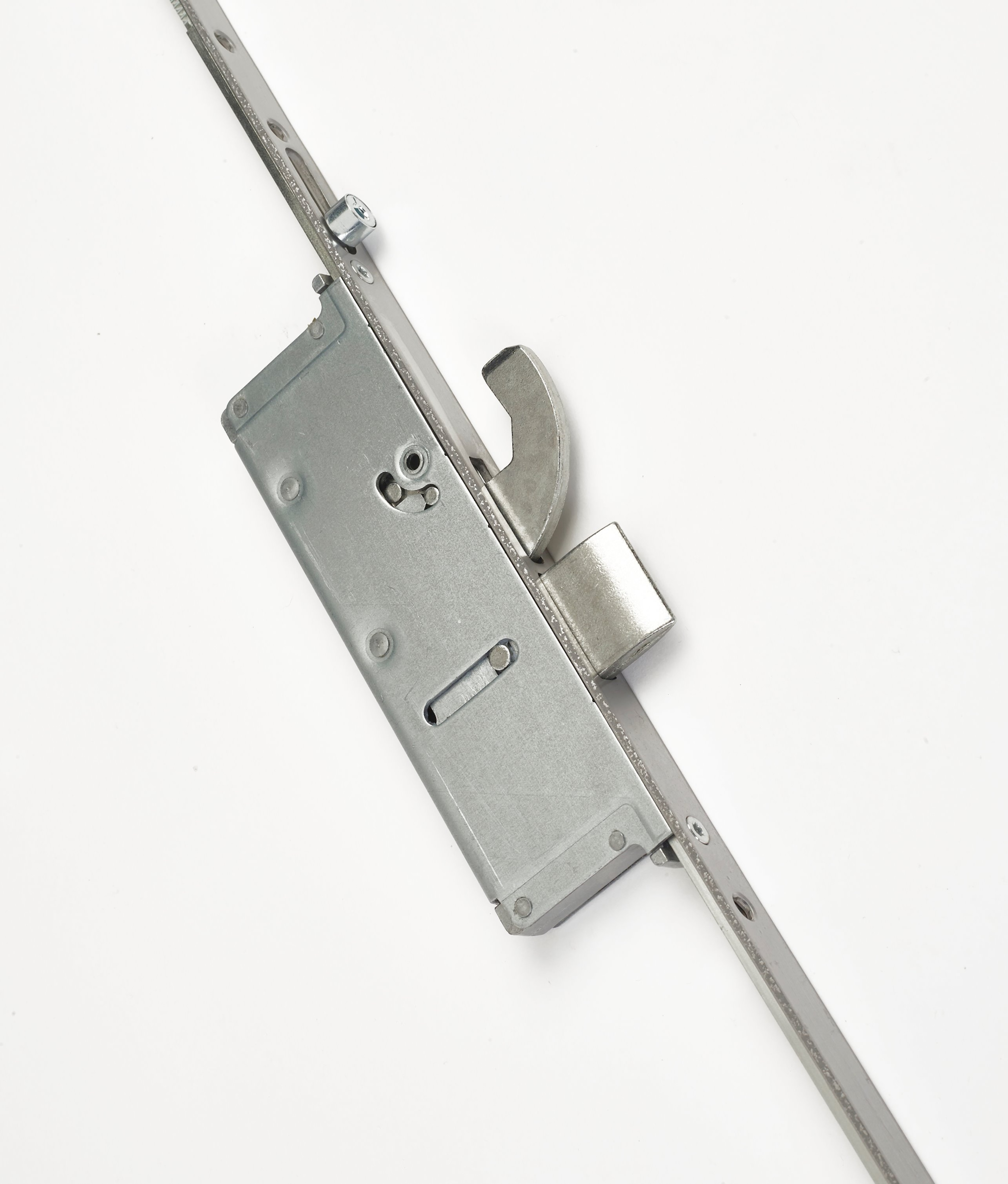

Mantis 4

Yale’s Mantis 4 door lock offers the best in strength and durability for all types of doors. Designed and manufactured in the UK to suit PVCu, composite and timber style doors its unique hook and linear bolt lock points ensure the ultimate in security. It also works seamlessly with both single and french door applications.

The Mantis 4 Multipoint Door Lock is compatible with the Yale SensCheck ™ Door and Window Sensor range

Features:

Auxiliary units

• Mantis 4’s unique hook and linear bolt unit and pre-compression rollers are cleverly positioned to assist with PAS24: 2016 test accreditation
• Unique hook and linear bolt lock points
•  Pre-compression rollers

 Centre unit

• Strengthened centre case offering enhanced
• security for added peace of mind
• Reversible latch
• The easy to use push-in latch snib feature has been designed specifically to prevent accidental lock outs
•  PZ92 centre case

Faceplate

• 430 Stainless Steel
• 16mm or 20mm faceplate options
• Range includes square and radius ends
• Yale and Mantis faceplate branding

Specification

•  10 year mechanical guarantee
• Corrosion tested to BS EN 1670: 2007 Grade 4 (240hrs)
• Endurance tested to 50,000 cycles
• Made in Britain

Included within the Lifetime Security Guarantee*

*Terms and conditions apply

Material Spec

• Lock case: Galvanised mild steel
• Faceplate: 430 stainless steel
• Keeps: Mild steel, BZP and clear trivalent

Maintenance

Yale recommends that all moving components are lubricated

using a non-acidic mineral oil at least twice a year and surface

cleaned with a damp cloth. The product may need to be adjusted

to ensure satisfactory operation.
