Lockmaster AutoEngage

Yale Lockmaster AutoEngage is a new multi-point locking system.

Designed, developed and tested to Yale's exacting standards, delivering high-performance security whilst also complementing contemporary and heritage door styles.



Products

    Filter

      2 results

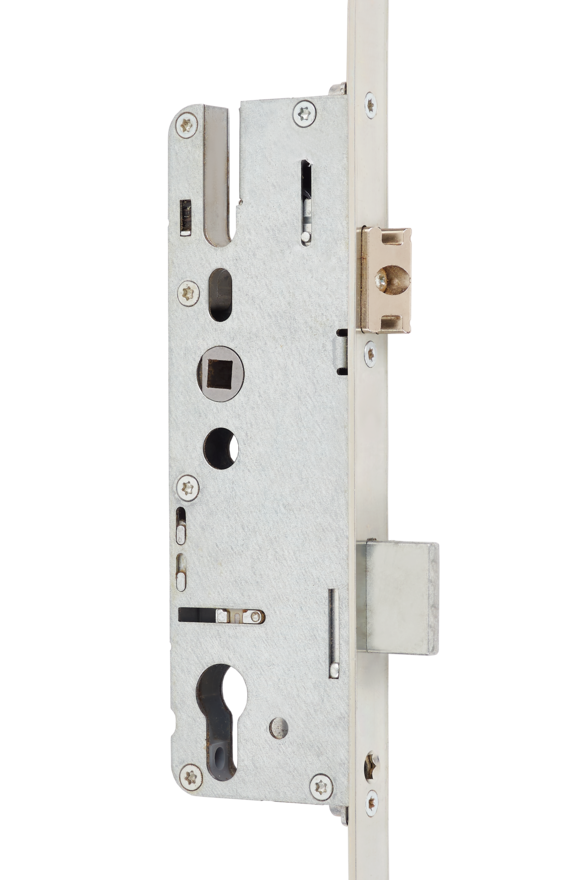

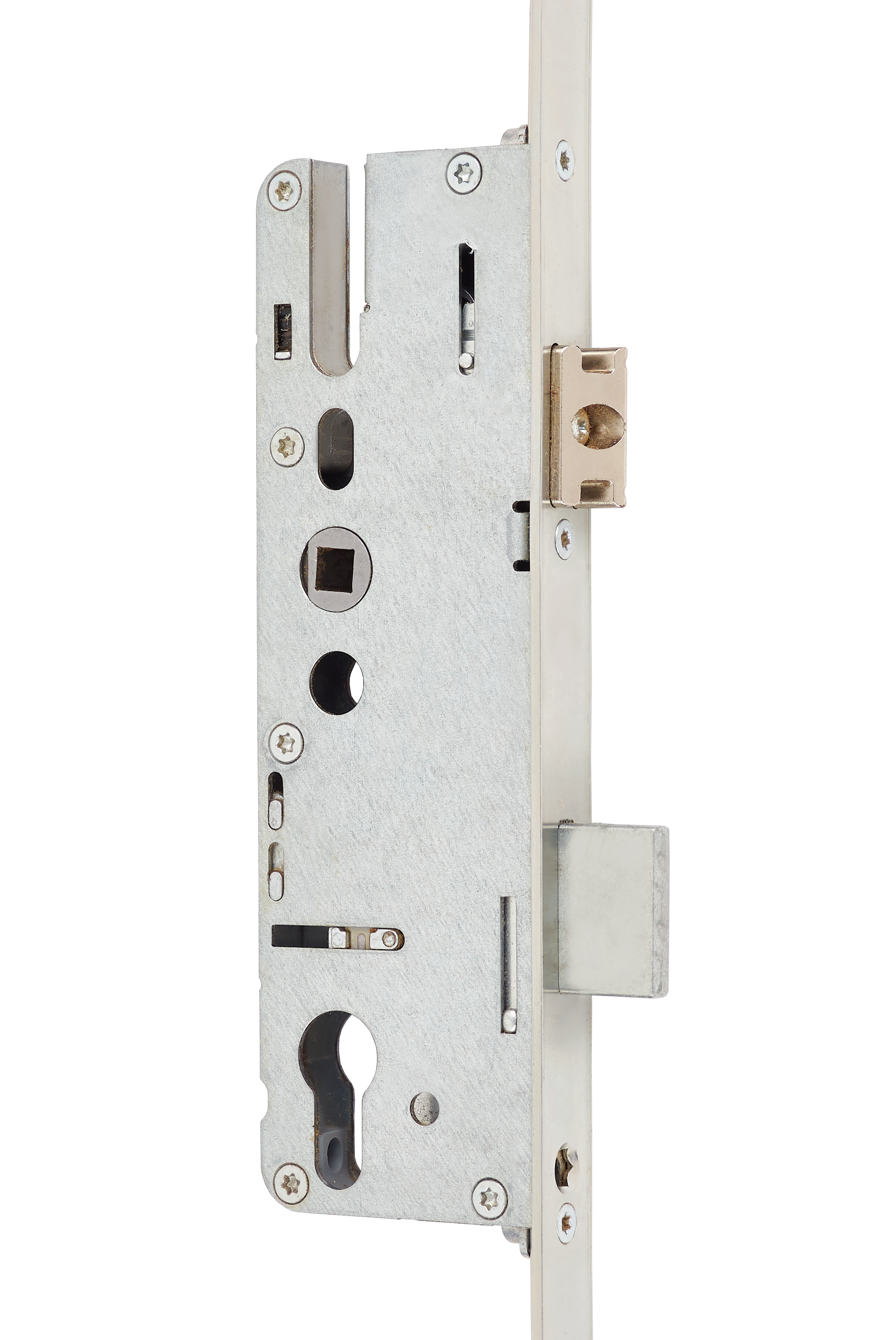

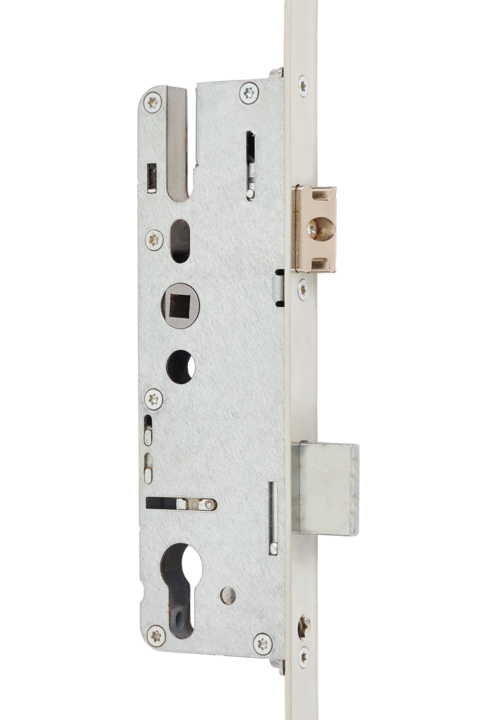

      • AutoEngage - Classic multi-point lock

        A versatile auto engage locking mechanism suitable for key operation and lever exit doors.

        Locking Points

        • Auto engaging key retract locking mechanism
        • Security latches automatically fire upon closure offering 20mm deadbolt engagement
        • Fully reversible security latches
        • Central deadbolt provides independent security with a 20mm throw
        • Available in 35mm and 45mm backset options
        • Suitable for composite and timber doors
        • Designed to be compatible with a wide range of decorative furniture sets

        Faceplate

        • Yale branded
        • Square or radius end options
        • 16mm or 20mm faceplate options
        • Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available

        Specification

        • PAS 24:2016 security tested
        • Designed to achieve FD60
        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to 100,000 cycles
        • 10-year Mechanical Guarantee
        • Made in Britain
        • Meets the requirements of FD30 & FD60 when tested as part of a door set

        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply

        Material Specification

        • Lockcase: Galvanised Mild Steel
        • Faceplate: 430 Stainless steel/ Austenitic 304 Stainless Steel
        • Deadbolt and Latchbolt: Zinc Alloy Castings/Austenitic 304 Stainless Steel
        • Keeps: Mild Steel/Austenitic 304 Stainless Steel

        Packaging

        Locks: 5 per box

        Maintenance

        Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

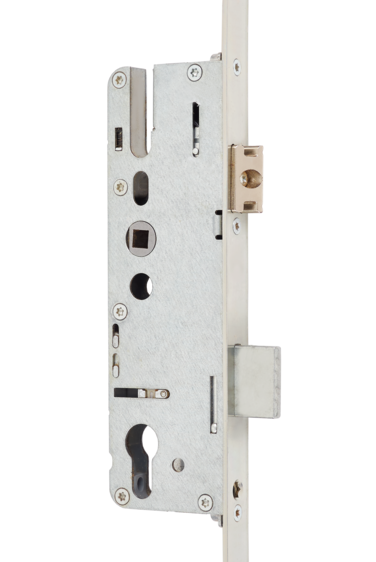

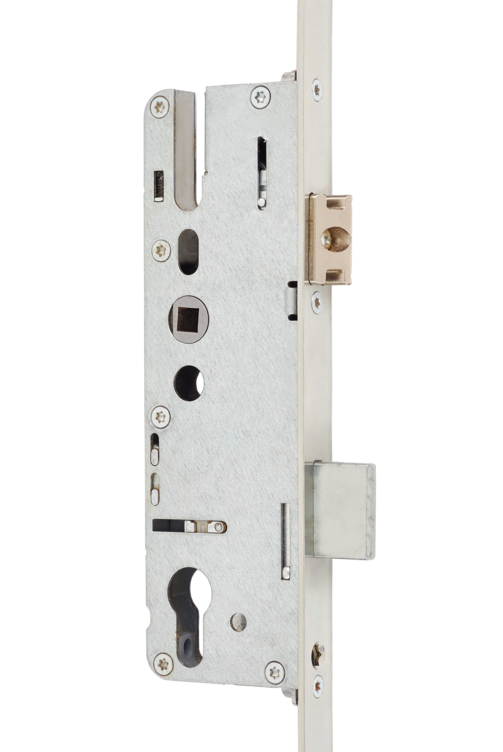

      • AutoEngage - Heritage multi-point lock

        An auto engage key retract lock mechanism designed to complement contemporary and heritage door styles.

        Locking points

        • Auto engage key retract locking mechanism
        • Security latches automatically fire upon closure offering 20mm deadbolt engagement
        • Fully reversible security latches
        • Central deadbolt provides independent security with a 20mm throw
        • Available in 35mm and 45mm backset options
        • Suitable for composite and timber doors
        • Designed to be compatible with a wide range of decorative furniture sets

        Faceplate

        • Yale branded
        • 16mm or 20mm faceplate options
        • Manufactured in 430 stainless steel; Austenitic 304 stainless steel variants also available
        • Range includes square and radius end options

        Specification

        • PAS 24:2016 security tested
        • Designed to achieve FD60
        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to 100,000 cycles
        • 10-year Mechanical Guarantee
        • Made in Britain
        • Meets the requirements of FD30 & FD60 when tested as part of a door set

        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply

        Material Specification

        • Lockcase: Galvanised Mild Steel
        • Faceplate: 430 stainless steel/ Austenitic 304 Stainless Steel
        • Deadbolt and security latches: Zinc Alloy Castings/Austenitic 304 Stainless Steel
        • Keeps: Mild Steel/Austenitic 304 Stainless Steel

        Packaging

        Locks: 5 locks per box

        Maintenance

        Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

      Showing 2 of 2
