YS170

YS170 multi-point locking system from Yale. The innovative lock, boasting both mechanical and electronic access options, has been designed to deliver optimum door performance, uncompromising quality and the highest levels of security, for PVC, timber, aluminium and composite door systems.

Products

      4 results

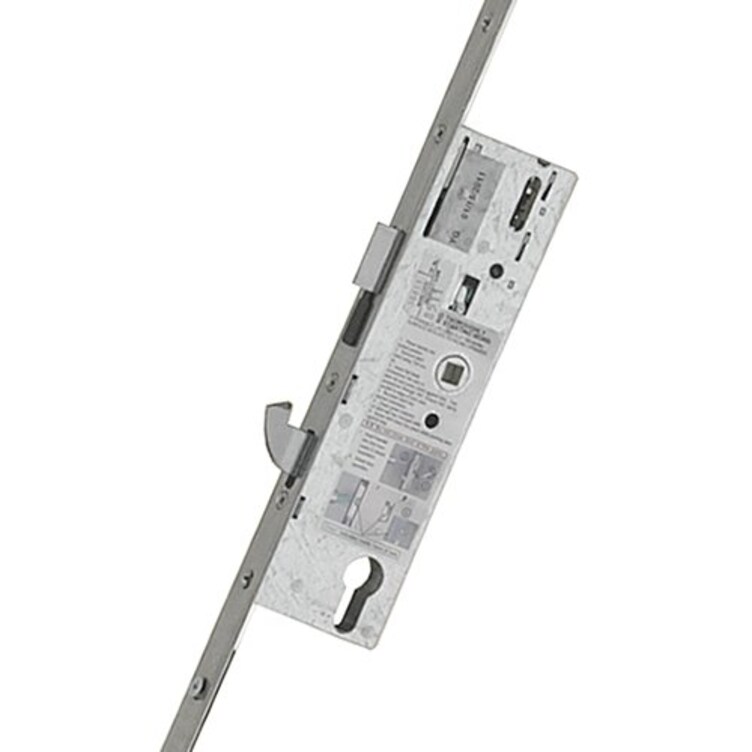

      • PVC Locks Yale

        A combination of hooks and rollers locking into either one-piece or individual keep sets, delivers profile specific operation performance for the world’s favourite lock



        Features:

        • 3 hook and Latch
        • 35mm & 45mm backsets
        • PZ92mm centre case
        • Stainless Steel faceplate
        • DDL Ready Lever operational
        • Split Follower



        Specifications:

        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to  50,000 cycles
        • 10-year Mechanical Guarantee



        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply

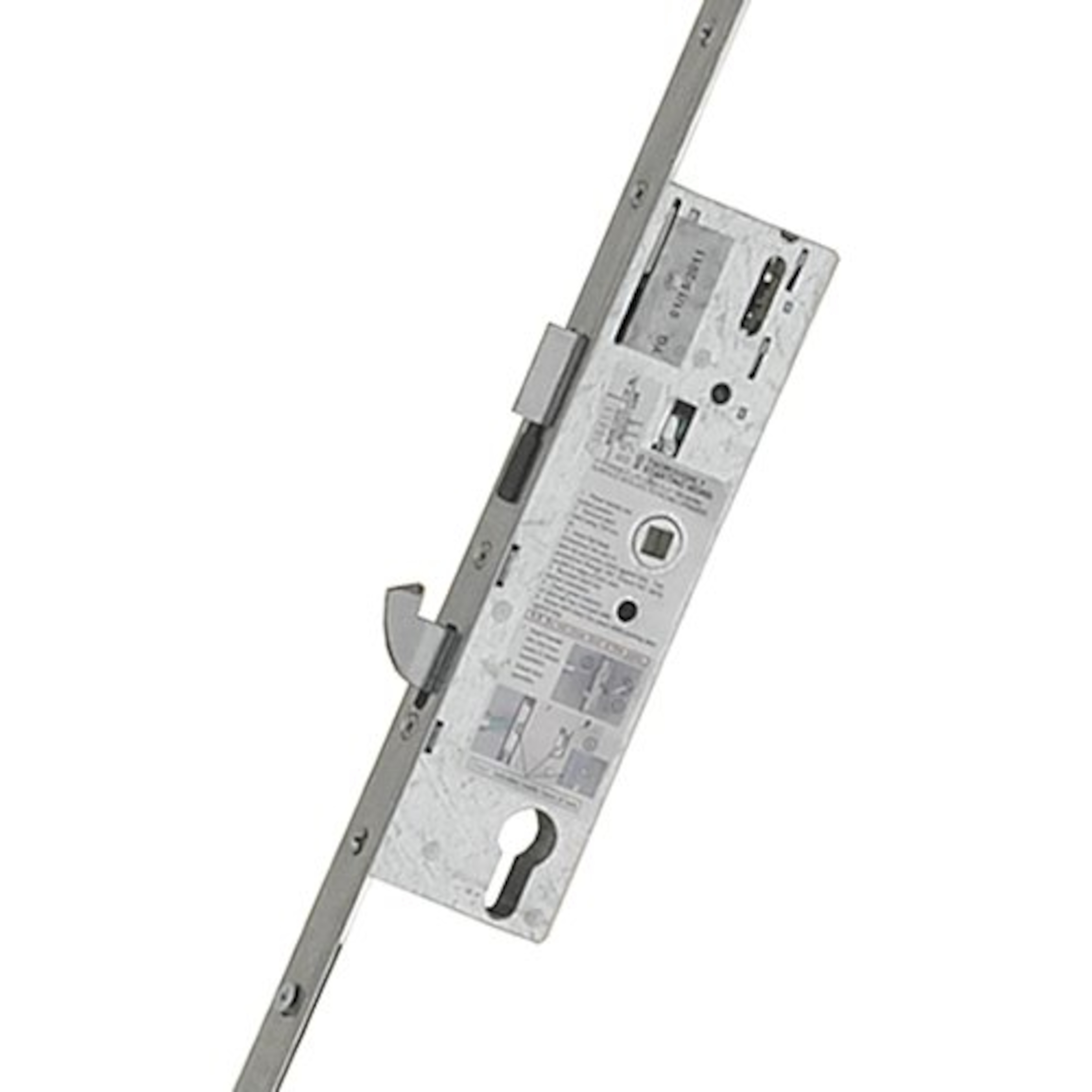

      • Composite Locks Yale

        An impressive 3 arrangement mounted on a flexible platform of various back sets, faceplate options and manufacturing friendly finishing, ensures a Yale solution for all composite door applications.



        Features:

        • 3 hook and Latch
        • 35mm & 45mm backsets
        • PZ92mm centre case
        • Stainless Steel faceplate
        • DDL Ready Lever operational
        • Split Follower





        Specifications:

        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to  50,000 cycles
        • 10-year Mechanical Guarantee



        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply

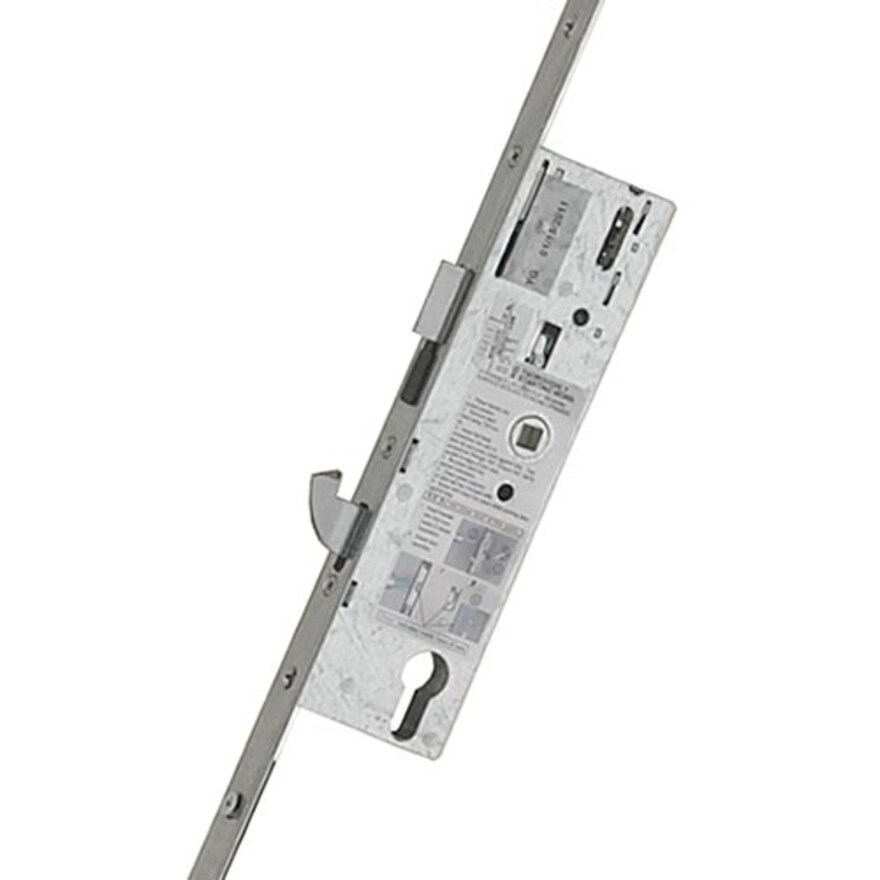

      • French Door Yale

        Specifically for French door systems incorporating a floating mullion, the Yale French door lock provides handle driven shootbolt locking into the top and the bottom of the door frame for the inactive leaf



        Features:

        • French Door Locks
        • 35mm & 45mm backsets
        • PZ92mm centre case
        • Stainless Steel faceplate
        • DDL Ready
        • Lever operational



        Specifications:

        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to  50,000 cycles
        • 10-year Mechanical Guarantee



        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply

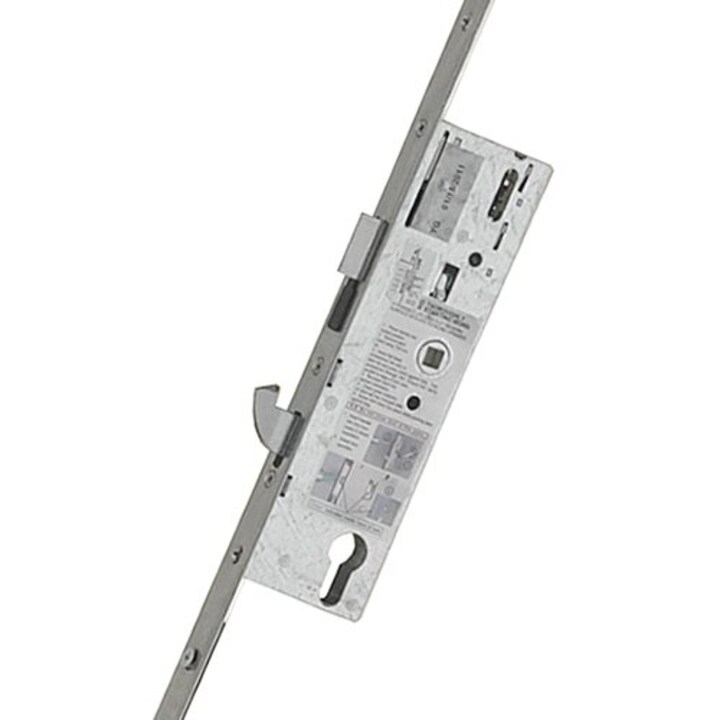

      • 4 Roller Cam Yale

        Best suited for balcony door applications, the Yale 4 roller lock delivers evenly distributed compression performance; the availability of a shootbolt ready version ensures suitability for French door applications.



        Features:

        • 35mm backsets
        • PZ92mm centre case
        • Stainless Steel faceplate
        • DDL Ready
        • Lever operational



        Specifications:

        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to  50,000 cycles
        • 10-year Mechanical Guarantee



        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply





      Showing 4 of 4
