Lockmaster® 28mm

Ideal for narrow door sets the Yale Lockmaster 28mm backset multi-point lock fits into slim sightline profiles and is available in standard 16mm euro groove and 24mm u-channel variants.

Products

      3 results

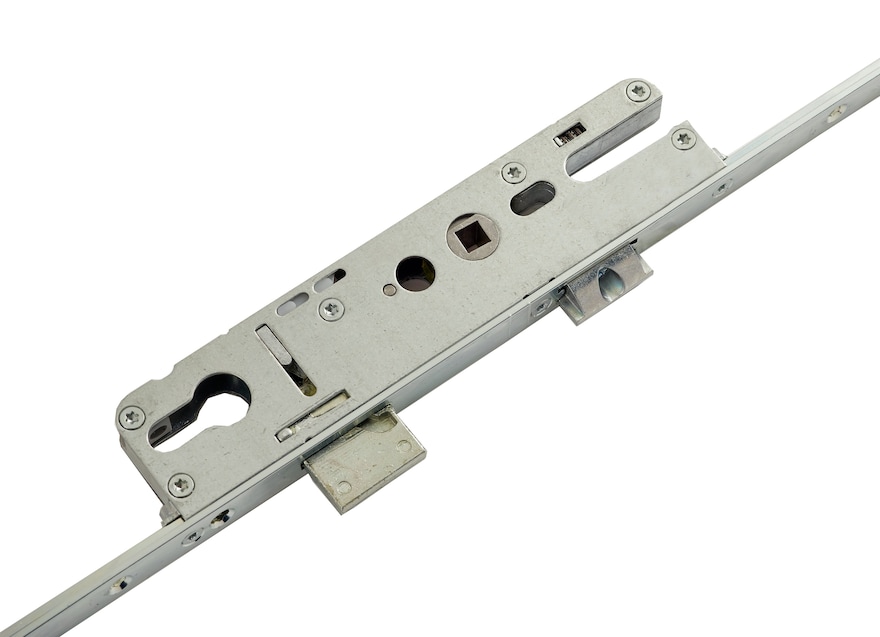

      • Lockmaster 28mm, 24mm U-Channel

        Britain's best-selling lock range has been extended to include a 24mm u-channel variant designed for modern aluminium bi-fold doors and features Lockmaster's signature hook and anti-lift pins.

        Locking Points

        • Lockmaster® signature hook and anti-lift pins
        • Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
        • Lockmaster® two hook and anti-lift pin variant
        • Passive mechanism for French door application is available
        • 28mm backset with PZ92mm centre case
        • Combined 3 piece keep
        • 2 lock lengths to suit a variety of door heights

        Faceplate

        • 24mm U-Channel
        • Yale Branded

        Specification

        • PAS 24:2016 security tested
        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to  100,000 cycles
        • 10-year Mechanical Guarantee
        • Made in Britain

        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply



        Material Specification

        • Lock Case: Galvanised Mild Steel
        • Faceplate: Mild Steel CS4 - ST2473
        • Deadbolt and Latchbolt: Zinc Alloy Casting
        • Keeps: Mild Steel, BZP and Clear Trivalent

        Packaging

        Locks: 5 locks per box

        Maintenance

        Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

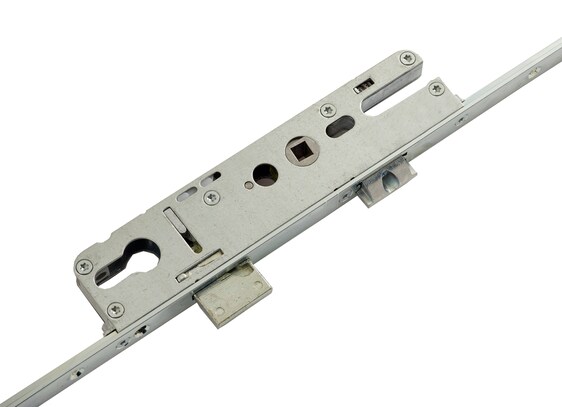

      • Lockmaster 28mm, 16mm Faceplate

        The UK's most popular multi-point lock platform is available in a 28mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.

        Designed and tested to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.

        Locking points

        • Lockmaster® signature hook and anti-lift pins
        • Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
        • Lockmaster® two hook and anti-lift pin variant for PVCu application
        • Passive mechanism for French door application is available
        • 28mm backset with PZ92mm centre case
        • Pre-compression roller engagement cams

        Faceplate

        • 16mm faceplate
        • Yale branded

        Specification

        • PAS 24:2016 security tested
        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to 100,000 cycles
        • 10-year Mechanical Guarantee
        • Made in Britain

        Included within the Yale Lifetime Security Guarantee*

        *Terms and conditions apply

        Material Specification

        Lock Case: Galvanised Mild Steel

        Faceplate: Mild Steel, BZP and Clear Trivalent

        Deadbolt and Latchbolt: Zinc Alloy Casting

        Keeps: Mild Steel, BZP and Clear Trivalent

        Packaging

        Locks: 5 locks per box

        Maintenance

        Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

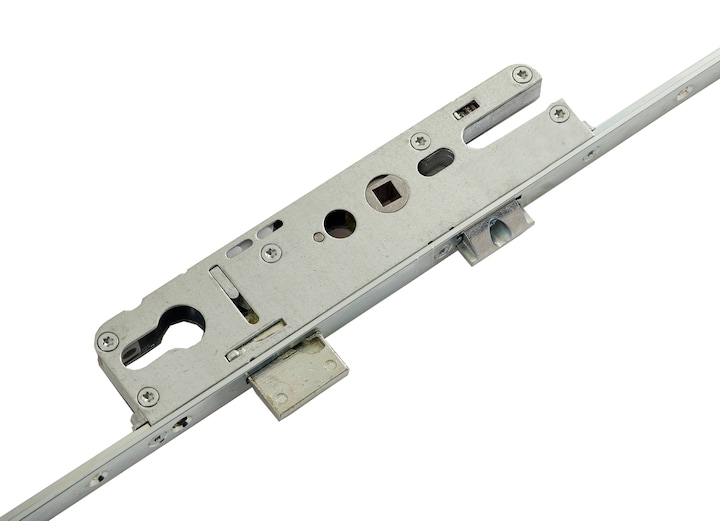

      • Lockmaster® 25mm, 16mm faceplate

        The UK's most popular multi-point lock platform is available in a 25mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.



        Designed to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.

        Locking points

        • Lockmaster® signature hook and anti-lift pins
        • Deadbolt centre with an easily reversible latch bolt to minimise stock requirements.
        • Lockmaster® two hook and anti-lift pin variant for PVCu application
        • Active and passive options available
        • 25mm backset with PZ92mm centre case
        • Pre-compression roller engagement cams



        16mm faceplate

        Yale branded



        Specification

        • PAS 24:2016 designed to achieve
        • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
        • Endurance tested to 100,000 cycles
        • 10-year Mechanical Guarantee
        • Made in Britain
        • Included within the Yale Lifetime Security Guarantee*



        *Terms and conditions apply



        Packaging

        Locks: 5 locks per box



        Maintenance

        Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
