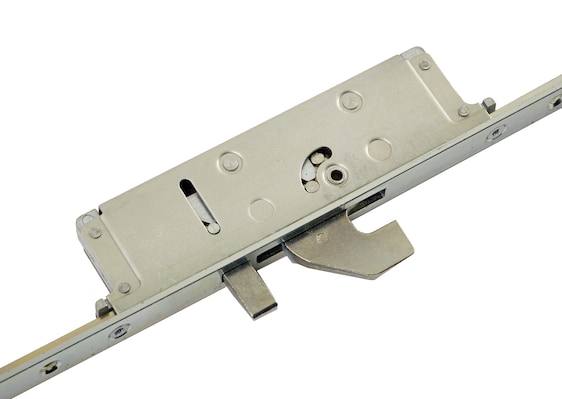

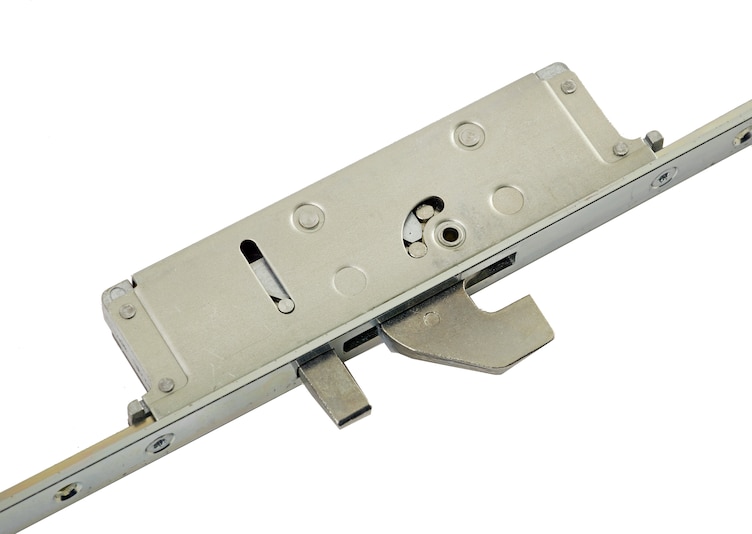

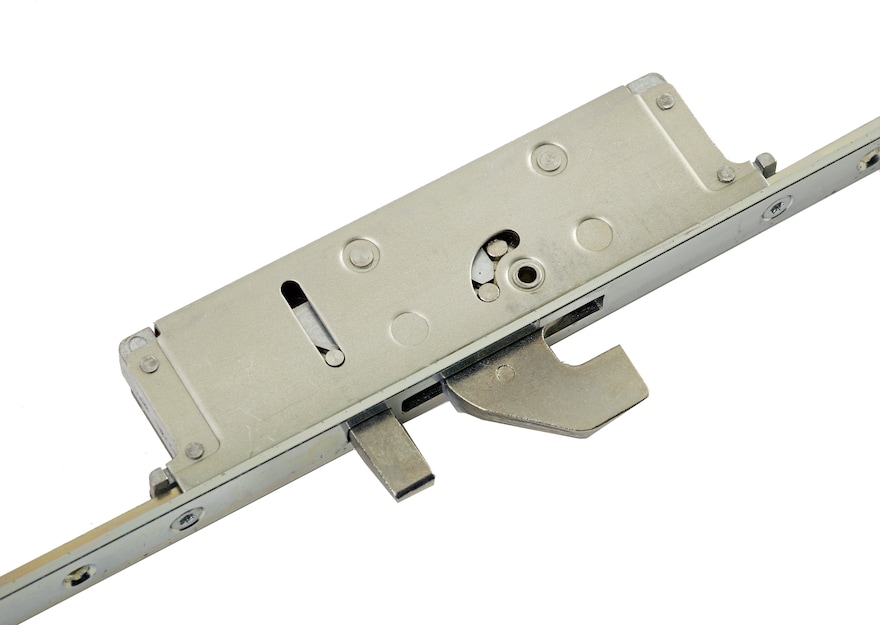

Lockmaster 28mm, 16mm Faceplate

The UK's most popular multi-point lock platform is available in a 28mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.

Designed and tested to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.

Locking points

  • Lockmaster® signature hook and anti-lift pins
  • Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
  • Lockmaster® two hook and anti-lift pin variant for PVCu application
  • Passive mechanism for French door application is available
  • 28mm backset with PZ92mm centre case
  • Pre-compression roller engagement cams

Faceplate

  • 16mm faceplate
  • Yale branded

Specification

  • PAS 24:2016 security tested
  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • Endurance tested to 100,000 cycles
  • 10-year Mechanical Guarantee
  • Made in Britain

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Material Specification

Lock Case: Galvanised Mild Steel

Faceplate: Mild Steel, BZP and Clear Trivalent

Deadbolt and Latchbolt: Zinc Alloy Casting

Keeps: Mild Steel, BZP and Clear Trivalent

Packaging

Locks: 5 locks per box

Maintenance

Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

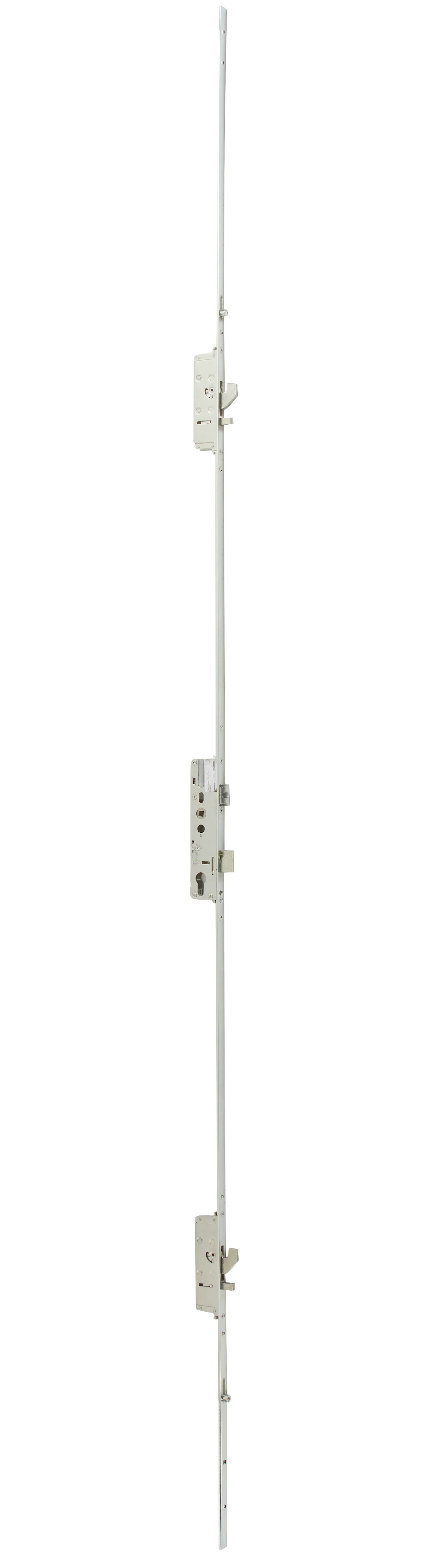

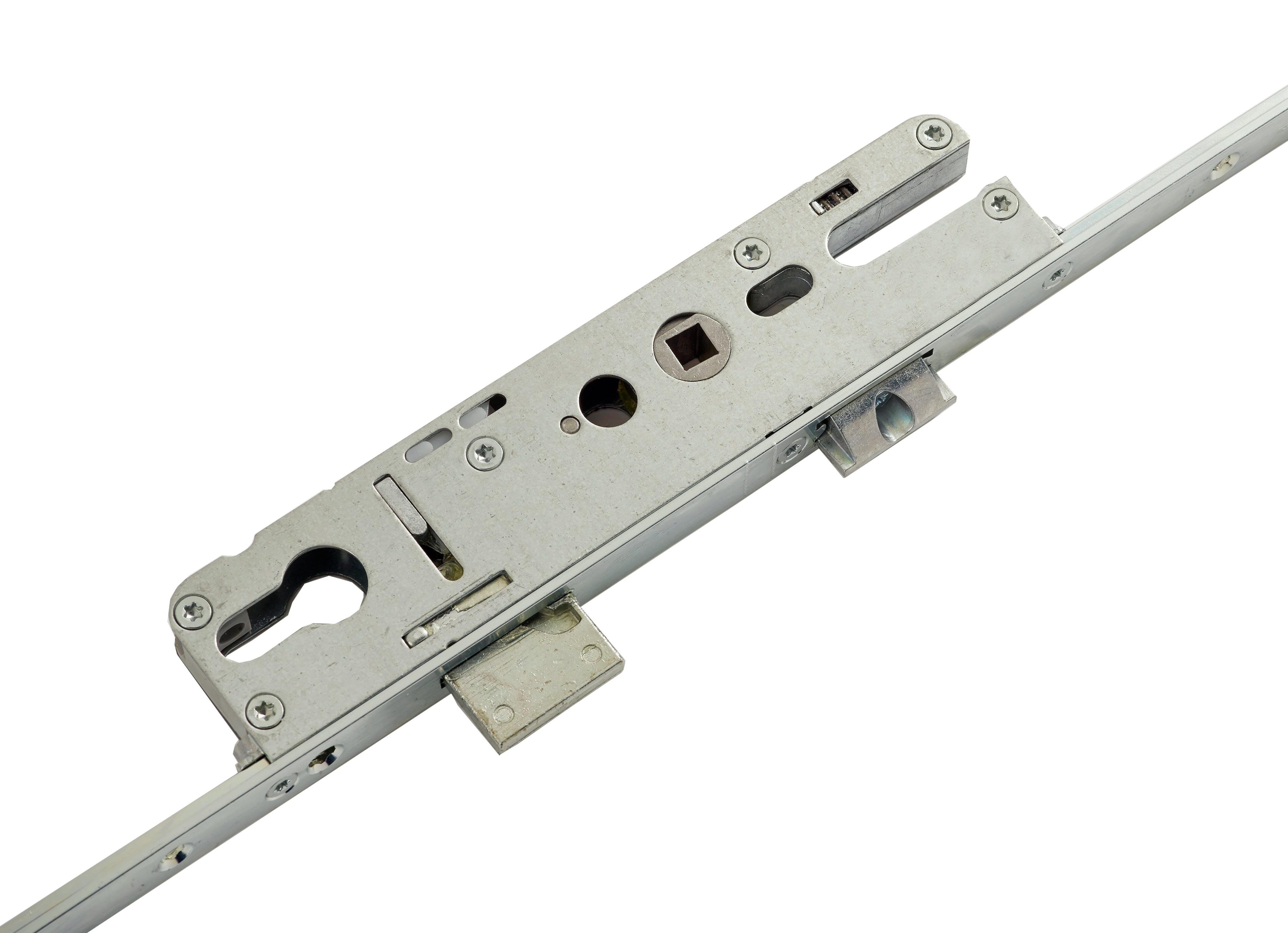

  • Lockmaster 28mm, 24mm U-Channel

    Britain's best-selling lock range has been extended to include a 24mm u-channel variant designed for modern aluminium bi-fold doors and features Lockmaster's signature hook and anti-lift pins.

    Locking Points

    • Lockmaster® signature hook and anti-lift pins
    • Deadbolt centre with an easily reversible latch bolt to minimise stock requirements
    • Lockmaster® two hook and anti-lift pin variant
    • Passive mechanism for French door application is available
    • 28mm backset with PZ92mm centre case
    • Combined 3 piece keep
    • 2 lock lengths to suit a variety of door heights

    Faceplate

    • 24mm U-Channel
    • Yale Branded

    Specification

    • PAS 24:2016 security tested
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to  100,000 cycles
    • 10-year Mechanical Guarantee
    • Made in Britain

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply



    Material Specification

    • Lock Case: Galvanised Mild Steel
    • Faceplate: Mild Steel CS4 - ST2473
    • Deadbolt and Latchbolt: Zinc Alloy Casting
    • Keeps: Mild Steel, BZP and Clear Trivalent

    Packaging

    Locks: 5 locks per box

    Maintenance

    Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.

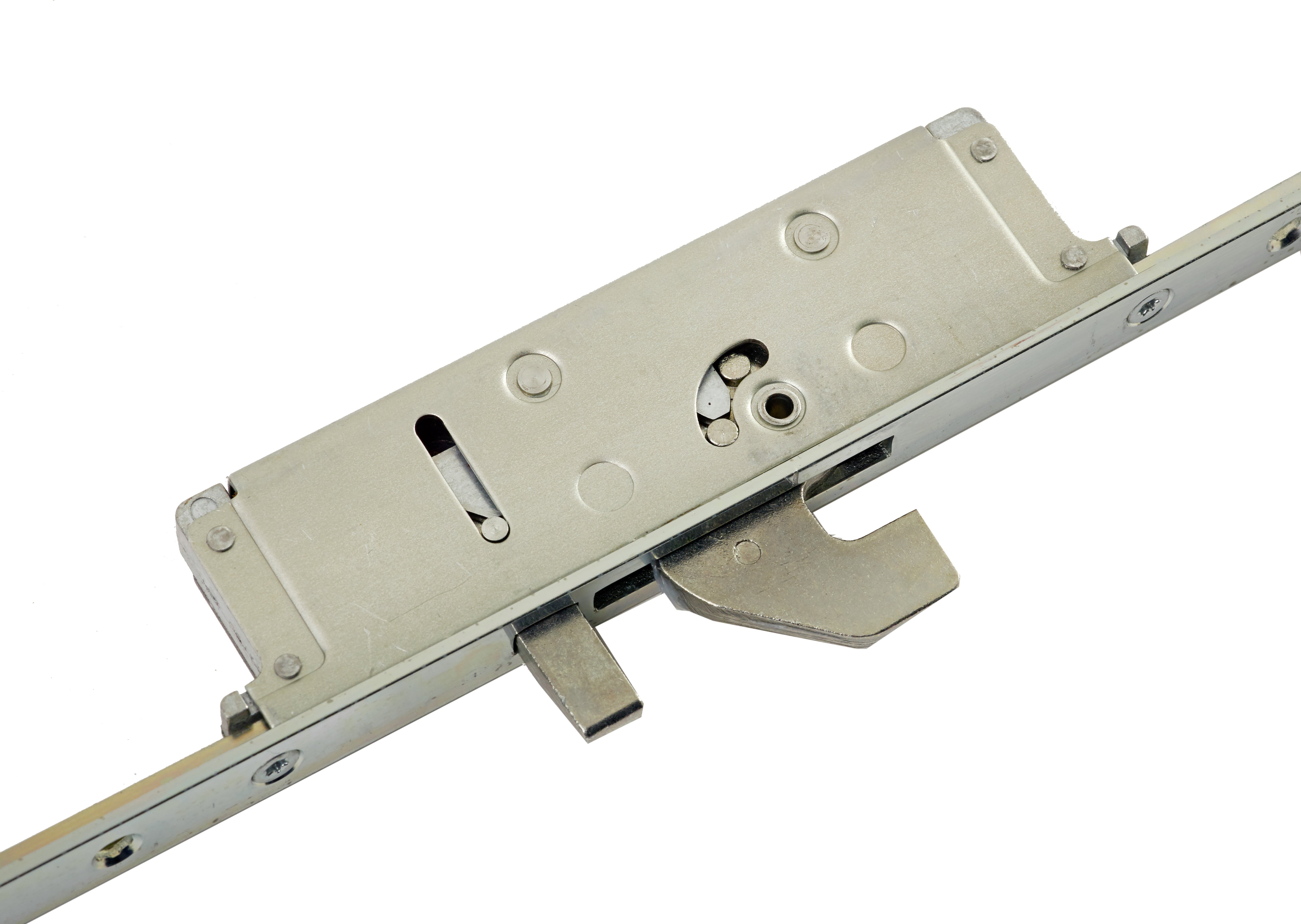

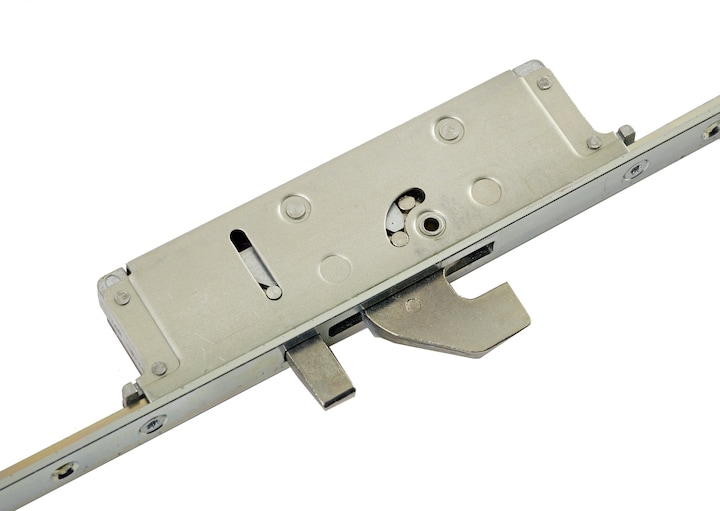

  • Lockmaster® 25mm, 16mm faceplate

    The UK's most popular multi-point lock platform is available in a 25mm backset gearbox and features the trusted Lockmaster combination of hook and anti-lift bolts for greater security along with the smooth operation, tolerance and ease of use associated with the world's favourite lock. Complete with pre-compression roller cams to deliver optimal weather-proofing and security performance.



    Designed to achieve PAS 24:2016, the slim backset Lockmaster comes with all the assurances you would expect from Yale and is even protected by Yale's 10 year guarantee for added peace of mind.

    Locking points

    • Lockmaster® signature hook and anti-lift pins
    • Deadbolt centre with an easily reversible latch bolt to minimise stock requirements.
    • Lockmaster® two hook and anti-lift pin variant for PVCu application
    • Active and passive options available
    • 25mm backset with PZ92mm centre case
    • Pre-compression roller engagement cams



    16mm faceplate

    Yale branded



    Specification

    • PAS 24:2016 designed to achieve
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 100,000 cycles
    • 10-year Mechanical Guarantee
    • Made in Britain
    • Included within the Yale Lifetime Security Guarantee*



    *Terms and conditions apply



    Packaging

    Locks: 5 locks per box



    Maintenance

    Yale recommends that all moving components are lubricated using non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation.
