Yale

Professional Replacement Lock

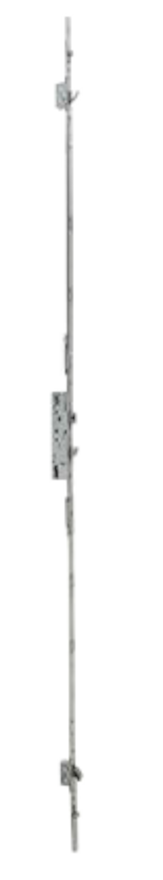

Yale Doormaster™ Professional is a High Security replacement lock designed to replace 100% of locks with top and bottom hooks or bolts, a 35m or 45mm backset, and a 16mm or 20mm faceplate. With three hooks and two rollers, the Doormaster™ Professional has been tested to the Police Approved Secured By Design standard and is PAS 24 door set capable.  Designed with the professional installer in mind, this lock includes Crop and Mate technology to maximise the scope of installation.  Several patented features plus the variety of faceplate widths makes the Professional Lock the ideal choice where a higher level of security is required – regardless of door material



Features:

  • Replaces 100% of locks with top and bottom hooks or bolts, 35 or 45mm backsets, and 16 or 20mm faceplates
  • Designed for installation by professionals
  • Cut and mate to suit the door

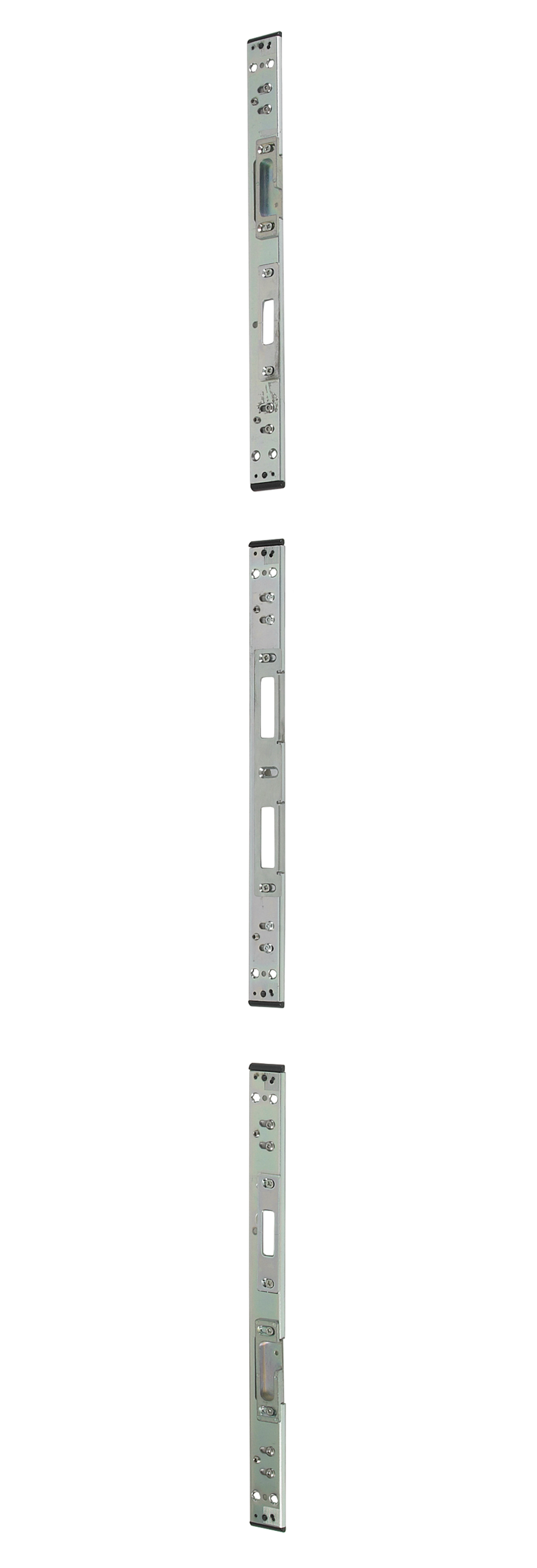

  • Supplied with pre-assembled keeps using the patented 'Uni-packer' system for fast, easy, and reliable installation
  • Variants available for PVCu, Timber and Composite doors

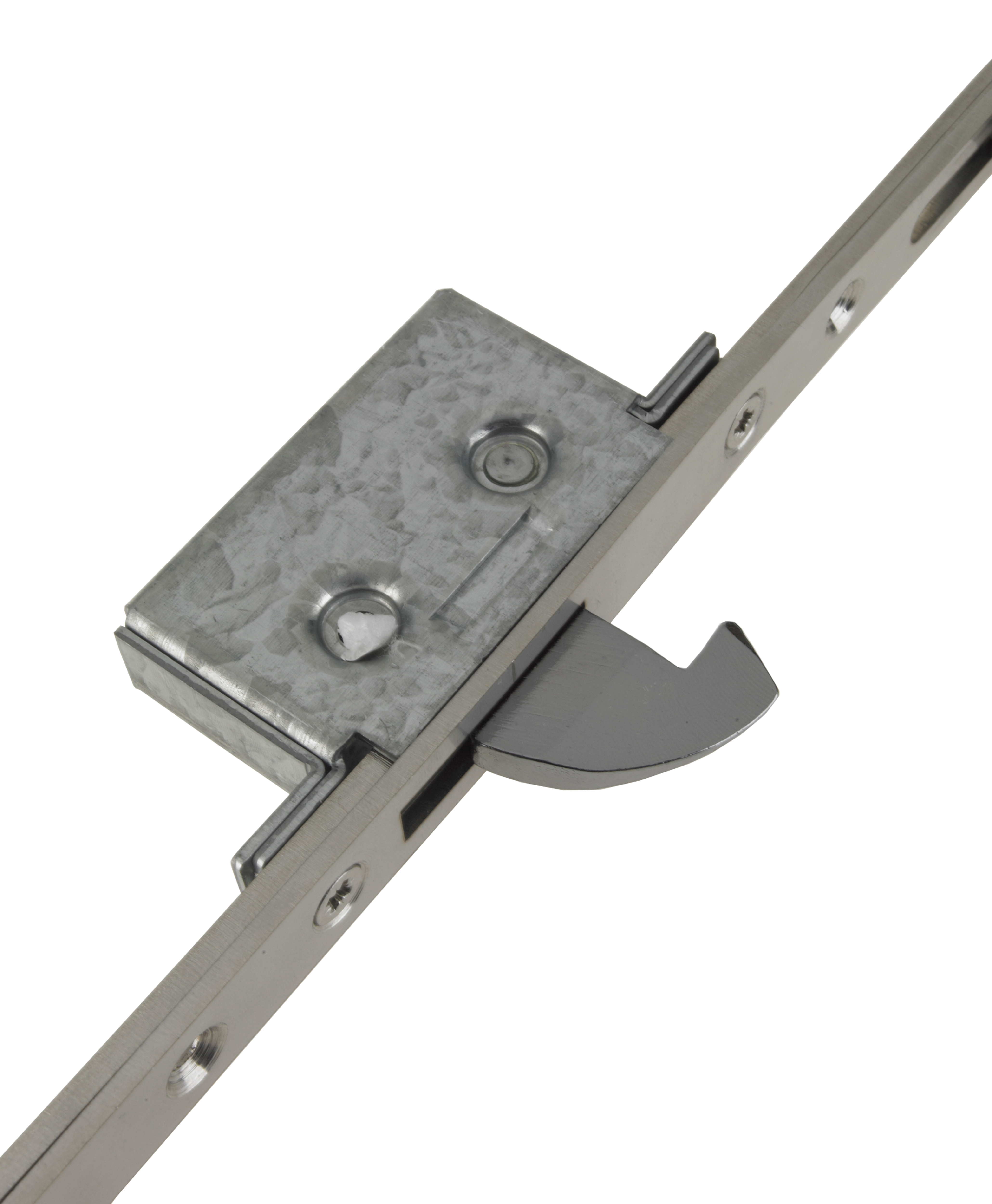

  • 3 Hook Bolts for High Security anti-separation

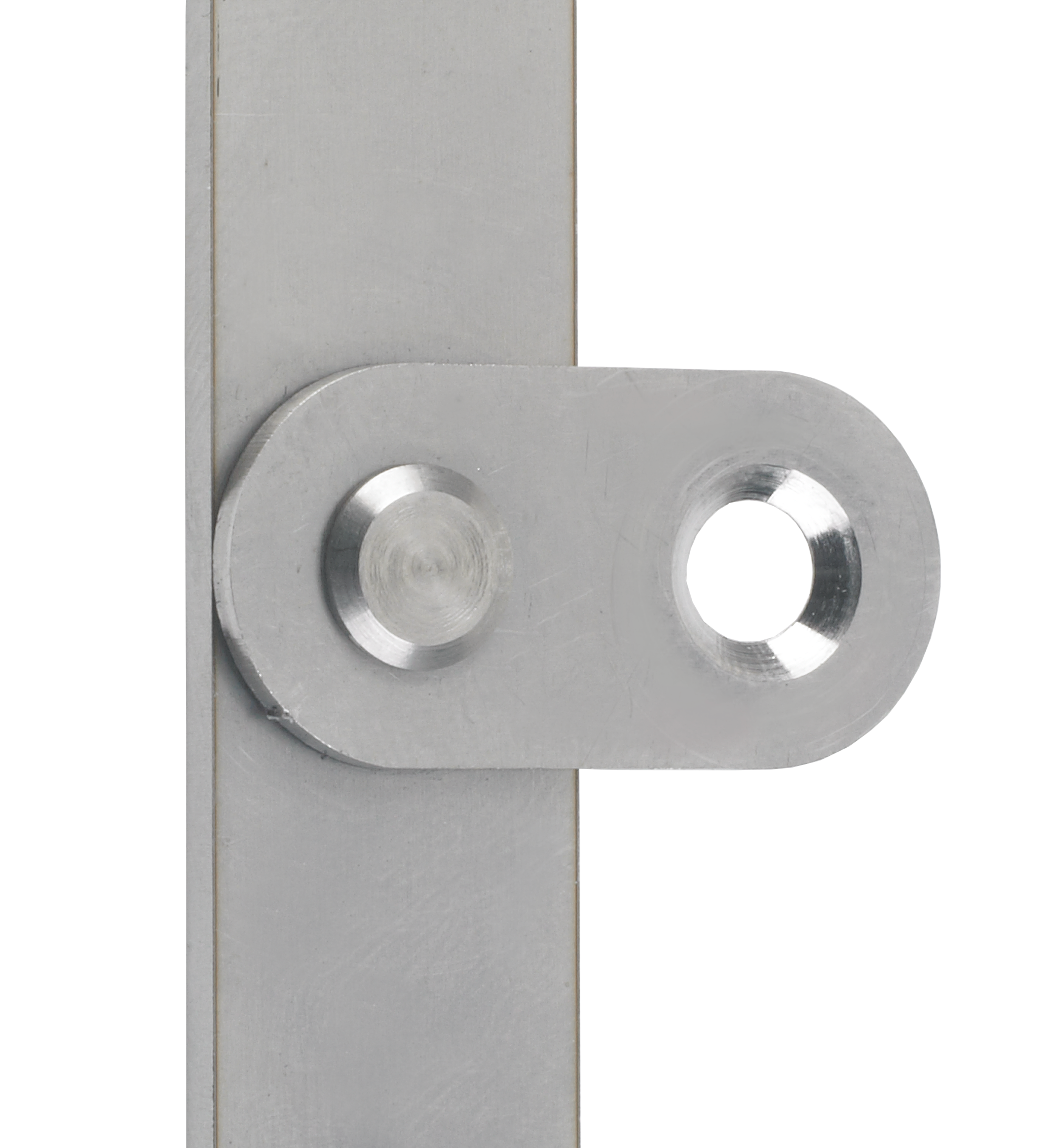

  • Fixing tabs for easy and secure fitting

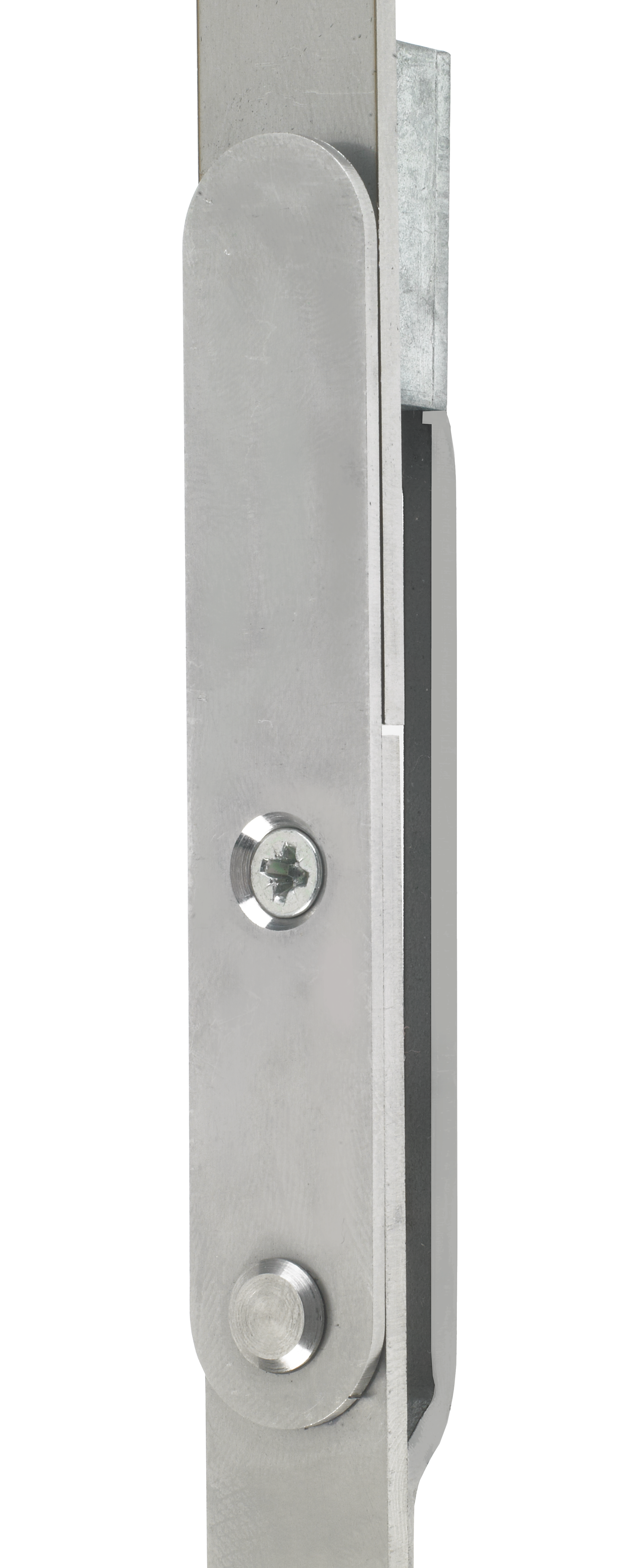

  • Rounded ends for safe installation
  • Designed and tested to Police Approved standard 'Secured By Design' and PAS 24 door set capable



Specifications:

  • Available with 35mm or 45mm backset
  • 92mm centres
  • 16mm and 20mm faceplate variants
  • Supplied with pre-assembled keep set and all fixings
  • Supplied with split handle spindle for optional night latch function
  • Endurance tested to 50,000 cycles
  • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
  • 10-year Mechanical Guarantee
  • YAL11460 Doormaster Professional Data Sheet_7
  • ProductProduct ID
    Professional 35mm replacement lock for PVCU doorsYDM-PRO-PVCU-35
    Professional 45mm replacement lock for PVCU doorsYDM-PRO-PVCU-45
    Professional 45mm replacement lock for Timber and Composite doorsYDM-PRO-TMBR-45

  • Universal Replacement Lock for PVCu Doors

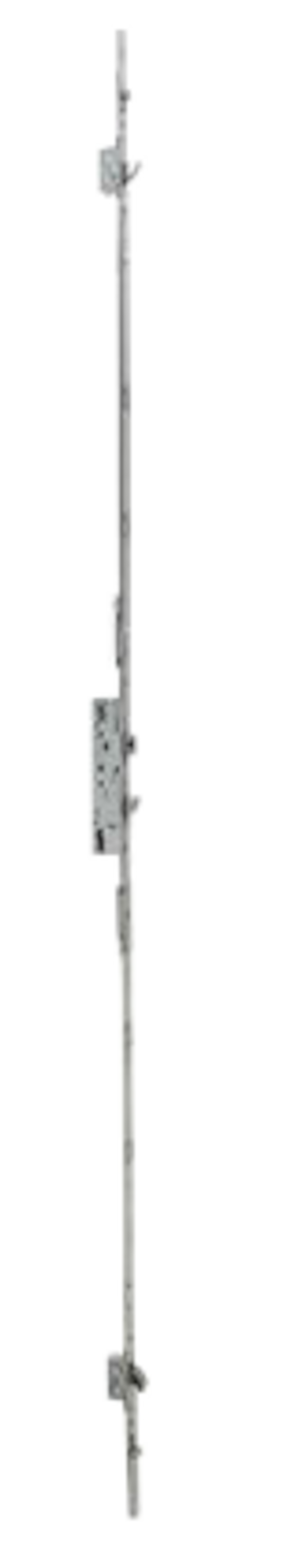

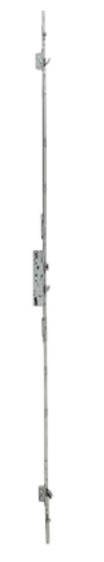

    Yale Doormaster™ Universal is designed to replace 100% of PVCu door locks with a 35mm or 45mm backset and a 16mm faceplate. With a combination of one hook and several easy-adjustment rollers, the Universal lock uses the latest patented technology from Yale to ensure security and simplicity of installation.



    Features:

    • Replaces 100% of PVCu door locks with a backset of 35mm or 45mm and a 16mm faceplate
    • Central Hook protects against attack
    • 1-piece lock
    • 1-piece pre-assembled keep with patented Uni-packer system for fast, easy, and reliable installation
    • Central hook for added security and anti-separation

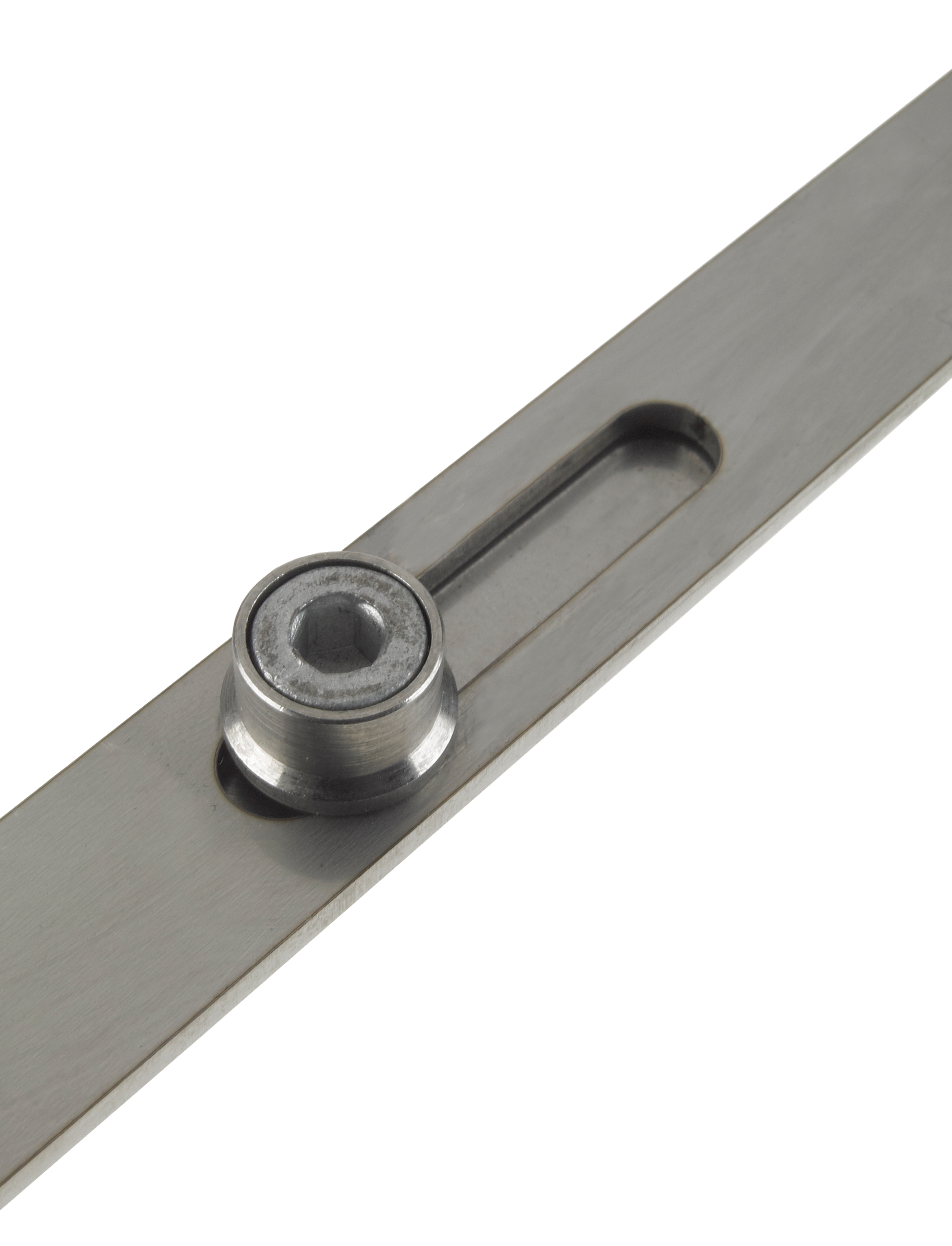

    • 1-piece, easy adjustment Mushroom Rollers
    • 1-piece adjustable Rollers create a weather-tight seal
    • Fixing tabs for easy and secure fitting
    • Rounded ends for safe installation



    Specifications:





    • Available with 35mm or 45mm backset
    • 92mm centres
    • 16mm faceplate
    • Supplied with 1-piece keep and all fixings
    • Supplied with split handle spindle for optional night latch function
    • Endurance tested to 50,000 cycles
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • 10-year Mechanical Guarantee















  • Adjustable Replacement Lock for PVCu doors

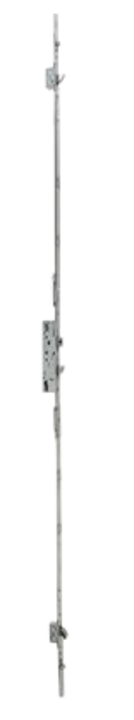

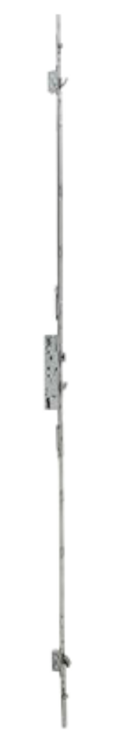

    Yale Doormaster™ Adjustable is a High Security lock designed to replace up to 90% PVCu door locks with top and bottom hooks or bolts, a 35mm backset, and a 16mm faceplate. With three hooks and two rollers, the Doormaster™ Adjustable has been tested to the Police Approved Secured By Design standard and is PAS 24 door set capable. Its adjustable design utilises the latest patented technology from Yale to ensure the Adjustable lock is installer friendly, making it the ideal choice where a higher level of security on a PVCu door is required



    Features:

    • Replaces 90% of PVCu door locks with top and bottom hooks, backsets of 35mm and 16mm faceplates
    • Adjustable length and hook possitions to fit most PVCu doors with top and bottom hooks or bolts
    • 3 Hooks for High Security anti-separation
    • Adjustable Rollers create a weather-tight seal
    • Fixing tabs for easy and secure fitting
    • Supplied with pre-assembled keeps using the patented 'Uni-packer' system for fast, easy, and reliable installation
    • Rounded ends for safe installation
    • Designed and tested to Police Approved Standard 'Secured By Design' and PAS 24 door set capable



    Specifications:





    • 35mm backset
    • 92mm centres
    • 16mm faceplate
    • Supplied with pre-assembled keep set and all fixings
    • Supplied with split handle spindle for optional night latch function
    • Endurance tested to 50,000 cycles
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • 10-year Mechanical Guarantee
