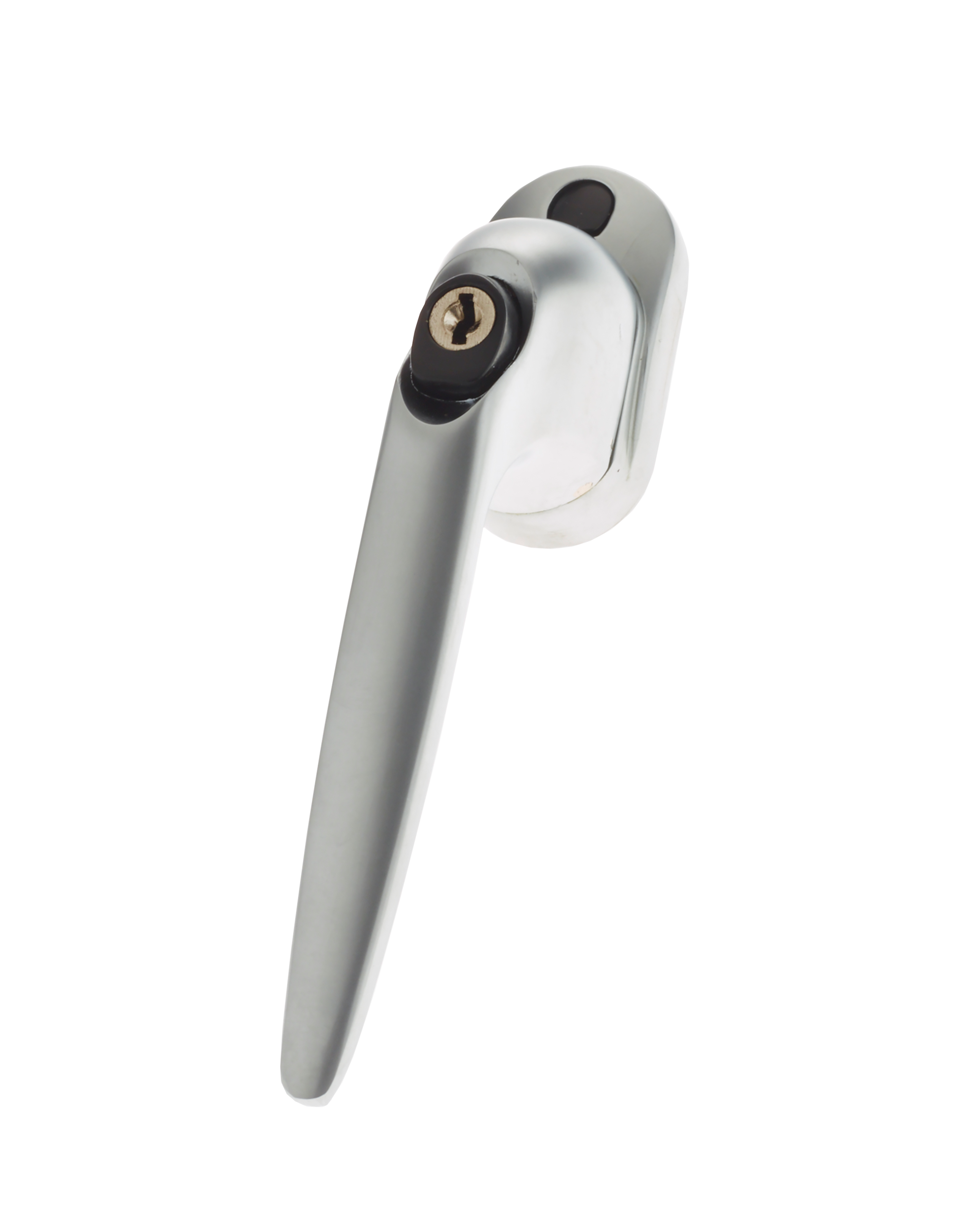

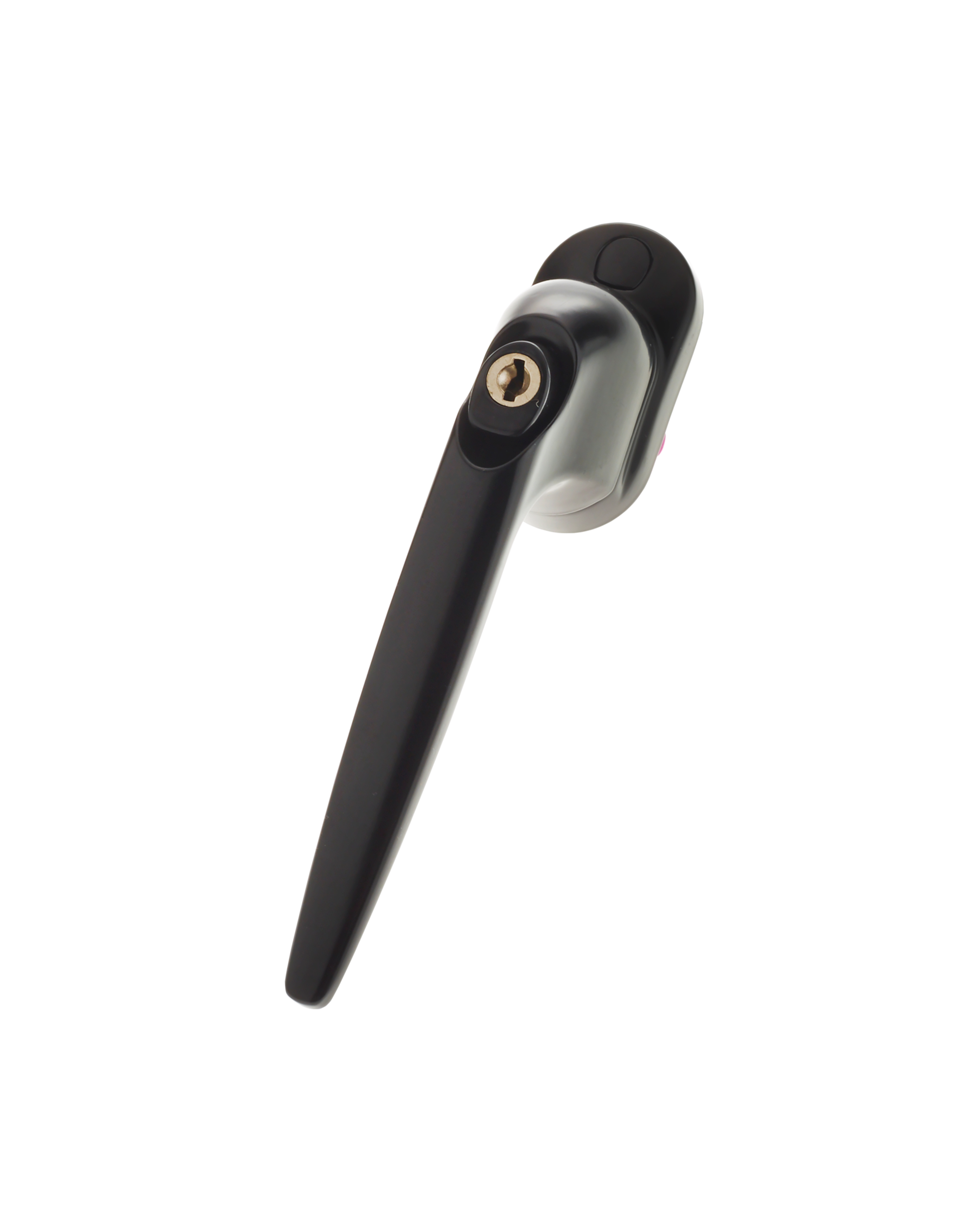

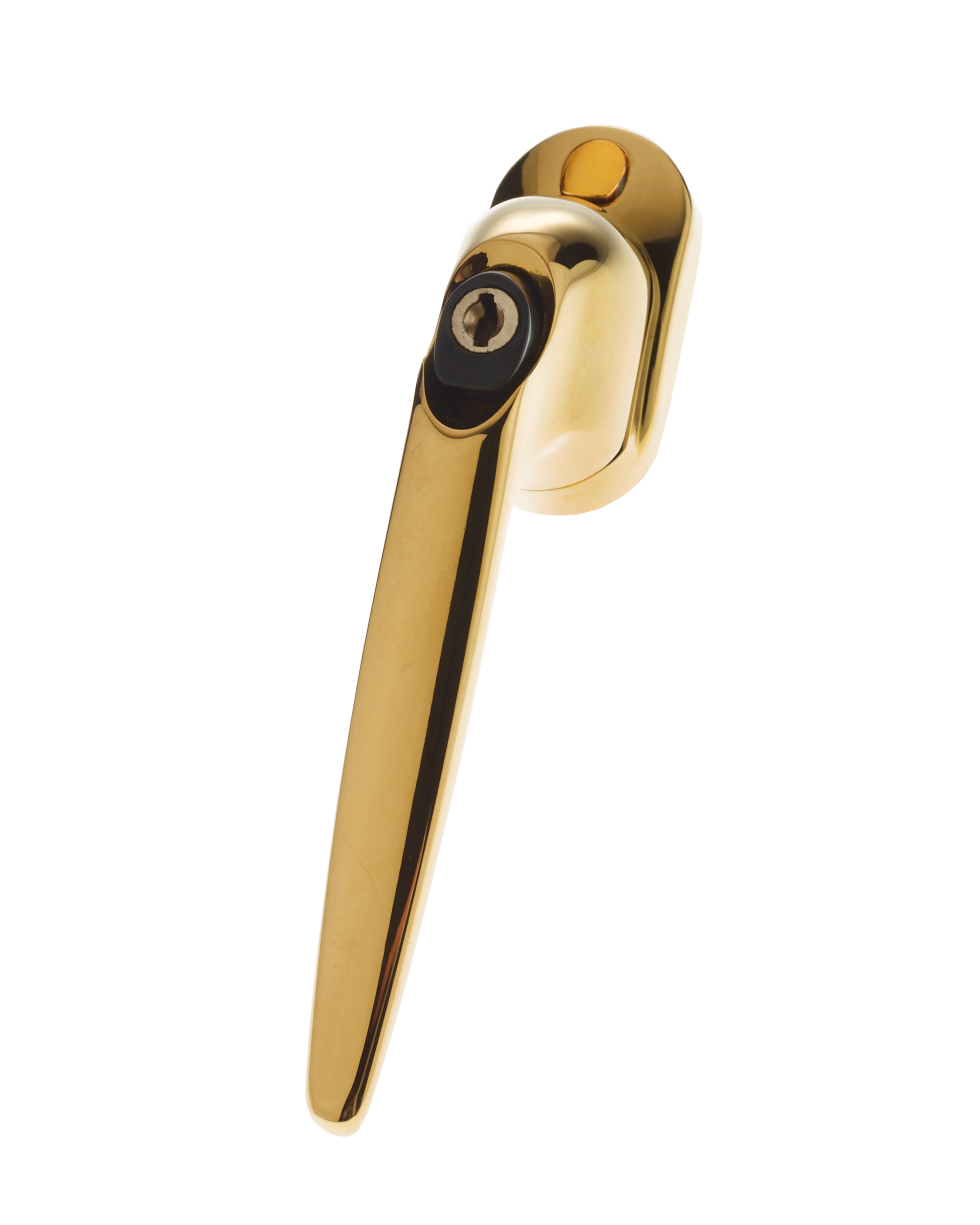

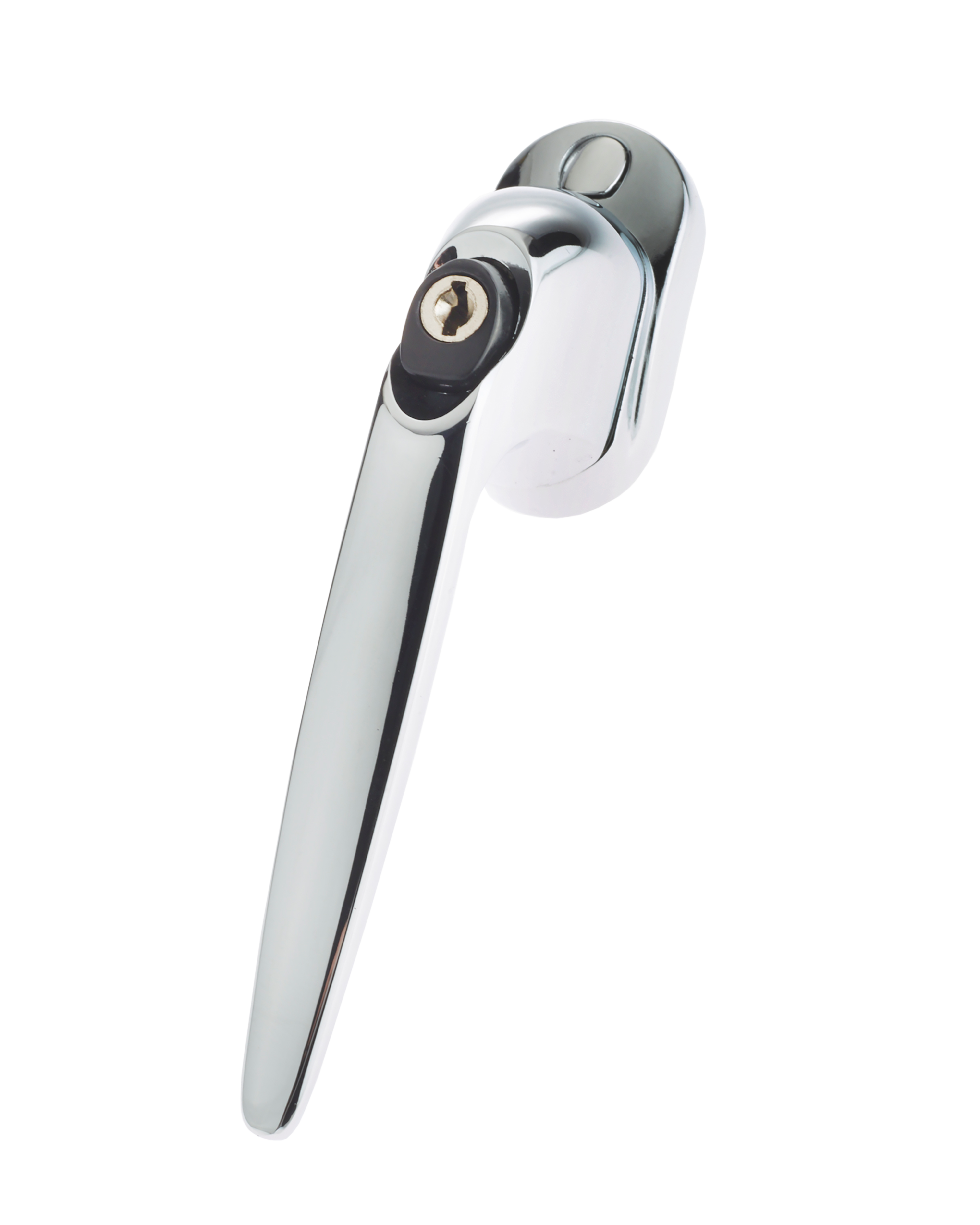

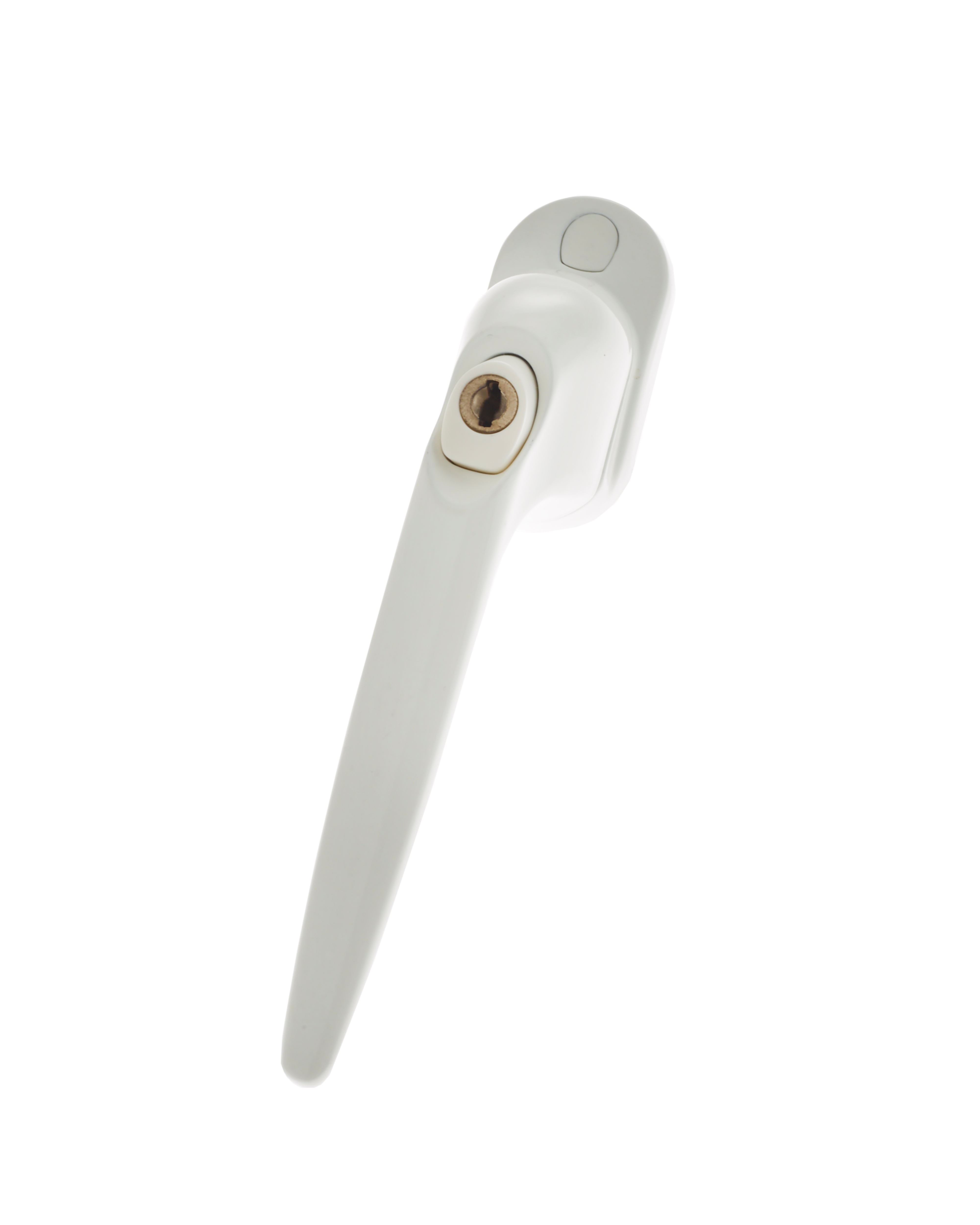

Sparta Tilt & Turn Handle

The Yale Quartus Espag Handle offers homeowners the ultimate solution with its aesthetically pleasing design and user-friendly functionality, making it the ideal choice for aluminium and uPVC windows.

Available in inline and offset variants as well as a wide range of finishes, this handle has been designed, developed and tested in the UK to Yale's precise standards and high-performance security.

Features

• Push to unlatch Yale branded mechanism
• Key operated locking mechanism
• Key deadlocking for added security and safety
• Non-locking push to unlatch version in Black, White and Green for egress applications available
• Aesthetically pleasing as part of the suited range of window hardware
• Available in inline and offset variants

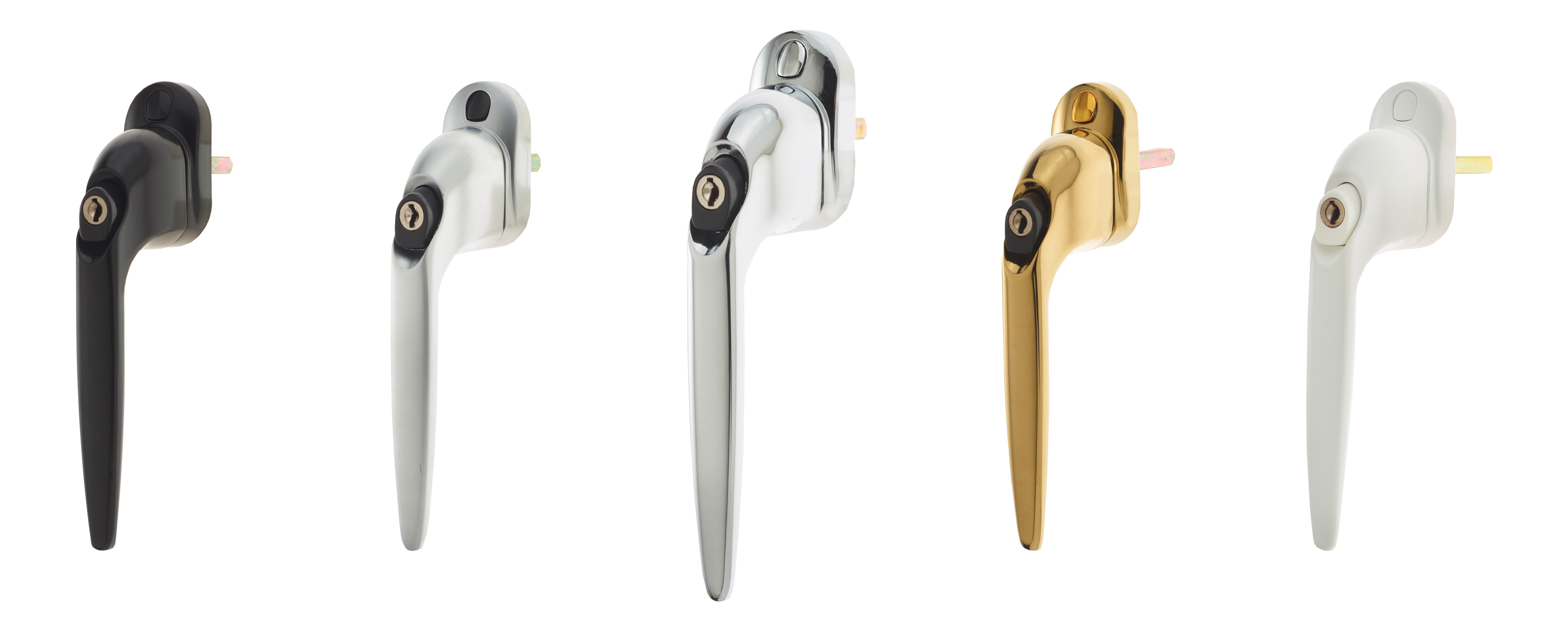

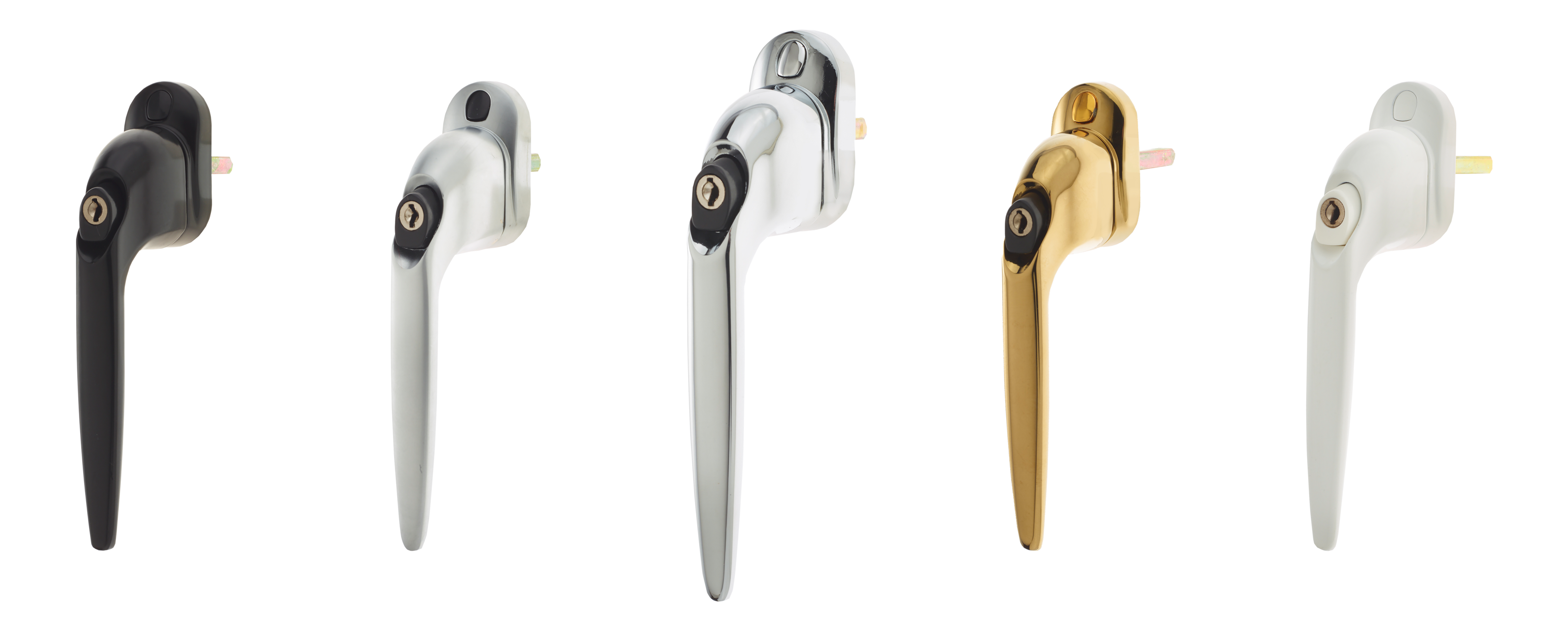

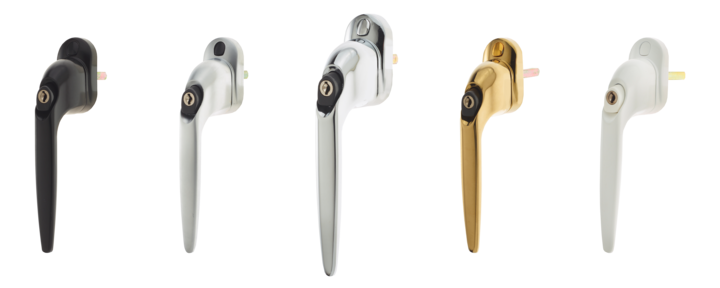

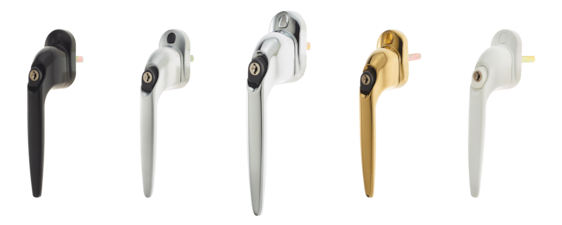

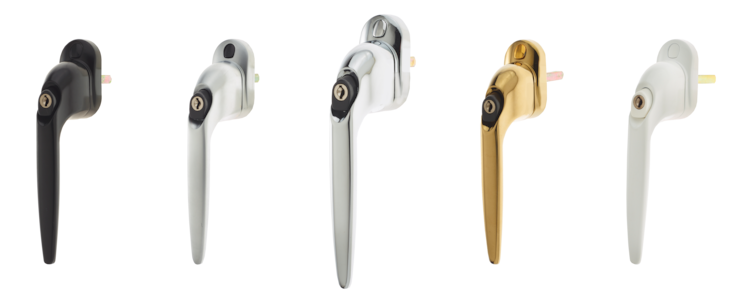

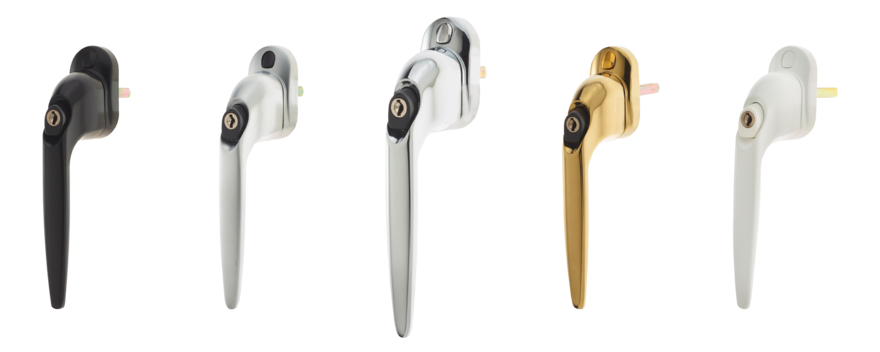

• Available in Satin Black, Chrome, Champagne Gold, Silver, and White finishes
• Available with a variety of spindle lengths ranging from 10mm - 75mm to accommodate a wide range of window profiles*
• Fixed spindle supplied as standard
• Supplied with screws, colour matched screw caps and cylinder plug to achieve a non-locking solution
• Supplied with a Yale branded key
• Spare keys and screw cover caps available upon request

Guarantee and Standards

• 10-year Mechanical Guarantee
• 10-year Surface Finish Guarantee
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
• Lifetime Security Guarantee when used with other Yale security hardware**

* Other sizes available upon request

** Terms and conditions apply. Please see yaledws.co.uk for further details

The stylish ergonomic design of the Sparta Cockspur Handle makes it easy to use and a pleasure to look at. Multiple nib and height options make it suitable for a wide range of installations while, as part of the Sparta handle range, it is part of a perfectly coordinated handle suite.

Features:

• Ergonomic stylish design and improved aesthetics as part of the suited range of hardware
• Push to open, key lockable
• Non-locking egress options available
• 3 locking nib height options 9mm, 15.5mm and 21mm
• 3 locking wedge options - 2.55mm, 4mm and 5.5mm
• Available in a full choice of finishes including Polished Chrome, White, and Black finishes
• Spare keys and screw cover caps available

Specification:

• 12-month Surface Finish Guarantee
• 10-year Mechanical Guarantee
• Base grip - Zinc alloy
• Plastic parts - Nylon 66, UV stabilised ABS and Acetal
• Corrosion resistance to BS EN 1670: Painted finishes Grade 5, plated finishes Grade 4
• Endurance tested to 25,000 cycles

*Guarantee subject to correct installation and maintenance

Virage Window Handle available in offset, inline espagnolette and cockspur.

Features

• Ergonomic design for comfort
• Positive stop on offset espagnolette and cockspur to ensure accurate in-line closure
• Key dead locking available for added security

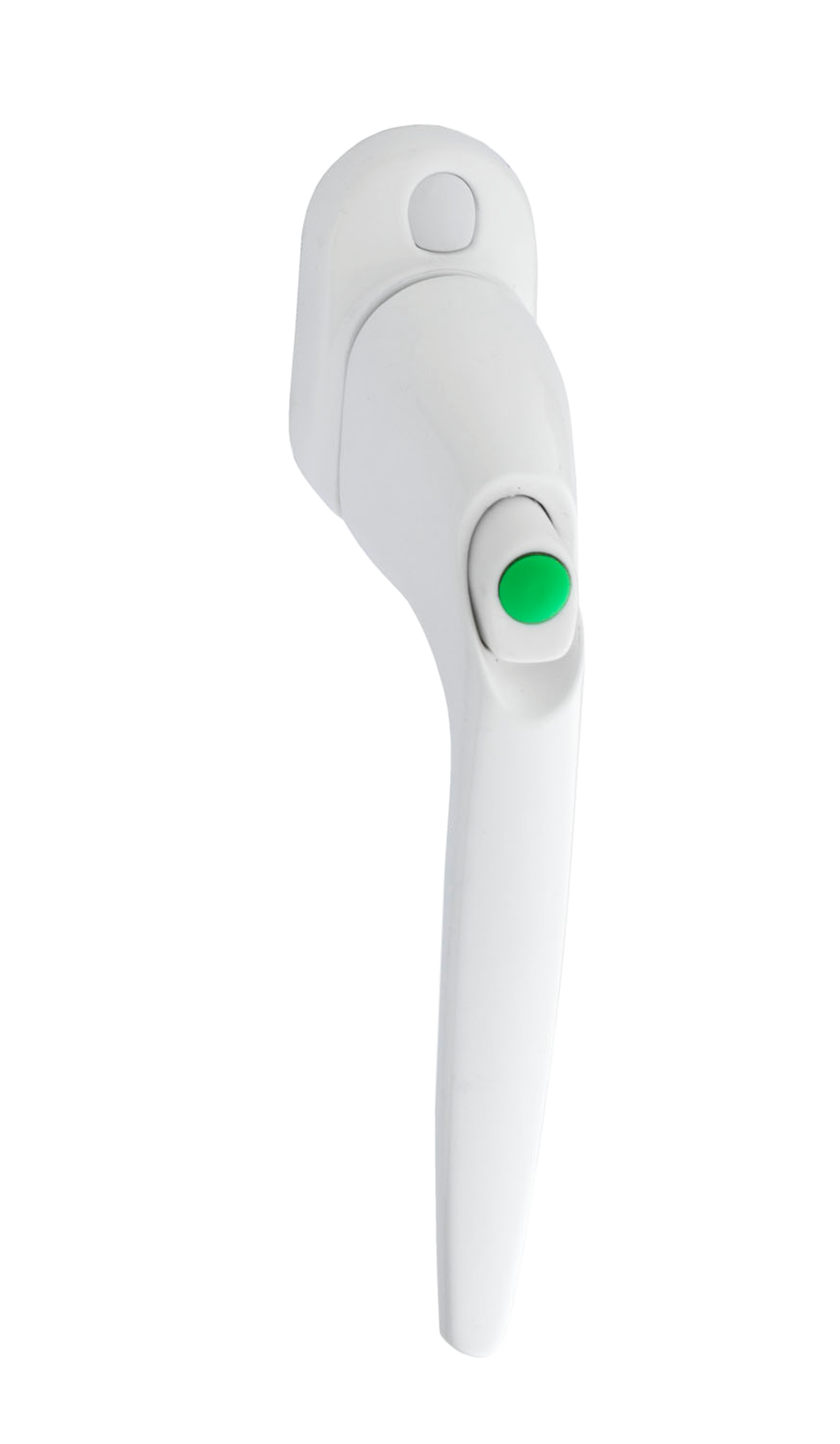

• Non locking green push button version for emergency escape
• Locking and non-locking versions available with black button
• Non latching variant available for DDA requirements
• Available in Black, White, Egress, Black, and Chrome finishes
• In-line espagnolette version for slim line profiles and non-handed applications
• Push to unlatch mechanism
• Suited look for espagnolette and cockspur mixed applications
• Special colours available to order, minimum quantity 5,000
• Included in the Lifetime Guarantee (Terms and conditions apply)

Specifications

• 10-year guarantee for Virage espagnolette and in-line variants (details available upon request)
• BBA certification
• Corrosion tested to (240hrs. NSST)
