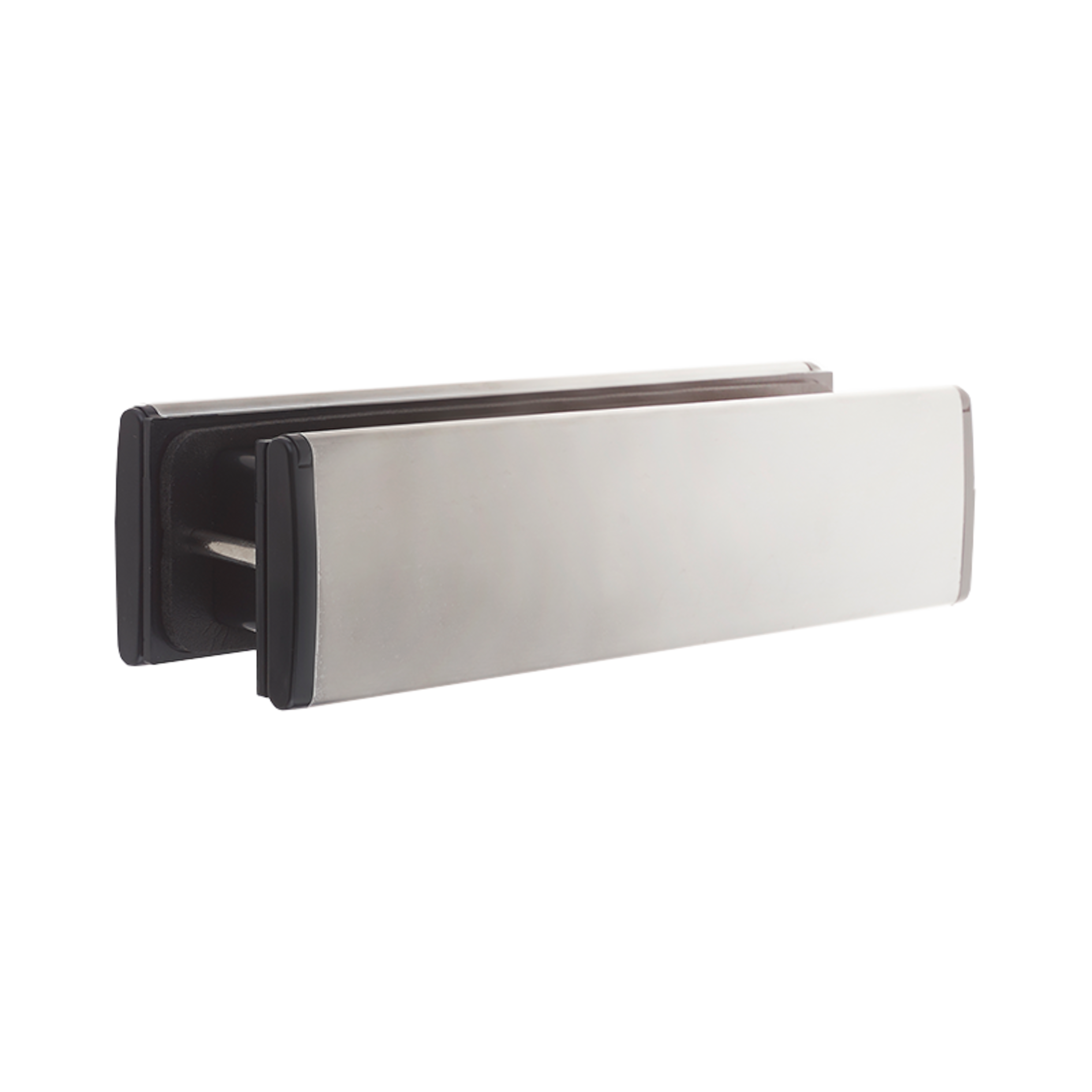

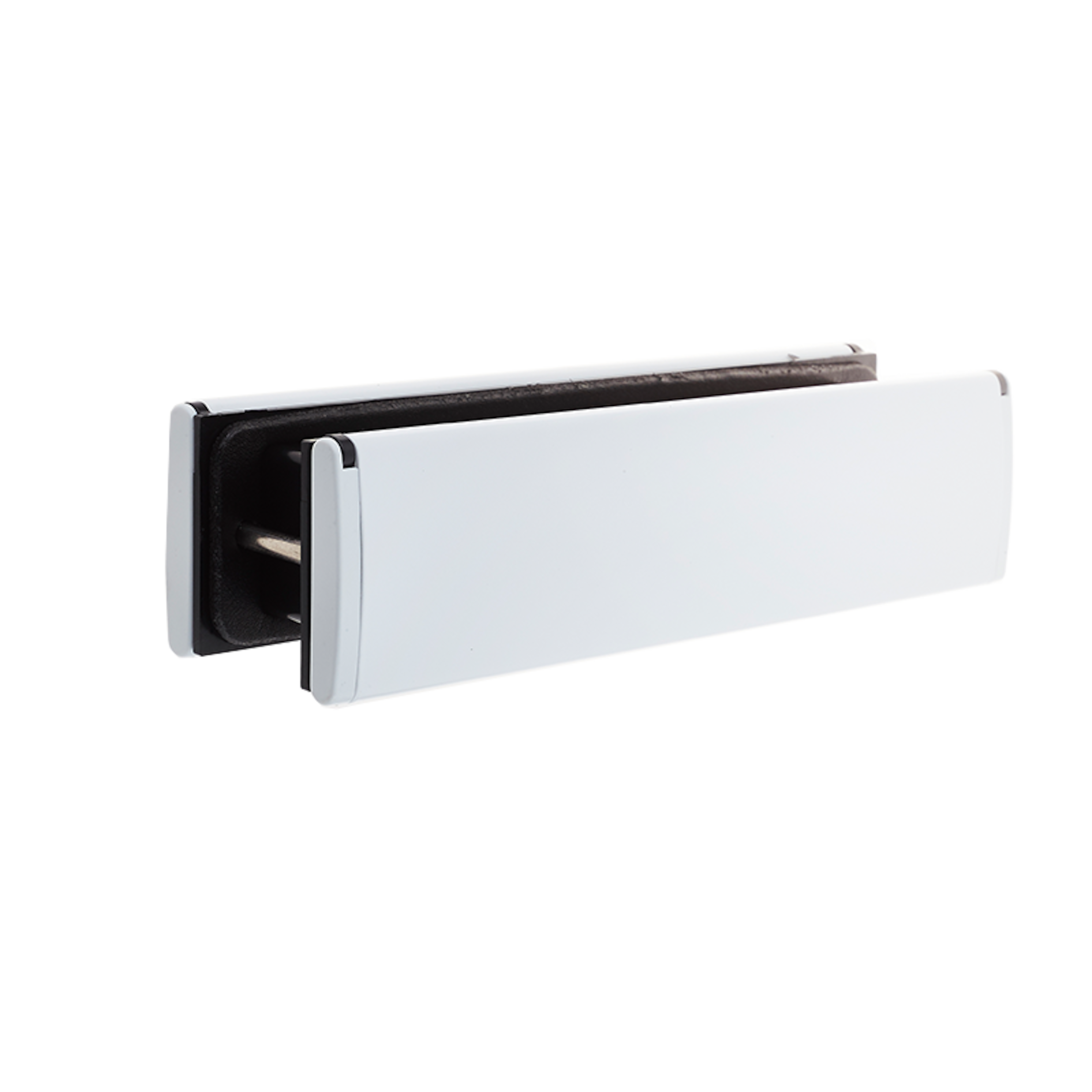

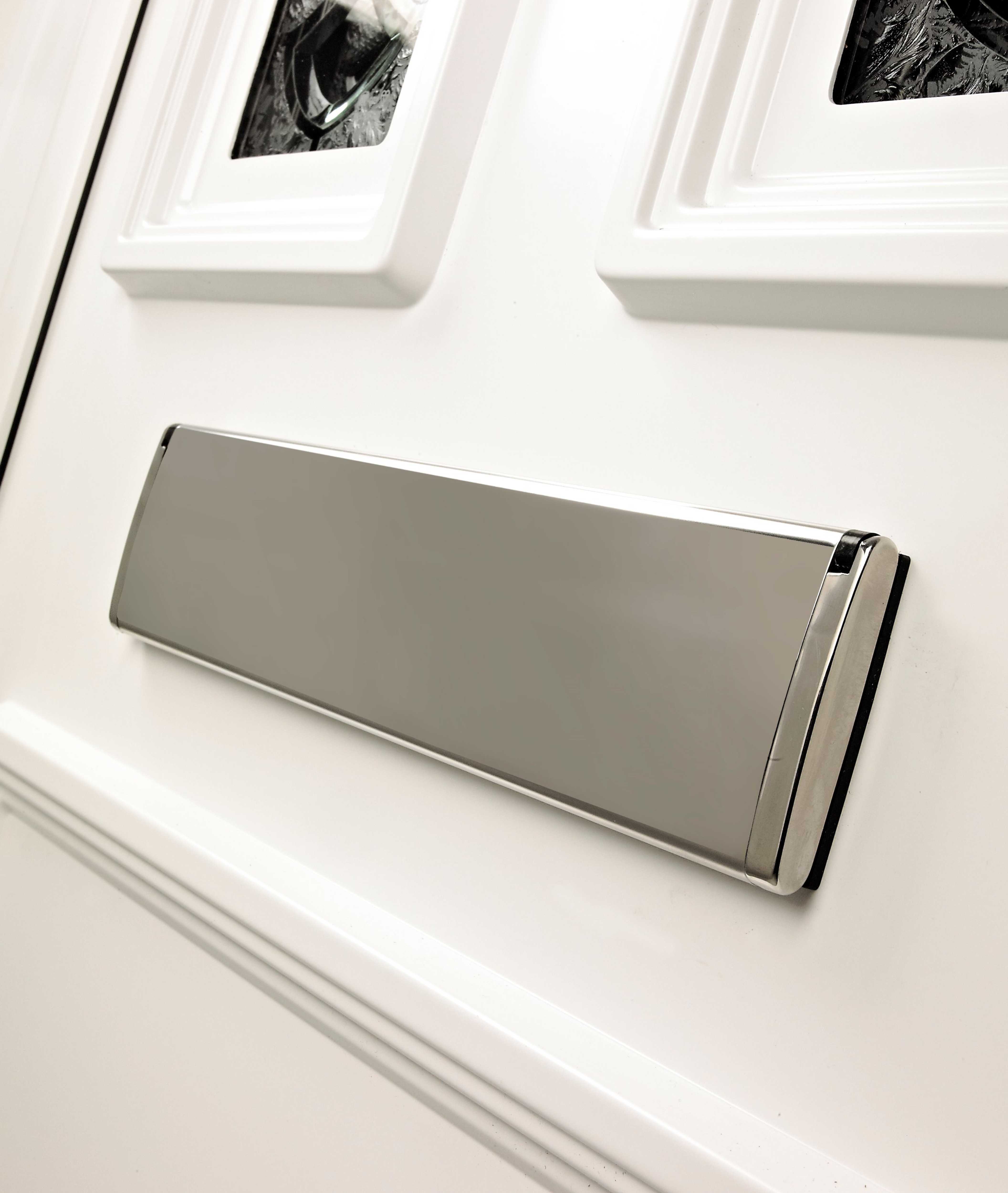

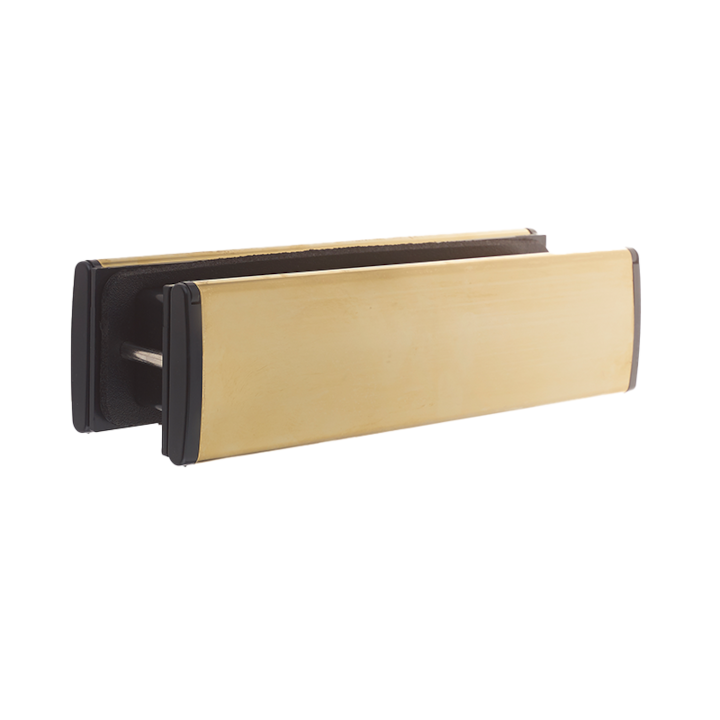

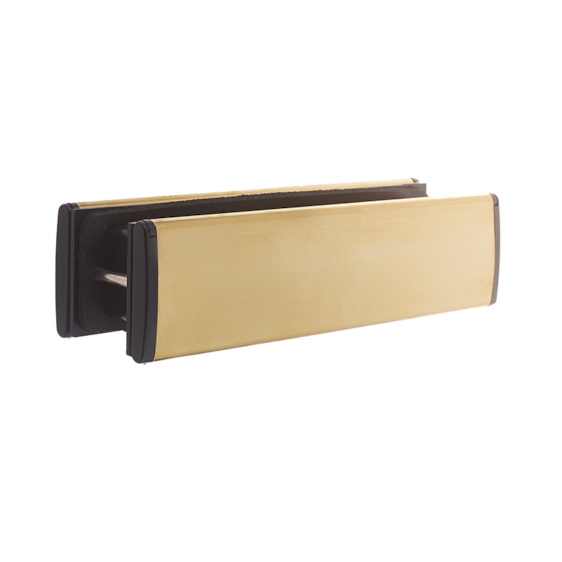

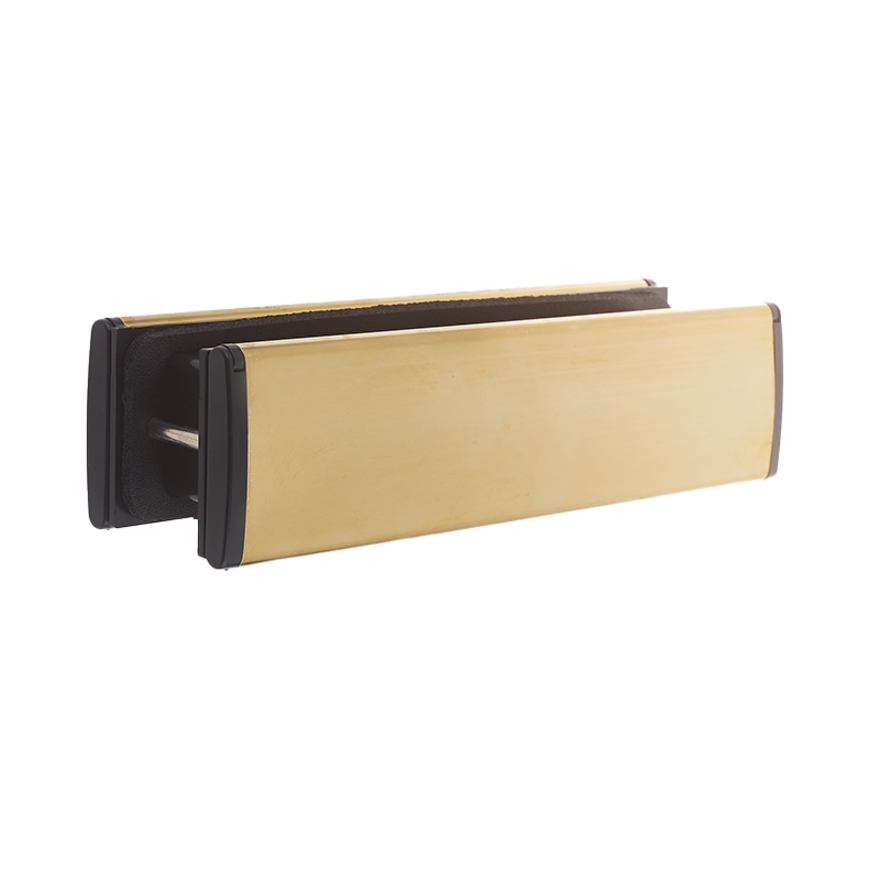

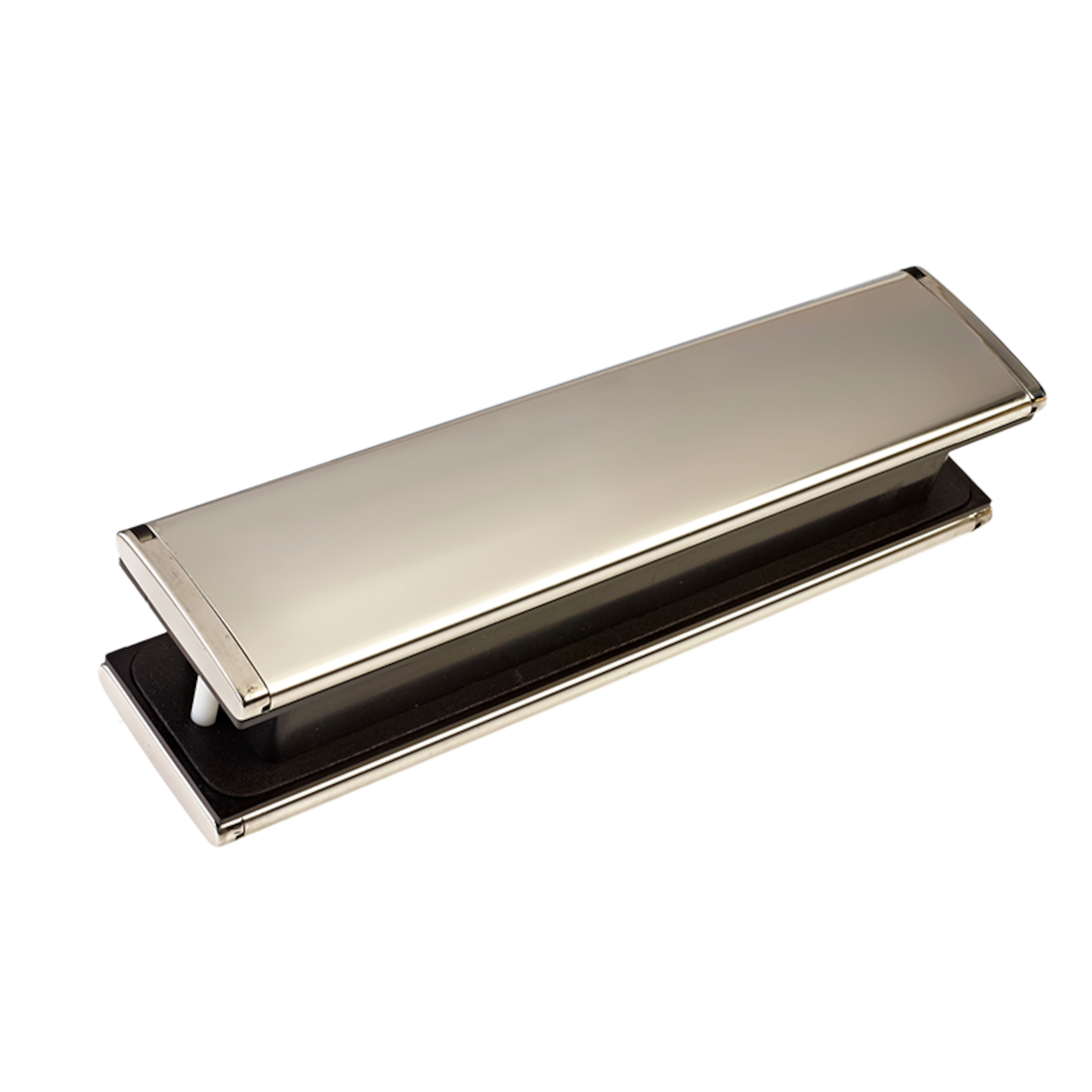

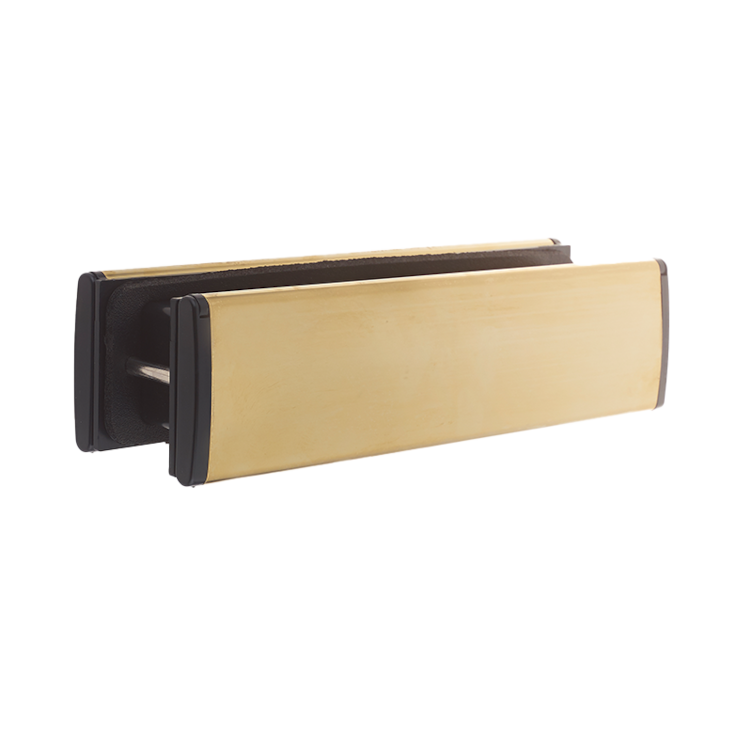

Unicorn Letterplate
The Unicorn Letterplate has been designed with aesthetics in mind with its simple but elegant styling, designed to complement any door style. The construction is unique with pressed metal flaps that shroud the surround from view.
Features
- An elegant design with a minimal plastic surround
- Letter flaps are made from 304 stainless steel for ultimate corrosion resistance. (Galvanised mild steel for painted finishes)
- Flaps open to 180 degrees, eliminating any excess leverage on pivot points
- Stainless steel return spring to ensure a continuous positive return action
- External flap has a complete peripheral seal that also forms a full thermal and acoustic barrier
- Detachable high-security screw boss for alternative direct face fixing to panel
- Available in a full choice of finishes to suite with the Sparta door handle, including Polished Silver, Brushed Silver, and Satin Stainless Silver, PVD Gold, Black and White
Specification
- Cycle tested to 100,000 operations.
- Corrosion tested to BS EN 1670 Grade 5 classification 480 hours (painted finishes) and 240 hours (Plated finishes)
- UV Tested to ISO 4892 Part 3
- 25-years surface finish guarantee
- 10 years mechanical guarantee
Maintenance
Yale recommends that all moving components are lubricated using a non-acidic mineral oil at least twice a year and surface cleaned with a damp cloth. The product may need to be adjusted to ensure satisfactory operation
