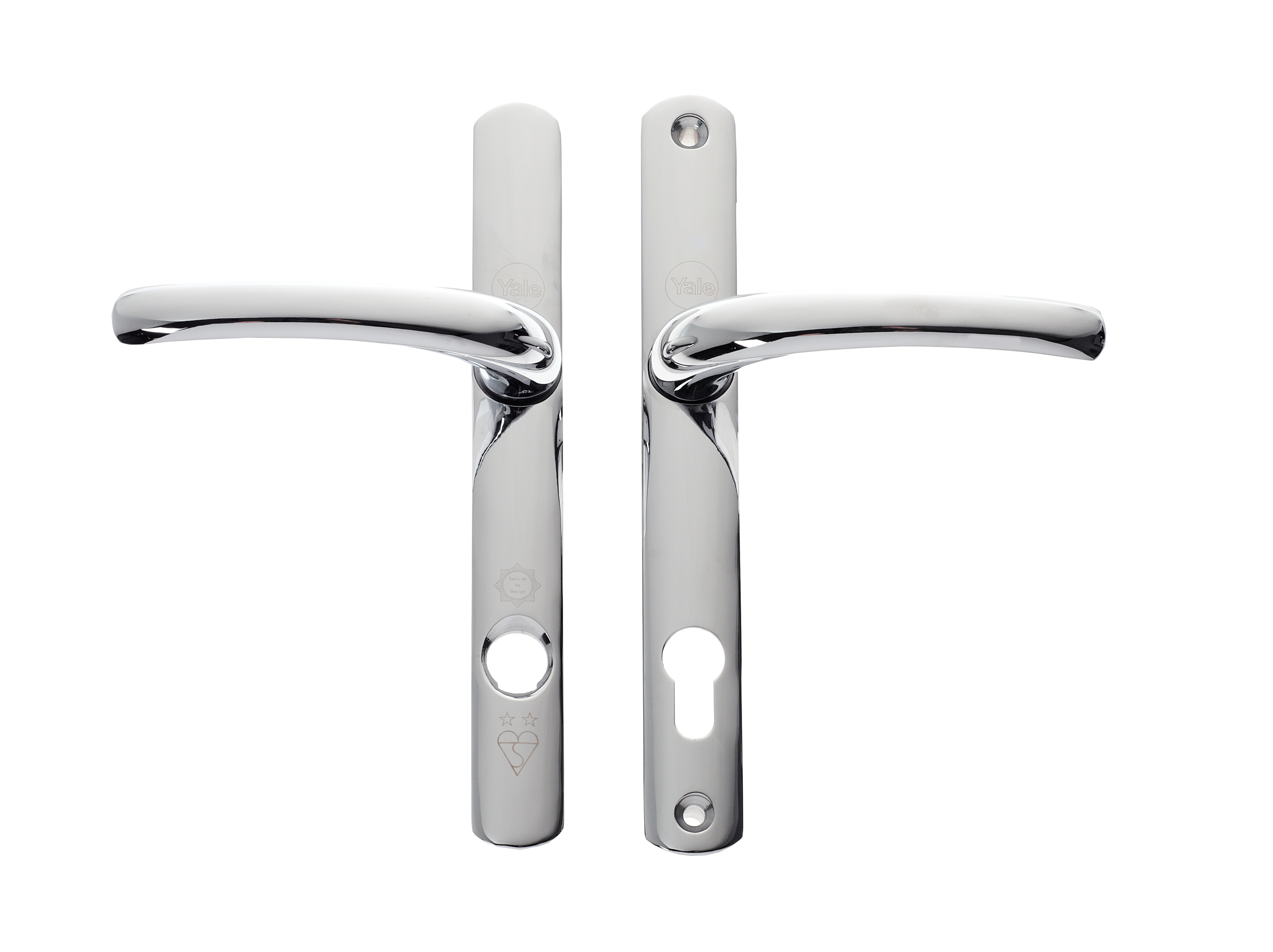

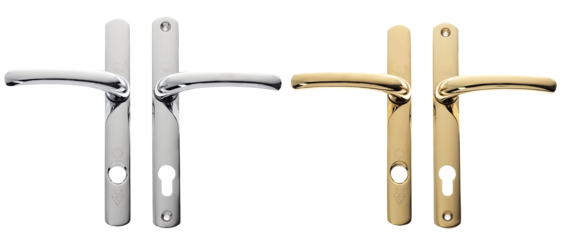

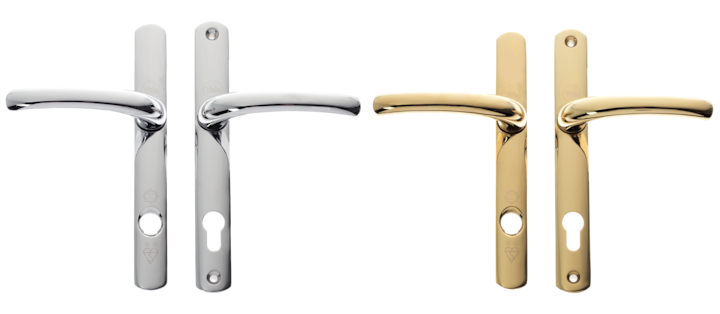

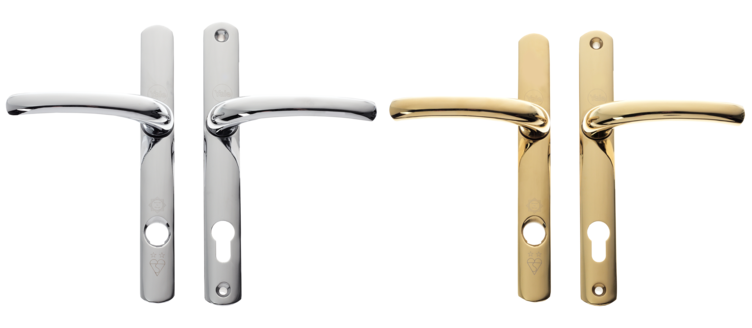

Yale Platinum Series TS007 2* Maximum Security Handle Sets

The stylish Sparta Stainless Steel Door Handle is manufactured in 304 Stainless Steel giving ultimate corrosion resistance and comes with an impressive 25 year guarantee* on all finishes. As part of the Sparta handle range, the Stainless Steel Door Handle can be combined perfectly with other products for a totally coordinated door suite.

Features:

• Manufactured in 304 Stainless Steel giving ultimate corrosion resistance
• Superior quality and design for product longevity
• Incorporates patented spring cassette which eliminates the 'drooping handle' effect
• Combines with other Stainless Steel furniture for a totally coordinated approach
• Suits all locks and is available as a lever/lever
• Available in a full choice of finishes including Champagne Gold, Chrome, Satin Black and White powder coated over Stainless
• Fixings available to support both PVC-U and Composite Doors
• Guarantee* 25 year anti-corrosion available on all finishes
• Guarantee* 10 year mechanical

Specification

• 304 Stainless Steel
• Plastic parts - Nylon 66
• Door thickness 44mm-75mm (suitable spindle lengths are available upon request)
• Cylinder aperture - standard euro cylinder
• Cycle tested to 50,000 cycles
• Corrosion tested in excess of 1000 hours based on BS EN 1670
• Conforms to BS 1906
• 25 year anti-corrosion guarantee*
• 10 year mechanical*
• Abusive load tested to BS 6462

These products are available in the Combi range which offers the following options:

• Elite Range - Stainless Steel external and inner face
• Premium Range - Stainless Steel external face and Zinc Chrome or Gold (PVD) inner face
• Standard Range - Stainless Steel external face and White/Black inner face

*Guarantee subject to correct installation and maintenance

Features:

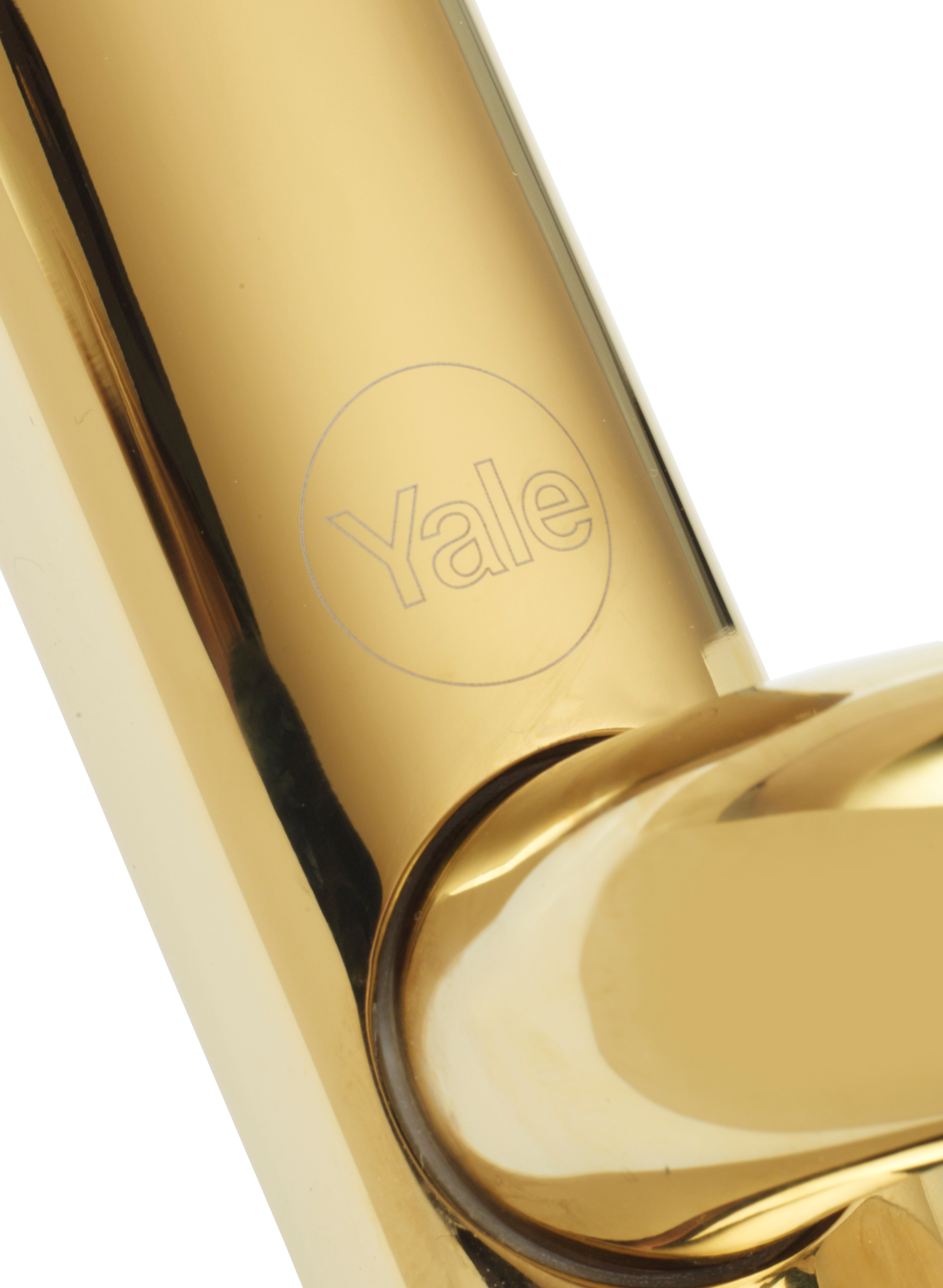

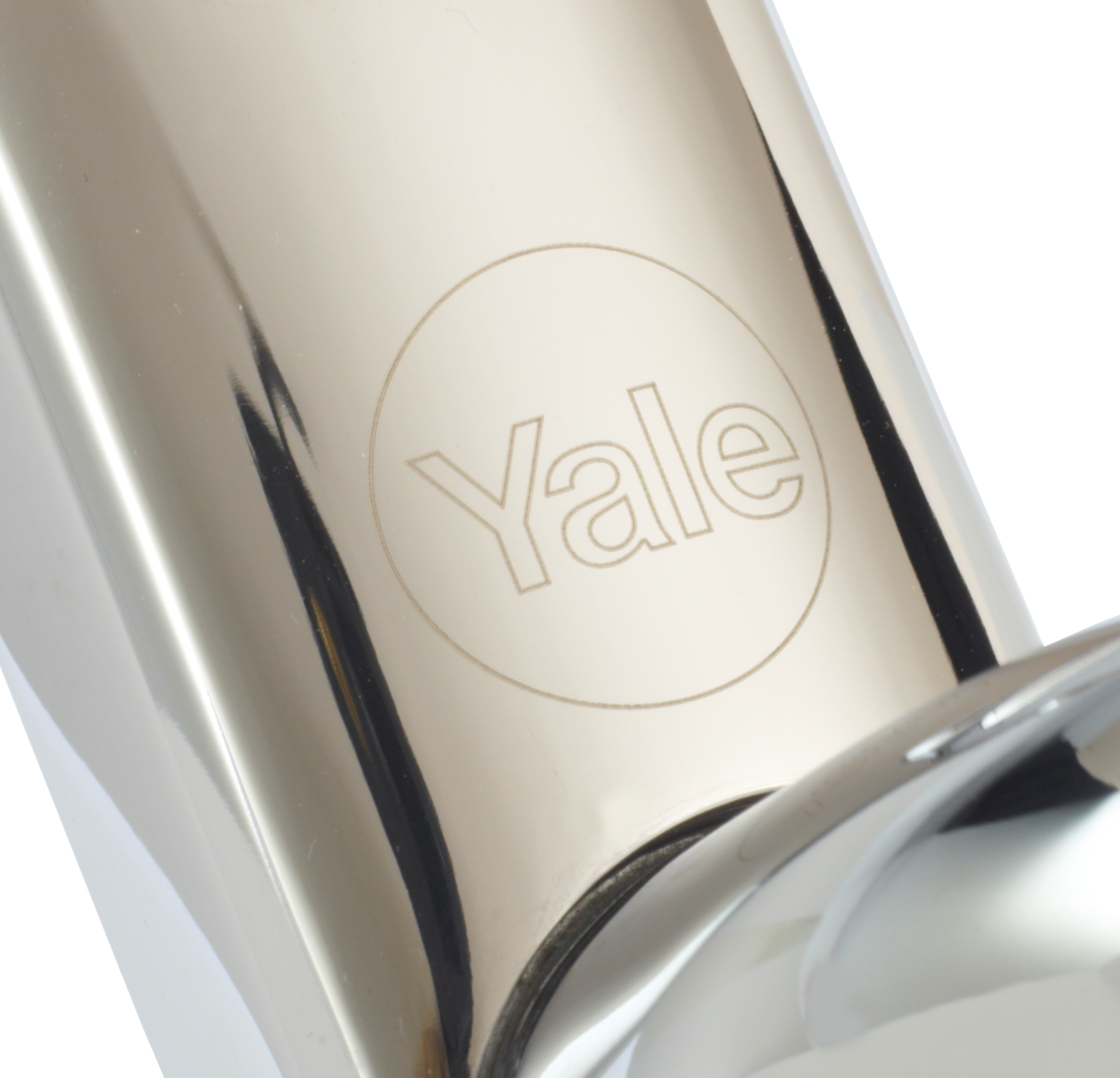

• Yale branded backplate
• Lever/ Lever operation
• Manufactured in 304 stainless steel giving ultimate corrosion resistance
• Screw pack to suit 60mm and 70mm profiles
• 28mm narrow backplate - ideal for narrow door sets
• Incorporates patented spring cassette which eliminates the drooping handle effect
• Suited coloured fixings

Colour options:

• White
• Black
• Polished Gold
• Polished Chrome
• Brushed Stainless
• Anthracite Grey

Specifications:

• 25-year Surface Finish Guarantee
• 10-year Mechanical Guarantee
• Corrosion tested to BS EN 1670 Grade 5 (480hrs. NSST)
• Endurance tested to 50,000 cycles
• Load tested to BS 6462

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

Maintenance Instructions

To retain the highest corrosion resistance it is necessary to keep the surfaces clean. This can be achieved by wiping with a warm clean cloth using either a mild detergent or soap only, then rinsing with warm clean water and drying with a soft cloth. Abrasive, chemical or brass cleaners, wire brushes, scrubbers and wire wool etc should not be used under any circumstance.

The Yale Superior series offers Yale branded quality handle sets available in a range of anodised and powder coat finishes. Suitable for single, split and dual follower applications.

Features:

• Available in anodised and power coat finishes
• Aluminum construction
• M6 Stainless Steel screws for improved strength and security
• Snib facility for offset versions
• Supplied with fixings for PVCu and Composite doors

Specifications:

• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee
• Corrosion tested to BS EN 1906:2010 Grade 4 (240hrs. NSST)
• Endurance tested to 200,000 cycles
• Available in both PZ92 and PZ92/62mm versions

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

Colour options

• Anodised Gold
• Anodised Silver
• White
• Black

The Yale Platinum handle sets deliver optimal levels of corrosion resistance, together with stunning contemporary design and eye catching aesthetics. Suitable for use on standard, split spindle and dual spindle applications.

Features:

• Stainless Steel hybrid design for marine grade corrosion resistance
• Snib facility for offset versions
• M6 Stainless Steel screws for improved strength and security
• Supplied with fixings for PVCu and Composite doors
• Suites with Yale Platinum Letterplates

Specifications:

• 20-year Mechanical Guarantee
• 20-year Surface Finish Guarantee
• Corrosion tested to BS EN 1906:2010 Grade 4 (480hrs NSST)
• Endurance tested to 200,000 cycles
• Available in both PZ92 and PZ92/62mm variants
• Standard Security

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

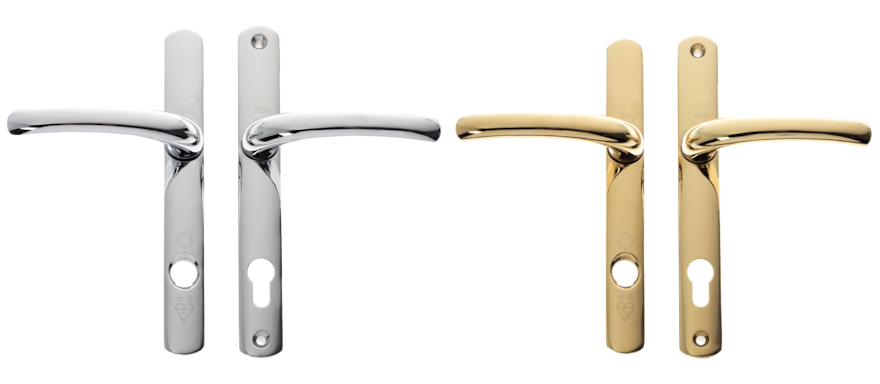

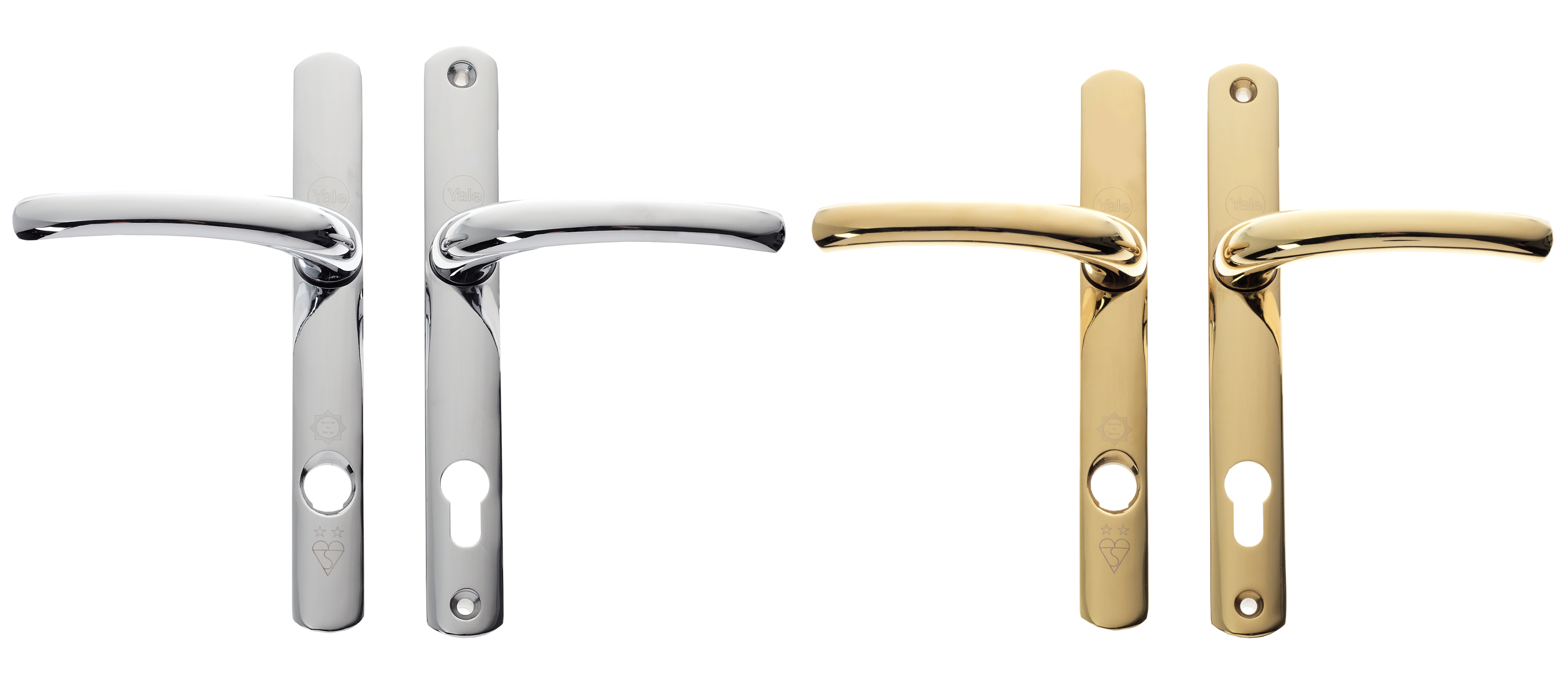

Colour options:

• PVD Polished Chrome
• PVD Polished Gold

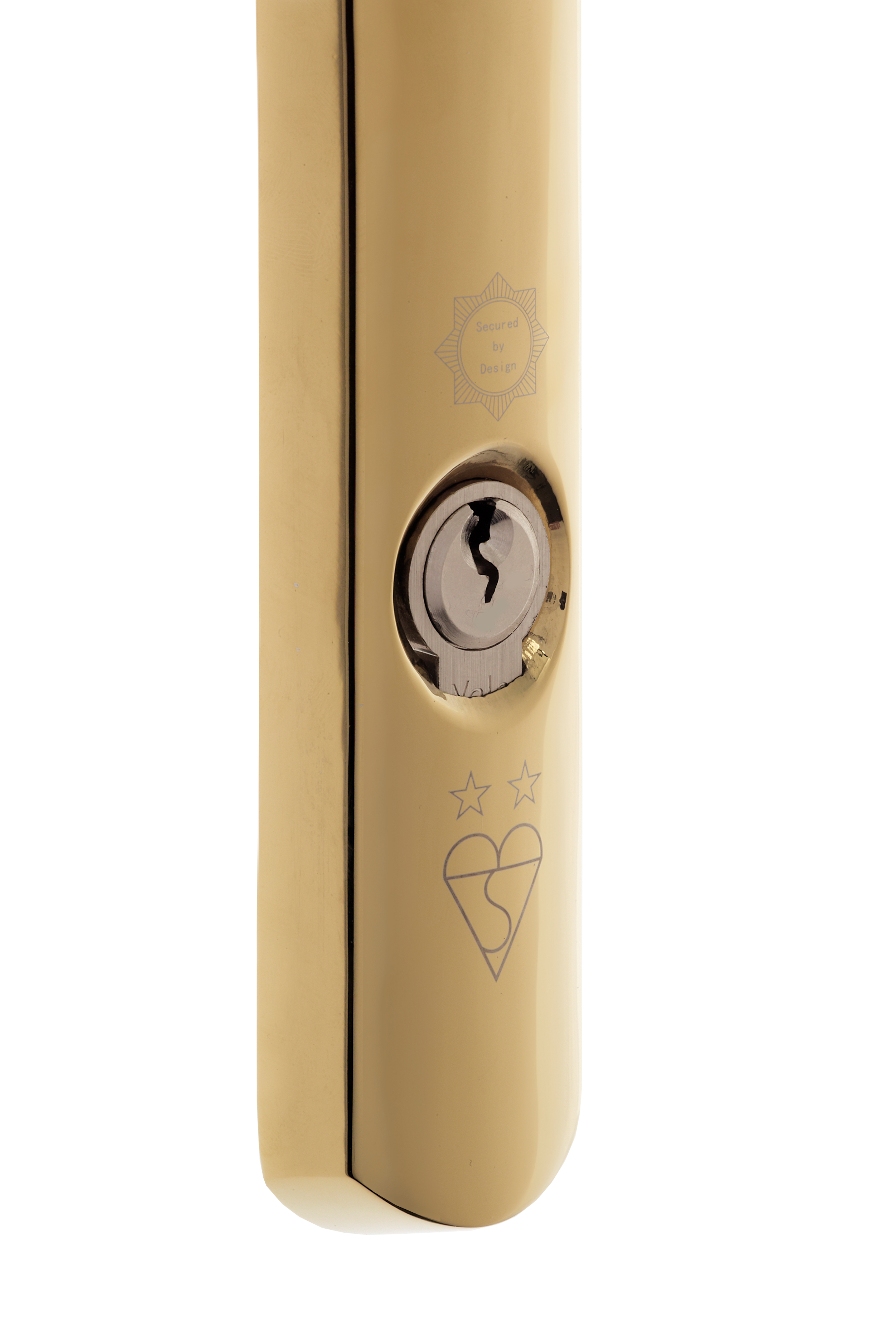

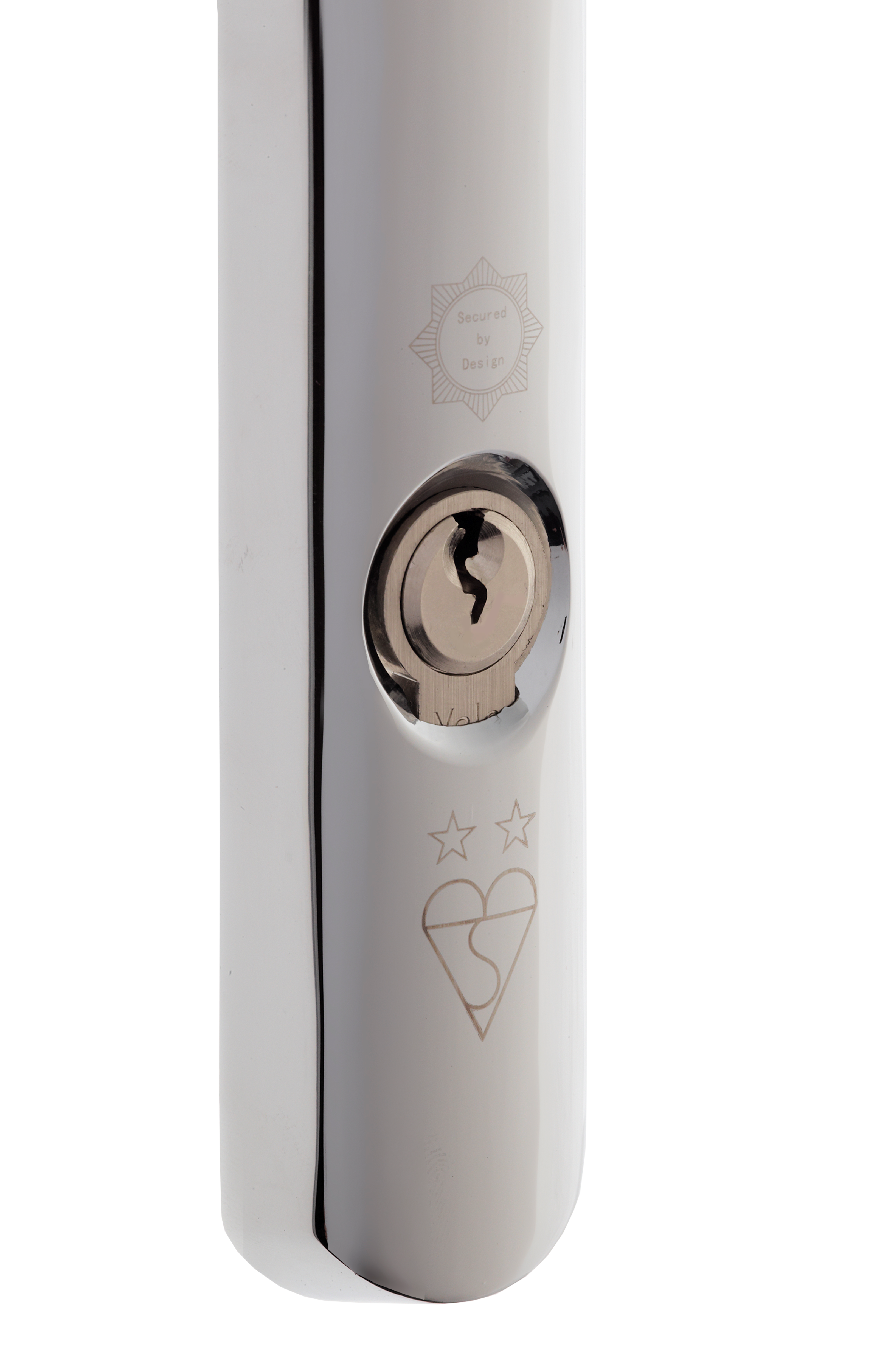

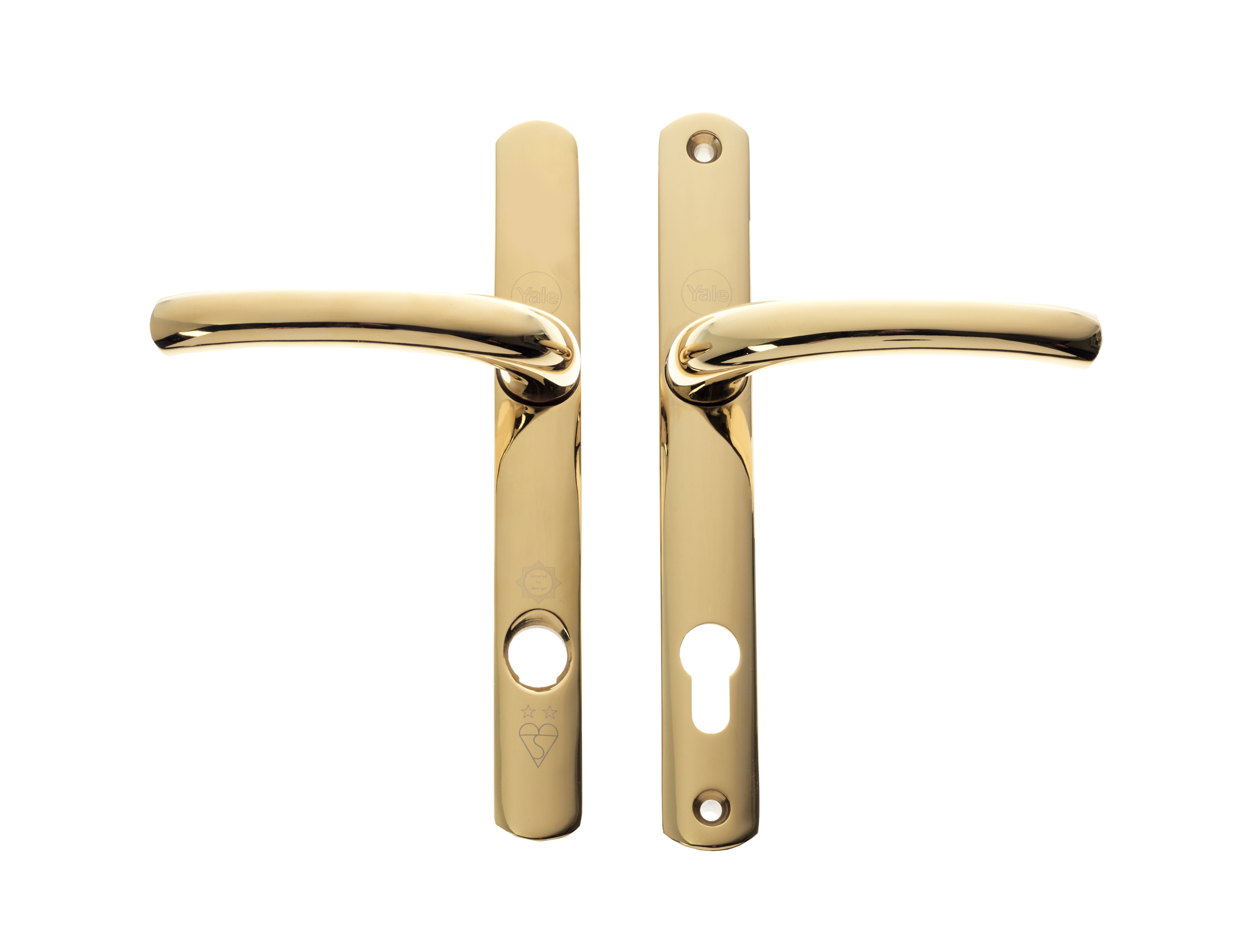

The TS007 2 Star Door Handle allows fabricators to fit a lower cost 1 Star cylinder and still meet the requirements of Document Q, but at a much more competitive price. The stylish, high performance door handle is manufactured in 304 Stainless Steel, giving ultimate corrosion resistance and comes with a 25 year guarantee* on all finishes.

Features:

• Manufactured in 304 Stainless Steel giving ultimate corrosion resistance
• Superior quality and design for product longevity
• TS007 accredited allowing a lower cost 1 Star cylinder to be fitted and still achieve the requirement of Document Q
• Incorporates patented spring cassette which eliminates 'drooping handle' effect
• Suites with other stainless steel furniture for a coordinated approach
• Available to support both PVC-U and composite doors

Colour options:

• Polished Gold (PVD)
• Brushed Gold (PVD)
• Polished Stainless
• Brushed Stainless
• White and Black powder coated over Stainless

Specification:

• 304 Stainless Steel
• Plastic parts - Nylon 66
• Door thickness 44mm - 75mm (suitable spindle lengths are available upon request)
• Cylinder aperture - standard euro cylinder
• Endurance tested to 50,000 cycles
• Corrosion tested to BS EN 1670 (1000hrs. NSST)
• Conforms to BS 1906
• 25-year Surface Finish Guarantee
• 10-year Mechanical Guarantee
• TS007 accredited

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

The stylish Sparta Door Handle offers an attractive looking product. The handle offers an ergonomic design with no compromise on grip length. The Sparta Door Handle has been manufactured to an extremely high standard which offers outstanding product performance.

Features:

• Ergonomic design with sleek Sparta aesthetics
• Suited to the Sparta Espag Handle and Tilt and Turn handles
• Incorporates patented spring cassette which eliminates the 'drooping handle' effect
• Available in a full choice of finishes which includes Gold (PVD), Polished Chrome, White and Black (other finishes are available upon request)
• Different back plate variants available to suit most locks

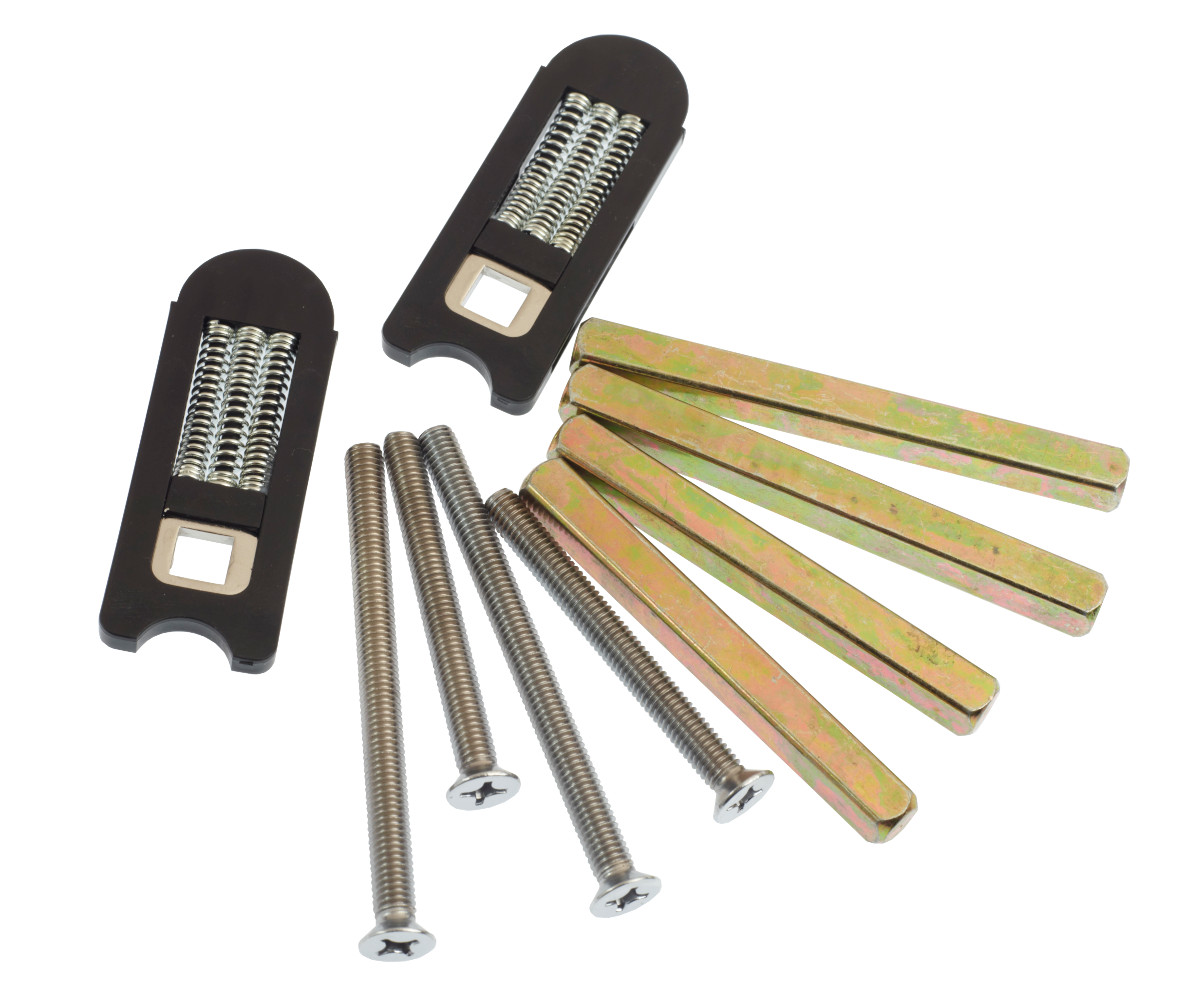

• Supplied complete with spring cassette, fixing screws and spindles
• Lever Lever and Lever Pad options available
• Longer lever option available to achieve DDA compliance - Approved Document M of the Building Regulations (access to buildings and services)

Specification:

• Zinc/aluminium die cast components
• Plastic parts - Nylon 66
• Door thickness 44mm-75mm (suitable spindle lengths are available upon request)
• Cylinder aperture - Standard Euro cylinder
• Corrosion tested to BS EN 1670
• Painted finishes Grade 5 (480hrs NSST), plated finishes Grade 4 (240hrs. NSST)
• Abusive load test to BS 6462
• Endurance tested to 50,000 cycles
• Conforms to BS 1906
• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

*Guarantee subject to correct installation and maintenance

The stunning Elite Stainless Steel T Bar Handle combines perfectly with other products in the Stainless Steel range. Offering an upmarket, contemporary handle, the Elite T Bar Handle is manufactured in 316 Stainless Steel and delivers outstanding product performance. Supplied as in-line or cranked versions, both with back to back fixing or bolt through fixing, the T Bar comes with the 25 year anti-corrosion guarantee.

Features:

• Manufactured in 316 Stainless Steel
• Combines perfectly with other Stainless Steel furniture for a totally coordinated, modern door suite
• Produced from 1.2mm thickness material
• In-line peg version or cranked peg version available
• Fixing variations - back to back fixing version (one pull handle each side of the door) and bolt fix version (one pull handle one side only with cover caps on the opposite side of the door)
• Fixing pegs supplied with a machined brass insert as standard
• M8 bolt has the option of a clear washer to protect the door face
• Bolt fix and back to back fixing methods can be found in the specification sheet below

Specification:

• 316 Stainless Steel
• 10-year Mechanical Guarantee
• 25-year Surface Finish Guarantee
• Corrosion tested to (480hrs. NSST)

Features:

• Suites perfectly with Elite Stainless Steel furniture for a totally coordinated, modern door style
• Choice of fixing methods available:
  • Back to back - one pull handle both sides of the door
  • Bolt fixing - one pull handle with cover caps on the opposite side of the door
• Produced from 1.2mm material thickness
• Fixing pegs supplied with a machined brass insert as standard
• M8 bolt has the option of a clear washer to protect the door face

Specification:

• 316 Brushed Stainless Steel
• BS EN 1670:2007 Grade 5 (480hrs. NSST)
• 25 year anti-corrosion guarantee
• 10 year mechanical guarantee

The stylish Elite Stainless Steel fixed Central Knob combines perfectly with other products in the Stainless Steel range. The Central Knob is manufactured in 316 Stainless Steel, giving excellent corrosion resistance and comes with a 25 year guarantee.

Features:

• Manufactured in 316 Stainless Steel
• 76mm Central Knob
• Fixing method - screw the M8 bolt (high grade Stainless Steel) directly into the tapped hole on the base of the central knob
• Combines with other Stainless Steel furniture for a totally coordinated, modern door suite
• Fixing available to support PVC-U and composite doors
• M8 bolt has the option of a clear washer to protect the door face

Specification:

• Corrosion tested in excess of 1000 hours based on BS EN 1670
• 316 Stainless Steel

*Guarantee subject to correct installation and maintenance
