Yale

Virage Window Handle

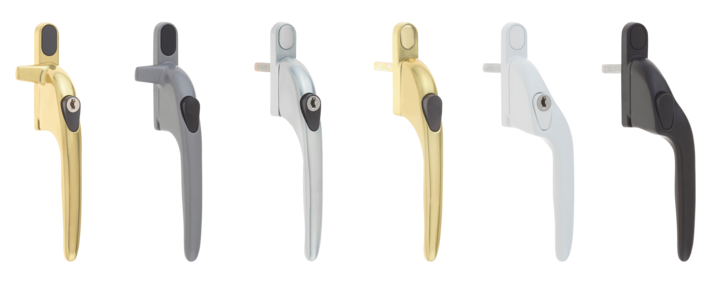

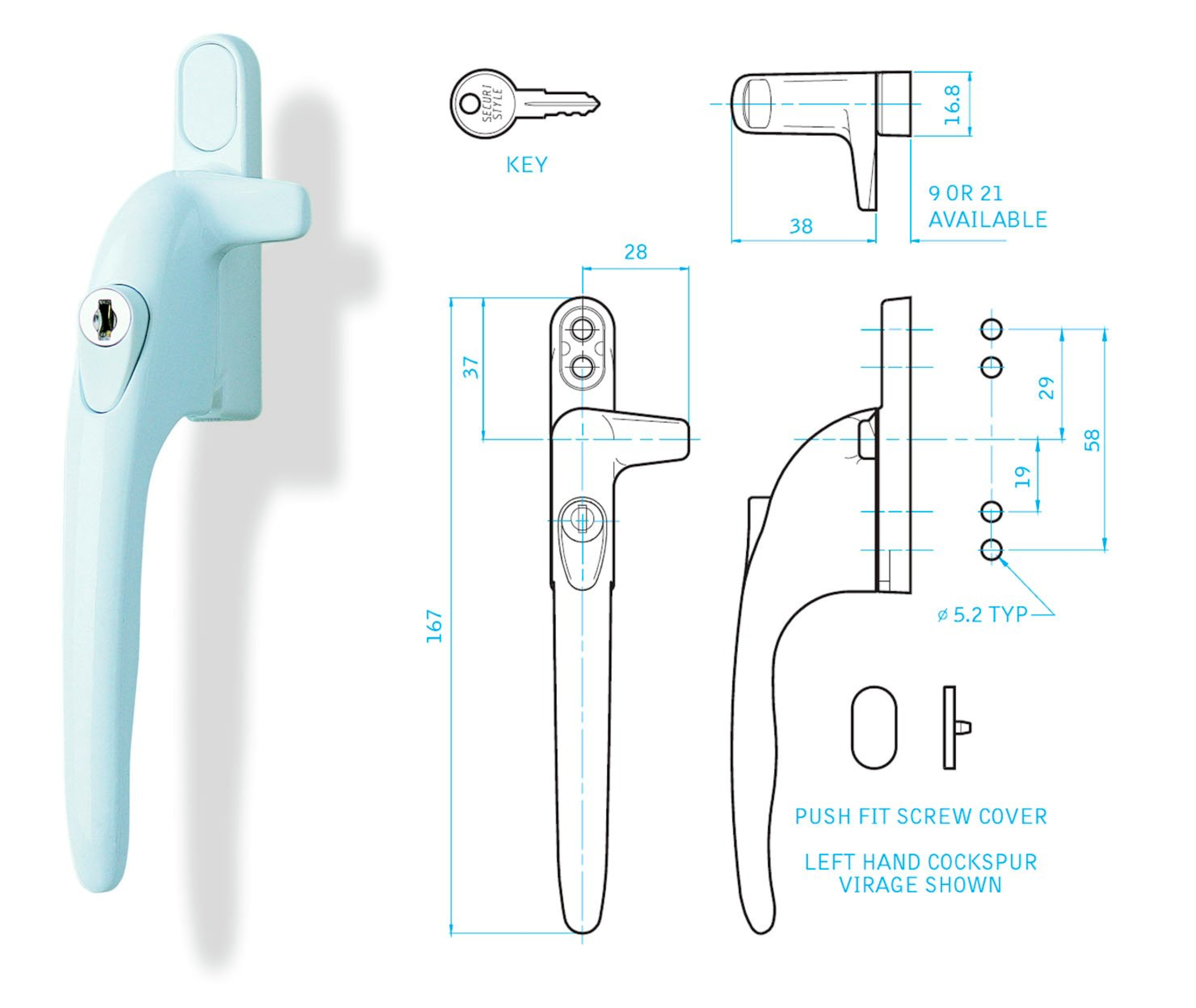

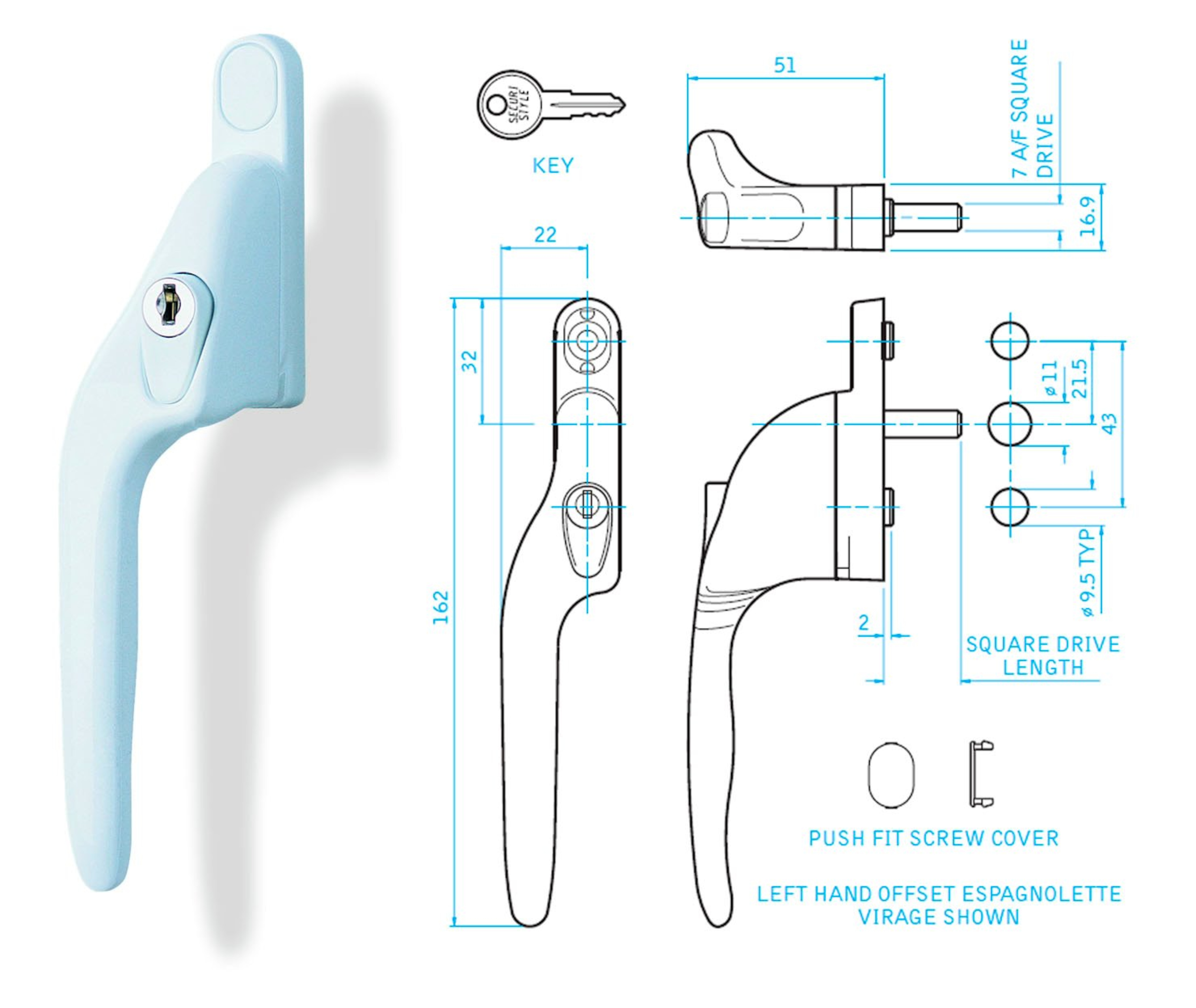

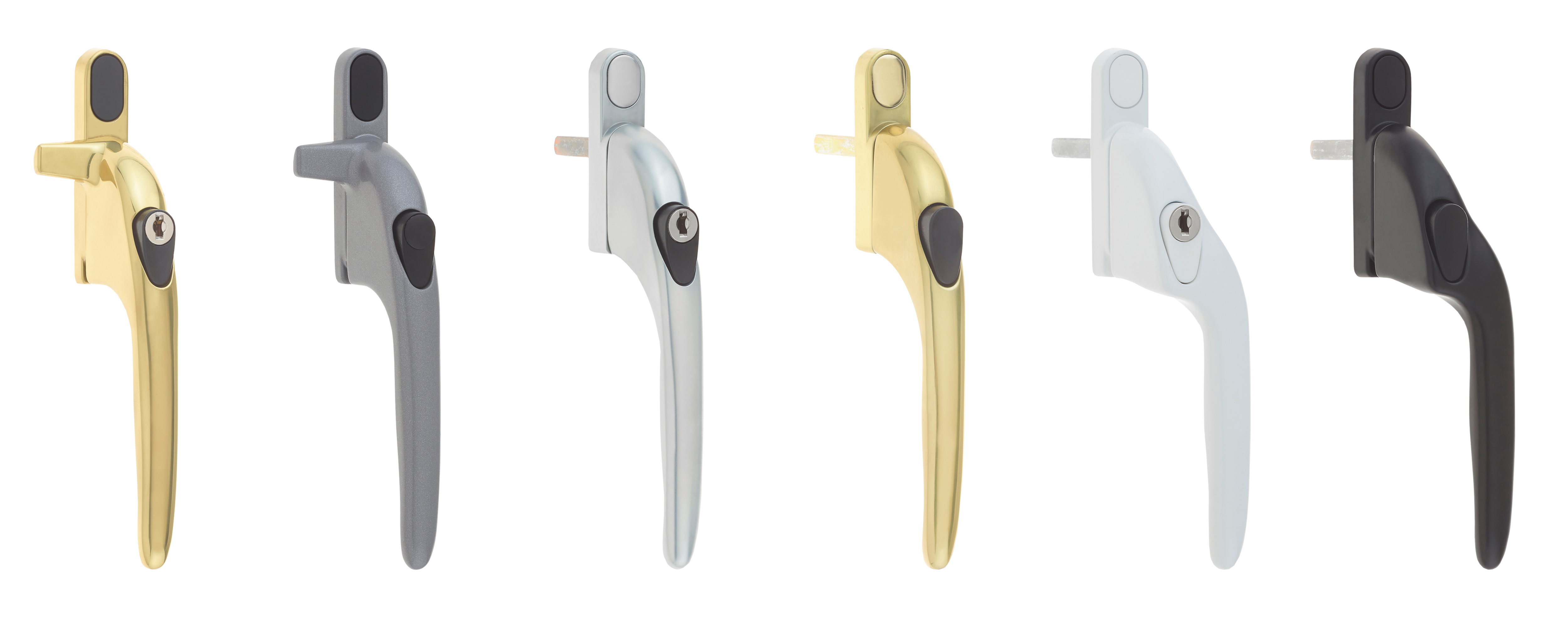

Virage Window Handle available in offset, inline espagnolette and cockspur.

Features

  • Ergonomic design for comfort
  • Positive stop on offset espagnolette and cockspur to ensure accurate in-line closure
  • Key dead locking available for added security
  • Non locking green push button version for emergency escape
  • Locking and non-locking versions available with black button
  • Non latching variant available for DDA requirements
  • Available in Black, White, Egress, Black, and Chrome finishes
  • In-line espagnolette version for slim line profiles and non-handed applications
  • Push to unlatch mechanism
  • Suited look for espagnolette and cockspur mixed applications
  • Special colours available to order, minimum quantity 5,000
  • Included in the Lifetime Guarantee (Terms and conditions apply)

Specifications

  • 10-year guarantee for Virage espagnolette and in-line variants (details available upon request)
  • BBA certification
  • Corrosion tested to (240hrs. NSST)







  • Quartus Espag Handle

    The Yale Quartus Espag Handle offers homeowners the ultimate solution with its aesthetically pleasing design and user-friendly functionality, making it the ideal choice for aluminium and uPVC windows.

    Available in inline and offset variants as well as a wide range of finishes, this handle has been designed, developed and tested in the UK to Yale's precise standards and high-performance security.

    Features

    • Push to unlatch Yale branded mechanism
    • Key operated locking mechanism
    • Key deadlocking for added security and safety
    • Non-locking push to unlatch version in Black, White and Green for egress applications available
    • Aesthetically pleasing as part of the suited range of window hardware
    • Available in inline and offset variants
    • Available in Satin Black, Chrome, Champagne Gold, Silver, and White finishes
    • Available with a variety of spindle lengths ranging from 10mm - 75mm to accommodate a wide range of window profiles*
    • Fixed spindle supplied as standard
    • Supplied with screws, colour matched screw caps and cylinder plug to achieve a non-locking solution
    • Supplied with a Yale branded key
    • Spare keys and screw cover caps available upon request

    Guarantee and Standards

    • 10-year Mechanical Guarantee
    • 10-year Surface Finish Guarantee
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to BS 6375 Part 2 (Classification EN 12400) Class - 20,000 cycles
    • Lifetime Security Guarantee when used with other Yale security hardware**

    * Other sizes available upon request

    ** Terms and conditions apply. Please see yaledws.co.uk for further details



  • Sparta Tilt & Turn Handle

    The Sparta Tilt and Turn Window Handle offers an attractive product design. The grip feature gives increased hand clearance and incorporates an ergonomic soft grip insert giving improved comfort and feel during use.

    Features:

    • Ergonomic soft grip feature and improved aesthetics
    • Push to open, key lockable in closed position
    • Non-locking egress option
    • Complements all products in the Sparta handle range
    • Available in a full choice of finishes including Gold (PVD), Polished Chrome, Satin Silver, Black, and White finishes

    Specification:

    • Base grip - Zinc Alloy
    • Button and mechanism - Nylon 66 and acetal
    • Corrosion tested to BS EN 1670: Painted finishes Grade 5, plated finishes Grade 4
    • Endurance tested to 25,000 cycles
    • 10-year Mechanical Guarantee

    • 12-month Surface Finish Guarantee

    *Guarantee subject to correct installation and maintenance

  • Sparta Cockspur Handle

    The stylish ergonomic design of the Sparta Cockspur Handle makes it easy to use and a pleasure to look at. Multiple nib and height options make it suitable for a wide range of installations while, as part of the Sparta handle range, it is part of a perfectly coordinated handle suite.

    Features:

    • Ergonomic stylish design and improved aesthetics as part of the suited range of hardware
    • Push to open, key lockable
    • Non-locking egress options available
    • 3 locking nib height options 9mm, 15.5mm and 21mm
    • 3 locking wedge options - 2.55mm, 4mm and 5.5mm
    • Available in a full choice of finishes including Polished Chrome, White, and Black finishes
    • Spare keys and screw cover caps available

    Specification:

    • 12-month Surface Finish Guarantee
    • 10-year Mechanical Guarantee
    • Base grip - Zinc alloy
    • Plastic parts - Nylon 66, UV stabilised ABS and Acetal
    • Corrosion resistance to BS EN 1670: Painted finishes Grade 5, plated finishes Grade 4
    • Endurance tested to 25,000 cycles

    *Guarantee subject to correct installation and maintenance
