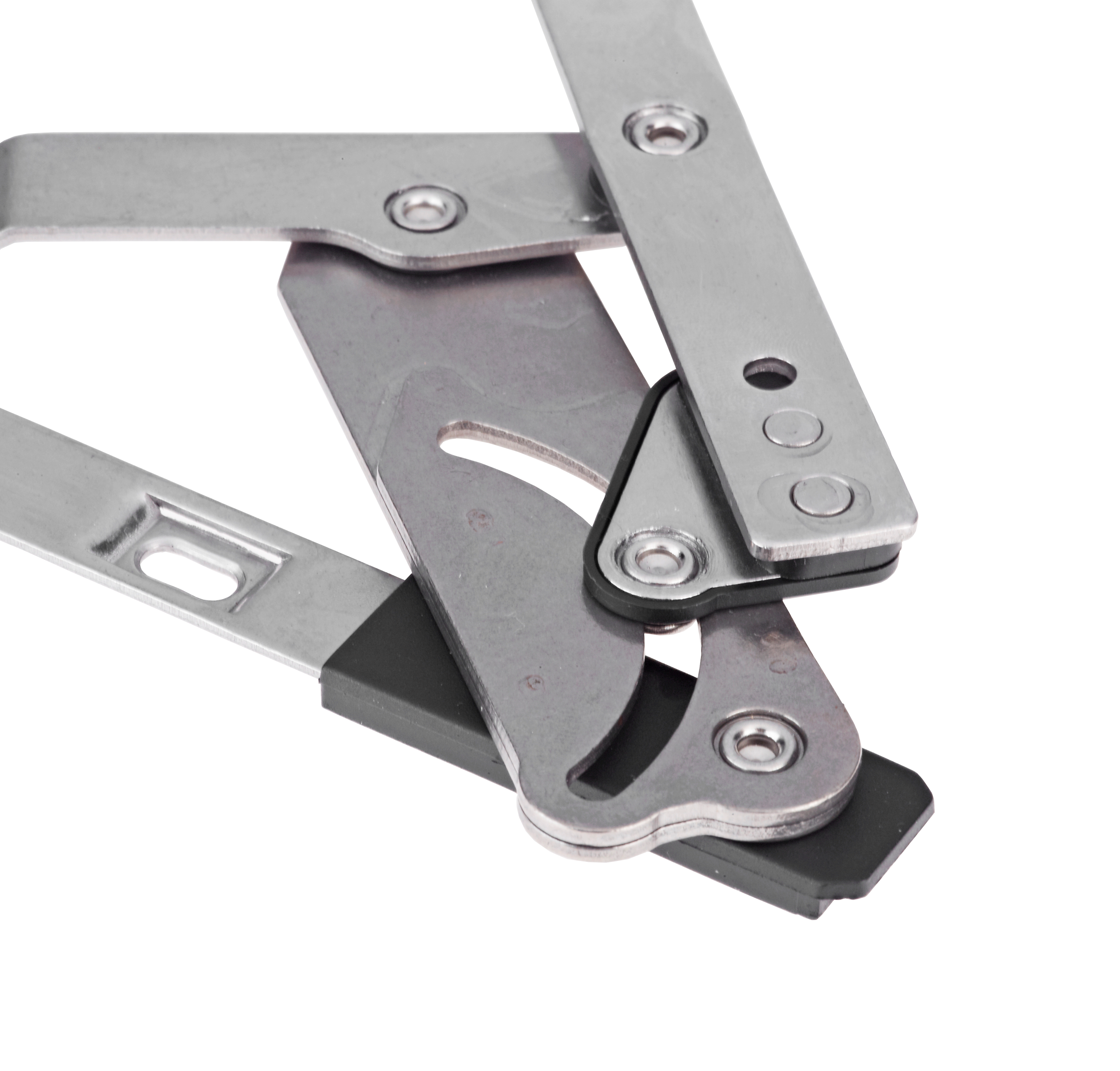

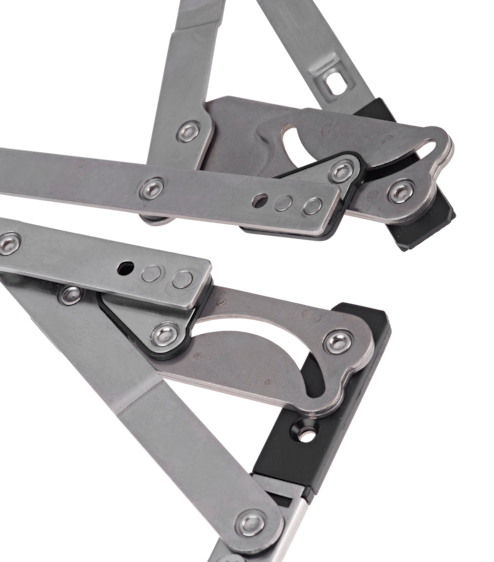

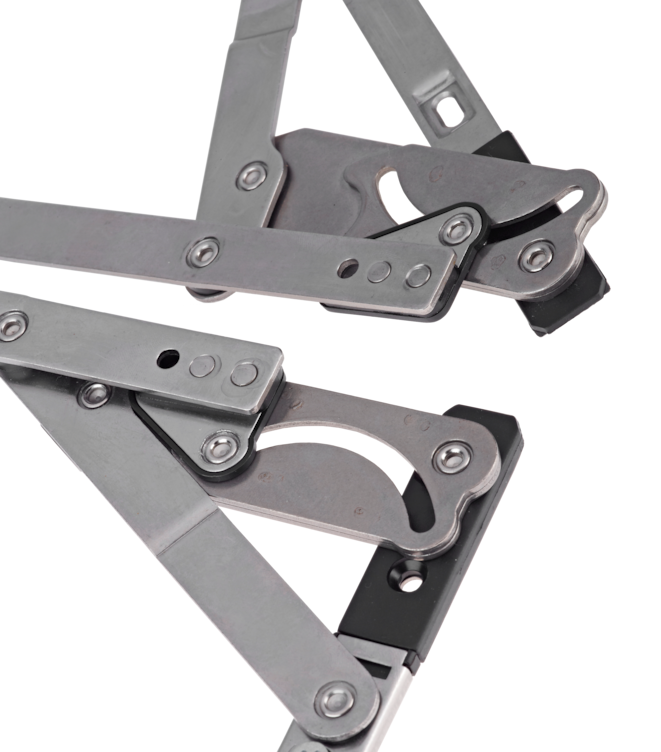

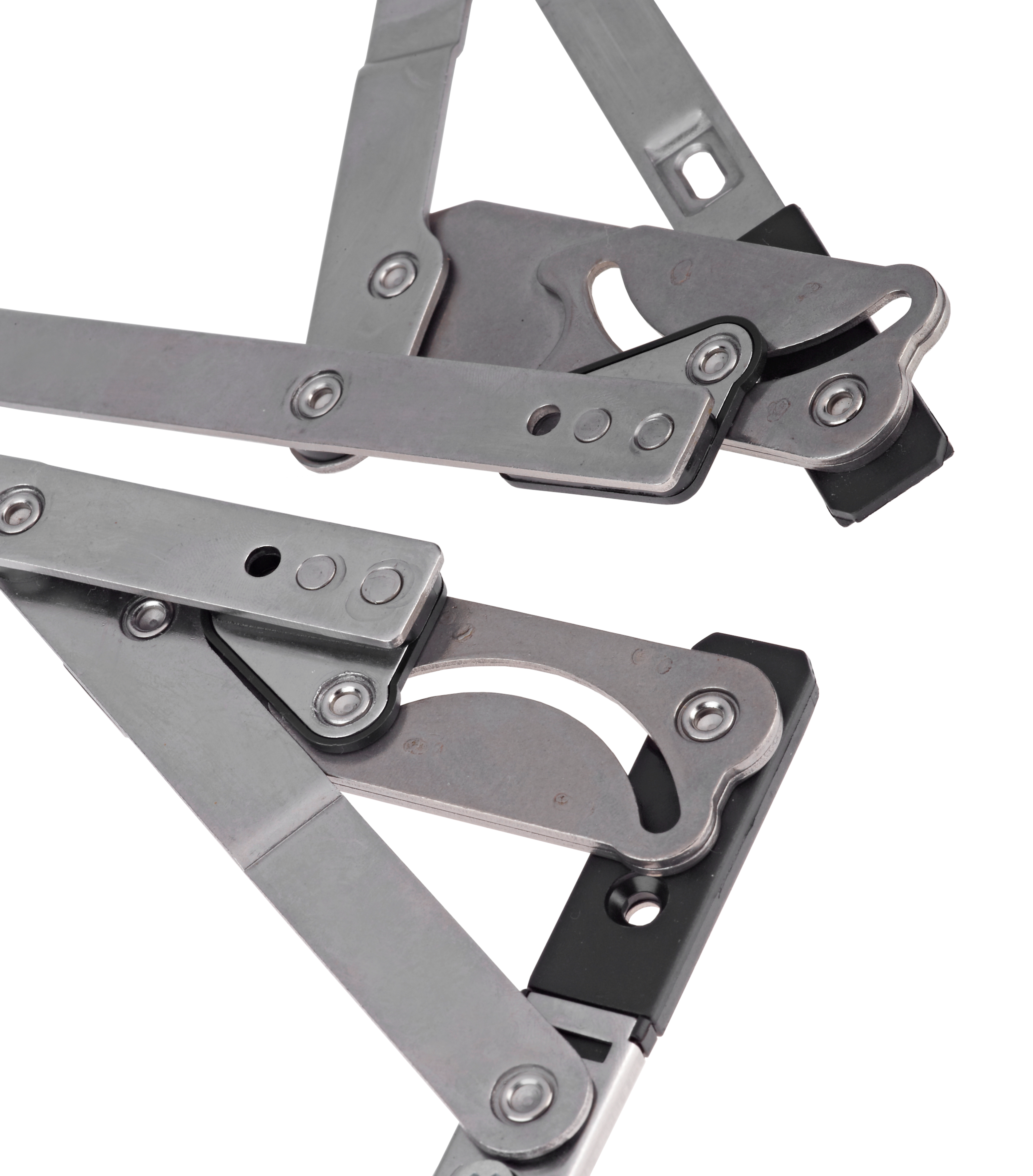

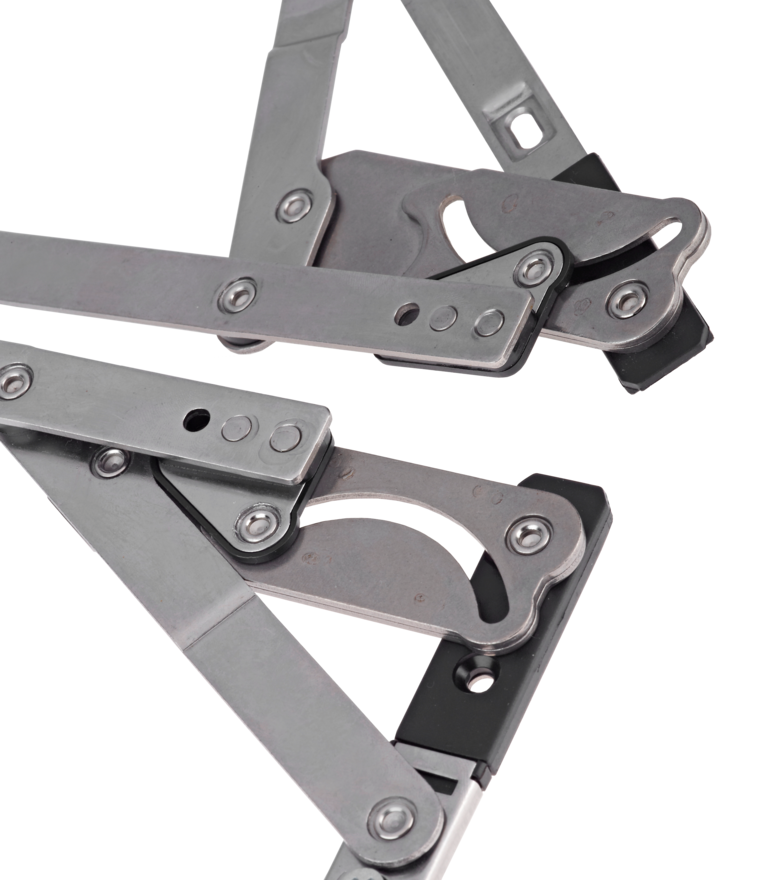

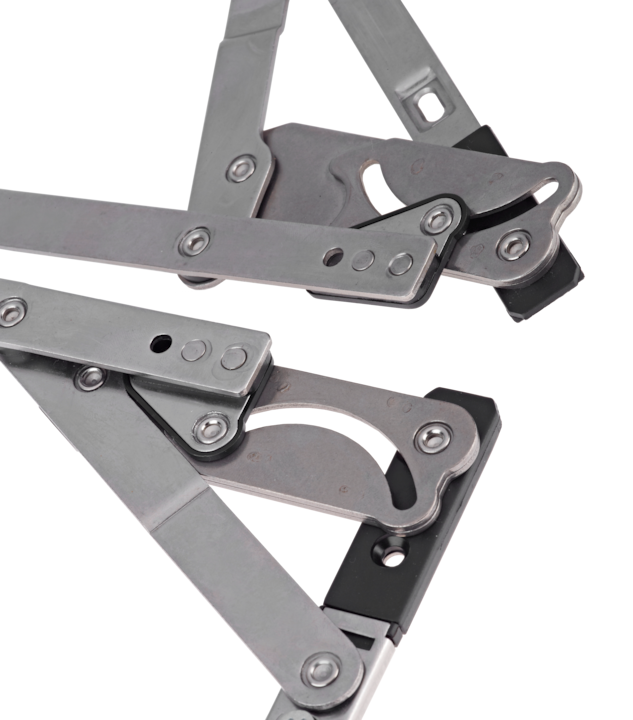

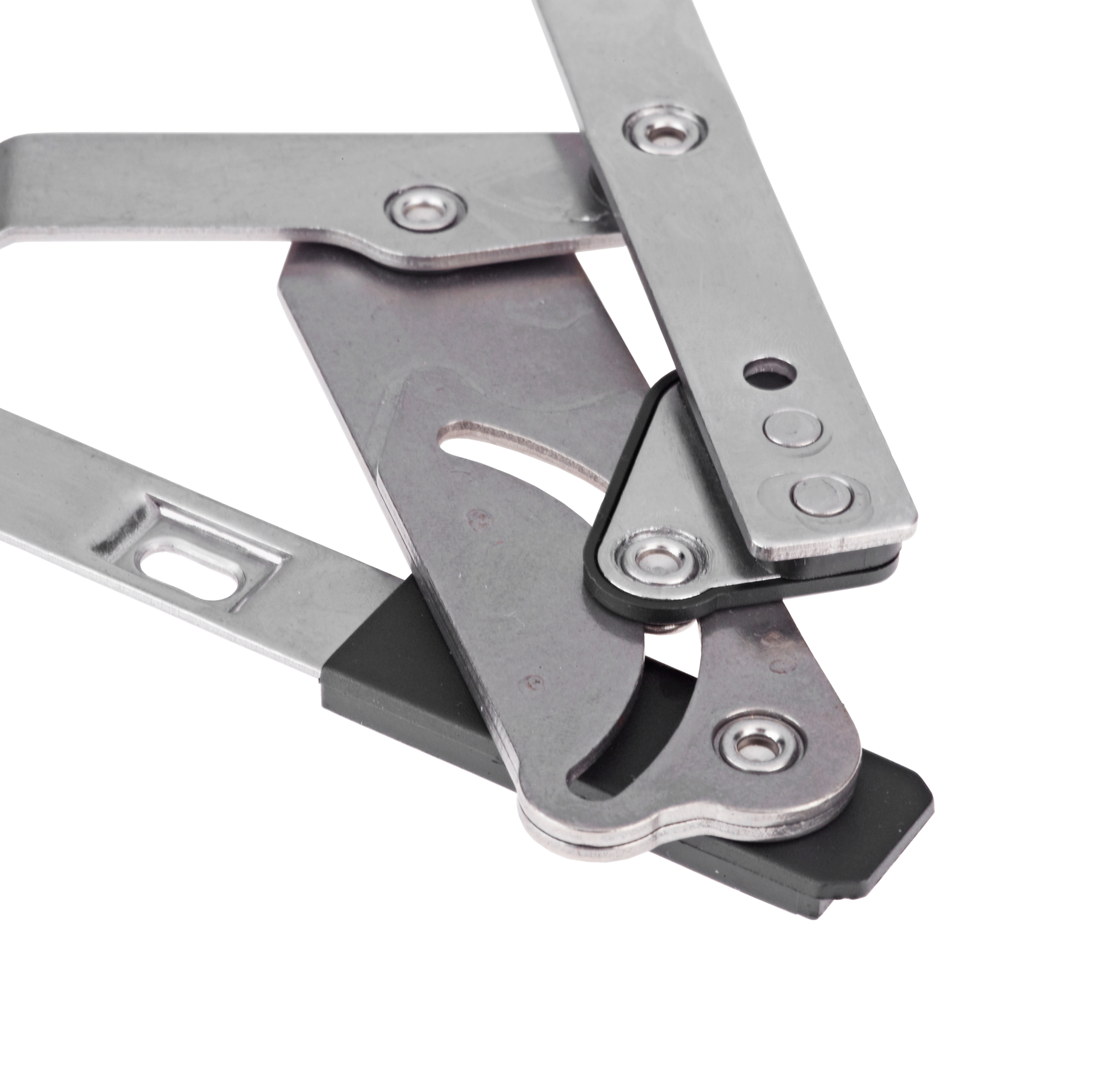

Mega Egress Hinge

The Yale Mega Egress Hinge is developed for use on side-opening casement window systems. Due to the superior integral strength, the hinge can be used for all sash widths up to 900mm with a maximum load of 35kg.

The Easy Clean feature allows the sash to slide away from the corner and then auto-lock back into egress mode for ultimate safety.

Features

•  220mm and 345mm suit all side-hung applications up to 600mm and 900mm sash widths respectively

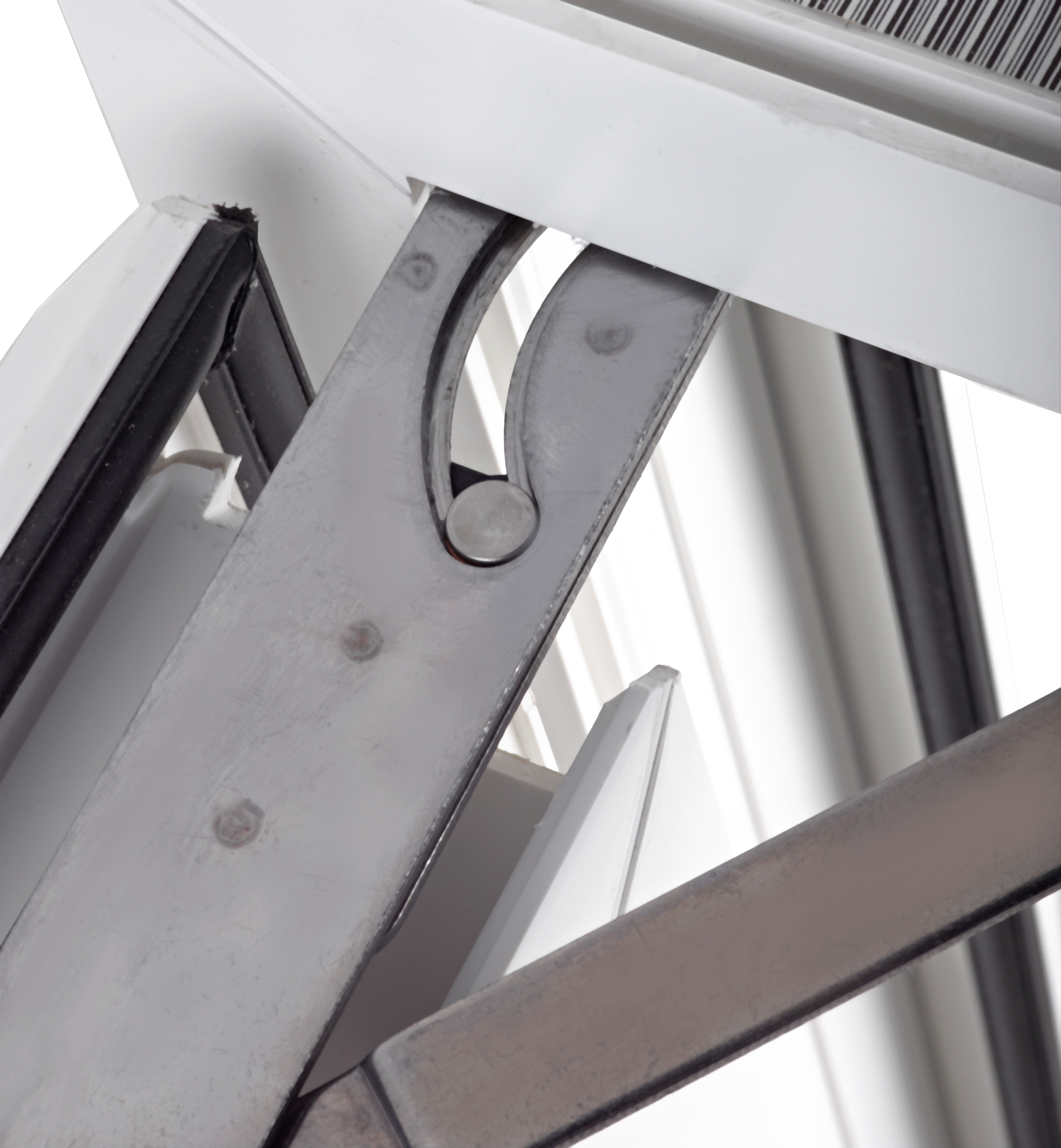

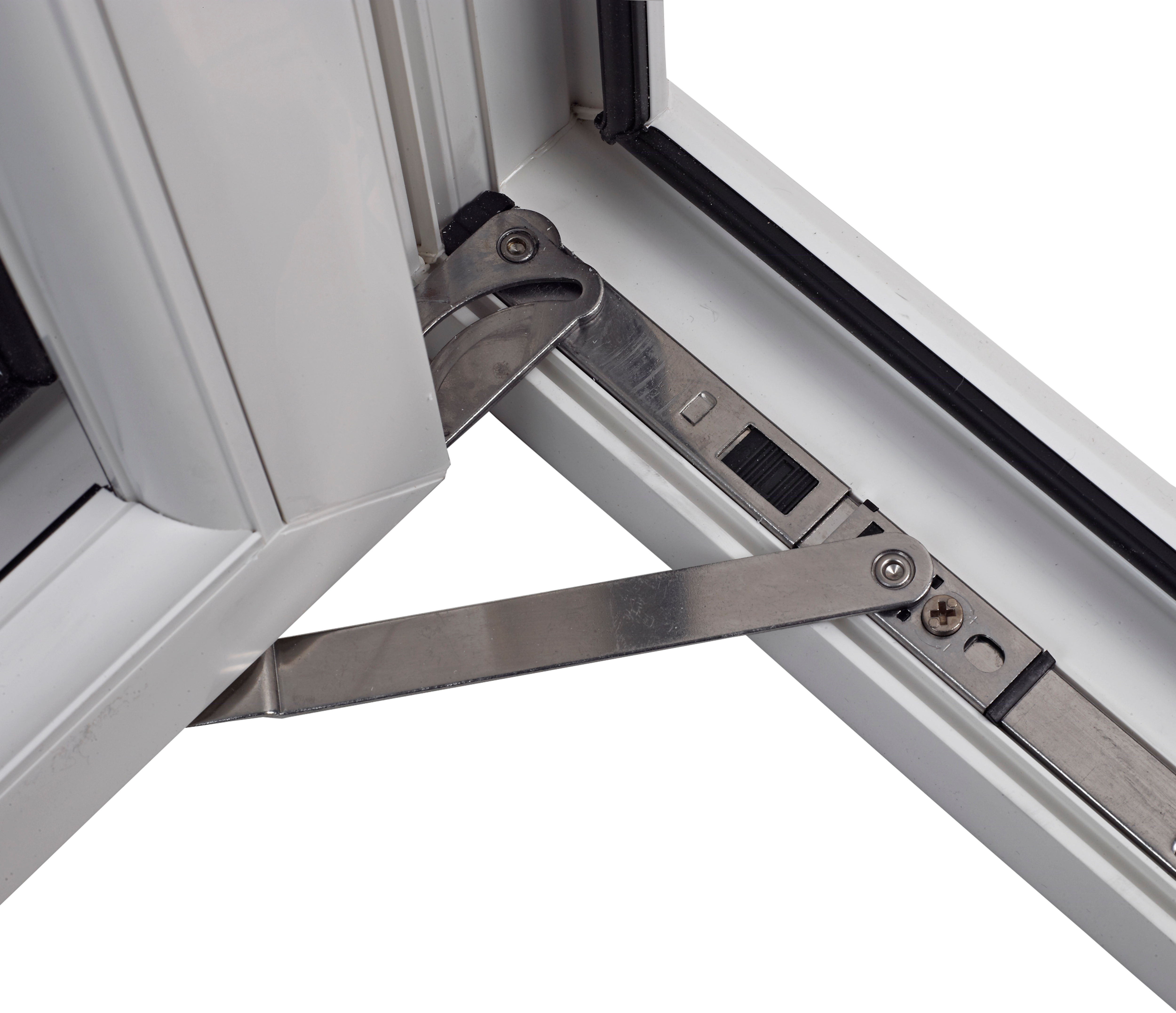

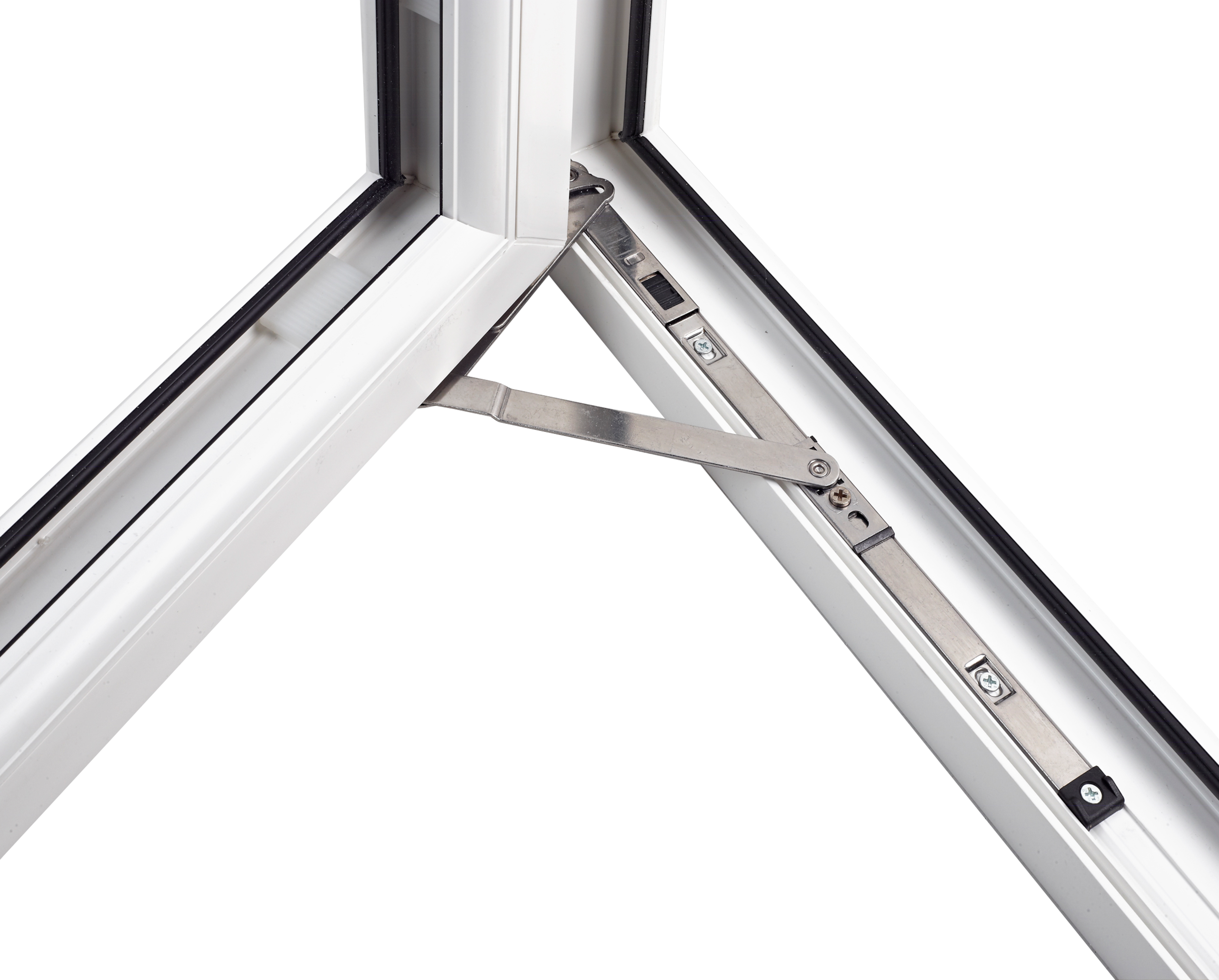

• In the open position, the sash is moved outside the frame to maximise the escape aperture
• True 90º opening for egress compliance
• Achieves minimum fire escape requirement of 450mm opening for egress applications on smaller windows compared with traditional egress hinges

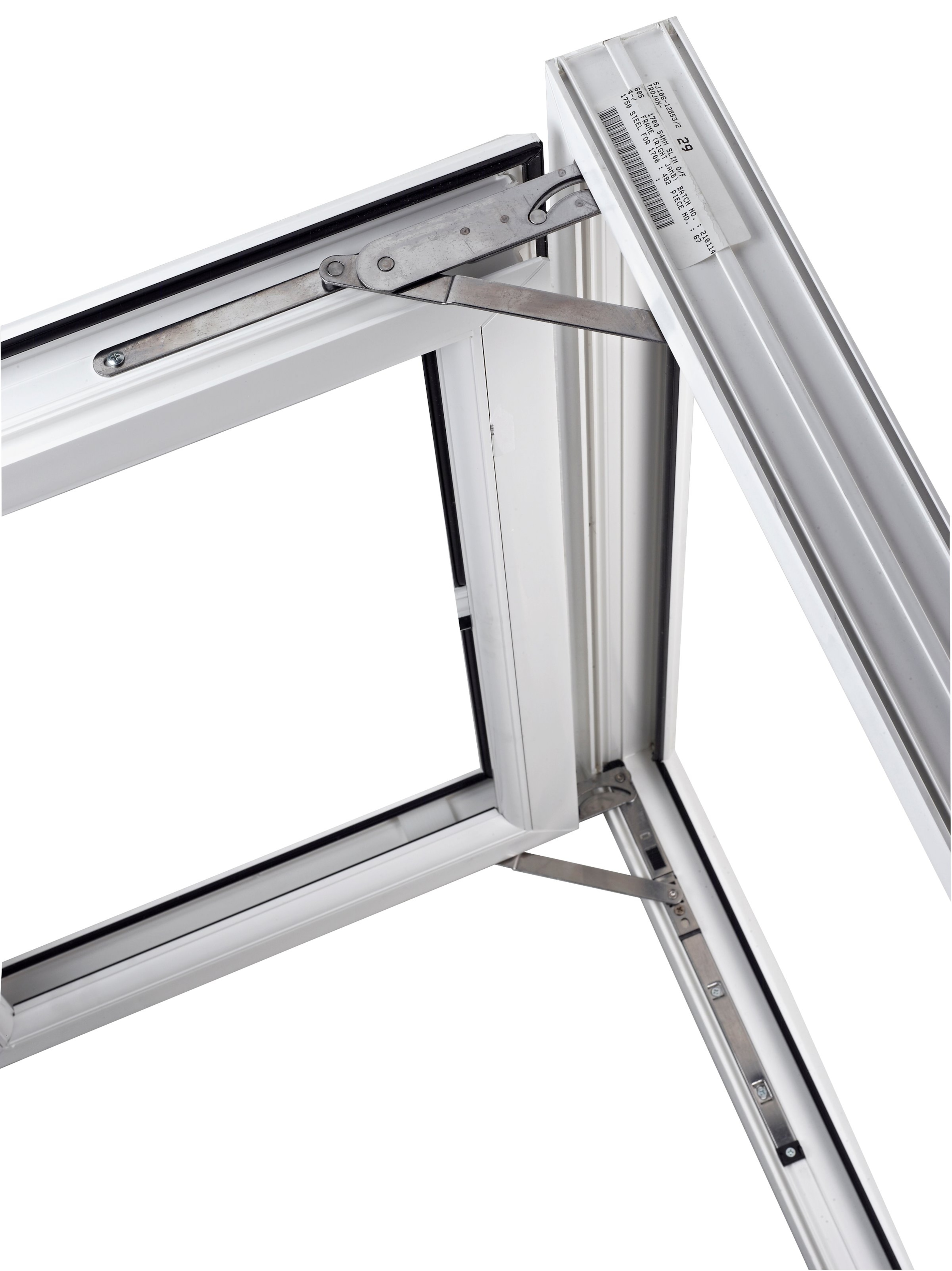

• Can be moved into an easy clean position, with automatic reset to egress operation on closing (345mm version)
• Excellent compression is achieved by unique patented hinge geometry
• Superior carrying weight

Specification

• Tested to BS EN 1670 Grade 5 classification for ultimate corrosion resistance
• Tested to EN1191 over 30.000 cycles under 40kg operational load:
  • 800mm wide x 40kg
  • 900mm wide x 35kg
• Designed to achieve PAS 24 security test when used in conjunction with a Yale ASD
• 10-year mechanical guarantee
