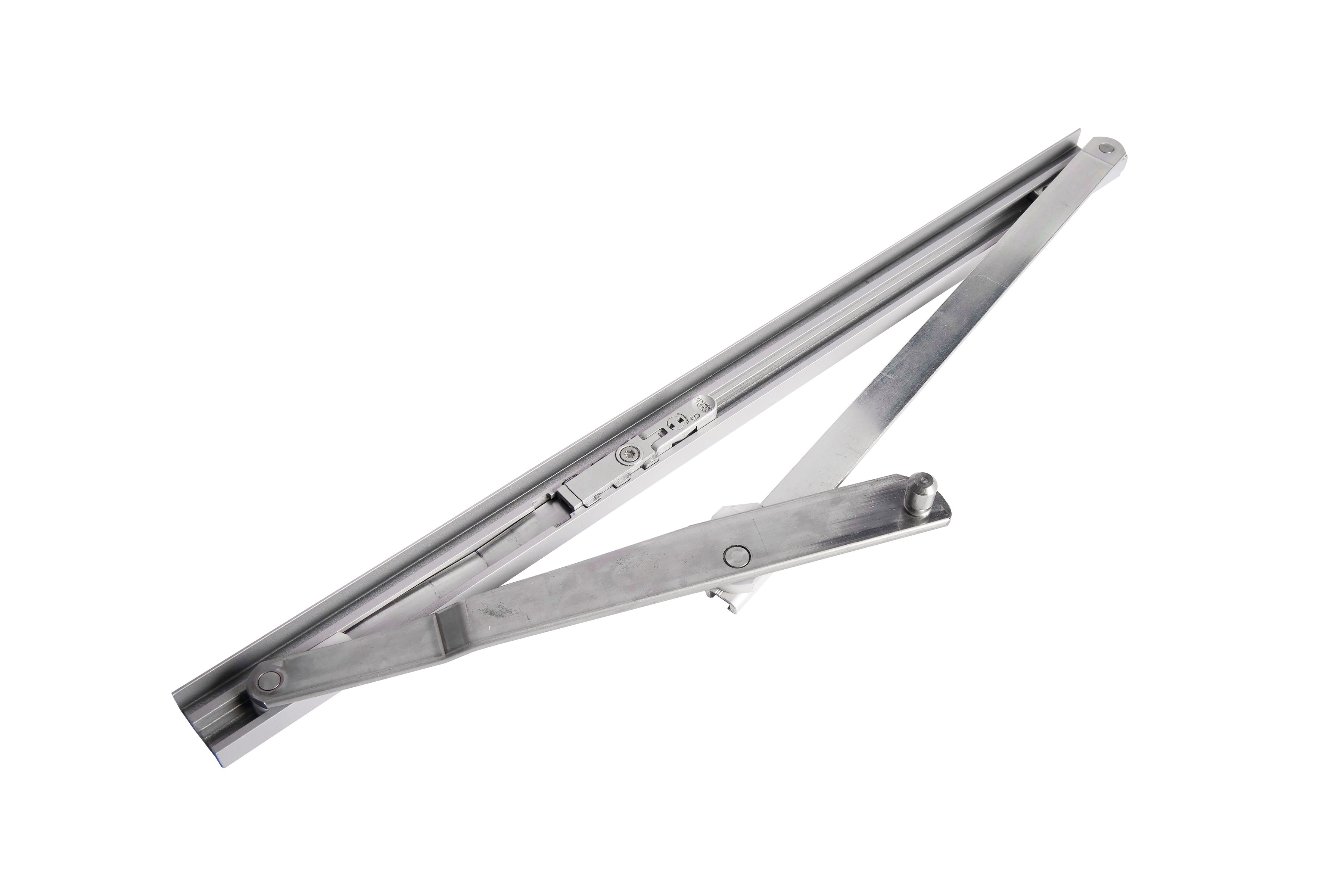

The Yale Revolution Window Hinge

The Yale Revolution Window Hinge is the ideal choice for reversible residential and commercial upper floor windows.

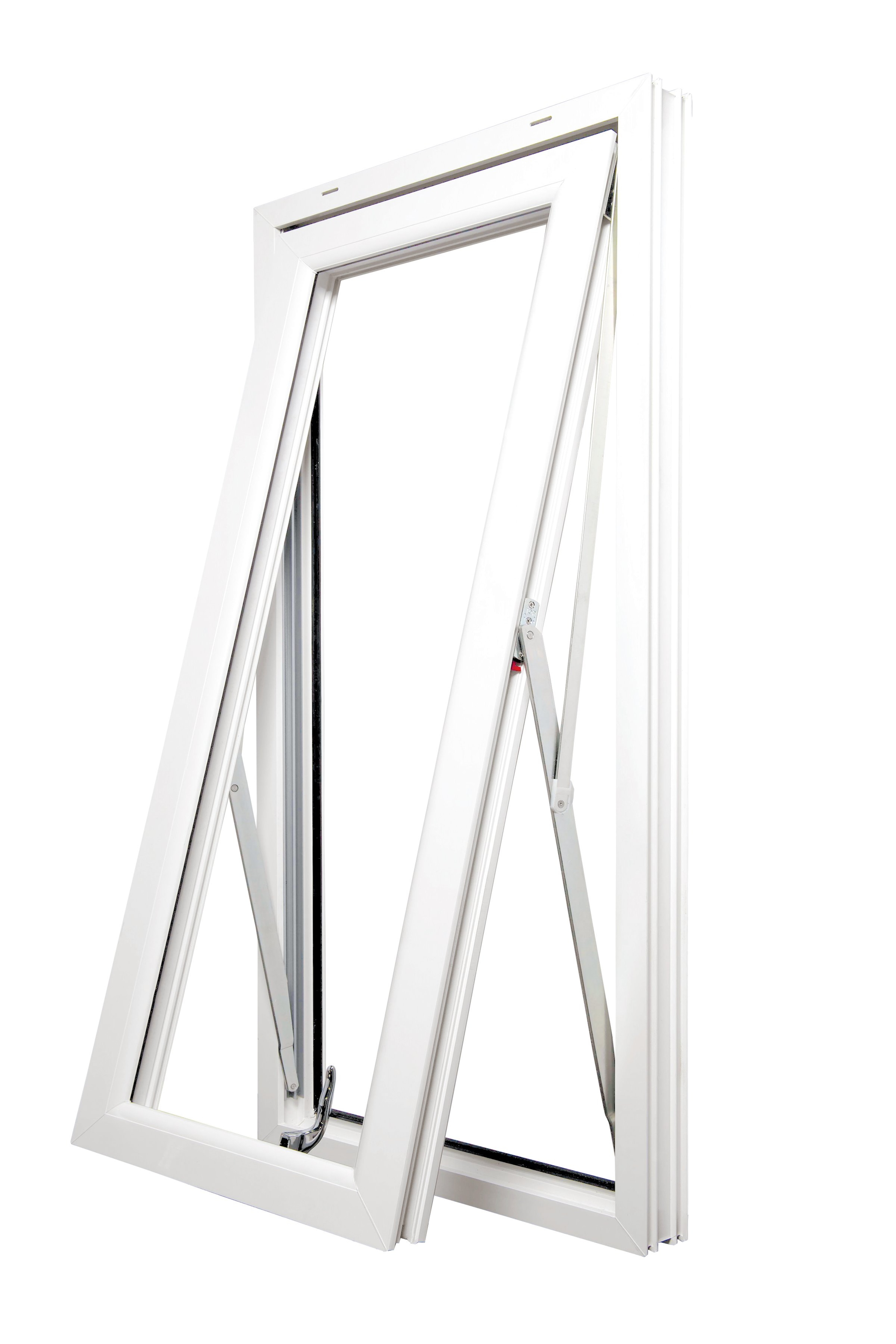

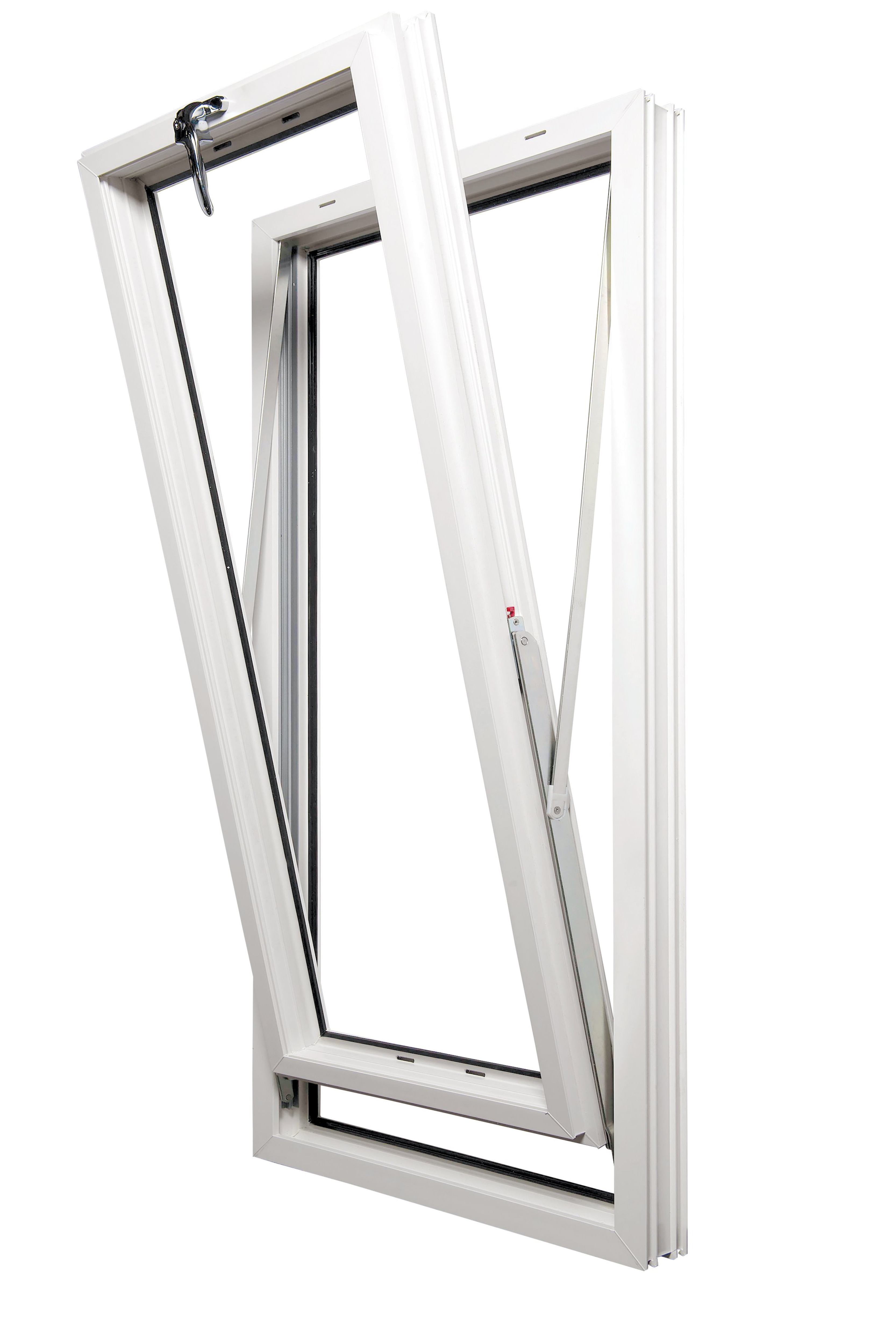

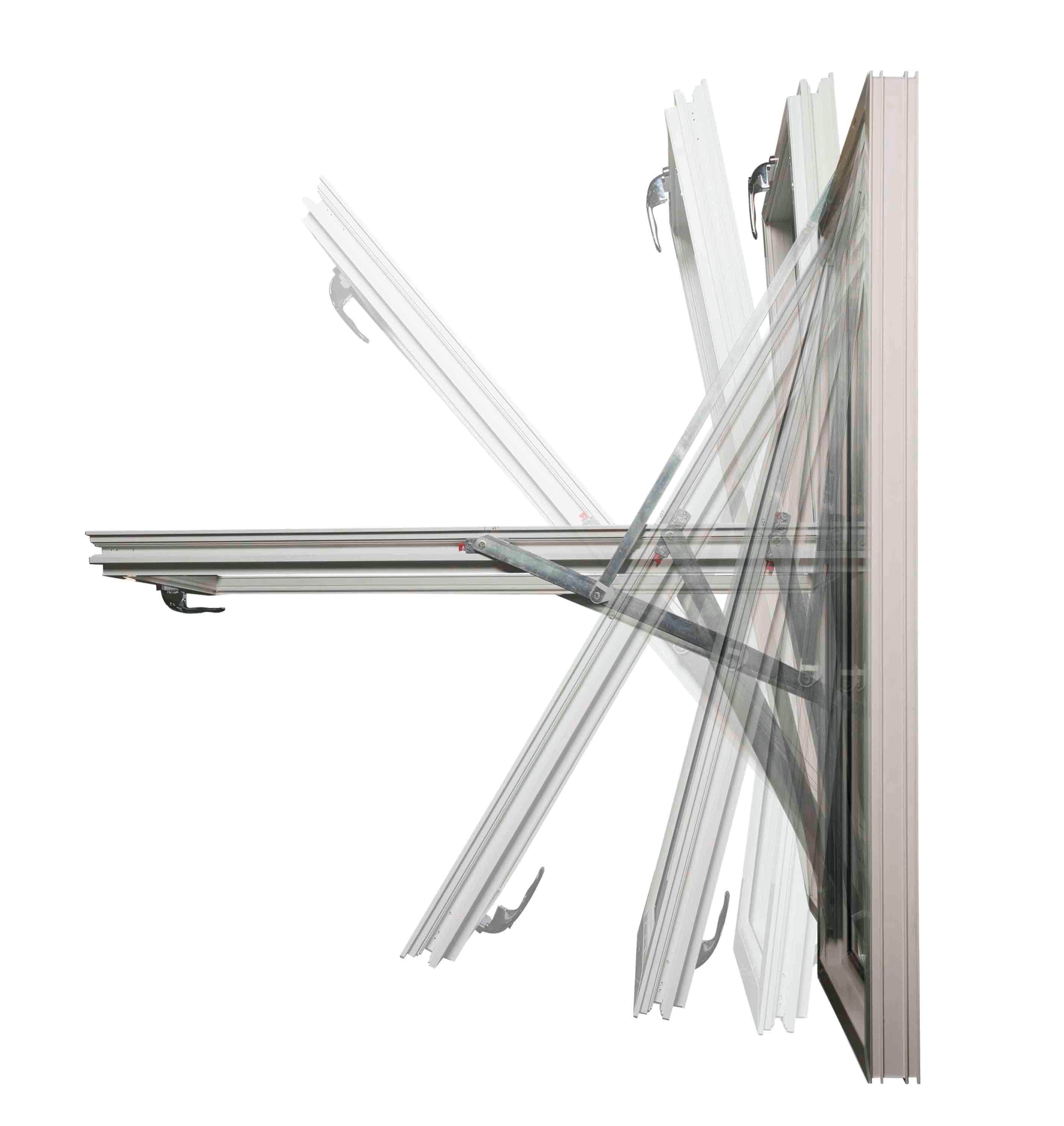

Its user-friendly design allows the window to rotate fully, enabling the homeowner or occupier to easily clean both sides of the glass from within the comfort and safety of the building. This removes the risk of over-stretching or failing from a ladder when cleaning from the outside.

One product that uniquely allows for on-site configuration to meet end-user requirements.

Features

  • Patented configurable dual closing function: Anti-blow back or Easy close

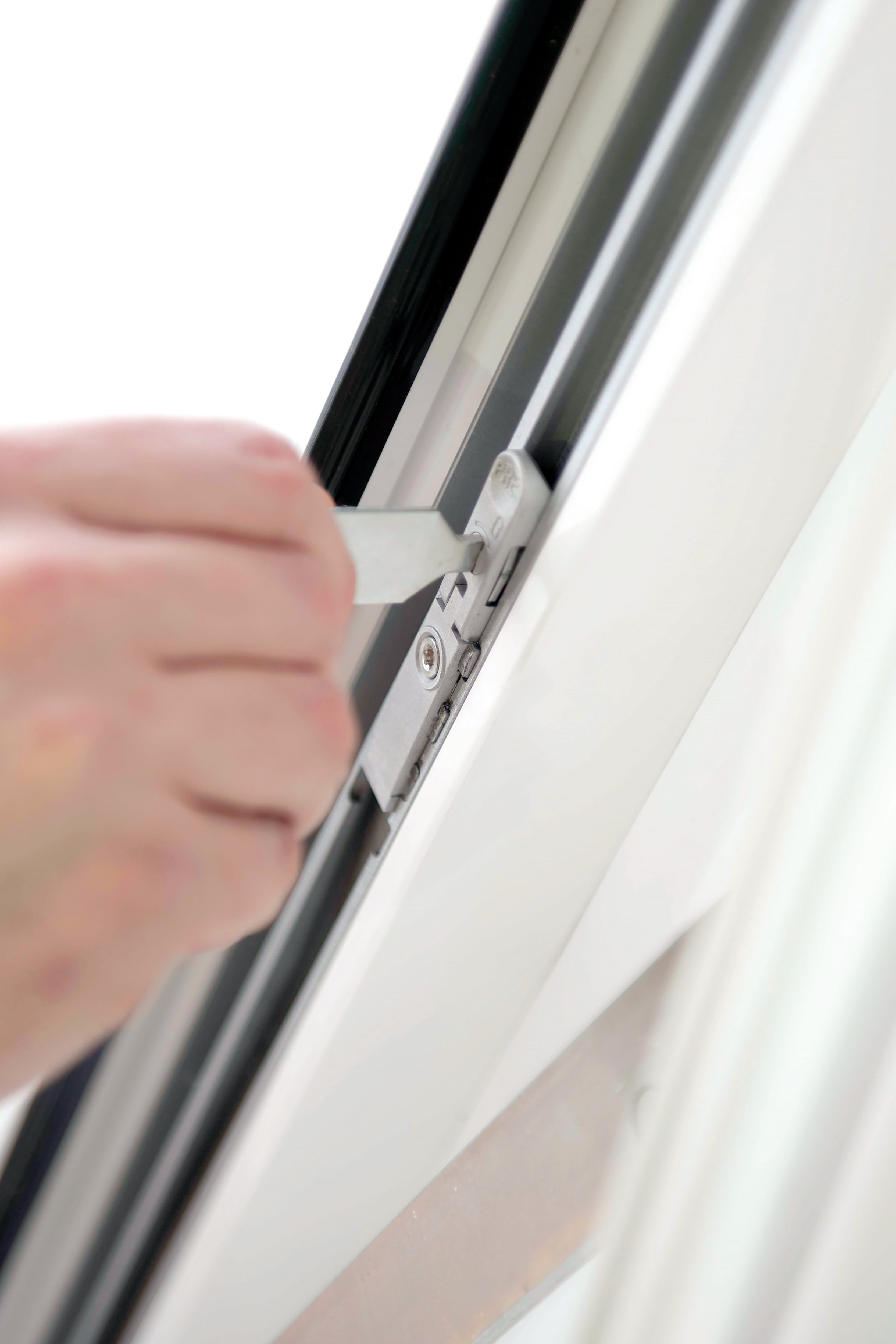

  • Unique key-lockable safety restrictor
  • Includes a range of sizes that can provide an excellent means of escape in case of a fire or other emergency

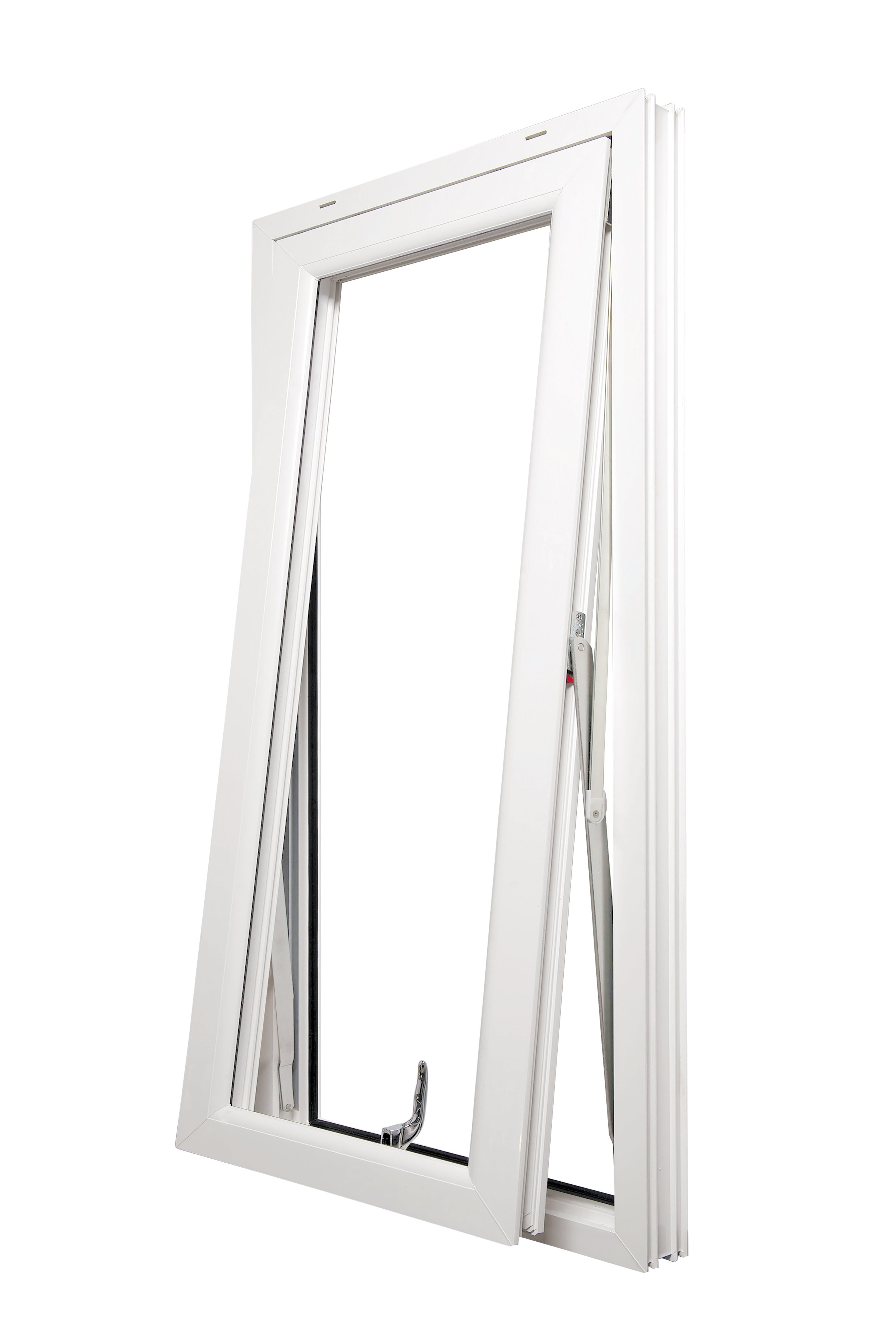

  • Dual closing functions both of which provide restriction and ventilation

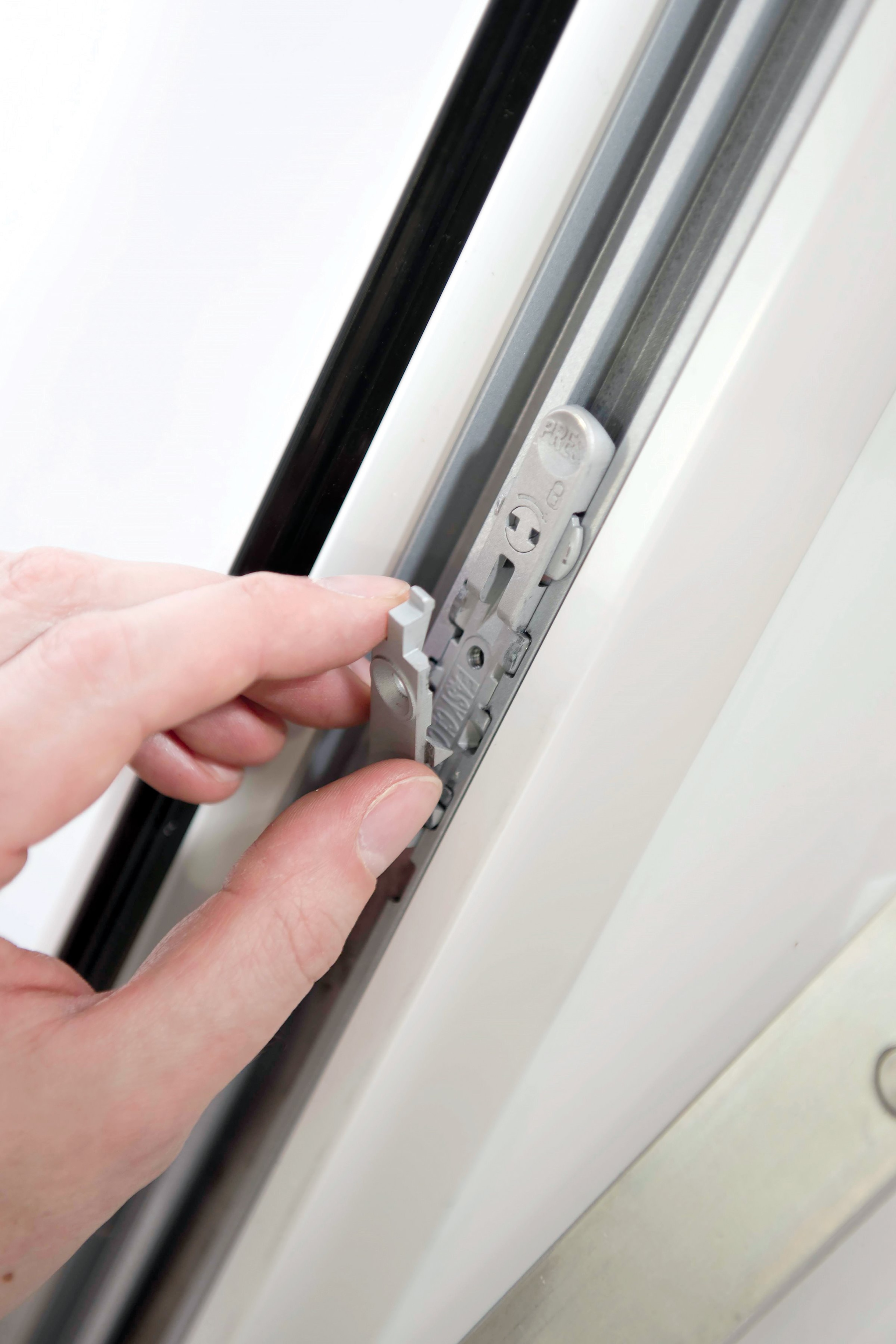

  • Product function can be changed by re-configuration of the sash release
  • Quick and easy to install. Full technical guides are available for individual profile designs

  • Included within the Yale Lifetime Security Guarantee. *Terms and conditions apply


Specification

  • 80kg maximum weight capacity
  • 27 module sizes to accommodate sash heights ranging from 240mm to 1850mm
  • Corrosion tested to BS EN 1670 Grade 4 (240hrs. NSST)
  • Tested to BS 6375 Part 1: Weathertightness
  • Tested to BS 6375 Part 2: Operation and strength (Classification EN12400) Class 3 - 20,000 cycles
  • Tested to BS EN 14351 Part 1: Performance Characteristics
  • Tested to BS 8213 Part 1: Safety in use and cleaning of windows
  • 10-year Mechanical Guarantee
  • Can be used as part of a PAS 24 window when used with accessories
  • Secured by design approved
  • BBA Approved
  • Environmental Product Declaration (EPD)
