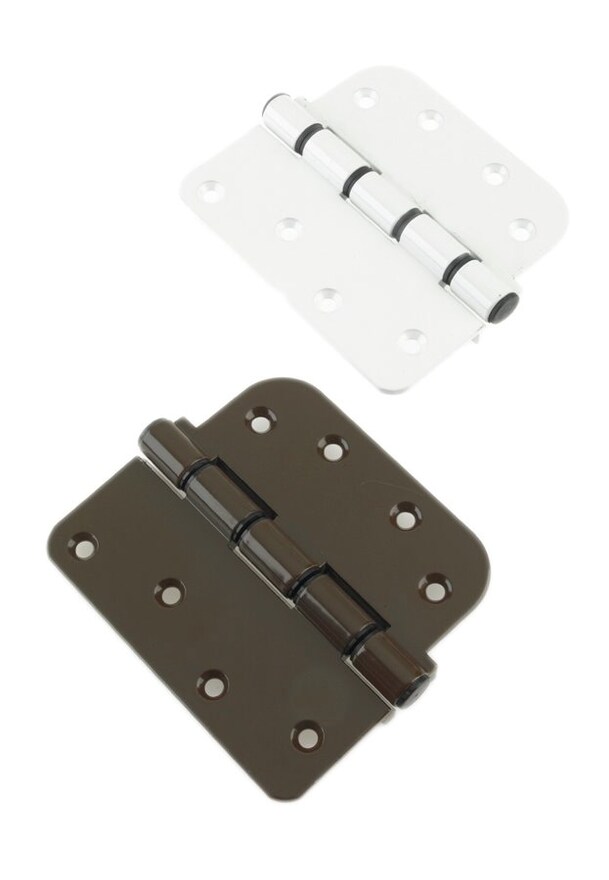

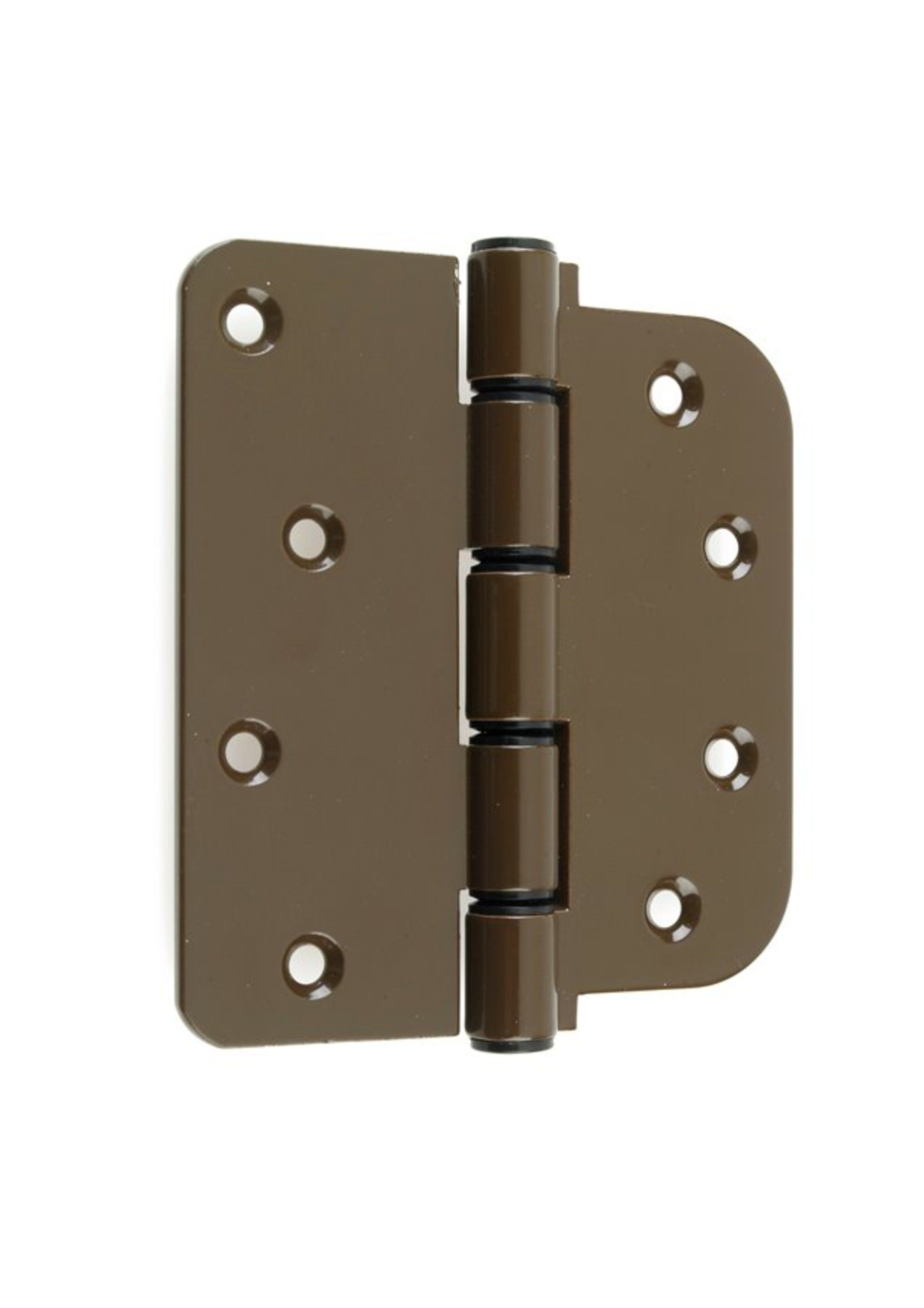

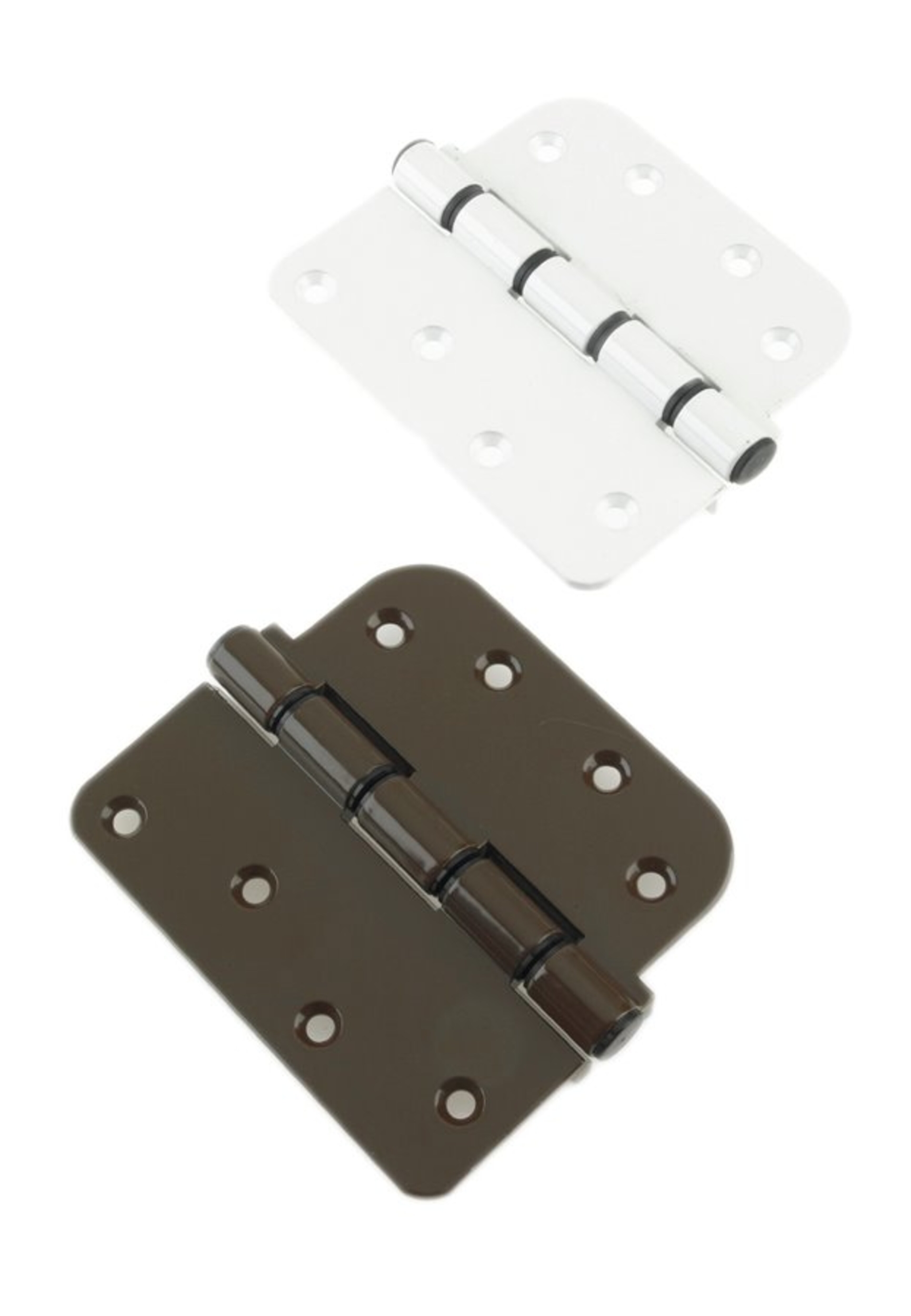

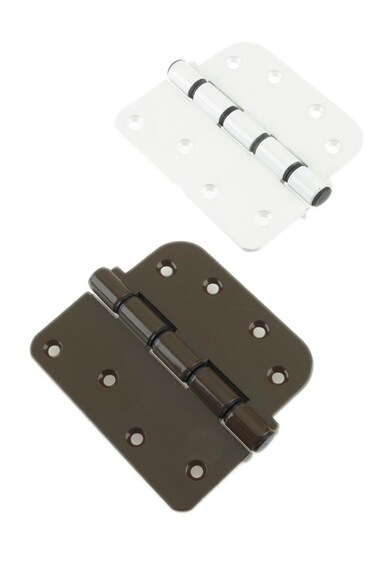

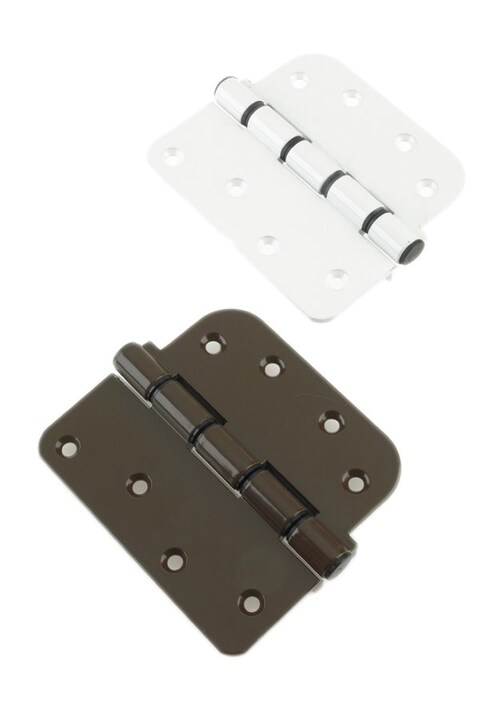

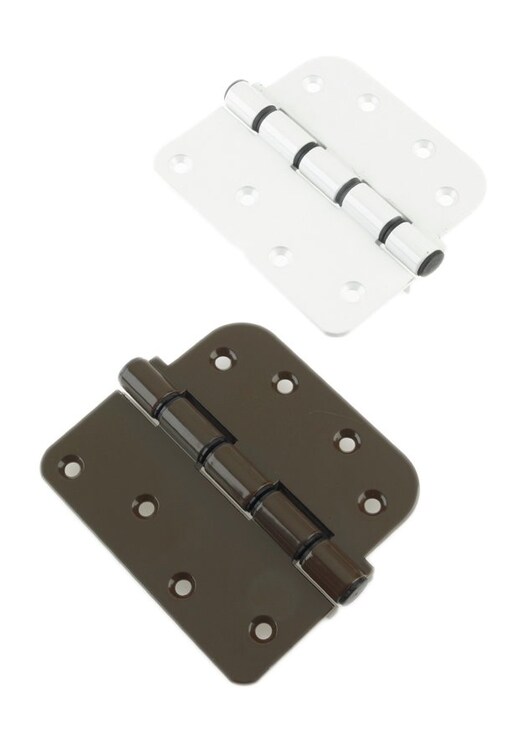

Yale Non-Adjustable

Combining mechanical strength and striking aesthetic appeal, the Yale 3D flag hinge offer easy adjustment and is supplied in a range of polished and powder coated finishes to compliment all modern door furniture and profiles

Features:

• 3D adjustable flag hinge
• Easy adjustment with door in situ
• Lateral adjustment +5mm and -5mm, Vertical adjustment +5mm and -5mm Compression adjustment +1mm and - 1mm
• Suitable for most PVC profiles
• Easy to use fitting jigs available
• 100kg weight bearing per hinge
• PAS 24 compliant
• Sheer force 6.0kn
• Supplied with 2 and 4mm packers for accurate profile relation


Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles
• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee

Included within the Yale Lifetime Security Guarantee*

 *Terms and conditions apply

The Elevator for composite doors has been specifically developed to work on 44mm thick composite doors in conjunction with the Yale hinge cover strip, delivering both easy vertical and lateral adjustment, together with superior aesthetic appeal. The dedicated fitting, jig not only positions the hinges, but also positions the door with the correct air gap from the frame.

Features:

• 2D adjustable butt hinge
• Easy adjustment with door in situ
• Lateral adjustment +2mm,
• Vertical adjustment +3mm
• Available with 0, 5 and 15 degree bevels
• Suitable for most PVC profiles
• Easy to use fitting jigs available

Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles
• 10-year Mechanical Guarantee

• 12-month Surface Finish Guarantee



Features:

• Hinge plates
• Various colours available 45mm widths

Specifications:

• Corrosion resistance to BS EN 1670:2007 Grade 4
• Tested to a minimum order 100,000 cycle operational lifespan

The 3D Composite Door Hinge offers the unbeatable combination of innovation and quality. The hinge is quick and simple to fit and once fitted the door slab is detachable from the frame, this simplifying installation.
The 3D hinge is easily adjusted in all planes, either in the factory or onsite, ensuring perfect door alignment for years of trouble-free operation.

Features:

• A butt hinge with full 3D adjustment for a perfect door fit
• Simultaneous vertical adjustment across all hinges which ensures even load distribution
• All finishes UV rated
• Lateral adjustment is done in a single operation which gives a perfect alignment on the pivot axis
• Fits into rebate to give unobtrusive secure design
• Can achieve PAS 24 accreditation as part of a specific door assembly
• Sash can easily be removed from frame for easy installation
• Available in a range of colours
• Pre-assembled, ready to fit design

Specification:

• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee
• Zinc die cast components
• Stainless steel parts - 430
• Plastic parts are Nylon 66, UV stabilised ABS
• Corrosion tested to BS EN 1670: Painted finishes Grade 5 (240hrs), plated finishes Grade 4 (480hrs)
• Conforms to EN 1191 - tested to 100,000 cycles
• Can achieve PAS 24 as part of a specific door assembly
• 3 hinges carry 100kg
• Maximum door size - 1m wide x 2.2m high
• Lateral +/- 3mm
• Vertical +/- 4mm
• Compression +/- 1.75mm
• White, Brown and Tan. Other colours and finishes are available upon request.

*Guarantee subject to correct installation and maintenance.

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

The heavy duty Athena Hinge is suitable for Composite Doors. The patented Athena Hinge's strength comes from its double knuckle construction. Three Athena Door hinges have a combined carrying weight of 100kg, making them perfect for heavy duty applications such as large or triple glazed Composite Doors. The slim sightline Athena Hinge offers a slim, aesthetically pleasing design with an unobtrusive appearance.

Features:

• Height and lateral adjustment achievable with door closed (Full Float Technology for visual alignment)
• No unsightly gaps visible following adjustment
• PAS 24:2016 compatible as part of a door assembly
• Double knuckle construction for increased load bearing
• Fitter and installer friendly (Lift On, Lift Off door design)
• Available in White, Black, Brown Oak (UV stabilised), Polished Chrome, PVD Gold and Satin Silver, (any RAL finishes available upon request)
• Patented unique design

Specification:

• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee
• Zinc alloy
• Stainless Steel - Grade 430
• Plastic - GF Nylon, UV stabilised ABS and Acetal
• Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
• Alternatively 1,000 hours anti-corrosion on special painted finishes
• Conforms to EN 1191 - tested to 100,000 cycles
• Can achieve PAS 24:2016 as part of a door assembly
• Height: +/- 4mm
• Lateral: +/- 4mm
• 3 hinges carry 100kg

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

The Athena Hinge is a 3D slim sightline door hinge which offers a slim, aesthetically pleasing design with an unobtrusive appearance. The unique patented design offers easy, accurate and independent 3D adjustment with the door in the closed position. Supplied pre-assembled and ready to fit, dramatically speeding up the fitting process.

Features:

• 3D adjustment
• Compression, height and lateral adjustment achievable with door closed (Full Float Technology for visual alignment)
• No unsightly gaps visible following adjustment
• PAS 24:2016 compatible as part of a door assembly
• Double knuckle construction for increased load bearing
• Fitter and installer friendly (Lift On, Lift Off door design)
• One product fits all standard eurogroove systems
• Packaging available to suit high volume, separated flow line assembly
• Available in White, Black, Brown Oak (UV stabilised), Polished Chrome, PVD Gold and Satin Silver, (any RAL finished available upon request)
• Patented, unique design
• Integral interlocking security hooks available

Specification:

• 12-month Surface Finish Guarantee
• 10-year Mechanical Guarantee
• Zinc alloy
• Stainless Steel - Grade 430
• Plastic - GF Nylon, UV stabilised ABS and Acetal
• Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
• Alternatively 1,000 hours anti-corrosion on special painted finishes
• Conforms to EN1191 - tested to 100,000 cycles
• Can achieve PAS 24: 2016 as part of a door assembly
• Height: +/- 4mm
• Compression: +/- 2.00mm
• Lateral: +/- 4mm
• 3 hinges carry 100kg

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

The Patriot Plus door hinge offers a slim, unobtrusive appearance with an improved clearance for plaster line and finishing. Easy, accurate and independent 3D adjustment means no visible gap during height adjustment, giving better aesthetics and stability. It is supplied pre-assembled and ready to fit, dramatically speeding up the fitting process.

Features:

• Pre-assembled ready to fit
• Slim and unobtrusive appearance
• PAS 24 accredited as part of a door assembly
• Fitter and installer friendly
• Patented anti-lift feature
• Additional location pins to reduce twist
• Full 3D adjustment
• Vertical adjustment with no gap created between flag and base
• Non handed
• Slim frame plate
• Available in White, Black, Brown Oak (all UV stabilised), Polished Chrome, PVD Gold and Satin Silver (Other finishes and colours available upon request)
• No visible fixings

Specification:

• 10-year Mechanical Guarantee
• 12-month Surface Finish Guarantee
• Zinc alloy
• Stainless Steel - Grade 430
• Plastic - GF Nylon, UV stabilised ABS and Acetal
• Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
• Conforms to EN 1191 - tested to 100,000 cycles
• Can achieve PAS 24 as part of a specific door assembly
• Available in three heights: 16mm, 19mm and 22mm
• Additional shims available: 1mm, 2mm and 6mm
• Height: +8mm
• Compression: +/- 1.5mm
• Lateral: +/- 6mm
• 3 hinges carry 80kg

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply
