Yale

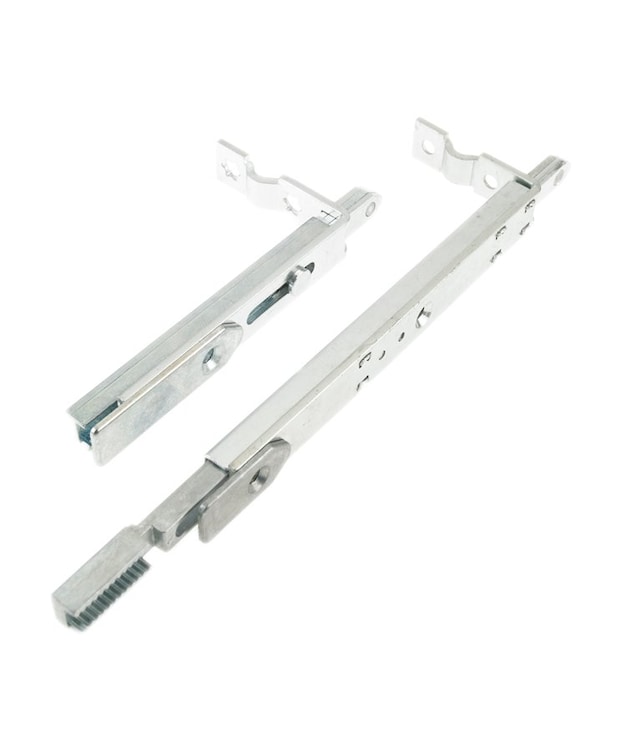

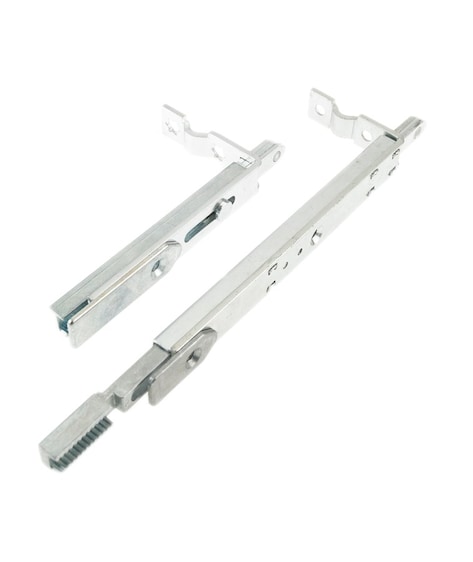

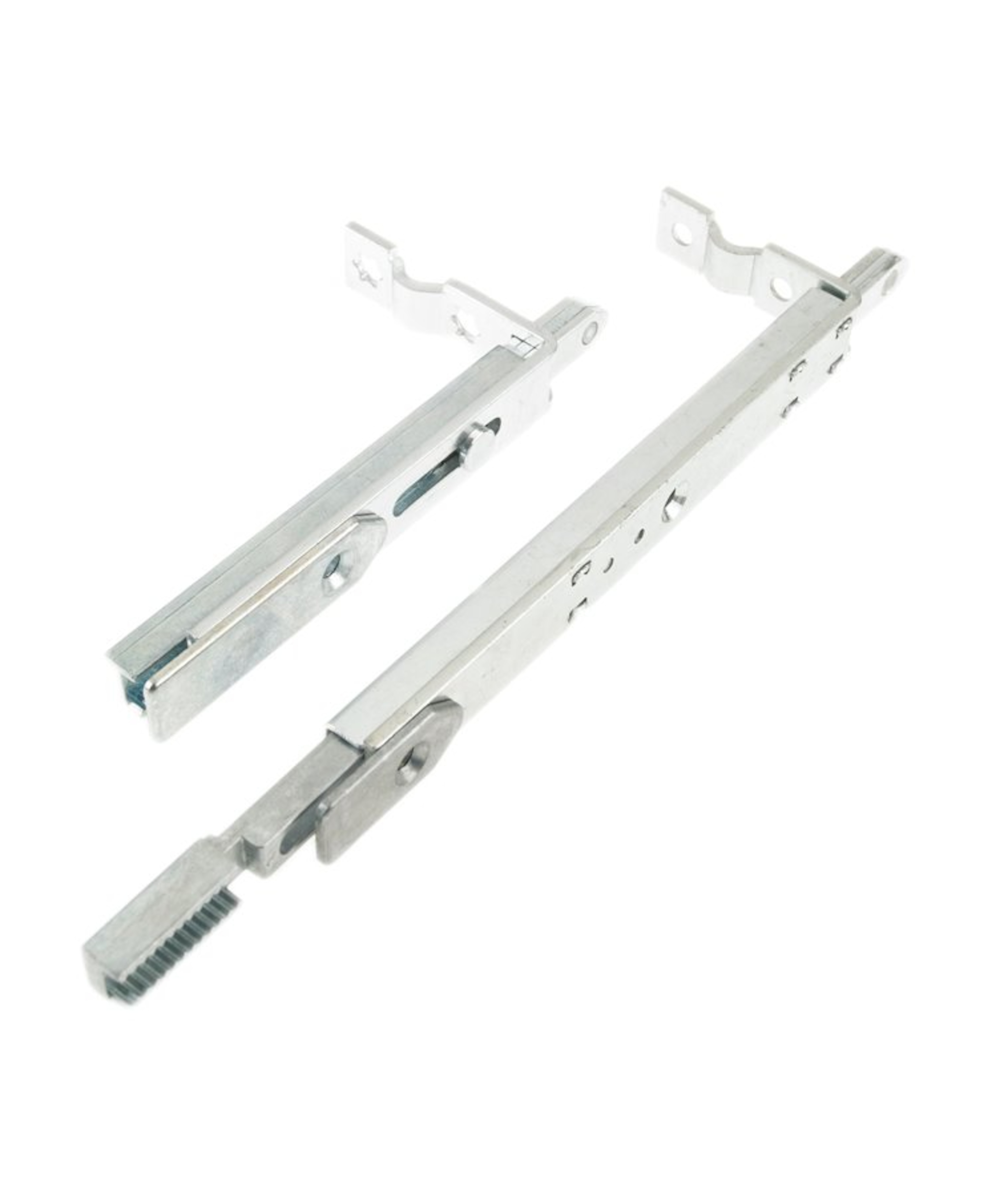

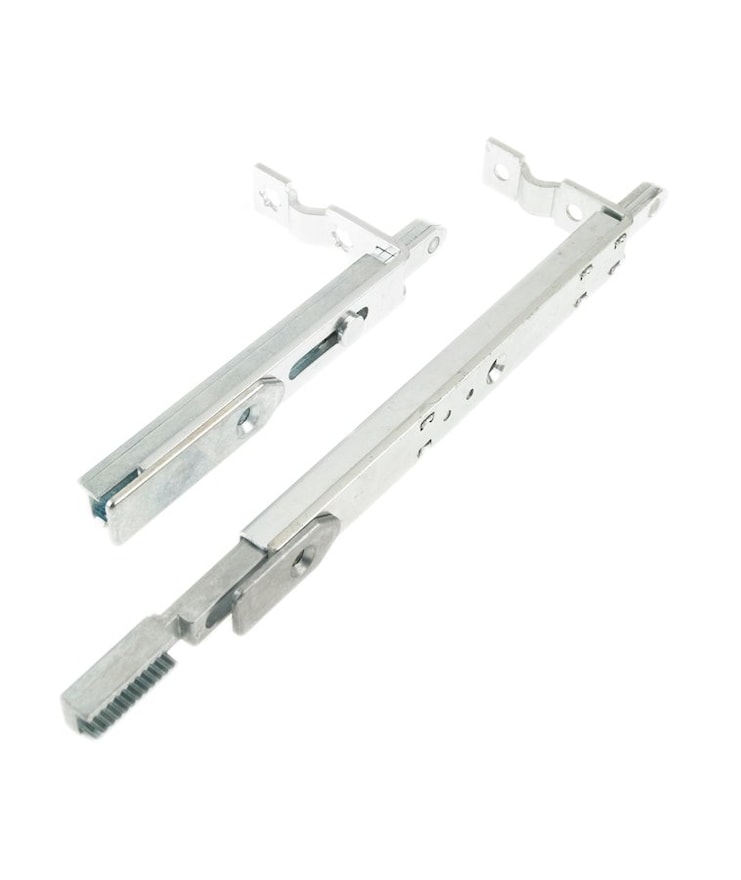

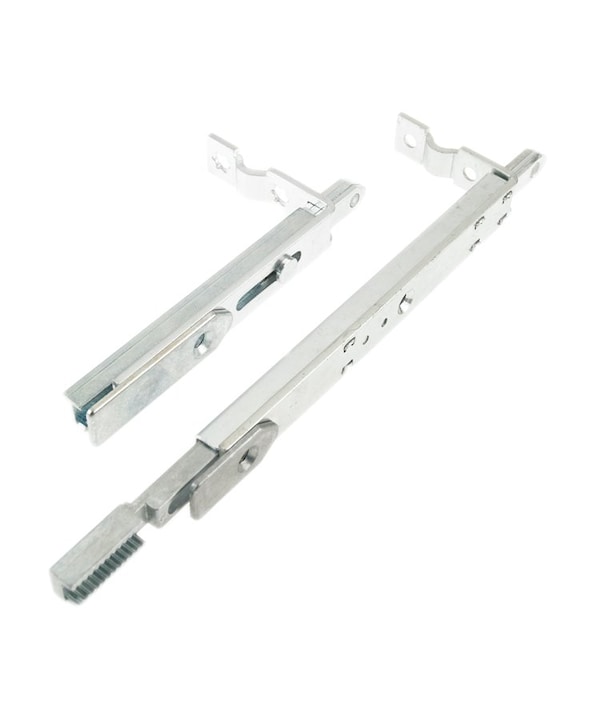

Shootbolts

For both French door and enhanced security applications the Lockmaster shootbolts are compliant with all shootbolt ready varients of Yale, Lockmaster and Millenco mulitpoint door locks.



Features:

  • Laminated for enhanced security
  • Chamfered shootbolt ensuring easy operation
  • Standard and high security variants
  • Compatible with Lockmaster and Yale range





Specifications:





  • Corrosion resistance to BS EN 1670:2007 Grade 4
  • Tested to a minimum of 100,000 cycle operational lifespan


  • ProductProduct ID
    High security reverse action 16mm 304 faceplateSPLSB24-60
    High security normal action 16mm 304 faceplateSPLSB27-60
    High security shootbolt set 16mm faceplatePLSB88-19

  • Sash Blockers Locking and Non-locking

    Features:

    • Easy to fit security device
    • Available in white or brown
    • Can be used with doors and windows
    • Locking and non-locking versions

    Specifications:
    • Tested to a minimum order 100,000 cycle operational lifespan

  • Yale Excluder - Ancillary Security Device

    A secure solution to windows offering easy egress without affecting the opening and closing performance of the hinge.

    Features

    • Visibly effective yet unobtrusive
    • Suitable for cavity sizes from 13mm to 18mm
    • Easy to fit - no routing required
    • Pressed stainless
    • Yale branded
    • 1 set of 4 required per vent

    Specifications

    • Designed to achieve PAS 24:2016
    • 10-year Mechanical Guarantee
    • Corrosion tested to BS EN 1670 Grade 3  (96hrs. NSST)
    • Made in Britain

    Maintenance

    Other than periodic visual inspection for loose fixings and degradation, no specific maintenance is required. If cleaning is required use a mild detergent or a damp cloth, do not use acid, alkaline, solvent or abrasive cleaning agents or materials.

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Elite Escutcheon

    The stylish Elite Stainless Steel Escutcheon combines perfectly with other products in the Stainless Steel range. The Elite Escutcheon is manufactured in 316 Stainless Steel, giving ultimate corrosion resistance and comes with a 25 year guarantee.

    Features:

    • Manufactured in 316 Stainless Steel
    • Combines with other Stainless Steel furniture for a totally coordinated, modern door suite
    • Produced from 1.2mm thickness material
    • The Elite Escutcheon consists of an SS201 inner complete with screw fixings (standard screws supplied) and a 316 Stainless Steel cover for a concealed fix application

    Specification:

    • Corrosion tested to BS EN 1670 (1000hrs. NSST)
    • 316 Stainless Steel

    • 10-year Mechanical Guarantee

    • 25-year Surface Finish Guarantee

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Defender Cavity Fit Restrictor

    The ultimate solution for resident safety.

    Features

    • Easy to fit with no routing
    • Compatible with standard duty hinges
    • Available in 13mm, 16mm, and 17mm cavity heights
    • Compatible with countersunk fixings
    • Can be used on windows without reinforcement
    • Austenitic* stainless steel for enhanced corrosion resistance and strength
    • 12 Year Guarantee (details available upon request)
    • *Austenitic 304 stainless steel to BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance



  • Yale Door Hinge Protector

    Enhance the Security of Your PVCu Doors with the Yale Hinge Protector.

    The Yale Door Hinge Protector is a modern solution designed to replace traditional door dog bolts, offering a flexible and reliable security upgrade for all PVCu profiles.

    Features

    • Quick and Easy Installation: The fitting process is straightforward and efficient with no routing required.
    • Retrofittable: Easily enhance the security of your existing doors without the need for major modifications.
    • Suitable for PVCu Profiles: Specifically designed for use on PVCu profiles, ensuring a perfect fit.
    • Simple, Face-Fitted Installation Process: The hinge protector can be installed quickly and easily with a face-fitted process.
    • Cohesive Design: Identical sash and frame components create a cohesive and attractive look for your door, enhancing both style and security.
    • Upgrade your PVCu doors with the Yale Hinge Protector for an effortless, stylish, and secure solution.

    • Designed to achieve PAS 24
    • 10-year Mechanical Guarantee
    • Made in Britain
    • BBA Certification
