Yale

SlotVent

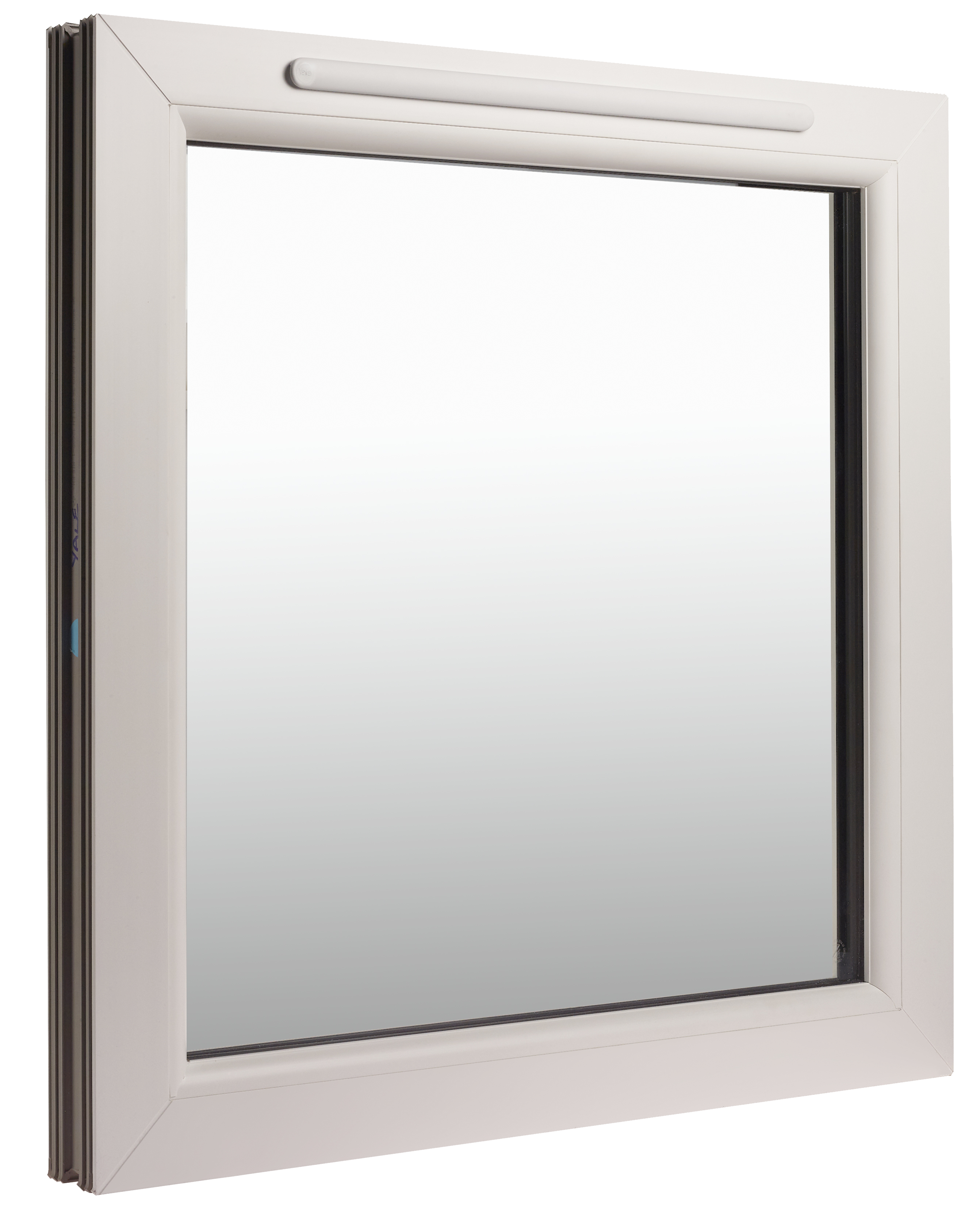

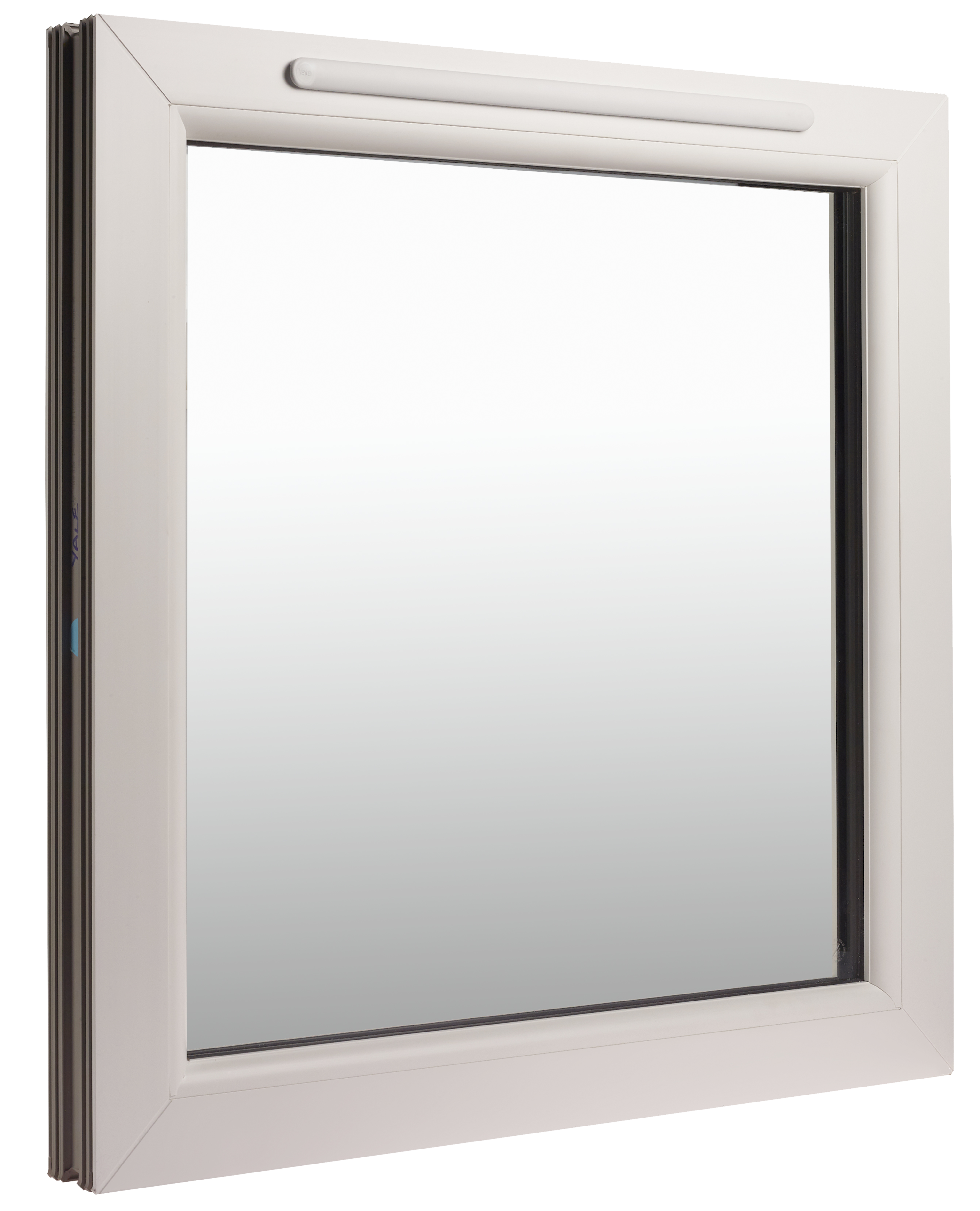

Designed and developed in the UK, Yale’s SlotVent allows an appropriate amount of air to pass through the window, helping to remove stale air and reduce condensation and mould, as well as enabling people in cities or near busy roads to benefit from ventilation without having to open their windows.

Range includes:

  • 2500EA
  • 4000EA
  • 5000EA

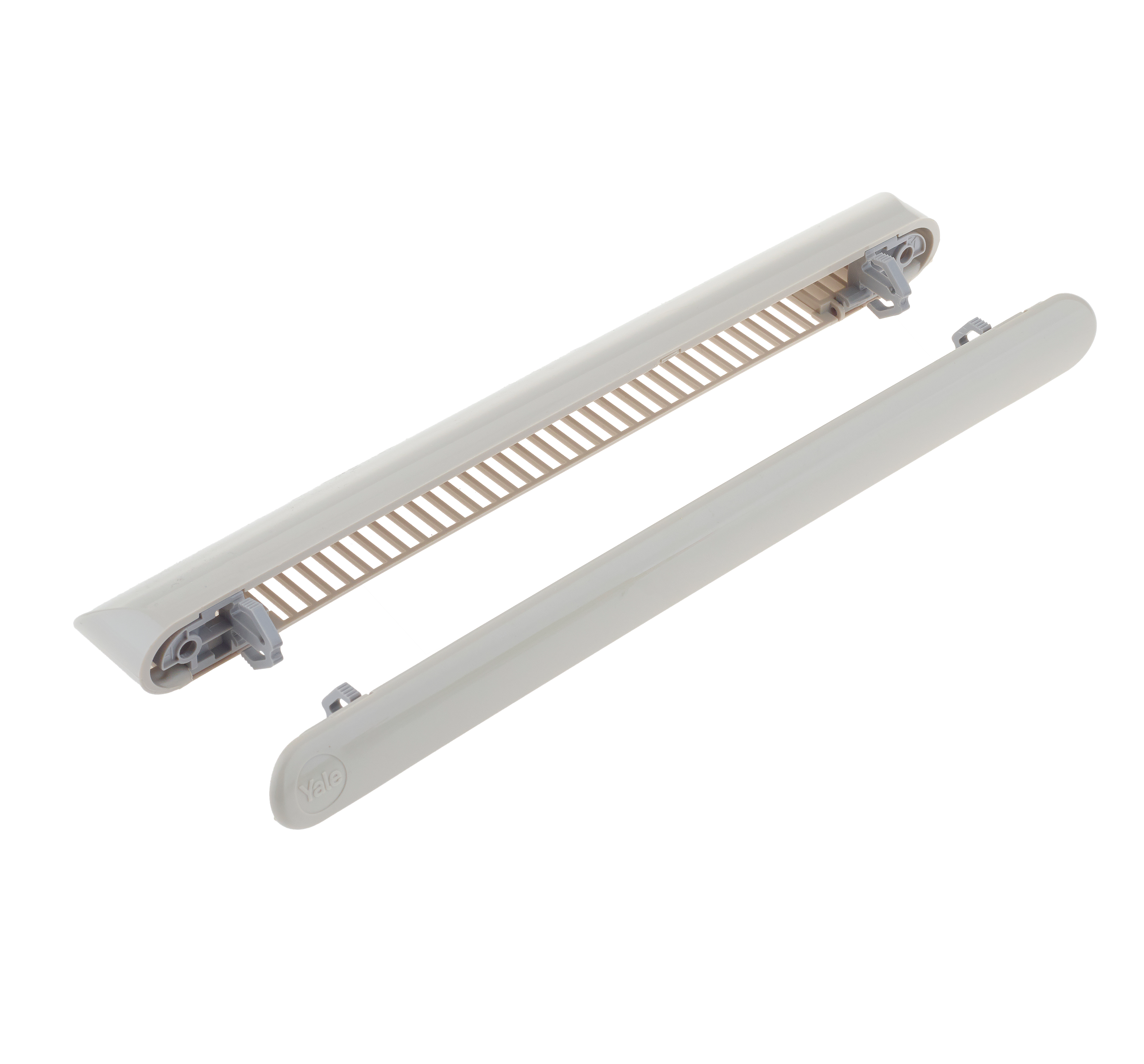

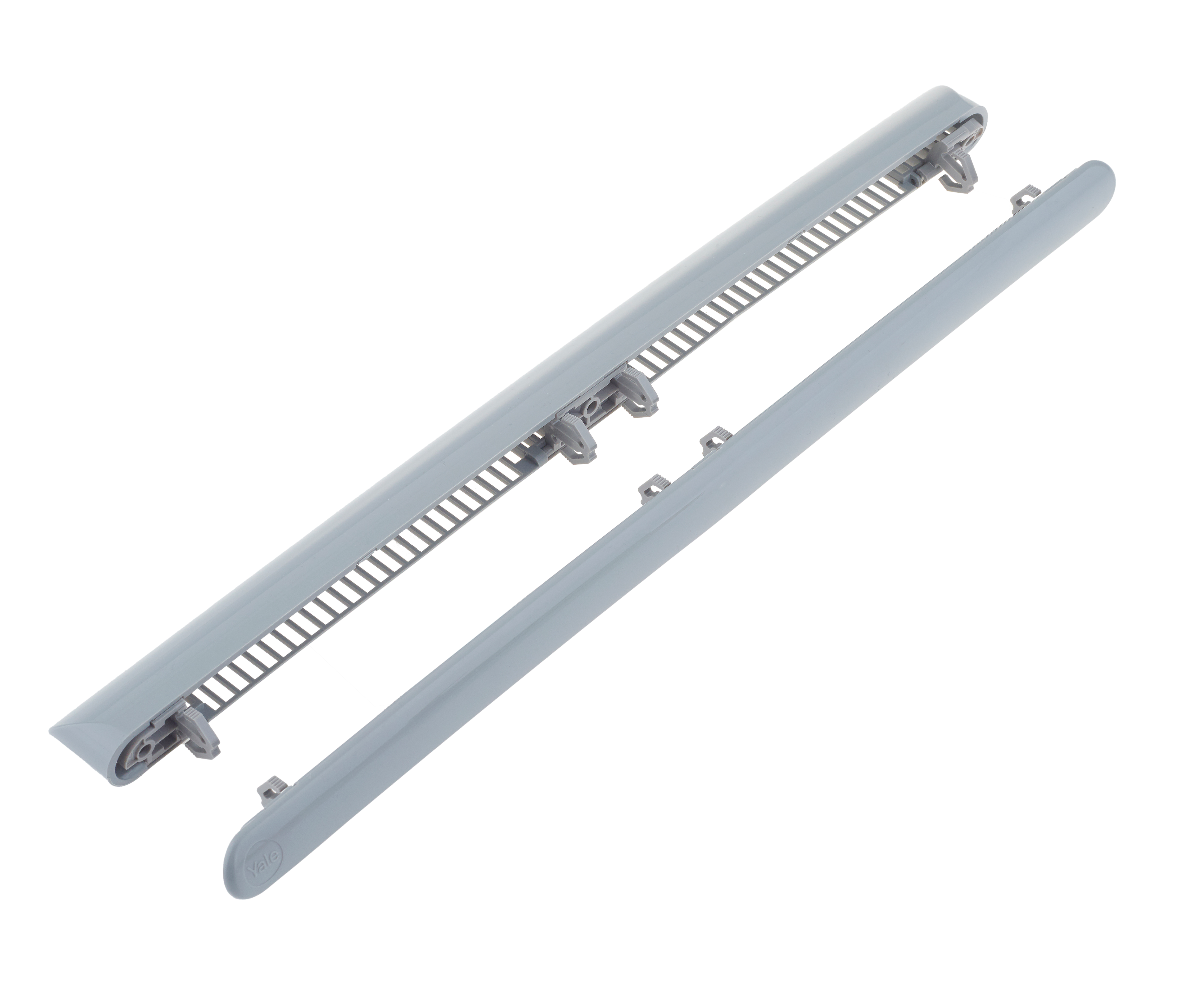

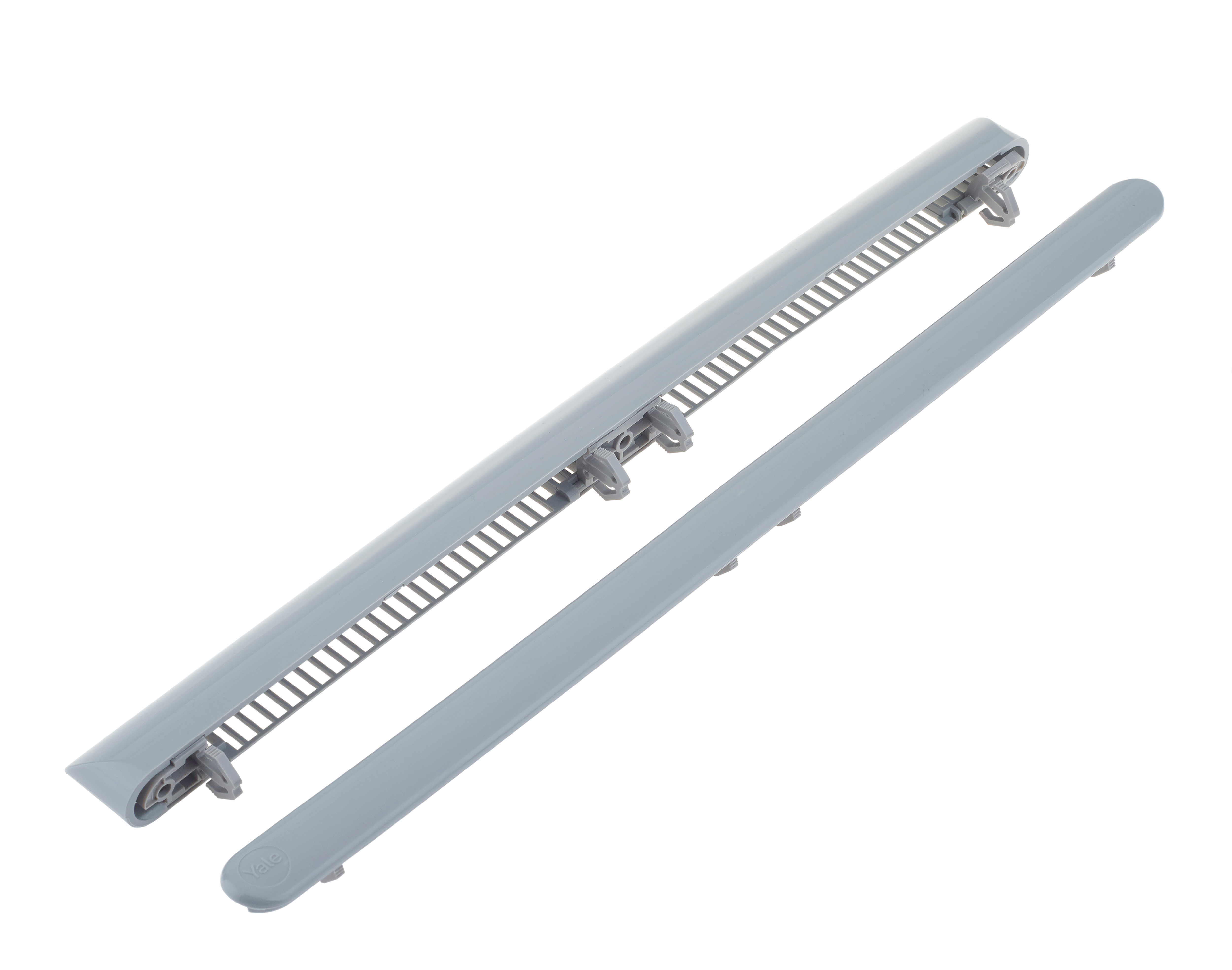

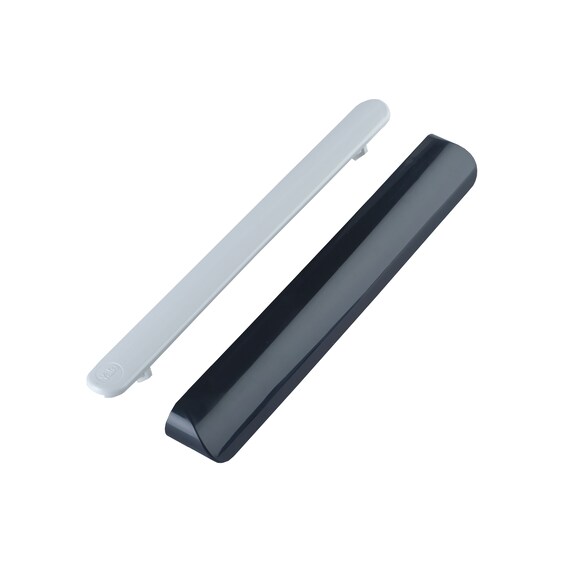

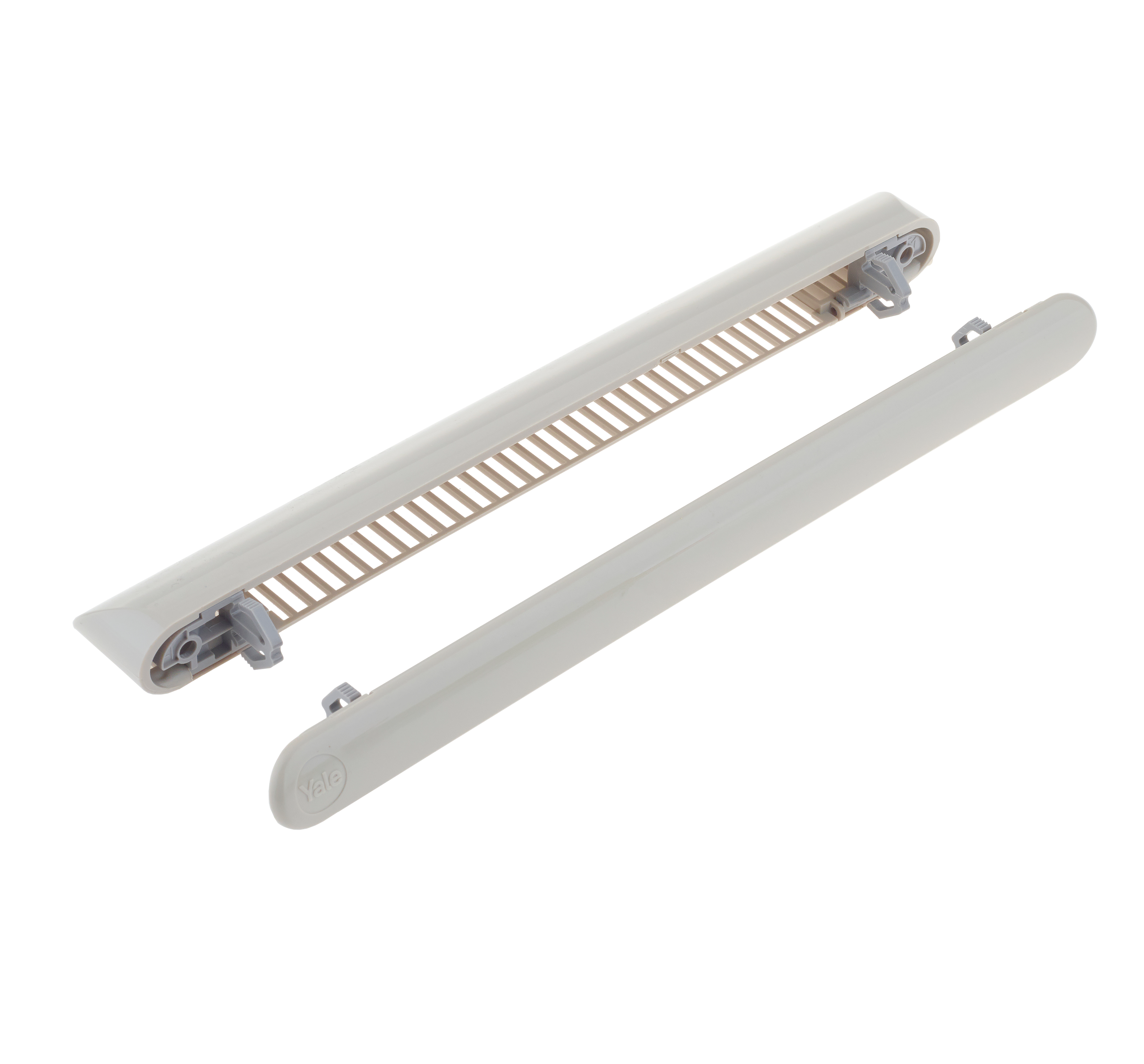

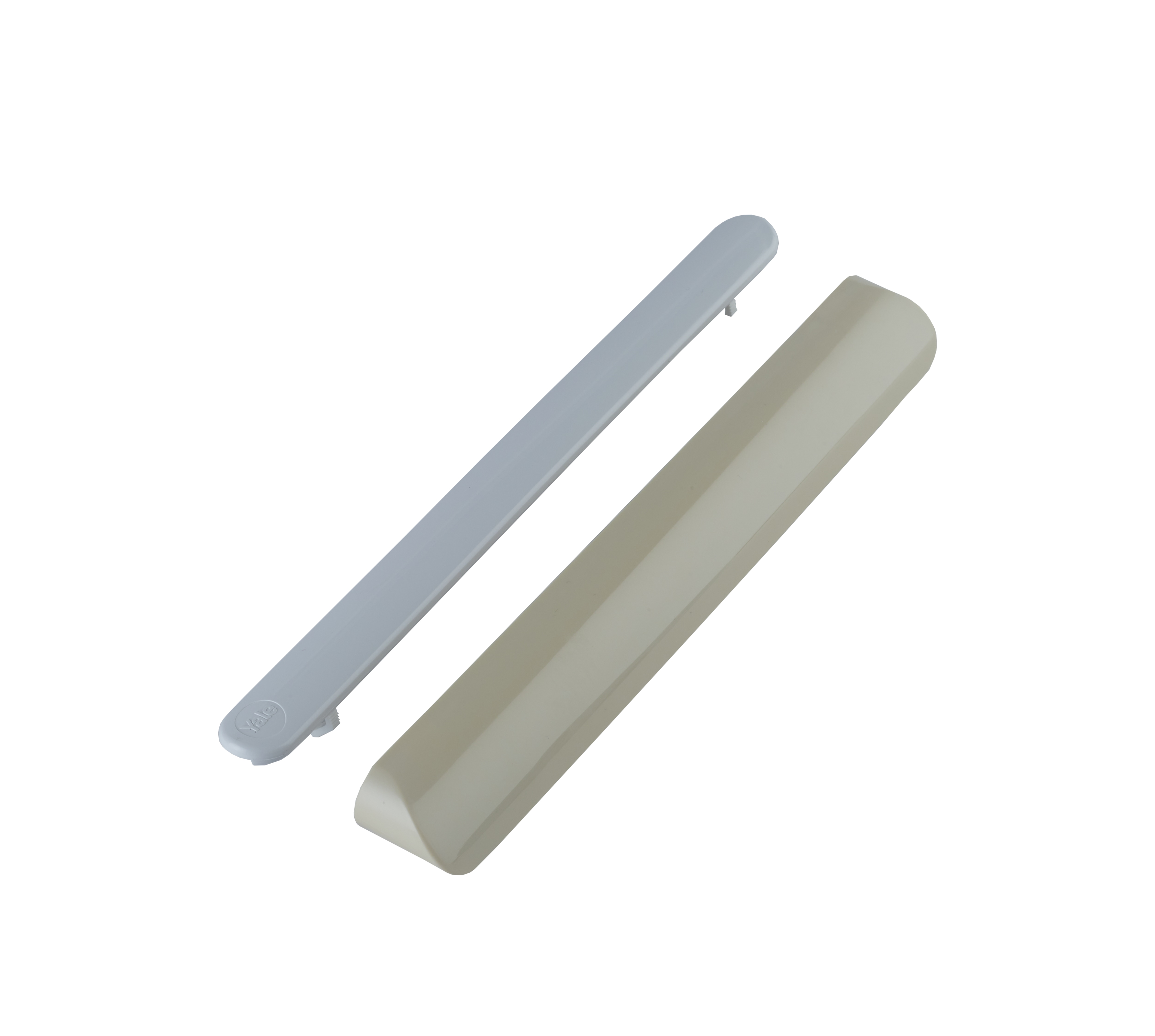

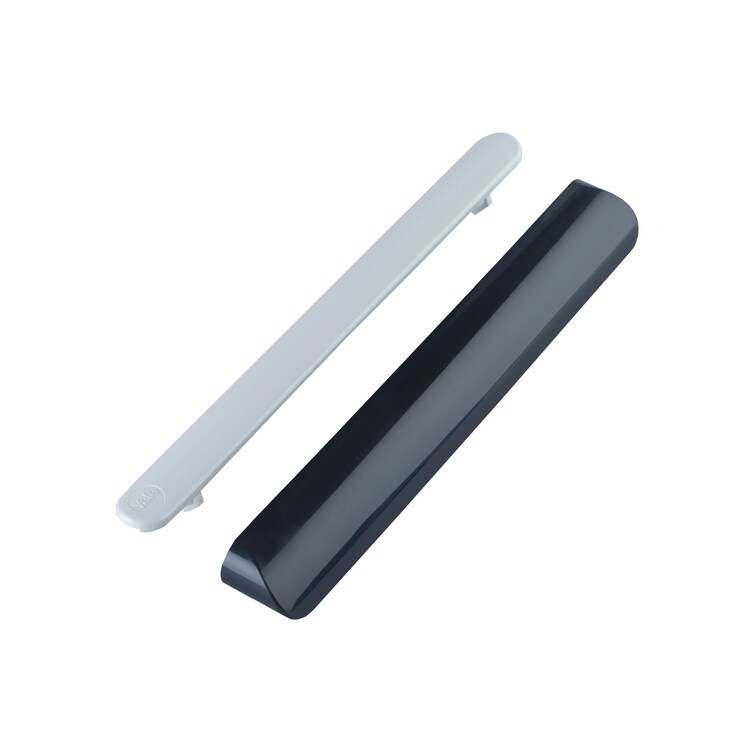

Internal Vent

  • Yale branded
  • Pre-fitted clips
  • Vent can be tilted 30, 60, or 90 degrees according to ventilation requirements
  • Range includes options for with and without foam gasket for noise and draft reduction

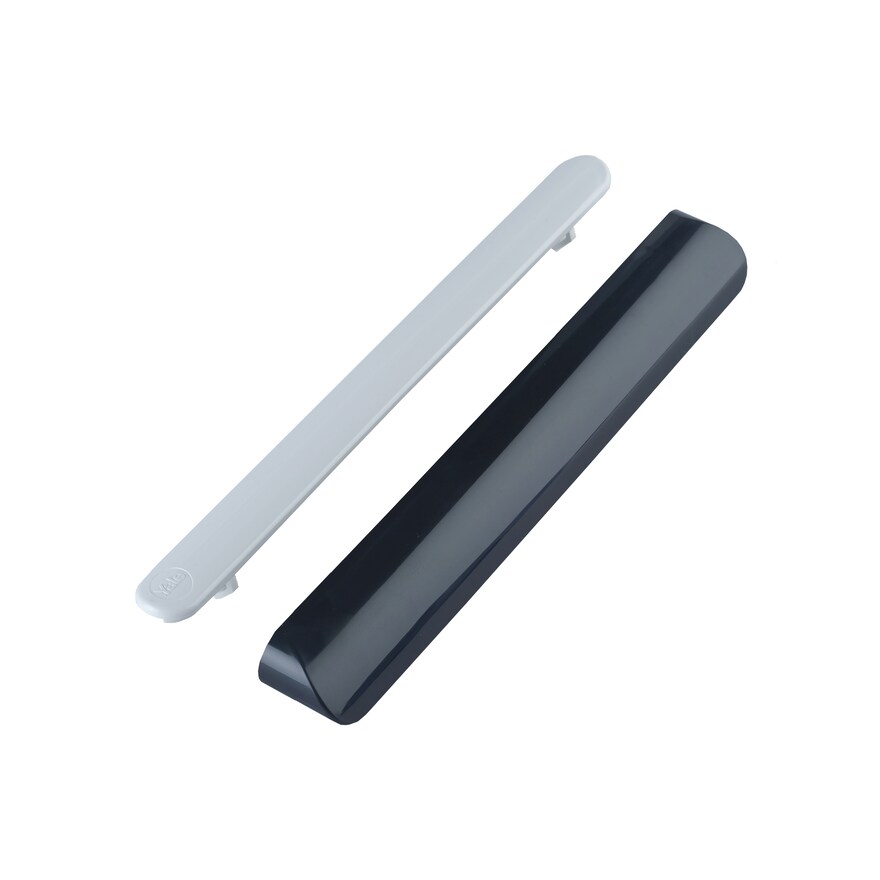

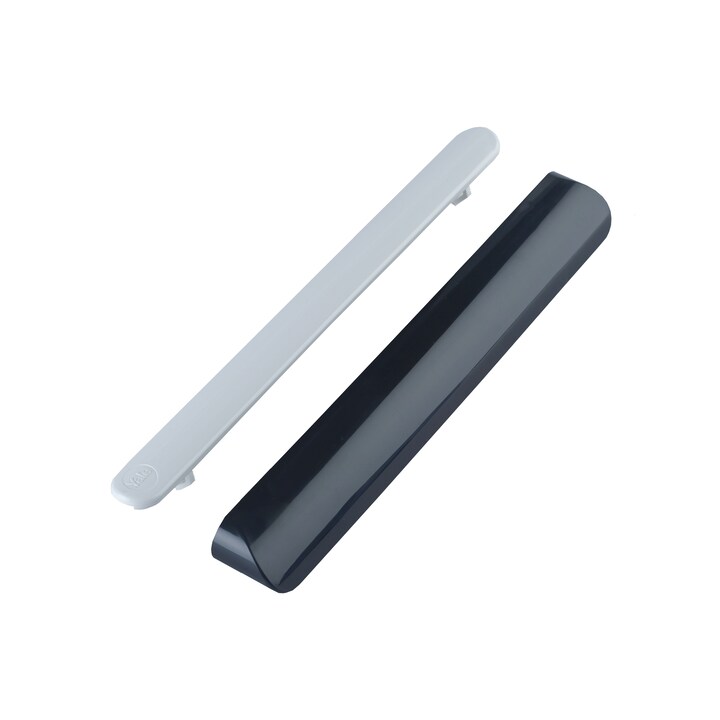

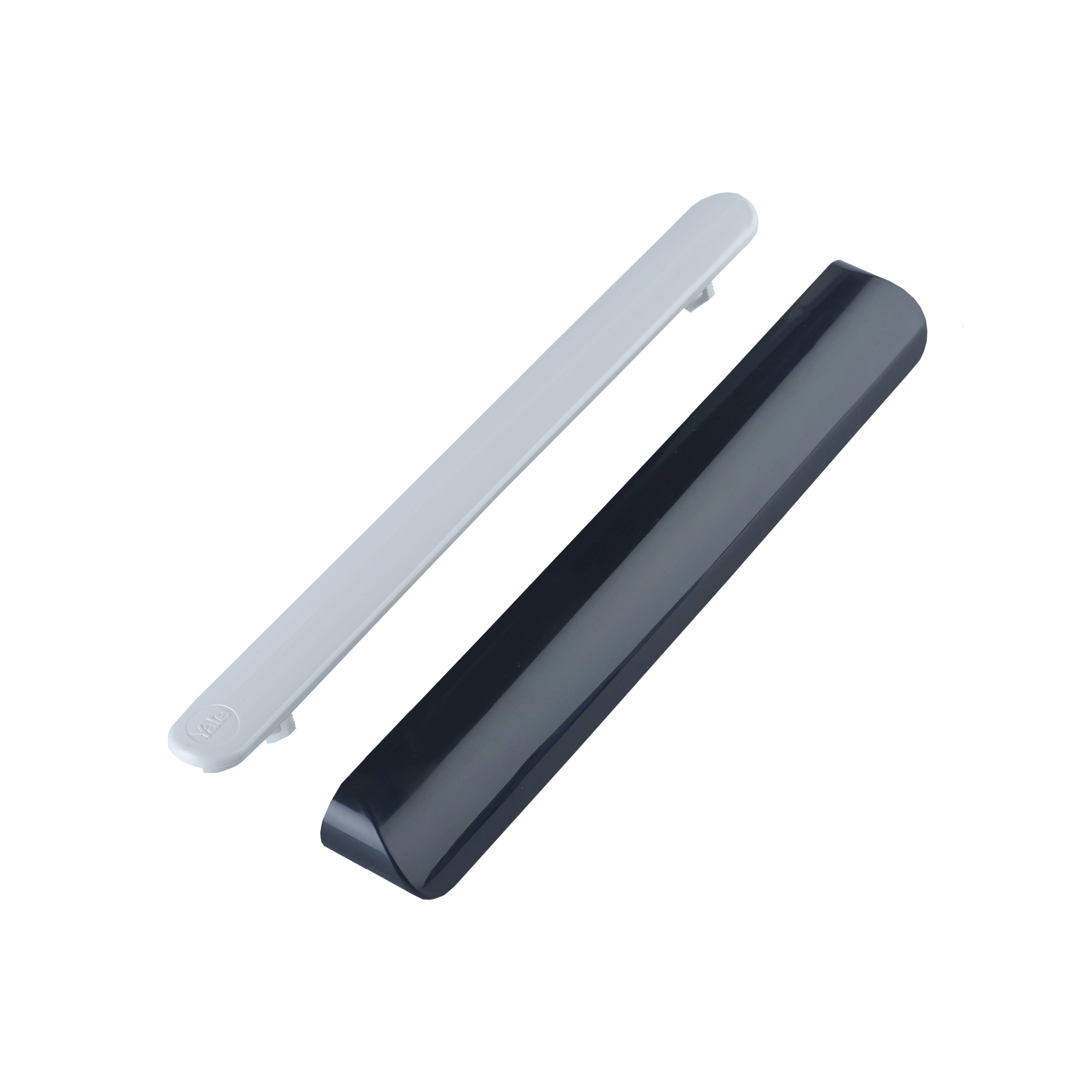

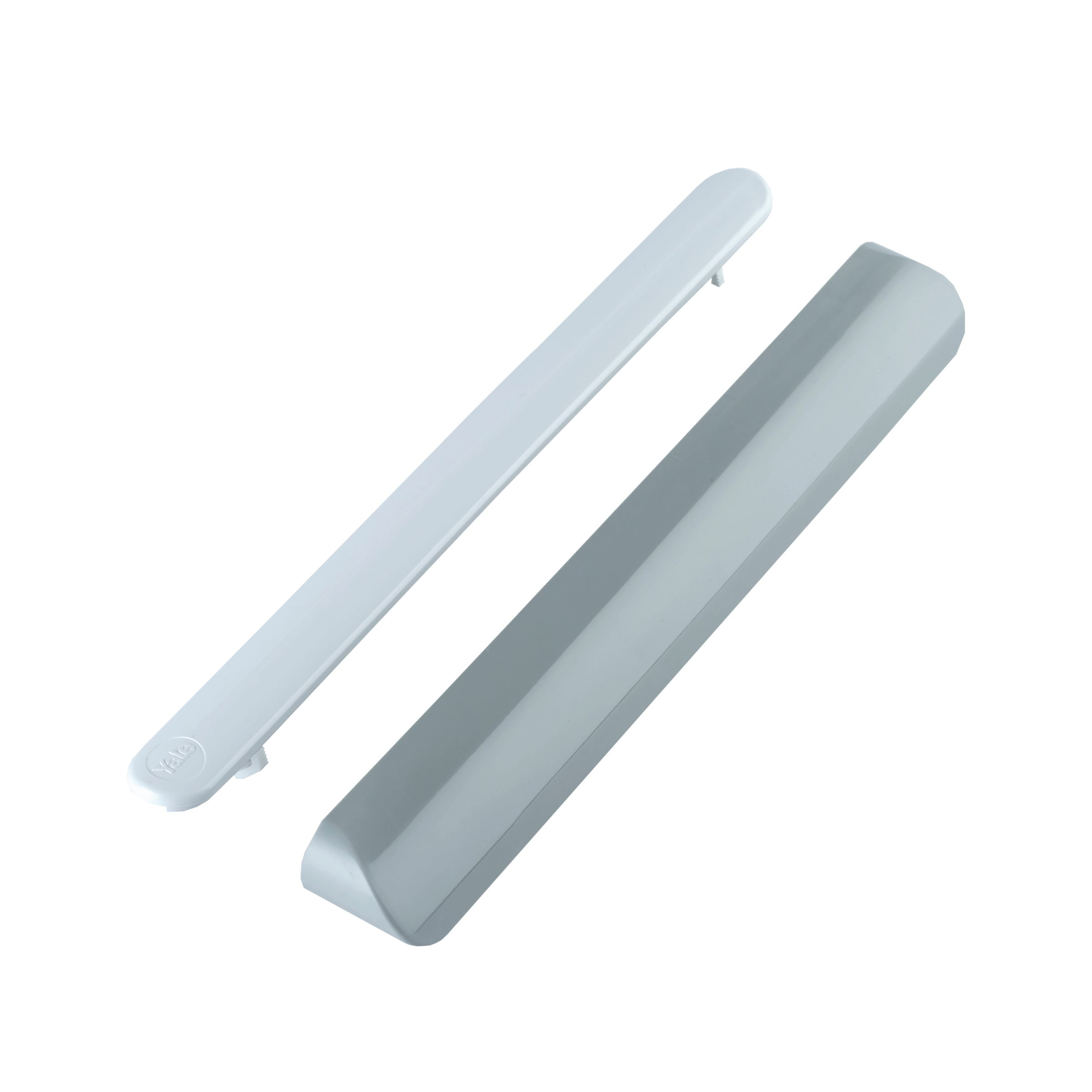

External Hood

  • Pre-fitted clips
  • Provides ventilation whilst preventing water from entering the home
  • Built-in flyscreen to deter flies/ bugs from entering the home

Colour Range

  • Agate Grey RAL 7038
  • Anthracite Grey RAL 7016
  • Black RAL 9005
  • Brown RAL 8022
  • Cream RAL 9001
  • Light Ivory RAL 1015
  • Chartwell Green BS14C35
  • Irish Oak RAL 1011
  • Slate Grey RAL 7015
  • Tan RAL 8003
  • White RAL 9016
  • Bright White RAL 9003
  • Pebble Grey RAL 7032
  • Silver Grey RAL 7001
  • Rosewood RAL 8017

Specifications

Successfully Tested at BRE

  • EN13141-1:2009 - Ventilation for buildings - Performance testing of components/ products for residential ventilation. Part 1: Externally and internally mounted air transfer devices
    • 2500EA: EpA @ 1PA = 2627
    • 4000EA: EpA @ 1Pa = 4206
    • 5000EA: EpA @ 1Pa = 5272
  • BS EN ISO 10140 -1 Acoustics Laboratory measurement of sound insulation of building elements - Application rules for specific products and BS EN ISO 10140-2 Acoustics. Laboratory measurement of sound insulation of building elements - Measurement of airborne sound insulation
  • 10 Year Guarantee

Maintenance

Yale recommends the SlotVent is wiped clean at 6-month intervals using a damp cloth. The external hood should be brushed lightly to remove dust and debris

  • Flyscreen for Overframe

    Designed and developed in the UK, the Flyscreen is typically fitted in an overframe profile section or through the head of the window where an external hood may hamper the opening of the window.

    The Flyscreen for Overframe is designed to prevent bugs/ flies from entering the property.

    Range includes:

    • 2000EA
    • 2500EA

    Flyscreen colour range includes:

    • Anthracite Grey RAL 7016
    • White RAL 9016
    • Brown RAL 8022
    • Bright White RAL 9003
    • Black (RAL 9005)
