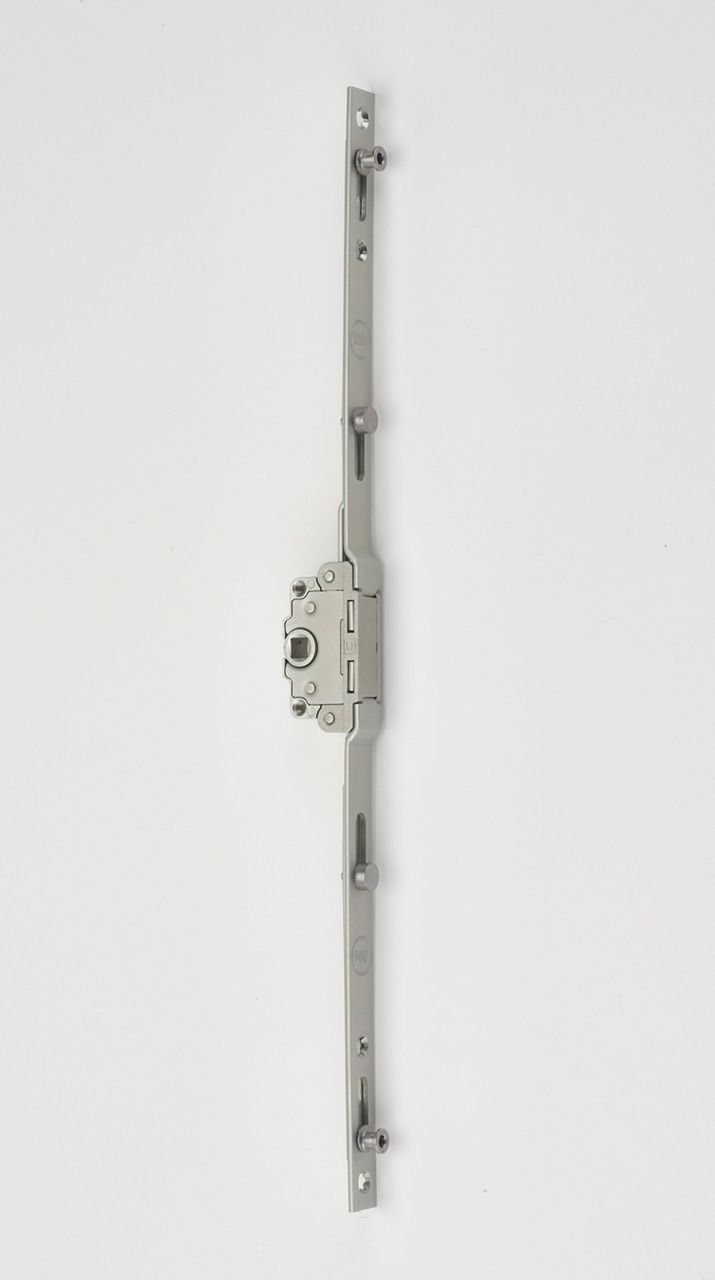

Dual Lock Twin Cam Espagnolette
The Espagnolette is available in a Quadcoat finish, tested to 1000 hours NSS, providing exceptional corrosion resistance for long-lasting durability, even in harsh environments.
The range is available in 3 different back sets
- 20mm
- 22mm
- 26mm
3 cam heights available ensuring a secure and precise fit for different window profiles.
- 7.7mm
- 9.0mm
- 10.5mm
Versatility: With 12 lengths and 3 cam heights available, as well as low-handle-height variants, the Espagnolette offers flexibility to suit a wide range of window designs and installation requirements.
- Bi-directional twin cam operation enhances security by engaging locks in two directions, making it more resistant to forced entry
- The Espagnolette is SensCheck™ compatible from 350mm, allowing seamless integration with smart home security systems for remote monitoring and control.
Configurable in the UK – allowing for increased demand.
Espagnolette:
Sizes (Standard)
- 200mm
- 350mm
- 400mm
- 600mm
- 800mm
- 900mm
- 1000mm
- 1100mm
- 1200mm
- 1300mm
- 1400mm
Sizes (Low-Handle-Height)
- 500mm
- 600mm
- 800mm
- 900mm
- 1000mm
- 1100mm
- 1200mm
- 1300mm
- 1400mm
Finishes
Standard (240Hrs Grade 4)
Quadcoat (480Hrs Grade 5) Tested to 1000Hrs
Maintenance Instructions
The Yale Dual Lock Twin Cam Espagnolette is permanently lubricated for smooth operation. To ensure optimal performance, regular cleaning to keep the lock free from building materials and debris that could interfere with the mechanism is recommended.
