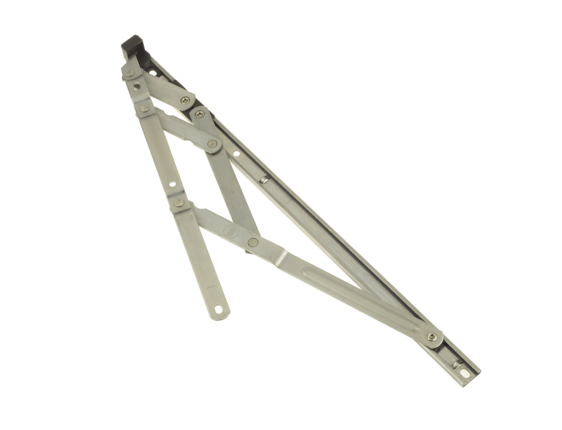

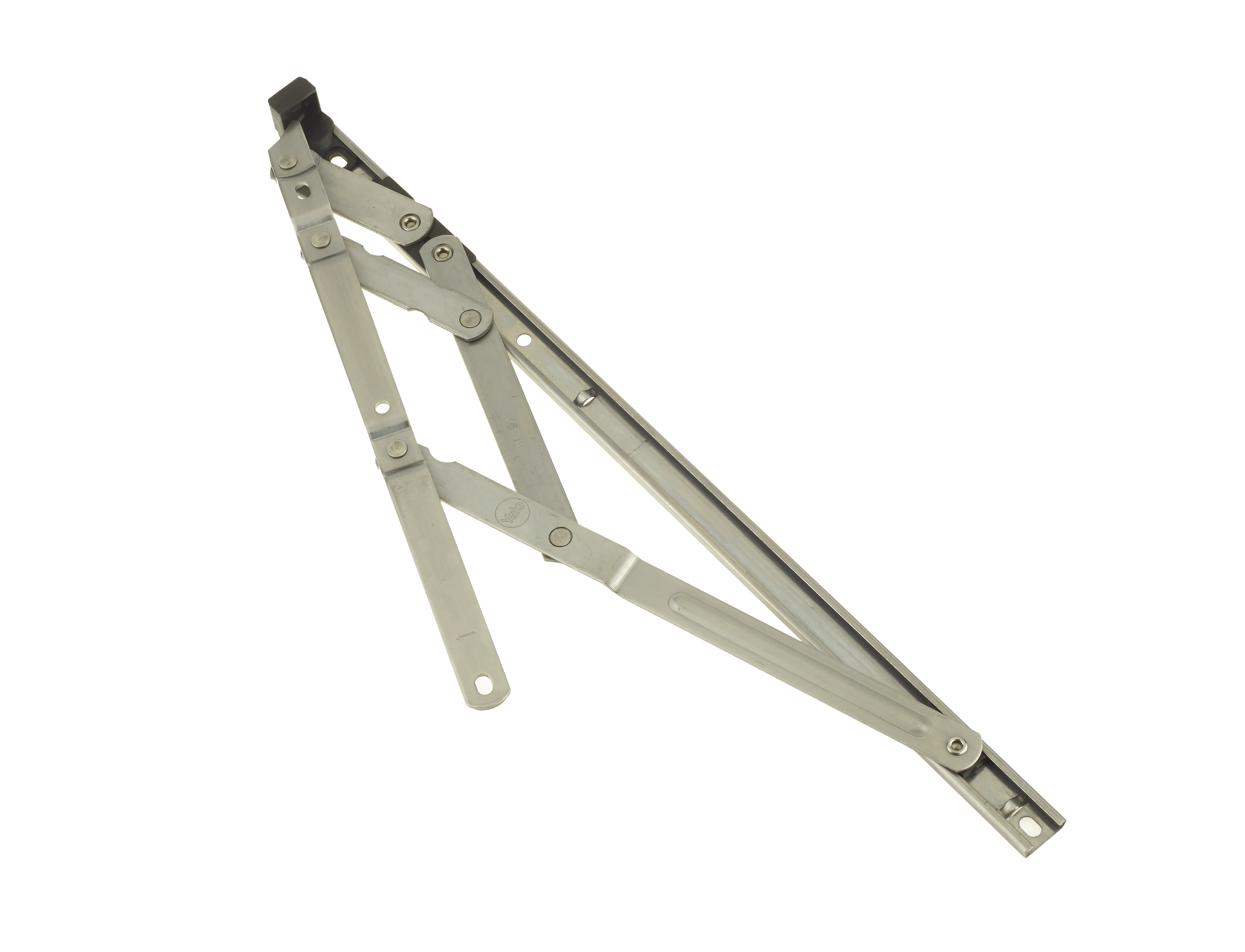

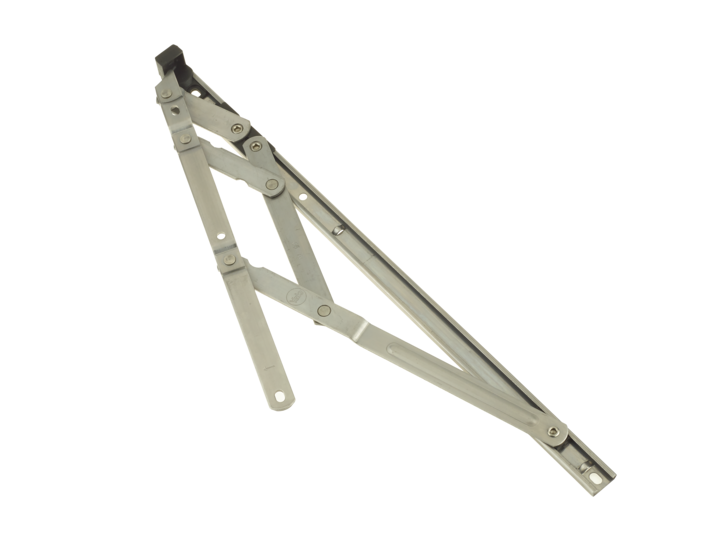

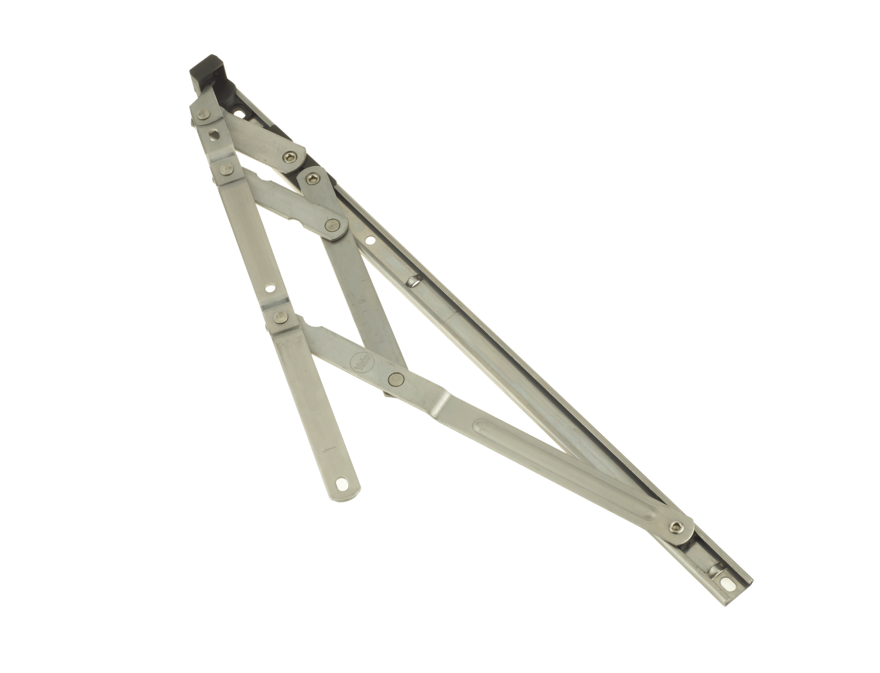

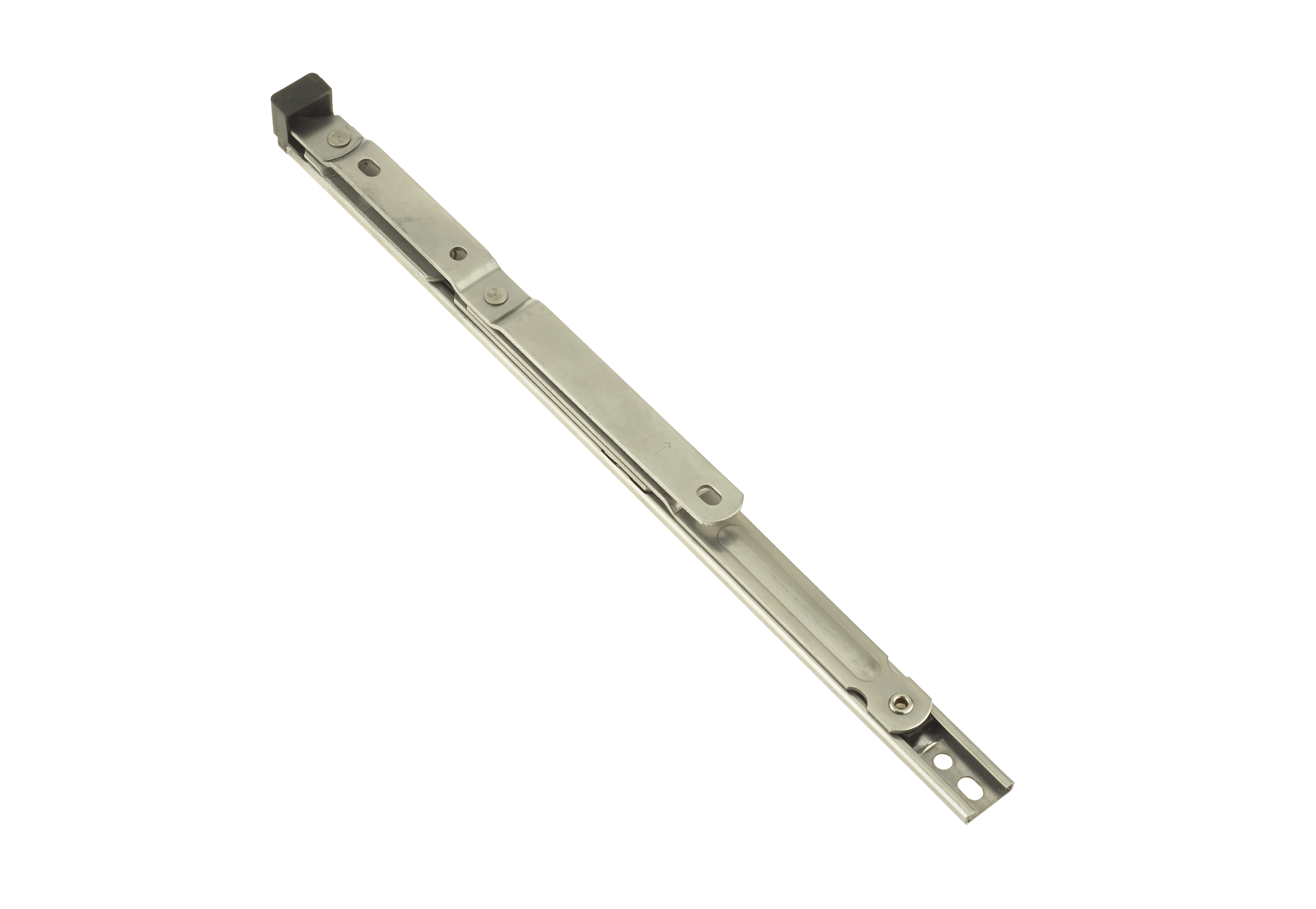

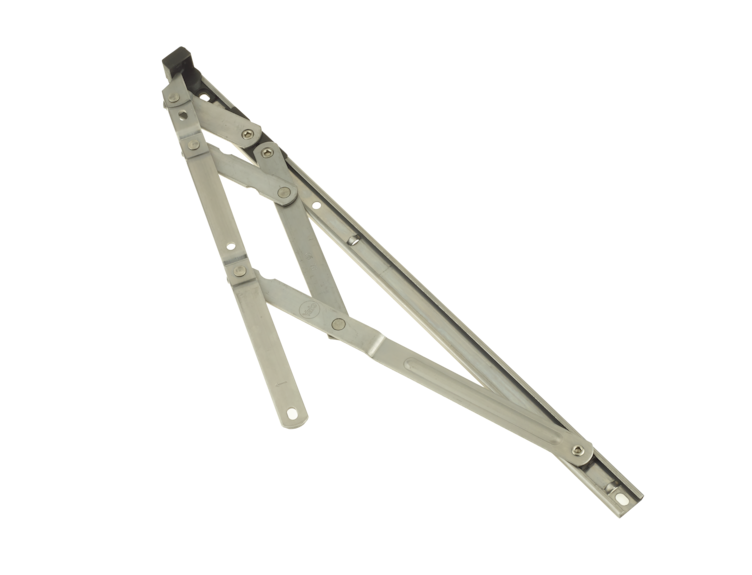

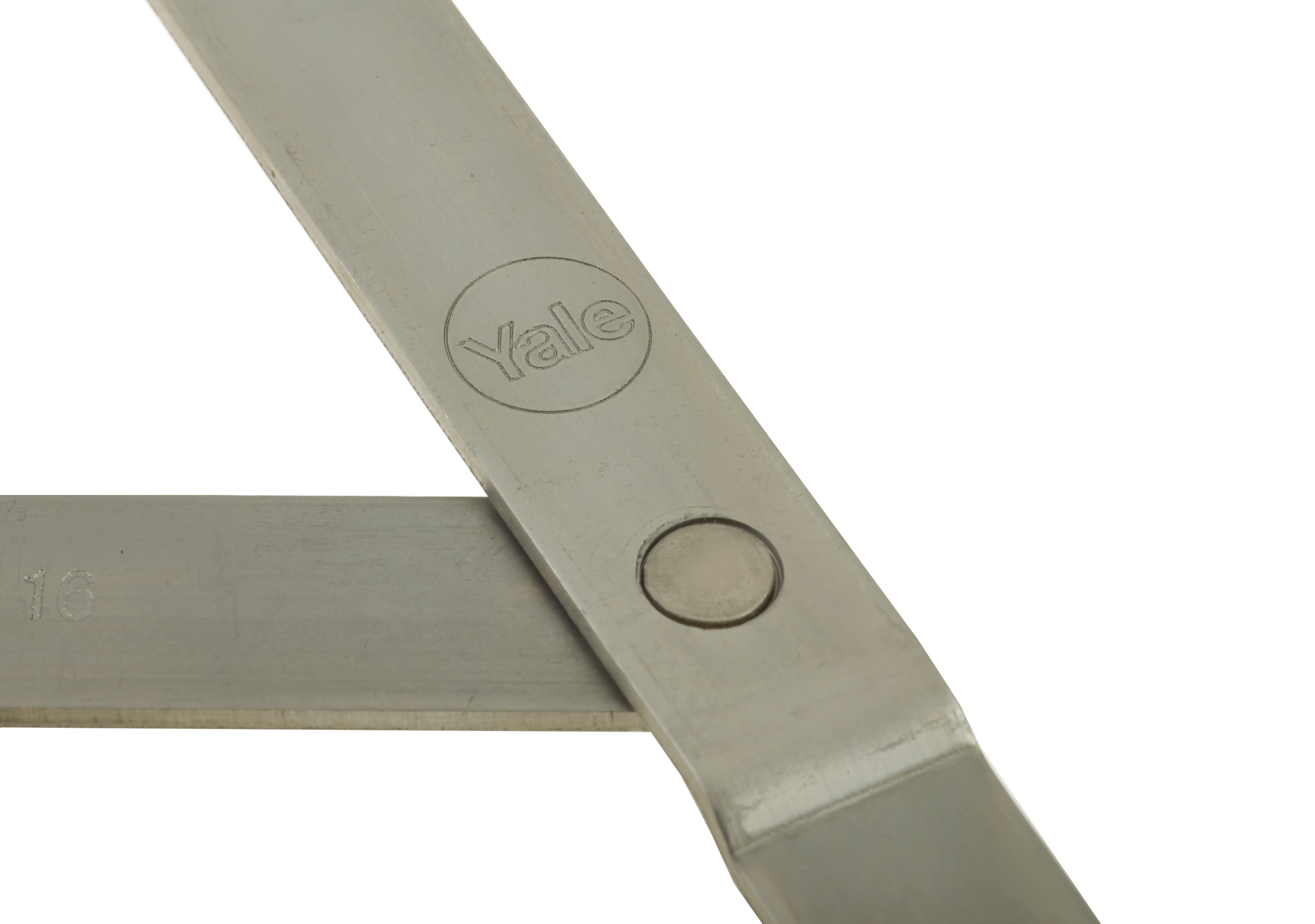

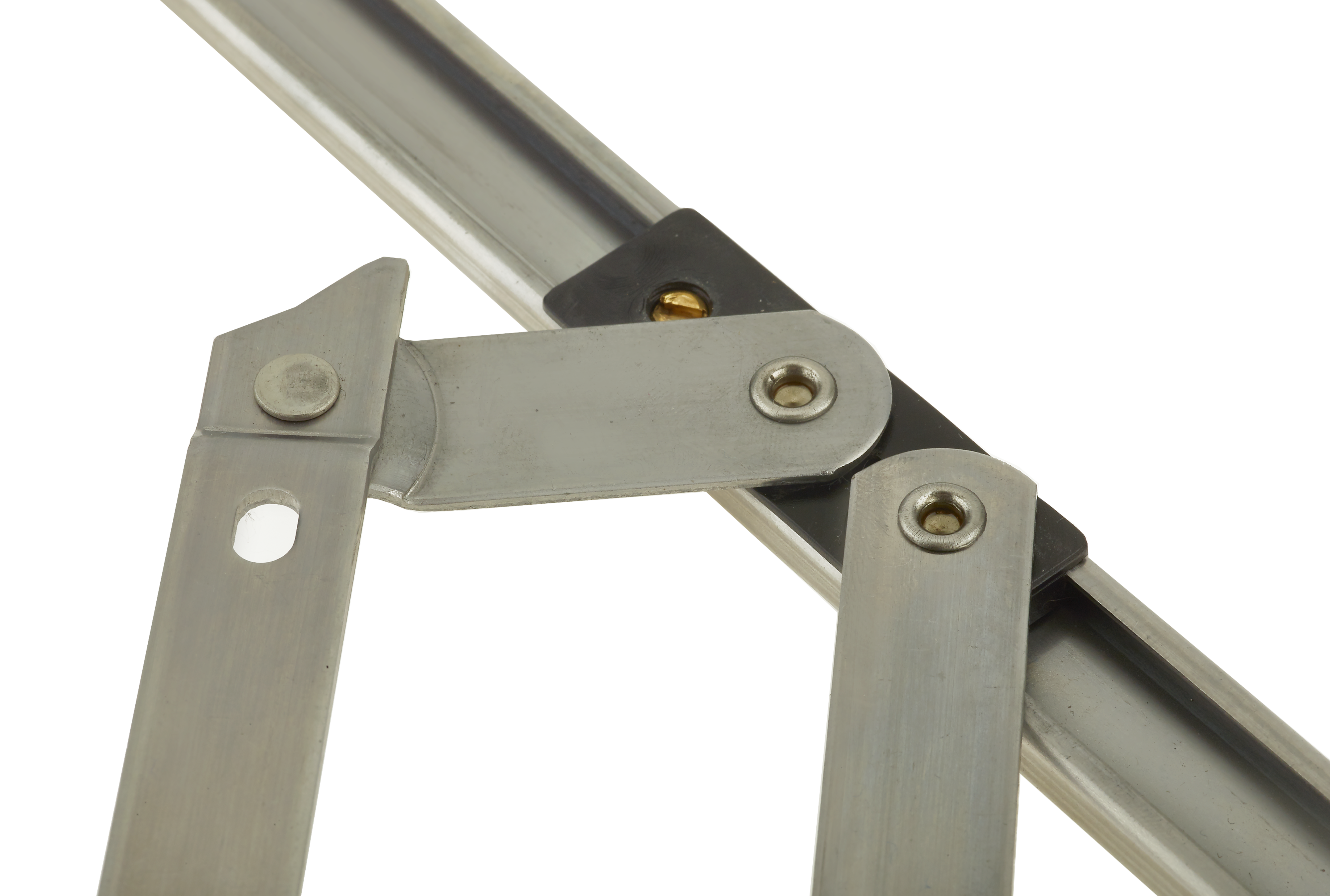

The Yale Window Hinge

A versatile hinge to suit a variety of applications

Features

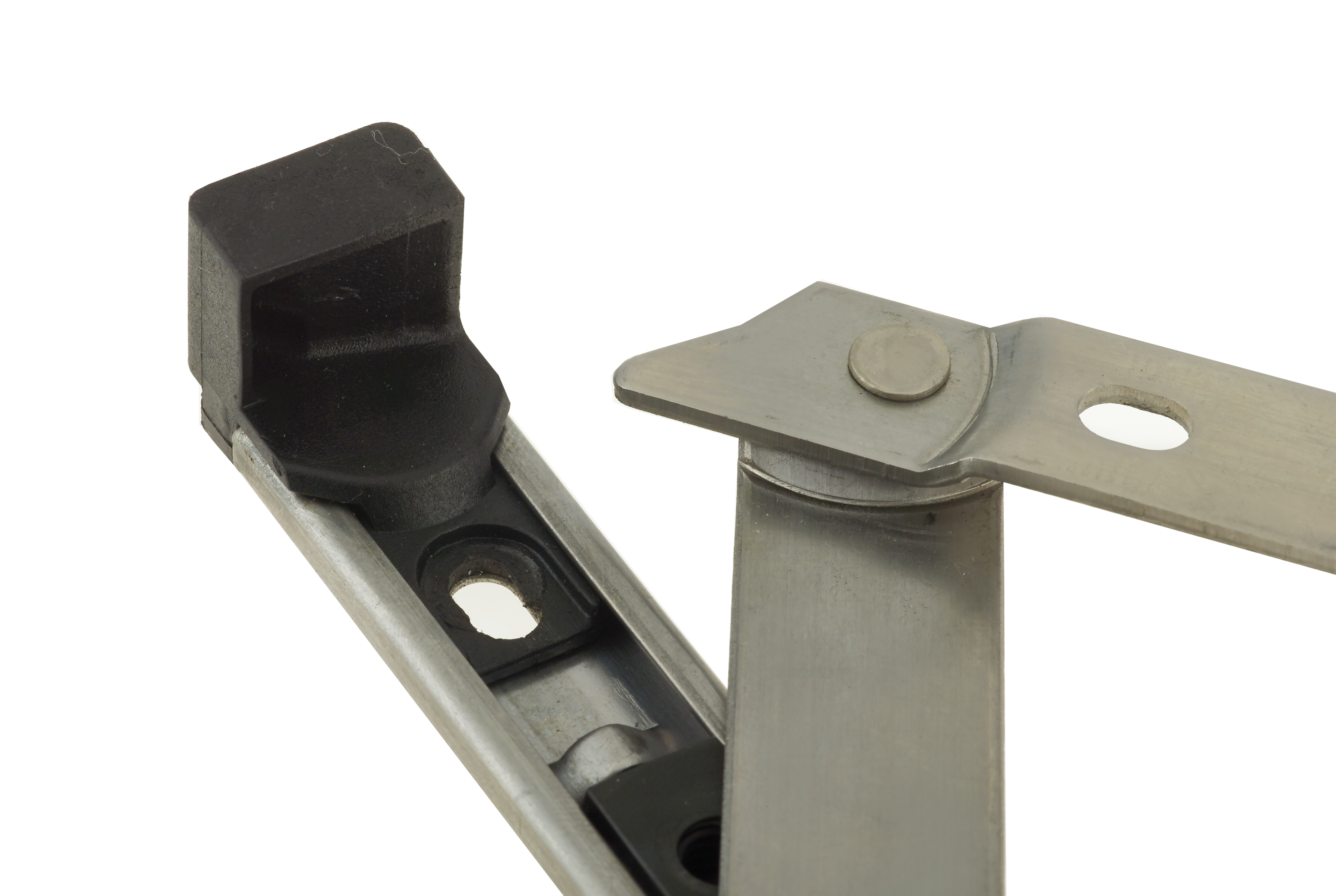

  • Excellent weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm.
  • Compatible with PVCu, timber and aluminim windows
  • Standard and highline stack heights
  • Slider with friction
  • Made from ferritic stainless steel
  • 10-Year Mechanical Guarantee
  • Included in the Lifetime Guarantee (Terms and conditions apply)

*Standard ferritic (was 430) to BS EN 10088-2 Grade 1.4016.



Size Options:

  • Top Hung: 8", 10", 16", 20", 24"
  • Side Hung: 8", 12", 16"
  • Egress: 12" and 16"

Specifications

  • BBA certification
  • Endurance tested to 20,000 cycles
  • Corrosion tested to BS EN 1670 Grade 3 (96hrs. NSST)
  • Tested to BS 6375 parts 1 and 2 for window performance
  • Secured by Design compliant when fitted with Yale Ancillary Security Devices

Note:  As with all types of friction hinges, friction cannot be provided until the slider moves, therefore when limiting the opening of the top hung vents to angles of 10 degrees or less a separate device may be required to prevent the window from closing

  • 13298 Yale DWS-Window Hinge Presenter A4 4pp AW Low Res 29.03.18
