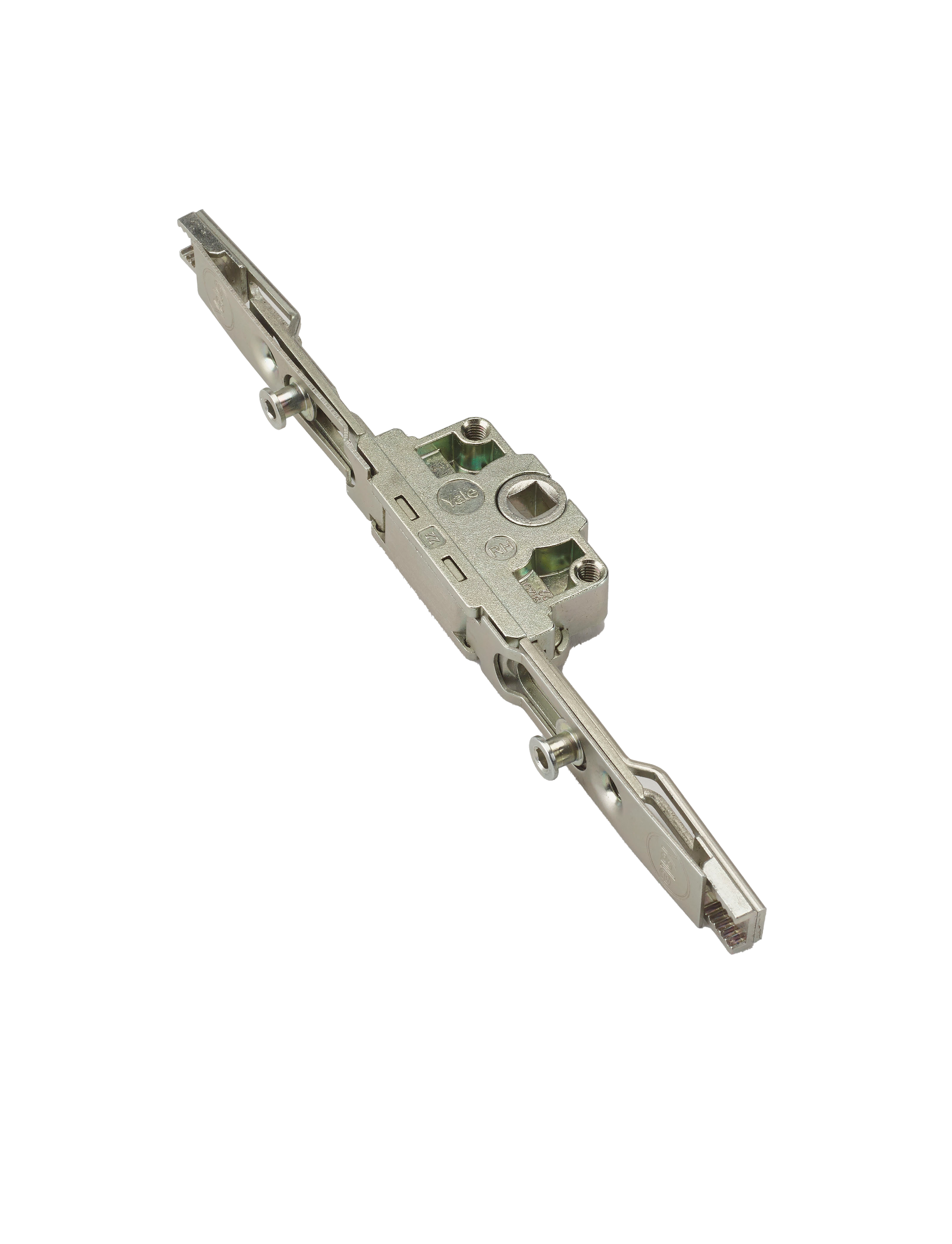

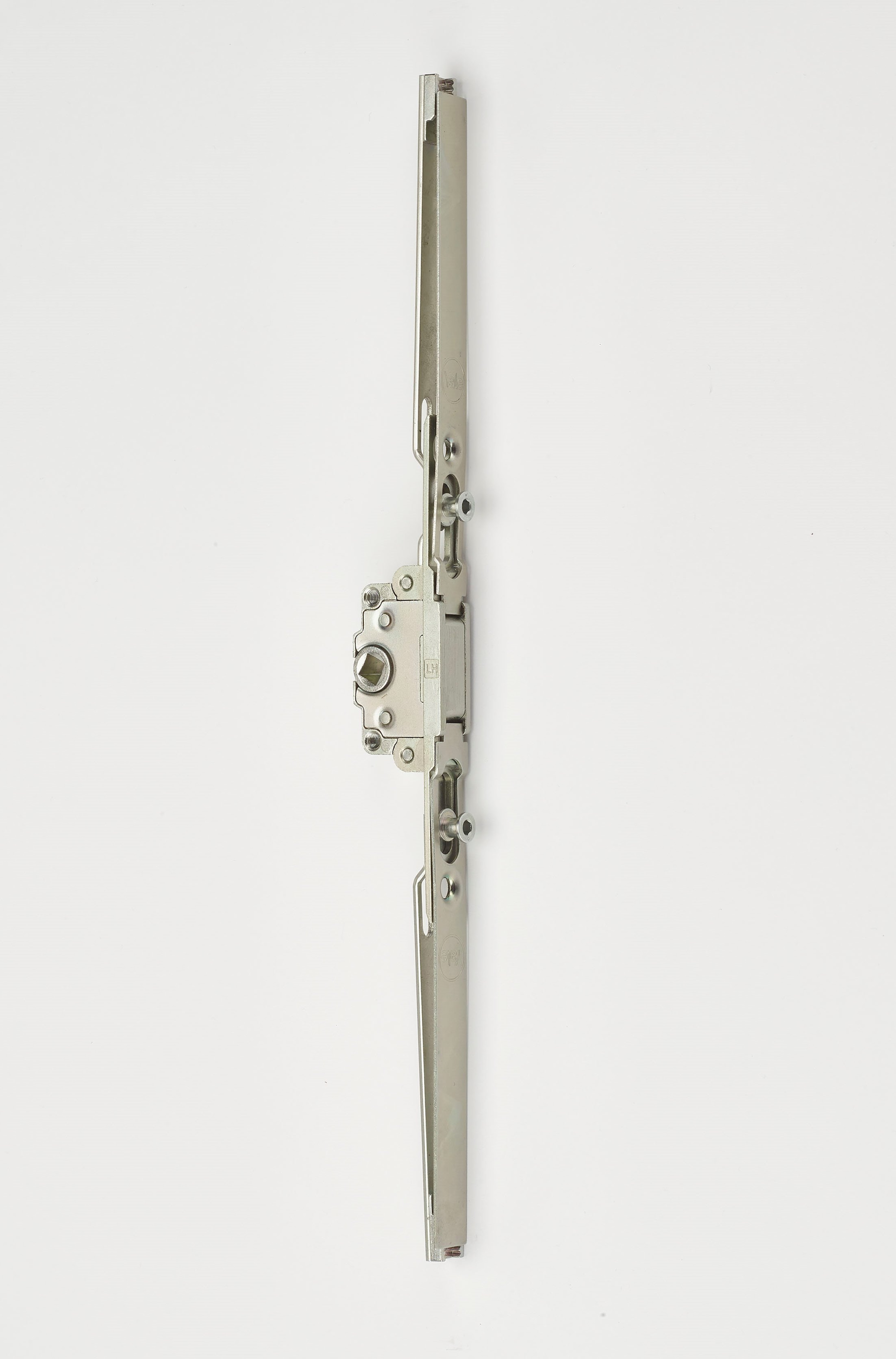

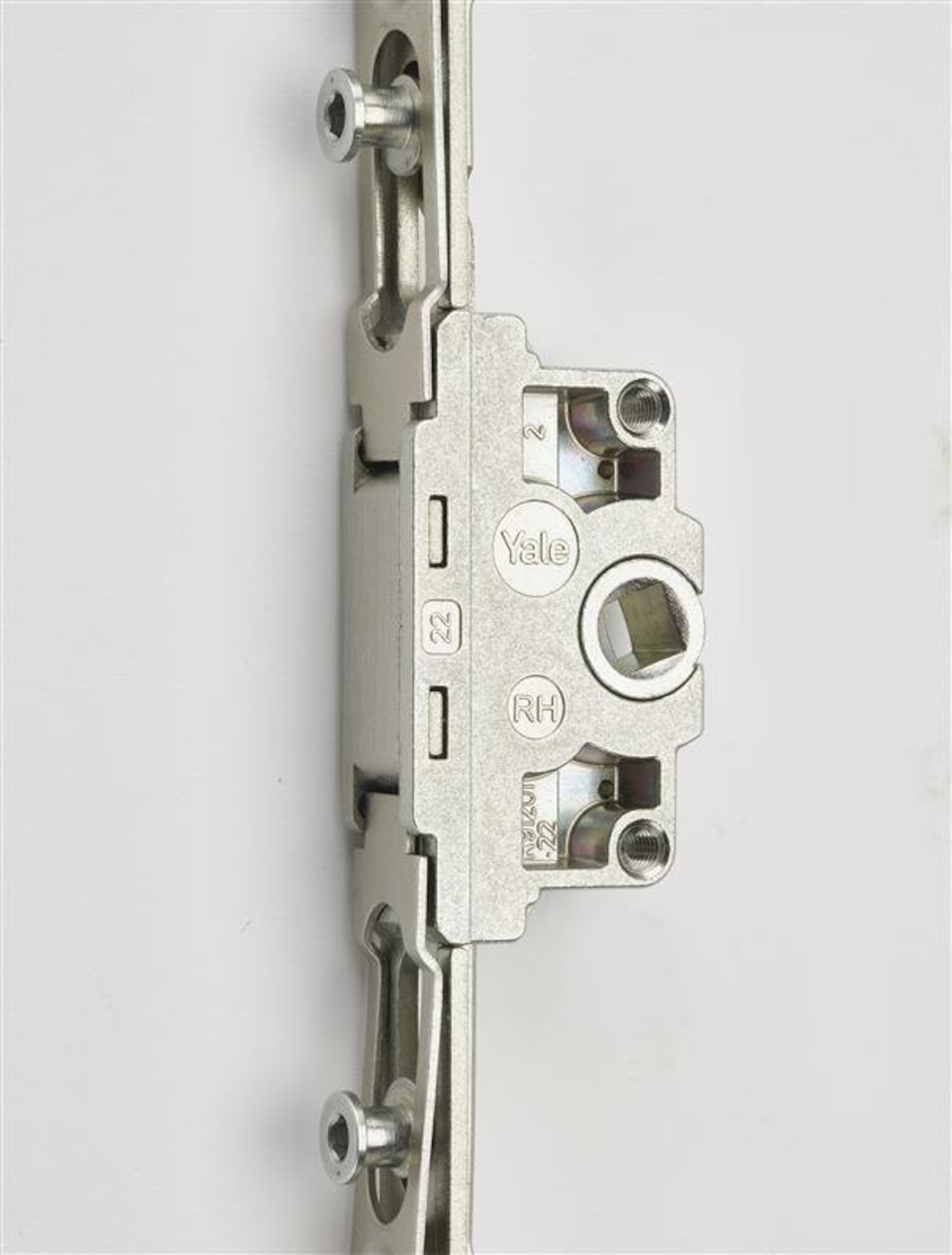

Dual Lock Twin Cam Esagnolette
The Yale Dual Twin cam Espagnolette combines robust protection, effortless installation, and long-term durability. Its advanced bi-directional twin cam system secures windows in two directions, providing maximum resistance against forced entry for unbeatable peace of mind.
Smart Design for Modern Windows
Crafted to complement today’s sleek window styles, the Dual Lock features:
- Minimal routing requirements for a faster installation

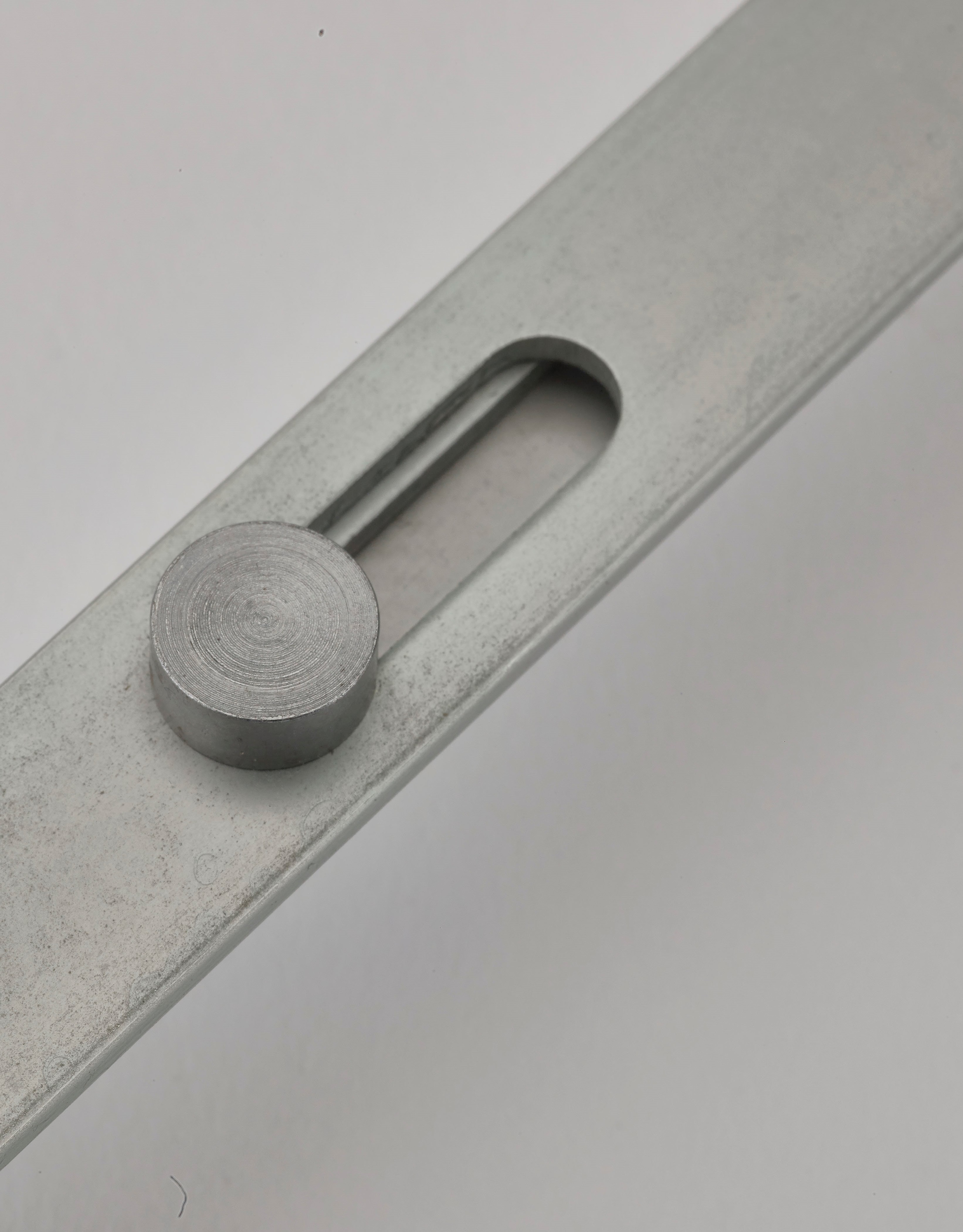

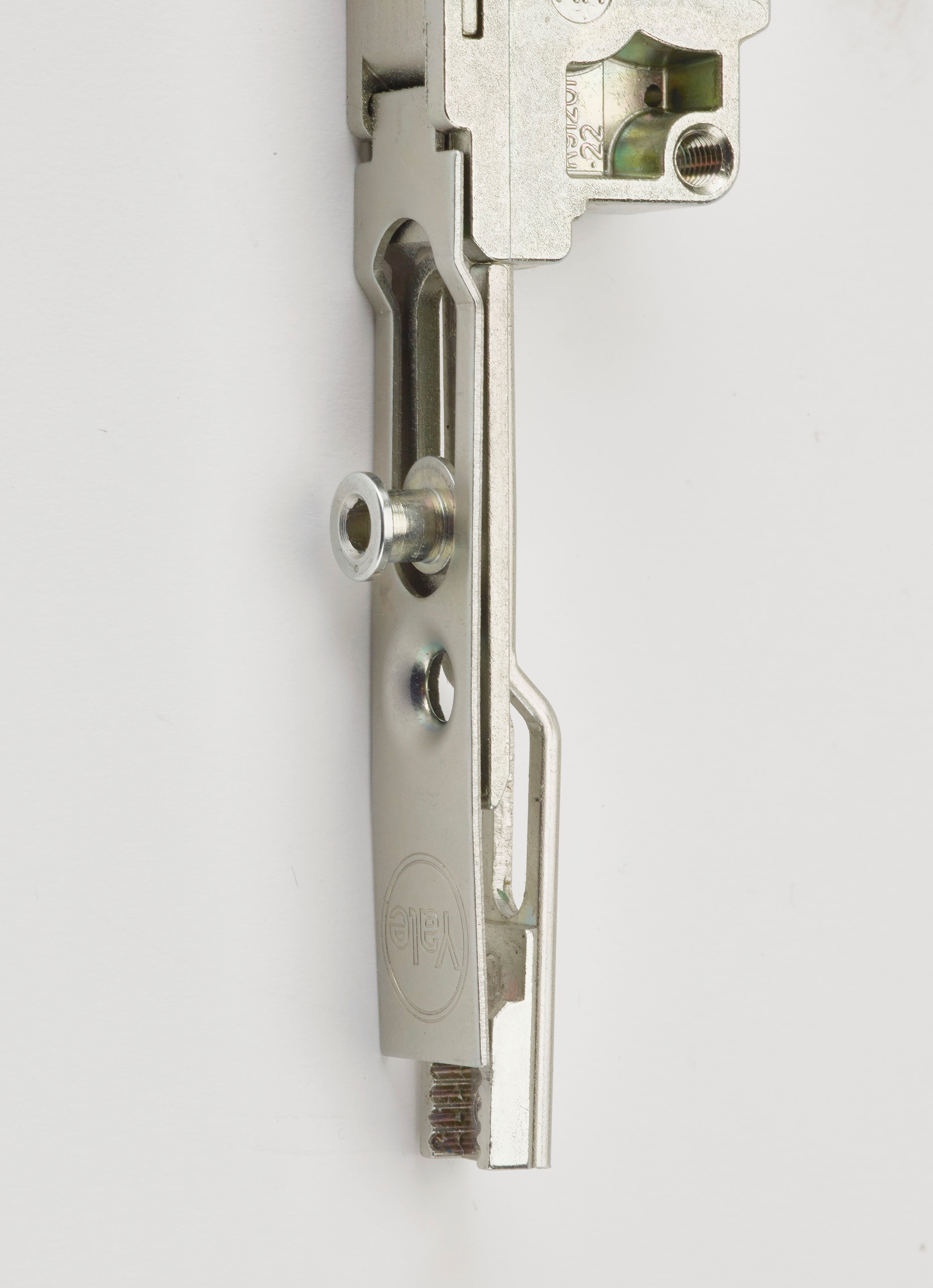

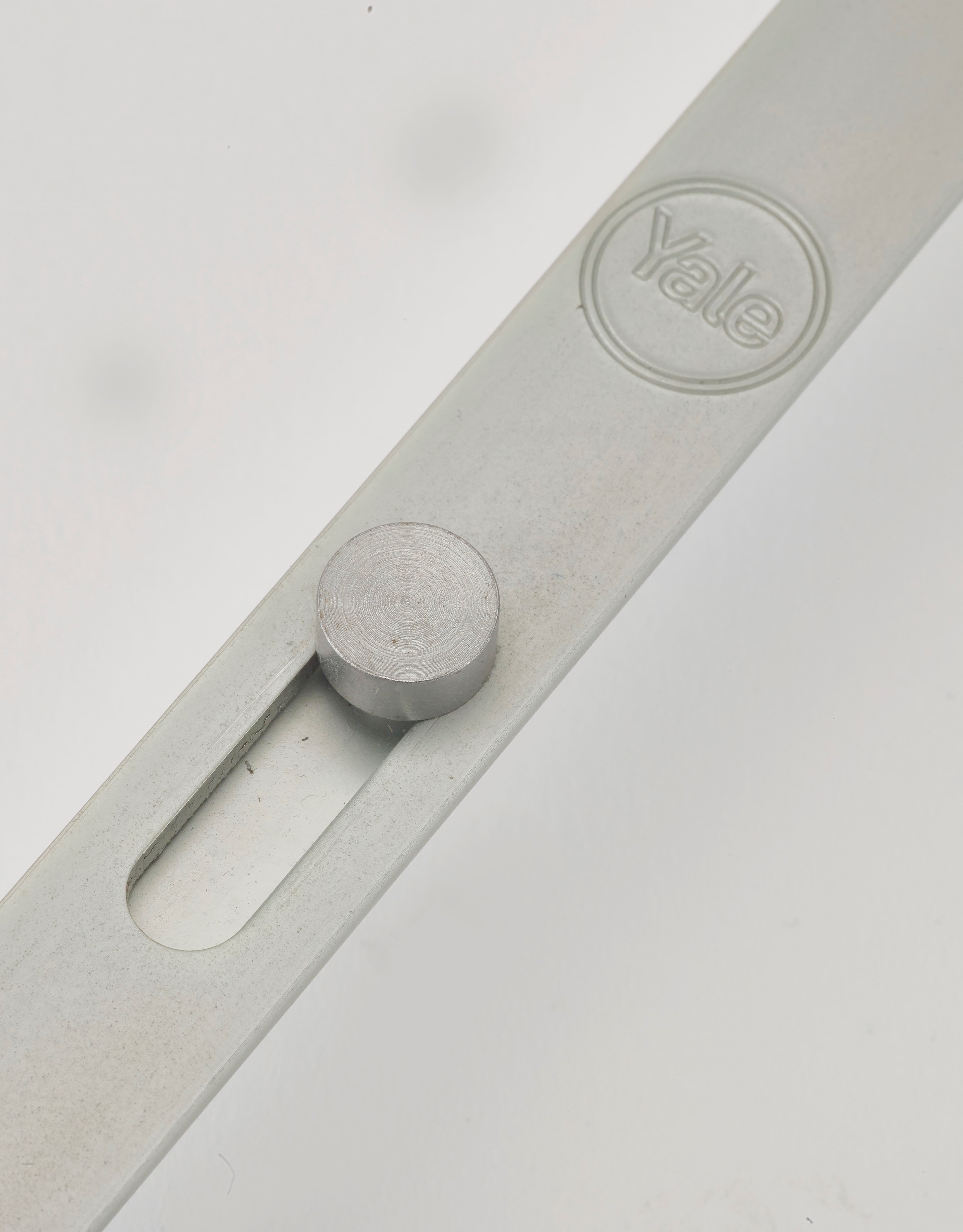

- Adjustable compression cams enhance weather resistance and contribute to improved window security.
- SensCheck™ Sensor compatibility for real-time status updates
With a wide range of configurations, the Yale Dual Lock range is ideal for casement, French casement, flush sash, and French flush sash windows.
Flexible Sizing for a Perfect Fit
Backset Options:
• 20mm • 22mm • 26mm
Cam Heights:
• 7.7mm • 9.0mm • 10.5mm
Standard Sizes:
• 200mm • 350mm • 400mm • 600mm • 800mm • 900mm • 1000mm • 1100mm • 1200mm • 1300mm • 1400mm
Low Handle Height Options:
Tailored for installations where handle height is a consideration:
• 500mm • 600mm • 800mm • 900mm • 1000mm • 1100mm • 1200mm • 1300mm • 1400mm
Tested. Trusted. Certified.
- Corrosion Resistance:
- Standard range: BS EN 1670 Grade 4 (240 hours NSS)
- QuadCoat range: BS EN 1670 Grade 5 (up to 1000 hours NSS)
- Endurance Testing:
- Certified to BS EN 1191 Grade 3 (20,000 cycles)
- Continuously tested to 50,000 cycles for long-term performance
- Security Standards:
- Secured by Design approved
- Complies with PAS24 security requirements
- Backed by a 10-year mechanical guarantee
- Included within Yale’s Lifetime Security Guarantee
Maintenance Instructions
The Yale Dual Lock Twin Cam Espagnolette is permanently lubricated for smooth operation. To ensure optimal performance, regular cleaning to keep the lock free from building materials and debris that could interfere with the mechanism is recommended.
Maintenance - Every Five Years
Perform the following checks:
1. Fixing Screws: Ensure all screws are tight and secure.
2. Gasket Compression: Inspect and adjust as needed.
Gasket compression can be modified using a 4mm hex key to rotate the cams. Adjustments should align with the profile manufacturer’s recommended gasket Compression to maintain proper sealing and functionality
