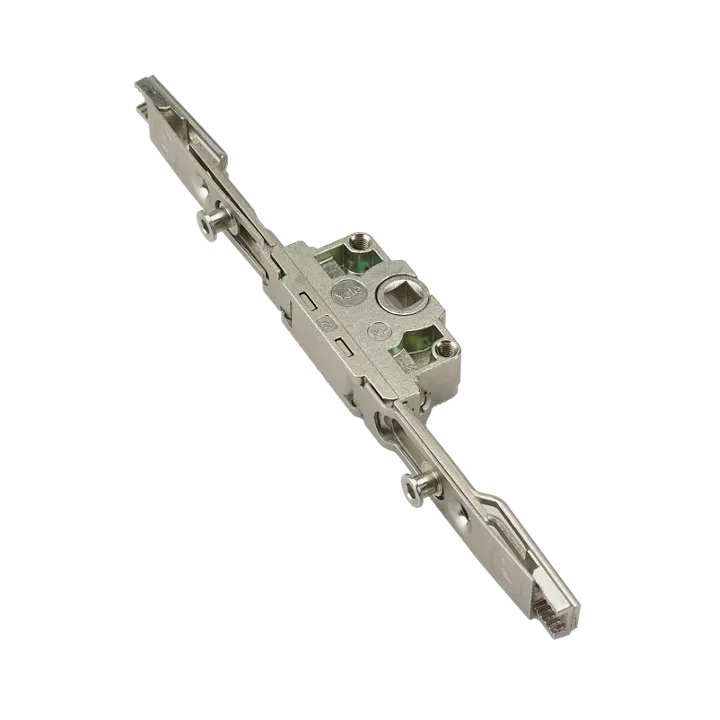

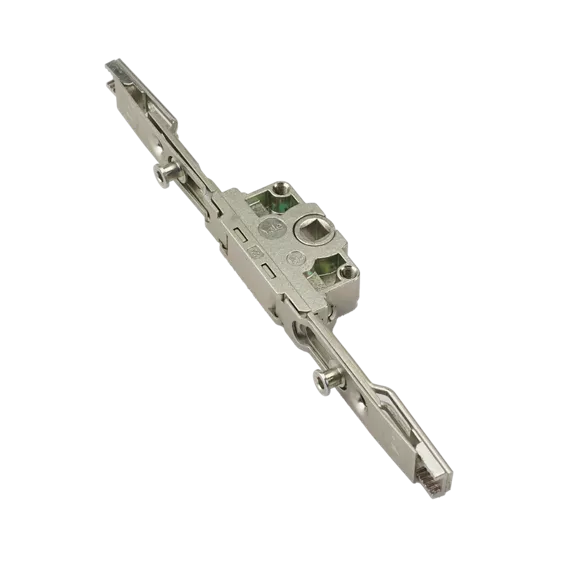

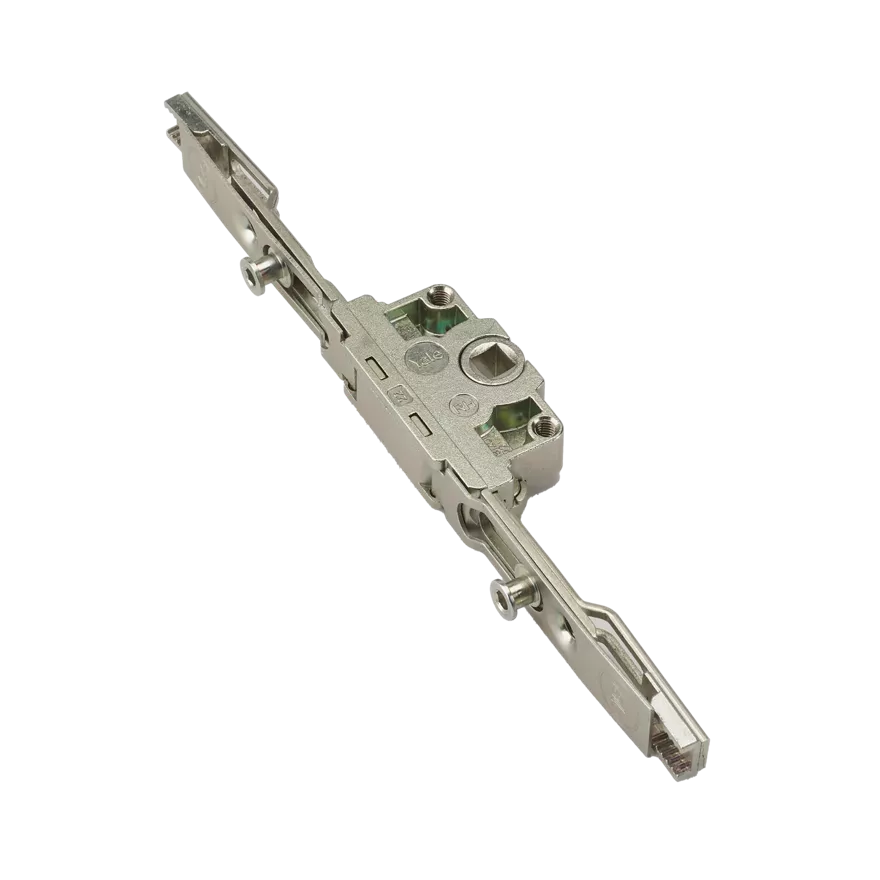

Dual Lock Shootbolt Window Lock

The Yale Dual Shootbolt Window Lock Range is a high-performance window security solution built for today’s homes. Croppable and extendable options make it easy to customise the lock to suit a wide range of window frames and profiles

Smart Design for Modern Windows

Crafted to complement today’s sleek window styles, the Dual Lock features:

• Minimal routing requirements for a faster installation
• Adjustable compression cams enhance weather resistance and contribute to improved window security.
• SensCheck™ Sensor compatibility for real-time status updates

With a wide range of configurations, the Yale Dual Lock range is ideal for casement, French casement, flush sash, and French flush sash windows

Flexible Sizing for a Perfect Fit

Backset Options:

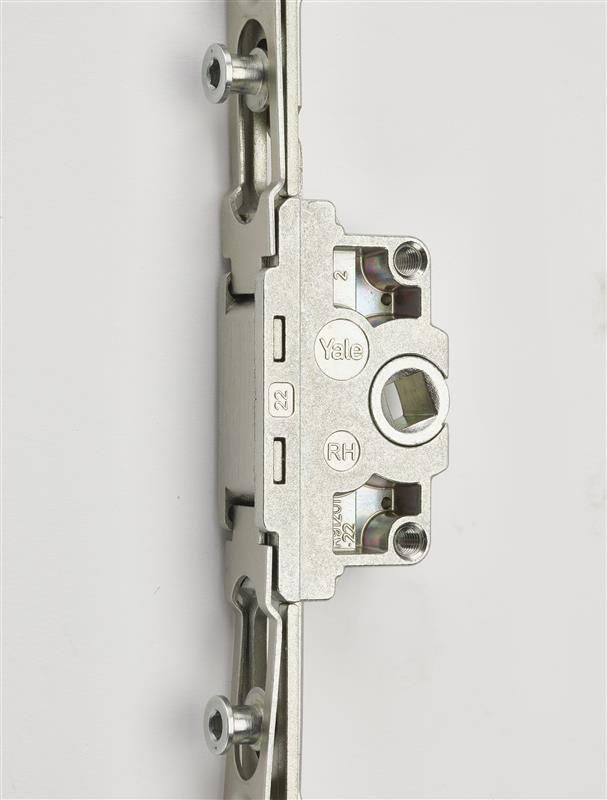

• 20mm • 22mm • 26mm

Cam Heights:
• 7.7mm • 9.0mm • 10.5mm • No Cams

Croppable and Extendable Options:

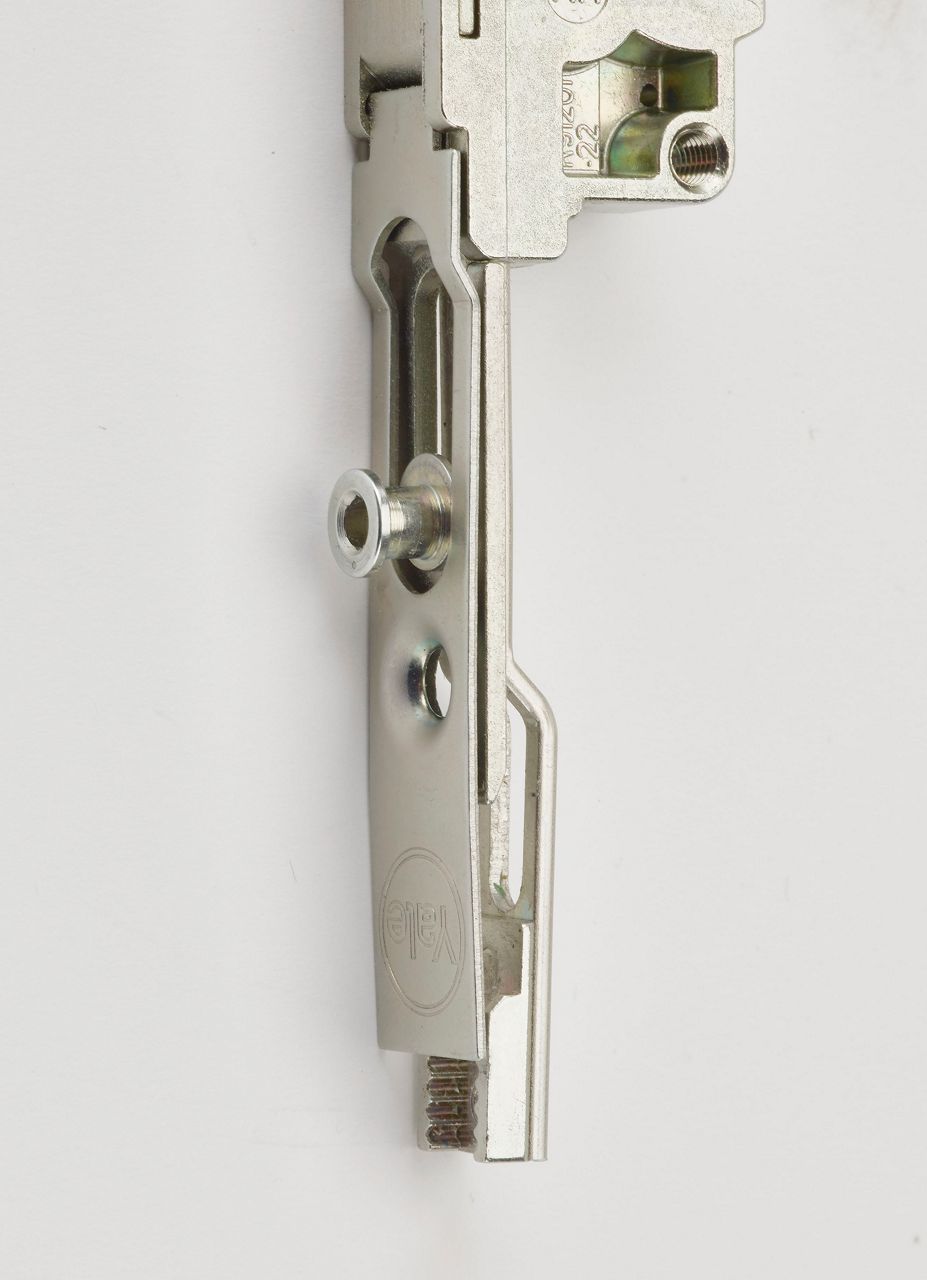

·         4 crop-to-fit shootbolt sizes to achieve sash sizes 312mm  to 1422mm

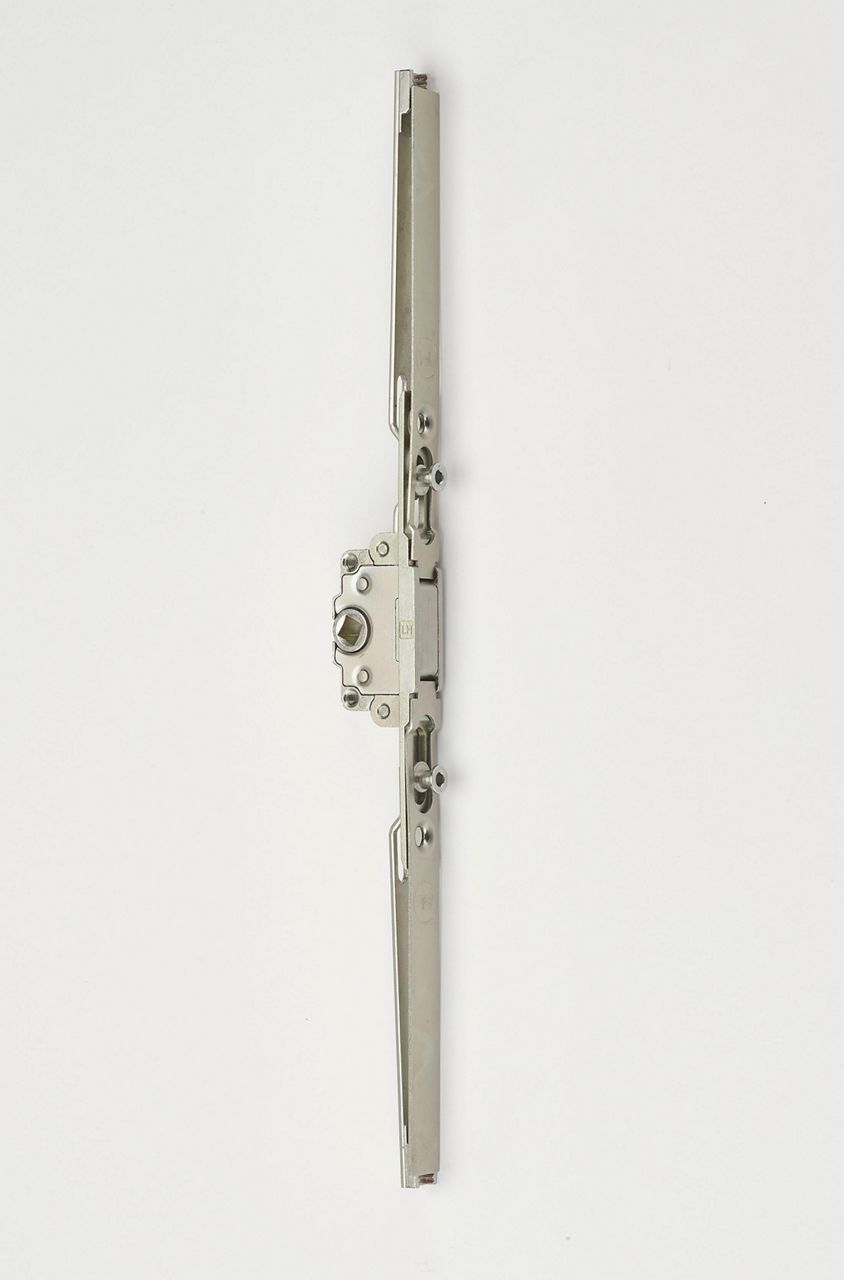

·         Extendable gearbox and 8 rod sizes to achieve sash sizes 474mm to 1572mm

Tested. Trusted. Certified.

• Corrosion Resistance:
  • Standard range: BS EN 1670 Grade 4 (240 hours NSS)
• Endurance Testing:
  • Certified to BS EN 1191 Grade 3 (20,000 cycles)
  • Continuously tested to 50,000 cycles for long-term performance
• Security Standards:
  • Secured by Design approved
  • Complies with PAS24 security requirements
  • Backed by a 10-year mechanical guarantee
  • Included within Yale’s Lifetime Security Guarantee

Maintenance Instructions

The Yale Dual Lock Shootbolt Window Lock is permanently lubricated for smooth operation. To ensure optimal performance, regular cleaning to keep the lock free from building materials and debris that could interfere with the mechanism is recommended.

Maintenance - Every Five Years

Perform the following checks:

1.      Fixing Screws: Ensure all screws are tight and secure.

2.      Gasket Compression: Inspect and adjust as needed.

Gasket compression can be modified using a 4mm hex key to rotate the cams. Adjustments should align with the profile manufacturer’s recommended gasket Compression to maintain proper sealing and functionality
