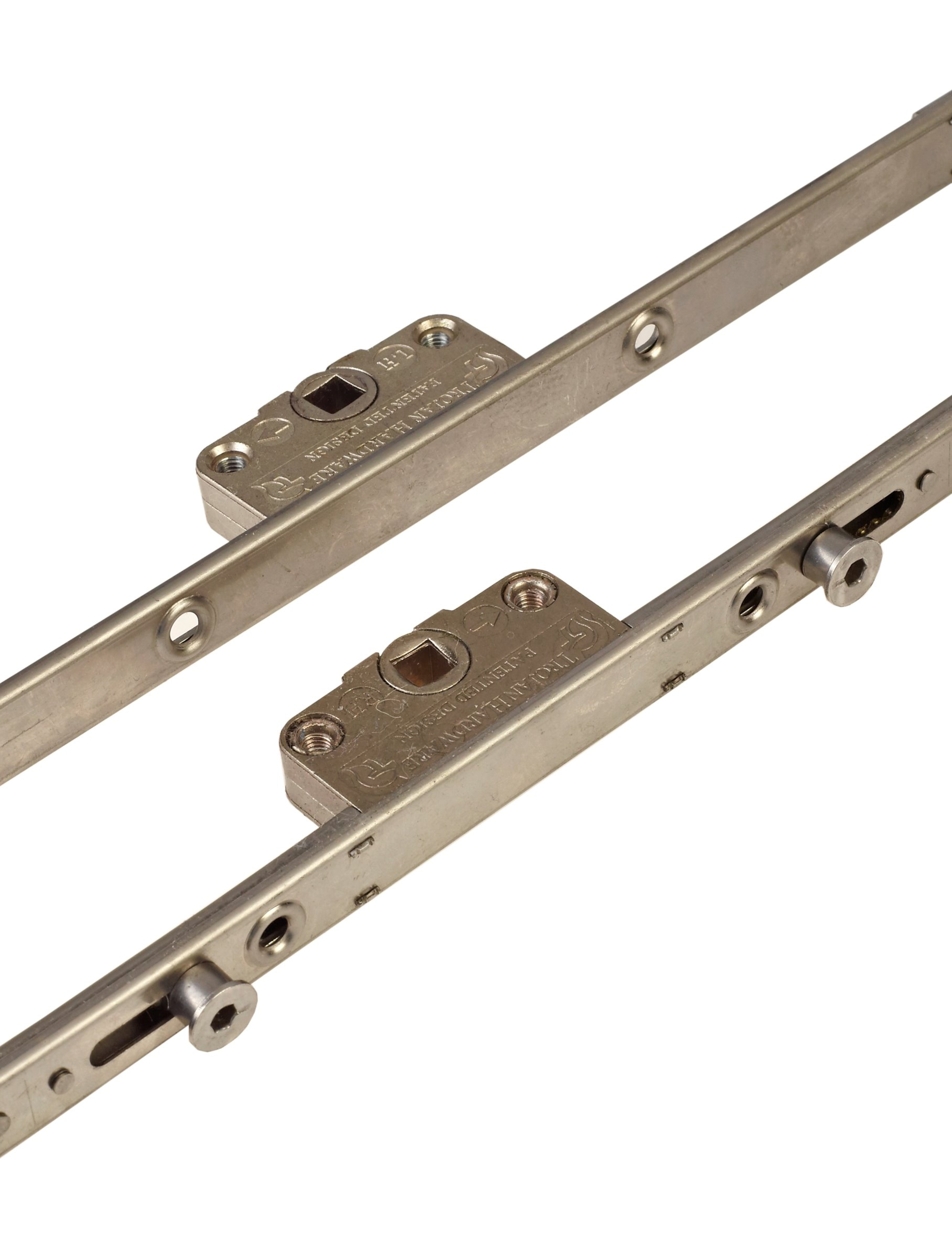

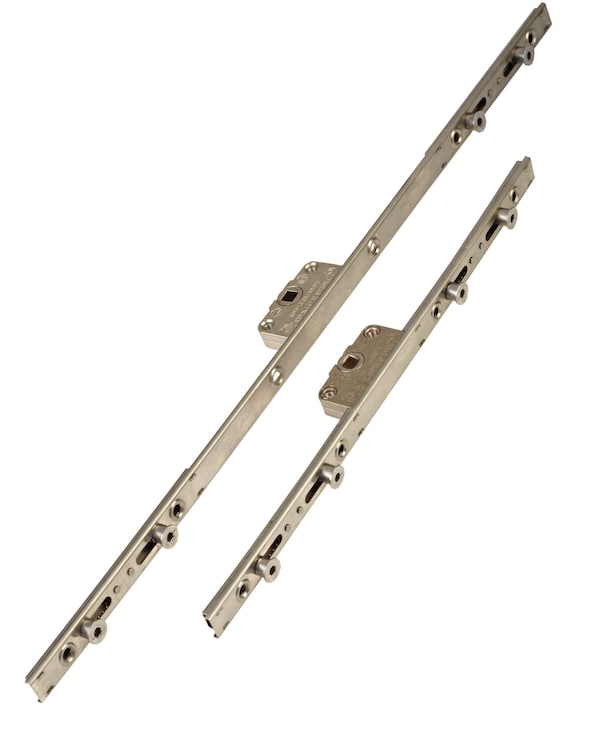

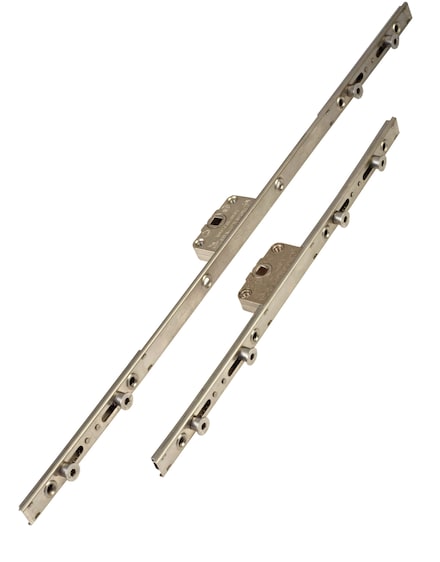

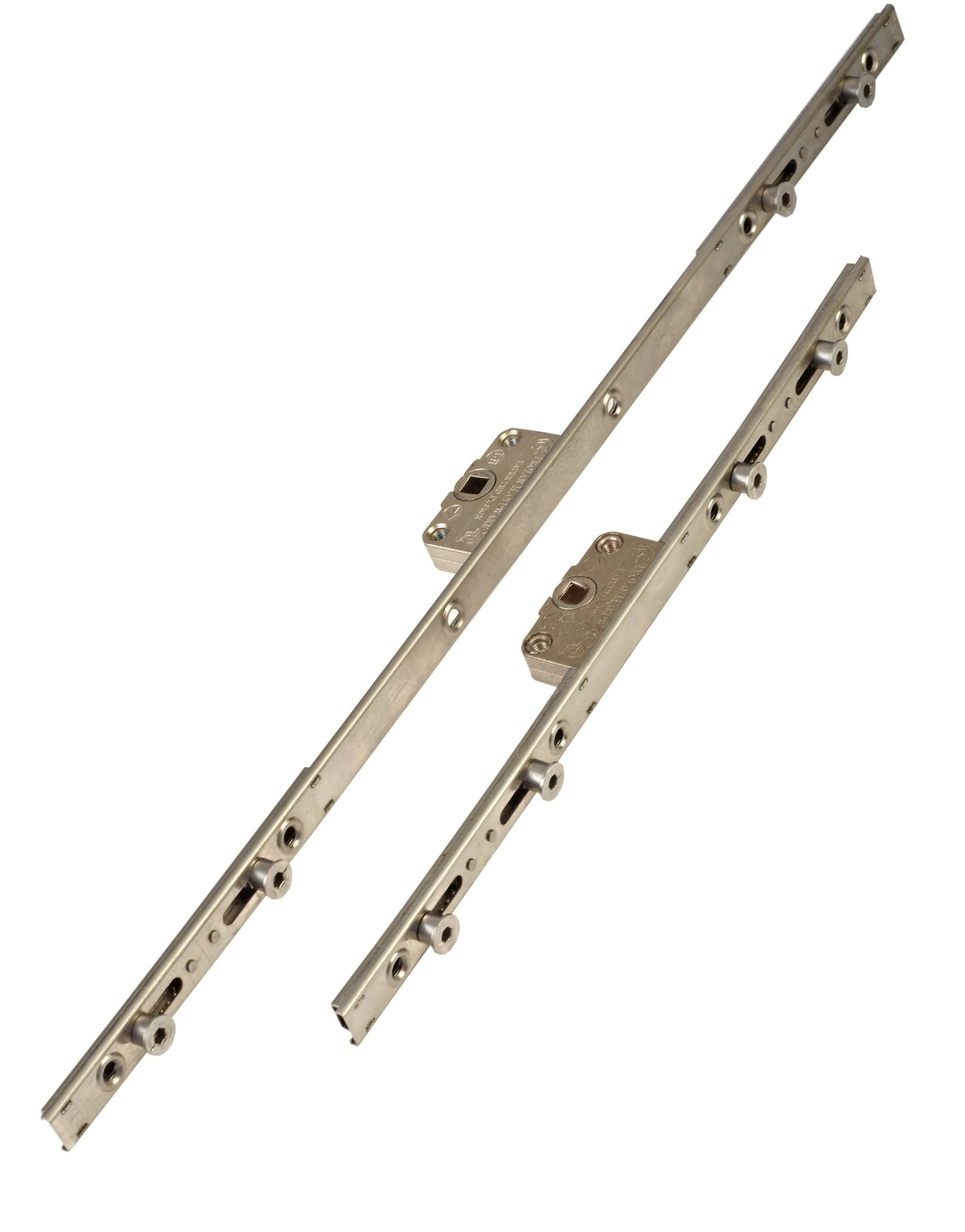

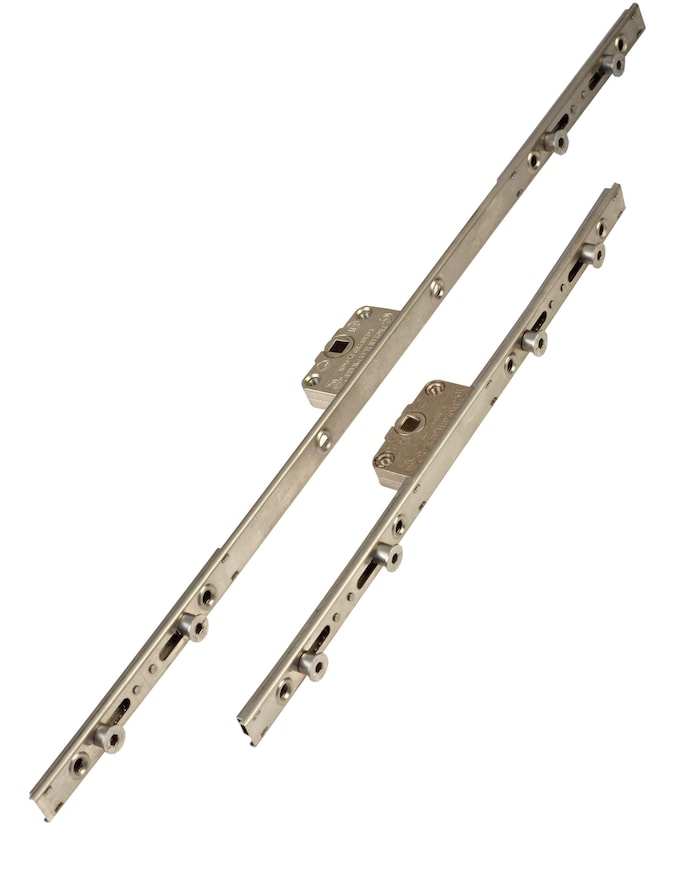

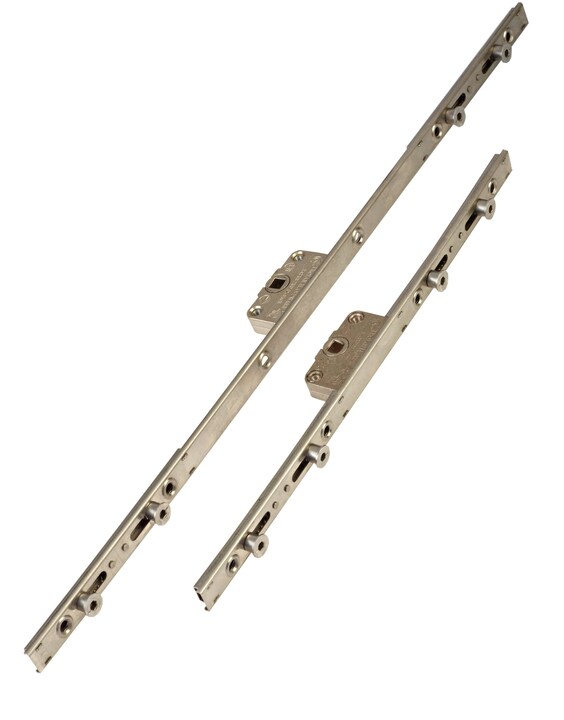

Stallion Reverse Espag

For Eurogroove systems, the Stallion Reverse Espag can be fitted in seconds and once in place, a unique localised reverse action allows the cams to locate from both directions into a central keep to give a very secure locking action. Manufactured predominantly from Stainless Steel to offer the highest corrosion resistance and strength.

Features:

• Stainless Steel construction for ultimate corrosion resistance
• Simple to fit with one piece assembly
• Can be supplied as a kit, complete with keeps
• Twin reverse action cams give high security locking

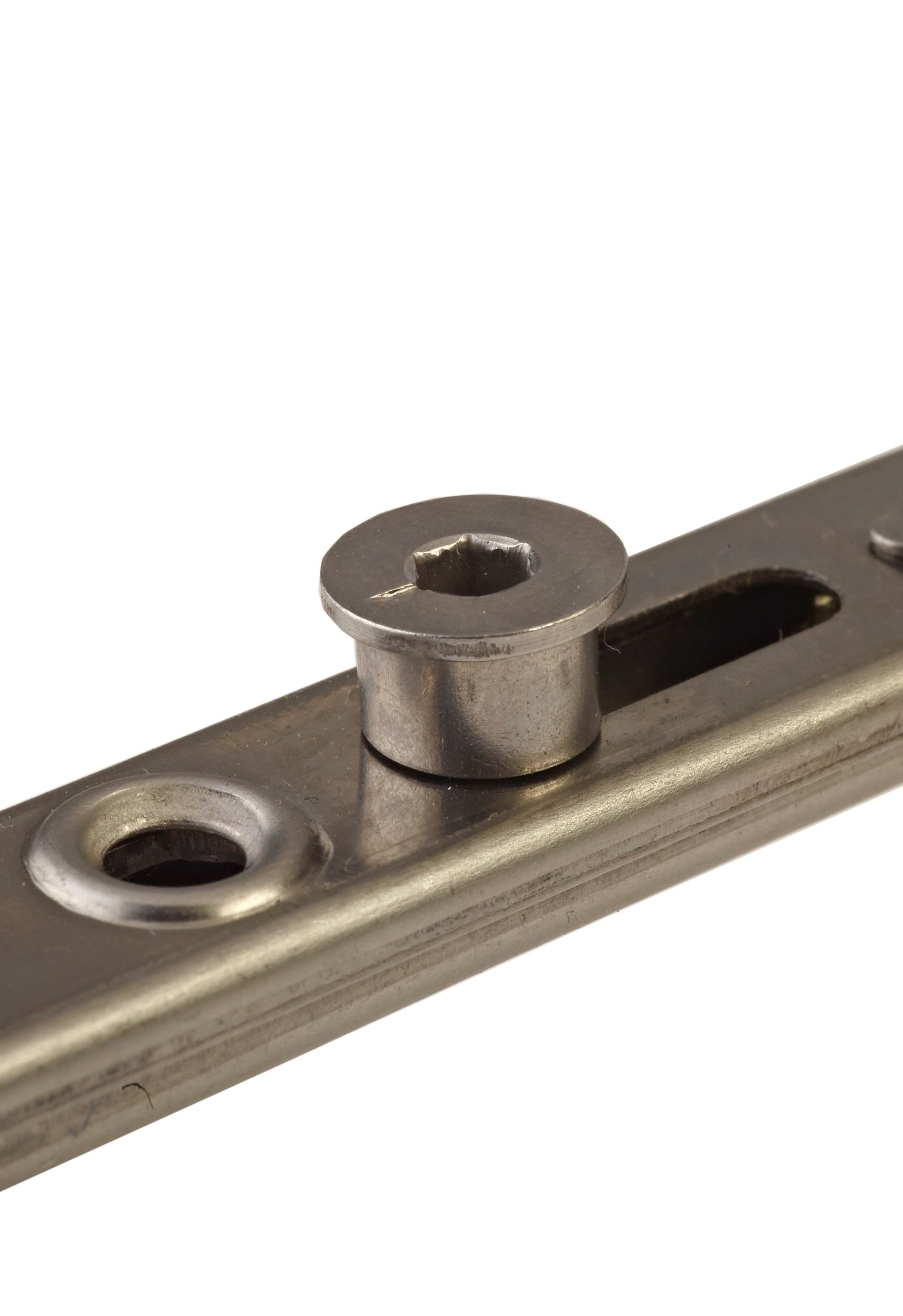

• Compression adjustable locking cams
• Centre line assists alignment with keep
• Keeps available for most profiles

Specification:

• 10-year Mechanical Guarantee
• Zinc die cast components with zinc passivate finish
• Stainless Steel parts - 430
• Plastic parts - Nylon 66
• Corrosion tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
• Endurance tested to 30,000 cycles
• Tested to the equivalent of PAS 24 (BS 7950) as part of a window system
• Size ranges:
  • Size 1 - 320mm
  • Size 2 - 500mm
  • Size 3 - 750mm
  • Size 4 - 1000mm
  • Size 5 - 1250mm

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply
