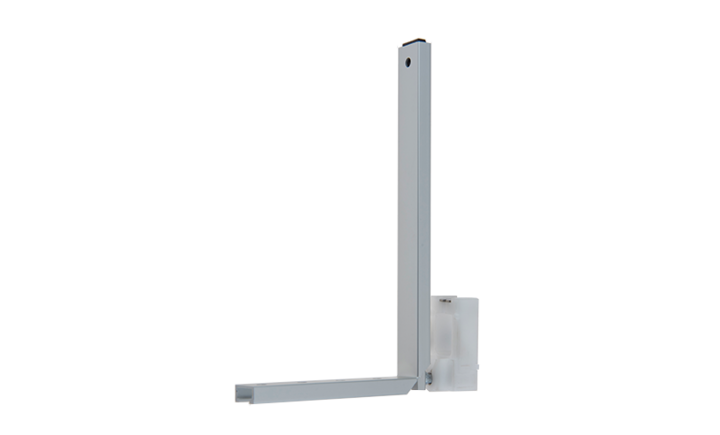

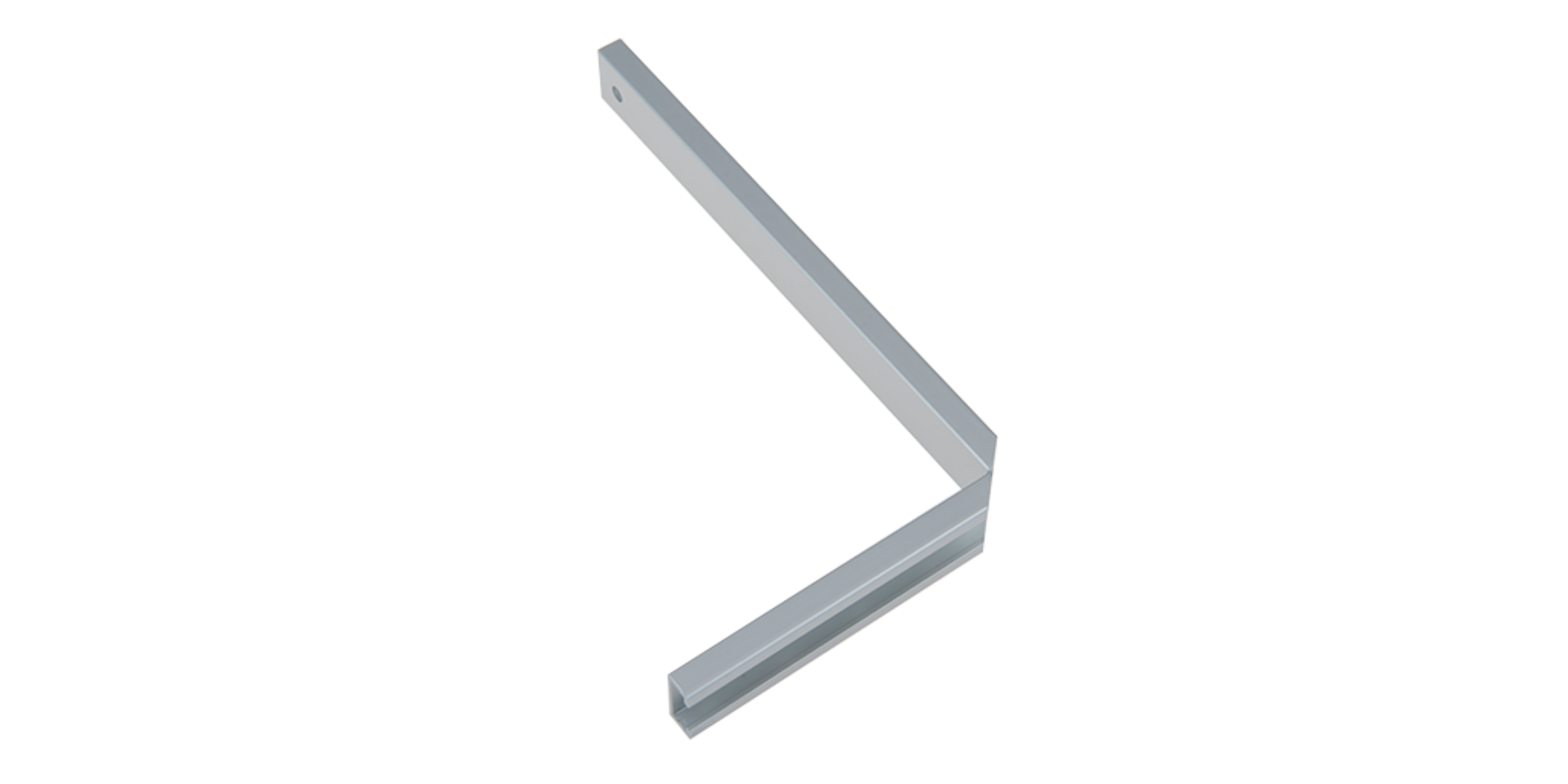

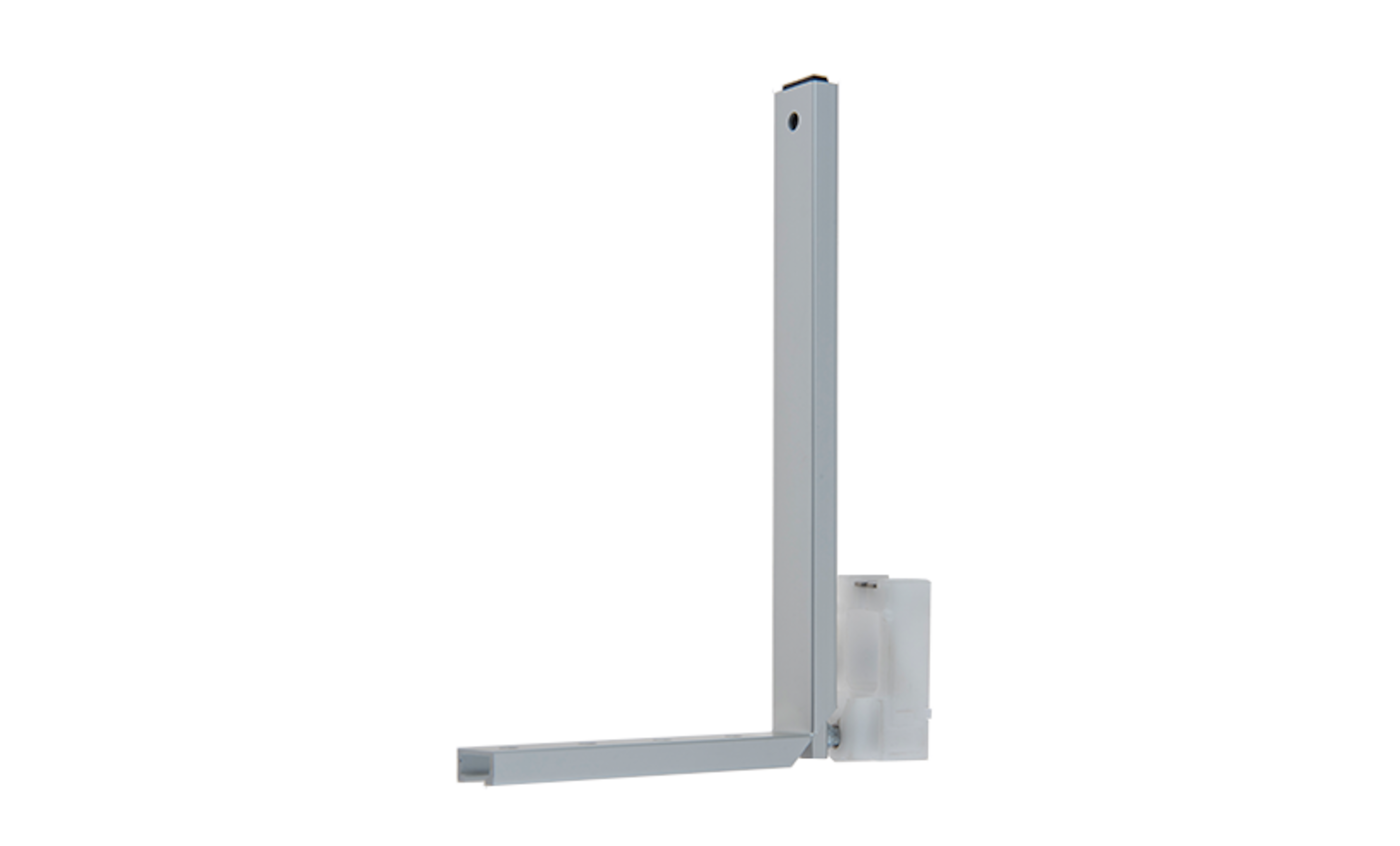

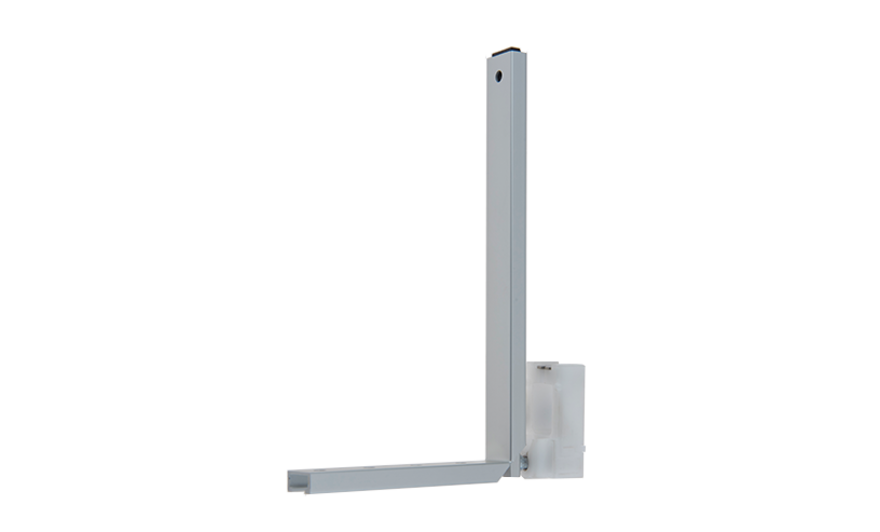

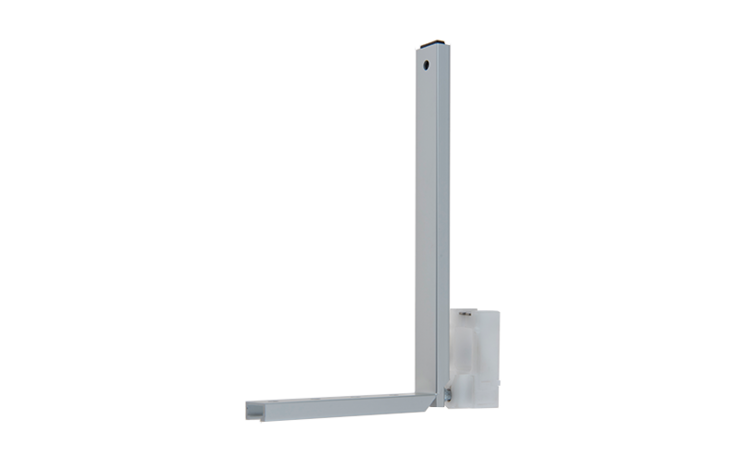

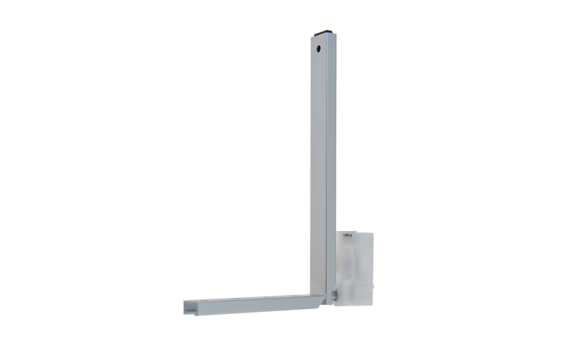

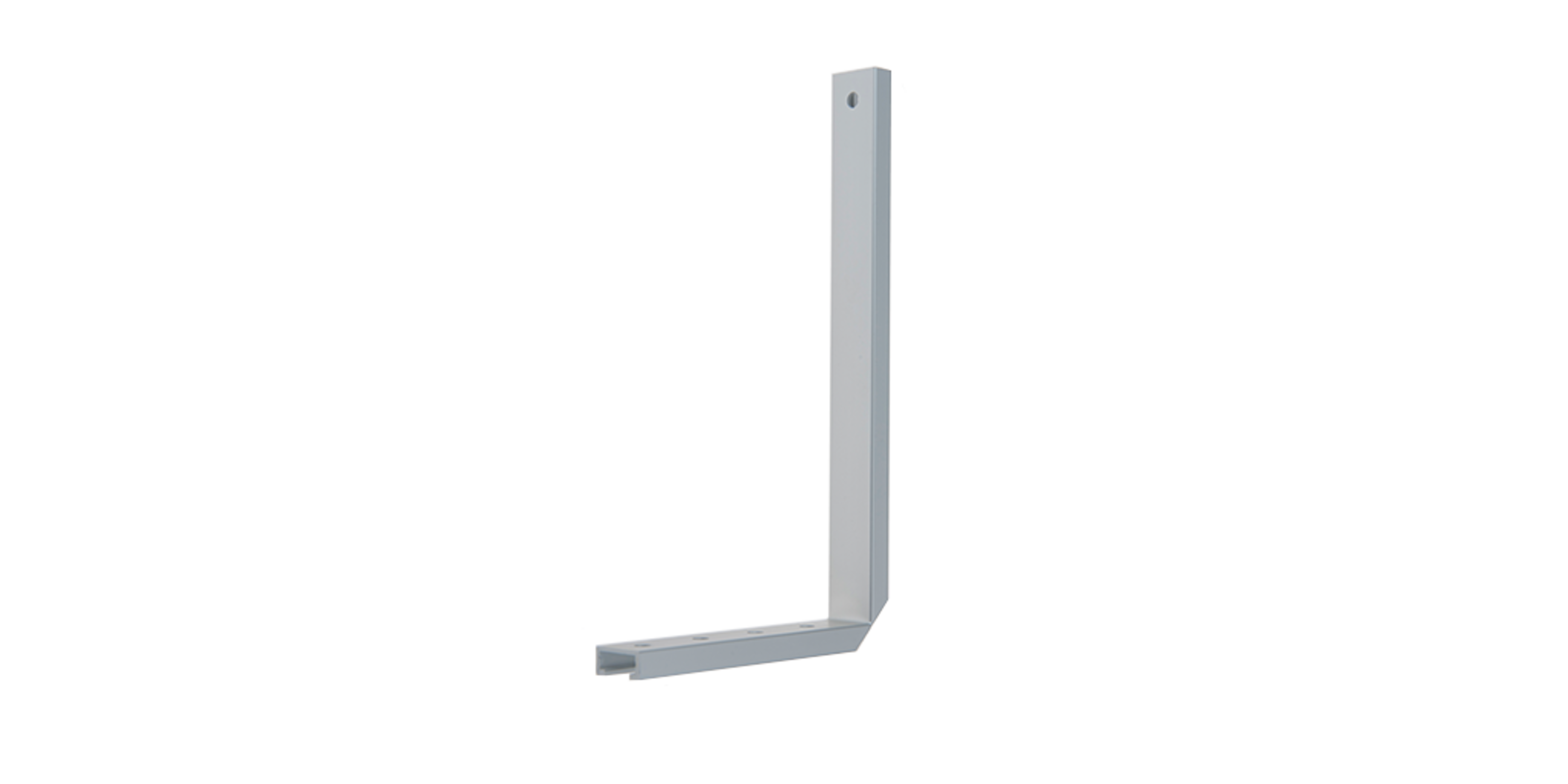

Pivot bar & pivot bar carrier

The Yale Vertex Pivot bar & pivot bar carriers offers both ‘slide-off’ and ‘lift-off’ functionality

Features:

  • Horn and non horn options
  • Works perfectly with Vertex Pivot Shoe
  • Suitable for all uPVC, Timber and Aluminium Windows
  • Meets the requirements of BS EN 1670:2007
  • Quick release ‘slide-off’ option
  • Simple ‘lift-off’ option
  • Manufactured totally from non ferrous materials

Specifications:

  • BS EN 1670: Grade 4 (240hrs. NSST)
  • 10-year Mechanical Guarantee
  • Endurance tested to BS 6375: Part 2 (20,000 cycles)

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Packaging:

  • Pivot Bars Boxed in 50’s
  • Pivot Bar Carriers (Including carrier clip moulding where applicable) Boxed in 50’s

Material Specification:

  • Aluminium 6082T6
  • Reinforced Nylon

Maintenance:

  • Yale Vertex Pivot Bars and Pivot Bar Carriers are maintenance free. Yale recommends this product is surface cleaned with a damp cloth only and is kept free from any building materials and debris which could affect the mechanism

Please refer to the Yale Pivot Bar datasheet for further information and part codes, alternatively please contact our customer services team on 01902 366800.
