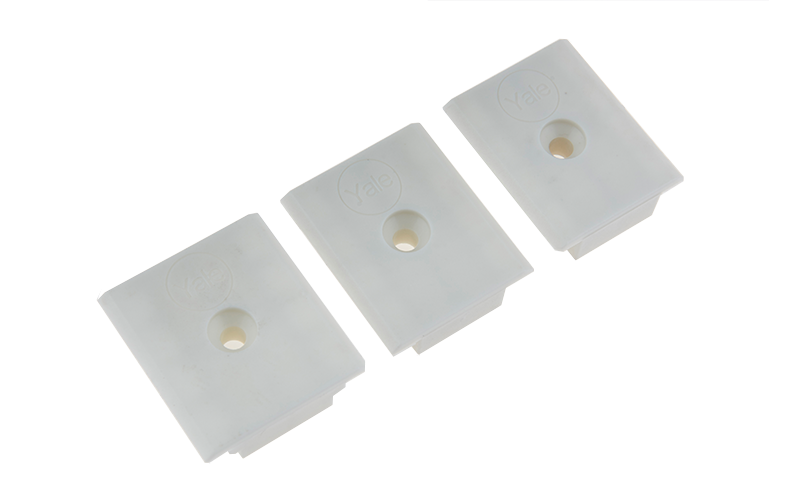

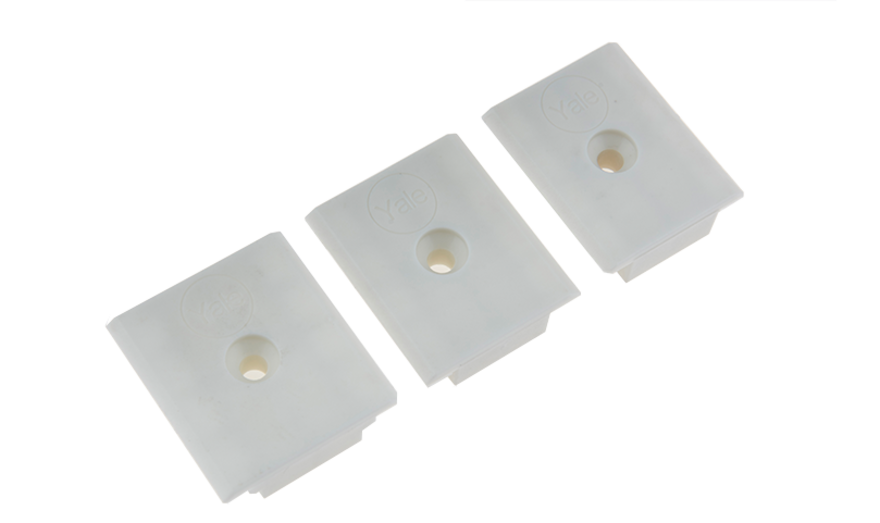

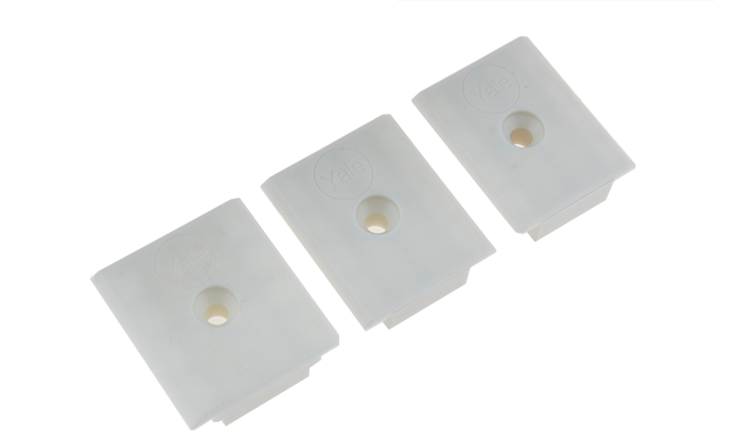

Sash Spacer

A high performance pivot shoe with enhanced braking functionality.

The Pivot shoe has been cleverly designed to incorporate a 3-way braking system giving additional locking advantage over traditional designs.

Features:

• Suitable for both ‘lift-off’’ & ‘slide-off’ applications
• Suitable for uPVC, Timber and Aluminium Windows
• Compatible with a wide range of profiles
• Included within the Yale Lifetime Security Guarantee. *Terms and conditions apply
• Endurance tested to 20,000 cycles
• Patent pending

Specifications:

• BS EN 1670: Grade 4
  (240hrs. NSST)
• 10-year Mechanical
  Guarantee
• Endurance tested to BS 6375: Part 2 (20,000 cycles)

Material specification:

• Acetal
• Nylon
• ST ST 304
• Zinc ZP3

Packaging:

• Boxed in 50's

Colour variants:

•  White

Maintenance:

• Yale recommends this product is surface cleaned with a damp cloth only and is kept free from any building materials and debris which could affect the mechanism.

A high-performance security accessory for vertical sliding window.

Designed for use on upper sashes.

Features:

• Designed for uPVC, Timber and Aluminium windows
• Compatible with a wide range of profiles
• Purpose designed spacer available when required
• Used on upper sashes for enhanced security
• Yale branded hardware
• Included within the Yale Lifetime Security Guarantee. *Terms and conditions apply
• Manufactured from high quality reinforced plastic

Colour Variants:

White and Grey

Specification:

• PAS24 - Designed to meet the test requirements of PAS24 when fitted
  with Yale’s complete Vertex hardware

• 10-year Mechanical Guarantee

• Endurance tested to 20,000 cycles

Material Specification:

• Reinforced Nylon

Packaging:

• Boxed in 100's

Maintenance:

• Yale recommends this product is surface cleaned with a damp cloth only and is kept free from any building materials and debris which could affect the mechanism.

The Yale Vertex Pivot bar & pivot bar carriers offers both ‘slide-off’ and ‘lift-off’ functionality

Features:

• Horn and non horn options
• Works perfectly with Vertex Pivot Shoe
• Suitable for all uPVC, Timber and Aluminium Windows
• Meets the requirements of BS EN 1670:2007
• Quick release ‘slide-off’ option
• Simple ‘lift-off’ option
• Manufactured totally from non ferrous materials

Specifications:

• BS EN 1670: Grade 4 (240hrs. NSST)
• 10-year Mechanical Guarantee
• Endurance tested to BS 6375: Part 2 (20,000 cycles)

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Packaging:

• Pivot Bars Boxed in 50’s
• Pivot Bar Carriers (Including carrier clip moulding where applicable) Boxed in 50’s

Material Specification:

• Aluminium 6082T6
• Reinforced Nylon

Maintenance:

• Yale Vertex Pivot Bars and Pivot Bar Carriers are maintenance free. Yale recommends this product is surface cleaned with a damp cloth only and is kept free from any building materials and debris which could affect the mechanism

Please refer to the Yale Pivot Bar datasheet for further information and part codes, alternatively please contact our customer services team on 01902 366800.

An engineered product offering excellent functionality and security.

Features:

• Designed for uPVC, Timber and Aluminium windows
• Compatible with a wide range of window systems
• Suitable for Security Applications
• Included within the Yale Lifetime Security Guarantee. *Terms and conditions apply
• Available in a range of colours
• Suitable for push to lock applications
• Manufactured from high performance materials

Specifications:

• BS EN 1670: Grade 4 (240hrs. NSST)
• 10-year Mechanical
  Guarantee
• Endurance Tested to BS 6375: Part 2 (20,000 cycles)
• Designed to achieve the requirements
  of PAS24 when fitted with Yale’s
  complete Vertex hardware

Maintenance:

• Yale recommends this product is surface cleaned with a damp cloth only and is kept free from any building materials and debris which could affect the mechanism.

Material Specification:

• Stainless Steel 304
• Reinforced Nylon
• High performance Spring Steel

Packaging:

• Boxed in 50's

Colour Variants:

• White
• Black
• Grey

Perfectly engineered allowing users to choose between tilt modes to make cleaning and maintenance more convenient

Features:

• Designed for uPVC, Timber & Aluminium windows
• Options for a wide range of systems
• Yale branded hardware
• Constructed in high quality materials
• Included with the Yale Lifetime Security Guarantee. *Terms and conditions apply
• Standard and quick release models available
• A size range to suit almost any window
• Suitable for sashes weighing up to 35kgs
• Suitable for Sashes between 315-1200mm tall
• Enables cleaning of external faces of sliding sashes

Specifications:

• 10-year Mechanical Guarantee
• BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 20,000 cycles

Material Specification:

• Stainless Steel
• Reinforced Nylon
• High-Performance Zinc
• Acetal Resin

Packaging:

• Standard Restrictors Boxed in 50’s
• Quick Release Restrictors Boxed in 50’s

Maintenance:

• The Vertex range of Tilt Restrictors are maintenance free.
  Where required surface cleaned with a damp cloth only and
  avoid using abrasive cleaning products. Please ensure the
  sash is free from any building materials and debris which
  could affect the mechanism
