Superior 1 Star Euro Profile Cylinders

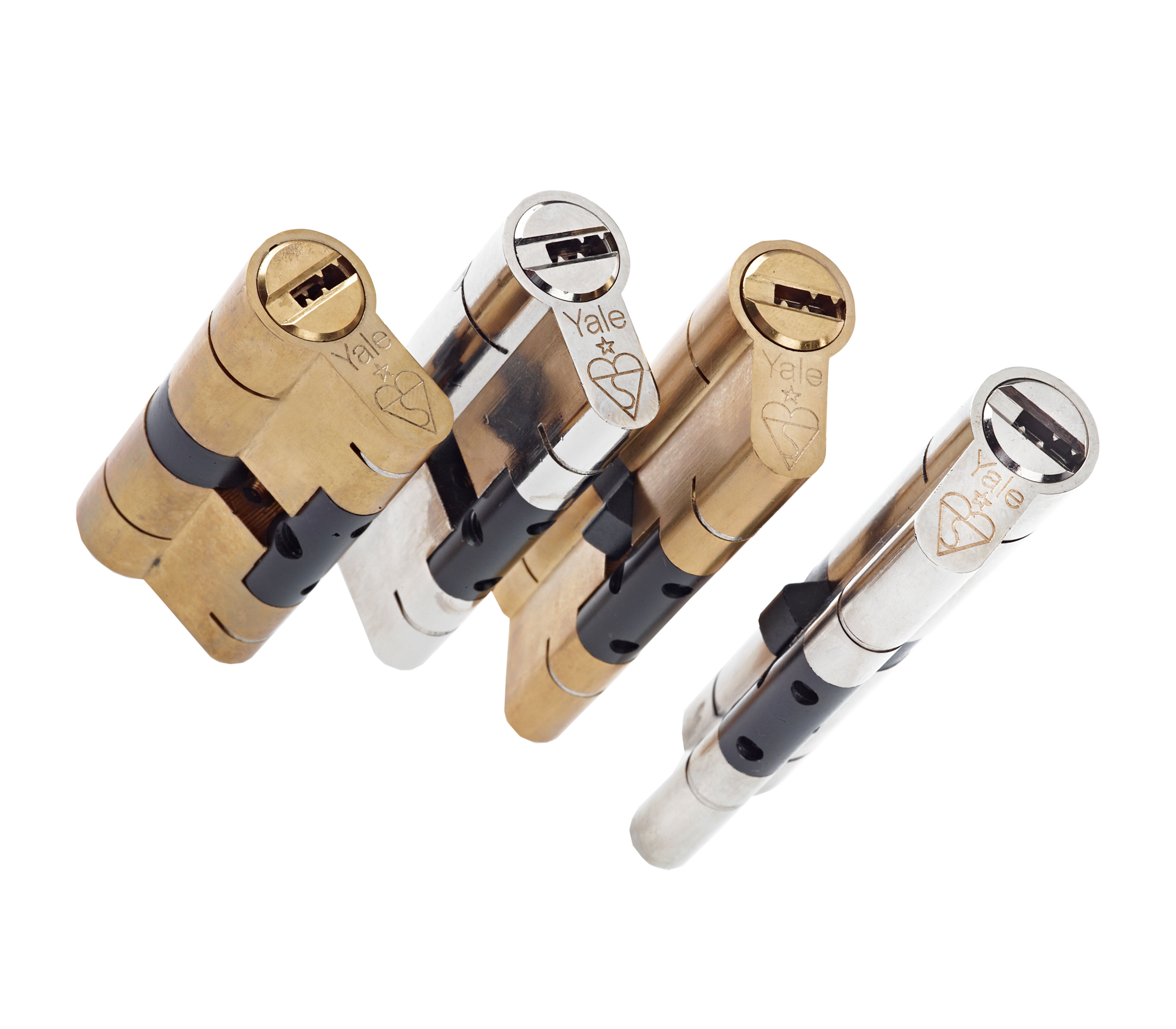

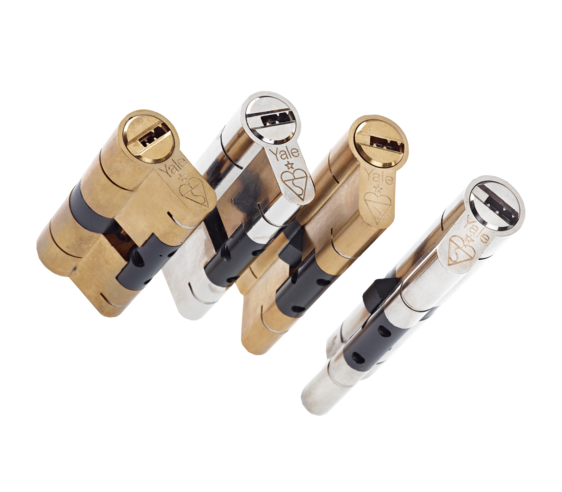

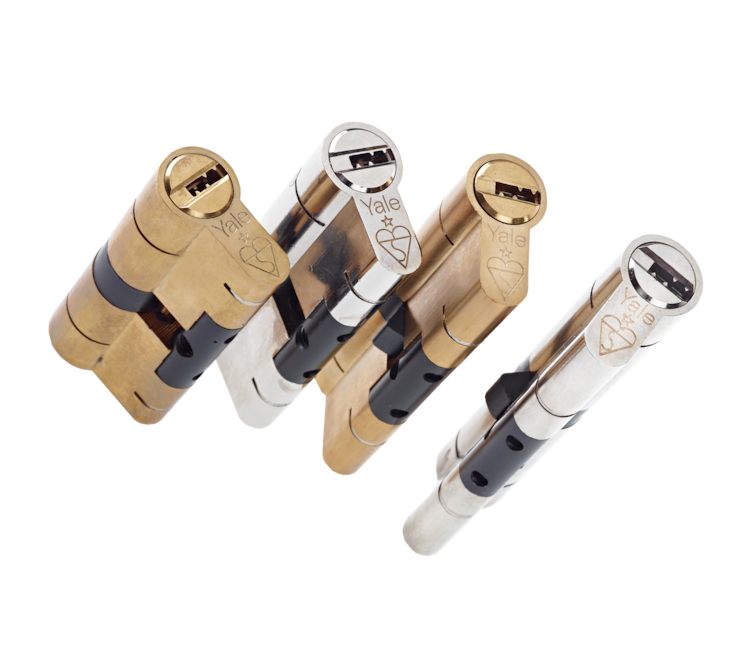

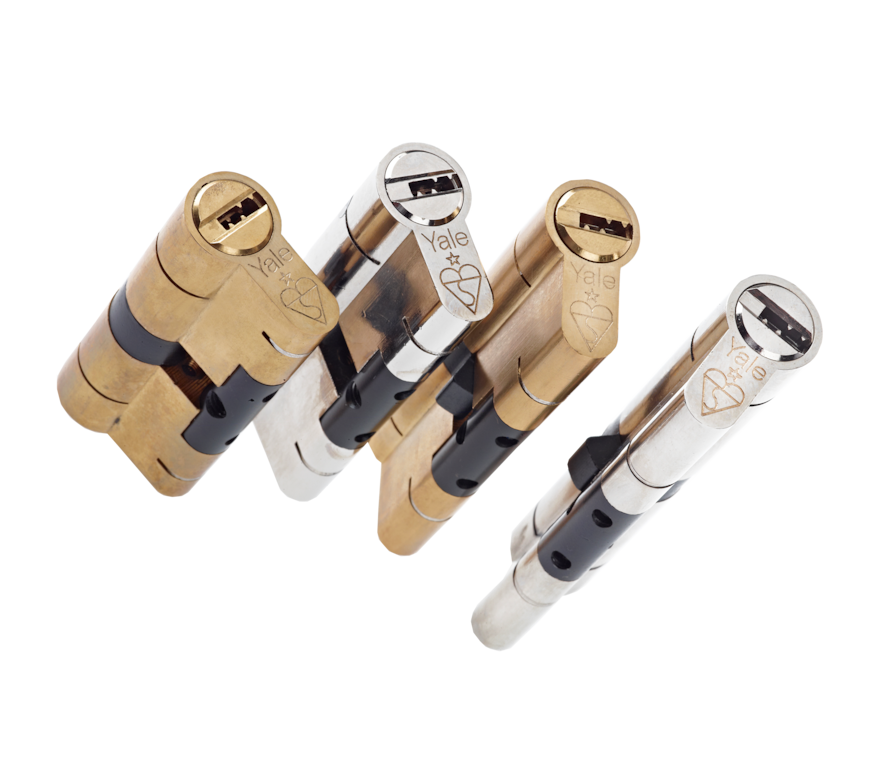

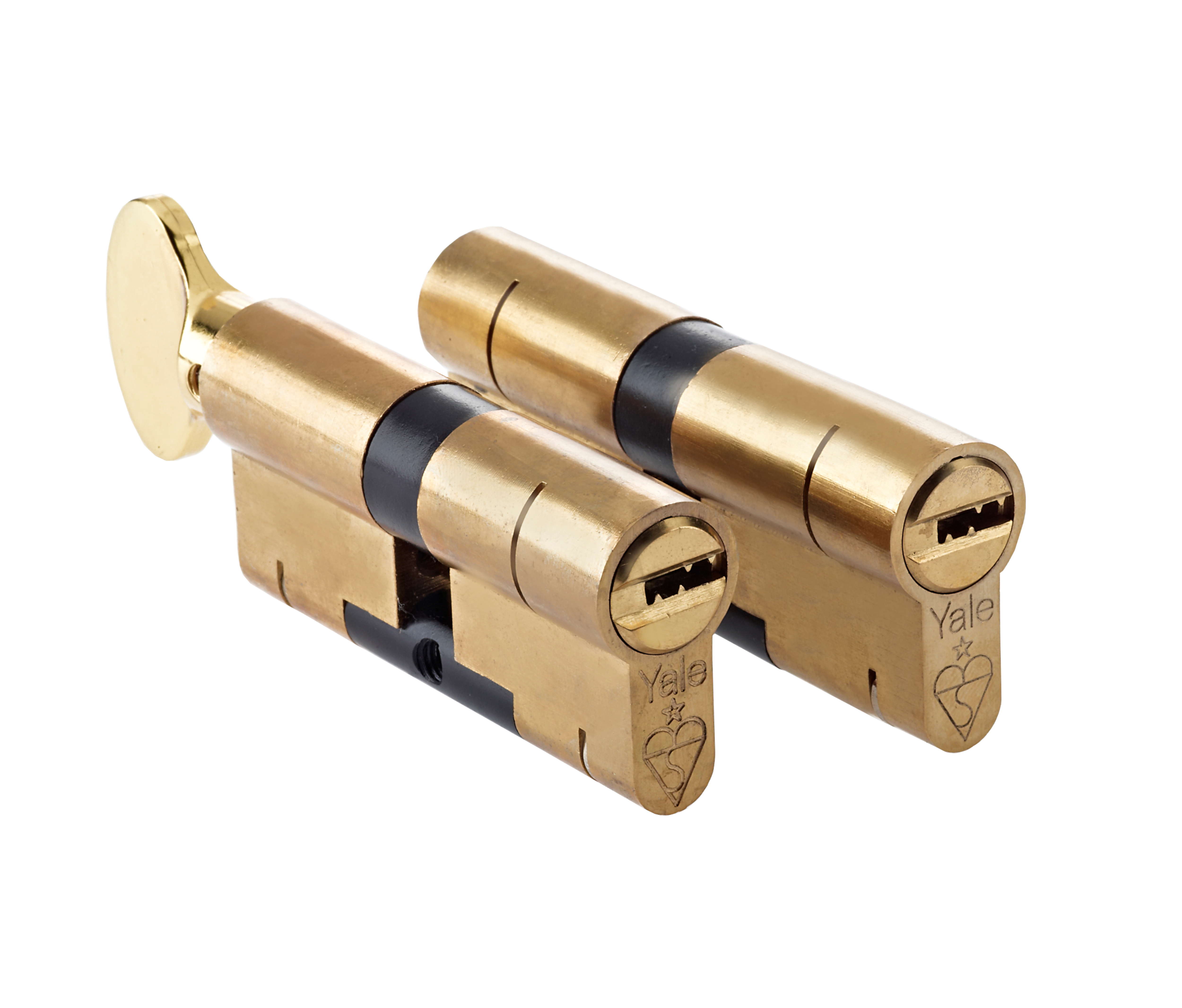

The Yale Platinum Euro Profile cylinder is a TS007 3 Star Kitemarked Anti-Snap security product to provide maximum security against known attack methods.

The Platinum 3 Star cylinder is independently tested by BSI to be awarded the British Kitemarked TS007:2014 3 Star accreditation.

Specification

• TS007-1:2014+A2:2018 3 Star accredited.

• KM559658
• BS EN 1303:2015 approved
• Anti-snap sacrificial front section
• Anti-Pick, Anti-Bump, Anti-Pull, Anti-Drill, Anti-Screw
• BSI approved re-pinning available with kitemark accreditation
• Euro retrofit cylinder
• 10-year Mechanical Guarantee
• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Features

• Superior strength with cylinder stability system
• Horizontal keyway
• Flat reversible dimple key with stylish new Yale branded key bow

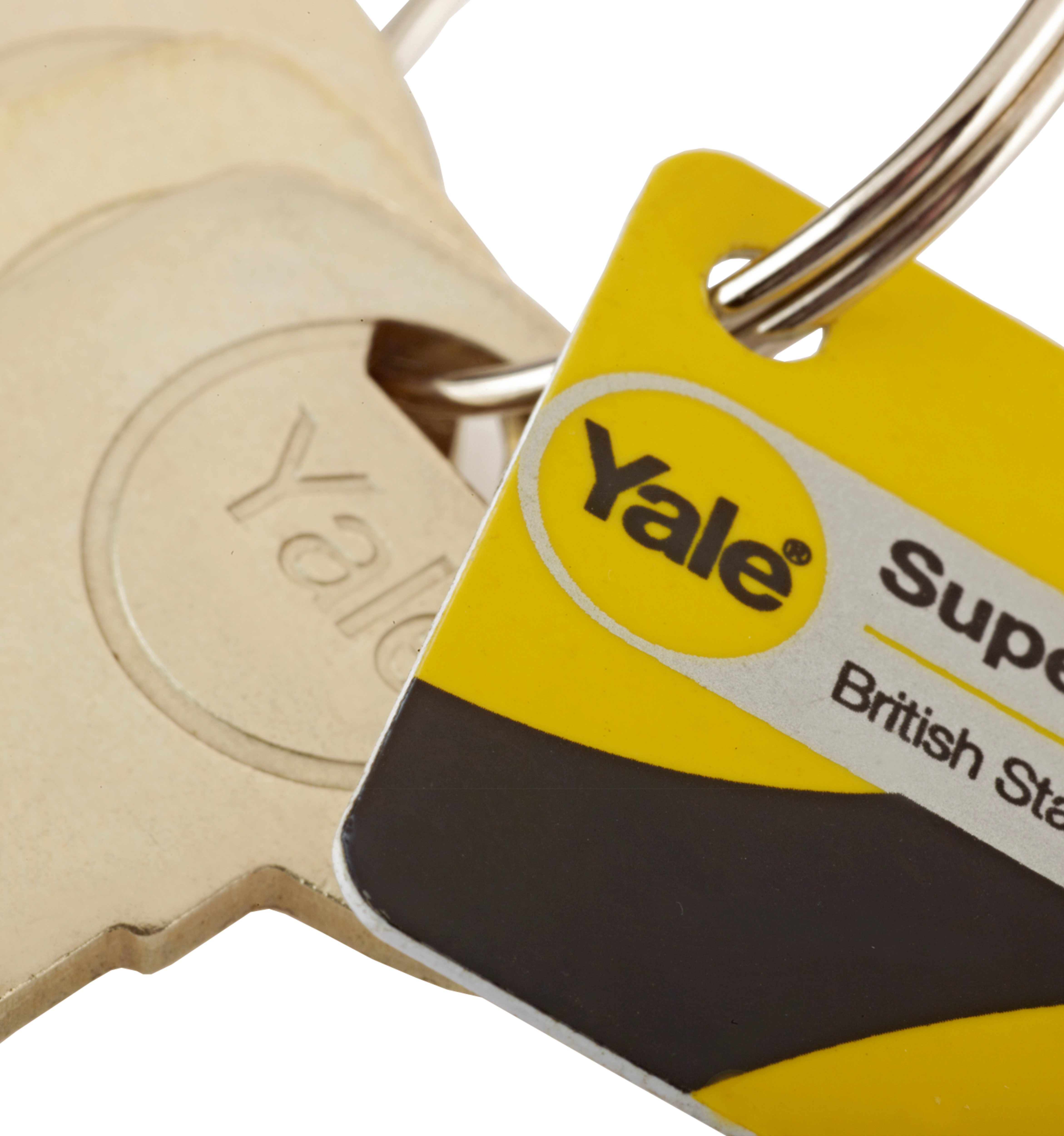

• Key card for easy code identification and duplicate key ordering

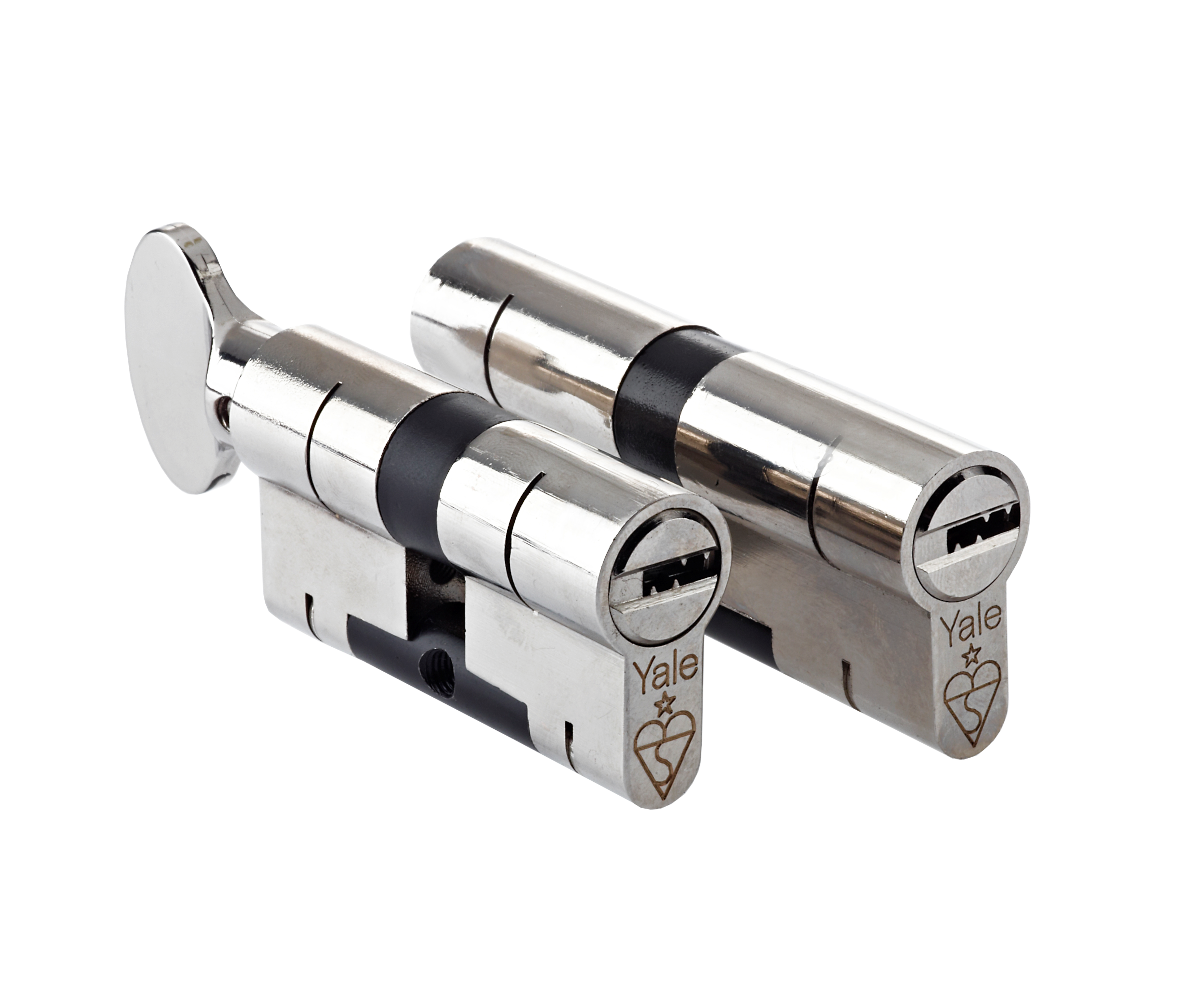

• Available in single, double and thumbturn variants
• Available in Brass, Nickel and Black finishes
• Order spare keys from yalestore.co.uk

TS007:2014

TS007 is a standard developed in response to concerns over cylinder attacks. The standard is characterised by a 3 star rating system, and can be achieved by combining a 1 star cylinder with a 2 star security door furniture or using a standalone 3 star cylinder. The Platinum series cylinder is approved to TS007 3 stars and does not require any additional security furniture.

Maintenance and care of your Yale cylinder

Yale recommend regular lubrication of your Yale cylinder locks to ensure continuous trouble free performance and operation.

For this we recommend using a PTFE based lubricant. A small amount of lubricant should be applied to the key and then inserted into the cylinder.  Rotate the key  a couple of times in line with the normal locking function.  Remove the key from the cylinder and wipe away and remaining lubricant  to ensure it isn’t transferred onto other objects.

The Yale Fortify 3 Star Kitemarked Cylinder is a security product that provides maximum security against known attack methods.

The Yale Fortify 3 Star Cylinder is independently tested by BSI to be awarded the British Kitemarked TS007-1:2024 3 Star accreditation.

Features:

• Inner strength - A dedicated central bridge delivers protection from external attack.
• Anti-Snap - The external section of the cylinder is designed to snap under attack, leaving your home safe and secure.
• Anti-Bump - Specialised side pins provide bump resistance.
• Anti-Pick - The unique technology features a combination of tumbler and side pins, designed to resist lock picking.
• Anti-Drill - Hardened steel protection incorporated in the cylinder provides resistance against drill attacks.

Specifications:

• Key type: sawn cut key
• Protection: Anti-bump, anti-snap, anti-pick, anti-plug extraction, and anti-drill
• Suitable for: PVCu, Timber, Composite and Aluminium
• Available cylinder types: Double Key-Key, Thumb-turn, and Paired Alike – ideal for French door applications
• Available cylinder finishes: Dual colour

Accreditations:

• BS EN1303: 2015 - 160A0C5D*
• BSI TS007-1: 2024 - KM559658
• Secured by Design Approved
• 10-year mechanical guarantee

Maintenance Instructions:

Yale recommends regular lubrication of your Yale cylinder locks to ensure continuous trouble free performance and operation.

For this, we recommend using a PTFE based lubricant. A small amount of lubricant should be applied to the key and then inserted into the cylinder.  Rotate the key a couple of times in line with the normal locking function.  Remove the key from the cylinder and wipe away any remaining lubricant to ensure it isn’t transferred onto other objects.

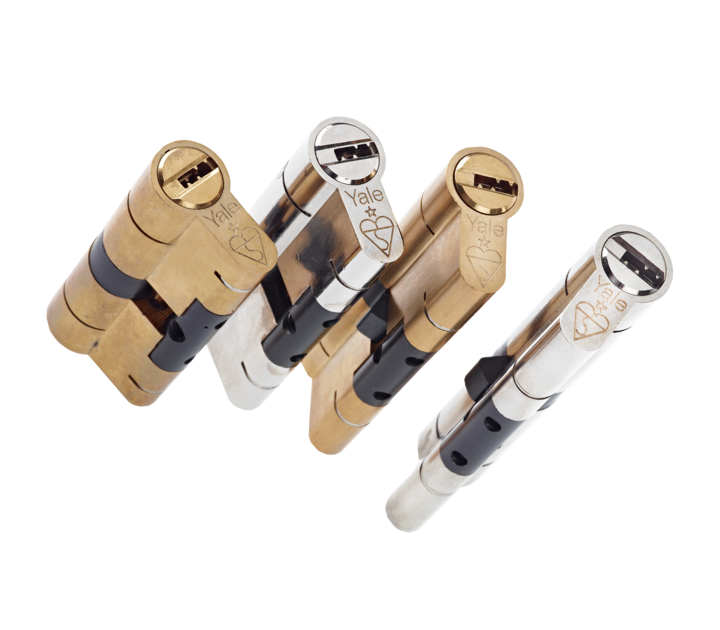

The Yale KM Euro Profile cylinder has been developed to provide protection against common cylinder attack methods.

The KM series offers British Kitemarked TS007:2014 1 star security and has been tested to the British Standard BS EN 1303:2005.

Suitable as a replacement product on PVCu, wood and composite doors this cylinder is Secured by Design approved and recommended for us on doors that require a high level of security and attack protection.

Specifications:

• Replacement 6 pin Euro Profile Cylinder
• Available in Euro Single, Euro Double and Euro Turn
• BSI Kitemark Approved - KM532920
• TS007 1 Star Cylinder
• Secured by Design approved
• High Security Level
• 10-Year Mechanical Guarantee
• Corrosion tested to BS EN 1303:2005 (96hrs. NSST)
• Endurance tested to 50,000 cycles

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

Features:

• Anti-Bump, Anti-Pick,  and Anti-Drill protection
• Available in Polished Brass and Nickel Plated finish
• 3 Keys supplied
• 10 year mechanical guarantee

Maintenance and care of your Yale cylinder

Yale recommend regular lubrication of your Yale cylinder locks to ensure continuous trouble free performance and operation.

For this we recommend using a PTFE based lubricant. A small amount of lubricant should be applied to the key and then inserted into the cylinder.  Rotate the key  a couple of times in line with the normal locking function.  Remove the key from the cylinder and wipe away any remaining lubricant  to ensure it isn't transferred onto other objects.

The Yale 6 pin Euro profile cylinder is a convenient everyday locking solution.

The cylinder is suitable as a replacement product on PVCu, timber and composite doors that require a standard level of security.


Features

• Replacement 6 pin Euro Profile Cylinder
• Yale branded
• Supplied with three Yale branded keys as standard
• Available in single, double and thumb-turn variants
• Available in brass and nickel finishes
• Suitable for PVCu, timber and composite doors

Specifications

• 2 year Mechanical Guarantee
• Standard security level

Care and Maintenance

Yale recommends regular lubrication of your Yale cylinder locks to ensure continuous trouble-free performance and operation.

For this, we recommend using
a PTFE based lubricant. A small amount of lubricant should be applied to the key and then inserted into the cylinder. Rotate the key
a couple of times in line with the normal locking function. Remove the key from the cylinder and wipe away any remaining lubricant to ensure it isn’t transferred onto other objects.
