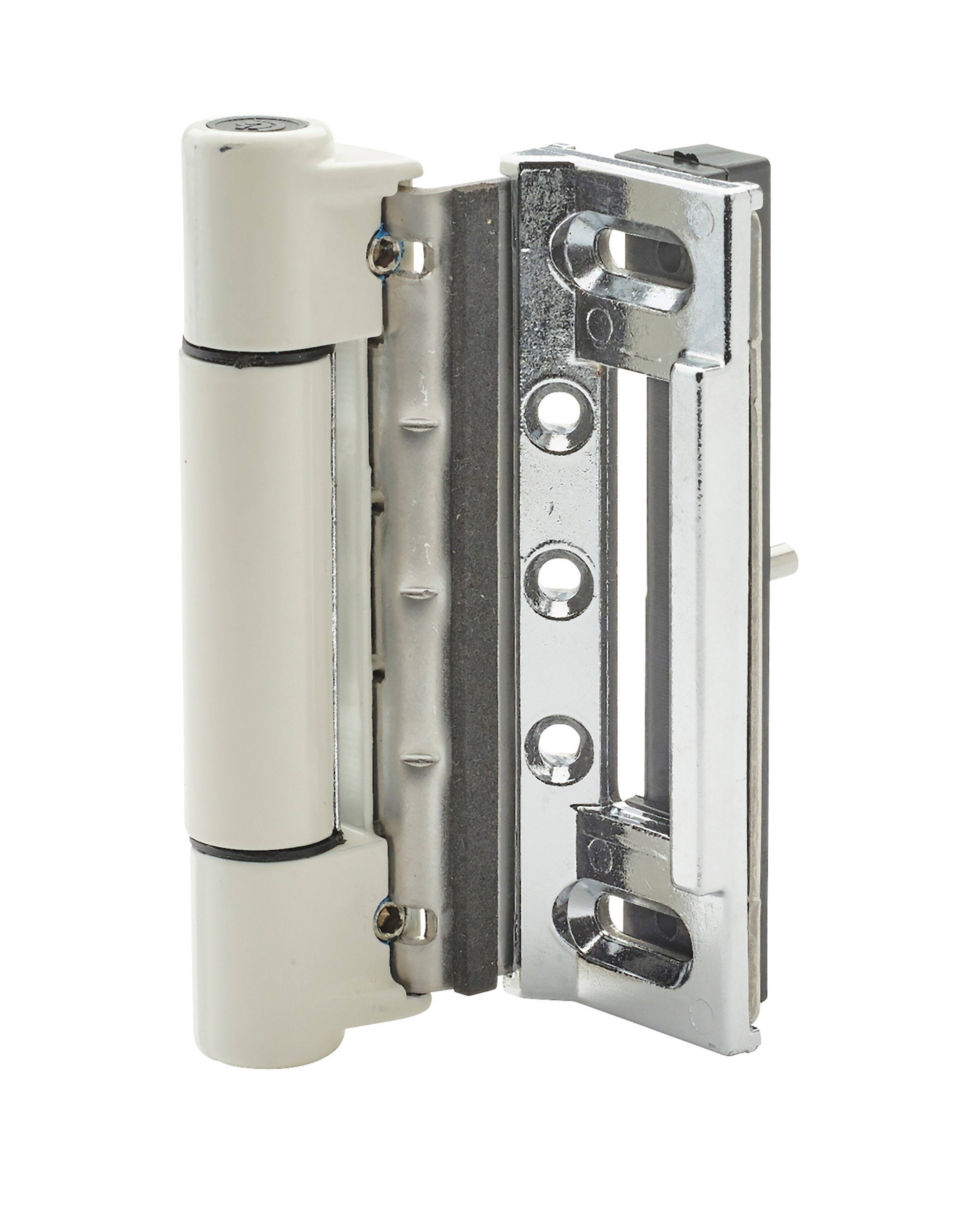

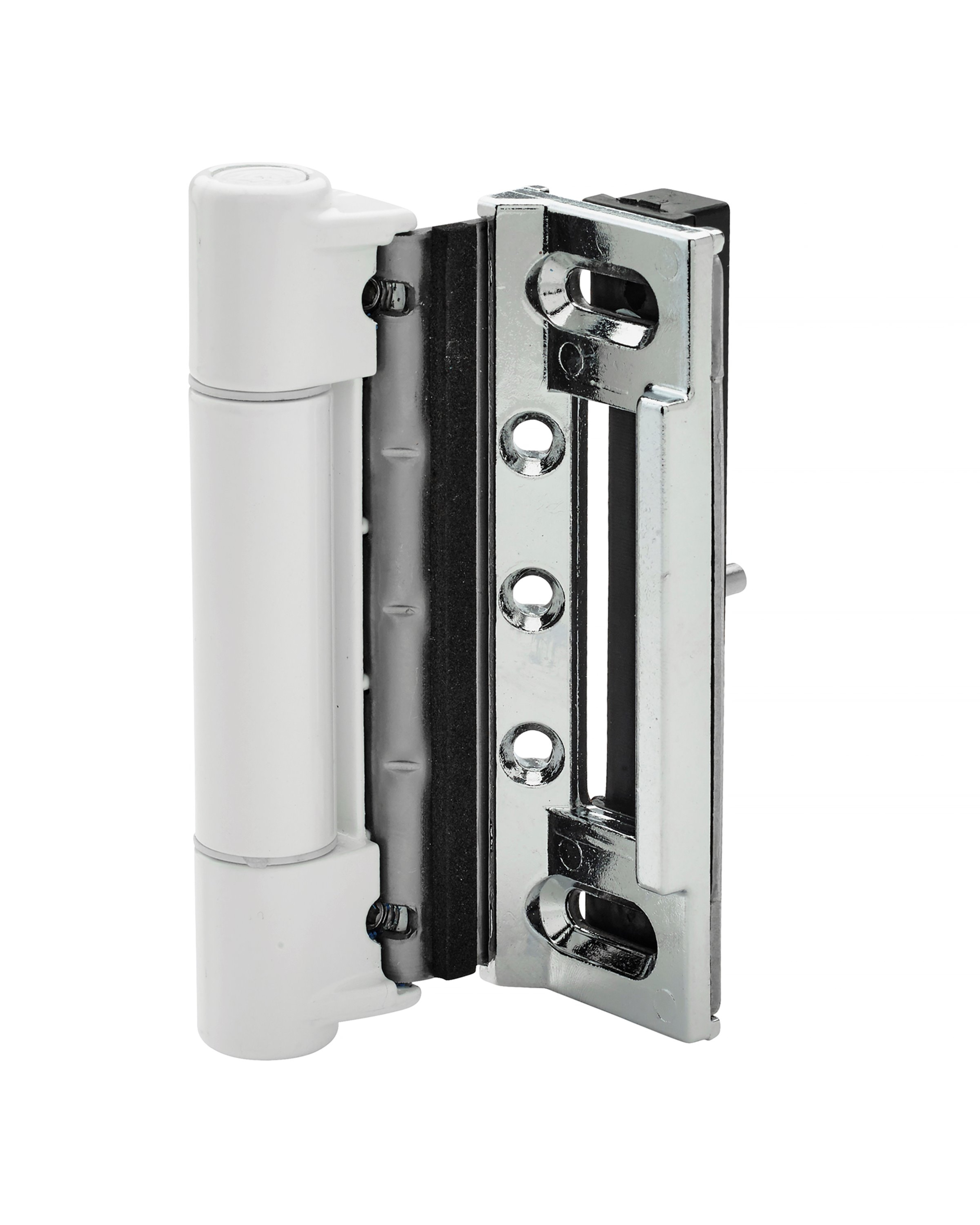

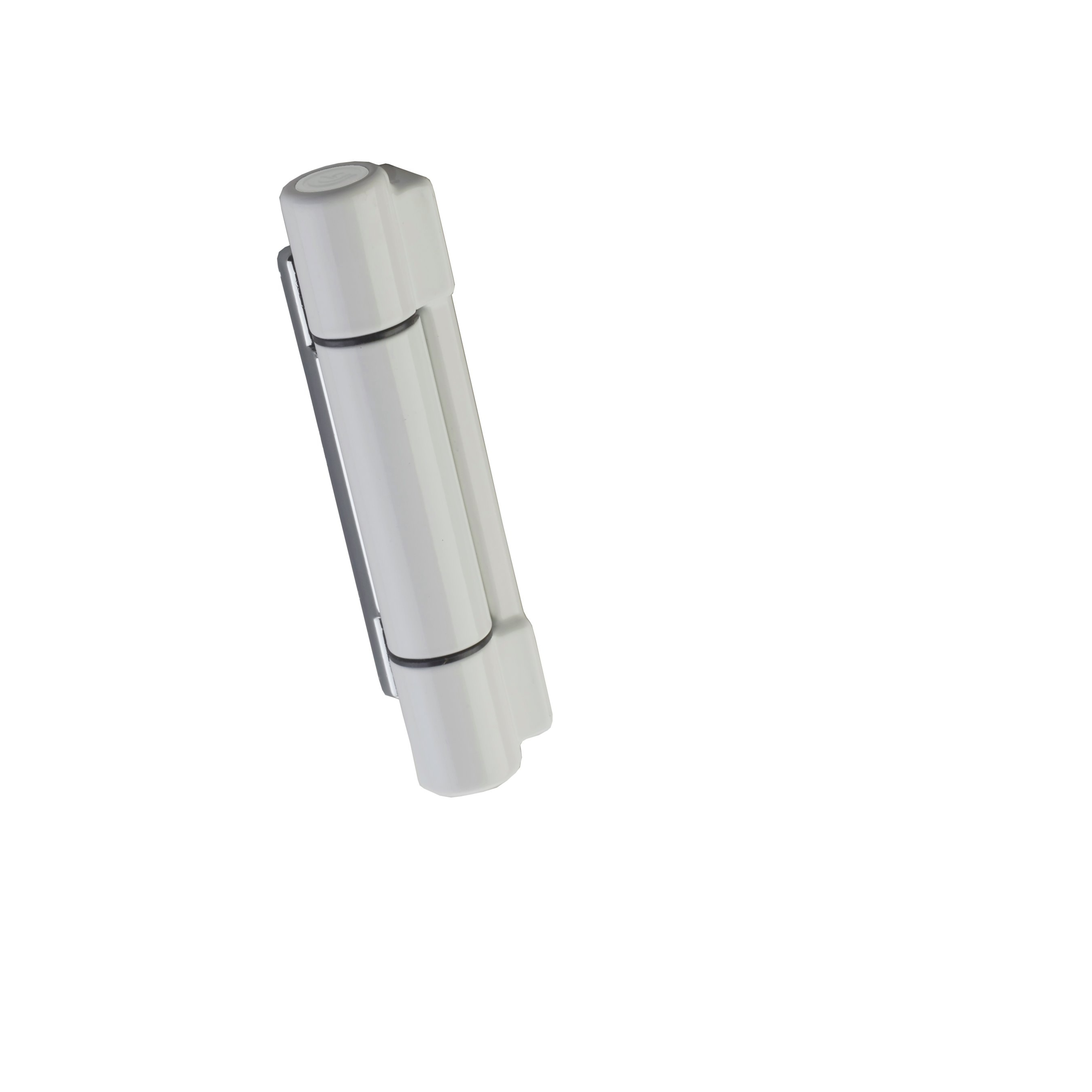

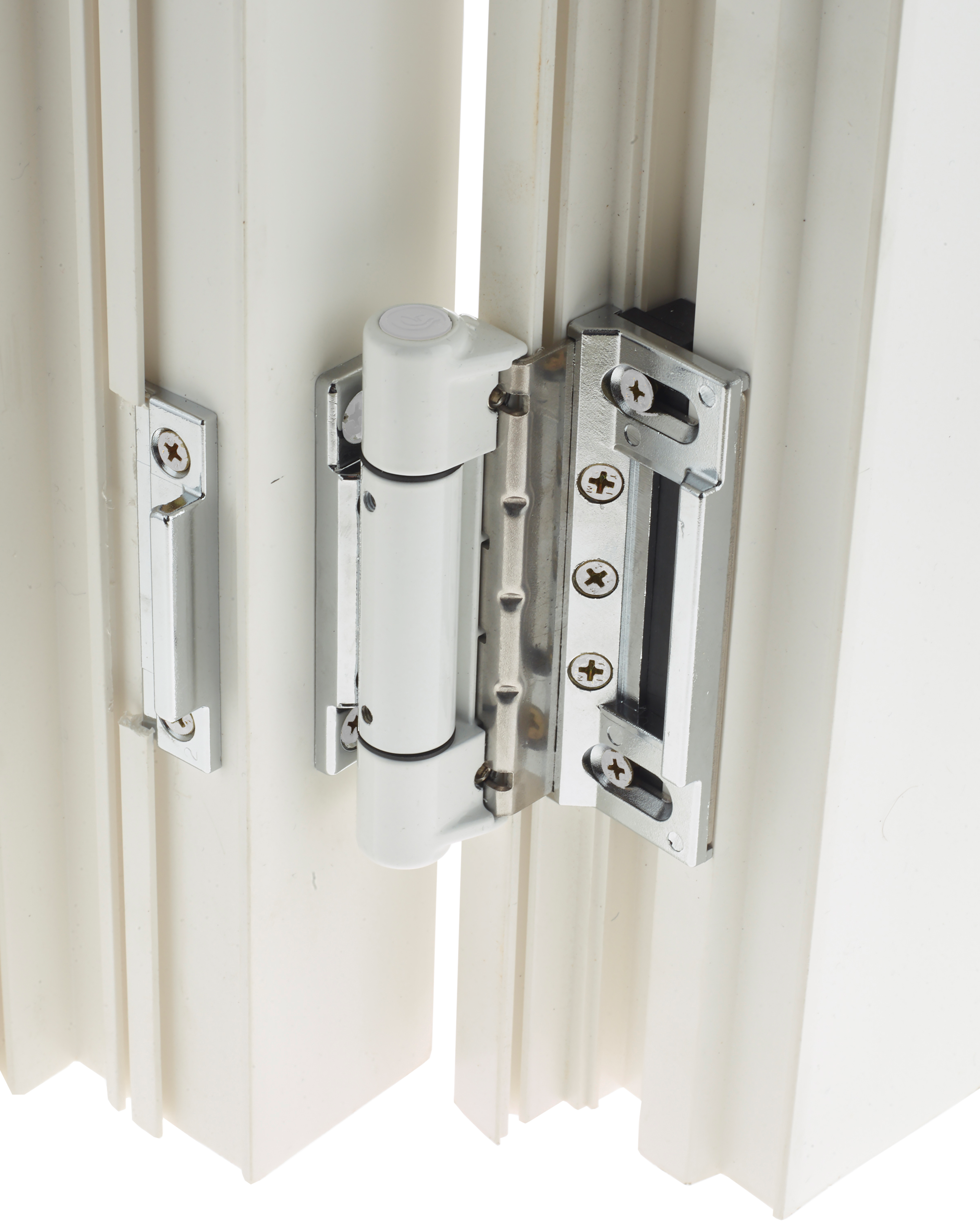

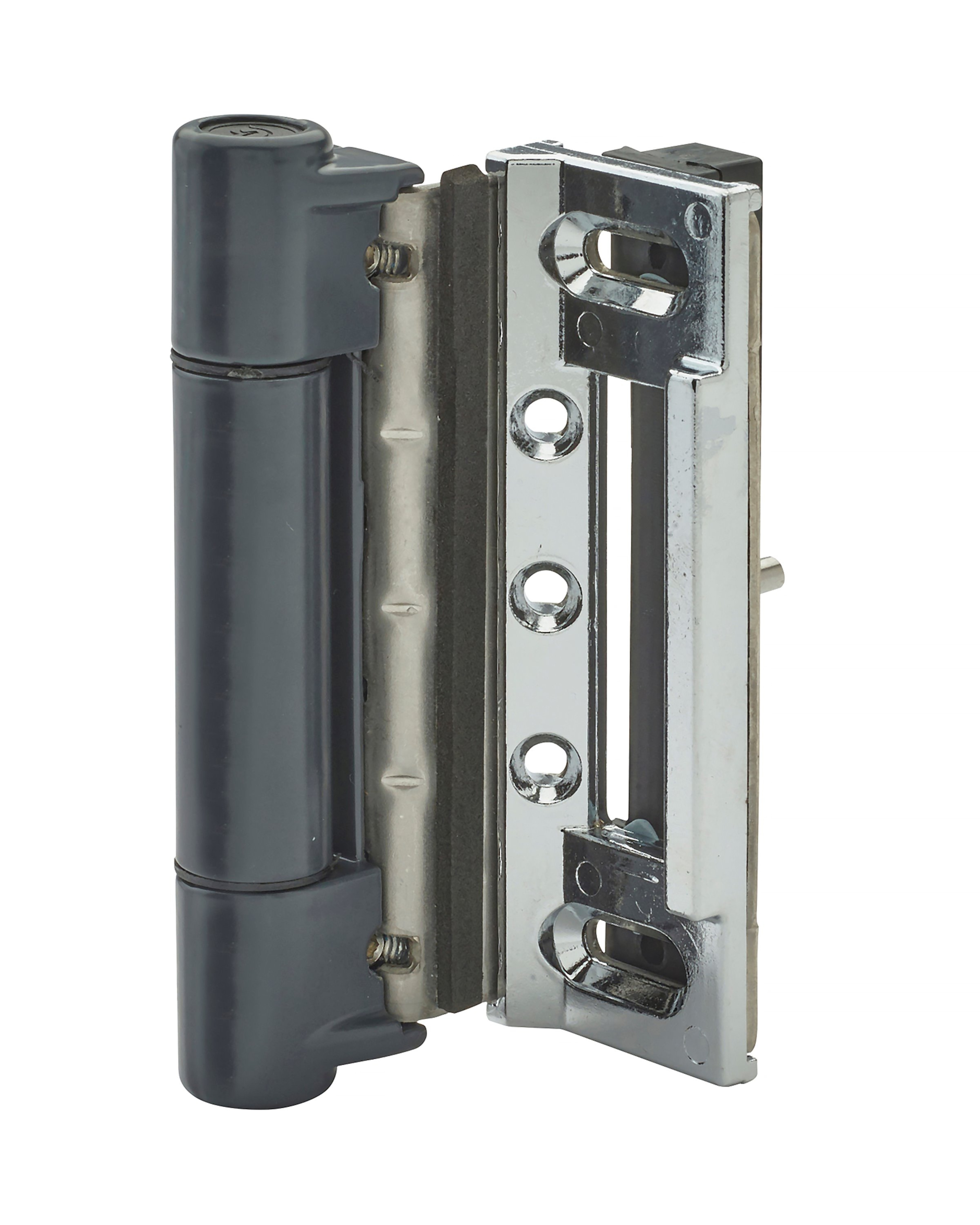

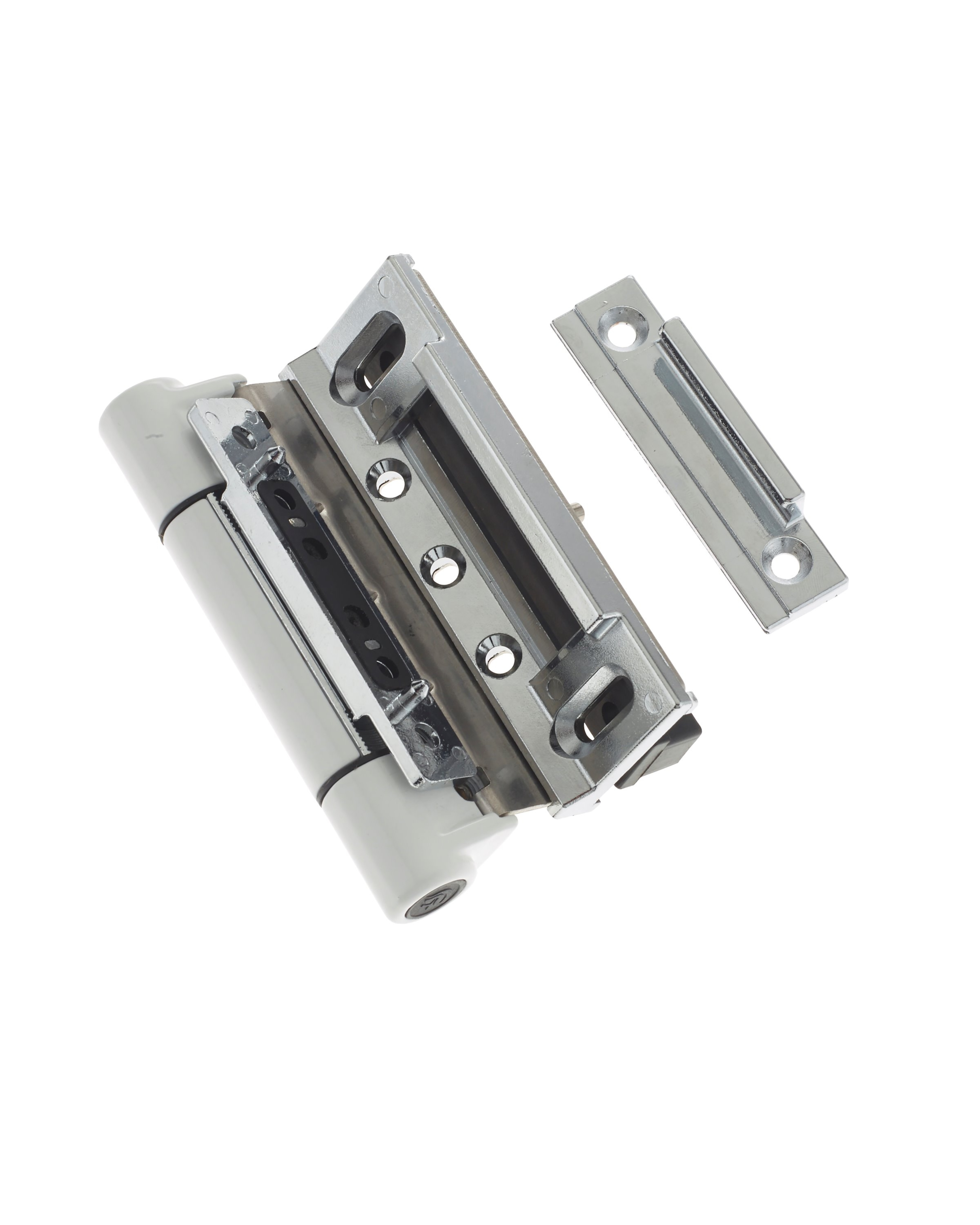

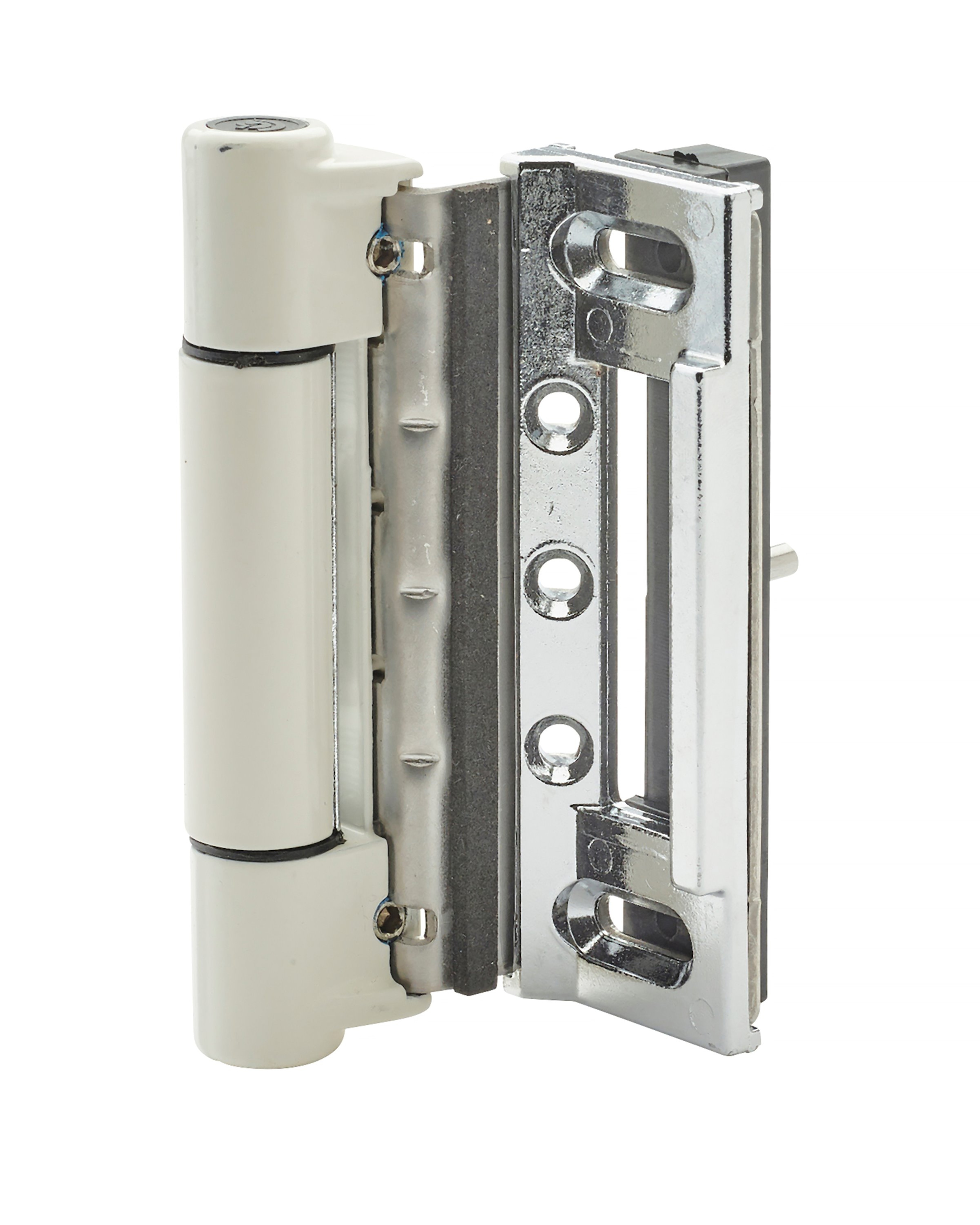

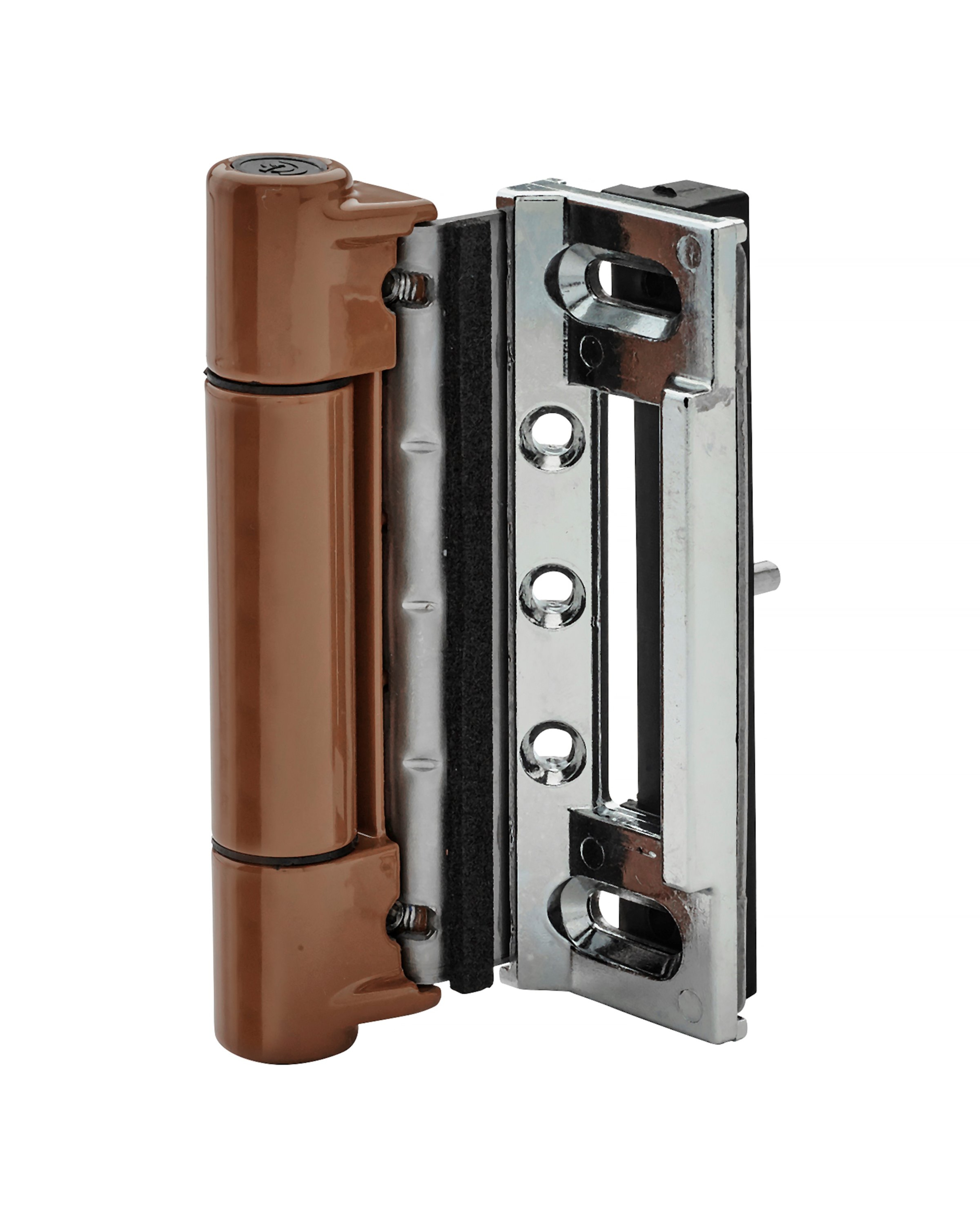

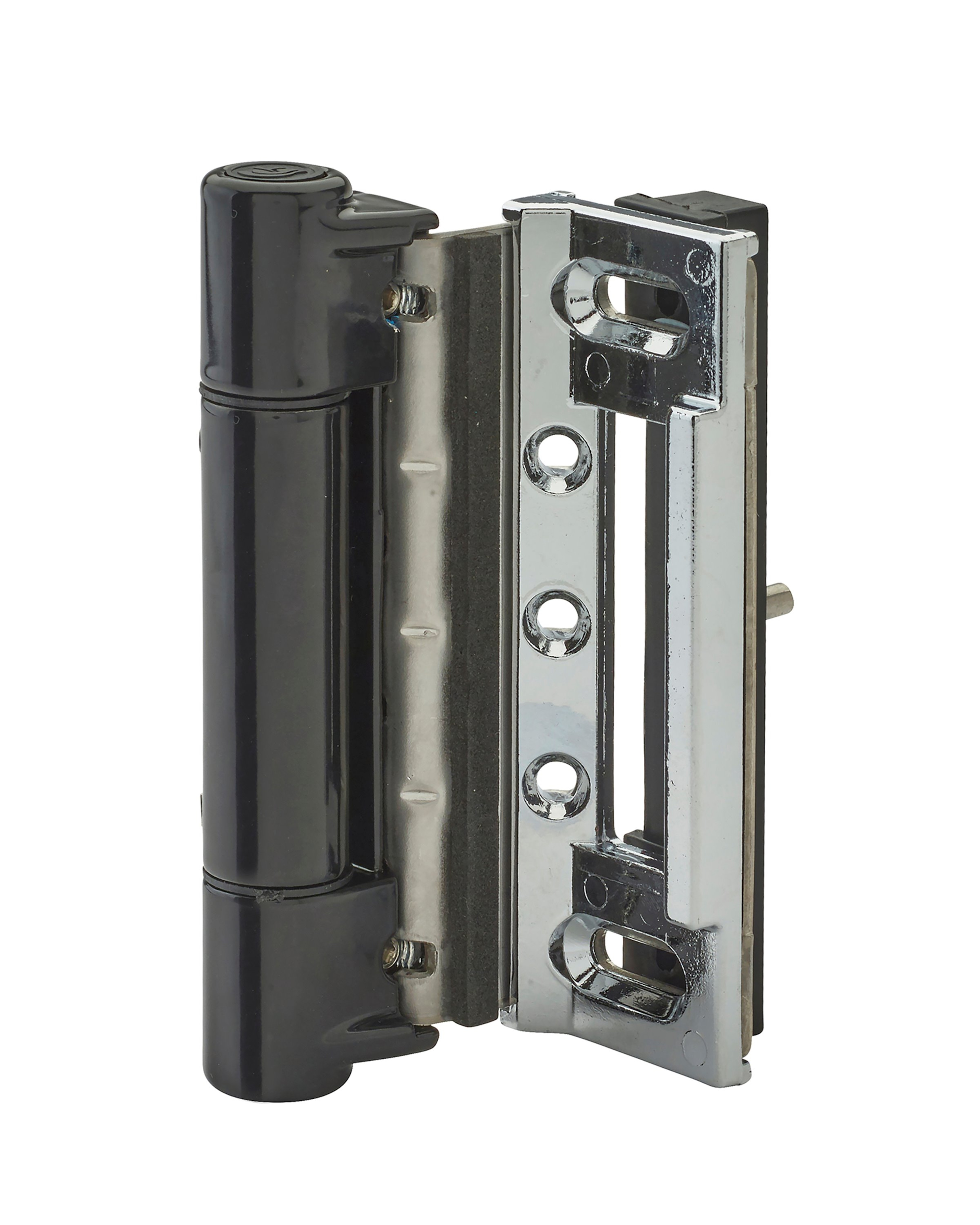

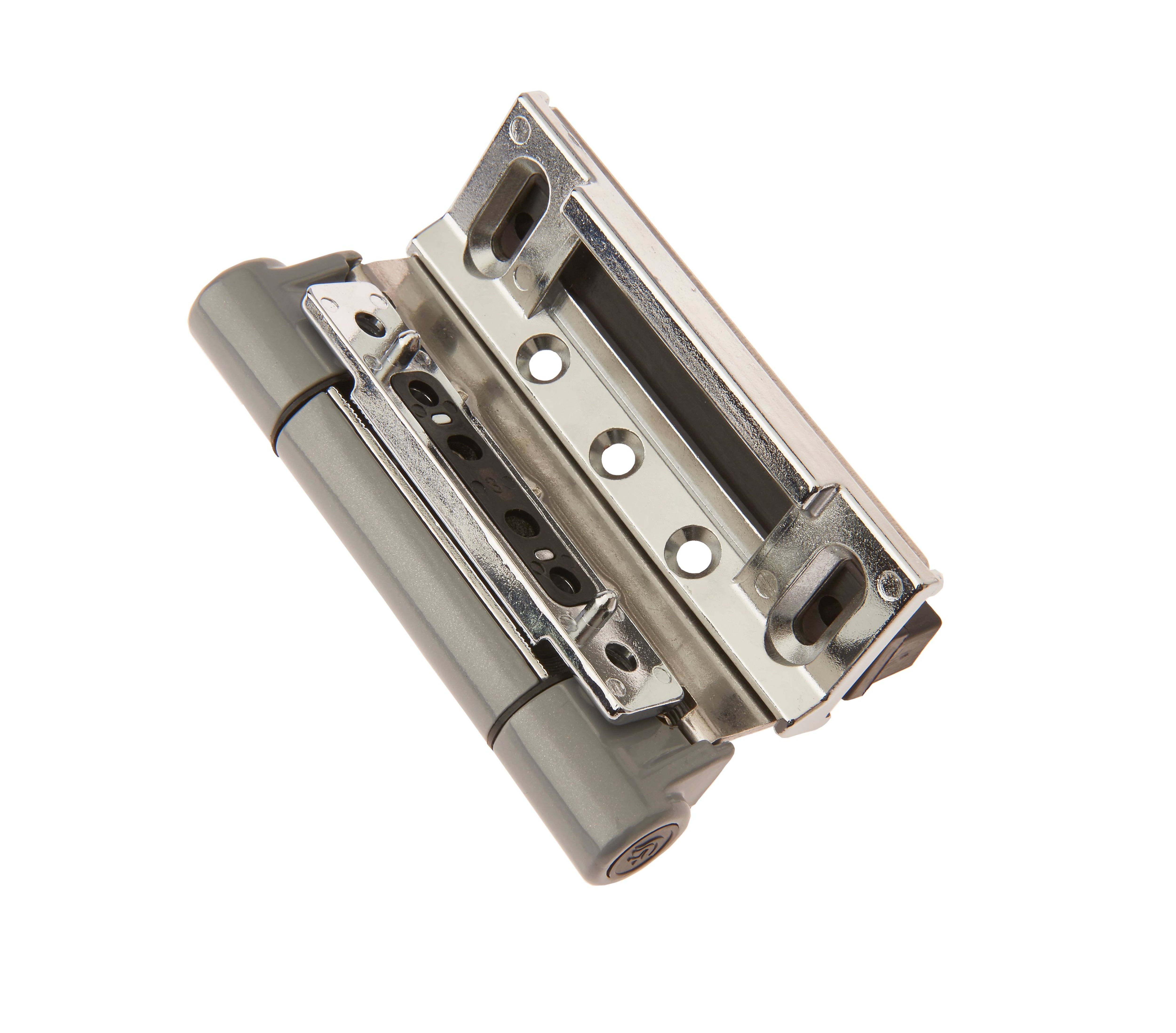

Athena Hinge (PVCu)
The Athena Hinge is a 3D slim sightline door hinge which offers a slim, aesthetically pleasing design with an unobtrusive appearance. The unique patented design offers easy, accurate and independent 3D adjustment with the door in the closed position. Supplied pre-assembled and ready to fit, dramatically speeding up the fitting process.
Features:
- 3D adjustment
- Compression, height and lateral adjustment achievable with door closed (Full Float Technology for visual alignment)
- No unsightly gaps visible following adjustment
- PAS 24:2016 compatible as part of a door assembly
- Double knuckle construction for increased load bearing

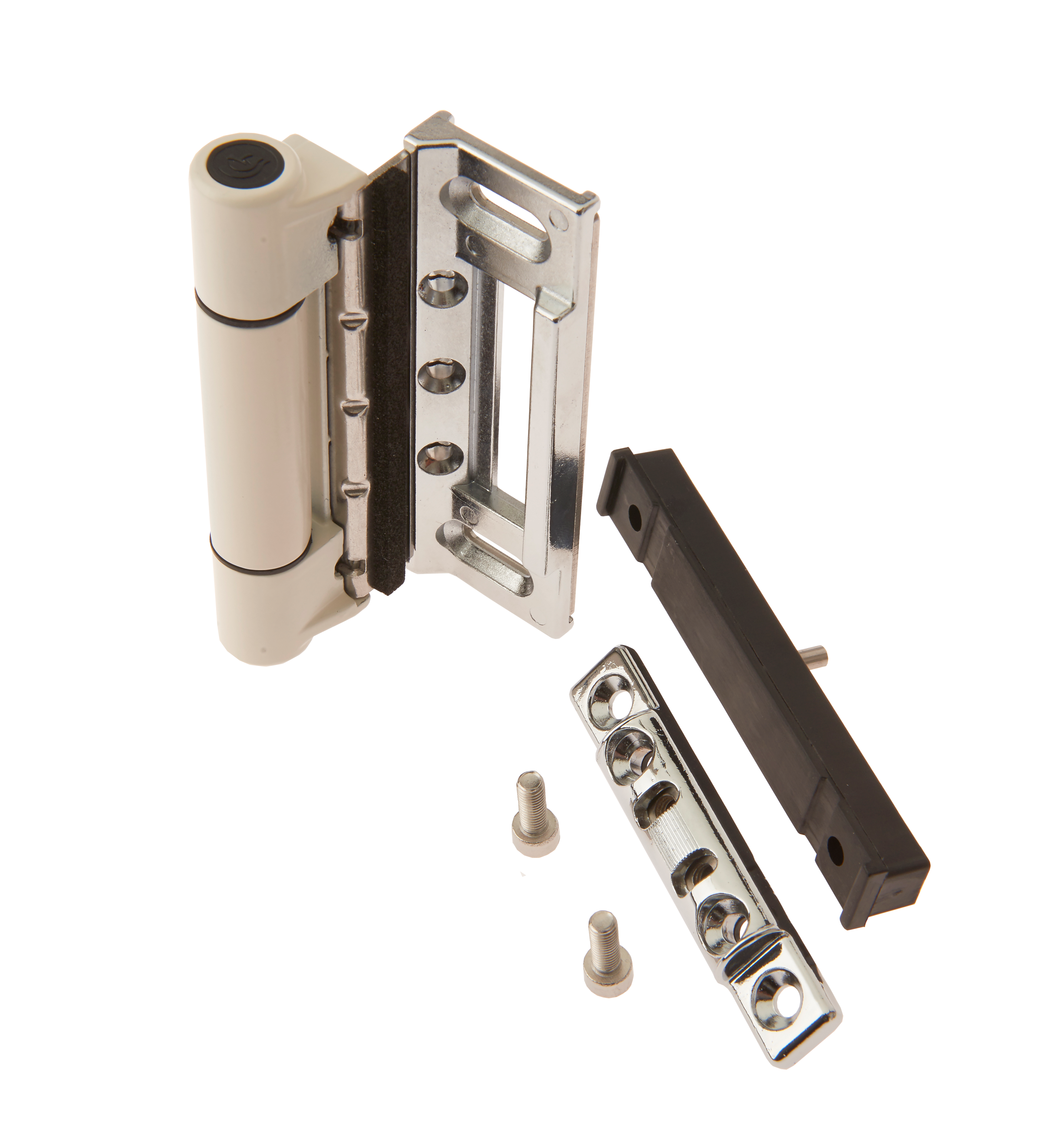

- Fitter and installer friendly (Lift On, Lift Off door design)
- One product fits all standard eurogroove systems
- Packaging available to suit high volume, separated flow line assembly

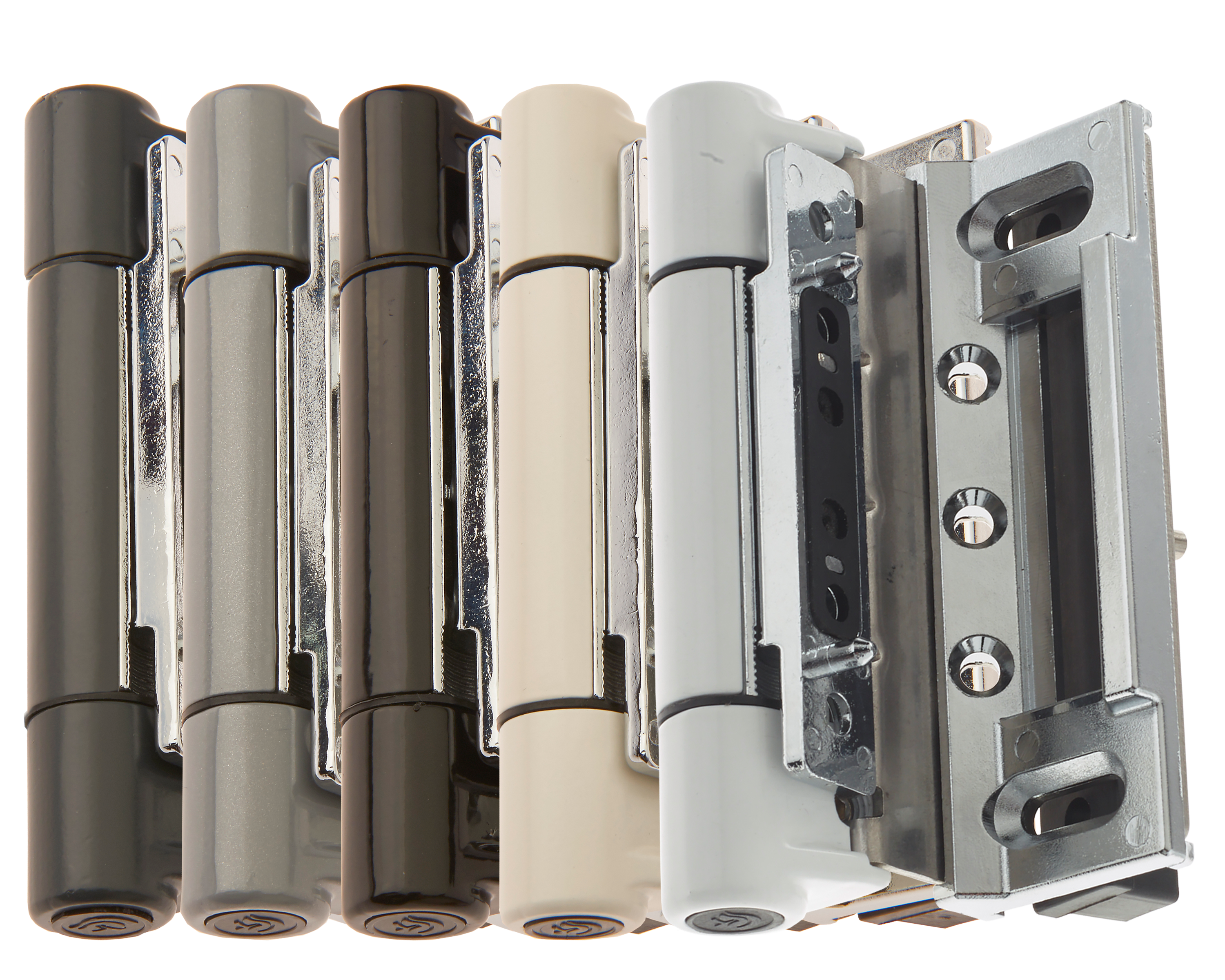

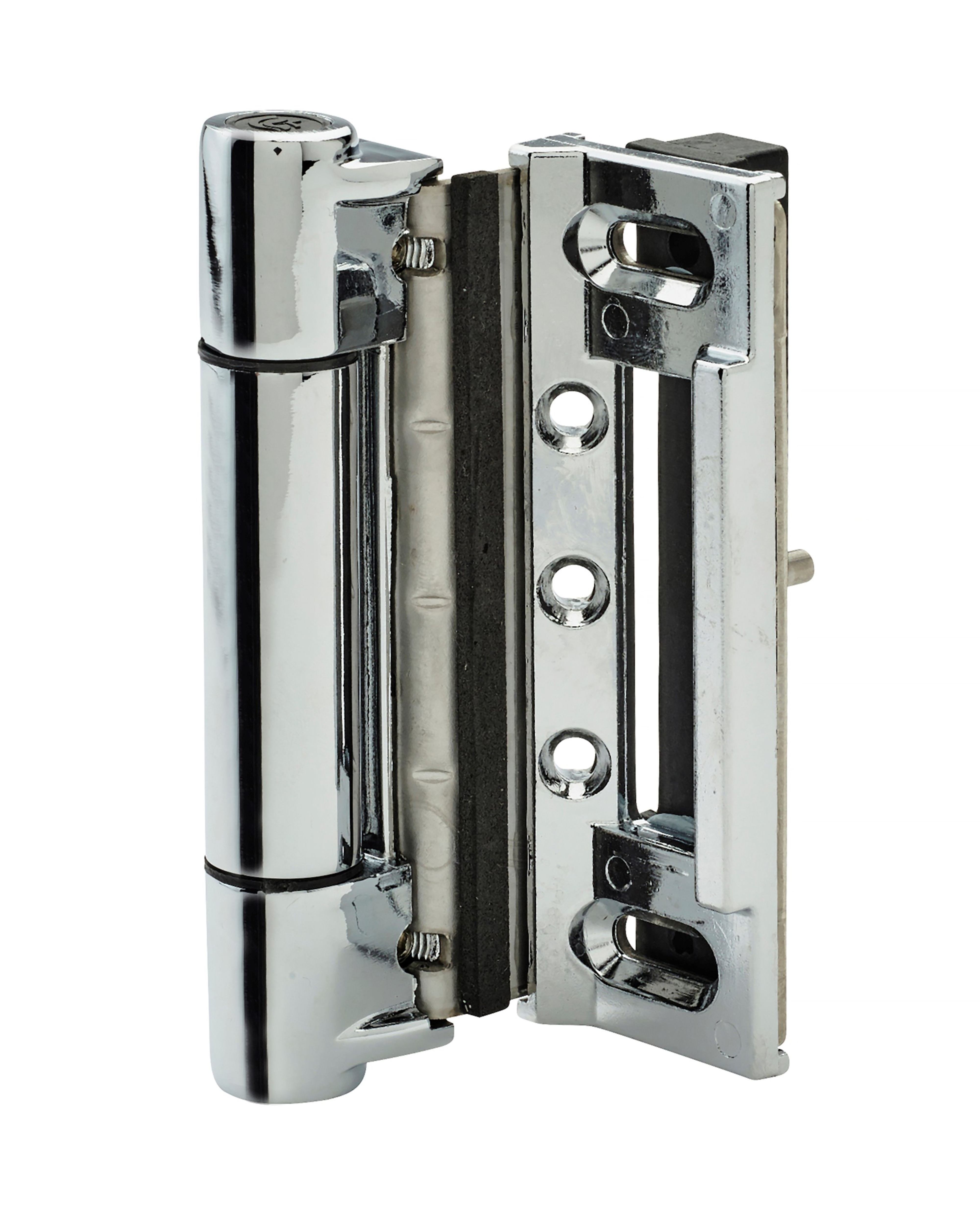

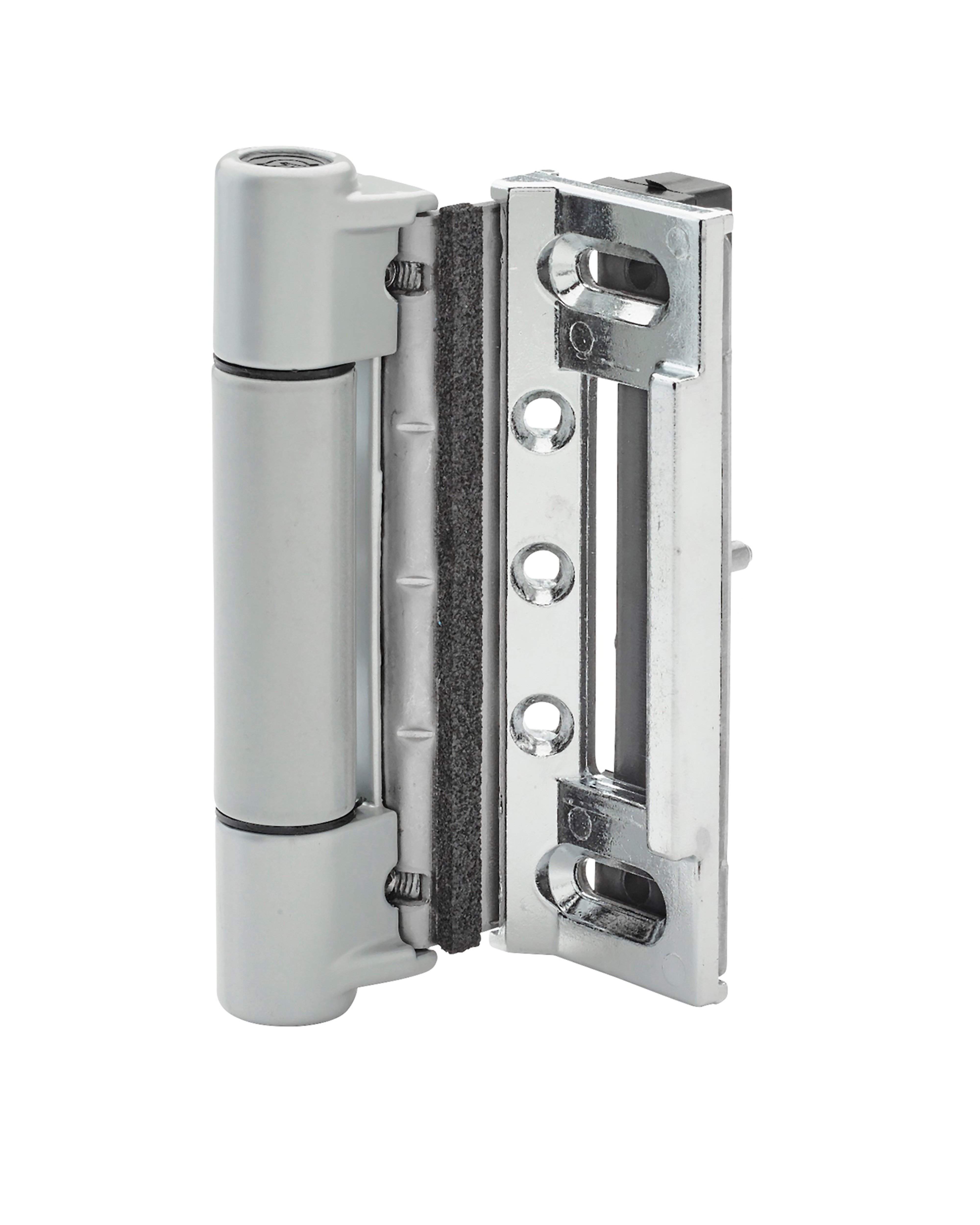

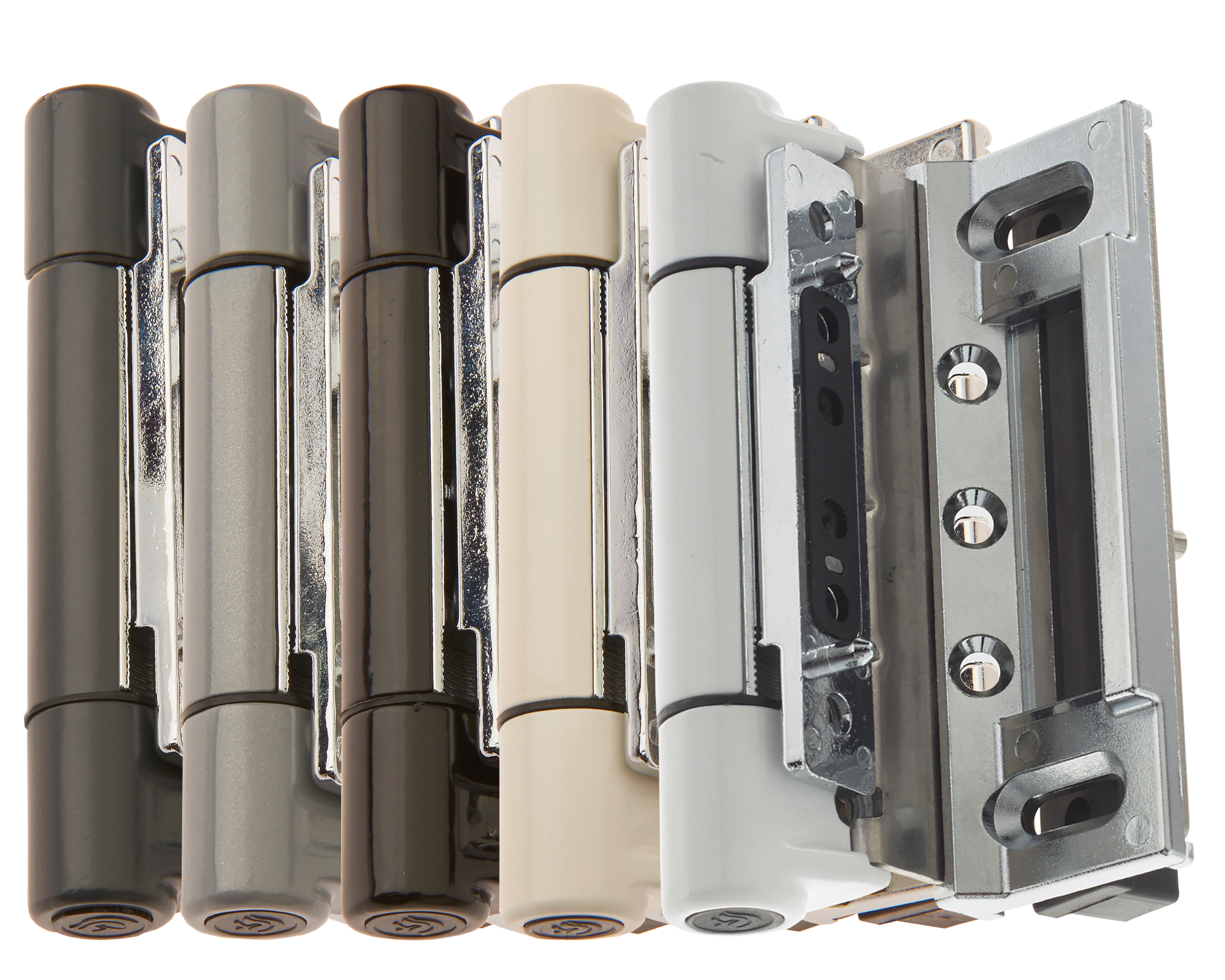

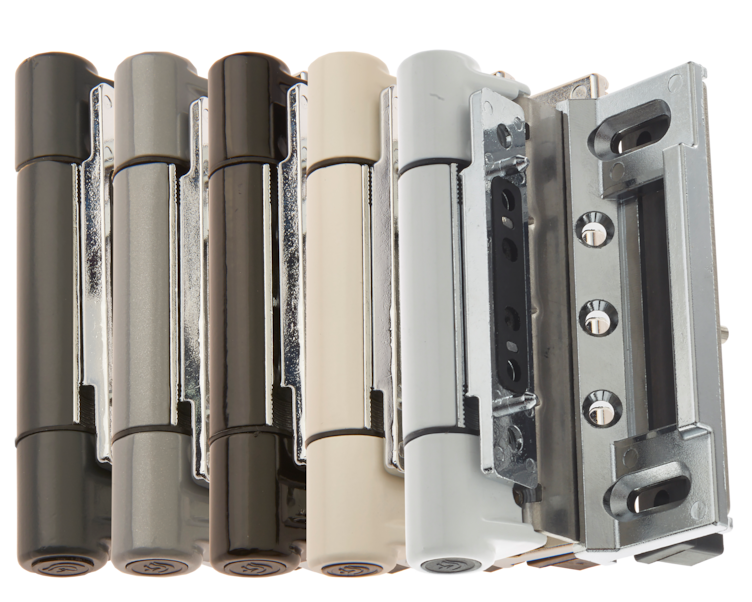

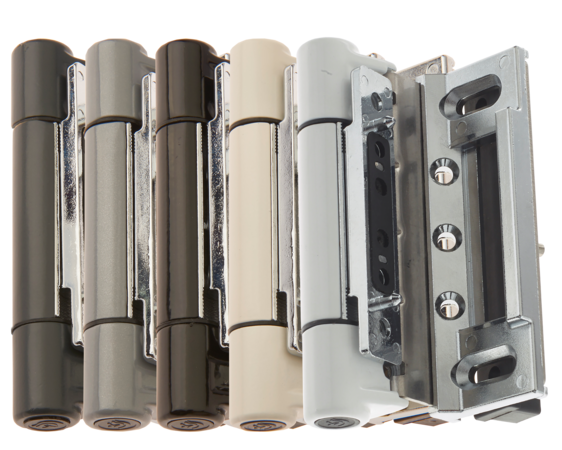

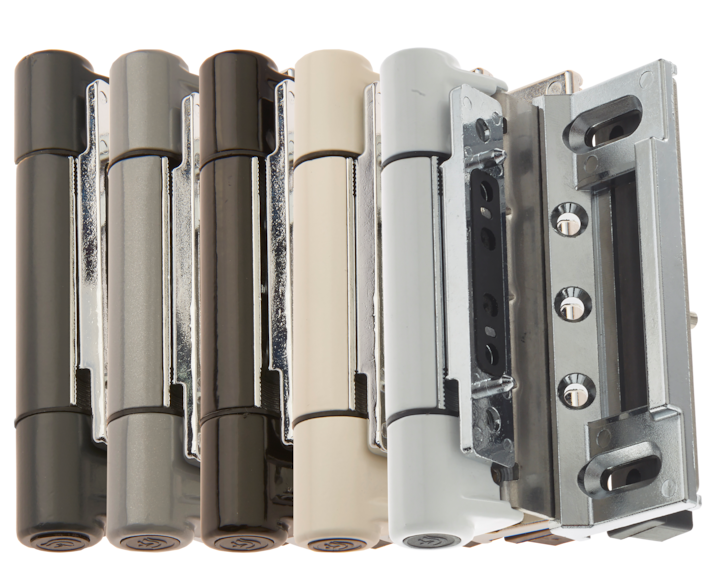

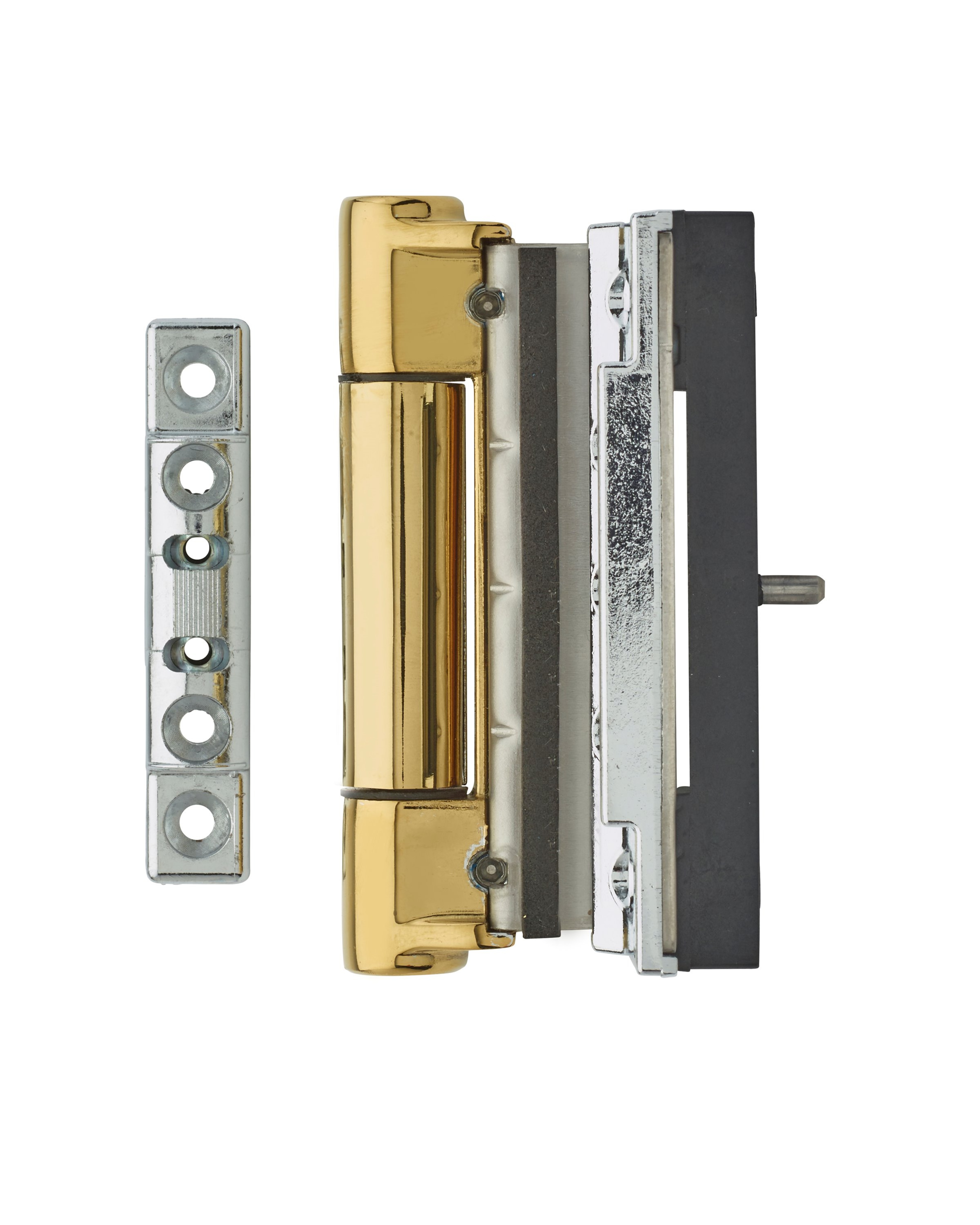

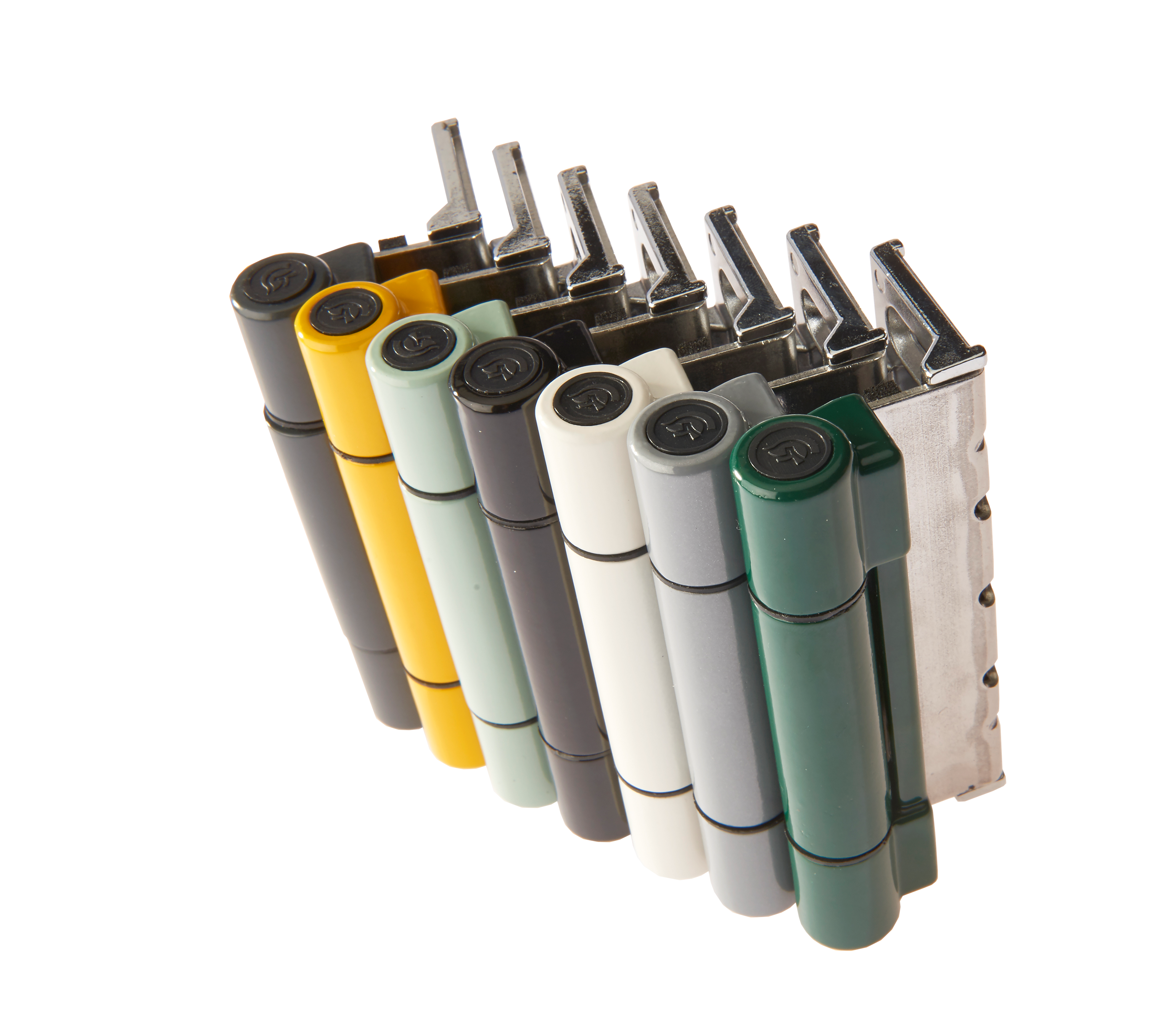

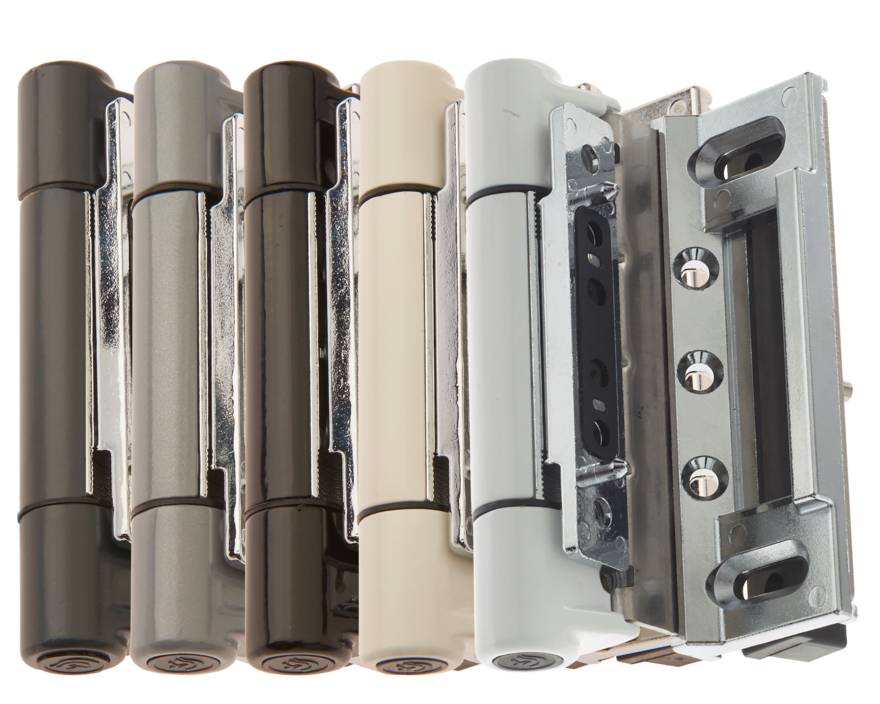

- Available in White, Black, Brown Oak (UV stabilised), Polished Chrome, PVD Gold and Satin Silver, (any RAL finished available upon request)
- Patented, unique design
- Integral interlocking security hooks available
Specification:
- 12-month Surface Finish Guarantee
- 10-year Mechanical Guarantee
- Zinc alloy
- Stainless Steel - Grade 430
- Plastic - GF Nylon, UV stabilised ABS and Acetal
- Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
- Alternatively 1,000 hours anti-corrosion on special painted finishes
- Conforms to EN1191 - tested to 100,000 cycles
- Can achieve PAS 24: 2016 as part of a door assembly
- Height: +/- 4mm
- Compression: +/- 2.00mm
- Lateral: +/- 4mm
- 3 hinges carry 100kg
*Guarantee subject to correct installation and maintenance
Included within the Yale Lifetime Security Guarantee*
*Terms and conditions apply
