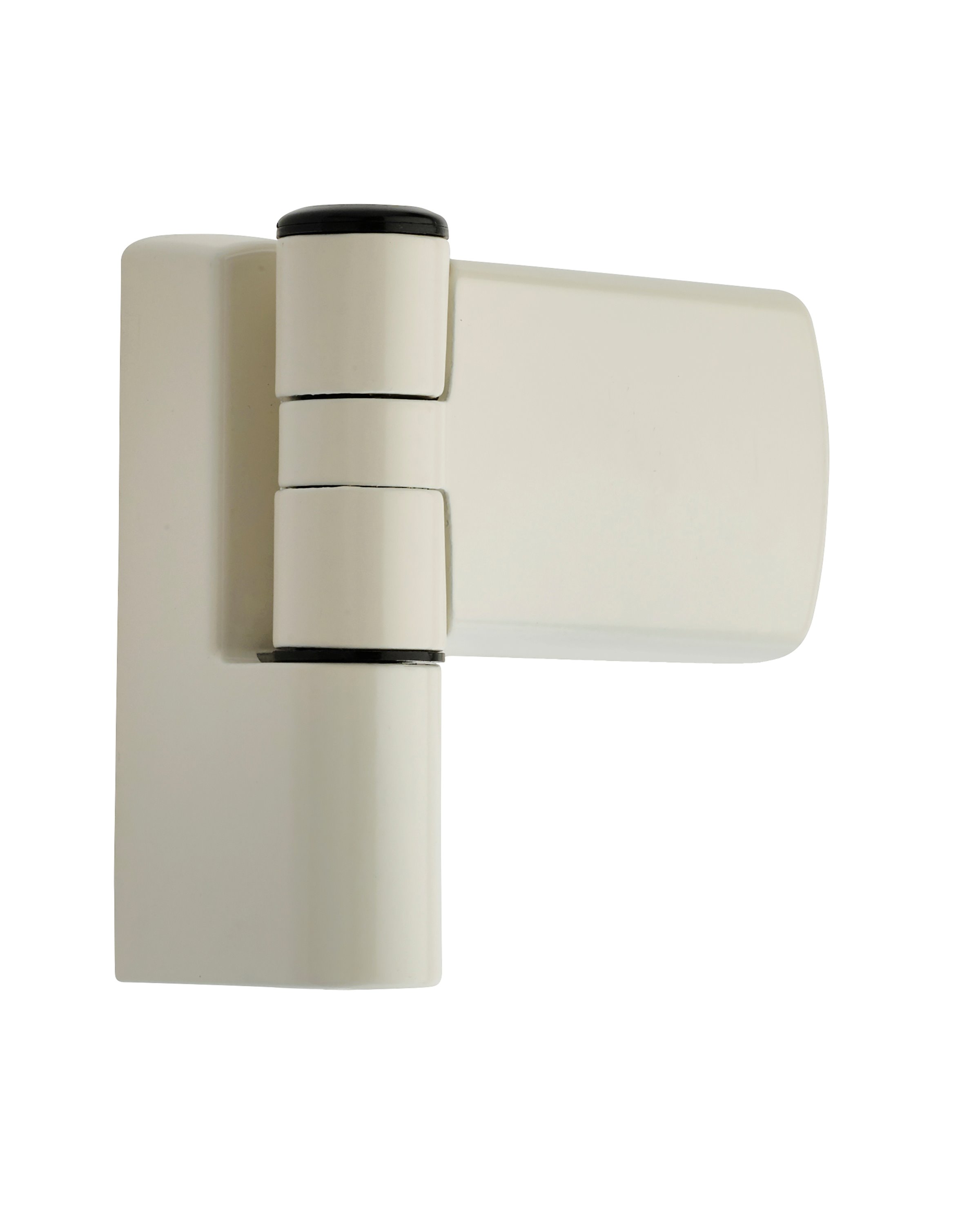

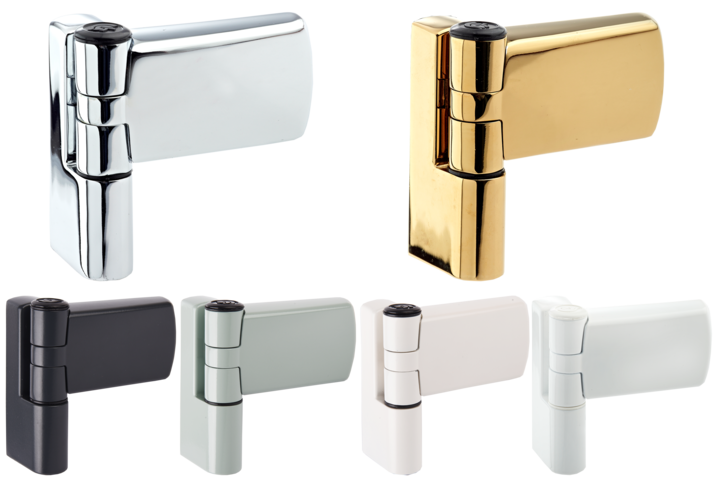

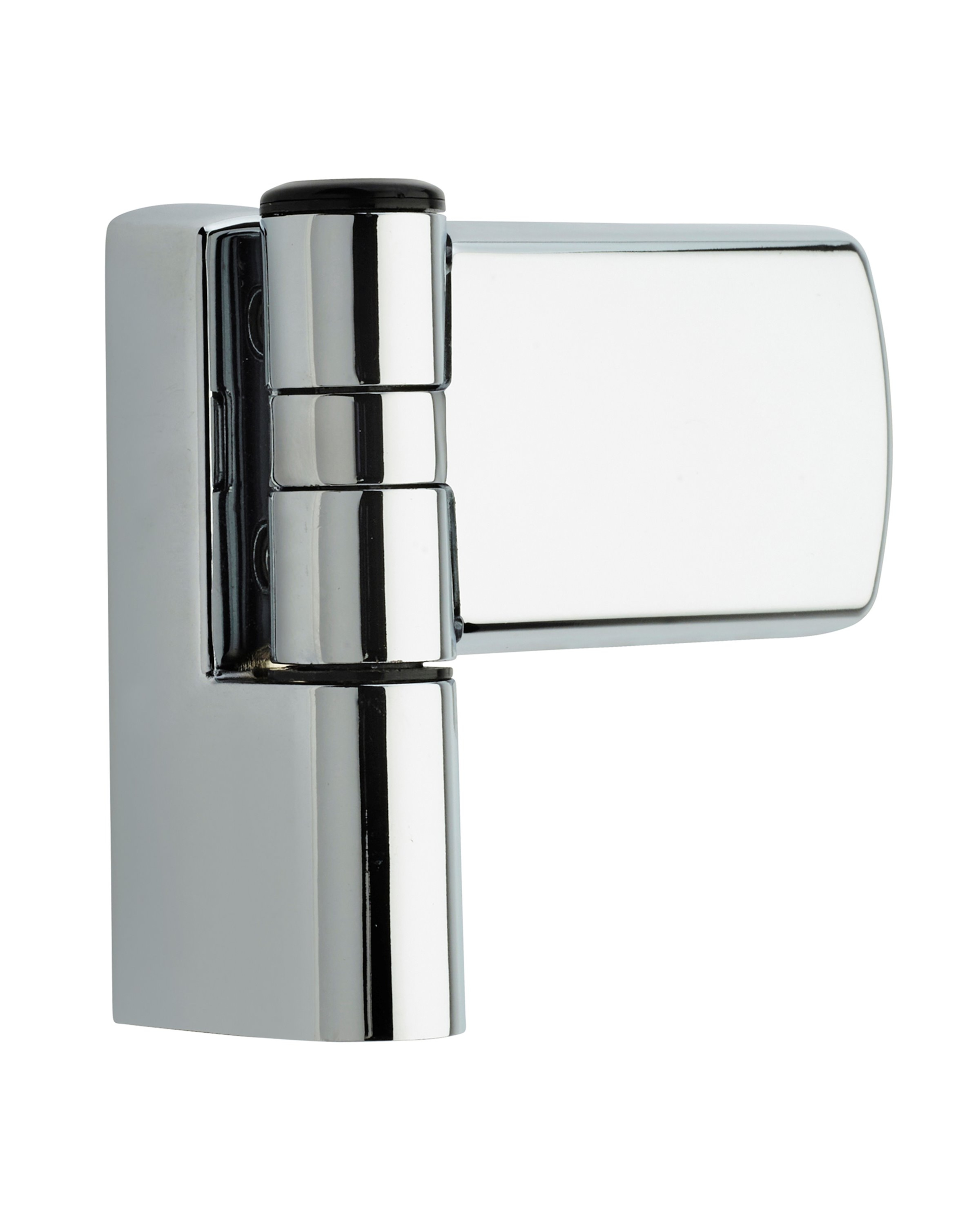

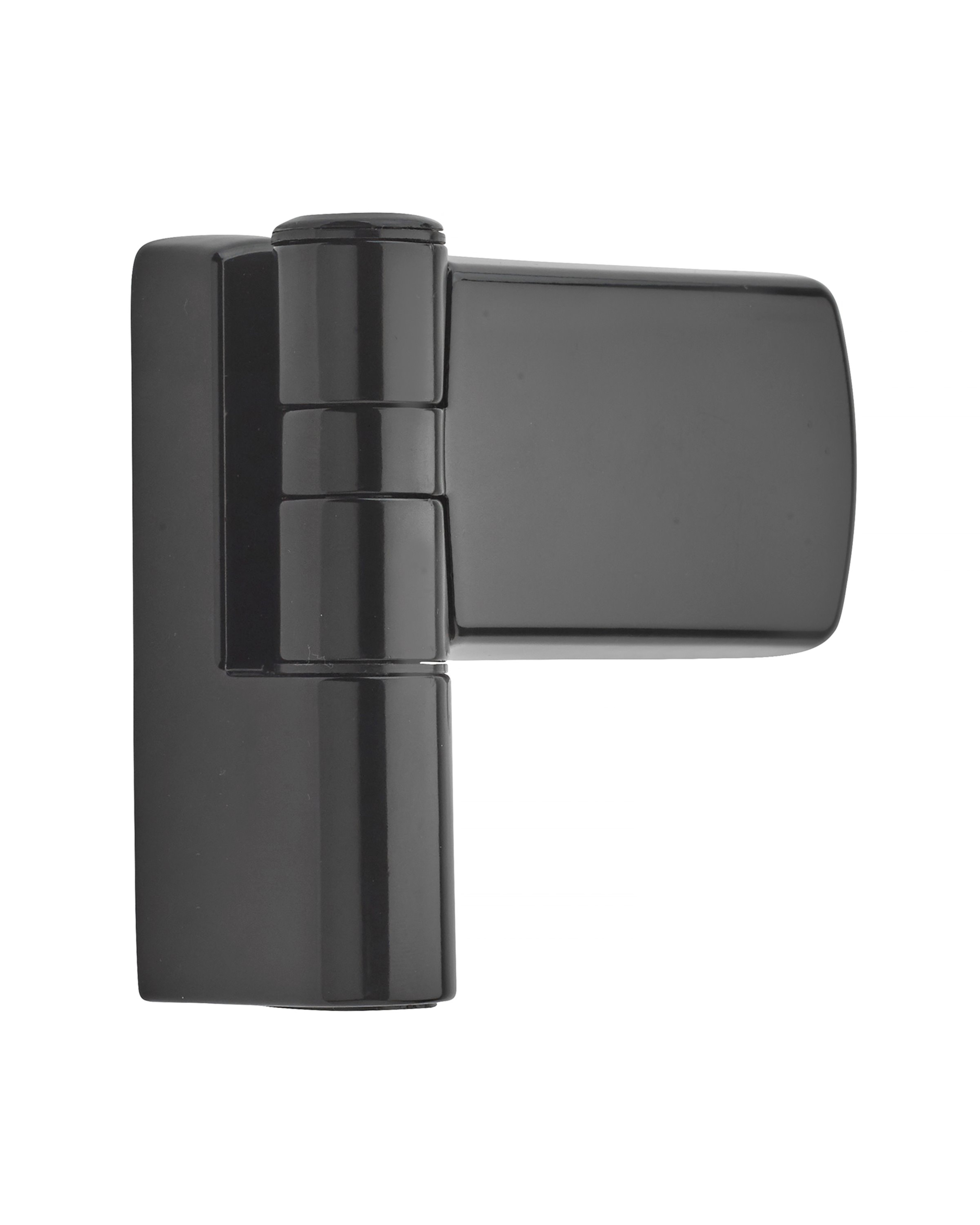

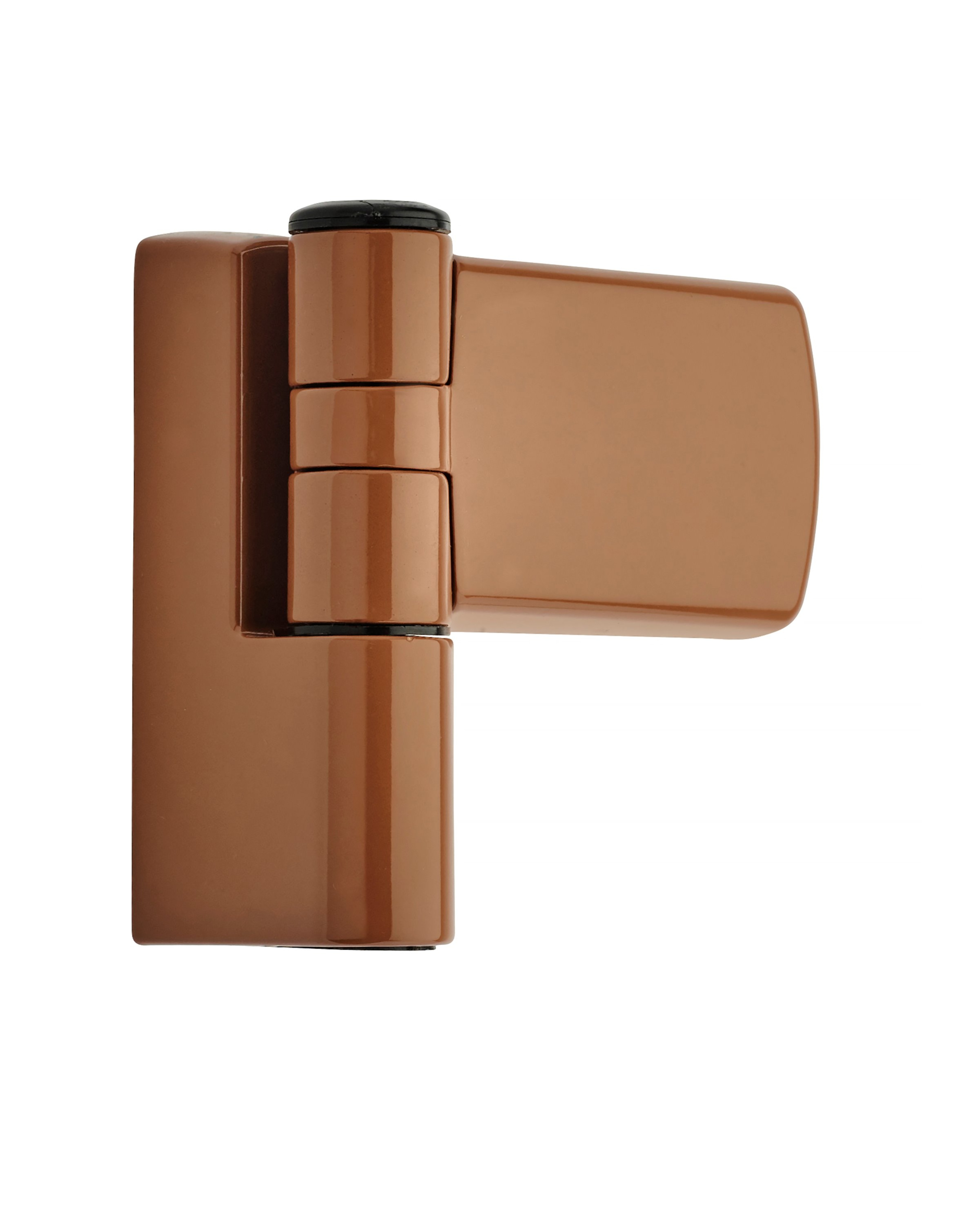

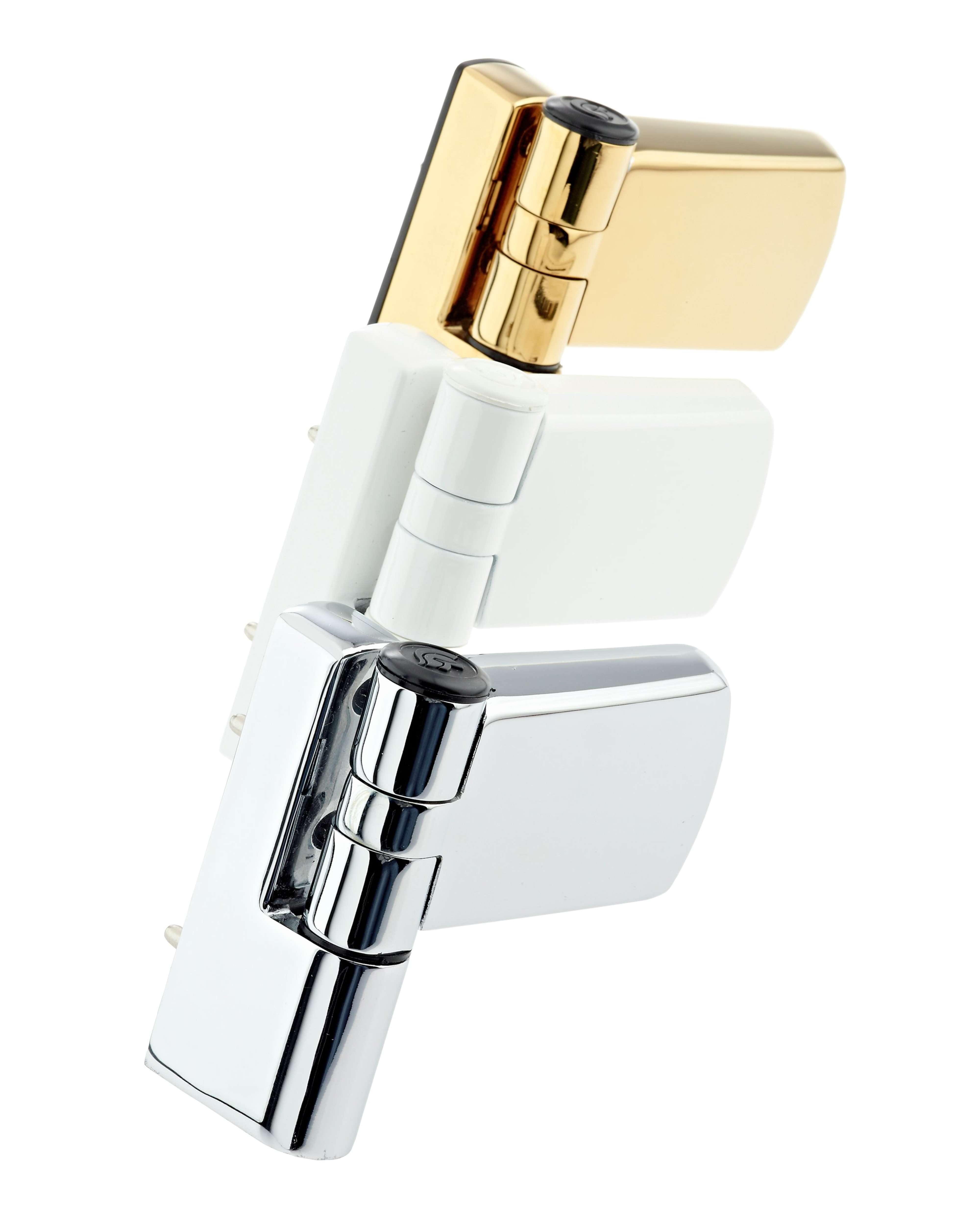

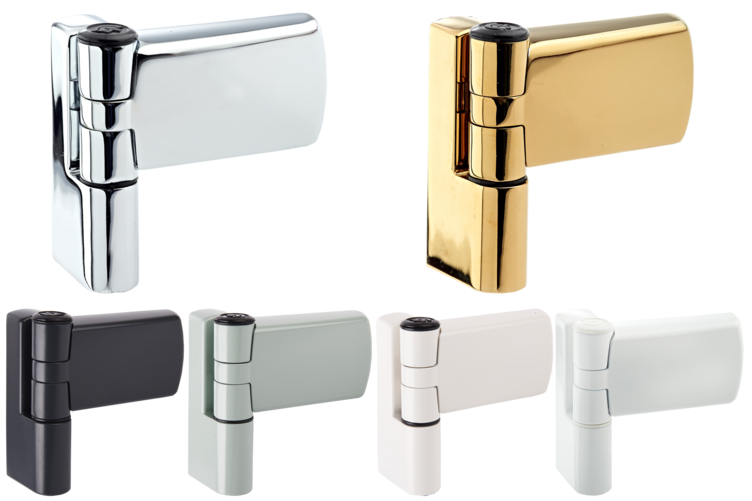

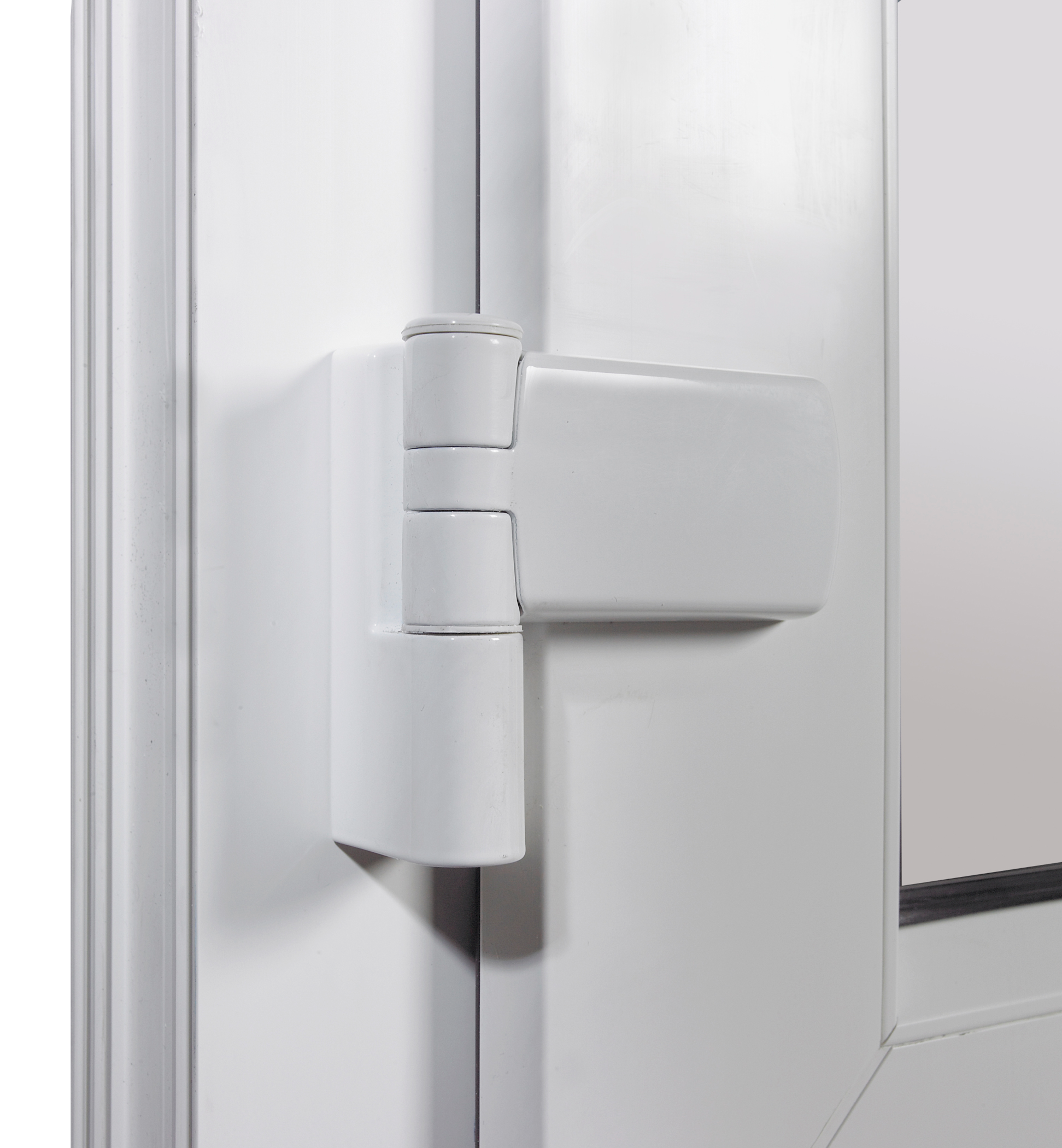

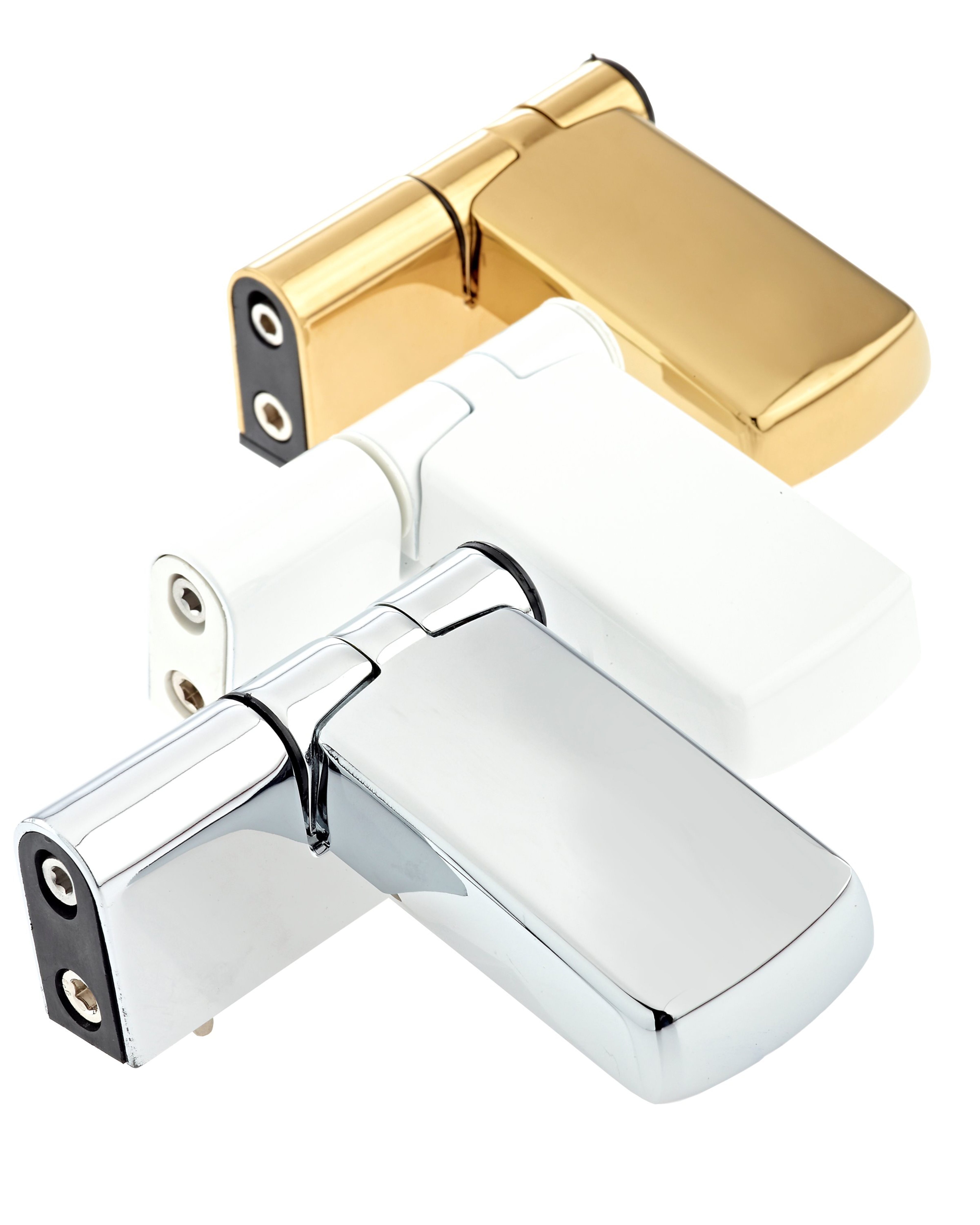

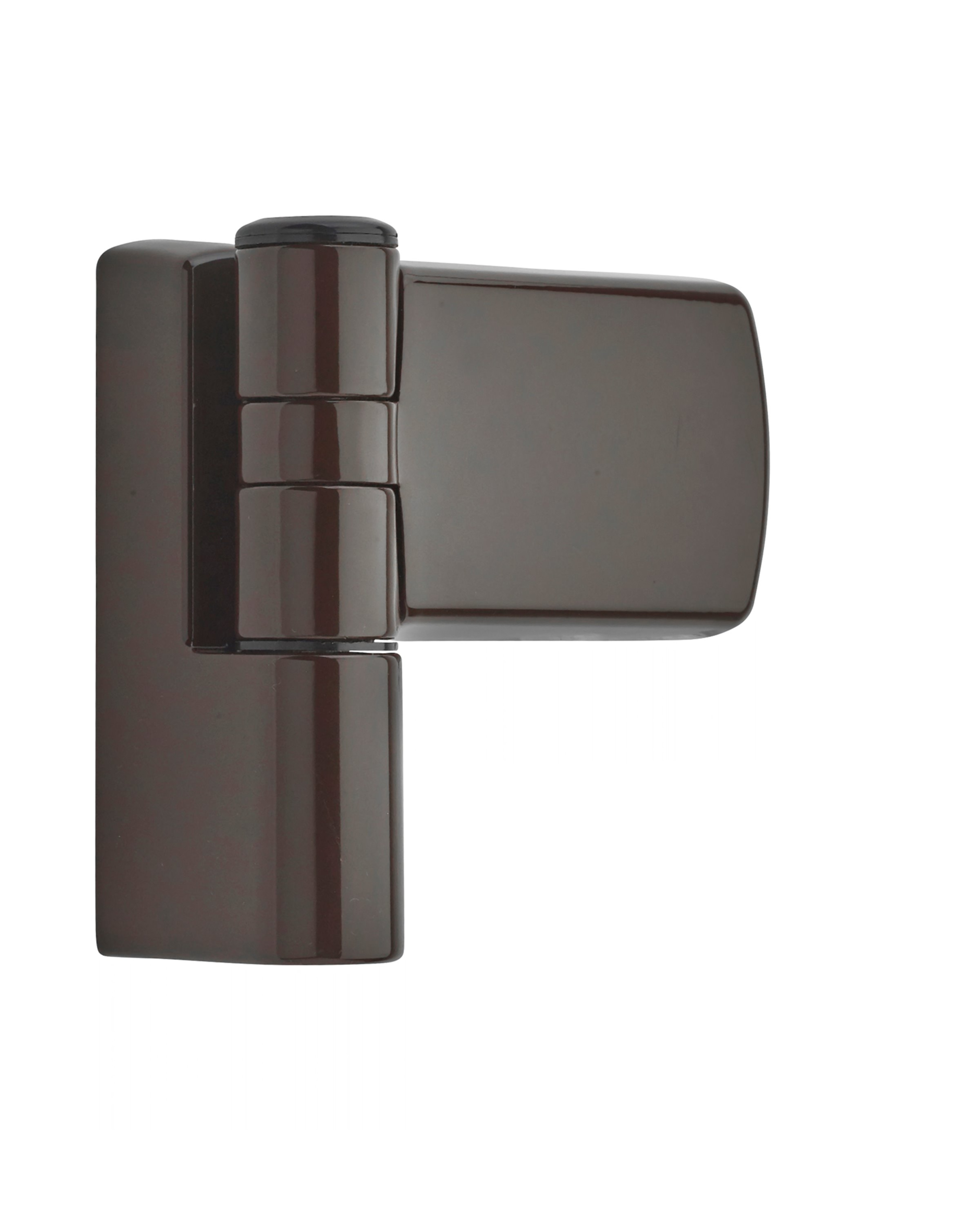

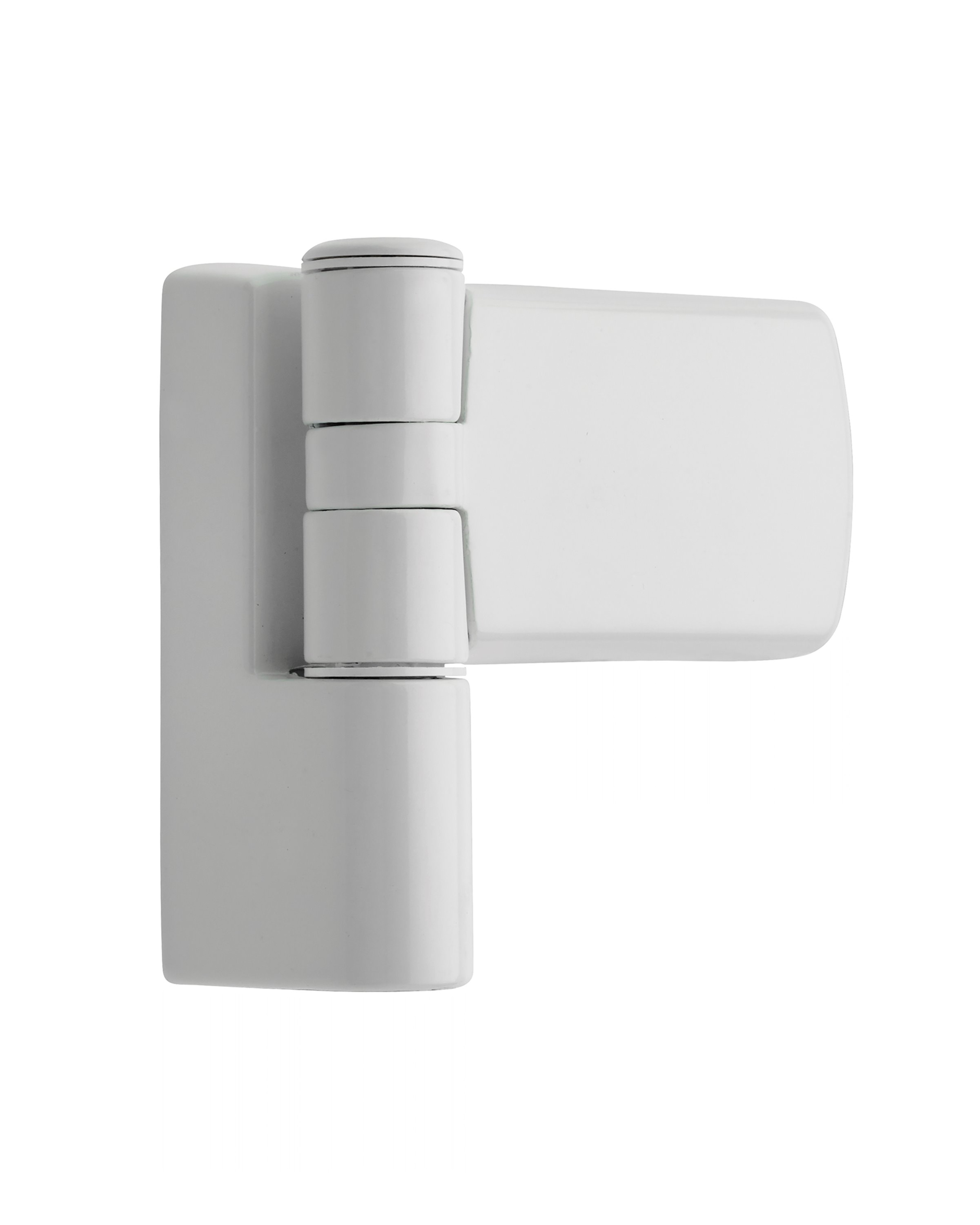

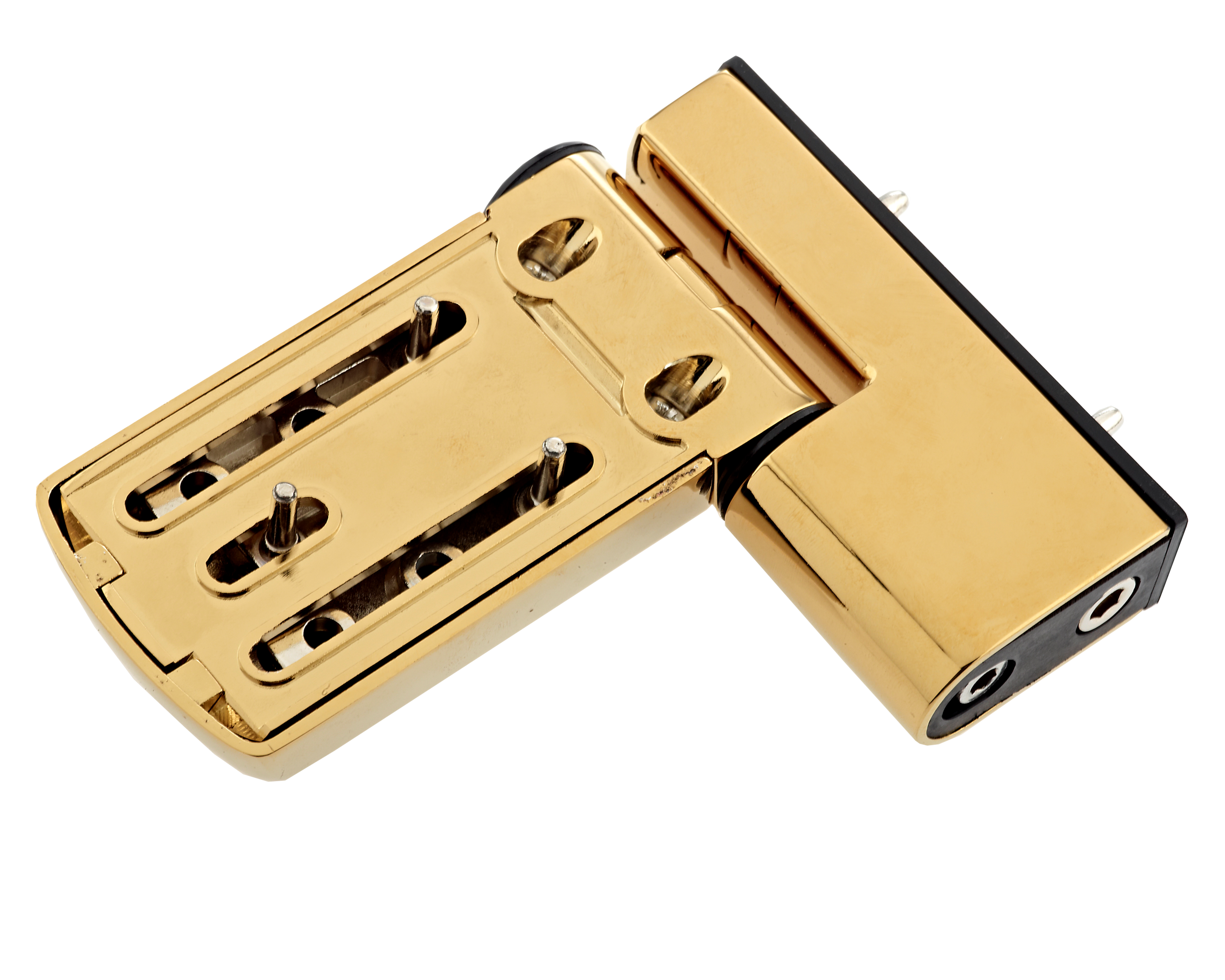

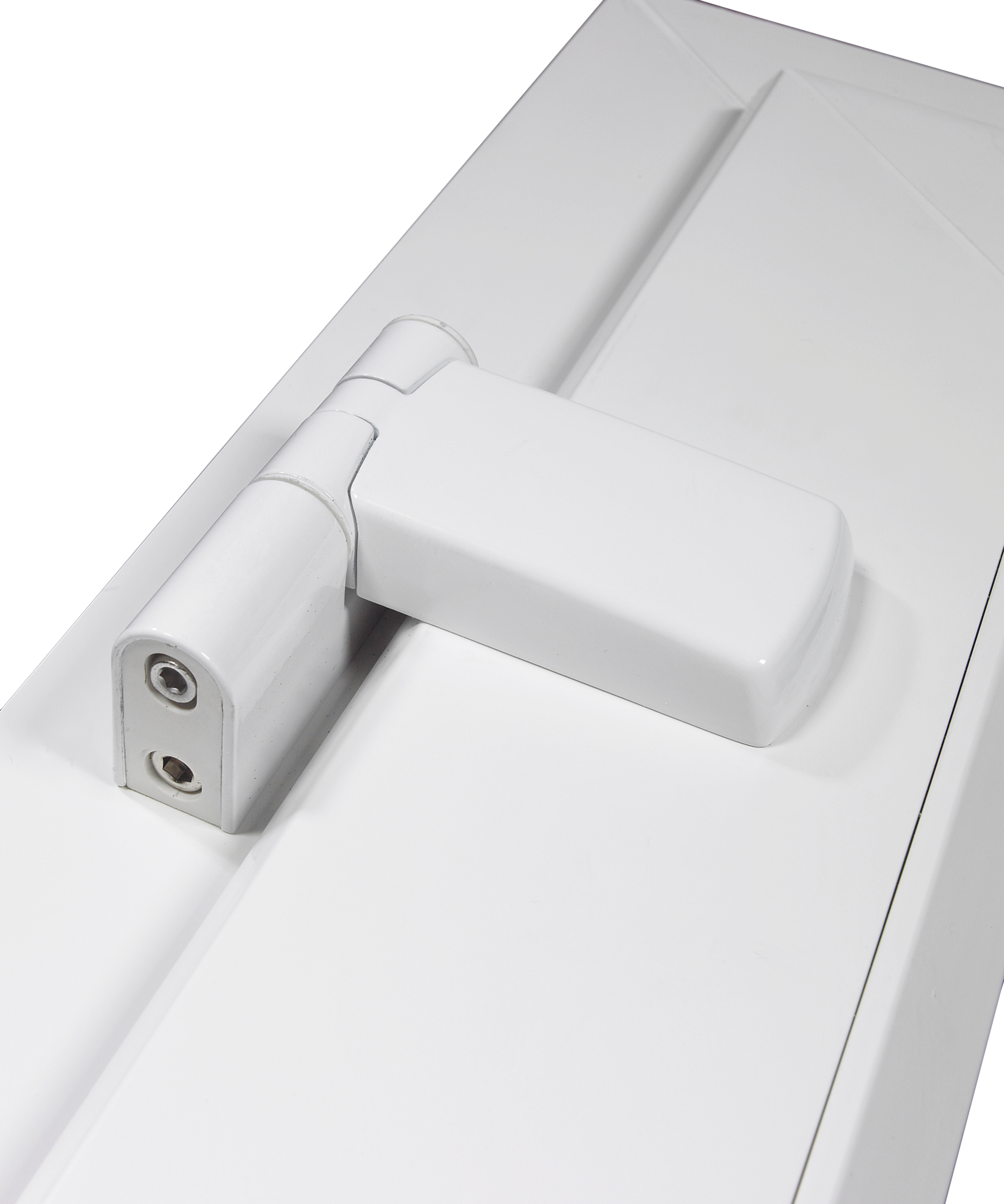

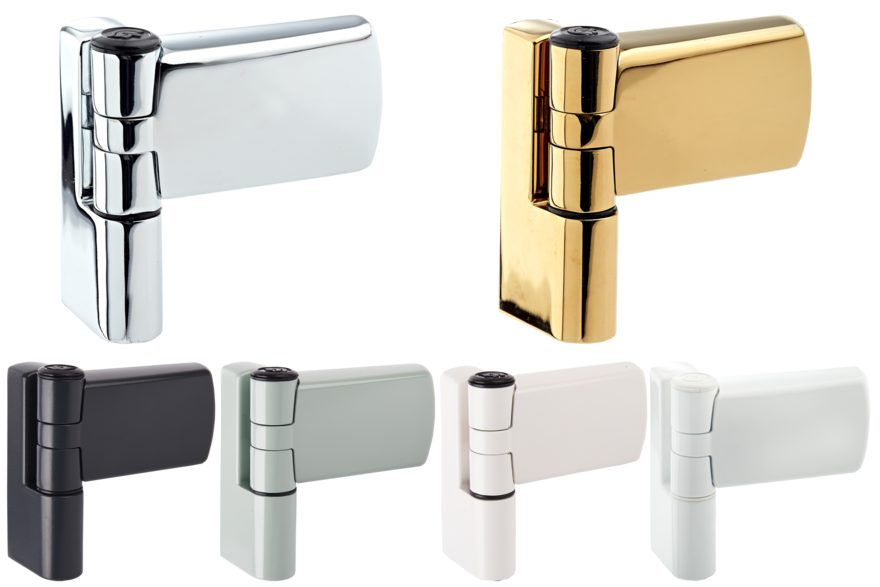

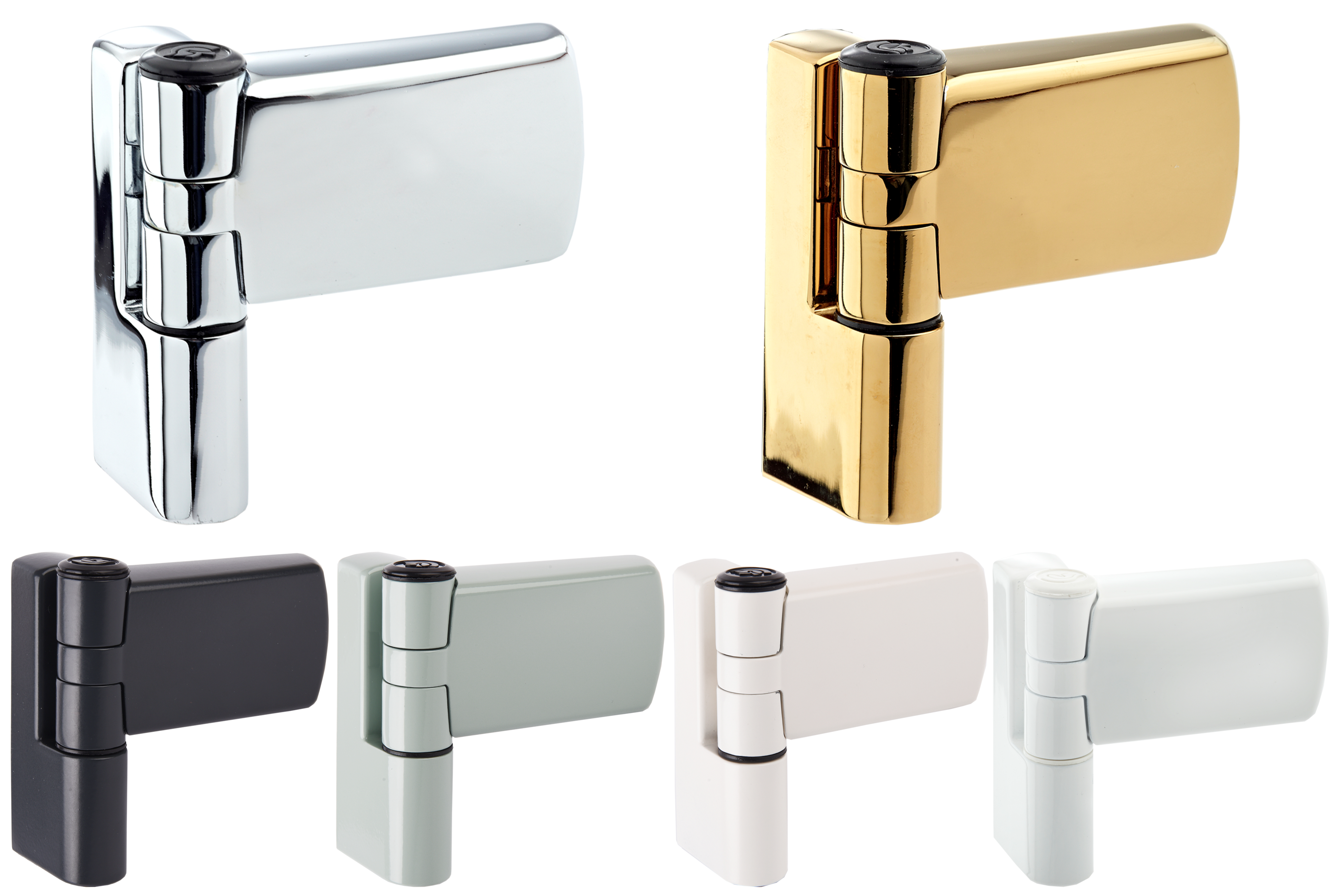

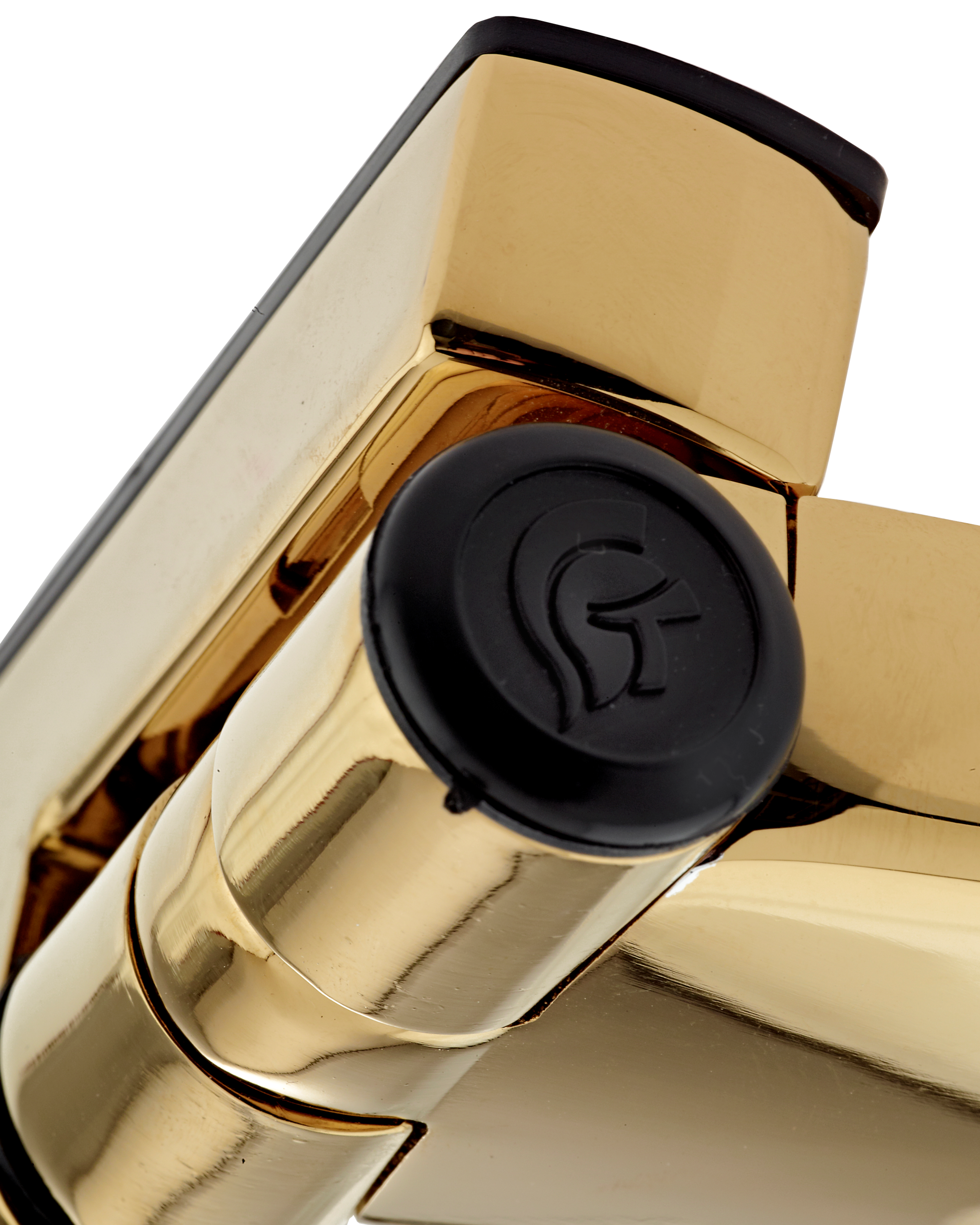

How to Fit a Patriot Plus Hinge

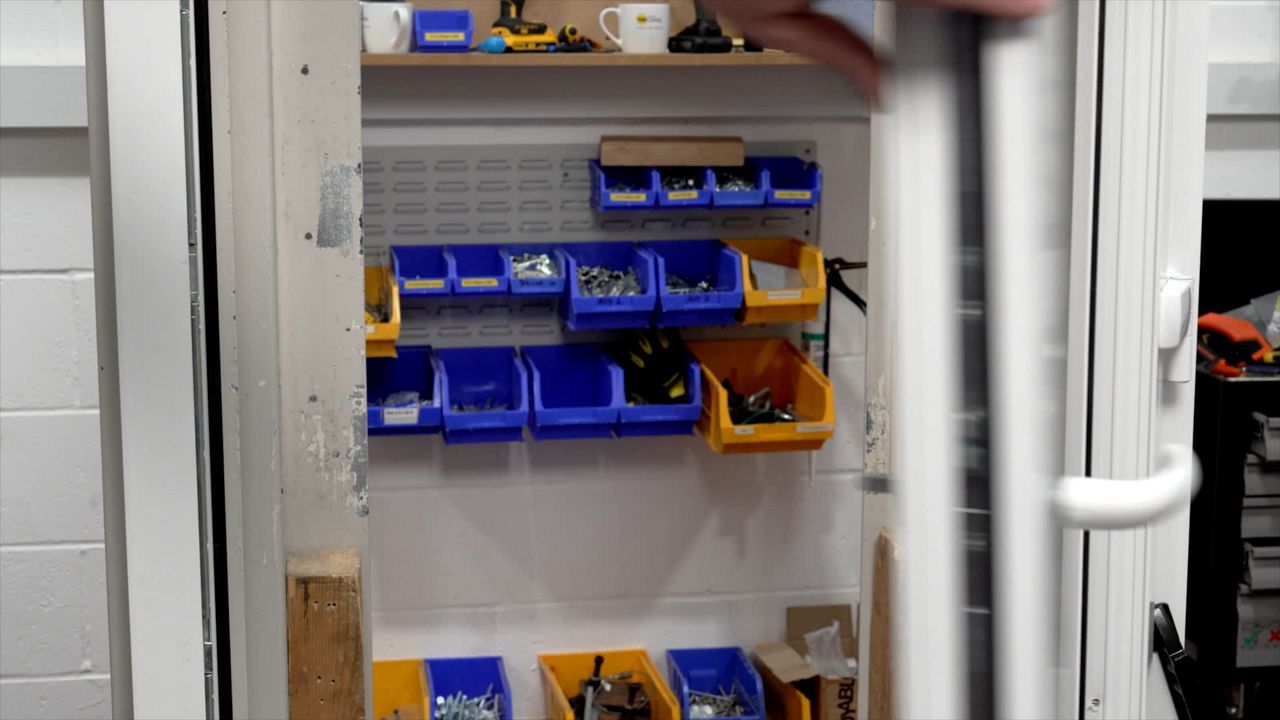

Patriot Plus Hinge - Post Installation

  • ProductProduct ID
    1mm Black Patriot Plus Shim0785-014-1-BK
    1mm White Patriot Plus Shim0785-014-1-WH
    2mm Black Patriot Plus Shim0785-014-2-BK
    2mm White Patriot Plus Shim0785-014-2-WH
    3mm Black Patriot Plus Shim0785-014-3-BK
    3mm White Patriot Plus Shim0785-014-3-WH
    6mm Black Patriot Plus Shim0785-014-6-BK
    6mm White Patriot Plus Shim0785-014-6-WH
    Patriot Plus Swish 247 Packer Black0785-016-BK
    Patriot Plus Swish 247 Packer White0785-016-WH
    Patriot Plus Synerjy Packer Black0785-017-BK
    Patriot Plus Synerjy Packer White0785-017-WH
    Anthracite Grey Patriot Plus 16mm0785-2001-AG
    Black Patriot Plus 16mm0785-2001-BK
    Brown Patriot Plus 16mm0785-2001-BR
    Chrome Patriot Plus 16mm0785-2001-CH
    Gold Patriot Plus 16mm0785-2001-GO
    Oak Patriot Plus 16mm0785-2001-OAK
    White RAL9016 Patriot Plus 16mm0785-2001-RAL9016
    Satin Silver Patriot Plus 16mm0785-2001-SS
    White Patriot Plus 16mm0785-2001-WH
    Anthracite Grey Patriot Plus 19mm0785-2002-AG
    Anthracite Grey Patriot Plus 19mm Flow Line0785-2002-AG-FL
    Black Patriot Plus 19mm0785-2002-BK
    Black Patriot Plus 19mm Flow Line0785-2002-BK-FL
    Brown Patriot Plus 19mm0785-2002-BR
    Brown Patriot Plus 19mm Flow Line0785-2002-BR-FL
    Chartwell Green Patriot Plus 19mm0785-2002-BS14C35
    Chrome Patriot Plus 19mm0785-2002-CH
    Chrome Patriot Plus 19mm Flow Line0785-2002-CH-FL
    Gold Patriot Plus 19mm0785-2002-GO
    Gold Patriot Plus 19mm Flow Line0785-2002-GO-FL
    Oak Patriot Plus 19mm0785-2002-OAK
    Oak Patriot Plus 19mm Flow Line0785-2002-OAK-FL
    Green Patriot Plus 19mm0785-2002-RAL6019
    Haze Grey Matt Patriot Plus 19mm0785-2002-RAL7001
    Slate Grey Matt Patriot Plus 19mm0785-2002-RAL7015
    Cream Patriot Plus 19mm0785-2002-RAL9001
    White RAL9016 Patriot Plus 19mm0785-2002-RAL9016
    Satin Silver Patriot Plus 19mm0785-2002-SS
    Satin Silver Patriot Plus 19mm Flow Line0785-2002-SS-FL
    White Patriot Plus 19mm0785-2002-WH
    White Patriot Plus 19mm Flow Line0785-2002-WH-FL

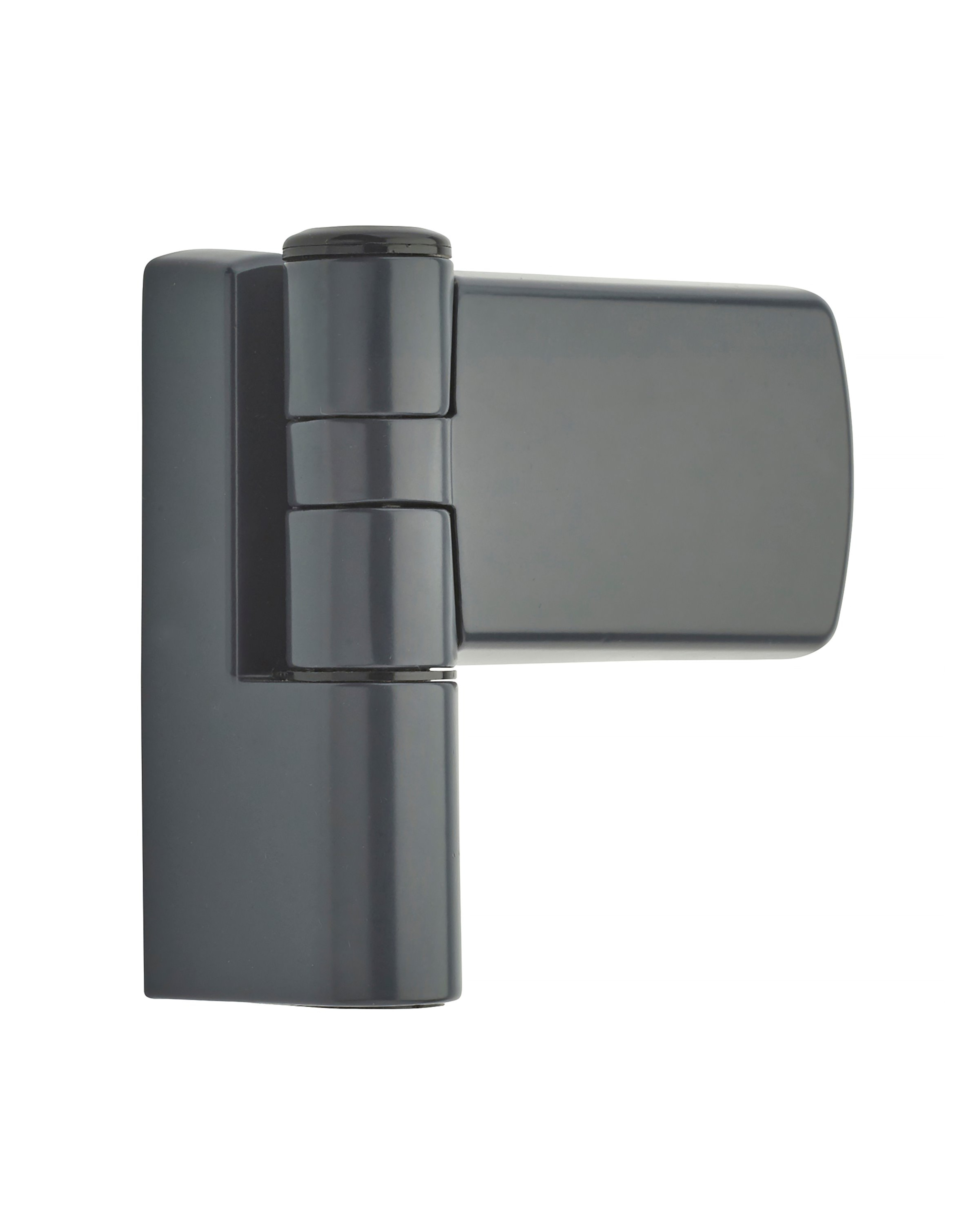

    Anthracite Grey Patriot Plus 22mm0785-2003-AG
    Black Patriot Plus 22mm0785-2003-BK

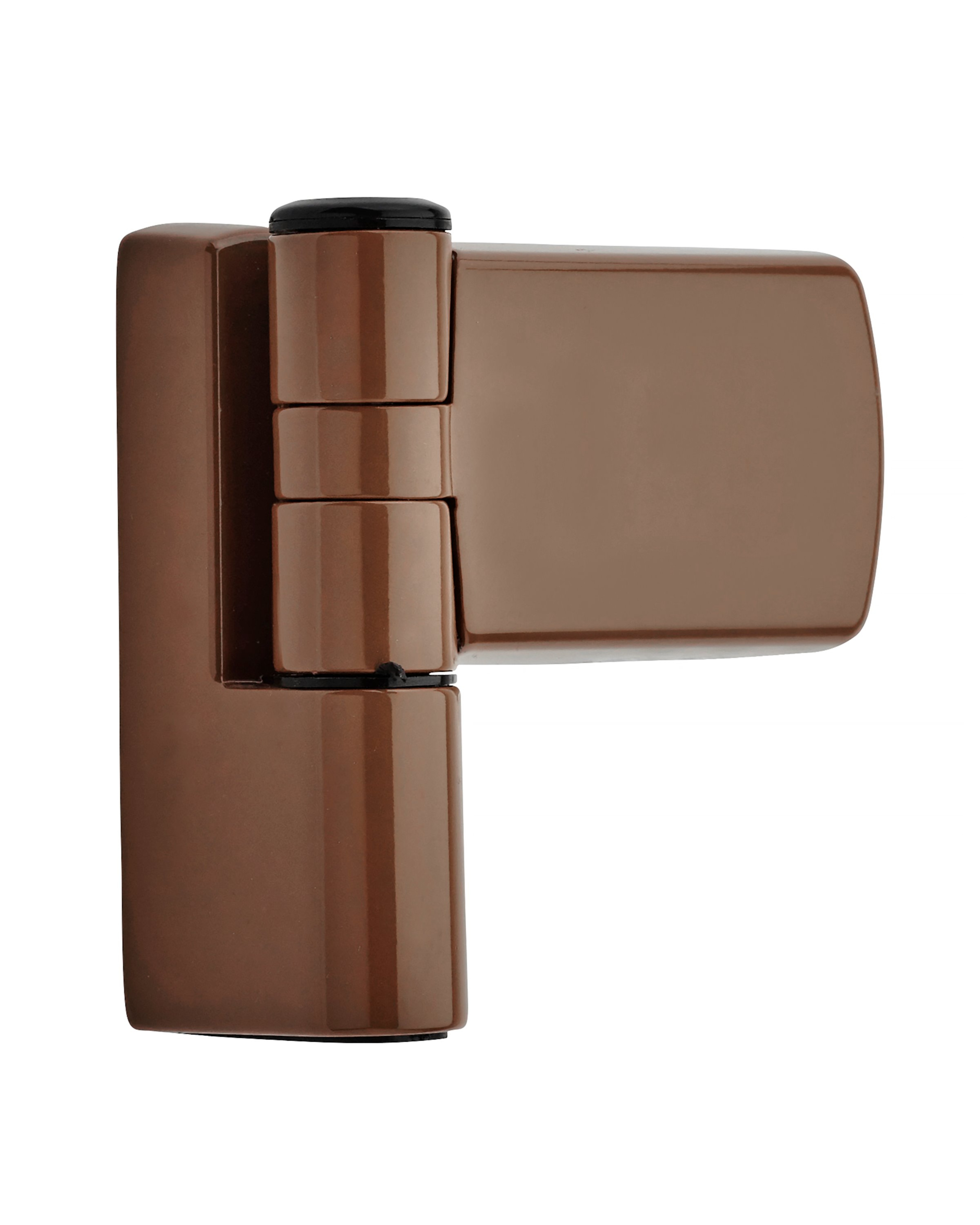

    Brown Patriot Plus 22mm0785-2003-BR
    Chartwell Green Patriot Plus 22mm0785-2003-BS14C35
    Chrome Patriot Plus 22mm0785-2003-CH

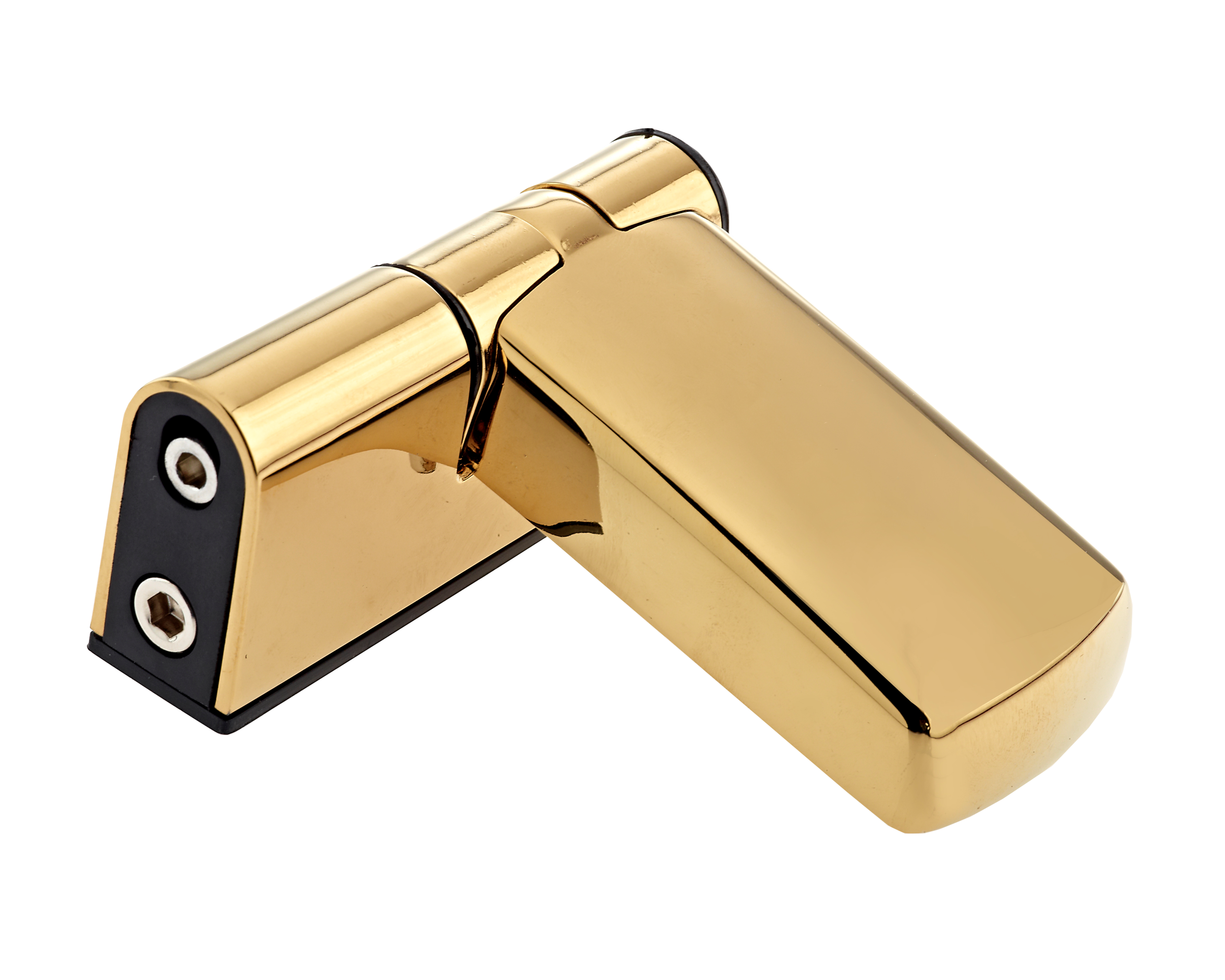

    Gold Patriot Plus 22mm0785-2003-GO
    Oak Patriot Plus 22mm0785-2003-OAK
    Ivory Patriot Plus 22mm0785-2003-RAL1015
    Haze Grey Matt Patriot Plus 22mm0785-2003-RAL7001

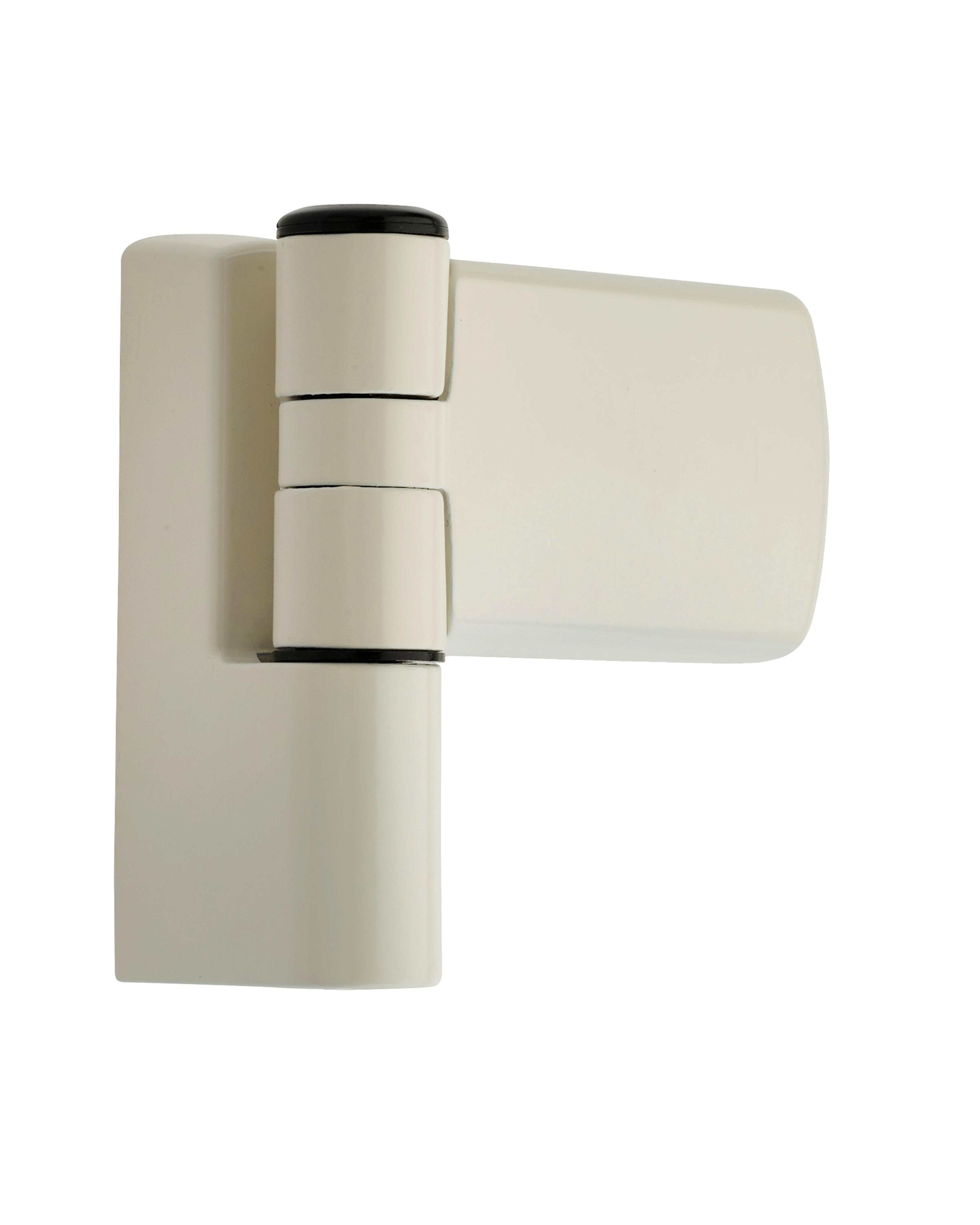

    Cream Patriot Plus 22mm0785-2003-RAL9001
    White Patriot Plus 22mm0785-2003-RAL9016

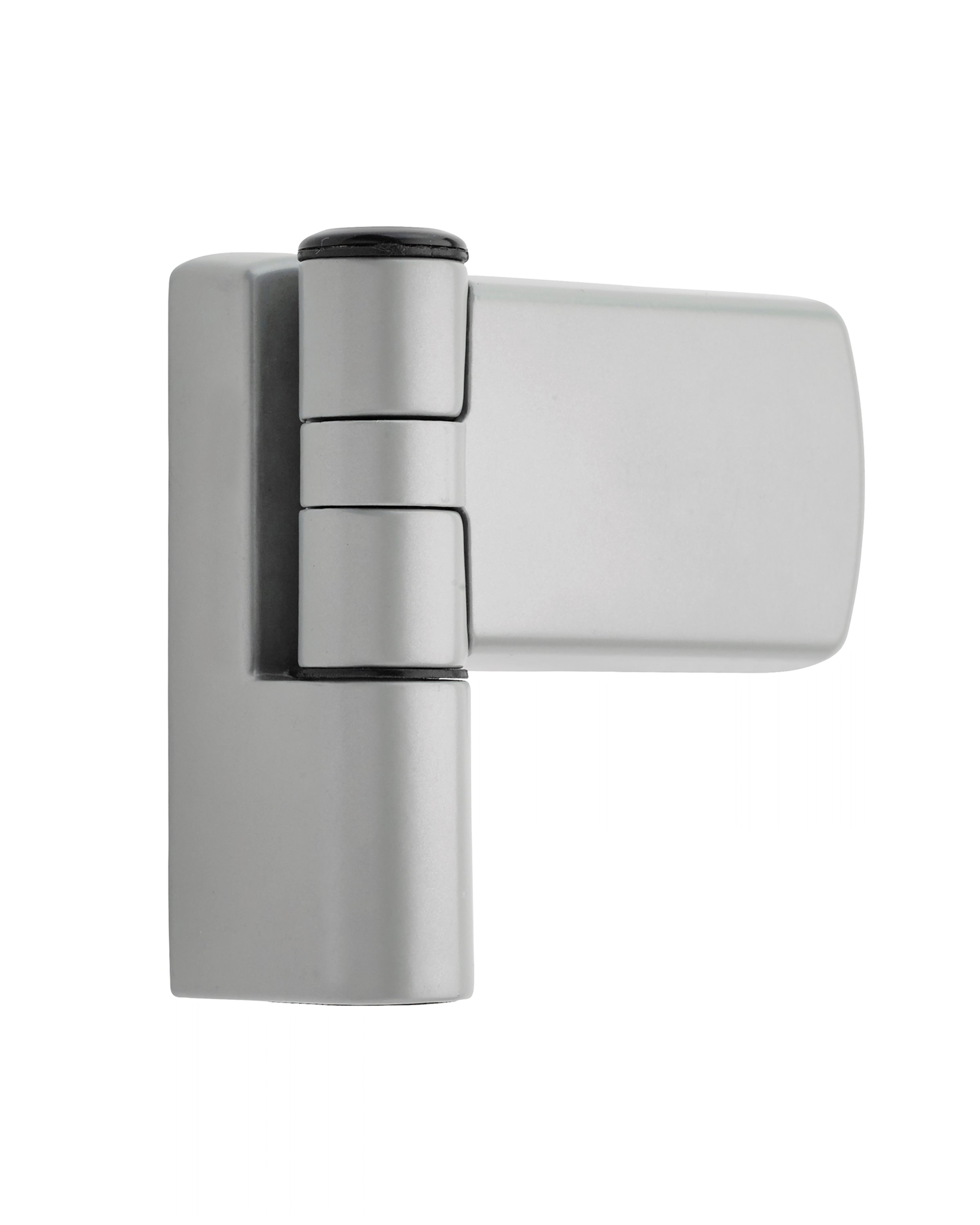

    Satin Silver Patriot Plus 22mm0785-2003-SS
    White Patriot Plus 22mm0785-2003-WH

Similar products

  • Yale 3D Hinges

    Combining mechanical strength and striking aesthetic appeal, the Yale 3D flag hinge offer easy adjustment and is supplied in a range of polished and powder coated finishes to compliment all modern door furniture and profiles



    Features:

    • 3D adjustable flag hinge
    • Easy adjustment with door in situ
    • Lateral adjustment +5mm and -5mm, Vertical adjustment +5mm and -5mm Compression adjustment +1mm and - 1mm
    • Suitable for most PVC profiles
    • Easy to use fitting jigs available
    • 100kg weight bearing per hinge
    • PAS 24 compliant
    • Sheer force 6.0kn
    • Supplied with 2 and 4mm packers for accurate profile relation


    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 50,000 cycles
    • 10-year Mechanical Guarantee
    • 12-month Surface Finish Guarantee

    Included within the Yale Lifetime Security Guarantee*

     *Terms and conditions apply



  • Yale Elevator 2D Hinges

    The Elevator for composite doors has been specifically developed to work on 44mm thick composite doors in conjunction with the Yale hinge cover strip, delivering both easy vertical and lateral adjustment, together with superior aesthetic appeal. The dedicated fitting, jig not only positions the hinges, but also positions the door with the correct air gap from the frame.



    Features:

    • 2D adjustable butt hinge
    • Easy adjustment with door in situ
    • Lateral adjustment +2mm,
    • Vertical adjustment +3mm
    • Available with 0, 5 and 15 degree bevels
    • Suitable for most PVC profiles
    • Easy to use fitting jigs available



    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 50,000 cycles
    • 10-year Mechanical Guarantee
    • 12-month Surface Finish Guarantee



  • Yale Non-Adjustable

    Features:

    • Simple design
    • Flagsize and stack heights
    • Available in white and Brown
    • Prevents door drop



    Specifications:

    • Endurance tested to 50,000 cycles
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • 10-year Mechanical Guarantee
    • 12-month Surface Finish Guarantee

    Included within the Yale Lifetime Security Guarantee*

     *Terms and conditions apply

  • Hinge Plates

    Features:

    • Hinge plates
    • Various colours available 45mm widths





    Specifications:





    • Corrosion resistance to BS EN 1670:2007 Grade 4
    • Tested to a minimum order 100,000 cycle operational lifespan



  • 3D Composite Door Hinge

    The 3D Composite Door Hinge offers the unbeatable combination of innovation and quality. The hinge is quick and simple to fit and once fitted the door slab is detachable from the frame, this simplifying installation.
    The 3D hinge is easily adjusted in all planes, either in the factory or onsite, ensuring perfect door alignment for years of trouble-free operation.

    Features:

    • A butt hinge with full 3D adjustment for a perfect door fit
    • Simultaneous vertical adjustment across all hinges which ensures even load distribution
    • All finishes UV rated
    • Lateral adjustment is done in a single operation which gives a perfect alignment on the pivot axis
    • Fits into rebate to give unobtrusive secure design
    • Can achieve PAS 24 accreditation as part of a specific door assembly
    • Sash can easily be removed from frame for easy installation
    • Available in a range of colours
    • Pre-assembled, ready to fit design

    Specification:

    • 10-year Mechanical Guarantee
    • 12-month Surface Finish Guarantee
    • Zinc die cast components
    • Stainless steel parts - 430
    • Plastic parts are Nylon 66, UV stabilised ABS
    • Corrosion tested to BS EN 1670: Painted finishes Grade 5 (240hrs), plated finishes Grade 4 (480hrs)
    • Conforms to EN 1191 - tested to 100,000 cycles
    • Can achieve PAS 24 as part of a specific door assembly
    • 3 hinges carry 100kg
    • Maximum door size - 1m wide x 2.2m high
    • Lateral +/- 3mm
    • Vertical +/- 4mm
    • Compression +/- 1.75mm
    • White, Brown and Tan. Other colours and finishes are available upon request.

    *Guarantee subject to correct installation and maintenance.

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Athena Hinge (Composite)

    The heavy duty Athena Hinge is suitable for Composite Doors. The patented Athena Hinge's strength comes from its double knuckle construction. Three Athena Door hinges have a combined carrying weight of 100kg, making them perfect for heavy duty applications such as large or triple glazed Composite Doors. The slim sightline Athena Hinge offers a slim, aesthetically pleasing design with an unobtrusive appearance.

    Features:

    • Height and lateral adjustment achievable with door closed (Full Float Technology for visual alignment)
    • No unsightly gaps visible following adjustment
    • PAS 24:2016 compatible as part of a door assembly
    • Double knuckle construction for increased load bearing
    • Fitter and installer friendly (Lift On, Lift Off door design)
    • Available in White, Black, Brown Oak (UV stabilised), Polished Chrome, PVD Gold and Satin Silver, (any RAL finishes available upon request)
    • Patented unique design

    Specification:

    • 10-year Mechanical Guarantee
    • 12-month Surface Finish Guarantee
    • Zinc alloy
    • Stainless Steel - Grade 430
    • Plastic - GF Nylon, UV stabilised ABS and Acetal
    • Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
    • Alternatively 1,000 hours anti-corrosion on special painted finishes
    • Conforms to EN 1191 - tested to 100,000 cycles
    • Can achieve PAS 24:2016 as part of a door assembly
    • Height: +/- 4mm
    • Lateral: +/- 4mm
    • 3 hinges carry 100kg

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Athena Hinge (PVCu)

    The Athena Hinge is a 3D slim sightline door hinge which offers a slim, aesthetically pleasing design with an unobtrusive appearance. The unique patented design offers easy, accurate and independent 3D adjustment with the door in the closed position. Supplied pre-assembled and ready to fit, dramatically speeding up the fitting process.

    Features:

    • 3D adjustment
    • Compression, height and lateral adjustment achievable with door closed (Full Float Technology for visual alignment)
    • No unsightly gaps visible following adjustment
    • PAS 24:2016 compatible as part of a door assembly
    • Double knuckle construction for increased load bearing
    • Fitter and installer friendly (Lift On, Lift Off door design)
    • One product fits all standard eurogroove systems
    • Packaging available to suit high volume, separated flow line assembly
    • Available in White, Black, Brown Oak (UV stabilised), Polished Chrome, PVD Gold and Satin Silver, (any RAL finished available upon request)
    • Patented, unique design
    • Integral interlocking security hooks available

    Specification:

    • 12-month Surface Finish Guarantee
    • 10-year Mechanical Guarantee
    • Zinc alloy
    • Stainless Steel - Grade 430
    • Plastic - GF Nylon, UV stabilised ABS and Acetal
    • Corrosion tested to BS EN 1670: Painted finishes Grade 5 (480hrs. NSST), plated finishes Grade 4 (240hrs. NSST)
    • Alternatively 1,000 hours anti-corrosion on special painted finishes
    • Conforms to EN1191 - tested to 100,000 cycles
    • Can achieve PAS 24: 2016 as part of a door assembly
    • Height: +/- 4mm
    • Compression: +/- 2.00mm
    • Lateral: +/- 4mm
    • 3 hinges carry 100kg

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

How to fit a Patriot Plus Hinge

Patriot Plus Hinge - Post Installation
