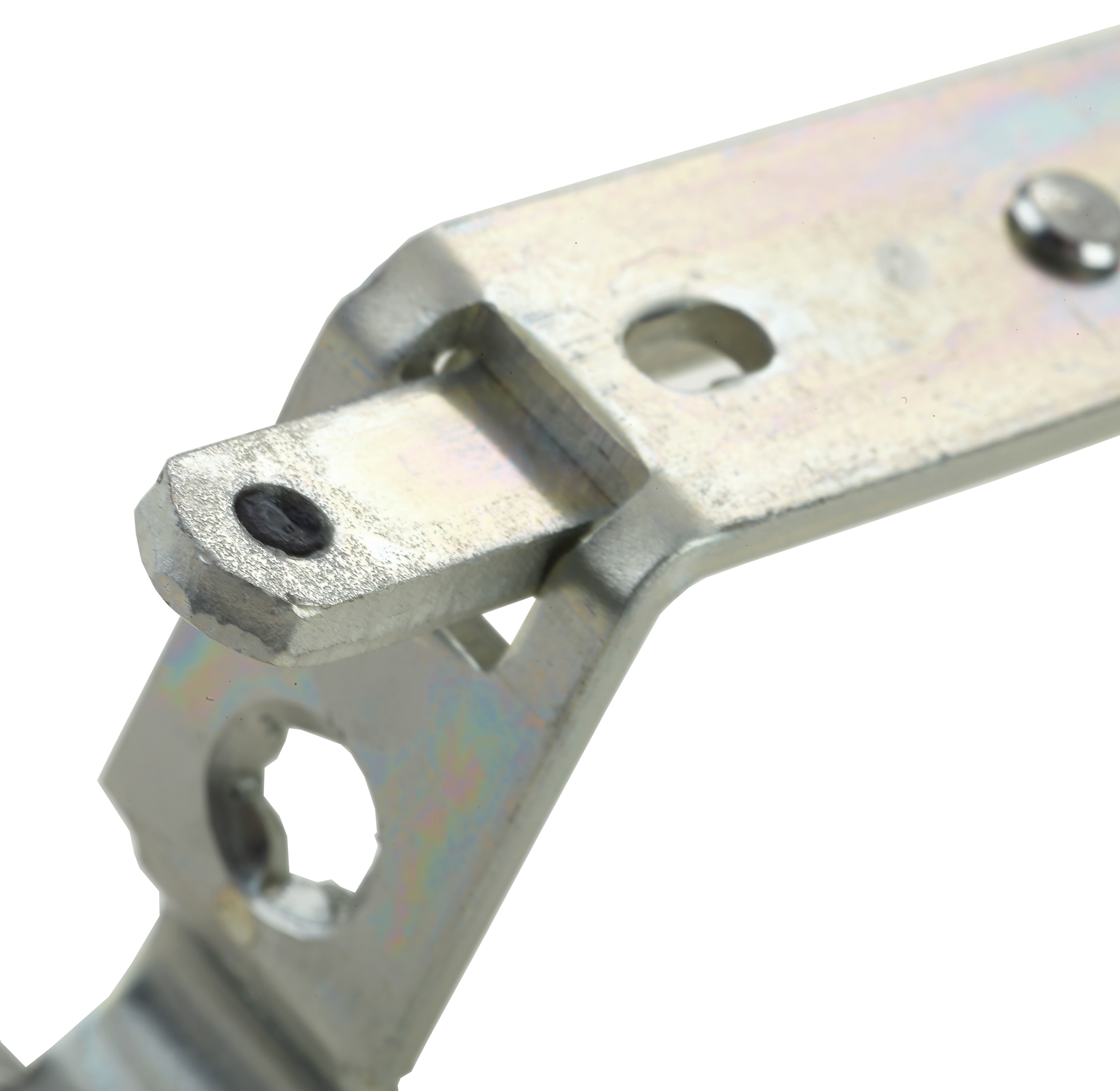

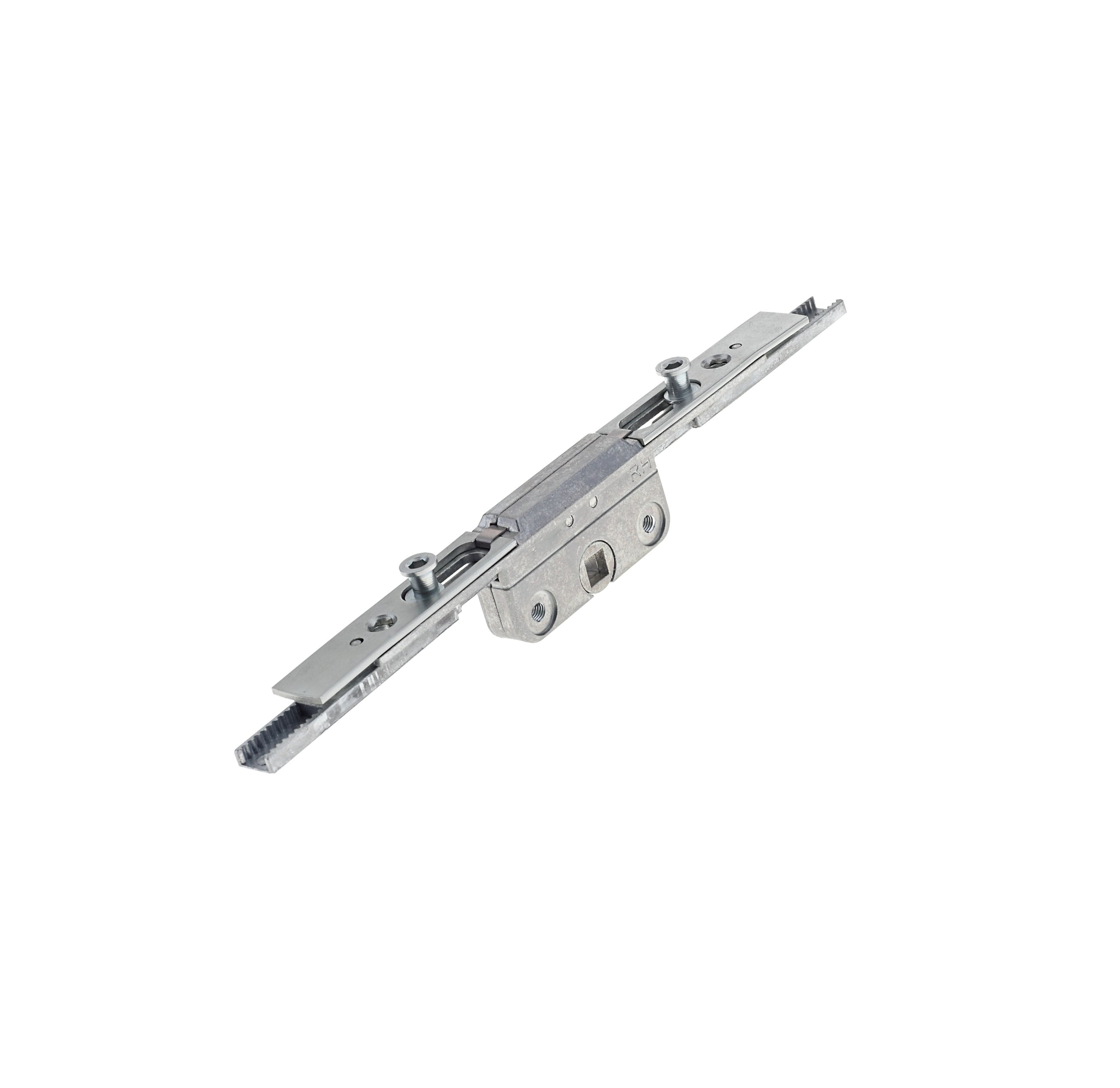

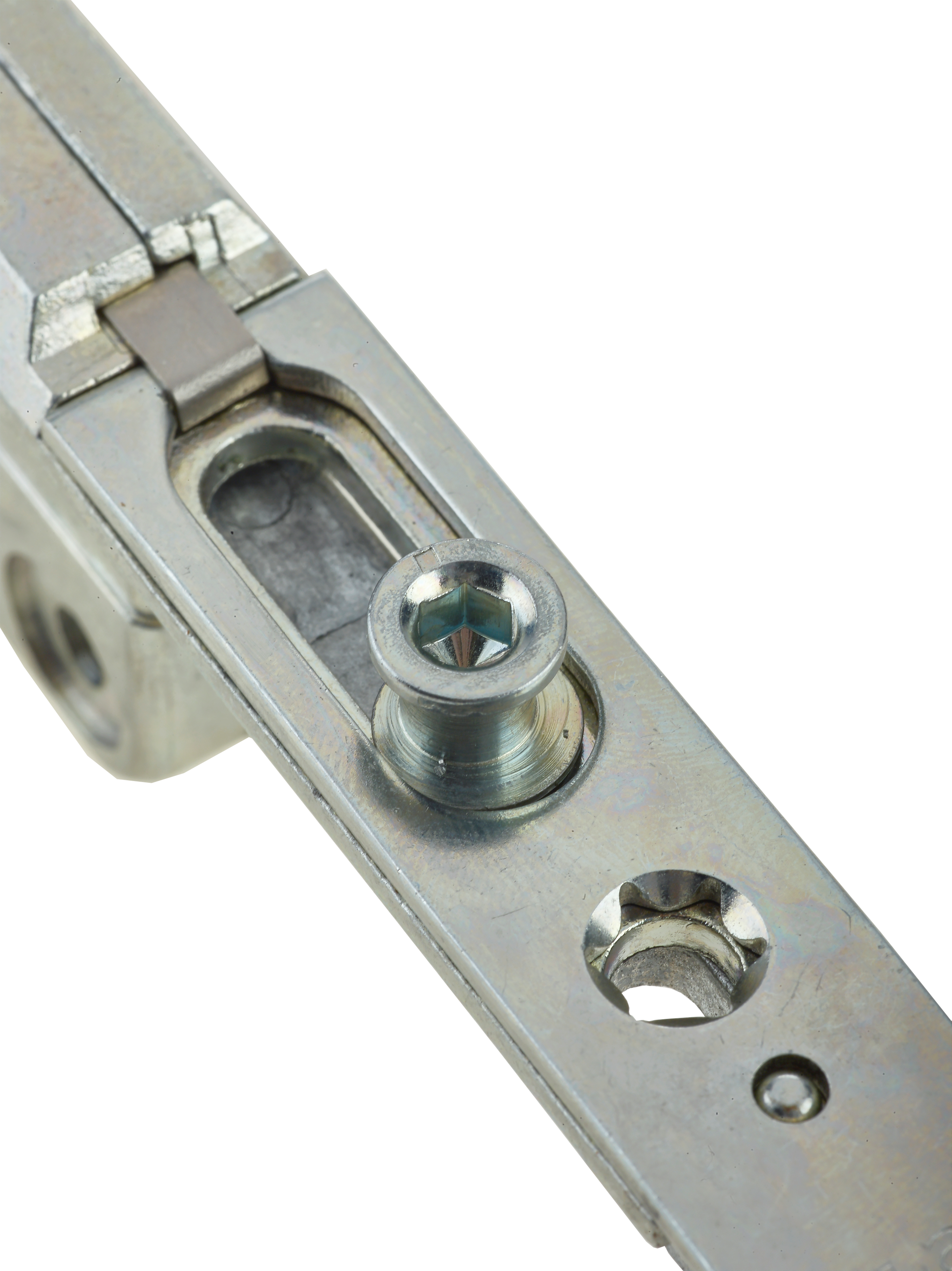

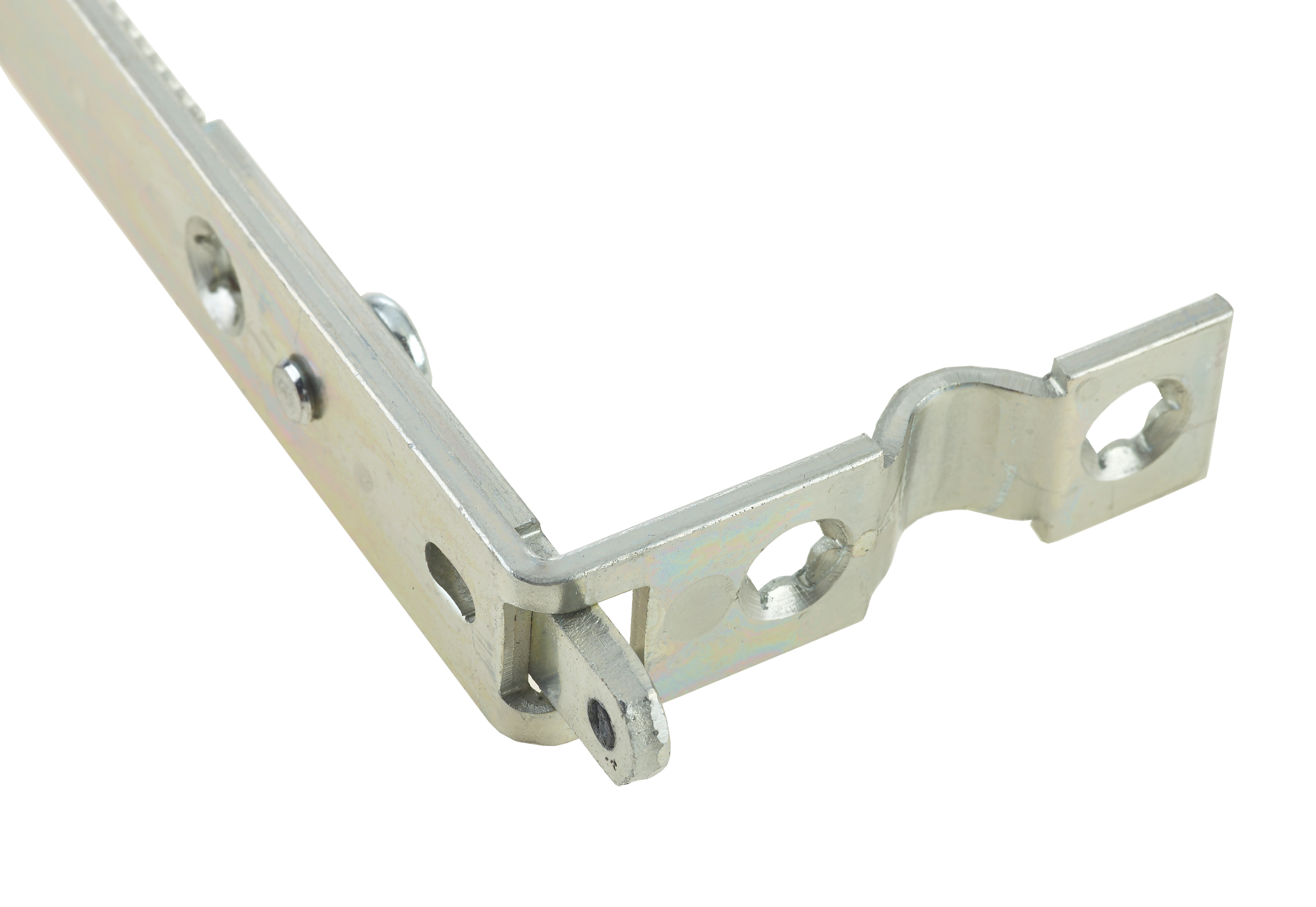

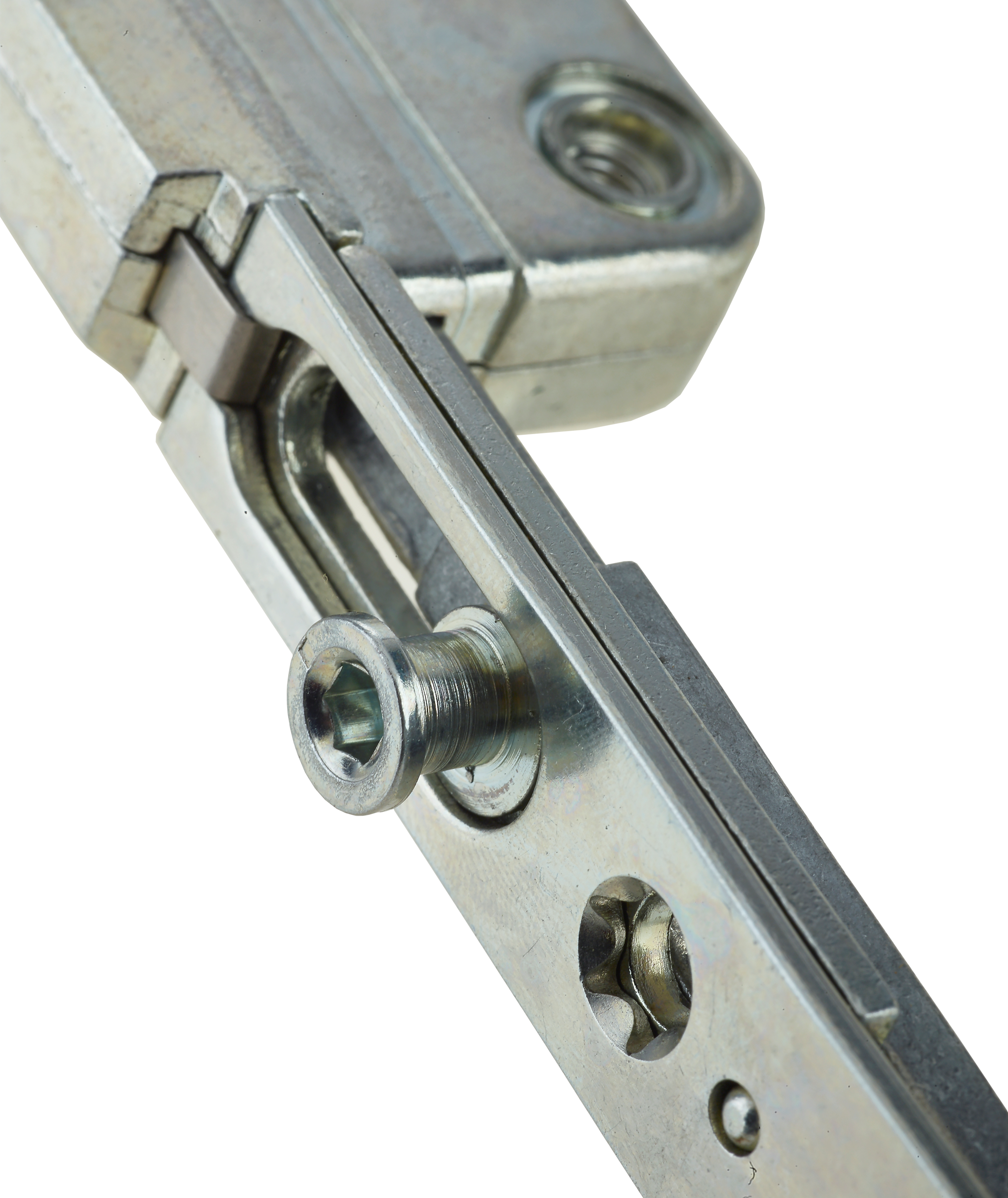

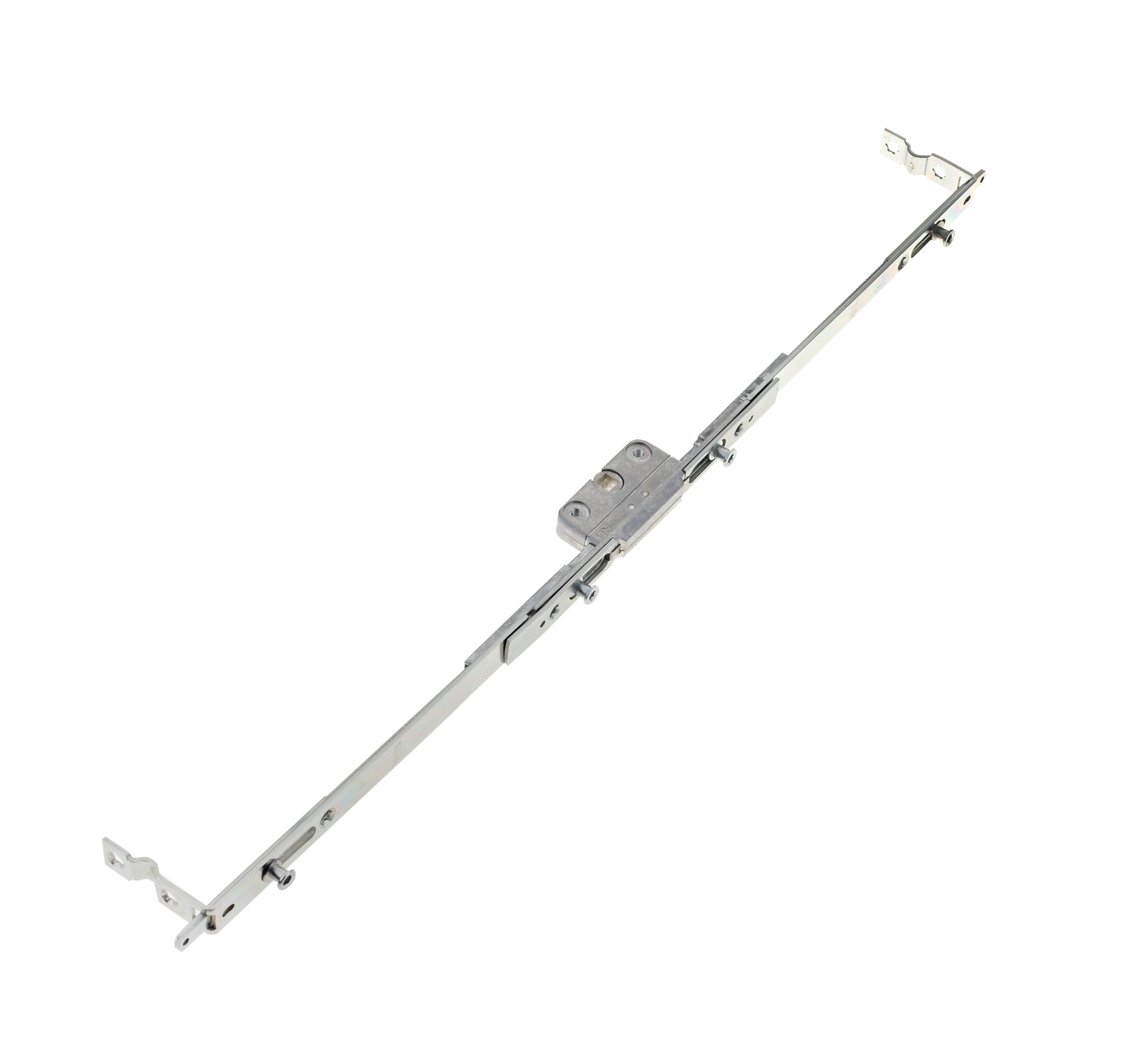

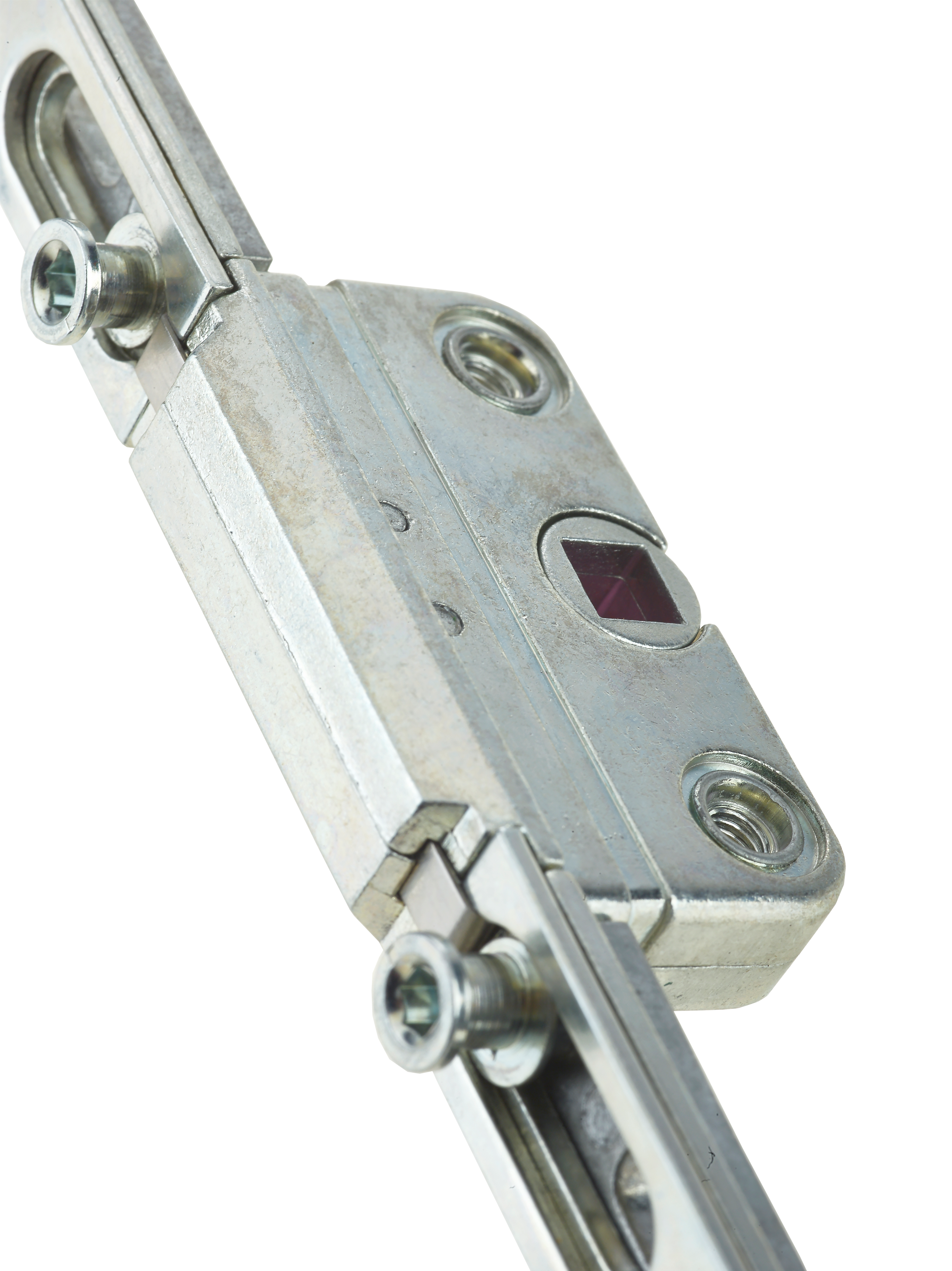

Shootbolt Window Lock

Suitable for most uPVC standard casement and flush window systems, as well as aluminium and timber profiles and covering all window sizes from 326mm to 1420mm with just 4 rod sizes The croppable Yale Shootbolt window lock offers high security shootbolt performance with a minimum of components, adjustable mushroom cams offering enhanced anti-separation performance, together with simple compression adjustment.

Features

• Secondary cam for night vent feature
• High security shootbolt system

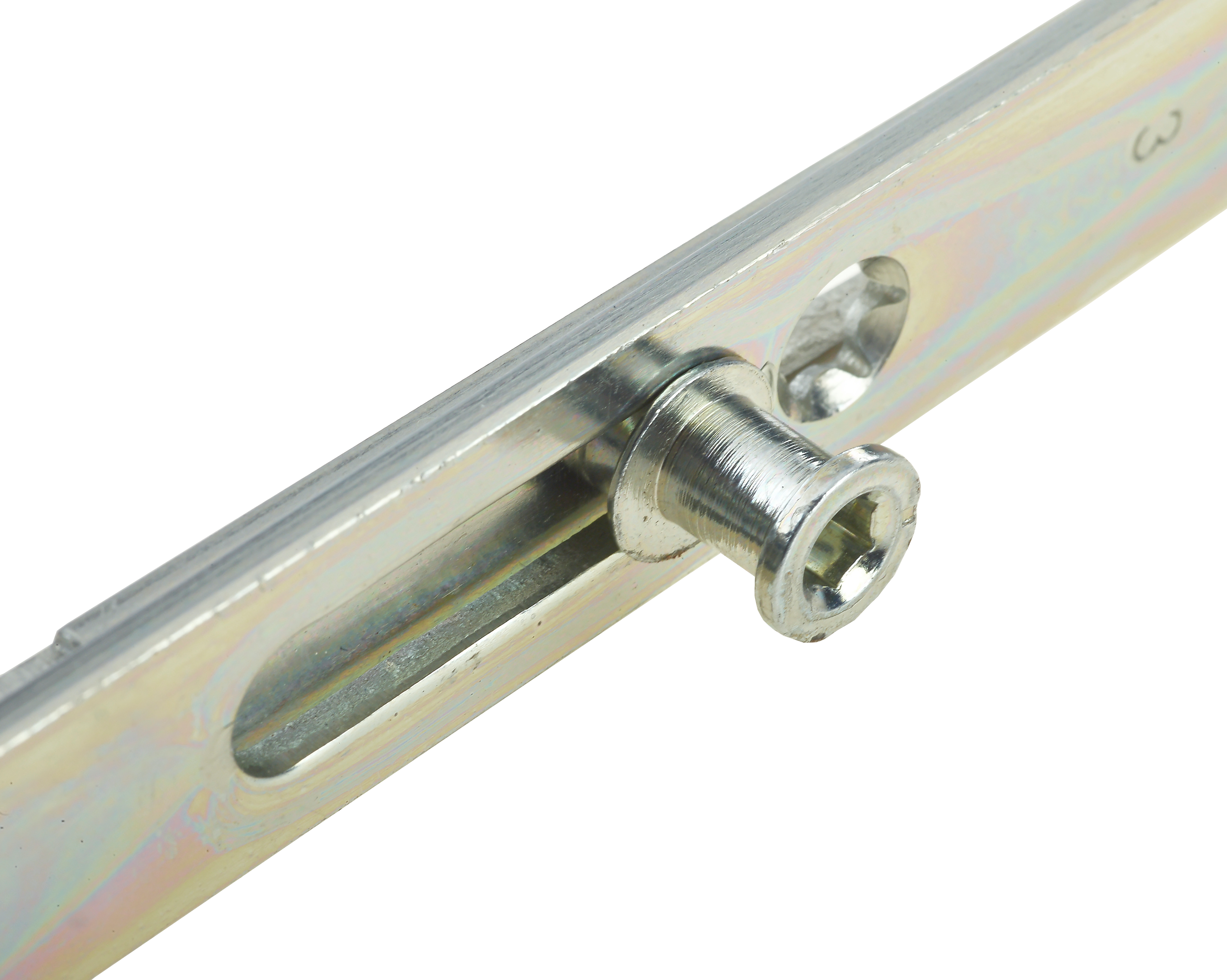

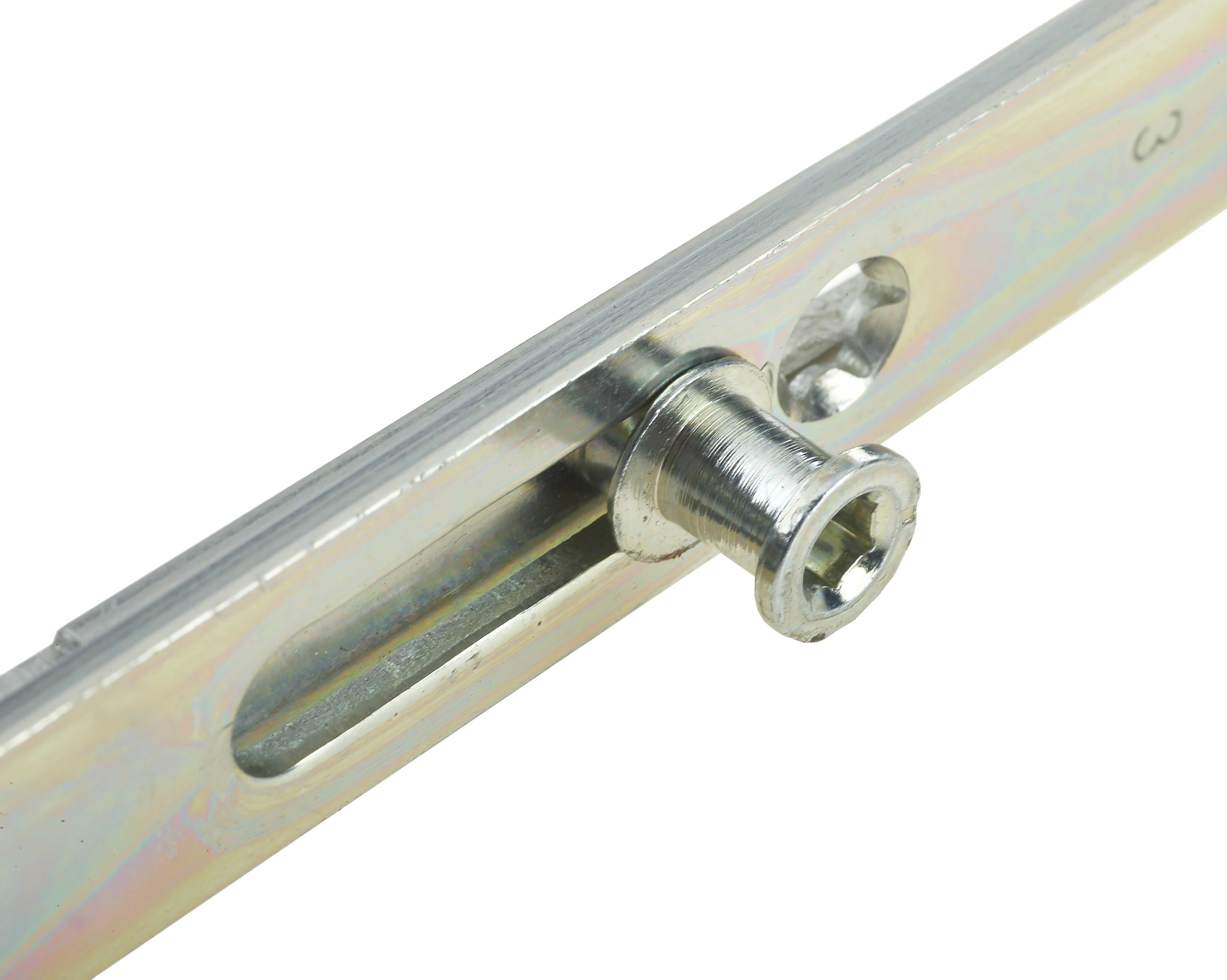

• Adjustable 7.7mm and 9mm mushroom cams 20mm and 22mm backsets
• Profile related keeps
• 4 crop to fit shootbolt rod sizes to achieve sash sizes 326mm and 1420mm
• Also available in a non-crop variant with an extendable gearbox and 7 rod sizes covering sash sizes 522mm to 1510mm

Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles
• Secured by Design accredited
• PAS 24:2016 compliant
• BBA certified
• Made in Britain
• 10-year Mechanical Guarantee

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

The Rapide window lock is a unique fully retractable window lock, sitting flush within the Eurogroove, removing the common issues of cam clash and keep alignment found with other styles of lock.

The innovative design allows pre-drilling for keep alignment reducing fabrication time, The system also allows separate installation of the keep and lock prior to the hanging of the sash to deliver greater flexibility and efficiency during fabrication.

The unique rotating action of the lock provides users with a smooth and easy to close window, with minimum wear to components, leading to a long service life with no loss of compression.

Ready to Fabricate

• Faster to fit: With as few as six screws to fit locks and keeps, Rapide requires fewer fixings than any other security window lock in the UK, increasing manufacturing efficiency and reducing costs.
• Manufacturing efficiencies: Rapide eliminates inaccuracy and risk during keep installation ensuring throughput is maximised. The profile can be pre-drilled and keeps can be fitted at any time in the production process without marking, simplifying and speeding up fabrication.
• Reducing stock holding: Rapide's unique rotary locking system ensures one locking point height for all profiles, reducing stock holding for multi system users.
• Simplified ordering: Revolutionary patented gearbox cassette design makes Rapide a truly non-handed lock, reducing stockholding and simplifying re-ordering.
• Superior strength: Fully occupying the eurogroove, Rapide's robust aluminium channel significantly enhances the structural strength
• Enhanced performance: Rapide is the only window lock in the UK which engages the full length of the keep, for optimum security and compression performance.

Ready to Install

• Advanced performance: Unlike all other window locks, Rapide engages the full length of the keeps, for ultimate security and customer peace of mind.
• Instant performance: No need to adjust cams or replace keeps during or after installation- simplifying installation and reducing call backs
• Reduced call backs: Fitted entirely within the eurogroove, Rapide's locking points retract fully when disengaged, eliminating cam clash issues - reducing call backs
• Extended Service life: Rapide's unique locking action significantly reduces wear, eliminating compression loss and ensuring consistent weather-sealing performance for the life of the products
• Superior corrosion resistance: Rapide's aluminum construction delivers superb corrosion resistance, further enhancing product service life - even in aggressive environments.
• Flexible system: Rapide's off-set locks allow for lower handle placement - enabling greater design freedom and easy operation of taller windows.

Ready to Specify

• Maintenance friendly: Rapide's patented removable gearbox cassette allows for easy repair in cases of window abuse and negates the need for maintenance teams to carry large stocks of replacement window locks.
• Low operating forces: Easier to operate for those with reduced dexterity. No need to adjust cams or replace keeps after installation - reducing maintenance calls and costs
• Reducing call backs: Fitted entirely within the eurogroove, Rapide's locking points retract fully when disengaged, eliminating cam clash issues and reducing call backs.
• Advanced corrosion resistance: Corrosion resistance in excess of EN 1670: Grade 5, further enhancing product service life - even in aggressive environments.

Features

• Innovative fully retractable locking bar
• Extremely fast and easy it fit
• Eliminates cam clash Gearbox cartridge allows simple handling selection of the lock
• Fits sash rebate sizes between 400mm and 1599mm*
• 30mm and 60mm keeps with night vent position
• 20mm and 22mm back sets
• Included in the Lifetime Guarantee (terms and conditions apply)

* The sash rebate can go down to 260mm with our single directional lock.

Specifications

• Corrosion tested to BS EN 1670 Grade 5 (480 hours. NSST)
• Endurance tested to 30,000 cycles
• 12-year Mechanical Guarantee

Maintenance

The Yale Rapide Window Lock comes lubricated for life.

• Ensure the lock is free from any building materials and debris which could affect the mechanism
• Yale Rapide can be cleaned using detergent liquids or aerosol based cleaners.

Employing innovative bi-directional locking technology, the Yale Encloser window lock delivers Secured by Design security performance, together with extremely fast fitting and absolutely no cropping. Designed to work with all uPVC window systems and suitable for all sash sizes from 270mm to 1400mm, the Yale Encloser is a true ‘fast fit’ high performance window lock solution.

Features:

• Bi-directional locking cams
• 7.7mm, 9mm and 10.5mm mushroom cam heights 20mm and 22mm backset variants
• Simple compression adjustment
• Suitable for sash sizes 270mm to 1400mm
• 7 models covering 2, 4 and 6 mushrooms
• Suitable for use on PVC, Aluminium and Timber

Specifications:

• Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
• Endurance tested to 50,000 cycles
• Meets requirements of PAS 24:2016

• 10-year Mechanical Guarantee

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

For Eurogroove systems, the Stallion Reverse Espag can be fitted in seconds and once in place, a unique localised reverse action allows the cams to locate from both directions into a central keep to give a very secure locking action. Manufactured predominantly from Stainless Steel to offer the highest corrosion resistance and strength.

Features:

• Stainless Steel construction for ultimate corrosion resistance
• Simple to fit with one piece assembly
• Can be supplied as a kit, complete with keeps
• Twin reverse action cams give high security locking
• Compression adjustable locking cams
• Centre line assists alignment with keep
• Keeps available for most profiles

Specification:

• 10-year Mechanical Guarantee
• Zinc die cast components with zinc passivate finish
• Stainless Steel parts - 430
• Plastic parts - Nylon 66
• Corrosion tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
• Endurance tested to 30,000 cycles
• Tested to the equivalent of PAS 24 (BS 7950) as part of a window system
• Size ranges:
  • Size 1 - 320mm
  • Size 2 - 500mm
  • Size 3 - 750mm
  • Size 4 - 1000mm
  • Size 5 - 1250mm

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

For Eurogroove systems, the Stallion 2 Shootbolt is a quick fit telescopic shootbolt that requires no cropping or cutting. It incorporates some added feature benefits including a unique clip in action to the Eurogroove, an automatic self-setting action that sets the shootbolt at the required length and rising locking cams to maximise engagement and frame clearance. The Stallion 2 Shootbolt is largely Stainless Steel in construction to meet ever increasing requirements.

Features:

• Stainless Steel construction for ultimate corrosion resistance
• Fast-fit telescopic design with auto setting function which reduces fabrication time with no need for cropping
• Clips into Eurogroove reducing the number of screws required
• Rising cam system which provides better sash to frame clearance
• Compression adjustable roller locking cams for smoother operation
• Can be supplied as a kit, complete with keeps to accommodate most profiles
• High security and excellent compression when tested as part of a window system

Specification:

• 10-year Mechanical Guarantee
• Zinc die cast components with zinc passivate finish
• Stainless Steel parts - 430
• Plastic parts - Nylon 66
• Corrosion tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
• Endurance tested to 30,000 cycles
• Can achieve PAS 24 as part of a specific window system
• Standard sizes:
  • Size 1 - 300-400mm
  • Size 2 - 400-540mm
  • Size 3 - 540mm-820mm
  • Size 4 - 820-1300mm
  • Size 5 - 1300mm-1750mm
• Offset sizes:
  • Size 4-2 - 610-920mm (410-650 long 200-270 short)
  • Size 4-3 - 680-1060mm (410-650 long 270-410)
  • Size 5-2 - 850-1145mm (650-875 long 200-270 short)
  • Size 5-3 - 920-1285mm (650-875 long 270-410 short)

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

The Mustang Slim Line Shootbolt with its ultra slim off-set gear box is ideal for face mounting on flat profiles. With the slim gear box design, only a 6.5mm wide cavity is required, allowing it to fit on to profiles with the slimmest of sightlines. This makes it the ideal choice for aluminium and timber systems. The slim line shootbolt is largely steel in construction to meet ever increasing requirements.

Features:

• Only five sizes required to fabricate sashes from 350mm to 1400mm with an extension bar available to achieve even larger sizes or off-set handle positions
• Ultra slim off-set gear box design, ideal for fitting into slim glazing up-stands
• Face mounts onto flat profiles, no need for Eurogroove
• Stainless steel construction for ultimate corrosion resistance
• Fast fit telescopic design which reduces fabrication time, no need for cropping
• High security with excellent compression when tested as part of a window system
• Can be supplied as a kit, complete with keeps for most profiles
• Off-set handle extension kit for fabrication of windows with the handle off-set from the centre of the sash

Specification:

• 10-year Mechanical Guarantee
• Zinc die cast components with zinc passivate finish
• Stainless steel parts - 430
• Plastic parts - Nylon 66
• Tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
• Endurance tested to 30,000 cycles
• Tested to the equivalent of PAS 24 (BS 7950) as part of a window system
• Sash ranges:
  • Size 1 - 350-410mm
  • Size 2 - 410-530mm
  • Size 3 - 530-710mm
  • Size 4 - 710-945mm
  • Size 5 - 945-1400mm
• Off-set extension bar - A single extension bar will increase any shootbolt extension by a maximum of 450mm (extra intermediate transmission guides will be required)

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply

The Mustang Slim Line Reverse Espag with its ultra slim off-set gear box is ideal for face mounting onto flat profiles. With the slim gear box design, only a 6.5mm wide cavity is required, allowing it to fit on to profiles with the slimmest of sightlines. This makes it the ideal choice for aluminium and timber systems.

Features:

• First of its kind to face mount onto flat profiles, no need for Eurogroove
• Ultra slim offset gear box design, ideal for fitting into slim glazing up-stands
• Simple to fit one piece assembly
• Stainless steel construction for ultimate corrosion resistance
• Can be supplied as a kit, complete with keeps, to accommodate most profiles
• Twin reverse action cams provide high security locking
• Compression adjustment locking cams

Specification:

• Zinc die cast components with zinc passivate finish
• Stainless steel parts - 430
• Tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
• Endurance tested to 30,000 cycles
• Tested to the equivalent of PAS 24 as part of a window system
• Sash ranges:
  • Size 1 - 335mm
  • Size 2 - 500mm
  • Size 3 - 750mm
  • Size 4 - 1000mm
  • Size 5 - 1250mm
• 10 year Mechanical guarantee

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply
