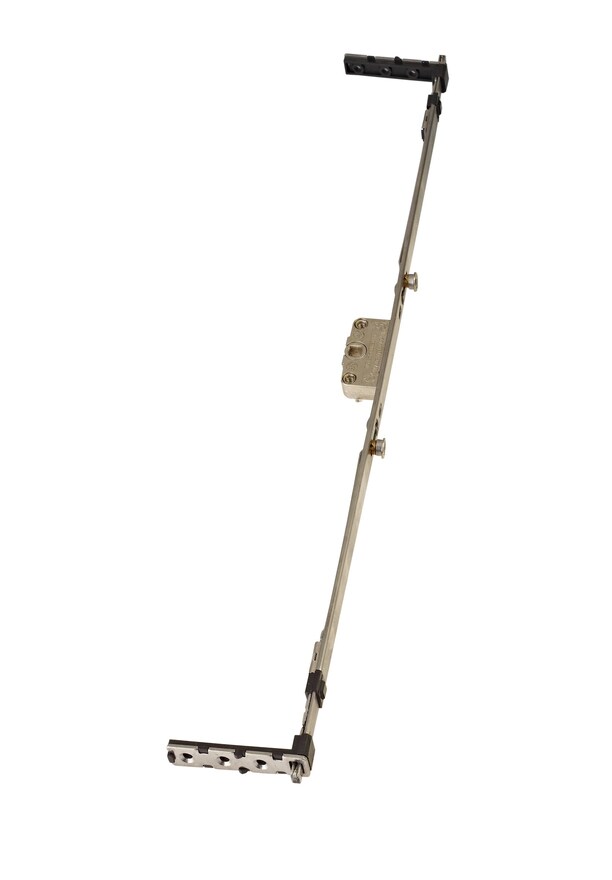

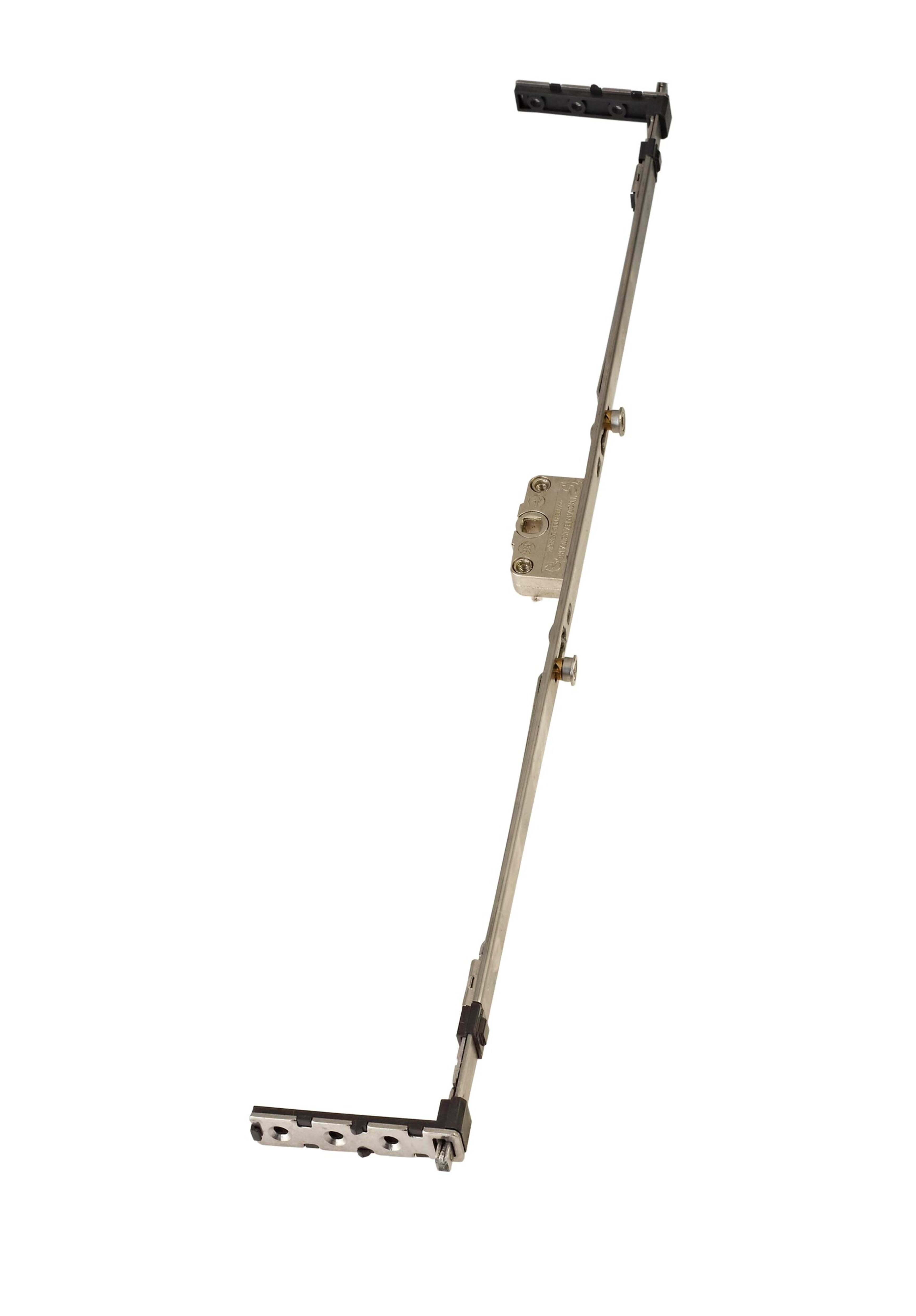

Stallion 2 Shootbolt

For Eurogroove systems, the Stallion 2 Shootbolt is a quick fit telescopic shootbolt that requires no cropping or cutting. It incorporates some added feature benefits including a unique clip in action to the Eurogroove, an automatic self-setting action that sets the shootbolt at the required length and rising locking cams to maximise engagement and frame clearance. The Stallion 2 Shootbolt is largely Stainless Steel in construction to meet ever increasing requirements.

Features:

  • Stainless Steel construction for ultimate corrosion resistance
  • Fast-fit telescopic design with auto setting function which reduces fabrication time with no need for cropping

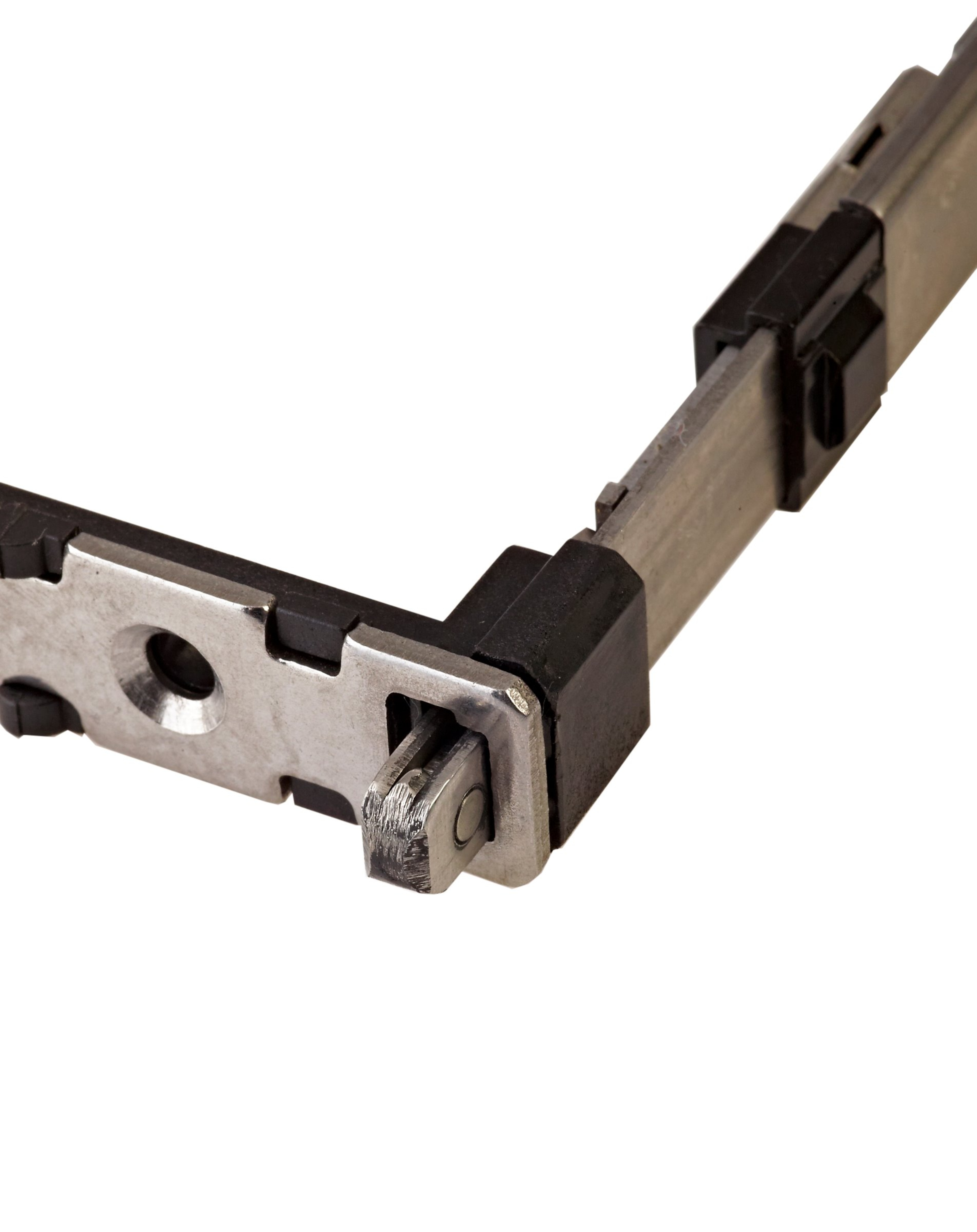

  • Clips into Eurogroove reducing the number of screws required
  • Rising cam system which provides better sash to frame clearance

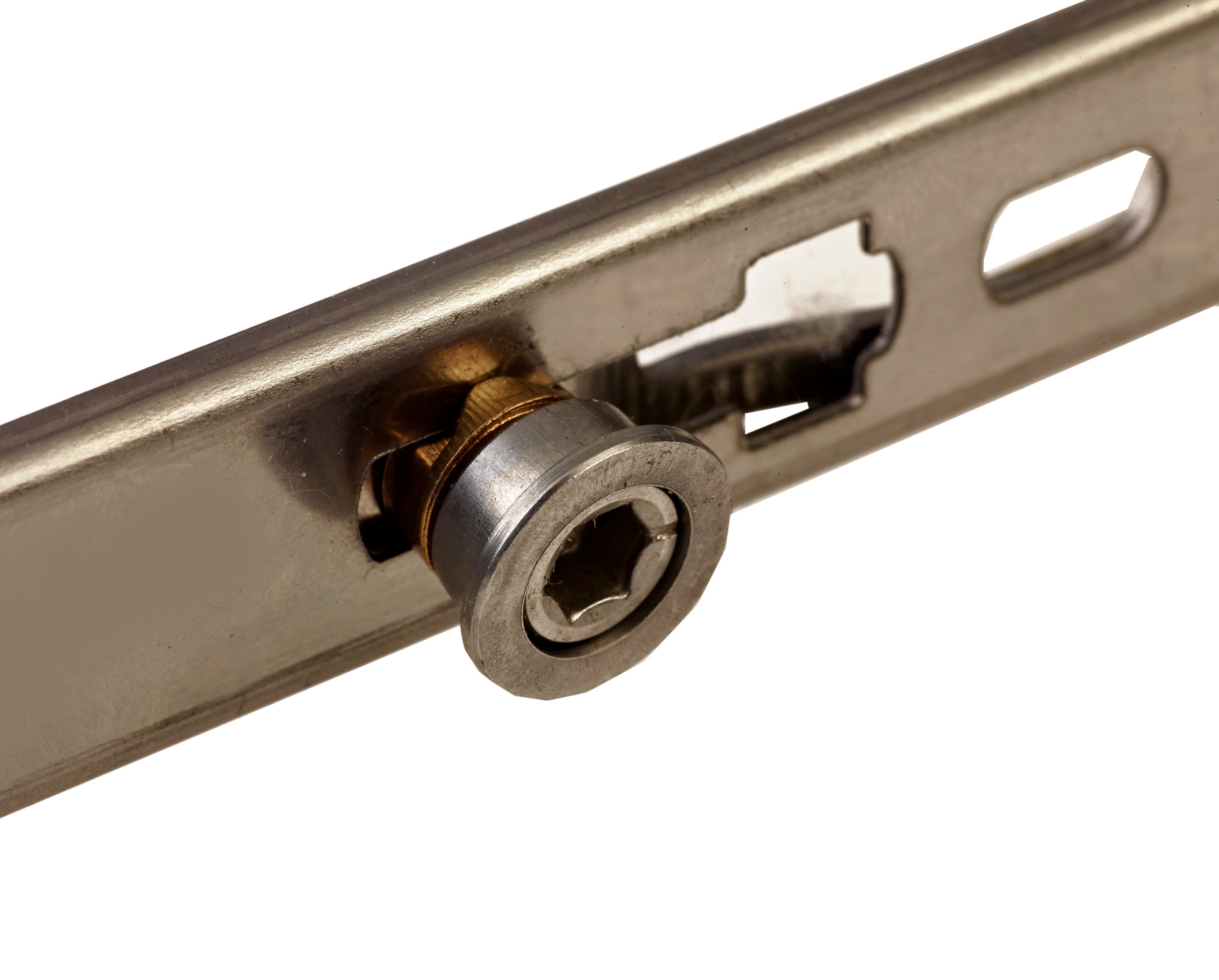

  • Compression adjustable roller locking cams for smoother operation
  • Can be supplied as a kit, complete with keeps to accommodate most profiles
  • High security and excellent compression when tested as part of a window system

Specification:

  • 10-year Mechanical Guarantee
  • Zinc die cast components with zinc passivate finish
  • Stainless Steel parts - 430
  • Plastic parts - Nylon 66
  • Corrosion tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
  • Endurance tested to 30,000 cycles
  • Can achieve PAS 24 as part of a specific window system
  • Standard sizes:
    • Size 1 - 300-400mm
    • Size 2 - 400-540mm
    • Size 3 - 540mm-820mm
    • Size 4 - 820-1300mm
    • Size 5 - 1300mm-1750mm
  • Offset sizes:
    • Size 4-2 - 610-920mm (410-650 long 200-270 short)
    • Size 4-3 - 680-1060mm (410-650 long 270-410)
    • Size 5-2 - 850-1145mm (650-875 long 200-270 short)
    • Size 5-3 - 920-1285mm (650-875 long 270-410 short)

*Guarantee subject to correct installation and maintenance

Included within the Yale Lifetime Security Guarantee*

*Terms and conditions apply
