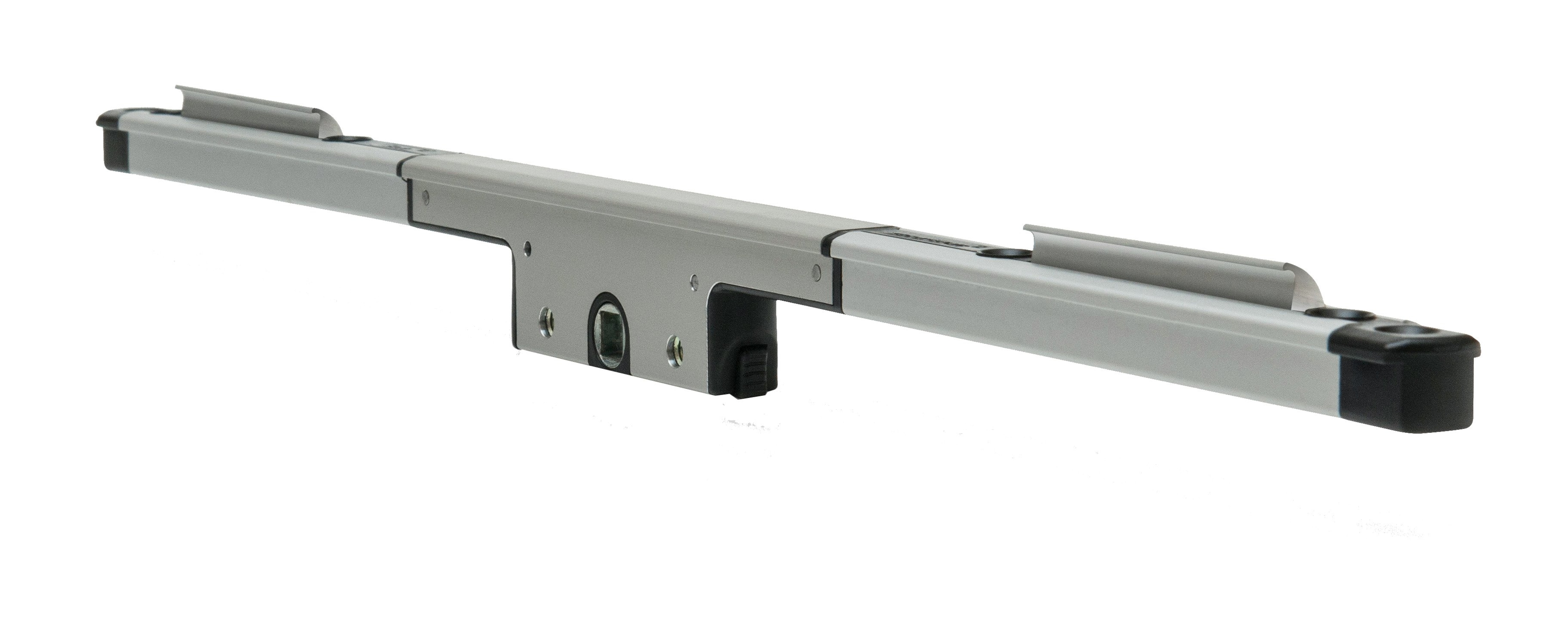

Yale Rapide Window Lock

The Rapide window lock is a unique fully retractable window lock, sitting flush within the Eurogroove, removing the common issues of cam clash and keep alignment found with other styles of lock.

The innovative design allows pre-drilling for keep alignment reducing fabrication time, The system also allows separate installation of the keep and lock prior to the hanging of the sash to deliver greater flexibility and efficiency during fabrication.

The unique rotating action of the lock provides users with a smooth and easy to close window, with minimum wear to components, leading to a long service life with no loss of compression.

Ready to Fabricate

  • Faster to fit: With as few as six screws to fit locks and keeps, Rapide requires fewer fixings than any other security window lock in the UK, increasing manufacturing efficiency and reducing costs.
  • Manufacturing efficiencies: Rapide eliminates inaccuracy and risk during keep installation ensuring throughput is maximised. The profile can be pre-drilled and keeps can be fitted at any time in the production process without marking, simplifying and speeding up fabrication.
  • Reducing stock holding: Rapide's unique rotary locking system ensures one locking point height for all profiles, reducing stock holding for multi system users.
  • Simplified ordering: Revolutionary patented gearbox cassette design makes Rapide a truly non-handed lock, reducing stockholding and simplifying re-ordering.
  • Superior strength: Fully occupying the eurogroove, Rapide's robust aluminium channel significantly enhances the structural strength
  • Enhanced performance: Rapide is the only window lock in the UK which engages the full length of the keep, for optimum security and compression performance.

Ready to Install

  • Advanced performance: Unlike all other window locks, Rapide engages the full length of the keeps, for ultimate security and customer peace of mind.
  • Instant performance: No need to adjust cams or replace keeps during or after installation- simplifying installation and reducing call backs
  • Reduced call backs: Fitted entirely within the eurogroove, Rapide's locking points retract fully when disengaged, eliminating cam clash issues - reducing call backs
  • Extended Service life: Rapide's unique locking action significantly reduces wear, eliminating compression loss and ensuring consistent weather-sealing performance for the life of the products
  • Superior corrosion resistance: Rapide's aluminum construction delivers superb corrosion resistance, further enhancing product service life - even in aggressive environments.
  • Flexible system: Rapide's off-set locks allow for lower handle placement - enabling greater design freedom and easy operation of taller windows.

Ready to Specify

  • Maintenance friendly: Rapide's patented removable gearbox cassette allows for easy repair in cases of window abuse and negates the need for maintenance teams to carry large stocks of replacement window locks.
  • Low operating forces: Easier to operate for those with reduced dexterity. No need to adjust cams or replace keeps after installation - reducing maintenance calls and costs
  • Reducing call backs: Fitted entirely within the eurogroove, Rapide's locking points retract fully when disengaged, eliminating cam clash issues and reducing call backs.
  • Advanced corrosion resistance: Corrosion resistance in excess of EN 1670: Grade 5, further enhancing product service life - even in aggressive environments.

Features

  • Innovative fully retractable locking bar
  • Extremely fast and easy it fit
  • Eliminates cam clash Gearbox cartridge allows simple handling selection of the lock
  • Fits sash rebate sizes between 400mm and 1599mm*
  • 30mm and 60mm keeps with night vent position
  • 20mm and 22mm back sets
  • Included in the Lifetime Guarantee (terms and conditions apply)

* The sash rebate can go down to 260mm with our single directional lock.

Specifications

  • Corrosion tested to BS EN 1670 Grade 5 (480 hours. NSST)
  • Endurance tested to 30,000 cycles
  • 12-year Mechanical Guarantee

Maintenance

The Yale Rapide Window Lock comes lubricated for life.

  • Ensure the lock is free from any building materials and debris which could affect the mechanism
  • Yale Rapide can be cleaned using detergent liquids or aerosol based cleaners.
  • 13870 - Yale DWS - Rapide A4 Presenter AW Low Res29.03.18
  • ProductProduct ID
    RAPIDE 20MM B/SET D/LOCK 400MM SC1 RHR20DL0400R
    RAPIDE 20MM B/SET D/LOCK 415MM SC2 RHR20DL0415R
    RAPIDE 20MM B/SET D/LOCK 520MM SC1 RHR20DL0520R
    RAPIDE 20MM B/SET D/LOCK 535MM SC2 RHR20DL0535R
    RAPIDE 20MM B/SET D/LOCK 640MM SC1 RHR20DL0640R
    RAPIDE 20MM B/SET D/LOCK 655MM SC2 RHR20DL0655R
    RAPIDE 20MM B/SET D/LOCK 760MM SC1 RHR20DL0760R
    RAPIDE 20MM B/SET D/LOCK 775MM SC2 RHR20DL0775R
    RAPIDE 20MM B/SET D/LOCK 880MM SC1 RHR20DL0880R
    RAPIDE 20MM B/SET D/LOCK 895MM SC2 RHR20DL0895R
    RAPIDE 20MM B/SET D/LOCK 1000MM SC1 RHR20DL1000R
    RAPIDE 20MM B/SET D/LOCK 1015MM SC2 RHR20DL1015R
    RAPIDE 20MM B/SET D/LOCK 1120MM SC1 RHR20DL1120R
    RAPIDE 20MM B/SET D/LOCK 1135MM SC2 RHR20DL1135R
    RAPIDE 20MM B/SET D/LOCK 1240MM SC1 RHR20DL1240R
    RAPIDE 20MM B/SET D/LOCK 1255MM SC2 RHR20DL1255R
    RAPIDE 20MM B/SET D/LOCK 1360MM SC1 RHR20DL1360R
    RAPIDE 20MM B/SET D/LOCK 1375MM SC2 RHR20DL1375R
    RAPIDE 20MM B/SET D/LOCK 1480MM SC1 RHR20DL1480R
    RAPIDE 20MM B/SET D/LOCK 1495MM SC2 RHR20DL1495R
    RAPIDE 20MM B/SET D/LOCK 1615MM SC2 RHR20DL1615R
    RAPIDE 20MM B/SET D/LOCK 1855MM SC2 RHR20DL1855R
    RAPIDE 20MM B/SET S/LOCK 230MM SC1 LHR20SL0230L
    RAPIDE 20MM B/SET S/LOCK 230MM SC1 RHR20SL0230R
    RAPIDE 20MM B/SET S/LOCK 245MM SC2 LHR20SL0245L
    RAPIDE 20MM B/SET S/LOCK 245MM SC2 RHR20SL0245R
    RAPIDE 20MM B/SET S/LOCK 350MM SC1 LHR20SL0350L
    RAPIDE 20MM B/SET S/LOCK 350MM SC1 RHR20SL0350R
    RAPIDE 20MM B/SET S/LOCK 365MM SC2 LHR20SL0365L
    RAPIDE 20MM B/SET S/LOCK 365MM SC2 RHR20SL0365R
    RAPIDE 20MM B/SET D/OFFSET 520MM SC1 LHR20DX0520L
    RAPIDE 20MM B/SET D/OFFSET 520MM SC1 RHR20DX0520R
    RAPIDE 20MM B/SET D/OFFSET 535MM SC2 LHR20DX0535L
    RAPIDE 20MM B/SET D/OFFSET 535MM SC2 RHR20DX0535R
    RAPIDE 20MM B/SET D/OFFSET 640MM SC1 LHR20DX0640L
    RAPIDE 20MM B/SET D/OFFSET 640MM SC1 RHR20DX0640R
    RAPIDE 20MM B/SET D/OFFSET 655MM SC2 LHR20DX0655L
    RAPIDE 20MM B/SET D/OFFSET 655MM SC2 RHR20DX0655R
    RAPIDE 20MM B/SET D/OFFSET 760MM SC1 LHR20DX0760L
    RAPIDE 20MM B/SET D/OFFSET 760MM SC1 RHR20DX0760R
    RAPIDE 20MM B/SET D/OFFSET 775MM SC2 LHR20DX0775L
    RAPIDE 20MM B/SET D/OFFSET 775MM SC2 RHR20DX0775R
    RAPIDE 20MM B/SET D/OFFSET 880MM SC1 LHR20DX0880L
    RAPIDE 20MM B/SET D/OFFSET 880MM SC1 RHR20DX0880R
    RAPIDE 20MM B/SET D/OFFSET 895MM SC2 LHR20DX0895L
    RAPIDE 20MM B/SET D/OFFSET 895MM SC2 RHR20DX0895R
    RAPIDE 20MM B/SET D/OFFSET 1000MM SC1 LHR20DX1000L
    RAPIDE 20MM B/SET D/OFFSET 1000MM SC1 RHR20DX1000R
    RAPIDE 20MM B/SET D/OFFSET 1015MM SC2 LHR20DX1015L
    RAPIDE 20MM B/SET D/OFFSET 1015MM SC2 RHR20DX1015R
    RAPIDE 20MM B/SET D/OFFSET 1120MM SC1 LHR20DX1120L
    RAPIDE 20MM B/SET D/OFFSET 1120MM SC1 RHR20DX1120R
    RAPIDE 20MM B/SET D/OFFSET 1135MM SC2 LHR20DX1135L
    RAPIDE 20MM B/SET D/OFFSET 1135MM SC2 RHR20DX1135R
    RAPIDE 20MM B/SET D/OFFSET 1240MM SC1 LHR20DX1240L
    RAPIDE 20MM B/SET D/OFFSET 1240MM SC1 RHR20DX1240R
    RAPIDE 20MM B/SET D/OFFSET 1255MM SC2 LHR20DX1255L
    RAPIDE 20MM B/SET D/OFFSET 1255MM SC2 RHR20DX1255R
    RAPIDE 22MM B/SET D/LOCK 400MM SC1 RHR22DL0400R
    RAPIDE 22MM B/SET D/LOCK 415MM SC2 RHR22DL0415R
    RAPIDE 22MM B/SET D/LOCK 520MM SC1 RHR22DL0520R
    RAPIDE 22MM B/SET D/LOCK 535MM SC2 RHR22DL0535R
    RAPIDE 22MM B/SET D/LOCK 640MM SC1 RHR22DL0640R
    RAPIDE 22MM B/SET D/LOCK 655MM SC2 RHR22DL0655R
    RAPIDE 22MM B/SET D/LOCK 760MM SC1 RHR22DL0760R
    RAPIDE 22MM B/SET D/LOCK 775MM SC2 RHR22DL0775R
    RAPIDE 22MM B/SET D/LOCK 880MM SC1 RHR22DL0880R
    RAPIDE 22MM B/SET D/LOCK 895MM SC2 RHR22DL0895R
    RAPIDE 22MM B/SET D/LOCK 1000MM SC1 RHR22DL1000R
    RAPIDE 22MM B/SET D/LOCK 1015MM SC2 RHR22DL1015R
    RAPIDE 22MM B/SET D/LOCK 1120MM SC1 RHR22DL1120R
    RAPIDE 22MM B/SET D/LOCK 1135MM SC2 RHR22DL1135R
    RAPIDE 22MM B/SET D/LOCK 1240MM SC1 RHR22DL1240R
    RAPIDE 22MM B/SET D/LOCK 1255MM SC2 RHR22DL1255R
    RAPIDE 22MM B/SET D/LOCK 1360MM SC1 RHR22DL1360R
    RAPIDE 22MM B/SET D/LOCK 1375MM SC2 RHR22DL1375R
    RAPIDE 22MM B/SET D/LOCK 1480MM SC1 RHR22DL1480R
    RAPIDE 22MM B/SET D/LOCK 1495MM SC2 RHR22DL1495R
    BLADE 22MM B/SET S/LOCK 230MM SC1 LHR22SL0230L
    BLADE 22MMB/SET S/LOCK 230MM SC1 RHR22SL0230R
    BLADE 22MM B/SET S/LOCK 245MM SC2 LHR22SL0245L
    BLADE 22MM B/SET S/LOCK 245MM SC2 RHR22SL0245R
    BLADE 22MM B/SET S/LOCK 350MM SC1 LHR22SL0350L
    BLADE 22MM B/SET S/LOCK 350MM SC1 RHR22SL0350R
    BLADE 22MM B/SET S/LOCK 365MM SC2 LHR22SL0365L
    BLADE 22MM B/SET S/LOCK 365MM SC2 RHR22SL0365R
    RAPIDE 22MM B/SET D/OFFSET 520MM SC1 LHR22DX0520L
    RAPIDE 22MM B/SET D/OFFSET 520MM SC1 RHR22DX0520R
    RAPIDE 22MM B/SET D/OFFSET 535MM SC2 LHR22DX0535L
    RAPIDE 22MM B/SET D/OFFSET 535MM SC2 RHR22DX0535R
    RAPIDE 22MM B/SET D/OFFSET 640MM SC1 LHR22DX0640L
    RAPIDE 22MM B/SET D/OFFSET 640MM SC1 RHR22DX0640R
    RAPIDE 22MM B/SET D/OFFSET 655MM SC2 LHR22DX0655L
    RAPIDE 22MM B/SET D/OFFSET 655MM SC2 RHR22DX0655R
    RAPIDE 22MM B/SET D/OFFSET 760MM SC1 LHR22DX0760L
    RAPIDE 22MM B/SET D/OFFSET 760MM SC1 RHR22DX0760R
    RAPIDE 22MM B/SET D/OFFSET 775MM SC2 LHR22DX0775L
    RAPIDE 22MM B/SET D/OFFSET 775MM SC2 RHR22DX0775R
    RAPIDE 22MM B/SET D/OFFSET 880MM SC1 LHR22DX0880L
    RAPIDE 22MM B/SET D/OFFSET 880MM SC1 RHR22DX0880R
    RAPIDE 22MM B/SET D/OFFSET 895MM SC2 LHR22DX0895L
    RAPIDE 22MM B/SET D/OFFSET 895MM SC2 RHR22DX0895R
    RAPIDE 22MM B/SET D/OFFSET 1000MM SC1 LHR22DX1000L
    RAPIDE 22MM B/SET D/OFFSET 1000MM SC1 RHR22DX1000R
    RAPIDE 22MM B/SET D/OFFSET 1015MM SC2 LHR22DX1015L
    RAPIDE 22MM B/SET D/OFFSET 1015MM SC2 RHR22DX1015R
    RAPIDE 22MM B/SET D/OFFSET 1120MM SC1 LHR22DX1120L
    RAPIDE 22MM B/SET D/OFFSET 1120MM SC1 RHR22DX1120R
    RAPIDE 22MM B/SET D/OFFSET 1135MM SC2 LHR22DX1135L
    RAPIDE 22MM B/SET D/OFFSET 1135MM SC2 RHR22DX1135R
    RAPIDE 22MM B/SET D/OFFSET 1240MM SC1 LHR22DX1240L
    RAPIDE 22MM B/SET D/OFFSET 1240MM SC1 RHR22DX1240R
    RAPIDE 22MM B/SET D/OFFSET 1255MM SC2 LHR22DX1255L
    RAPIDE 22MM B/SET D/OFFSET 1255MM SC2 RHR22DX1255R
    RAPIDE GEARBOX CARTRIDGERGCART

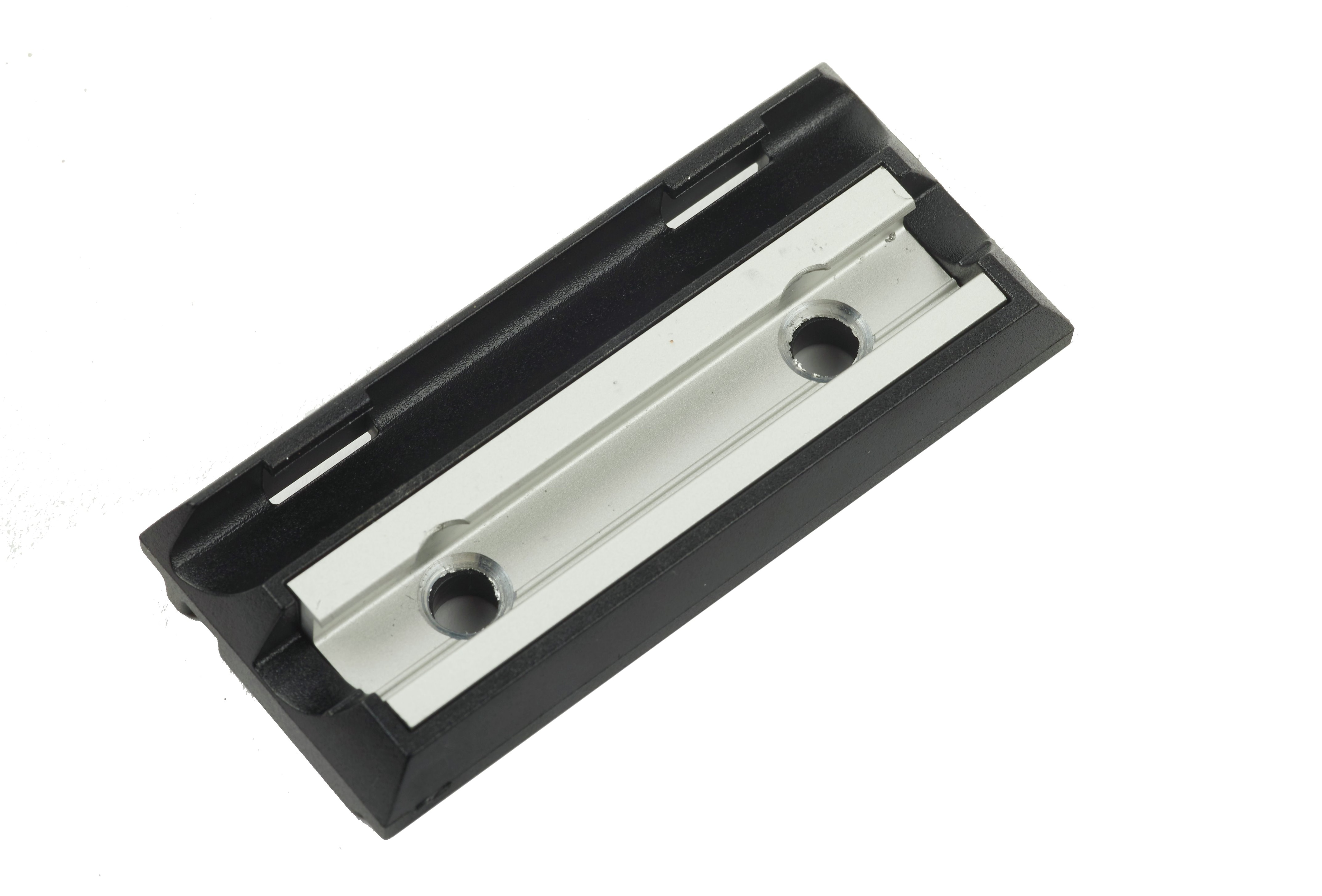

    DECEUNINCK 2800 RAPIDE MOULDED KEEPRK04R60-01
    LINIAR RAPIDE MOULDED KEEPRK12R60-01
    VEKA M70 RAPIDE MOULDED KEEPRK23R60-01
    P22 OPTIMA RAPIDE MOULDED KEEPRK36R60-01
    DECEUNINCK 2500/3000 RAPIDE ADJUST KEEPRK03M60-01
    KOMMERLING C70 / O70 RAPIDE ADJUST KEEPRK09M60-01
    DURAFLEX DIAMOND RAPIDE STATIC KEEPRK05S60-01
    KOMMERLING C70 & O70 RAPIDE STATIC KEEPRK09S60-01
    SYNSEAL SYNERJY RAPIDE STATIC KEEPRK22S60-01
    TIMBER RAPIDE STATIC KEEPRK30S60-01

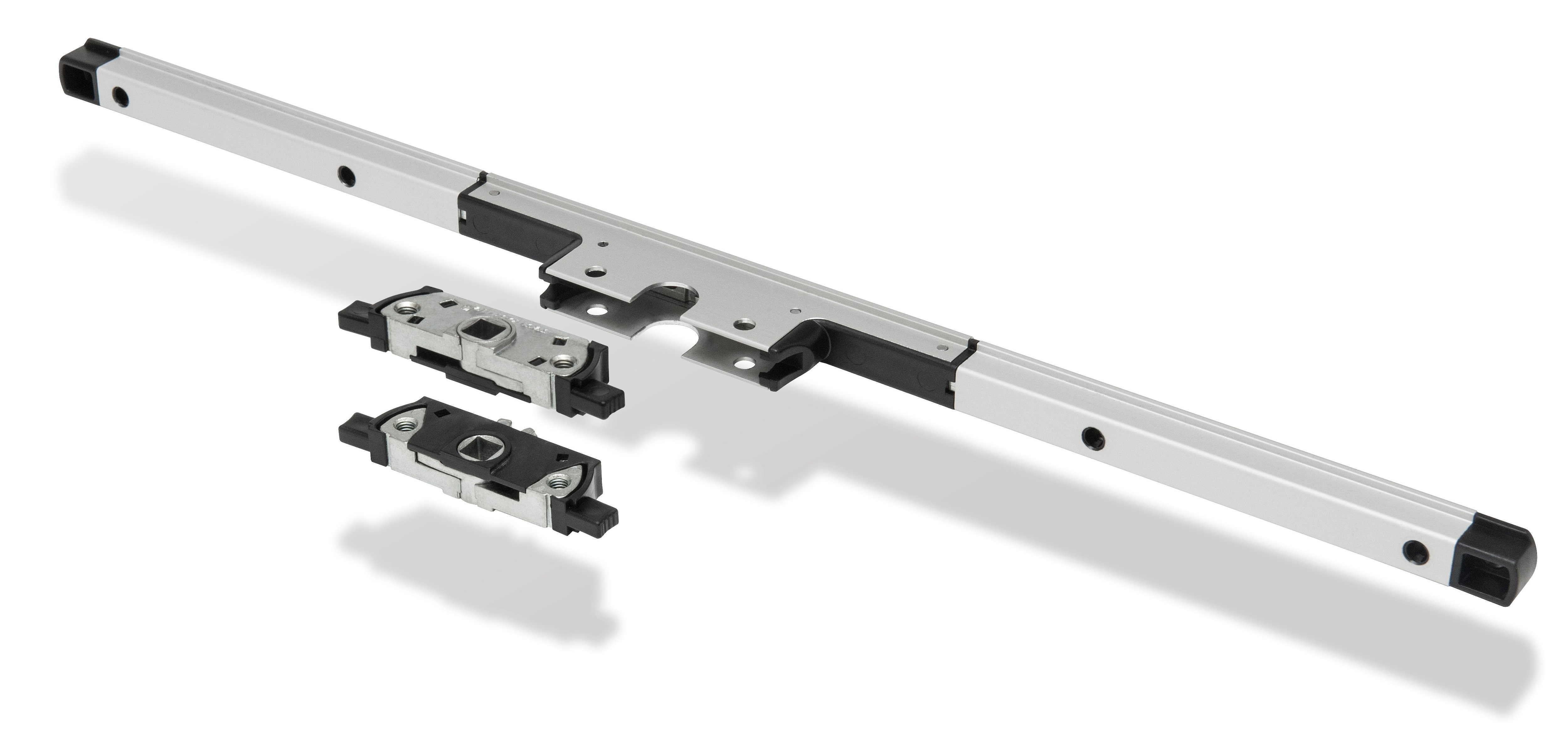

  • Flush Sash Shootbolt System

    Suitable for most uPVC standard casement and flush window systems, as well as aluminium and timber profiles and covering all window sizes from 326mm to 1420mm with just 4 rod sizes The croppable Yale Shootbolt window lock offers high security shootbolt performance with a minimum of components, adjustable mushroom cams offering enhanced anti-separation performance, together with simple compression adjustment.



    Features

    • Secondary cam for night vent feature
    • High security shootbolt system
    • Adjustable 7.7mm and 9mm mushroom cams 20mm and 22mm backsets
    • Profile related keeps
    • 4 crop to fit shootbolt rod sizes to achieve sash sizes 326mm and 1420mm
    • Also available in a non-crop variant with an extendable gearbox and 7 rod sizes covering sash sizes 522mm to 1510mm



    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 50,000 cycles
    • Secured by Design accredited
    • PAS 24:2016 compliant
    • BBA certified
    • Made in Britain
    • 10-year Mechanical Guarantee

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

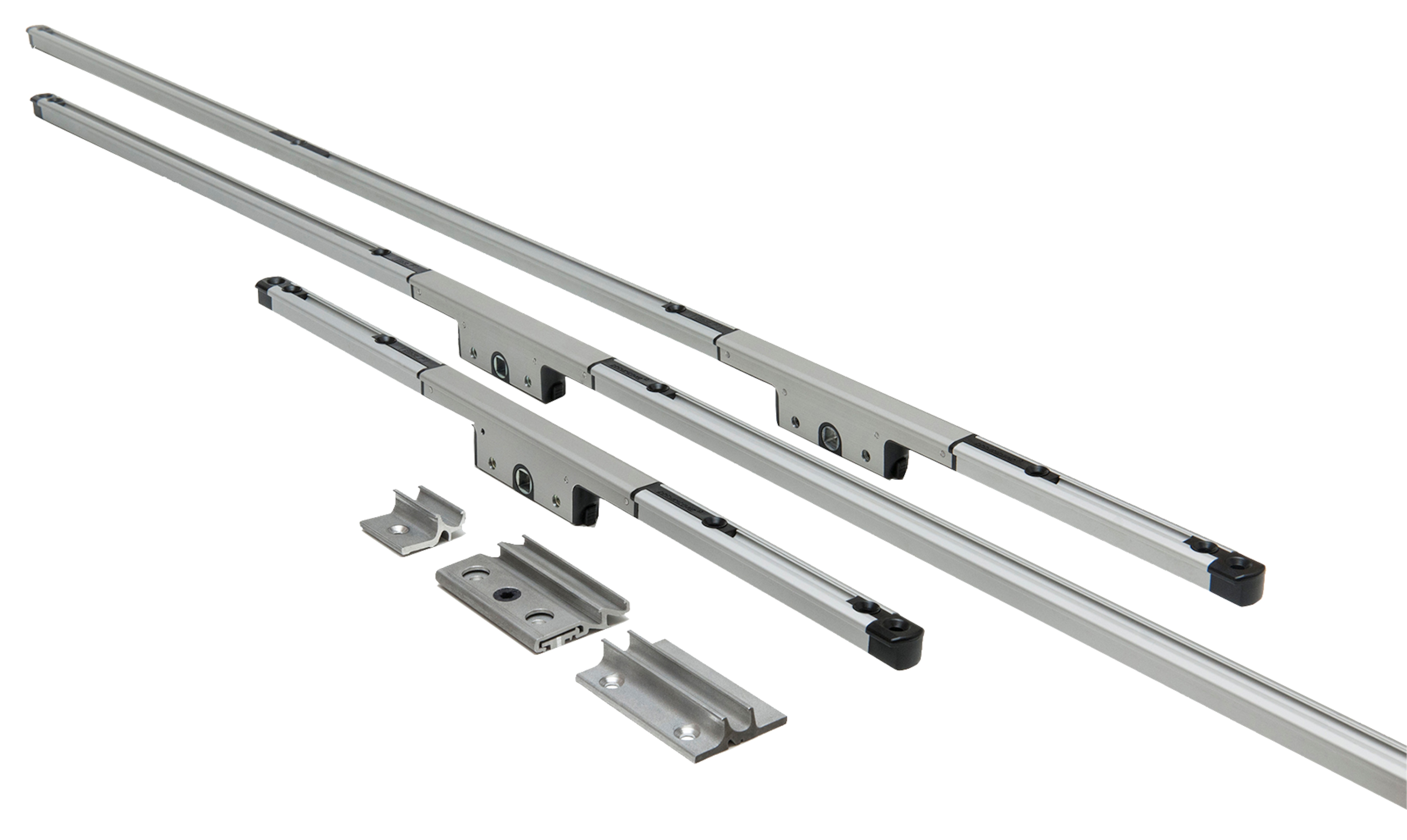

  • Shootbolt Window Lock

    Shootbolt Croppable

    Suitable for use on PVC, Aluminium & Timber window systems and covering all window sizes from 326mm to 1420mm with just 4 rod sizes, the croppable Yale Shootbolt window lock offers high security shootbolt performance with a minimum of components. Adjustable mushroom cams offer enhanced anti-separation performance, together with simple compression adjustment.

    The Shootbolt Window Lock is compatible with the Yale SensCheck ™ Door and Window Sensor range

    Shootbolt Extendable

    Suitable for PVC, Aluminium & Timber window systems and covering all window sizes from 476mm to 1520mm without the need to cut the shoot bolt extensions the non-cropping Yale shootbolt window lock combines high security shootbolt performance with efficient manufacturing. Adjustable mushroom cams offer enhanced anti-separation performance, together with simple compression adjustment. Sash sizes as little as 476mm, can be achieved by using the Yale Shootbolt window lock croppable gearbox.



    Features:

    • High security shootbolt system
    • Available in 'croppable' and 'extendable'
    • Adjustable 7.7mm and 9mm mushroom cams
    • 20mm and 22mm backsets
    • Large array of keeps covering all profiles
    • 4 crop-to-fit shootbolt sizes to achieve sash sizes 326mm to 1420mm
    • Extendable gearbox and 8 rod sizes to achieve sash sizes 476mm to 1520mm
    • Shootbolt Flush Sash options available
    • Suitable for use on PVC, Aluminium & Timber

    Specifications:

    • BBA certification
    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 50,000 cycles
    • PAS 24:2016 compliant
    • Designed to achieve PAS 24:2016

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

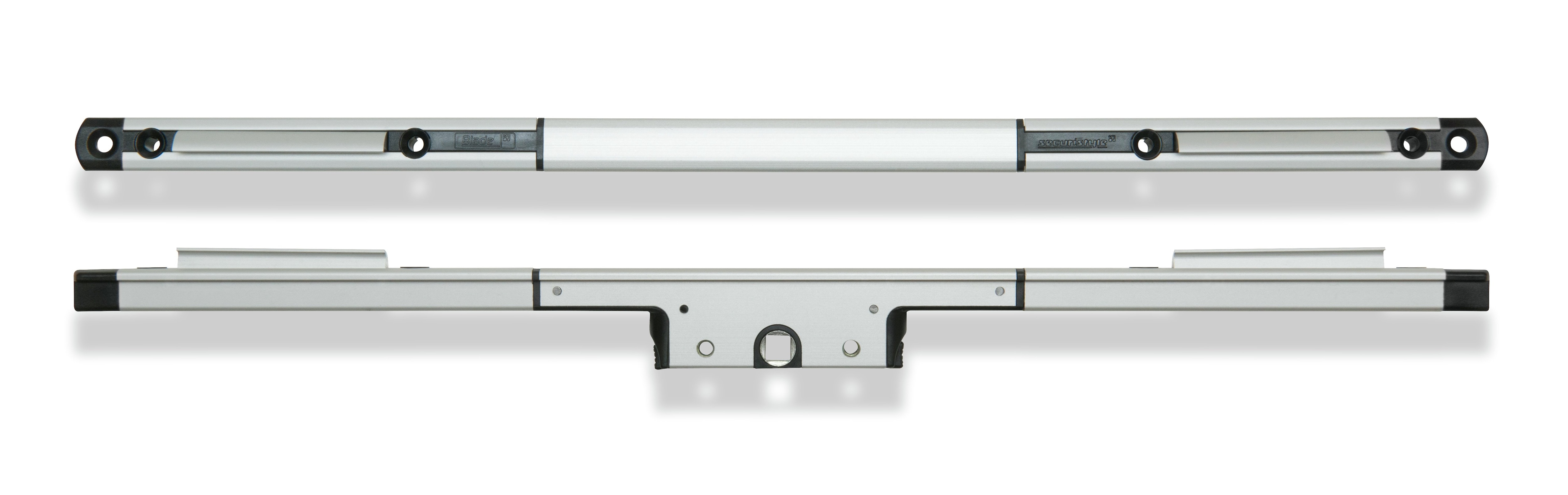

  • Yale Encloser

    Employing innovative bi-directional locking technology, the Yale Encloser window lock delivers Secured by Design security performance, together with extremely fast fitting and absolutely no cropping. Designed to work with all uPVC window systems and suitable for all sash sizes from 270mm to 1400mm, the Yale Encloser is a true ‘fast fit’ high performance window lock solution.



    Features:

    • Bi-directional locking cams
    • 7.7mm, 9mm and 10.5mm mushroom cam heights 20mm and 22mm backset variants
    • Simple compression adjustment
    • Suitable for sash sizes 270mm to 1400mm
    • 7 models covering 2, 4 and 6 mushrooms
    • Suitable for use on PVC, Aluminium and Timber

    Specifications:

    • Corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST)
    • Endurance tested to 50,000 cycles
    • BBA Certification
    • Meets requirements of PAS 24:2016

    • 10-year Mechanical Guarantee

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Stallion Reverse Espag

    For Eurogroove systems, the Stallion Reverse Espag can be fitted in seconds and once in place, a unique localised reverse action allows the cams to locate from both directions into a central keep to give a very secure locking action. Manufactured predominantly from Stainless Steel to offer the highest corrosion resistance and strength.

    Features:

    • Stainless Steel construction for ultimate corrosion resistance
    • Simple to fit with one piece assembly
    • Can be supplied as a kit, complete with keeps
    • Twin reverse action cams give high security locking
    • Compression adjustable locking cams
    • Centre line assists alignment with keep
    • Keeps available for most profiles

    Specification:

    • 10-year Mechanical Guarantee
    • Zinc die cast components with zinc passivate finish
    • Stainless Steel parts - 430
    • Plastic parts - Nylon 66
    • Corrosion tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
    • Endurance tested to 30,000 cycles
    • Tested to the equivalent of PAS 24 (BS 7950) as part of a window system
    • Size ranges:
      • Size 1 - 320mm
      • Size 2 - 500mm
      • Size 3 - 750mm
      • Size 4 - 1000mm
      • Size 5 - 1250mm

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Stallion 2 Shootbolt

    For Eurogroove systems, the Stallion 2 Shootbolt is a quick fit telescopic shootbolt that requires no cropping or cutting. It incorporates some added feature benefits including a unique clip in action to the Eurogroove, an automatic self-setting action that sets the shootbolt at the required length and rising locking cams to maximise engagement and frame clearance. The Stallion 2 Shootbolt is largely Stainless Steel in construction to meet ever increasing requirements.

    Features:

    • Stainless Steel construction for ultimate corrosion resistance
    • Fast-fit telescopic design with auto setting function which reduces fabrication time with no need for cropping
    • Clips into Eurogroove reducing the number of screws required
    • Rising cam system which provides better sash to frame clearance
    • Compression adjustable roller locking cams for smoother operation
    • Can be supplied as a kit, complete with keeps to accommodate most profiles
    • High security and excellent compression when tested as part of a window system

    Specification:

    • 10-year Mechanical Guarantee
    • Zinc die cast components with zinc passivate finish
    • Stainless Steel parts - 430
    • Plastic parts - Nylon 66
    • Corrosion tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
    • Endurance tested to 30,000 cycles
    • Can achieve PAS 24 as part of a specific window system
    • Standard sizes:
      • Size 1 - 300-400mm
      • Size 2 - 400-540mm
      • Size 3 - 540mm-820mm
      • Size 4 - 820-1300mm
      • Size 5 - 1300mm-1750mm
    • Offset sizes:
      • Size 4-2 - 610-920mm (410-650 long 200-270 short)
      • Size 4-3 - 680-1060mm (410-650 long 270-410)
      • Size 5-2 - 850-1145mm (650-875 long 200-270 short)
      • Size 5-3 - 920-1285mm (650-875 long 270-410 short)

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

    For Eurogroove systems, the Stallion 2 Shootbolt is a quick fit telescopic shootbolt that requires no cropping or cutting. It incorporates some added feature benefits including a unique clip in action to the Eurogroove, an automatic self-setting action that sets the shootbolt at the required length and rising locking cams to maximise engagement and frame clearance. The Stallion 2 Shootbolt is largely Stainless Steel in construction to meet ever increasing requirements.

    Features:

    • Stainless Steel construction for ultimate corrosion resistance
    • Fast-fit telescopic design with auto setting function which reduces fabrication time with no need for cropping
    • Clips into Eurogroove reducing the number of screws required
    • Rising cam system which provides better sash to frame clearance
    • Compression adjustable roller locking cams for smoother operation
    • Can be supplied as a kit, complete with keeps to accommodate most profiles
    • High security and excellent compression when tested as part of a window system

    Specification:

    • 10-year Mechanical Guarantee
    • Zinc die cast components with zinc passivate finish
    • Stainless Steel parts - 430
    • Plastic parts - Nylon 66
    • Tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
    • Endurance tested to 30,000 cycles
    • Can achieve PAS 24 as part of a specific window system
    • Standard sizes:
      • Size 1 - 300-400mm
      • Size 2 - 400-540mm
      • Size 3 - 540mm-820mm
      • Size 4 - 820-1300mm
      • Size 5 - 1300mm-1750mm
    • Offset sizes:
      • Size 4-2 - 610-920mm (410-650 long 200-270 short)
      • Size 4-3 - 680-1060mm (410-650 long 270-410)
      • Size 5-2 - 850-1145mm (650-875 long 200-270 short)
      • Size 5-3 - 920-1285mm (650-875 long 270-410 short)

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Mustang Slim Line Shootbolt

    The Mustang Slim Line Shootbolt with its ultra slim off-set gear box is ideal for face mounting on flat profiles. With the slim gear box design, only a 6.5mm wide cavity is required, allowing it to fit on to profiles with the slimmest of sightlines. This makes it the ideal choice for aluminium and timber systems. The slim line shootbolt is largely steel in construction to meet ever increasing requirements.

    Features:

    • Only five sizes required to fabricate sashes from 350mm to 1400mm with an extension bar available to achieve even larger sizes or off-set handle positions
    • Ultra slim off-set gear box design, ideal for fitting into slim glazing up-stands
    • Face mounts onto flat profiles, no need for Eurogroove
    • Stainless steel construction for ultimate corrosion resistance
    • Fast fit telescopic design which reduces fabrication time, no need for cropping
    • High security with excellent compression when tested as part of a window system
    • Can be supplied as a kit, complete with keeps for most profiles
    • Off-set handle extension kit for fabrication of windows with the handle off-set from the centre of the sash

    Specification:

    • 10-year Mechanical Guarantee
    • Zinc die cast components with zinc passivate finish
    • Stainless steel parts - 430
    • Plastic parts - Nylon 66
    • Tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
    • Endurance tested to 30,000 cycles
    • Tested to the equivalent of PAS 24 (BS 7950) as part of a window system
    • Sash ranges:
      • Size 1 - 350-410mm
      • Size 2 - 410-530mm
      • Size 3 - 530-710mm
      • Size 4 - 710-945mm
      • Size 5 - 945-1400mm
    • Off-set extension bar - A single extension bar will increase any shootbolt extension by a maximum of 450mm (extra intermediate transmission guides will be required)

    *Guarantee subject to correct installation and maintenance

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

  • Mustang Slim Line Reverse Espag

    The Mustang Slim Line Reverse Espag with its ultra slim off-set gear box is ideal for face mounting onto flat profiles. With the slim gear box design, only a 6.5mm wide cavity is required, allowing it to fit on to profiles with the slimmest of sightlines. This makes it the ideal choice for aluminium and timber systems.

    Features:

    • First of its kind to face mount onto flat profiles, no need for Eurogroove
    • Ultra slim offset gear box design, ideal for fitting into slim glazing up-stands
    • Simple to fit one piece assembly
    • Stainless steel construction for ultimate corrosion resistance
    • Can be supplied as a kit, complete with keeps, to accommodate most profiles
    • Twin reverse action cams provide high security locking
    • Compression adjustment locking cams

    Specification:

    • Zinc die cast components with zinc passivate finish
    • Stainless steel parts - 430
    • Tested to BS EN 1670 and has exceeded grade 4 classification (240hrs. NSST)
    • Endurance tested to 30,000 cycles
    • Tested to the equivalent of PAS 24 as part of a window system
    • Sash ranges:
      • Size 1 - 335mm
      • Size 2 - 500mm
      • Size 3 - 750mm
      • Size 4 - 1000mm
      • Size 5 - 1250mm
    • 10 year Mechanical guarantee

    Included within the Yale Lifetime Security Guarantee*

    *Terms and conditions apply

Yale Rapide Video

Yale Rapide - The Revolutionary New Concept in Window Lock Technology.
